MAERSK VIGO
9401697 | 9V8435 | 9401697 by ********* Last update: Mon Jul 01 2024
General Info
Ship Name:MAERSK VIGO
IMO Code:9401697
Call Sign:9V8435
Line Operator:9401697
Class Name for Sister Ships:MSL
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,678
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

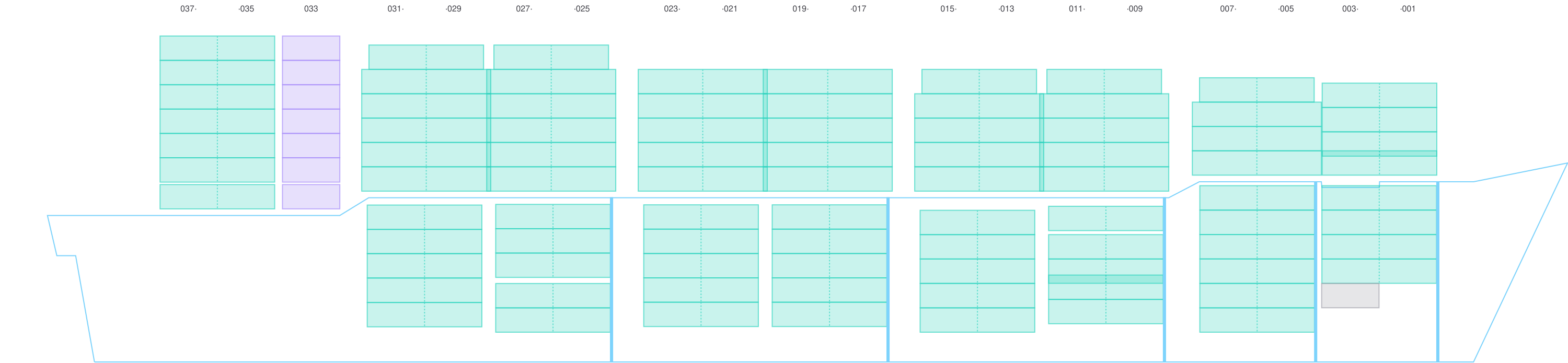

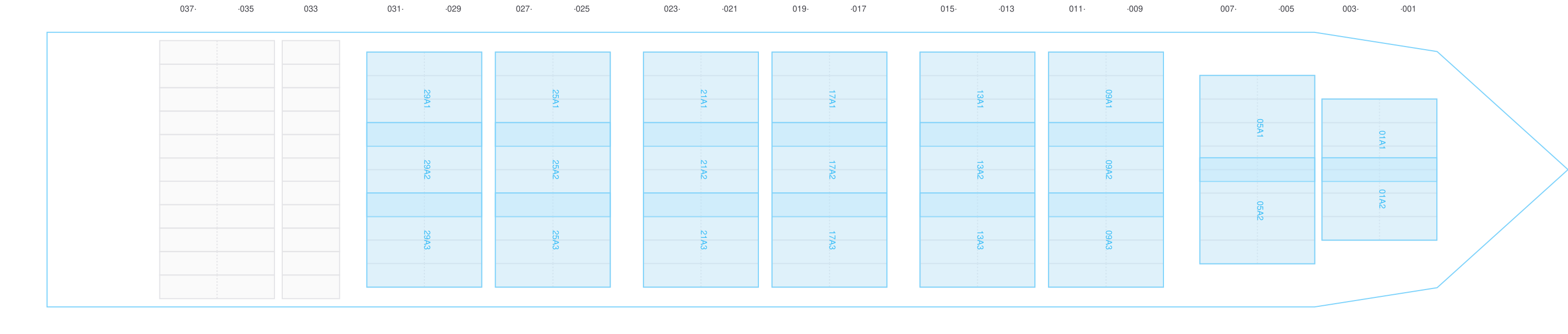

Side View
Hatch-Covers View

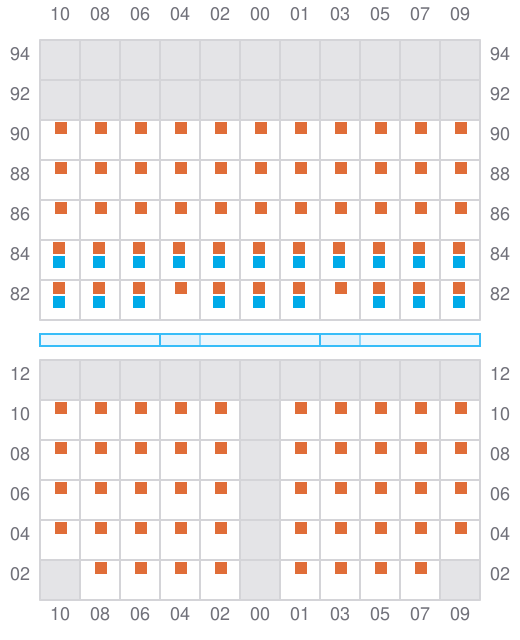

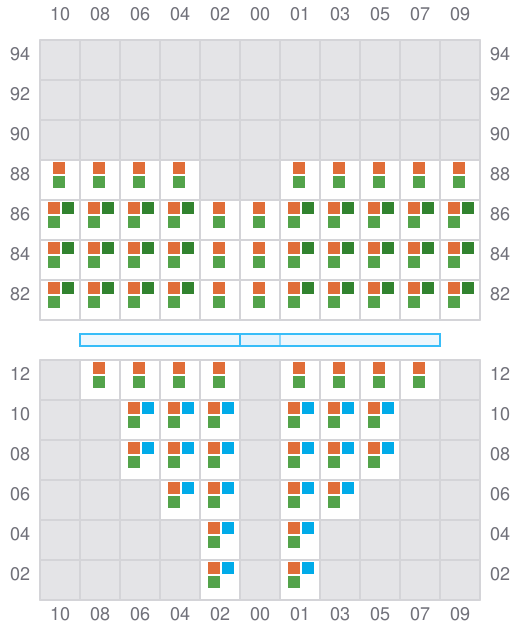

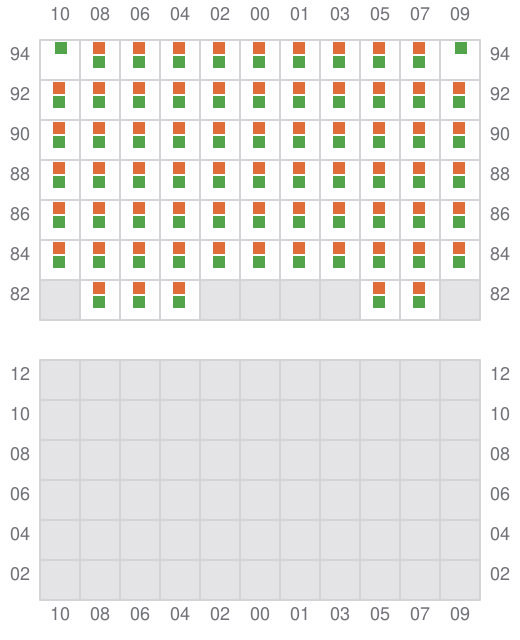

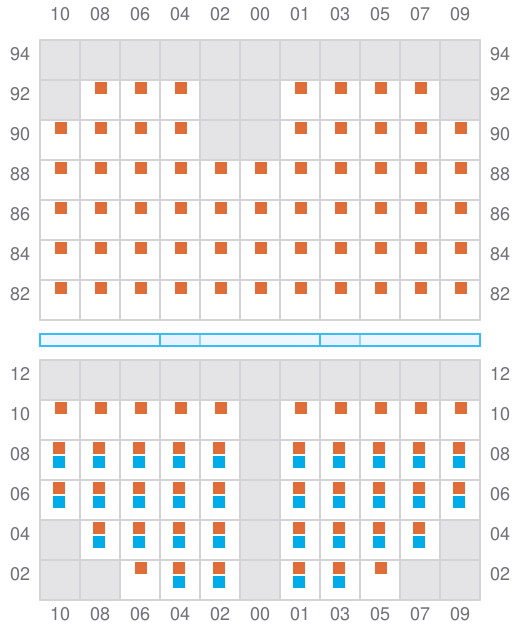

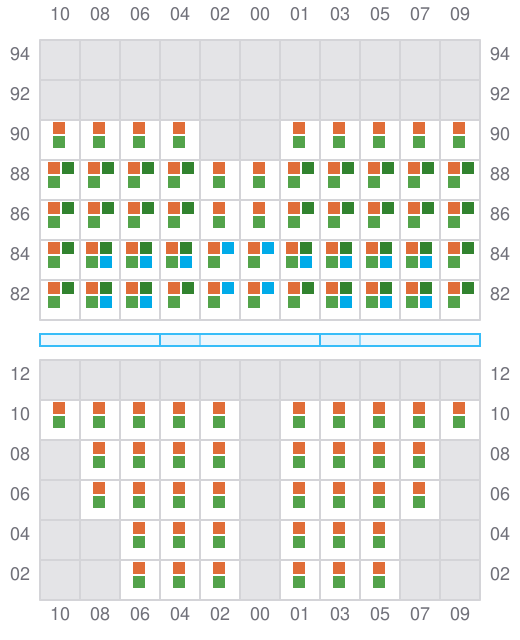

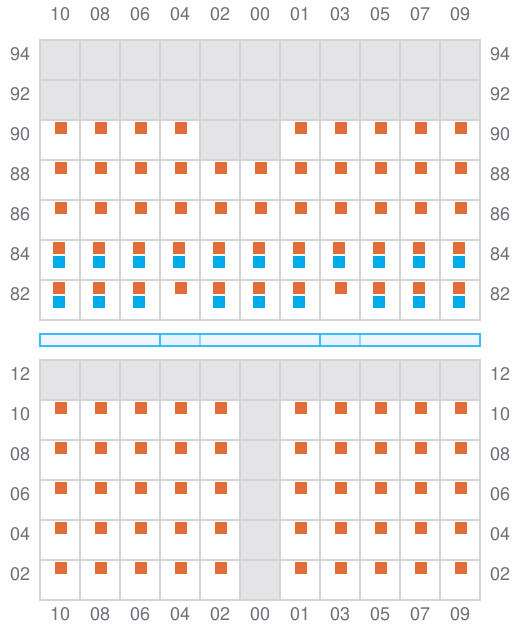

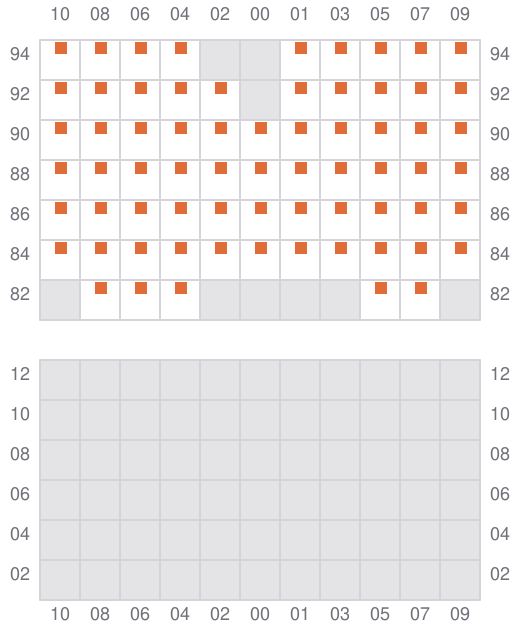

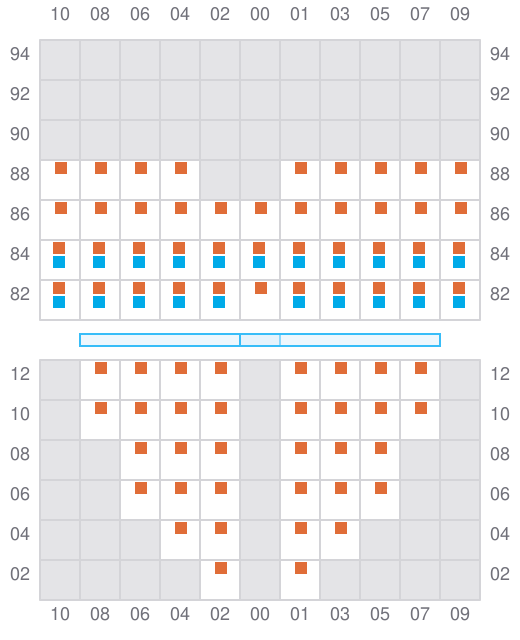

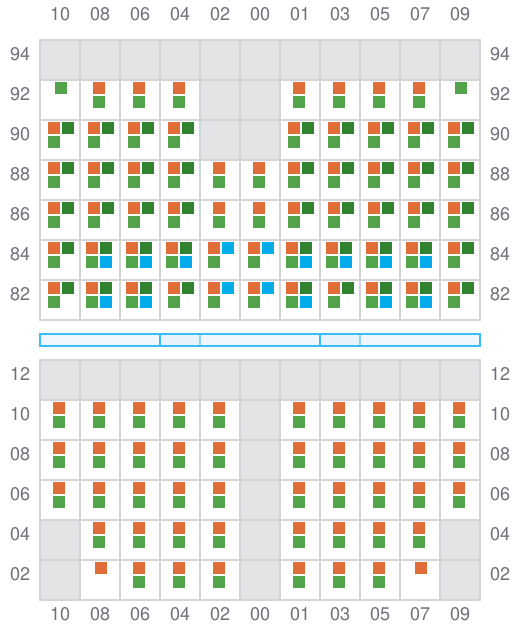

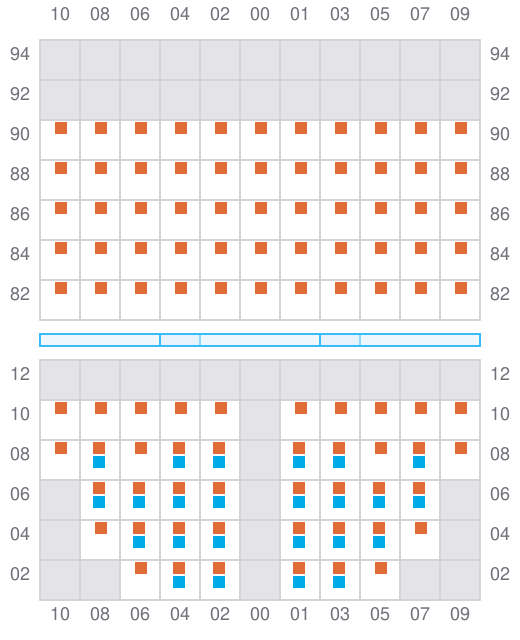

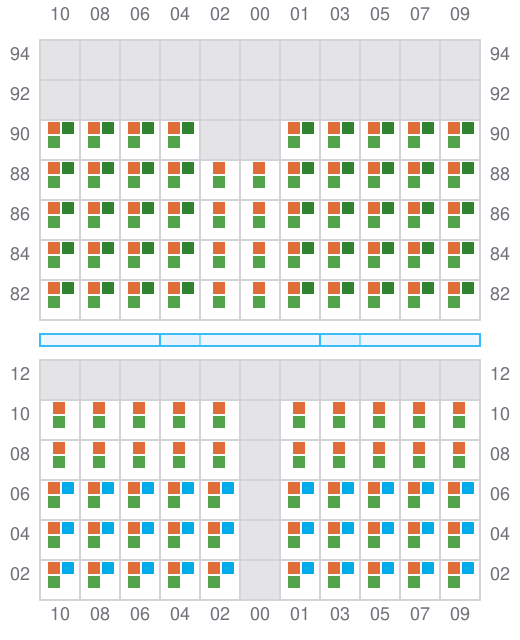

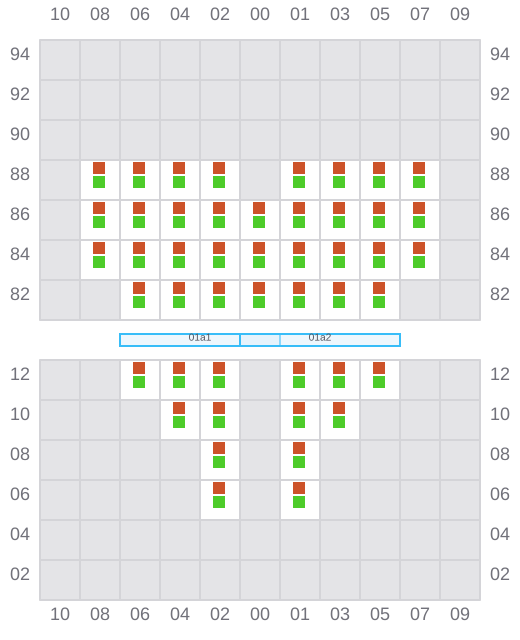

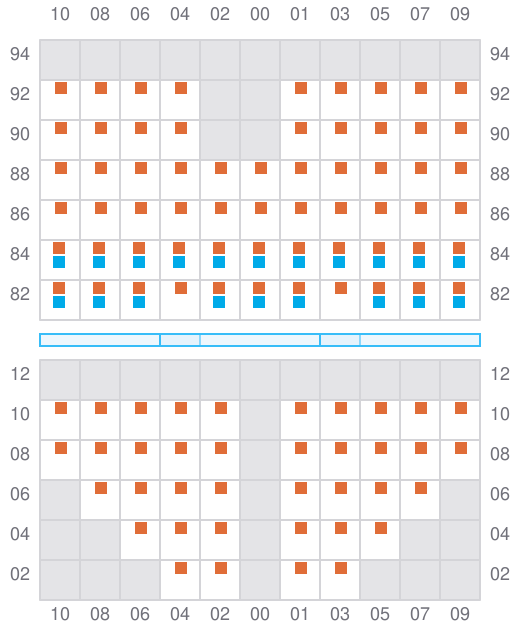

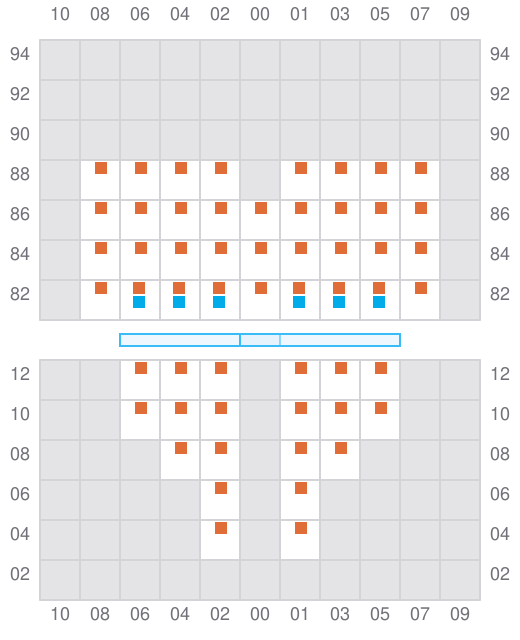

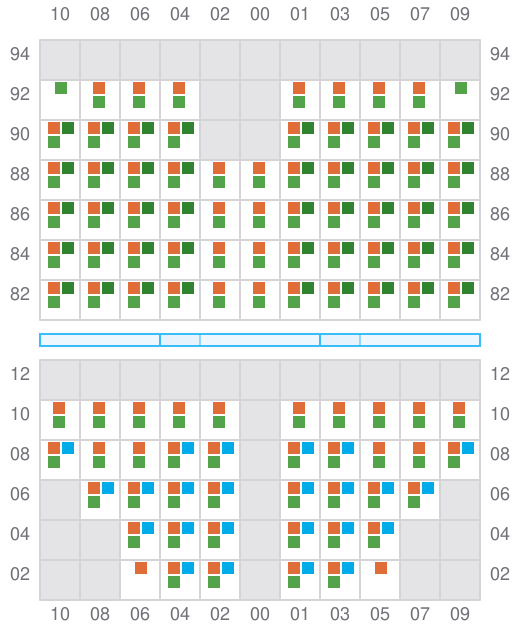

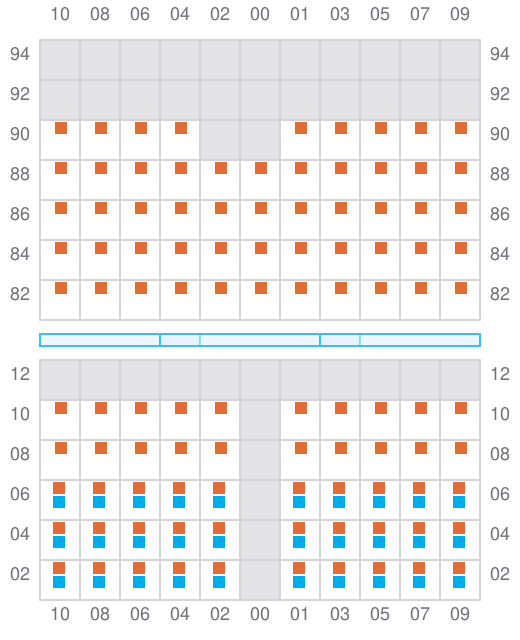

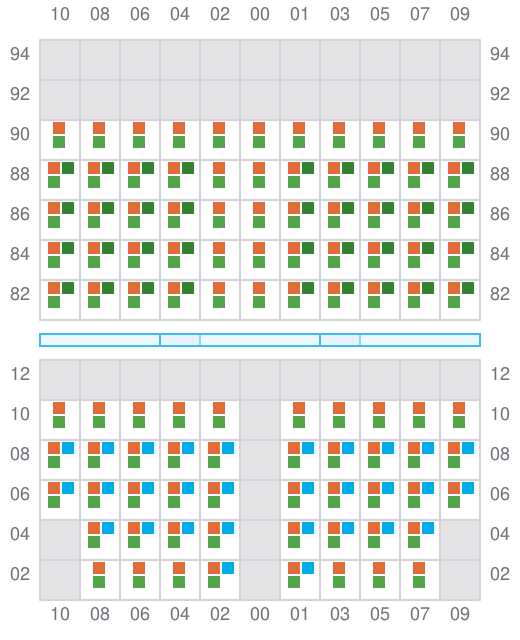

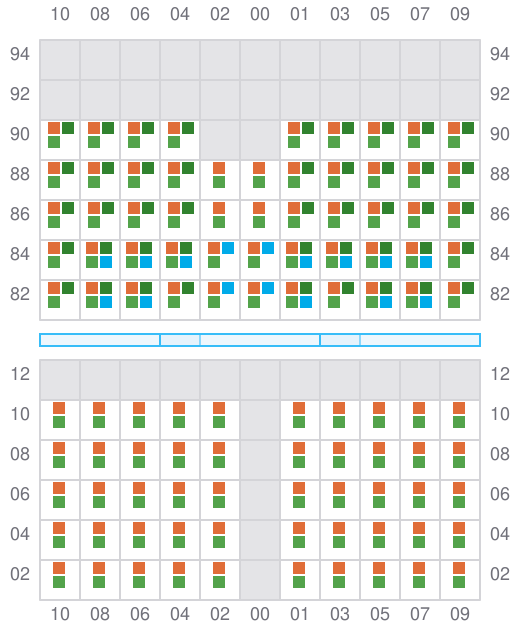

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- ← / ?
003
- ←
- → / ?
005 (006)
- →
- ? / ←
007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
- ? / →
013 (014)
- →
- ? / ←
015
- ←
- → / ?
017 (018)
- →
- ← / ?
019
- ←
- ? / →
021 (022)
- →
- ? / ←
023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
- ? / →
029 (030)
- →
- ? / ←
031
- ←
- → / ?
033
035 (036)
- → / ?
037
- ← / ?
- → / ?
