MAERSK VILNIUS
9408956 | 9V8503 | MSK by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:MAERSK VILNIUS
IMO Code:9408956
Call Sign:9V8503
Line Operator:MSK
Class Name for Sister Ships:VIL
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,814
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-sideView.png?v=1688063657578)
Hatch-Covers View
![Deck view of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-deckView.png?v=1688063657578)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

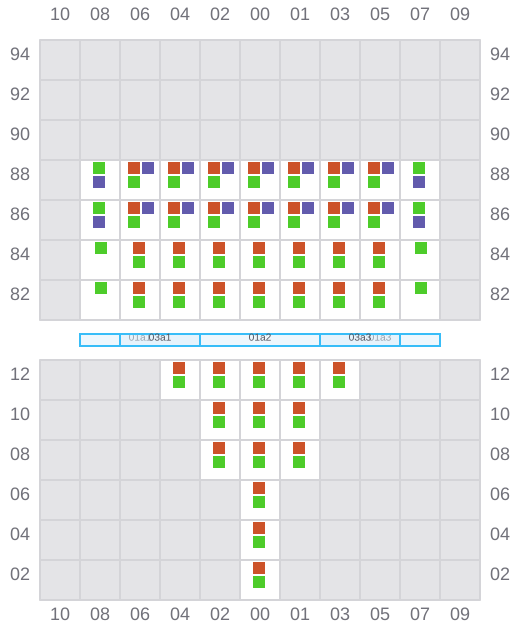

001 (002)
- →
![Bay 001 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b001.png?v=1688063657578)

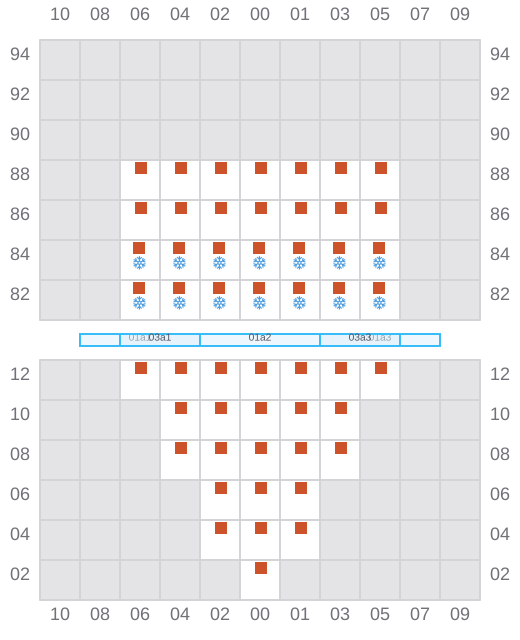

003
- ←
- → / ?
![Bay 003 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b003.png?v=1688063657578)

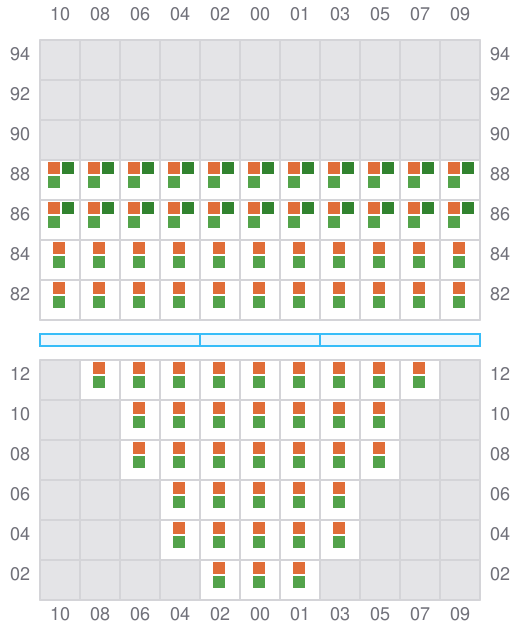

005 (006)
- →
![Bay 005 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b005.png?v=1688063657578)

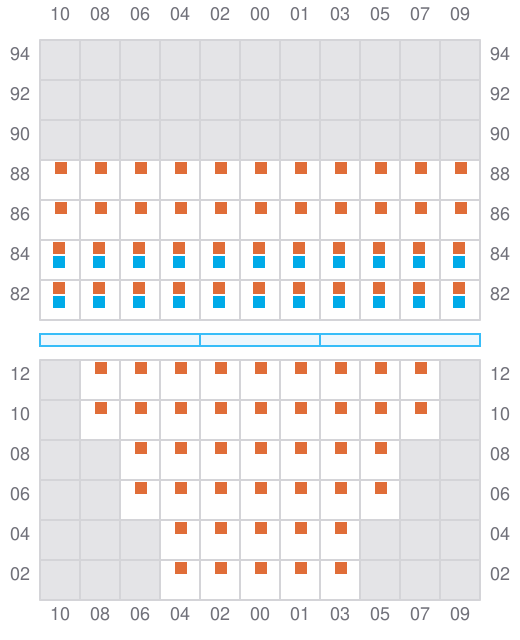

007
- ←
- → / ?
![Bay 007 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b007.png?v=1688063657578)

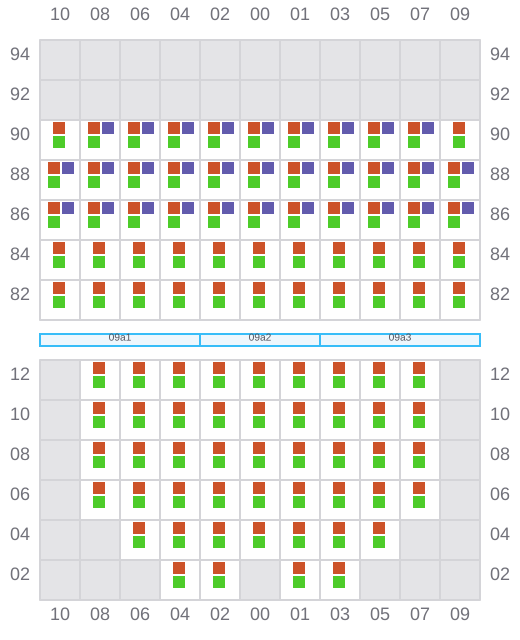

009 (010)
- →
![Bay 009 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b009.png?v=1688063657578)

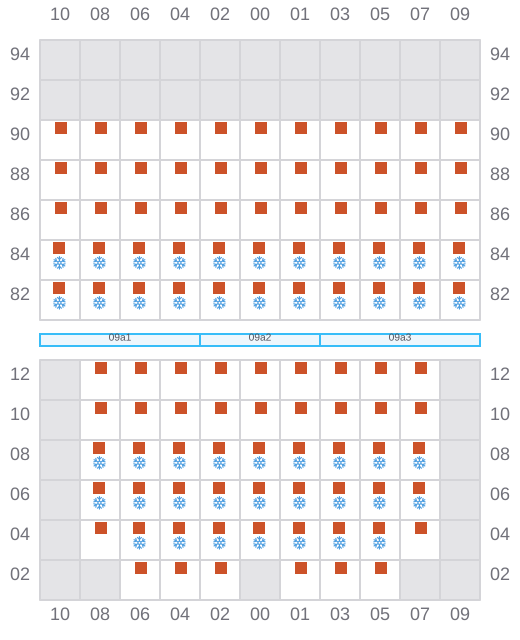

011
- ←
- →
![Bay 011 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b011.png?v=1688063657578)

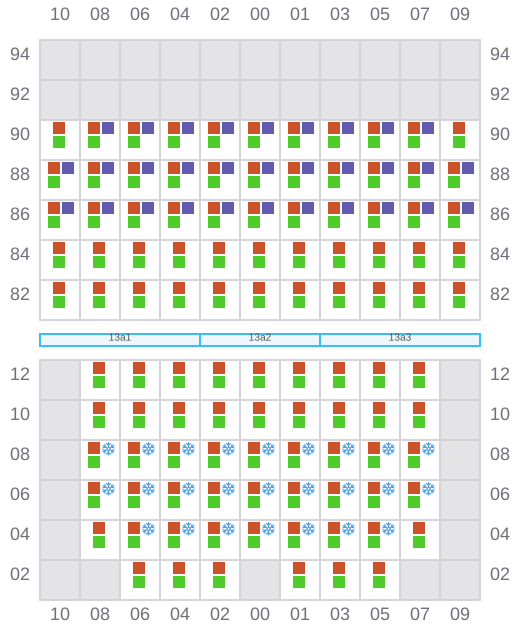

013 (014)
- →
- ? / ←
![Bay 013 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b013.png?v=1688063657578)

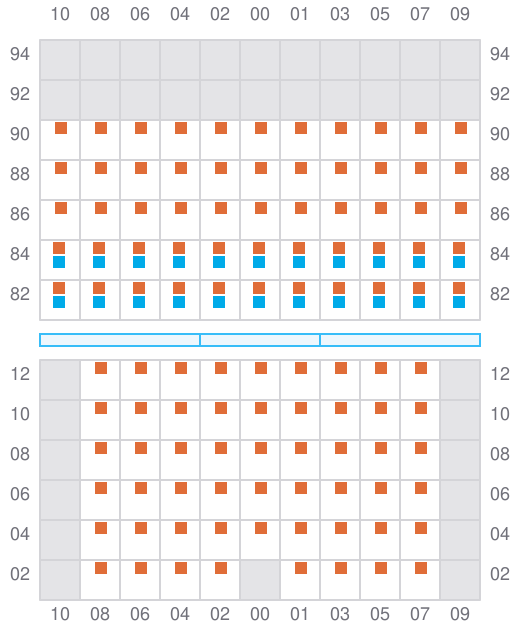

015
- ←
- → / ?
![Bay 015 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b015.png?v=1688063657578)

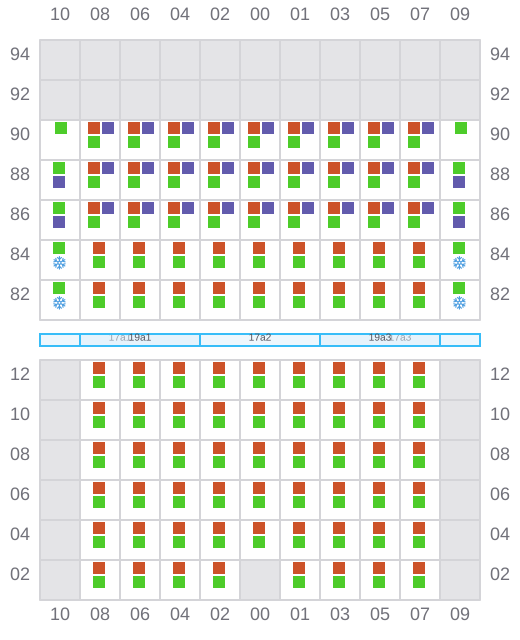

017 (018)
- →
- → / ?
![Bay 017 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b017.png?v=1688063657578)

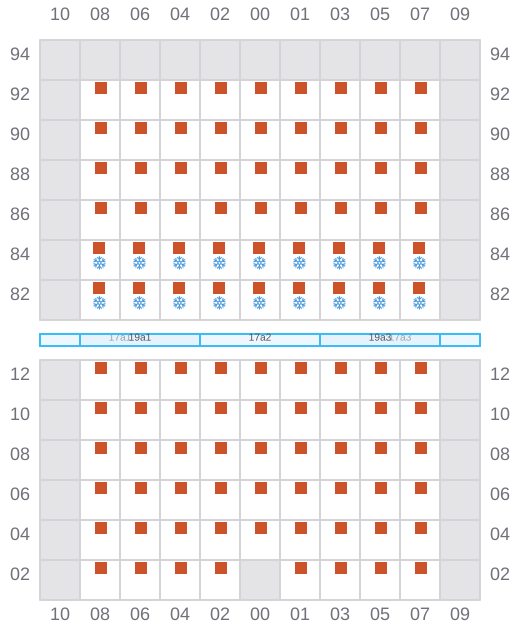

019
- ←
- → / ?
![Bay 019 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b019.png?v=1688063657578)

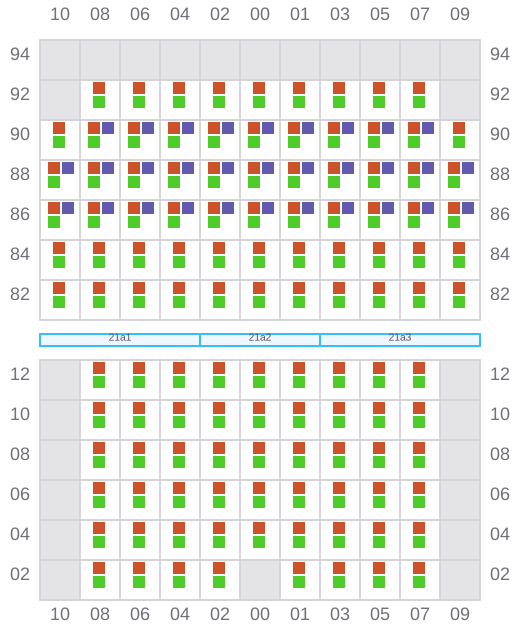

021 (022)
- →
![Bay 021 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b021.png?v=1688063657578)

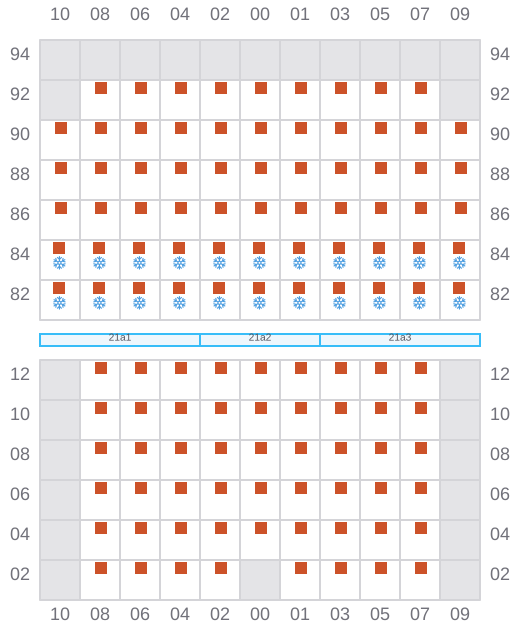

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b023.png?v=1688063657578)

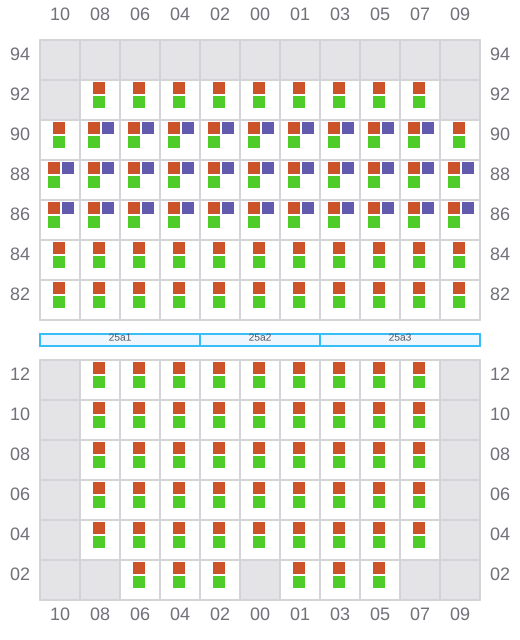

025 (026)
- →
![Bay 025 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b025.png?v=1688063657578)

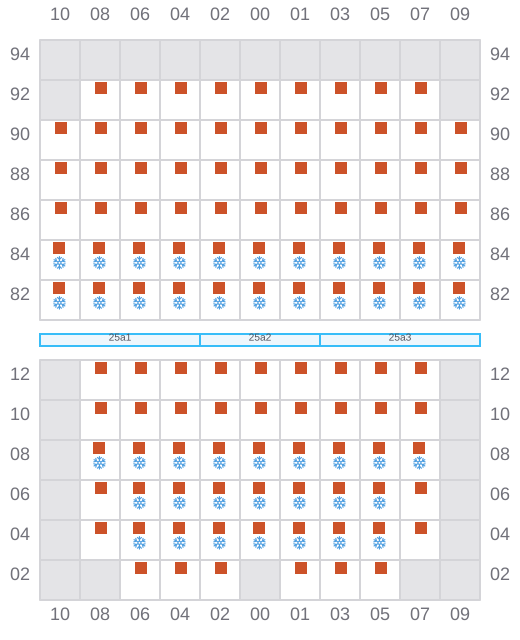

027
- ←
- →
![Bay 027 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b027.png?v=1688063657578)

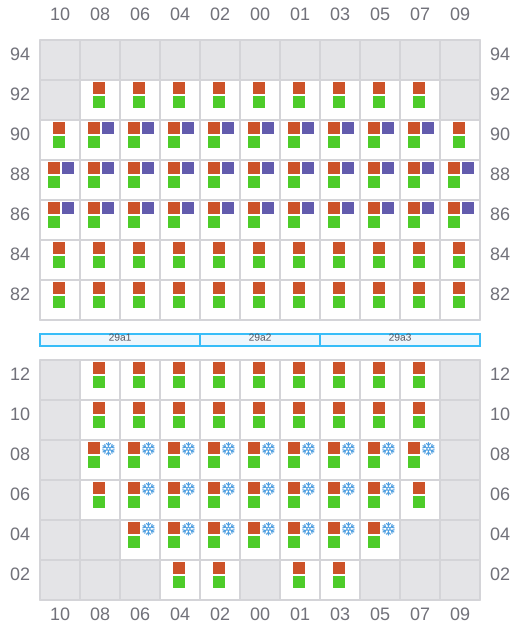

029 (030)
- →
- ? / ←
![Bay 029 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b029.png?v=1688063657578)
031
- ←
- → / ?
![Bay 031 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b031.png?v=1688063657578)

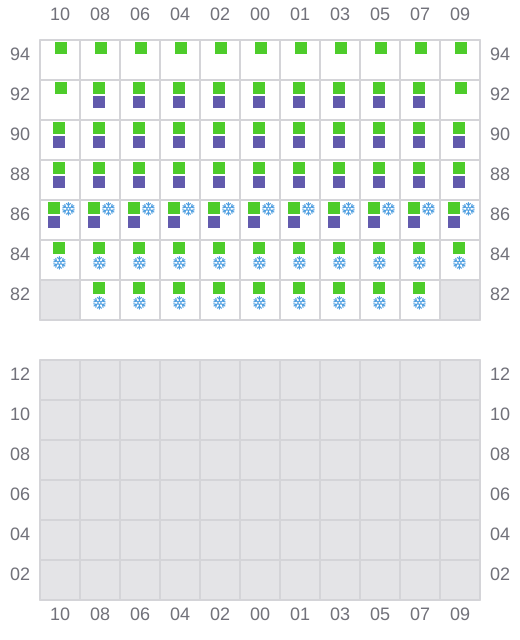

033 (034)
- → / ?
- → / ?
![Bay 033 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b033.png?v=1688063657578)

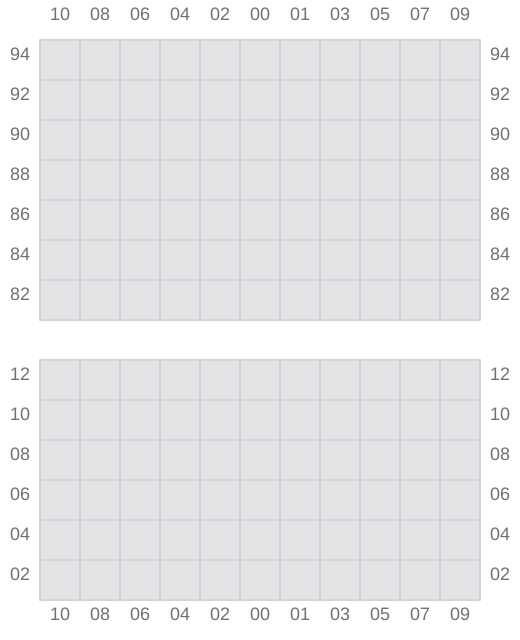

035
![Bay 035 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b035.png?v=1688063657578)

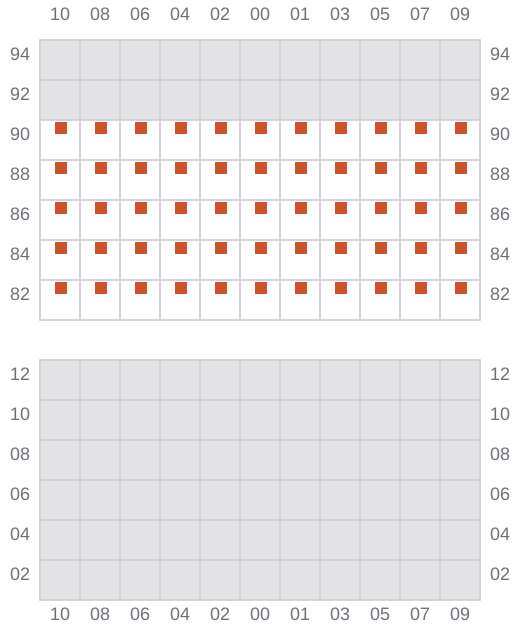

037
- → / ?
![Bay 037 view and slots of MAERSK VILNIUS](/vessel-images/4ceda974-d564-4bc1-a90c-8faedd3b5b38-b037.png?v=1688063657578)
