MAERSK VIRGINIA
9235531 | VRMD3 | MSK by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:MAERSK VIRGINIA
IMO Code:9235531
Call Sign:VRMD3
Line Operator:MSK
Class Name for Sister Ships:VIA
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,829
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

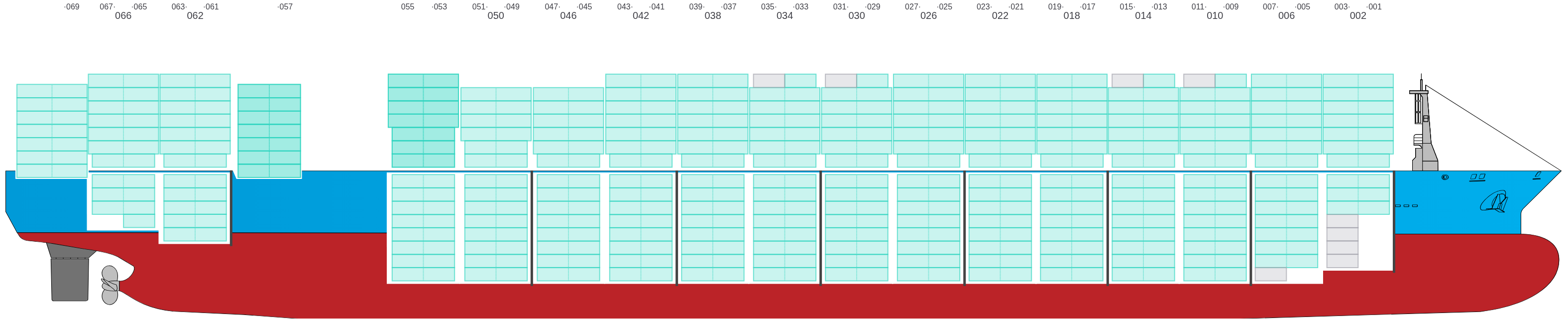

Side View

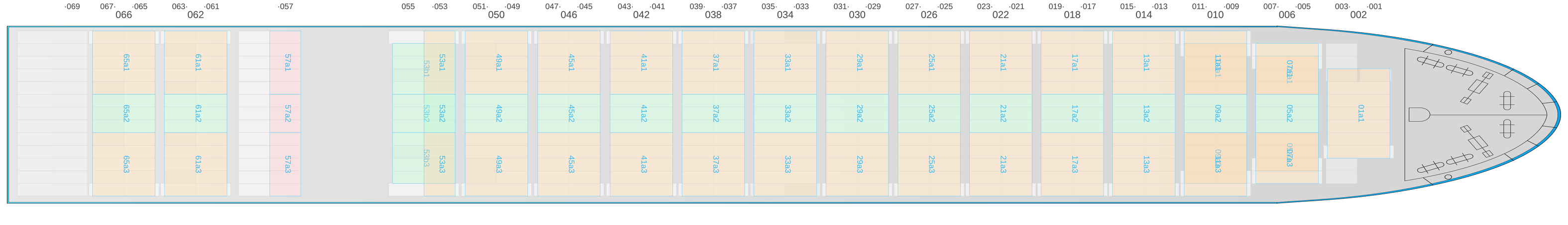

Hatch-Covers View

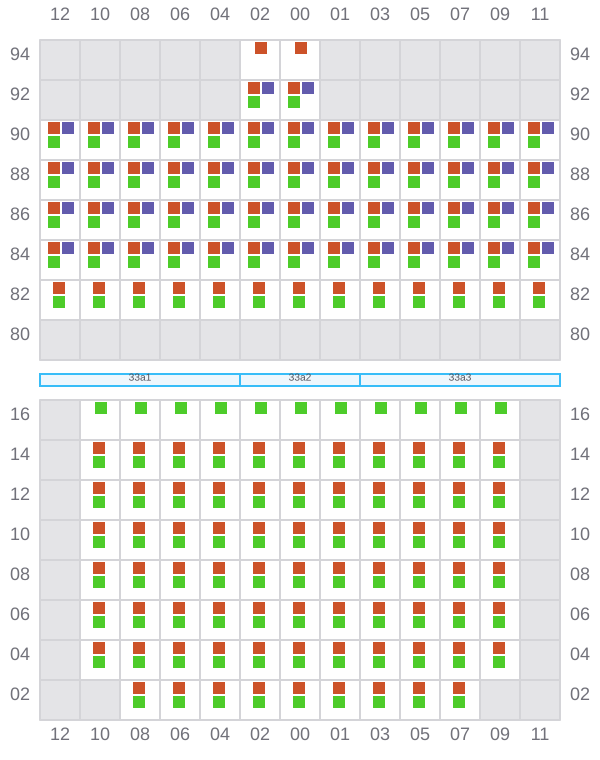

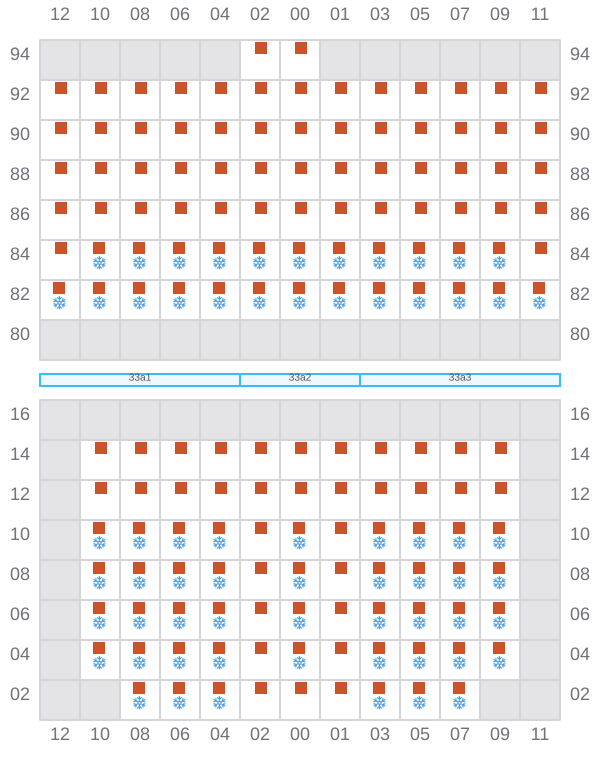

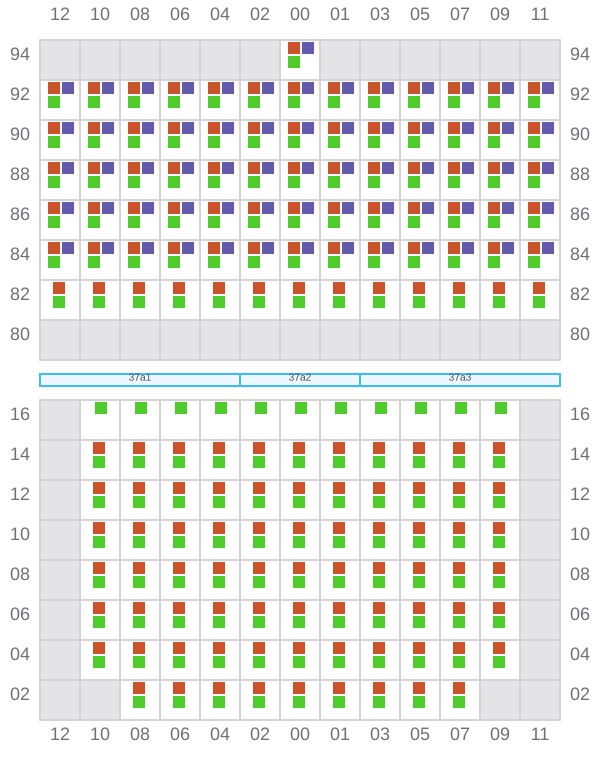

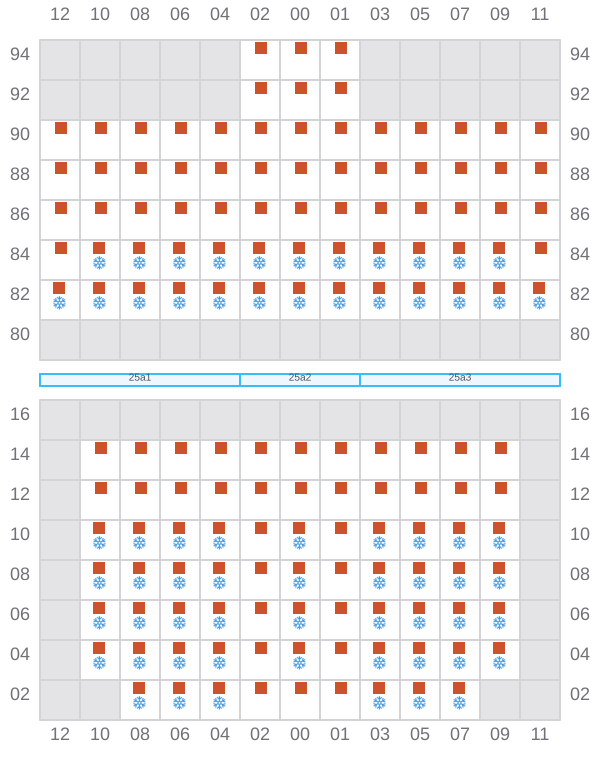

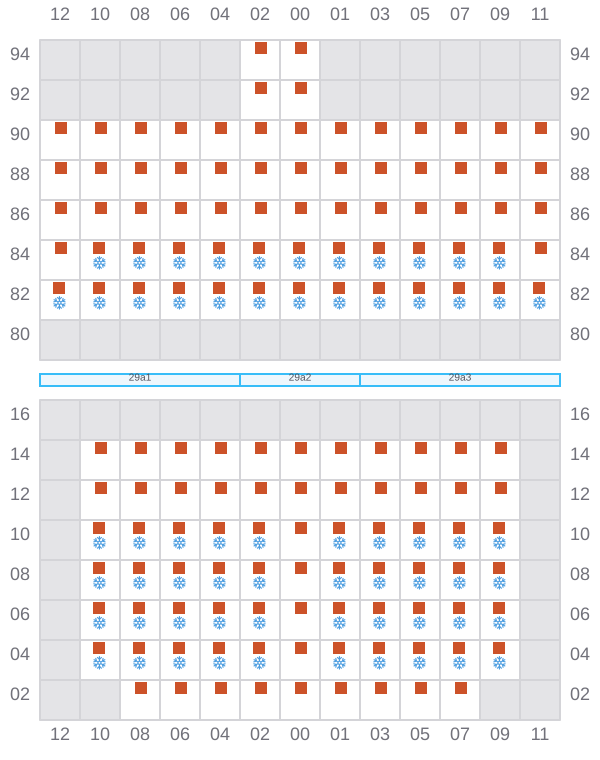

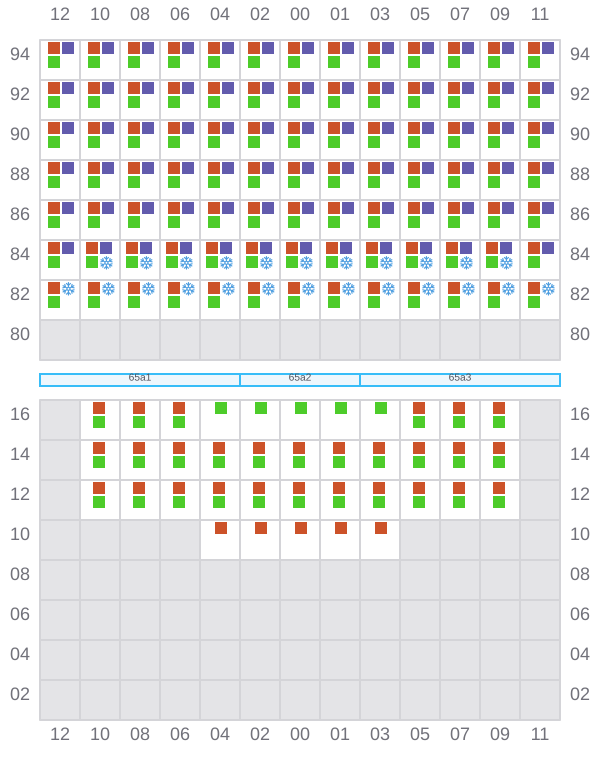

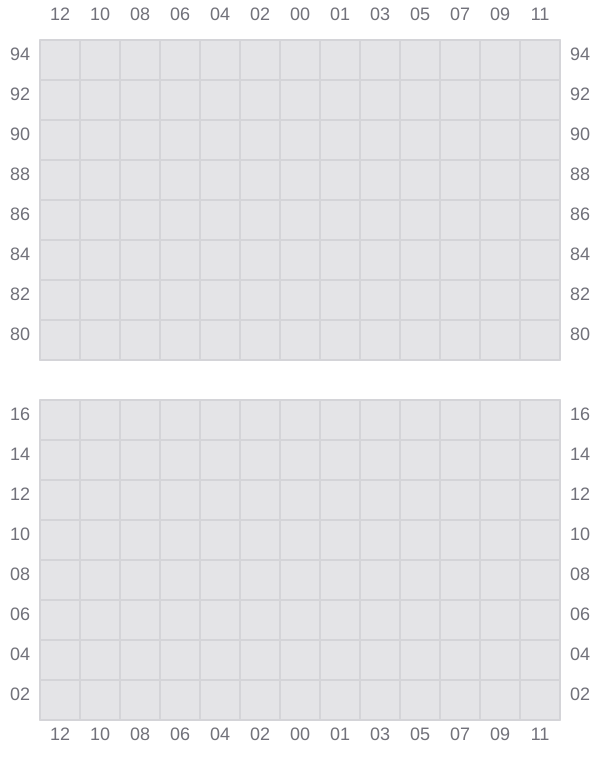

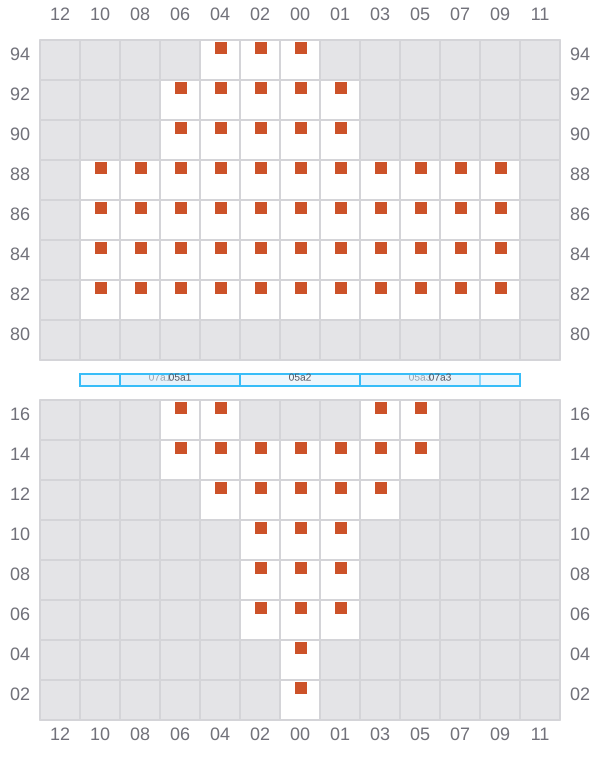

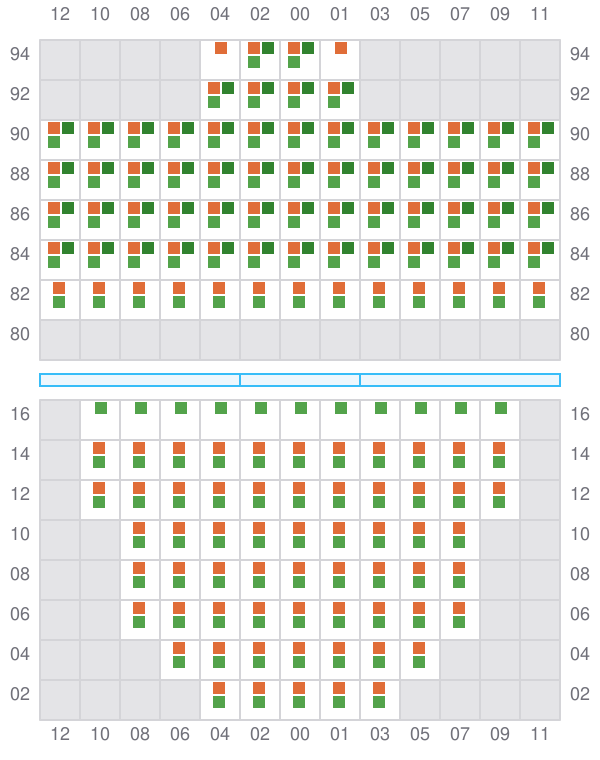

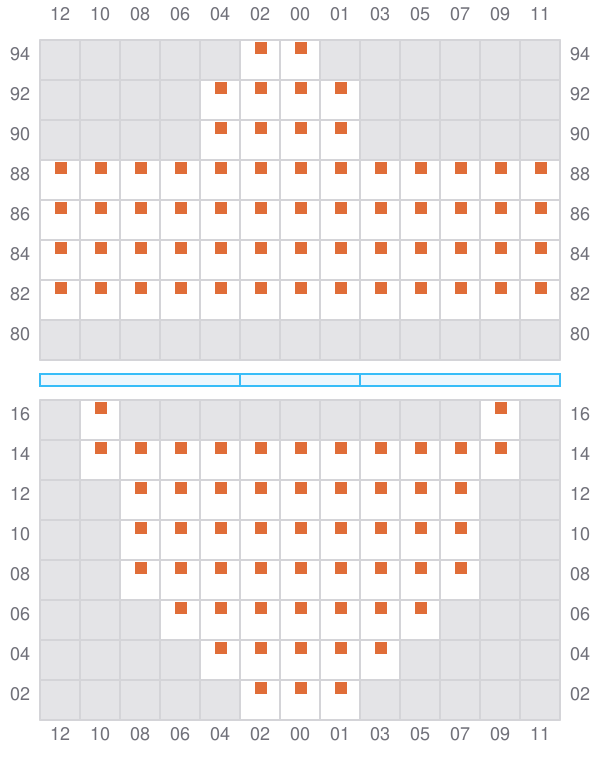

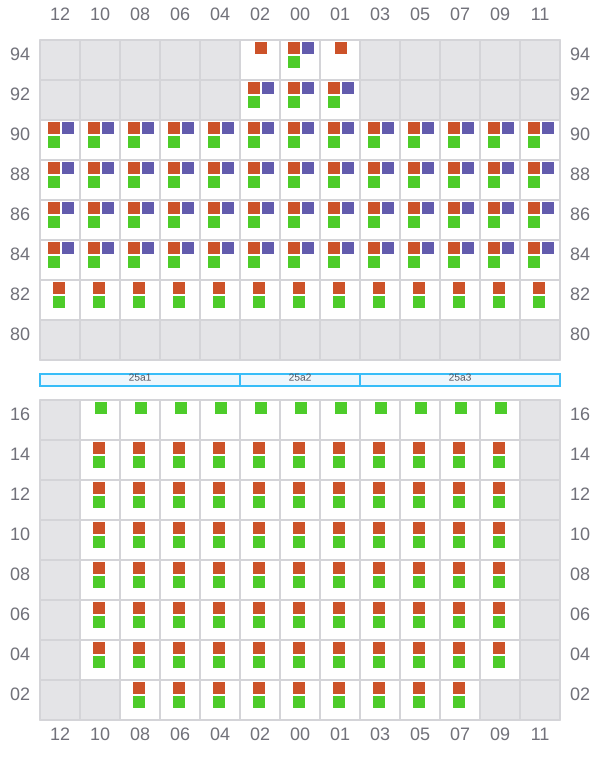

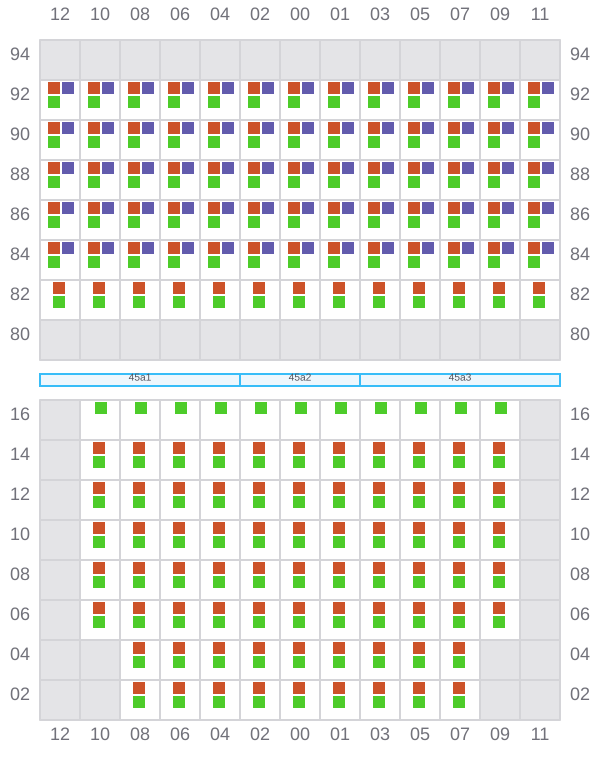

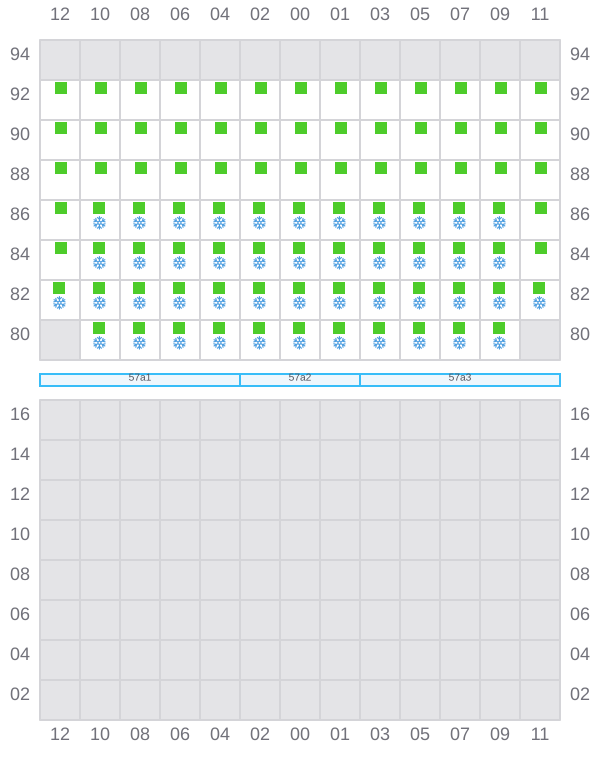

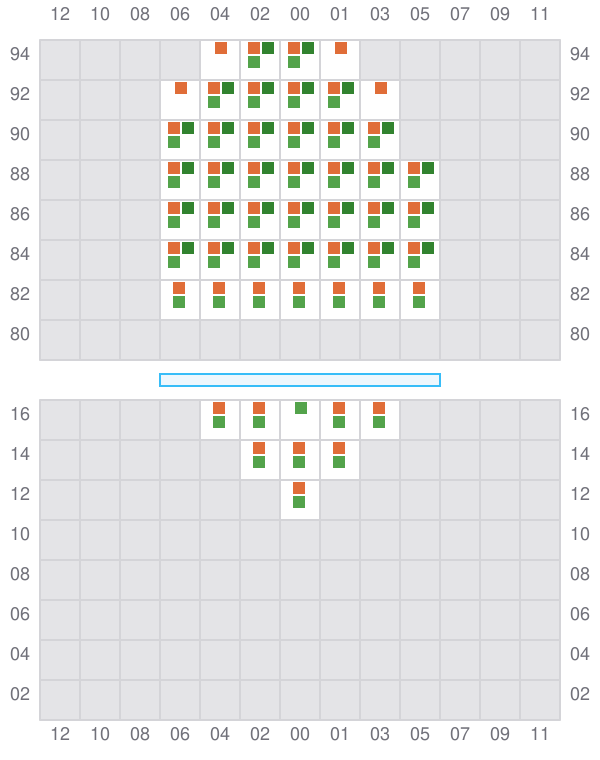

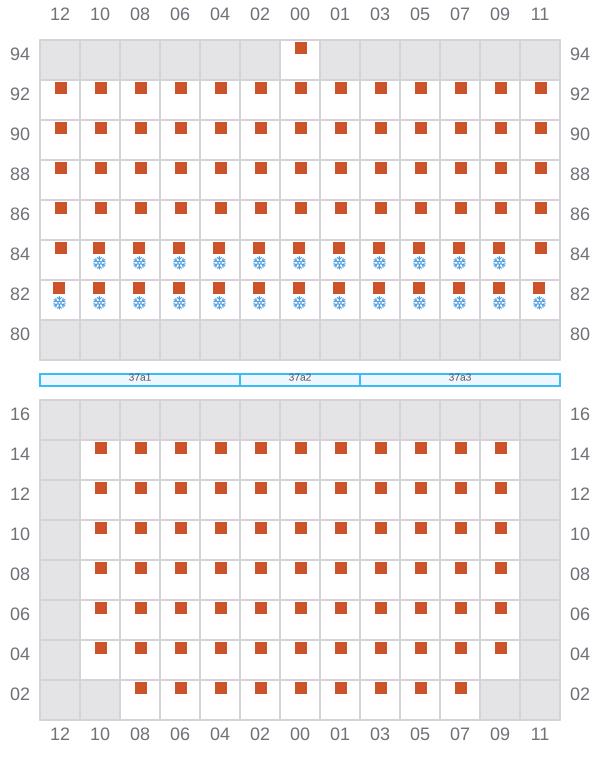

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

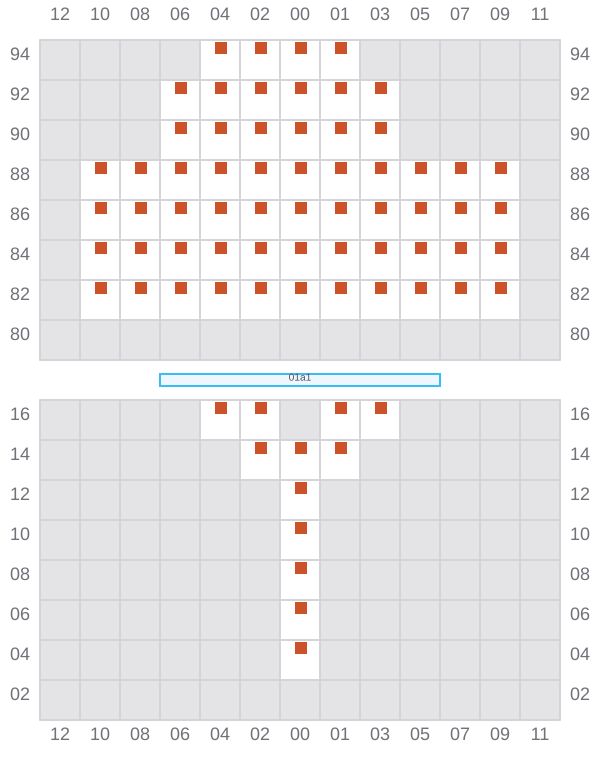

001 (002)
- →
003
- ←

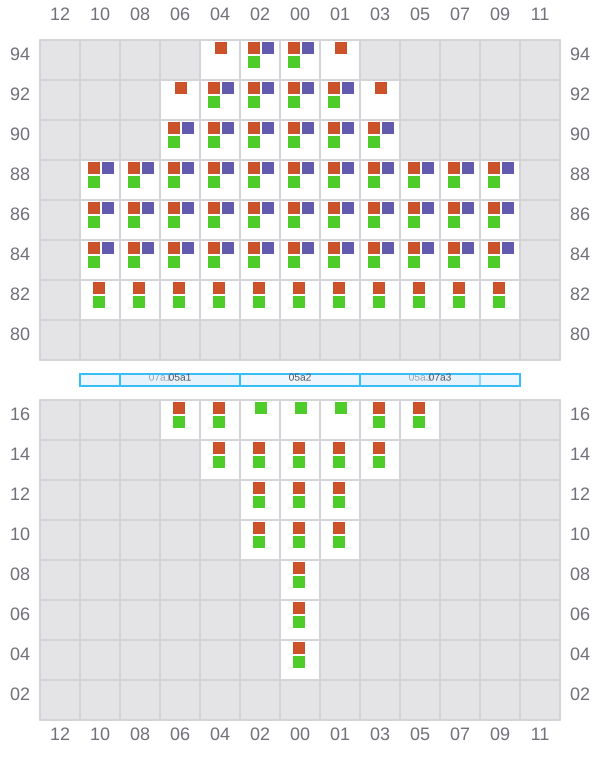

005 (006)
- →
007
- ←
009 (010)
- →
011
- ←

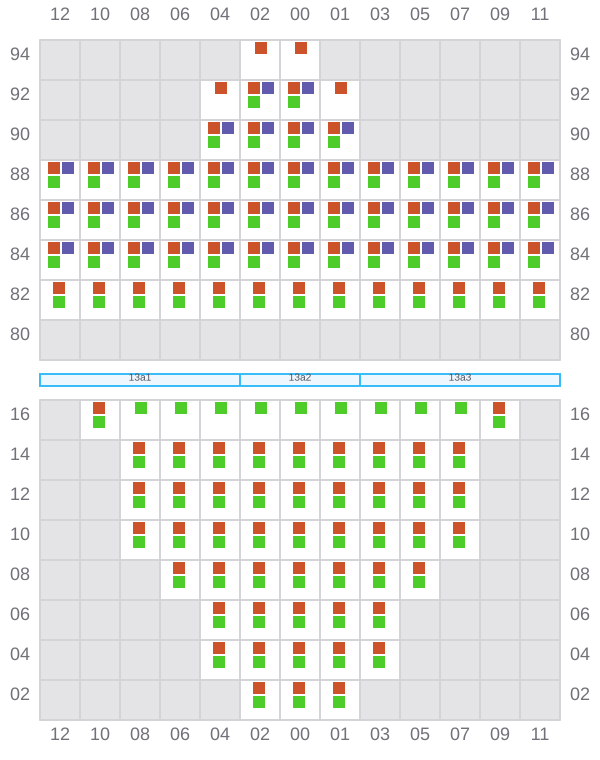

013 (014)
- →
015
- ←
017 (018)
- →
019
- ←

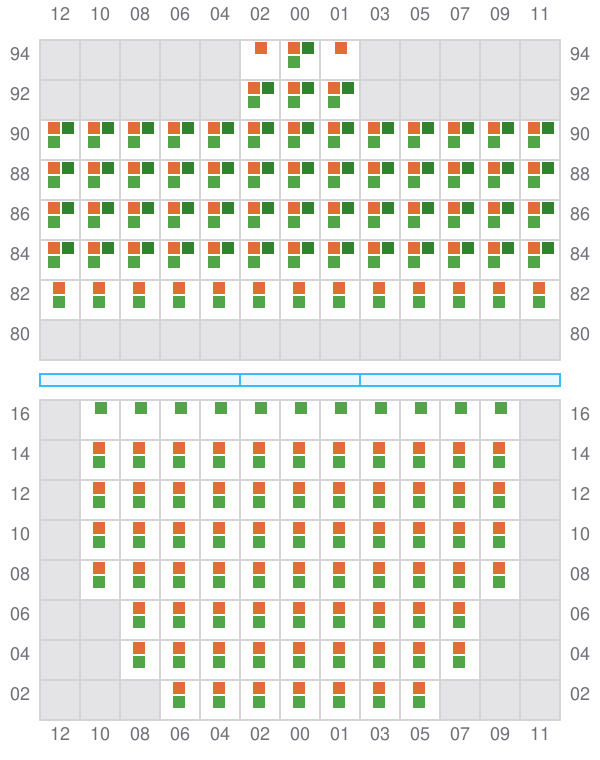

021 (022)
- →

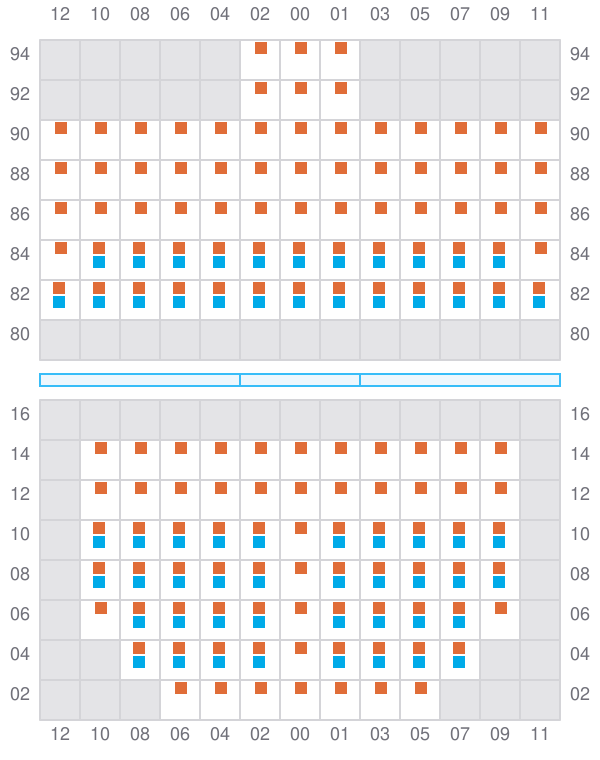

023
- ←
- → / ?

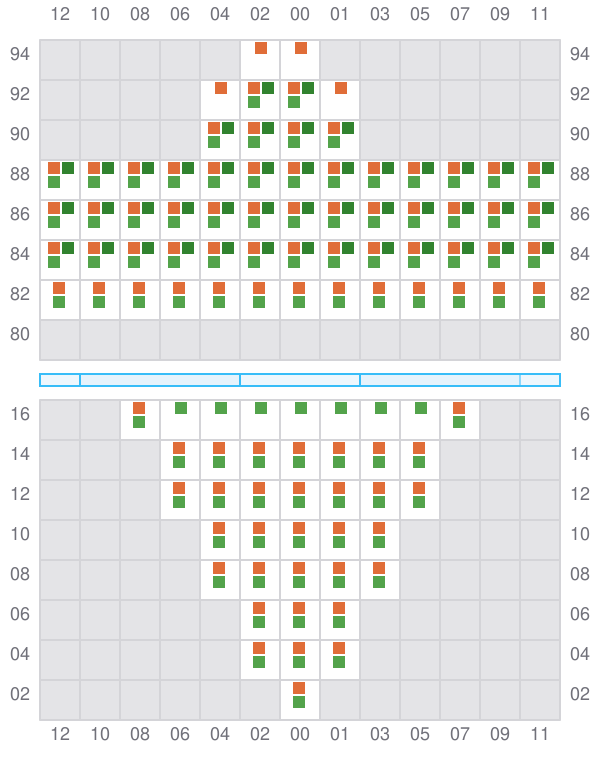

025 (026)
- →
- ? / →
027
- ←
- →
029 (030)
- →
- ? / →
031
- ←
- → / ?

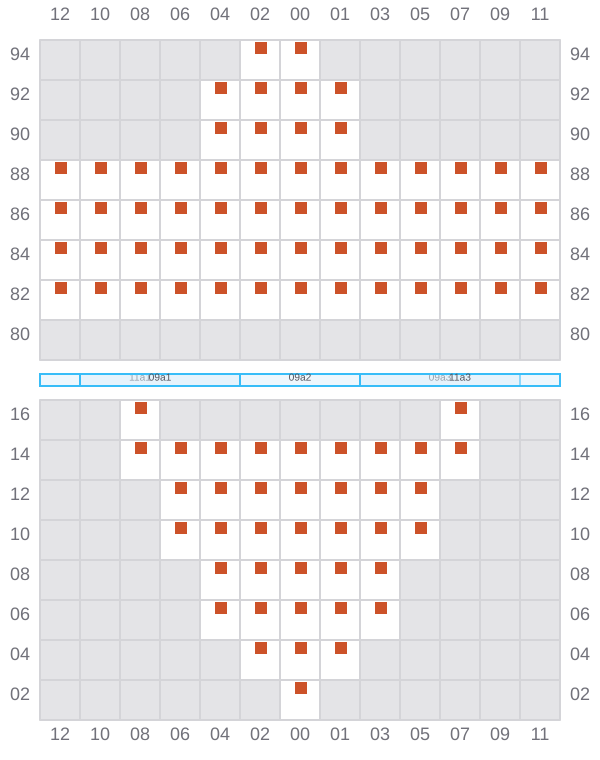

033 (034)
- →
- ? / →
035
- ←
- →
037 (038)
- →
039
- ←
- → / ?

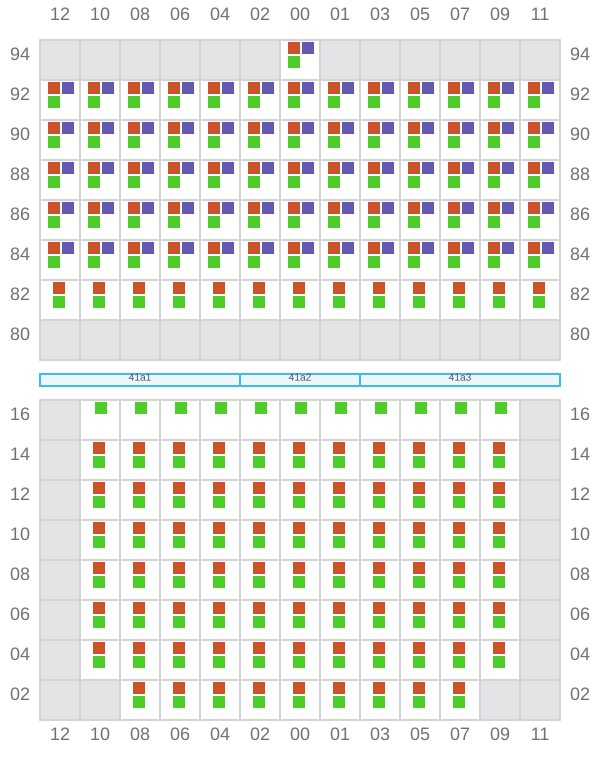

041 (042)
- →
- ? / →
043
- ←
- →

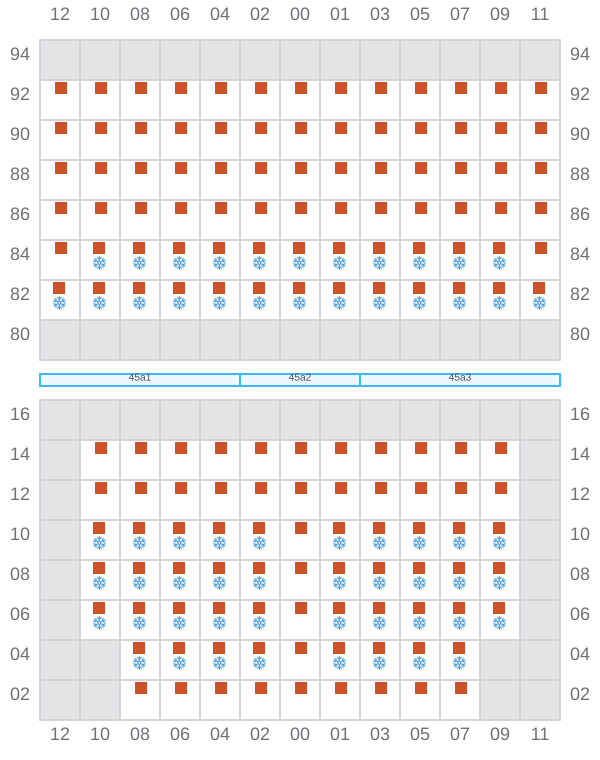

045 (046)
- →
- ? / →
047
- ←
- → / ?

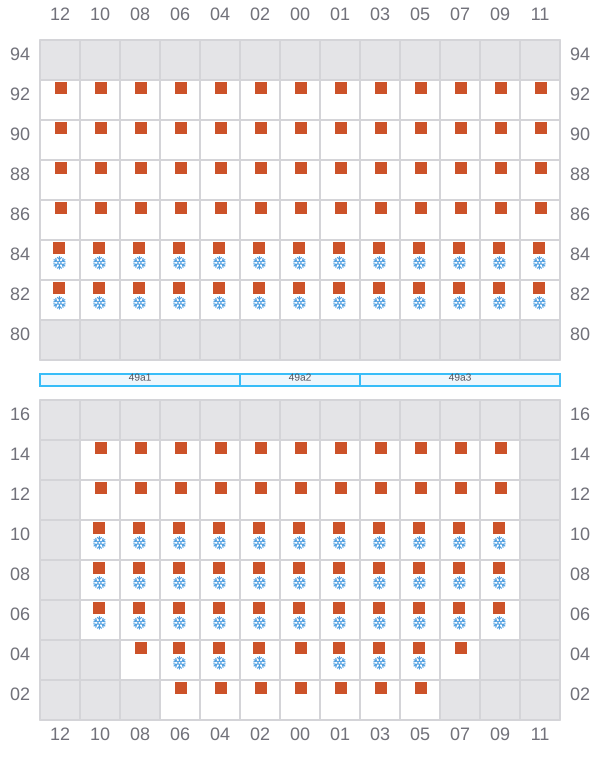

049 (050)
- →
- ? / →
051
- ←
- →

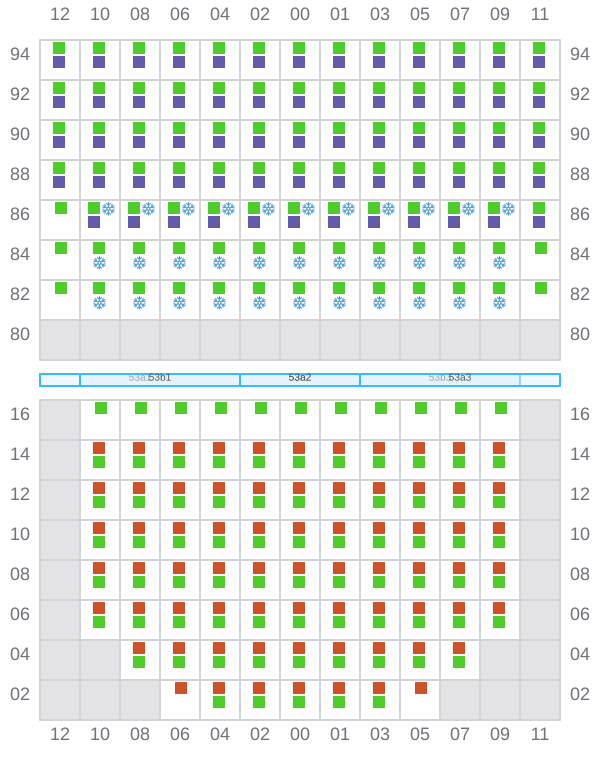

053 (054)
- →
- →

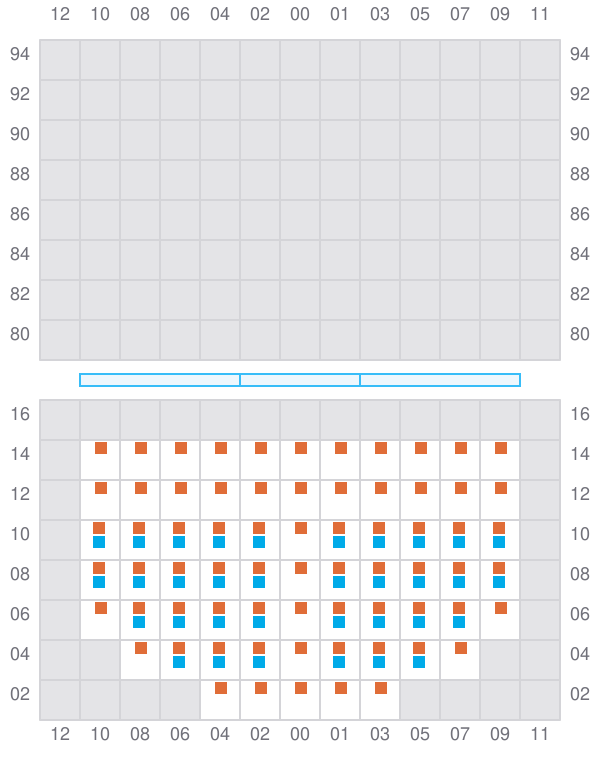

055
- ? / ←
- ? / →
057 (058)
- → / ?
- ← / ?
059
061 (062)
- →
- ← / →
063
- ←
- ? / →
065 (066)
- →
- ← / ?
067
- ←

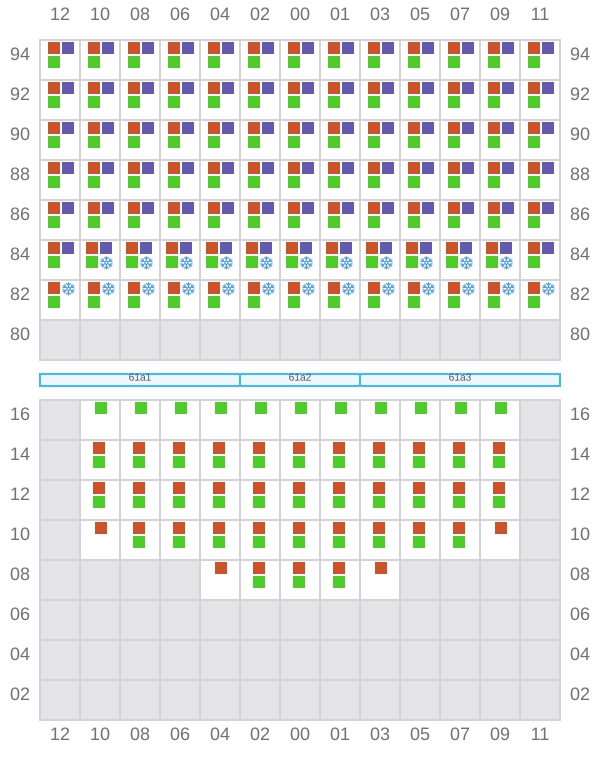

069 (070)
- → / ?
