MAERSK VISBY
9411367 | 9V8827 | MSK by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:MAERSK VISBY
IMO Code:9411367
Call Sign:9V8827
Line Operator:MSK
Class Name for Sister Ships:VBY
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,814
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

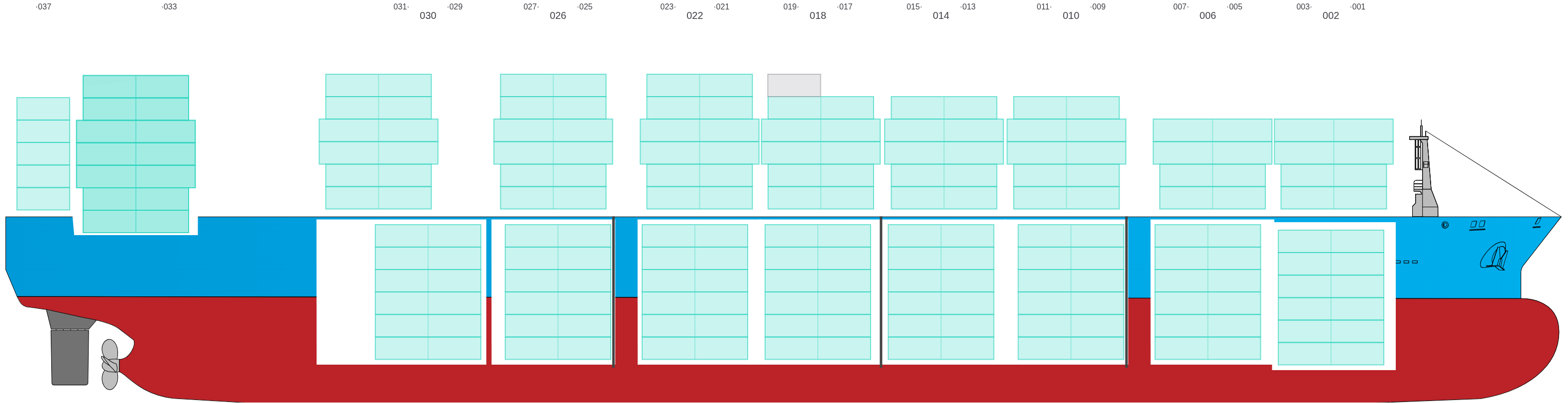

Side View
![Side view of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-sideView.png?v=1688063327681)
Hatch-Covers View
![Deck view of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-deckView.png?v=1688063327681)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

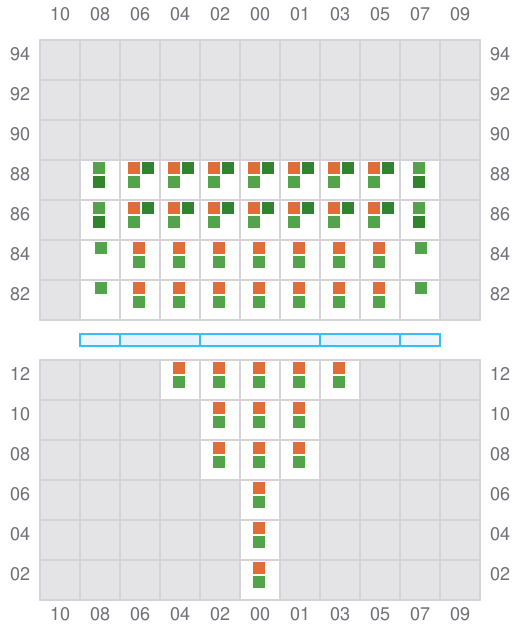

001 (002)
- →
![Bay 001 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b001.png?v=1688063327681)

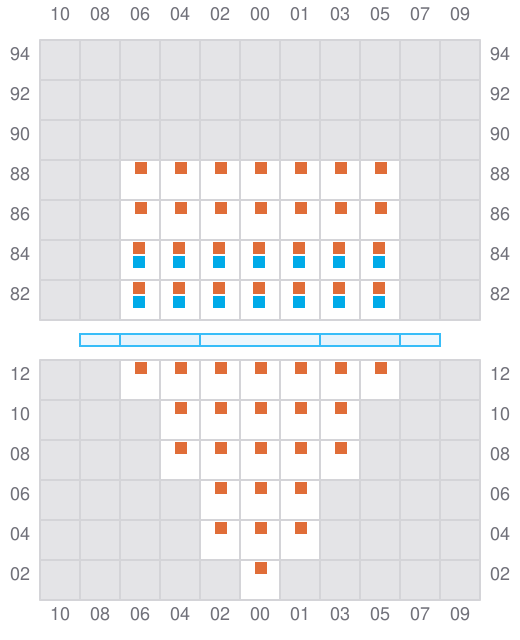

003
- ←
- → / ?
![Bay 003 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b003.png?v=1688063327681)

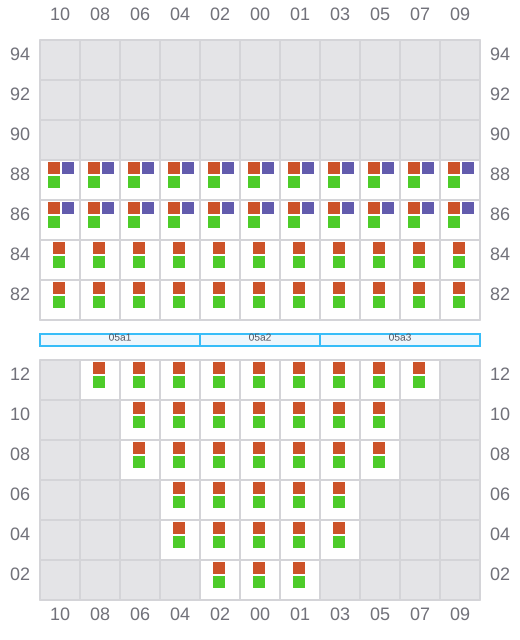

005 (006)
- →
![Bay 005 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b005.png?v=1688063327681)
007
- ←
- → / ?
![Bay 007 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b007.png?v=1688063327681)

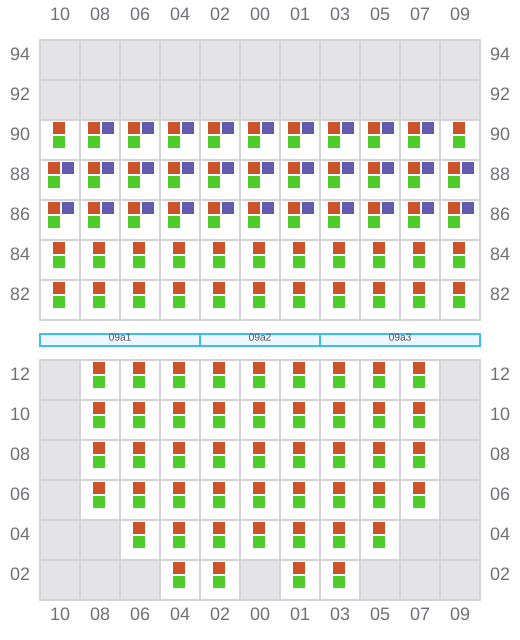

009 (010)
- →
![Bay 009 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b009.png?v=1688063327681)

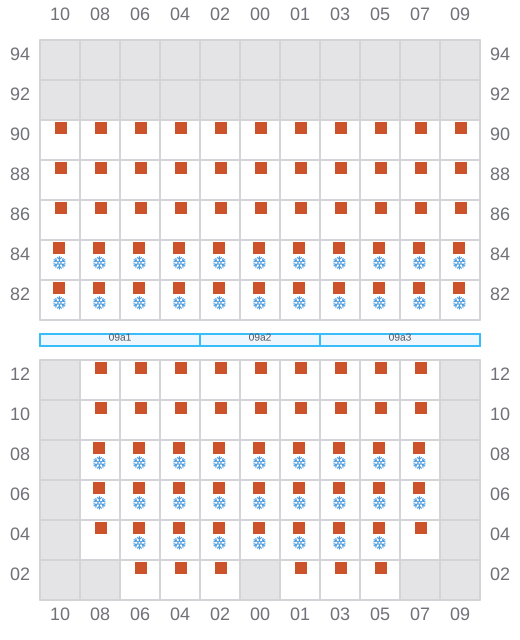

011
- ←
- →
![Bay 011 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b011.png?v=1688063327681)

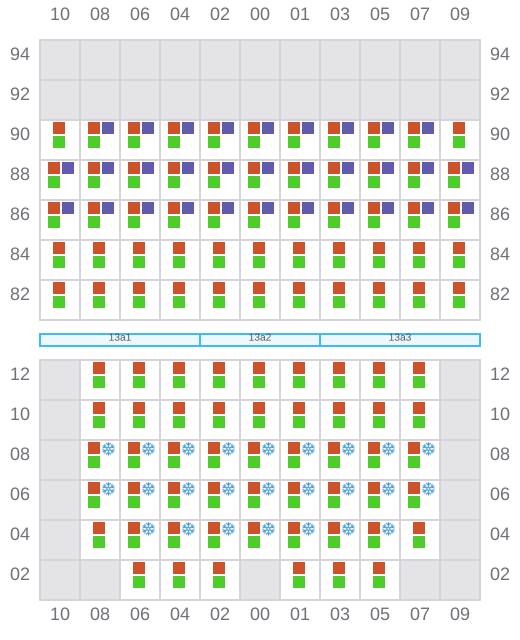

013 (014)
- →
- ? / ←
![Bay 013 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b013.png?v=1688063327681)

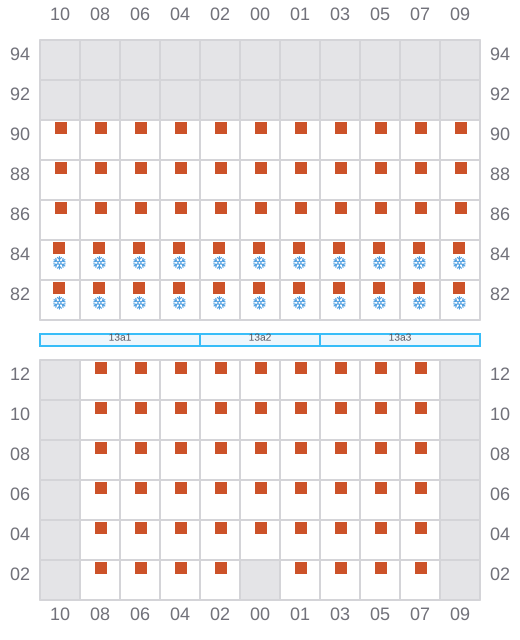

015
- ←
- → / ?
![Bay 015 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b015.png?v=1688063327681)

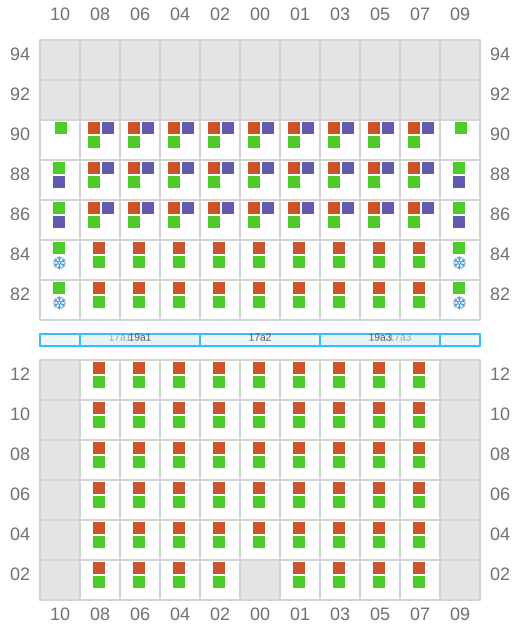

017 (018)
- →
- → / ?
![Bay 017 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b017.png?v=1688063327681)

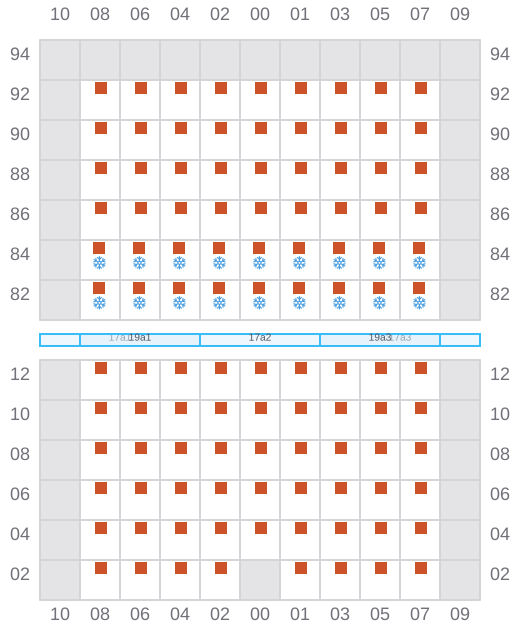

019
- ←
- → / ?
![Bay 019 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b019.png?v=1688063327681)

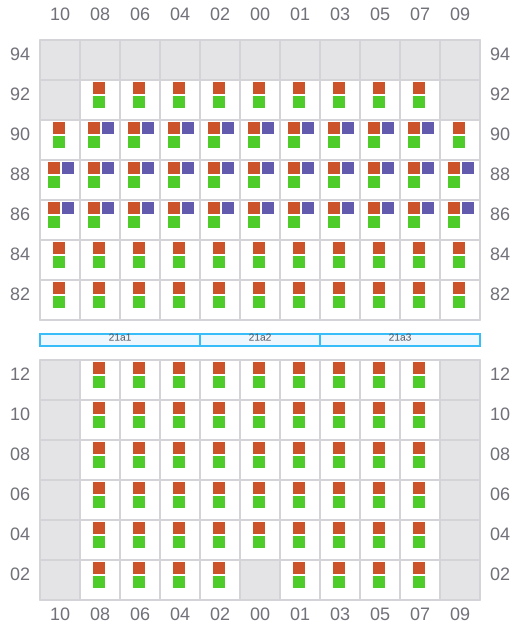

021 (022)
- →
![Bay 021 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b021.png?v=1688063327681)

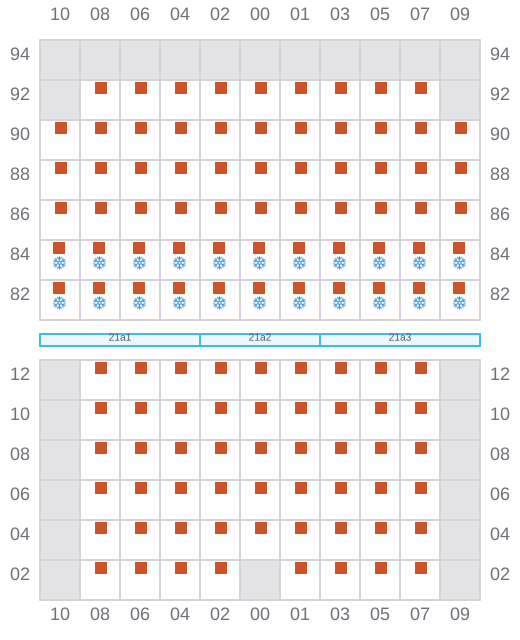

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b023.png?v=1688063327681)

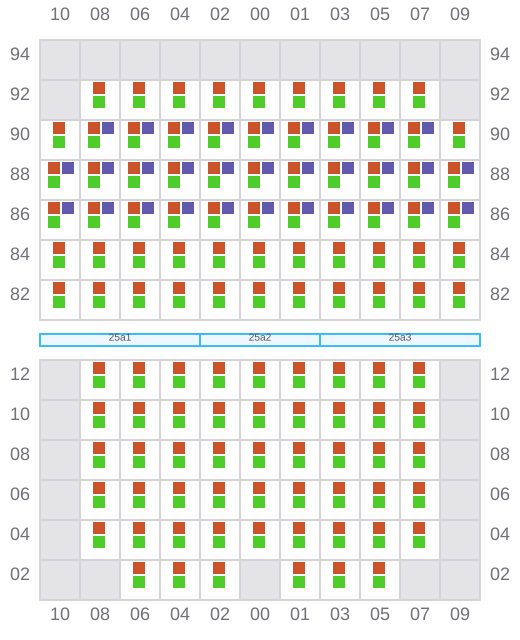

025 (026)
- →
![Bay 025 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b025.png?v=1688063327681)

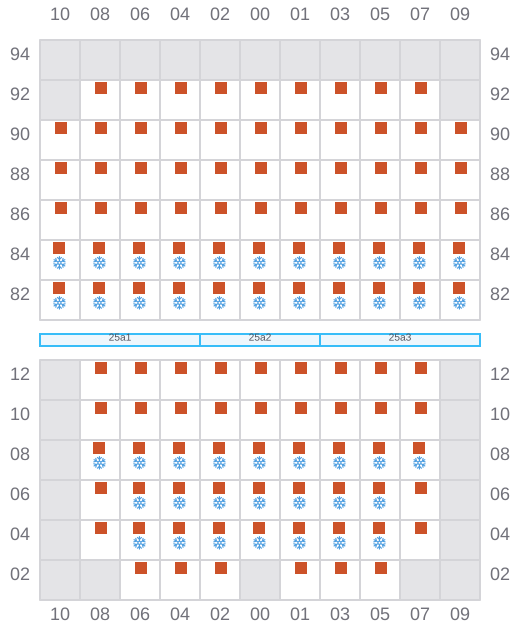

027
- ←
- →
![Bay 027 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b027.png?v=1688063327681)
029 (030)
- →
- ? / ←
![Bay 029 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b029.png?v=1688063327681)

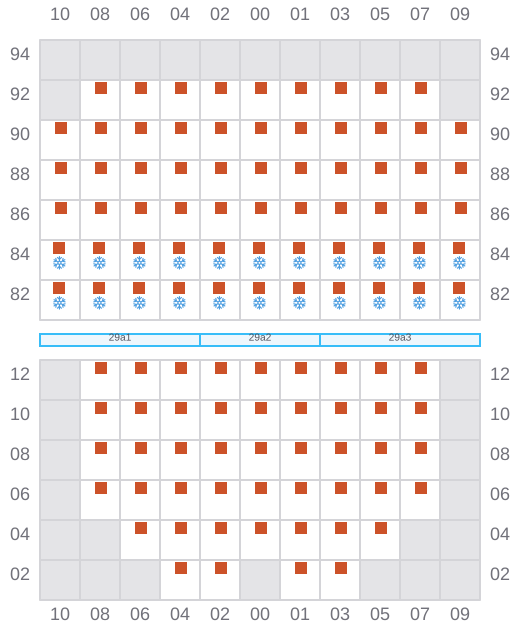

031
- ←
- → / ?
![Bay 031 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b031.png?v=1688063327681)

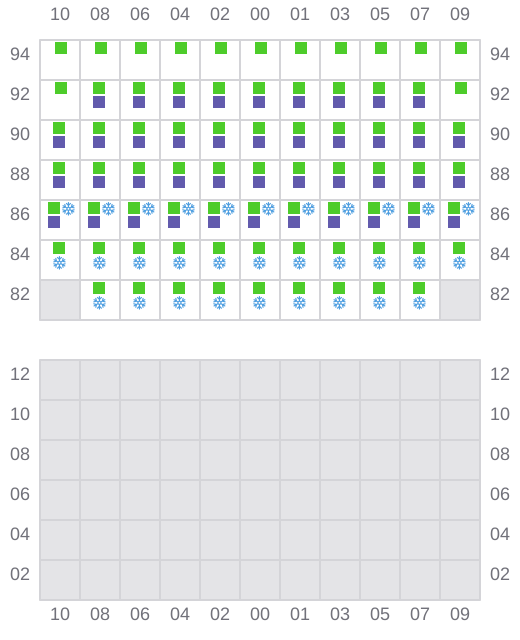

033 (034)
- → / ?
- → / ?
![Bay 033 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b033.png?v=1688063327681)

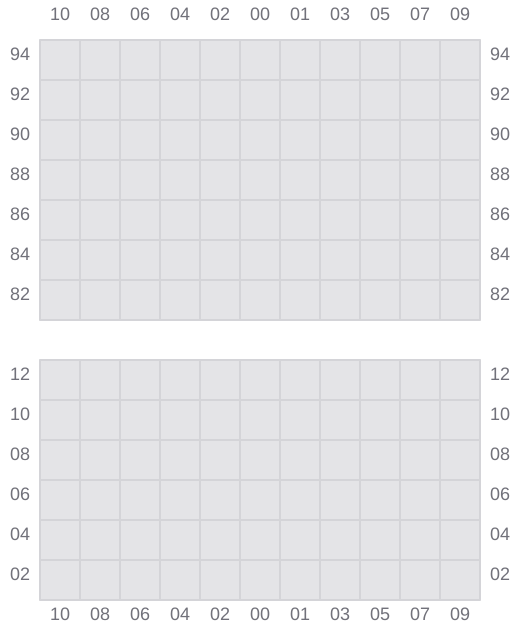

035
![Bay 035 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b035.png?v=1688063327681)

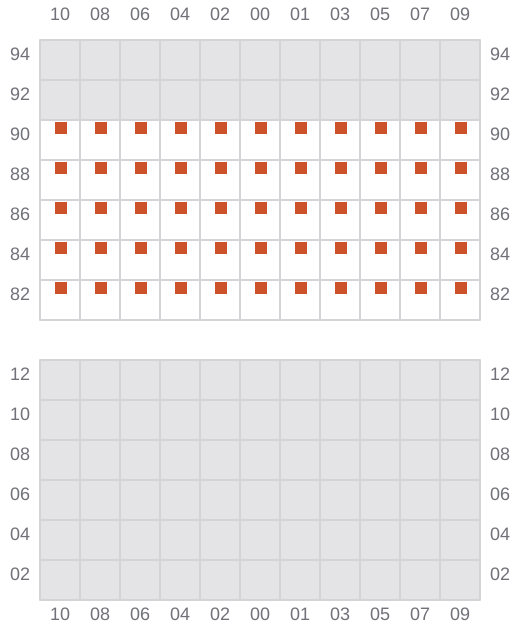

037
- → / ?
![Bay 037 view and slots of MAERSK VISBY](/vessel-images/af18c264-76ef-4ed2-9145-9115566ab7f2-b037.png?v=1688063327681)
