MAERSK WAKAYAMA
9550357 | 9V8852 | 9550357 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:MAERSK WAKAYAMA
IMO Code:9550357
Call Sign:9V8852
Line Operator:9550357
Class Name for Sister Ships:45A
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):160.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,577
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-sideView.png?v=1711659635559)
Hatch-Covers View
![Deck view of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-deckView.png?v=1711659635559)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

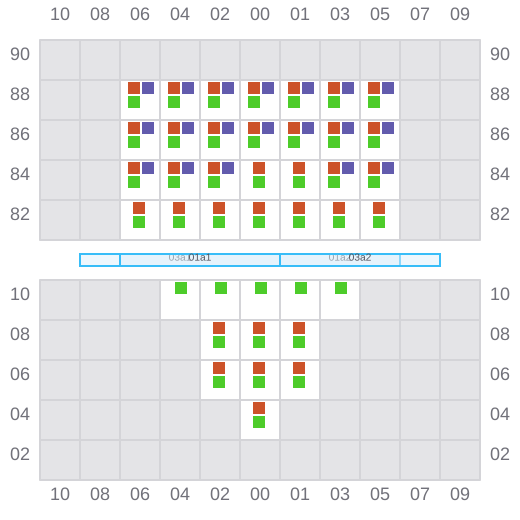

001 (002)
- →
![Bay 001 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b001.png?v=1711659635559)

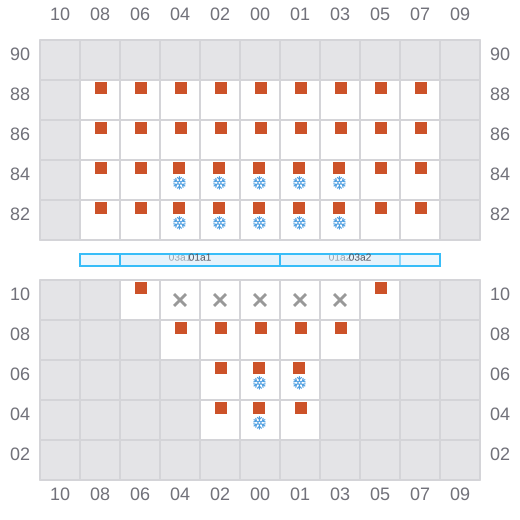

003
- ←
- →
![Bay 003 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b003.png?v=1711659635559)

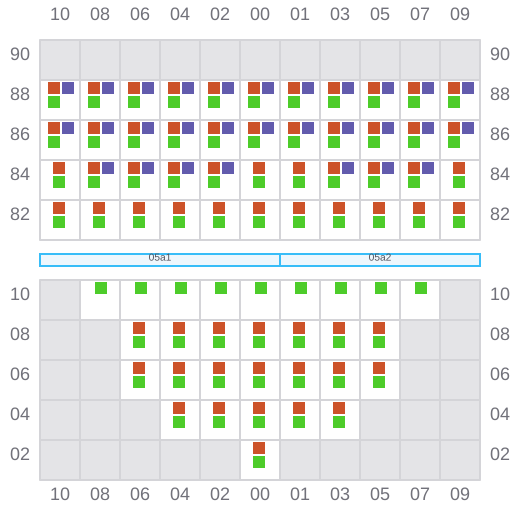

005 (006)
- →
![Bay 005 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b005.png?v=1711659635559)

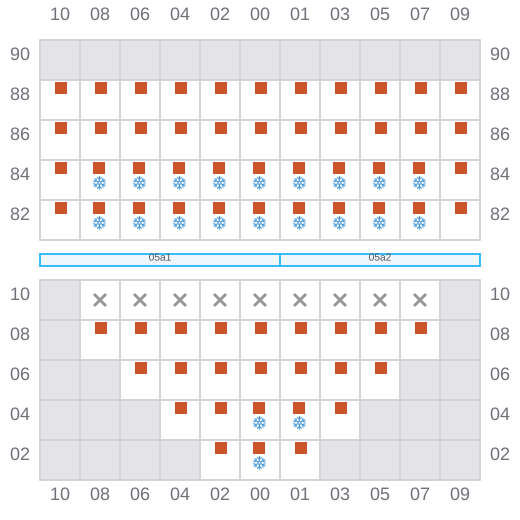

007
- ←
- →
![Bay 007 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b007.png?v=1711659635559)

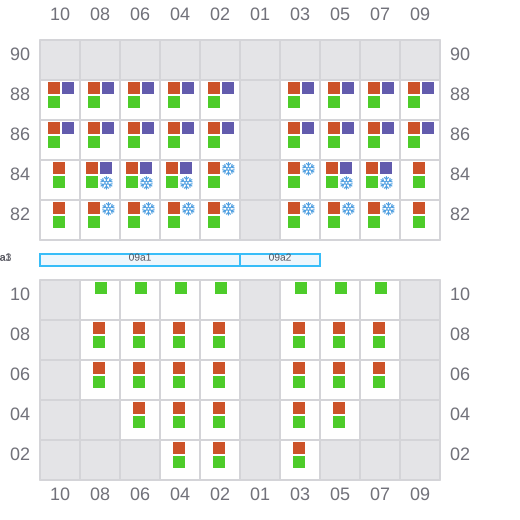

009 (010)
- →
- ← / ?
![Bay 009 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b009.png?v=1711659635559)

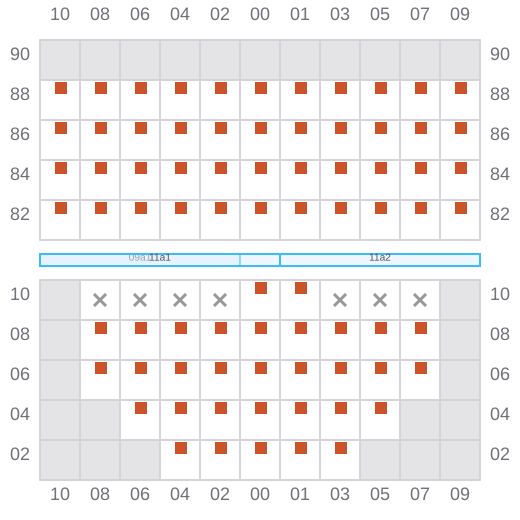

011
- ←
![Bay 011 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b011.png?v=1711659635559)
013 (014)
- →
![Bay 013 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b013.png?v=1711659635559)

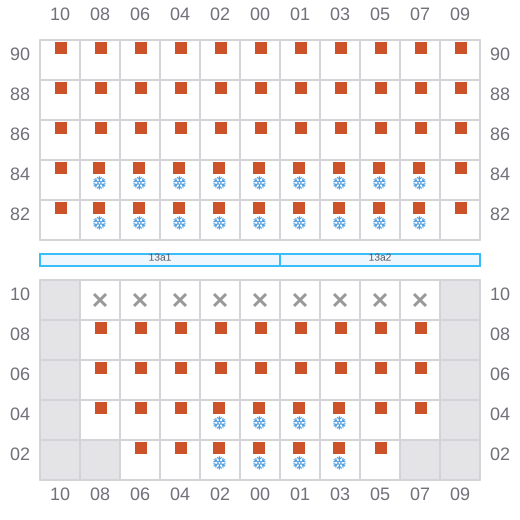

015
- ←
- →
![Bay 015 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b015.png?v=1711659635559)

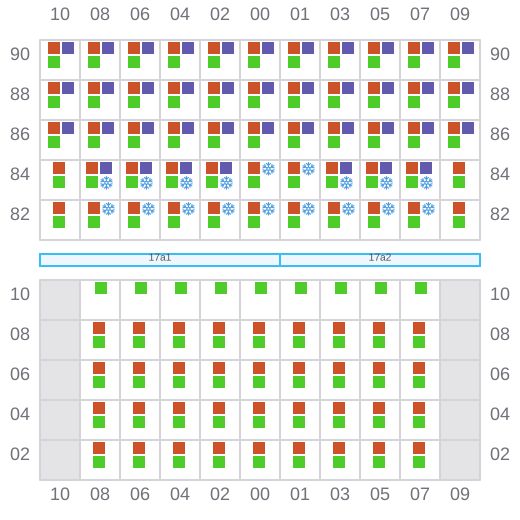

017 (018)
- →
- ← / ?
![Bay 017 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b017.png?v=1711659635559)

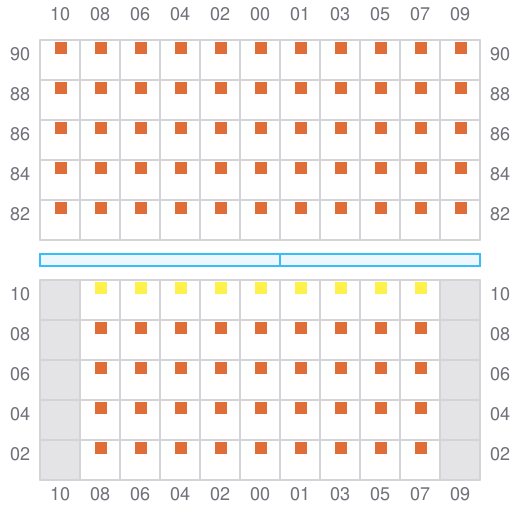

019
- ←
![Bay 019 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b019.png?v=1711659635559)

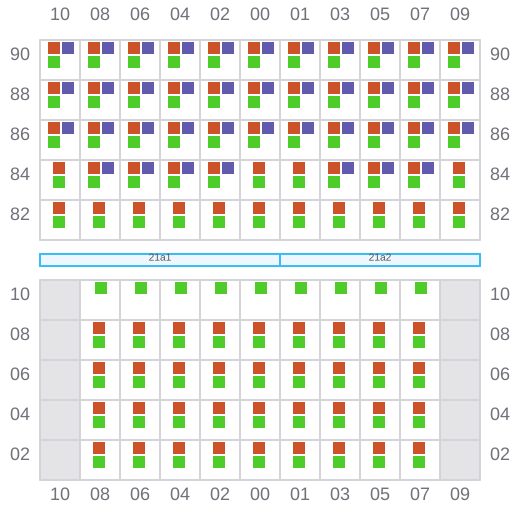

021 (022)
- →
![Bay 021 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b021.png?v=1711659635559)

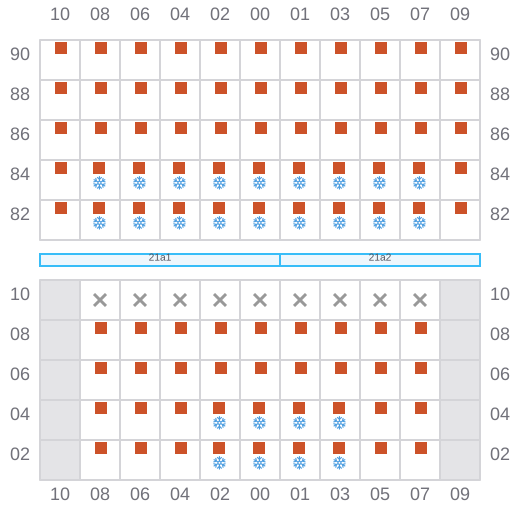

023
- ←
- →
![Bay 023 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b023.png?v=1711659635559)

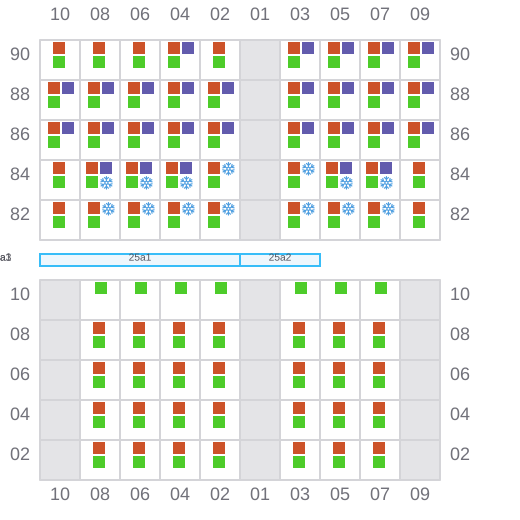

025 (026)
- →
- ← / ?
![Bay 025 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b025.png?v=1711659635559)

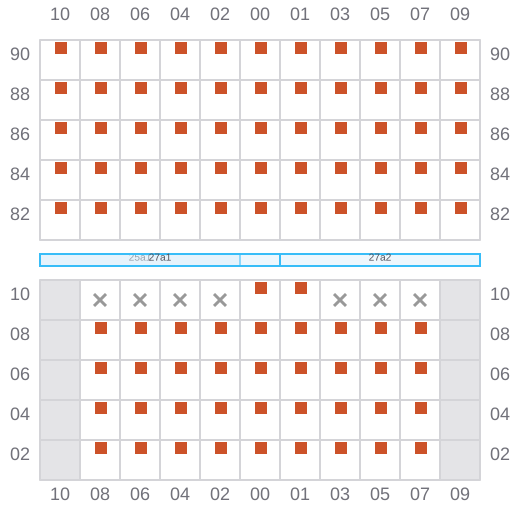

027
- ←
![Bay 027 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b027.png?v=1711659635559)

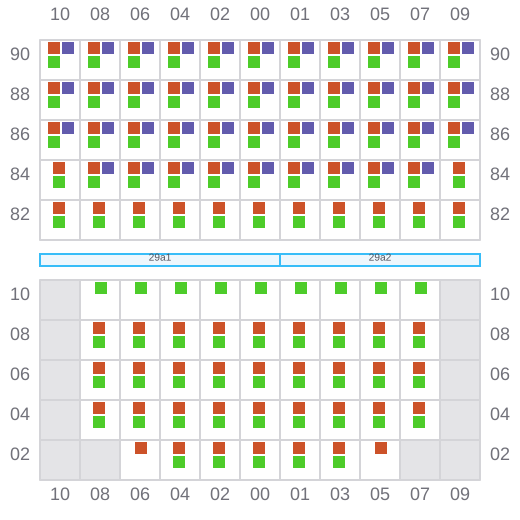

029 (030)
- →
![Bay 029 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b029.png?v=1711659635559)

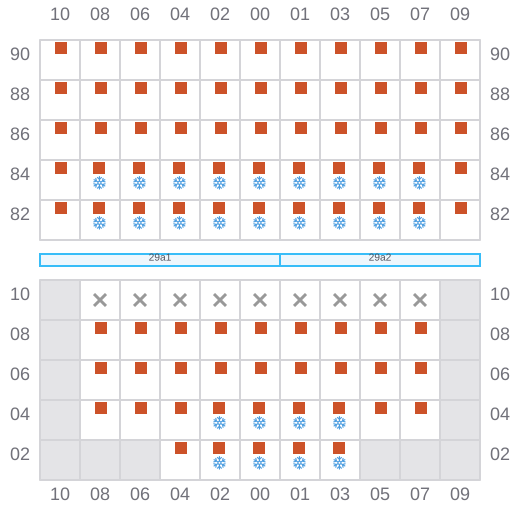

031
- ←
- →
![Bay 031 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b031.png?v=1711659635559)

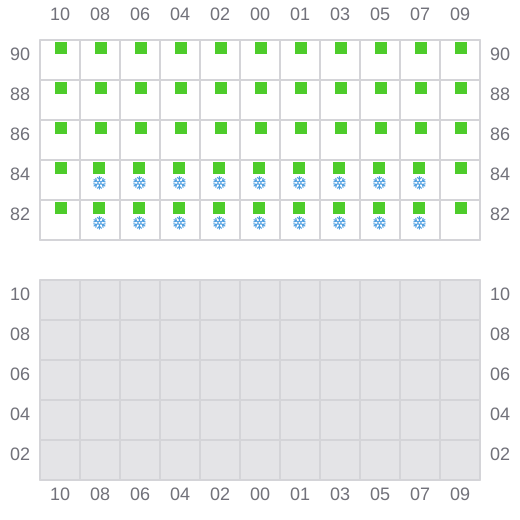

033 (034)
- → / ?
- → / ?
![Bay 033 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b033.png?v=1711659635559)

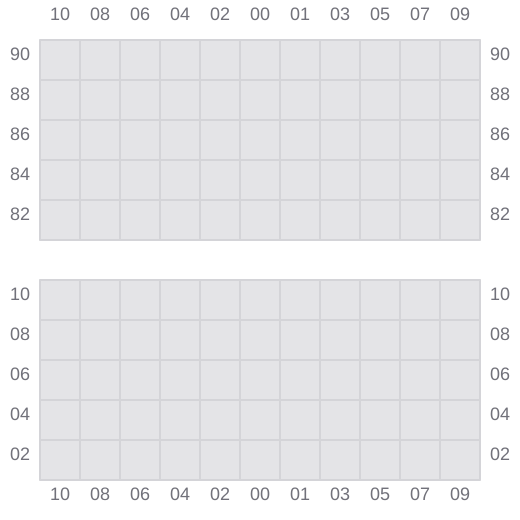

035
![Bay 035 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b035.png?v=1711659635559)

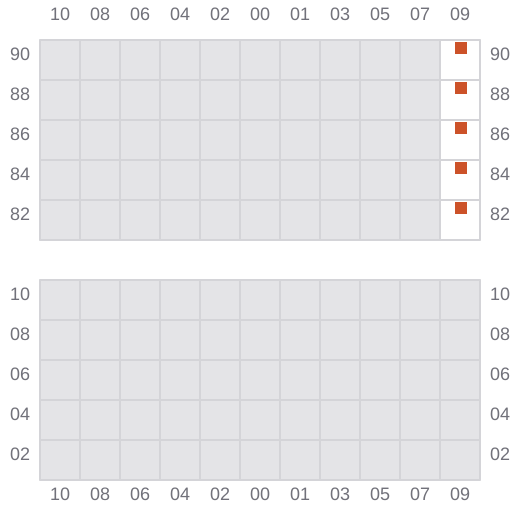

037
- → / ?
![Bay 037 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b037.png?v=1711659635559)

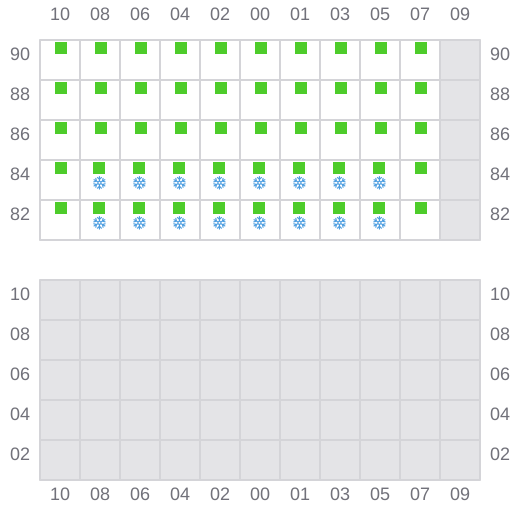

039 (038)
- ← / ?
- → / ?
![Bay 039 view and slots of MAERSK WAKAYAMA](/vessel-images/29bfe678-1a1f-49fb-9d52-76ff64667bf6-b039.png?v=1711659635559)
