MAERSK WALVIS BAY
9550369 | 4DJM3 | 9550369 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:MAERSK WALVIS BAY
IMO Code:9550369
Call Sign:4DJM3
Line Operator:9550369
Class Name for Sister Ships:49A
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):160.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,577
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

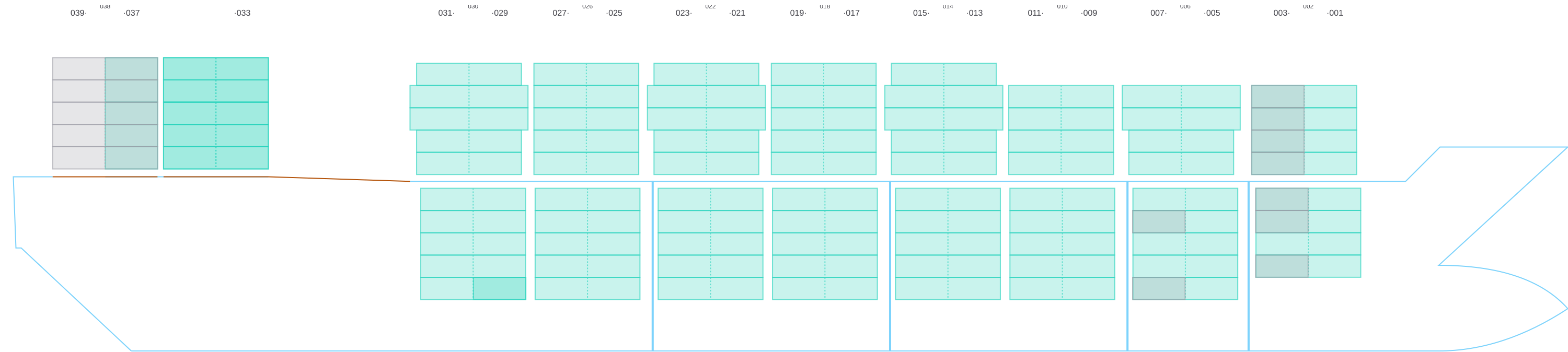

Side View
Hatch-Covers View

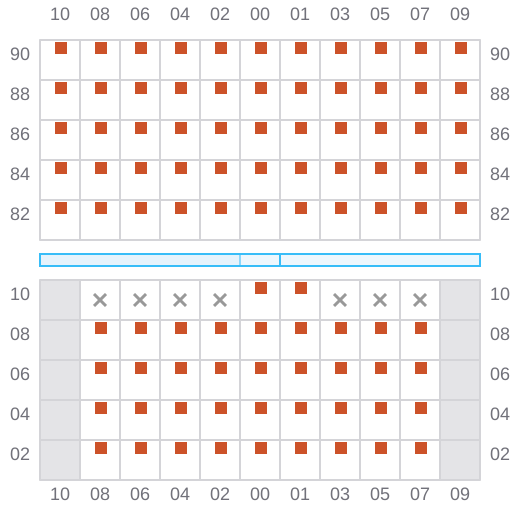

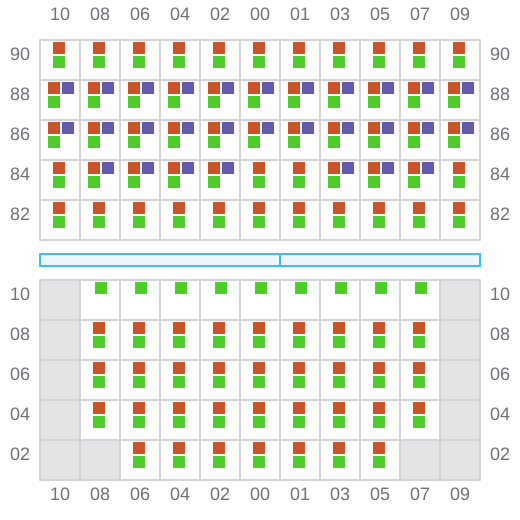

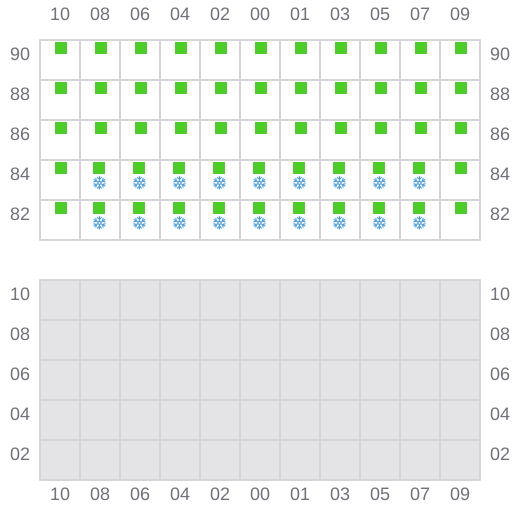

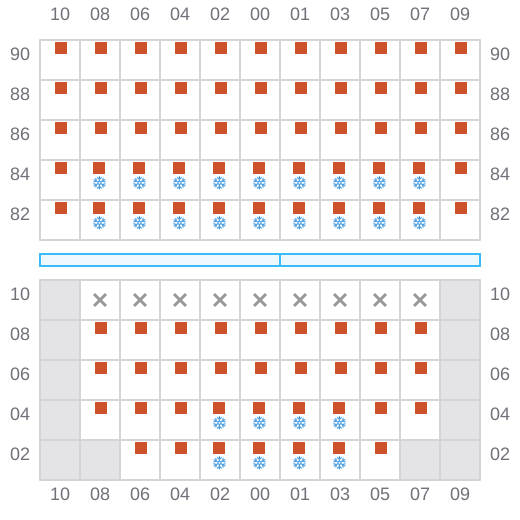

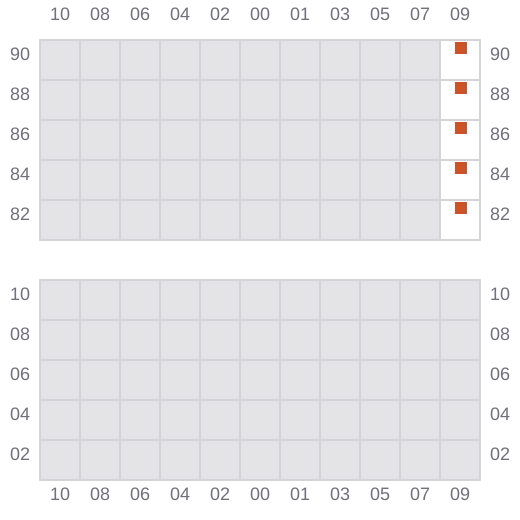

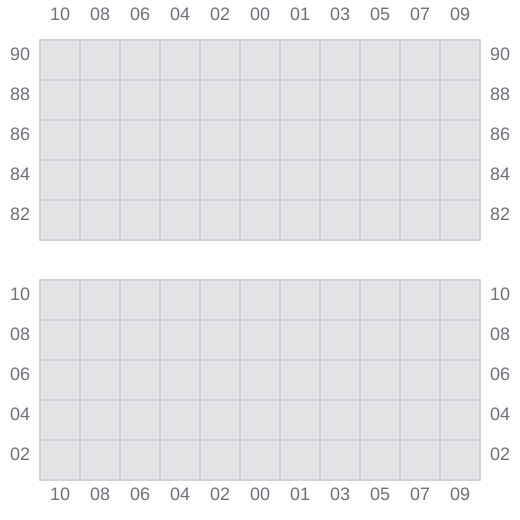

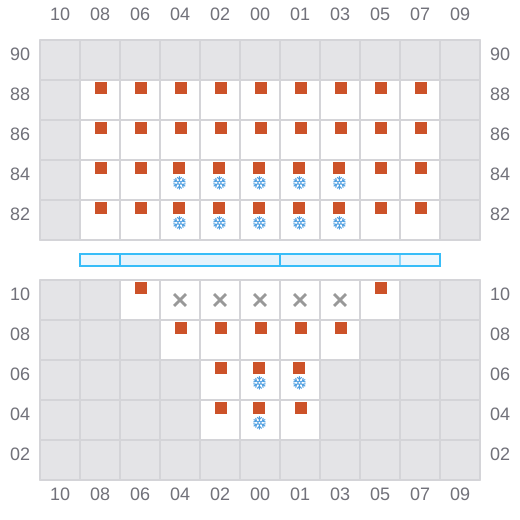

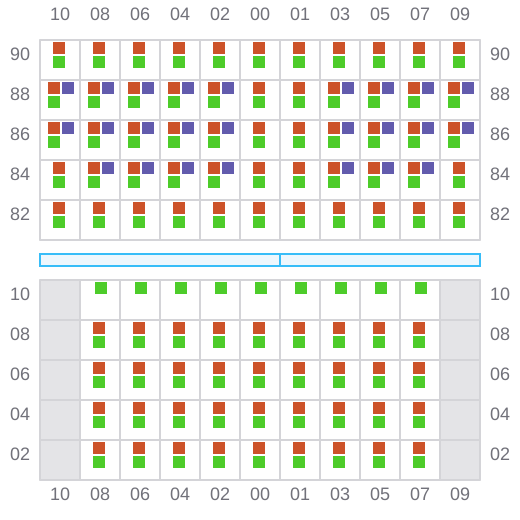

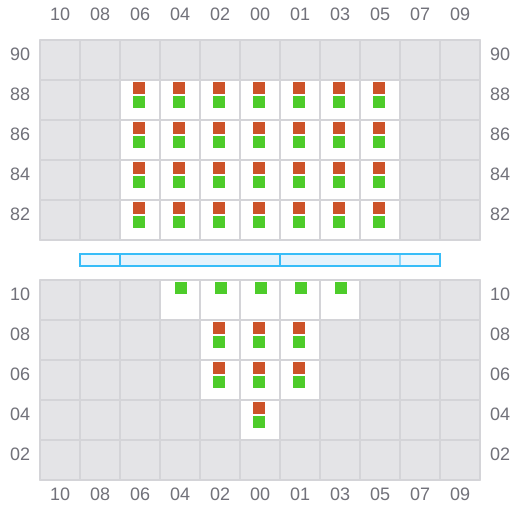

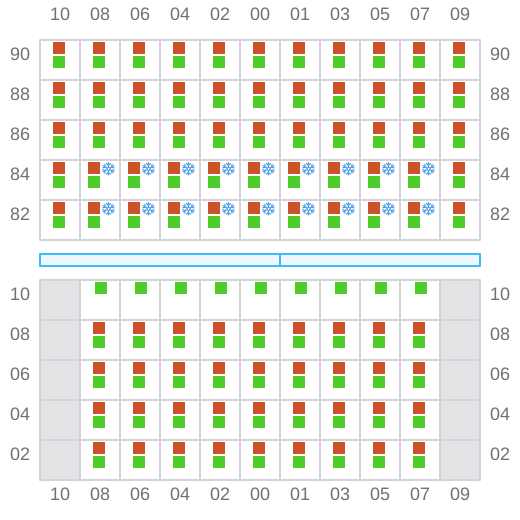

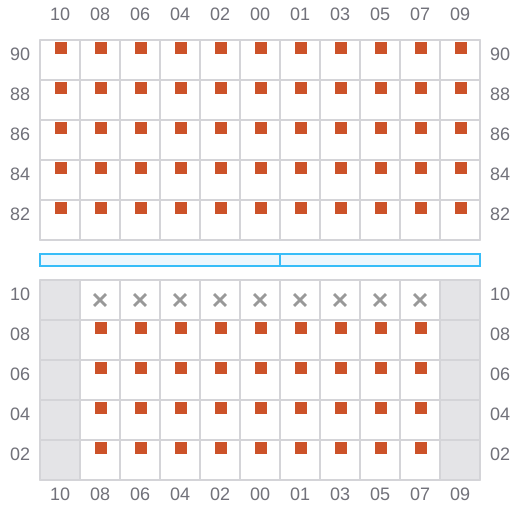

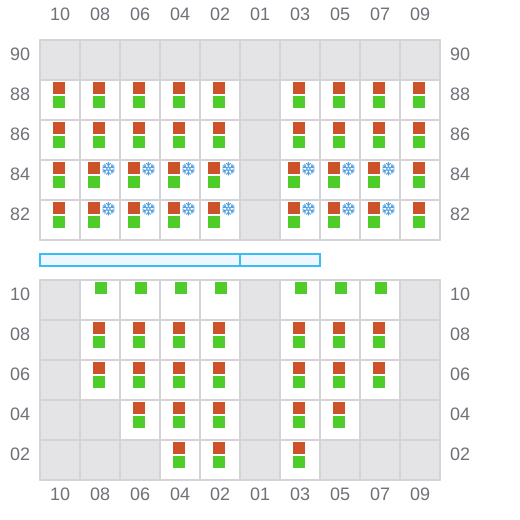

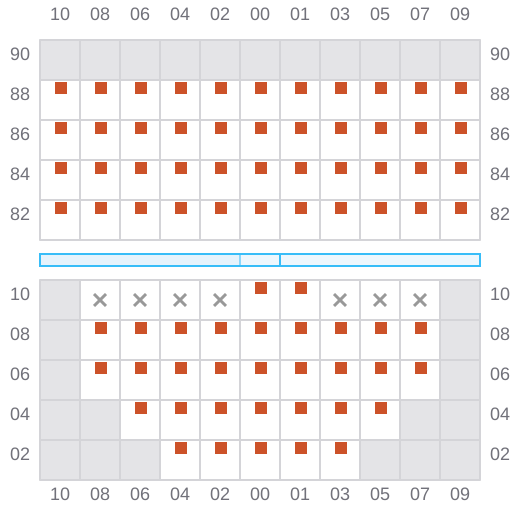

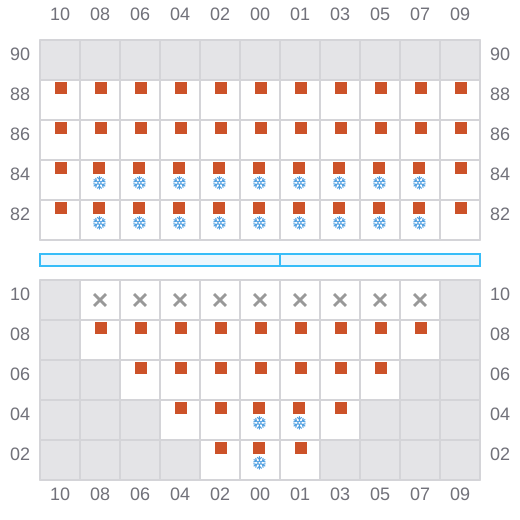

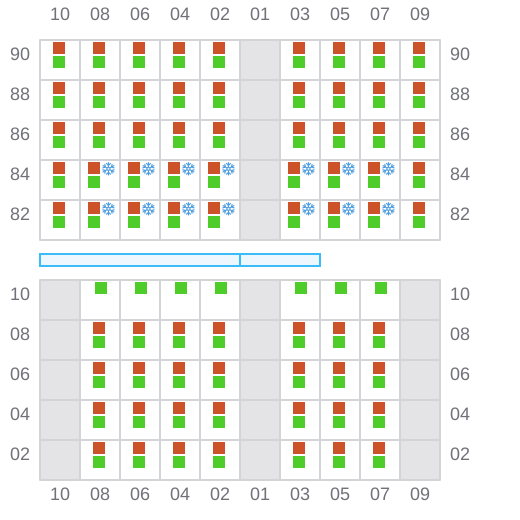

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
003
- ←
- →

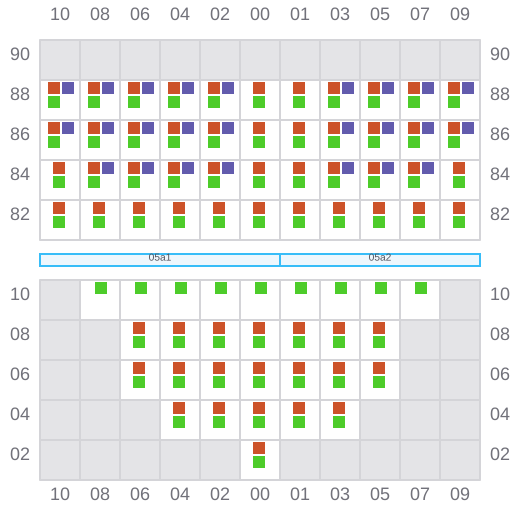

005 (006)
- →
007
- ←
- →
009 (010)
- →
- ← / ?
011
- ←
013 (014)
- →
015
- ←
- →
017 (018)
- →
- ← / ?
019
- ←
021 (022)
- →
023
- ←
- →
025 (026)
- →
- ← / ?

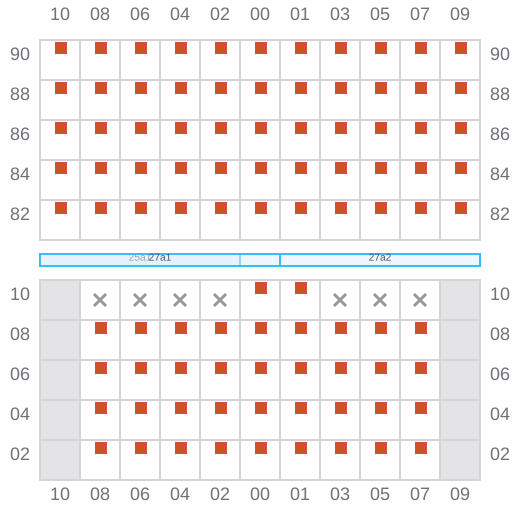

027
- ←
029 (030)
- →
031
- ←
- →
033 (034)
- → / ?
- → / ?
035
037
- → / ?

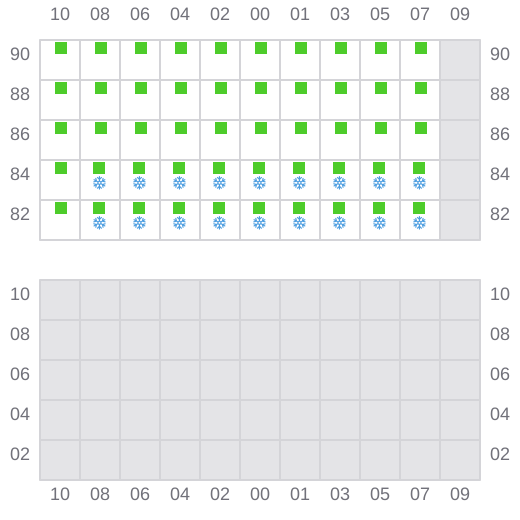

039 (038)
- ← / ?
- → / ?
