MAERSK WELLINGTON
9391660 | 9V7727 | HAP by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MAERSK WELLINGTON
IMO Code:9391660
Call Sign:9V7727
Line Operator:HAP
Class Name for Sister Ships:SPH
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:057
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,728

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Estimated
TCG Data:0%

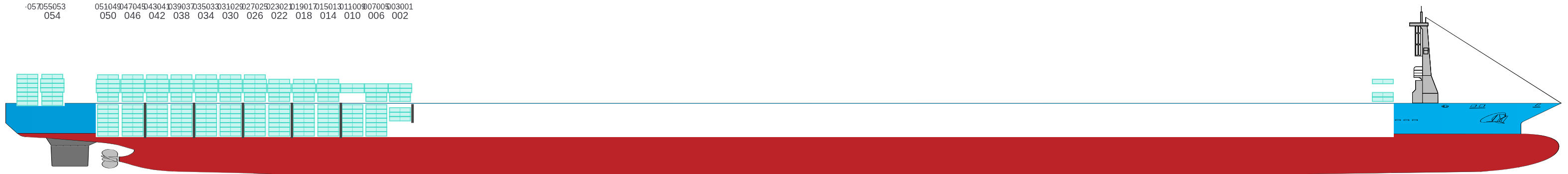

Side View

Side view of MAERSK WELLINGTON

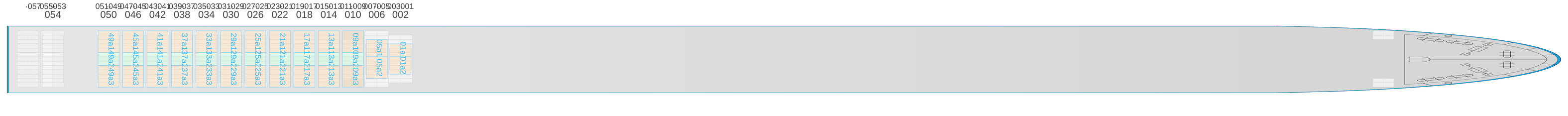

Hatch-Covers View

Deck view of MAERSK WELLINGTON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

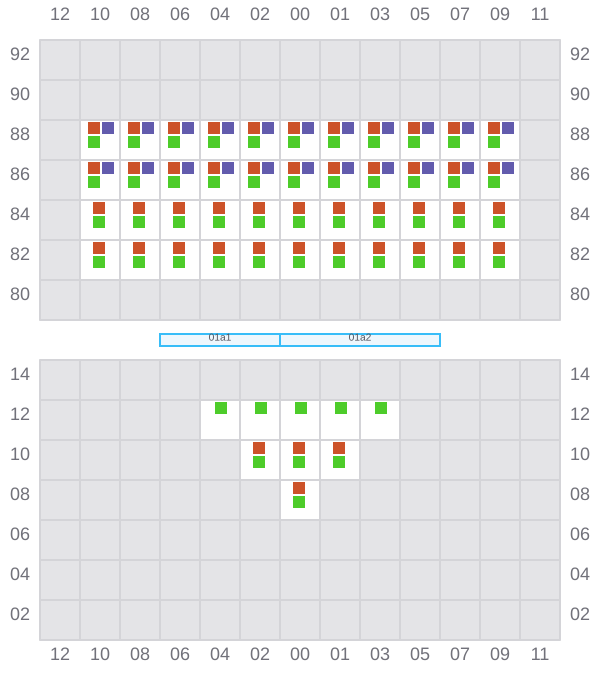

001 (002)

  • →
Bay 001 view and slots of MAERSK WELLINGTON

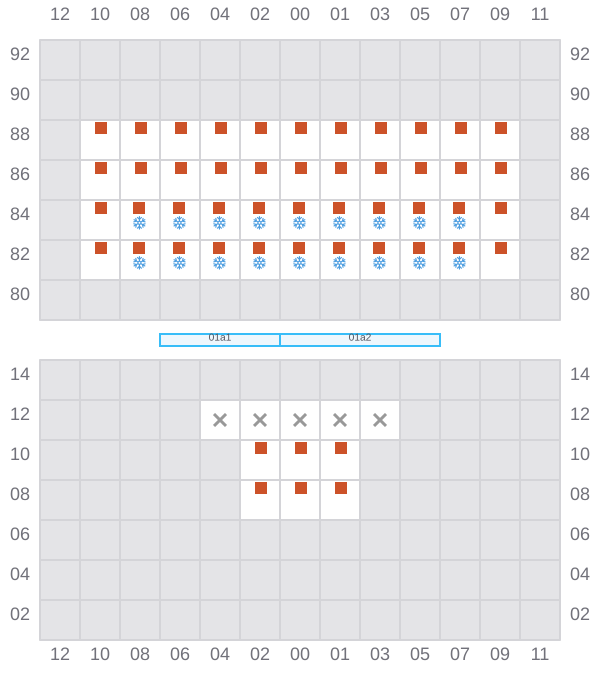

003

  • ←
  • → / ?
Bay 003 view and slots of MAERSK WELLINGTON

005 (006)

  • →

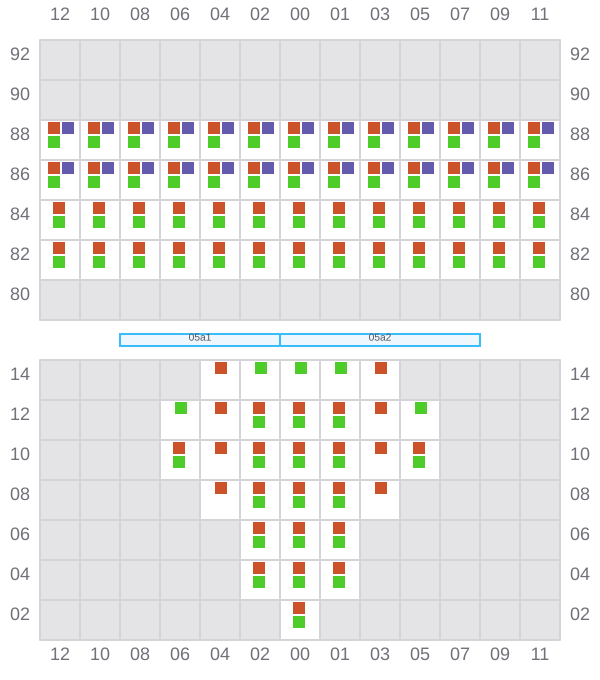

Bay 005 view and slots of MAERSK WELLINGTON

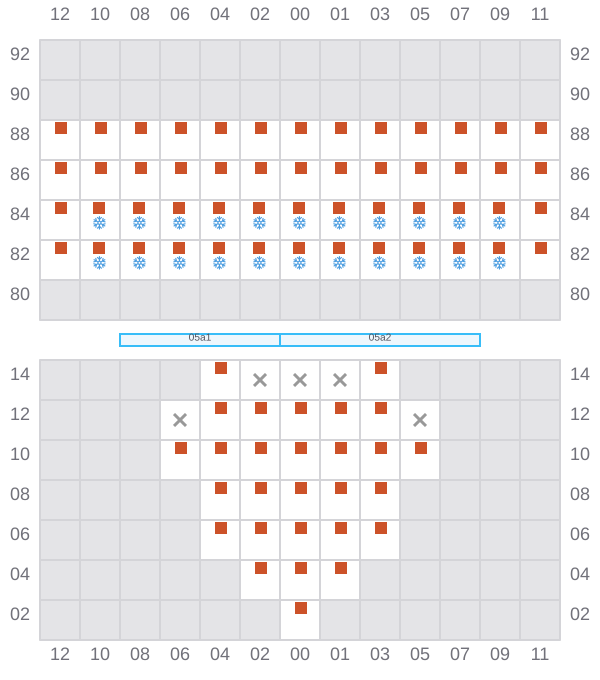

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK WELLINGTON

009 (010)

  • →

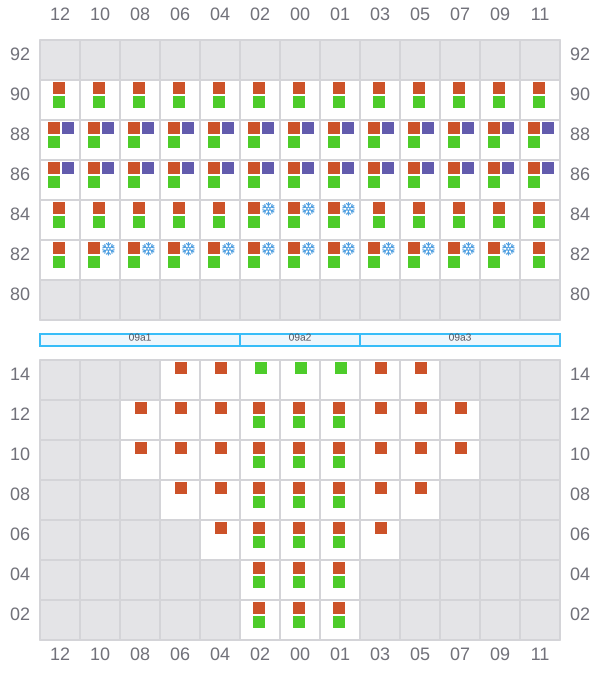

Bay 009 view and slots of MAERSK WELLINGTON

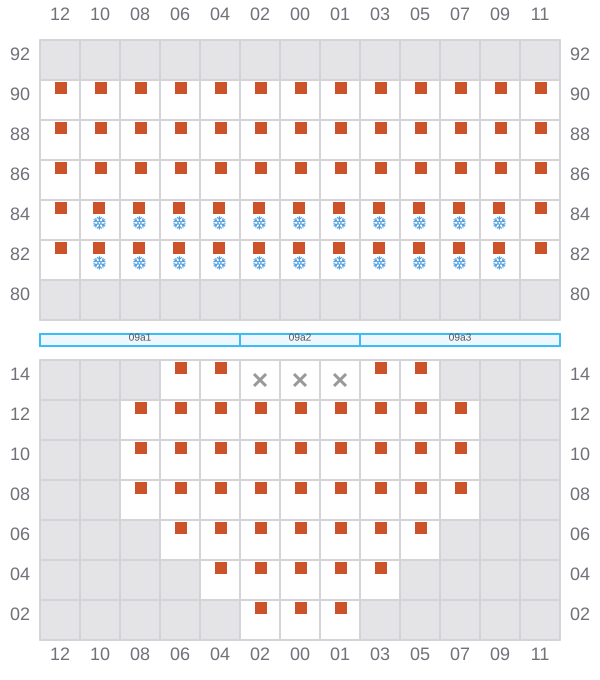

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK WELLINGTON

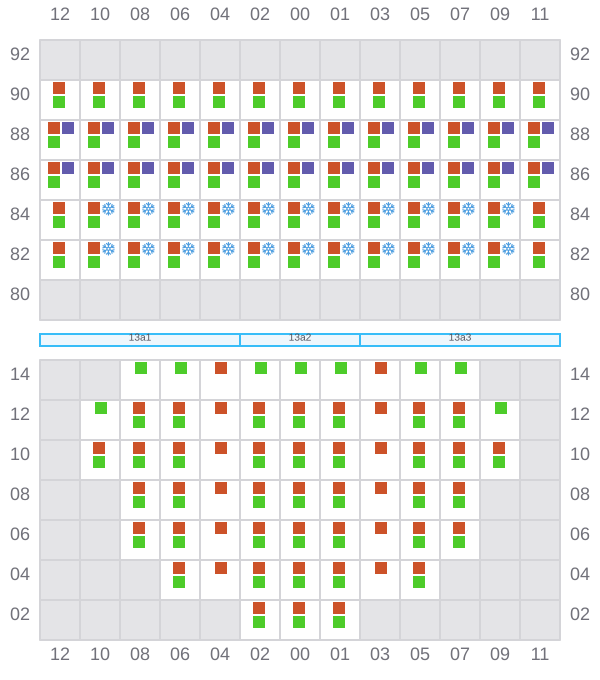

013 (014)

  • →
Bay 013 view and slots of MAERSK WELLINGTON

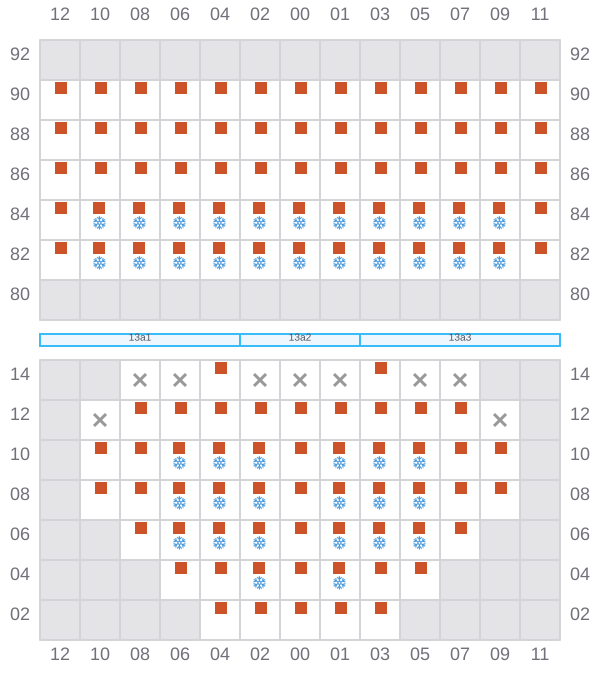

015

  • ←
  • → / ?
Bay 015 view and slots of MAERSK WELLINGTON

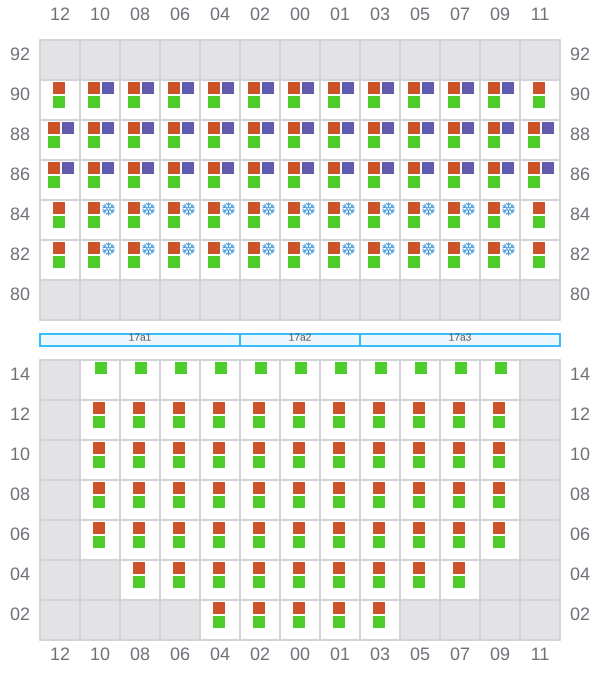

017 (018)

  • →
Bay 017 view and slots of MAERSK WELLINGTON

019

  • ←
  • → / ?

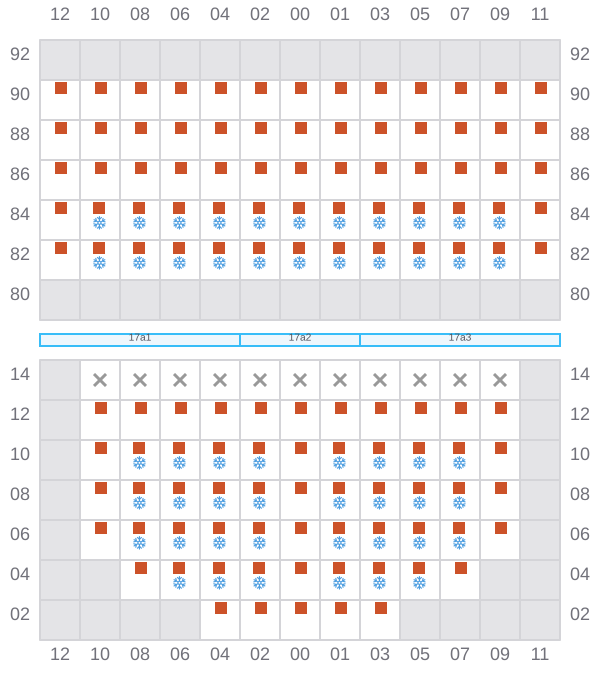

Bay 019 view and slots of MAERSK WELLINGTON

021 (022)

  • →

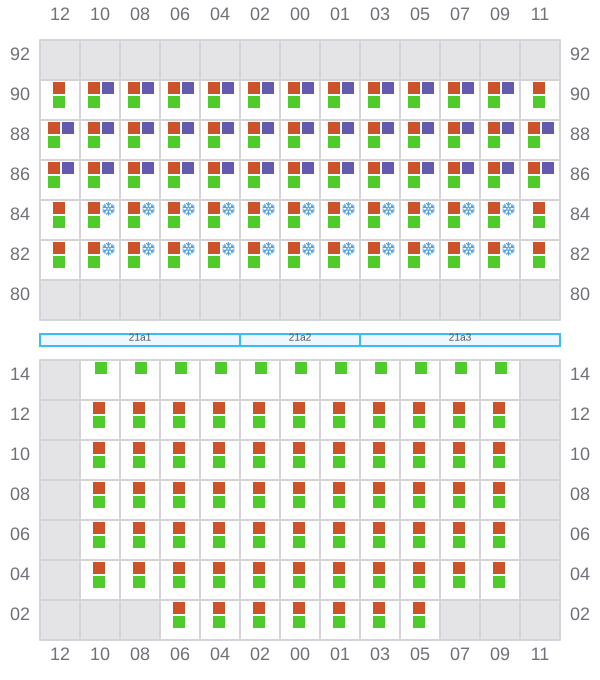

Bay 021 view and slots of MAERSK WELLINGTON

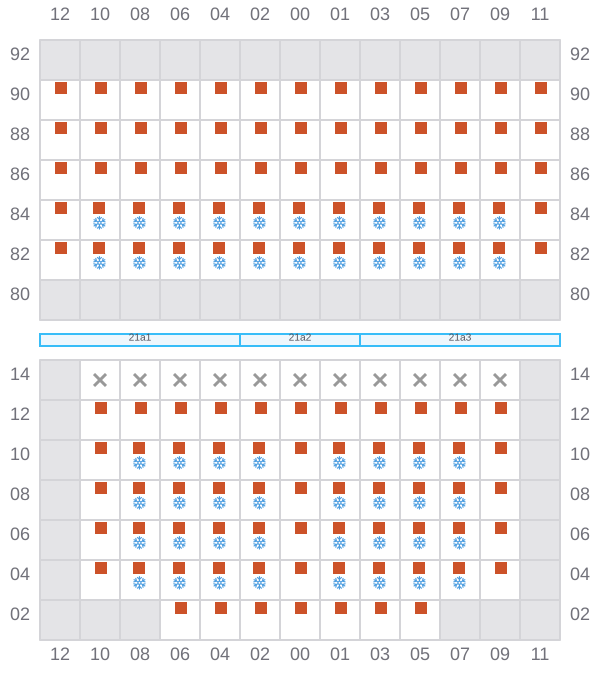

023

  • ←
  • → / ?
Bay 023 view and slots of MAERSK WELLINGTON

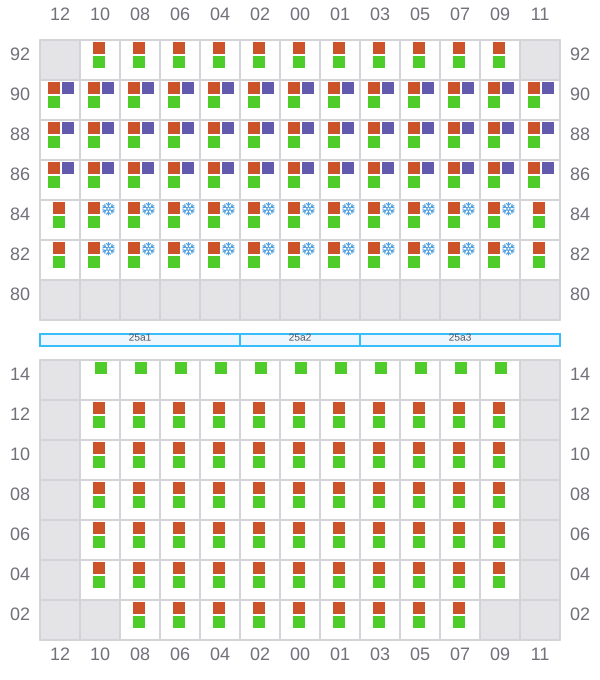

025 (026)

  • →
Bay 025 view and slots of MAERSK WELLINGTON

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK WELLINGTON

029 (030)

  • →
Bay 029 view and slots of MAERSK WELLINGTON

031

  • ←
  • → / ?
Bay 031 view and slots of MAERSK WELLINGTON

033 (034)

  • →
Bay 033 view and slots of MAERSK WELLINGTON

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK WELLINGTON

037 (038)

  • →
Bay 037 view and slots of MAERSK WELLINGTON

039

  • ←
  • → / ?

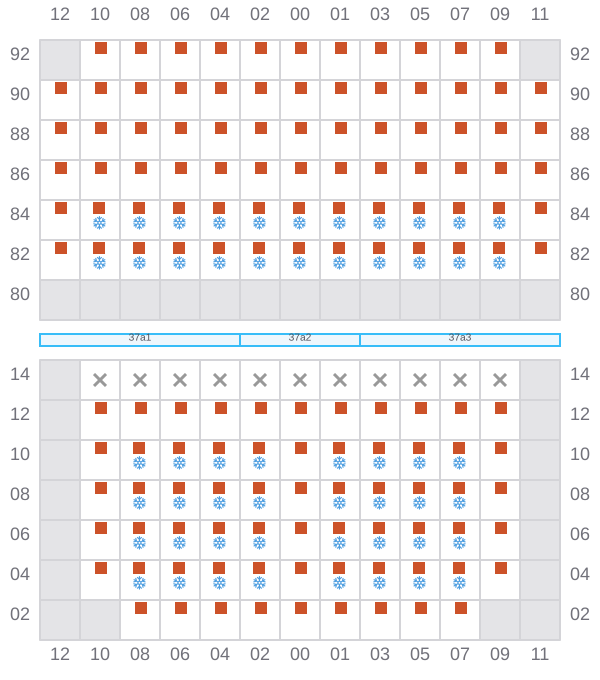

Bay 039 view and slots of MAERSK WELLINGTON

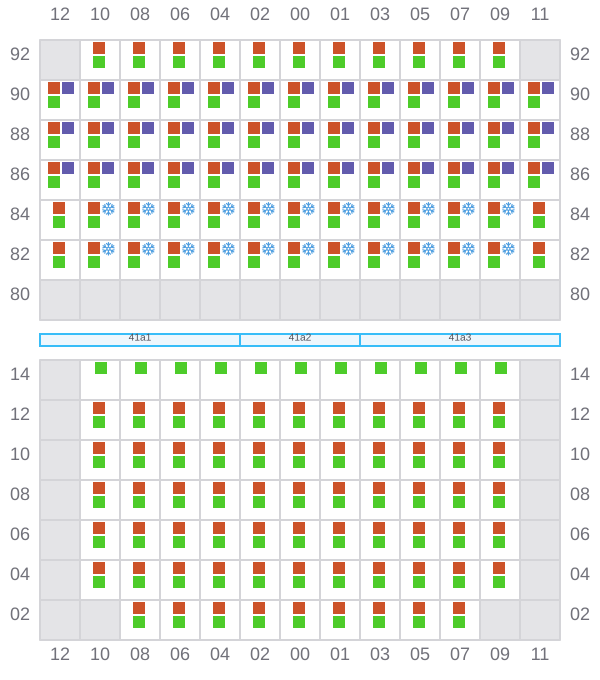

041 (042)

  • →
Bay 041 view and slots of MAERSK WELLINGTON

043

  • ←
  • →
Bay 043 view and slots of MAERSK WELLINGTON

045 (046)

  • →
Bay 045 view and slots of MAERSK WELLINGTON

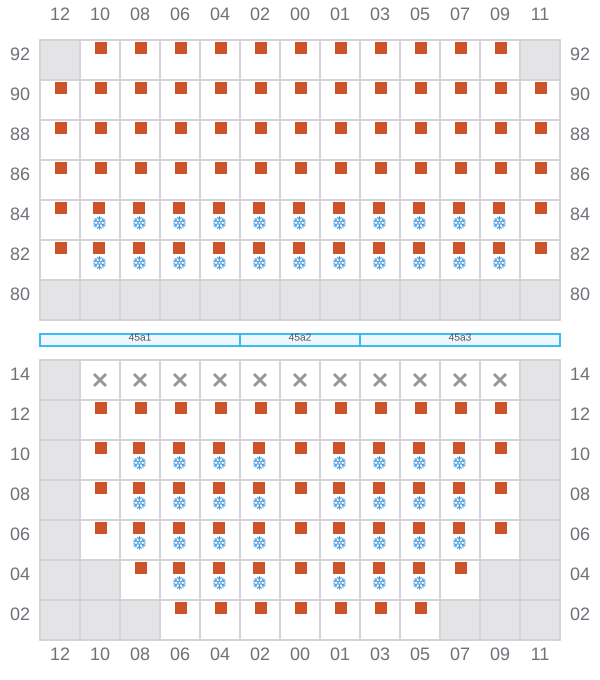

047

  • ←
  • →
Bay 047 view and slots of MAERSK WELLINGTON

049 (050)

  • →

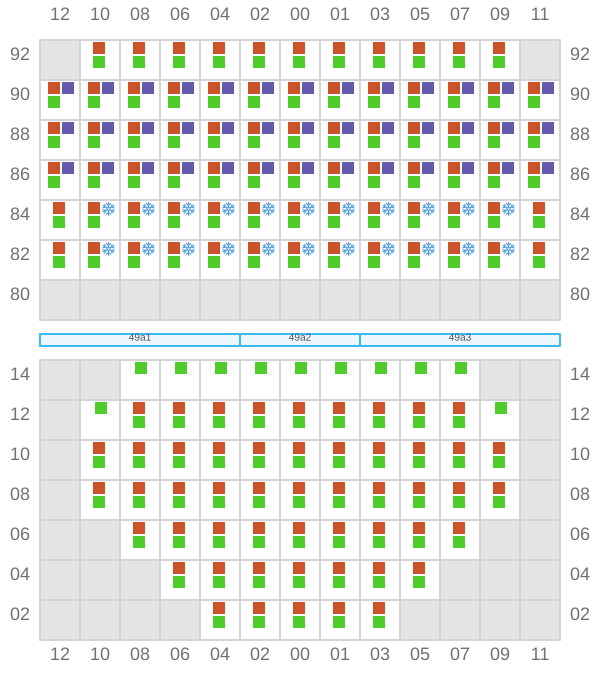

Bay 049 view and slots of MAERSK WELLINGTON

051

  • ←
  • →

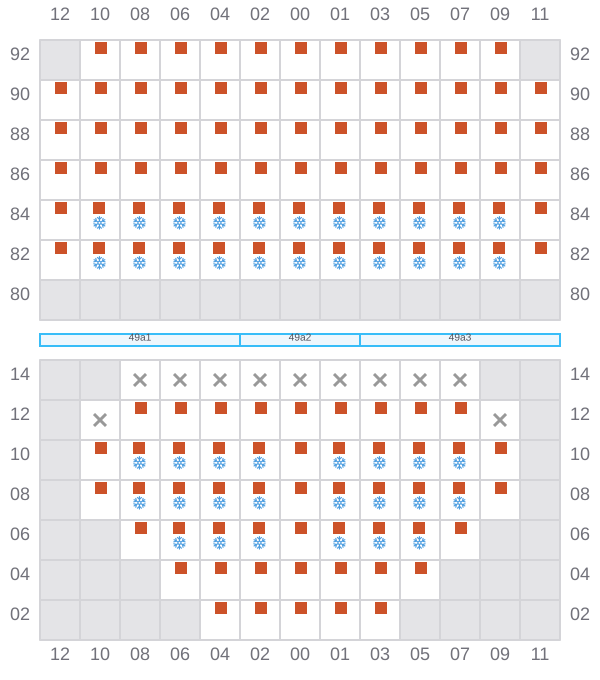

Bay 051 view and slots of MAERSK WELLINGTON

053 (054)

  • → / ?

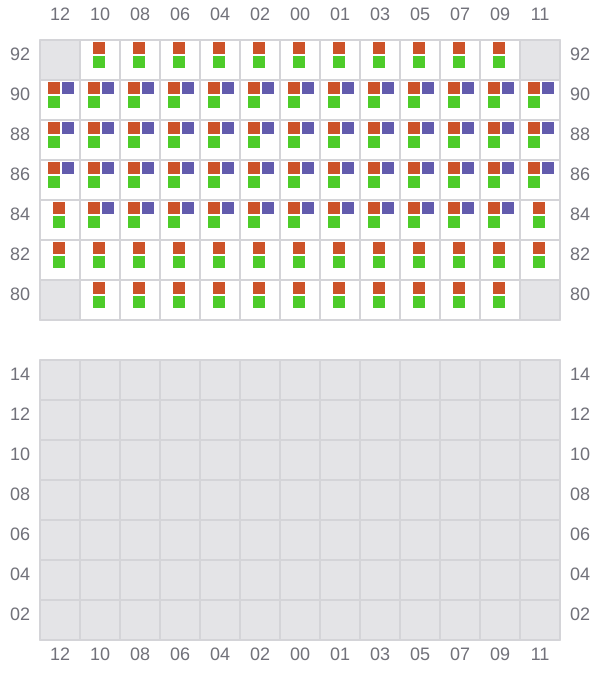

Bay 053 view and slots of MAERSK WELLINGTON

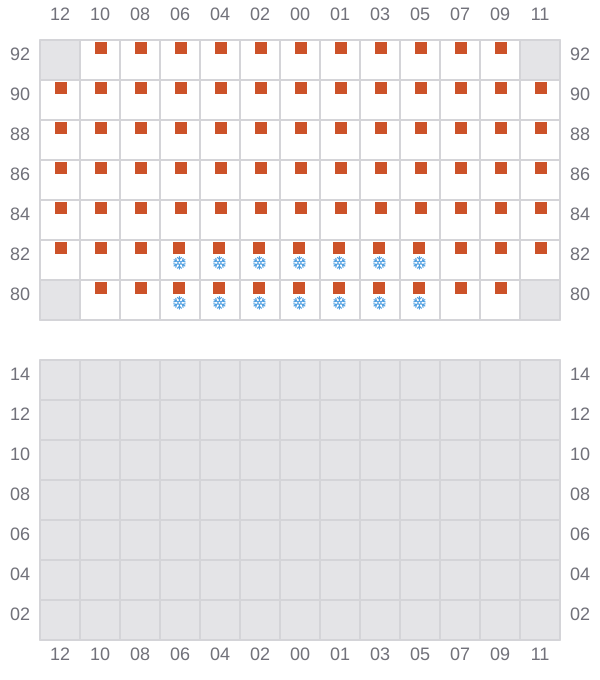

055

  • ← / ?
  • → / ?
Bay 055 view and slots of MAERSK WELLINGTON

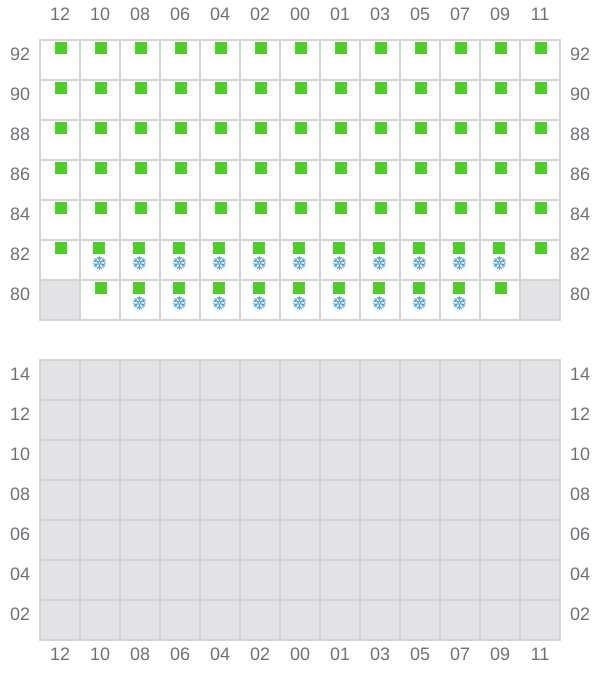

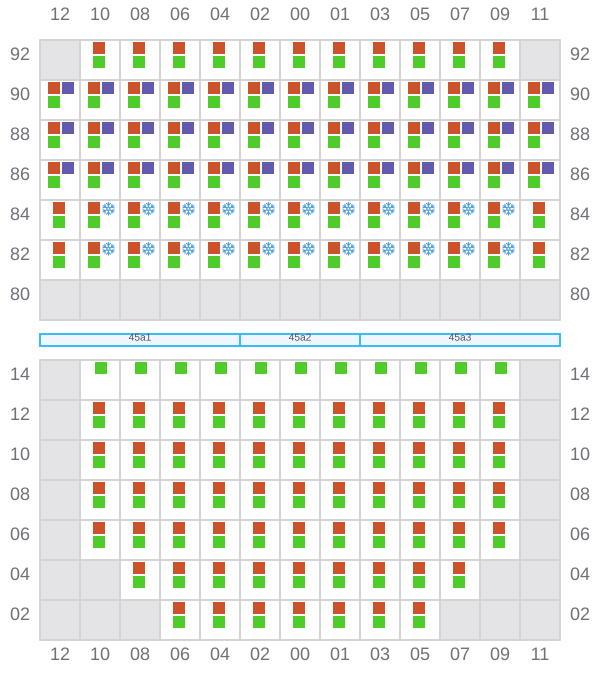

057 (058)

  • → / ?
  • ← / ?
Bay 057 view and slots of MAERSK WELLINGTON
