MAERSK WILLEMSTADT
9362401 | 9V7729 | MSK by ************************** Last update: Mon Jun 26 2023

General Info

Ship Name:MAERSK WILLEMSTADT
IMO Code:9362401
Call Sign:9V7729
Line Operator:MSK
Class Name for Sister Ships:WIL
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):241.99
LOA (Length Overall):254.07
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,577

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

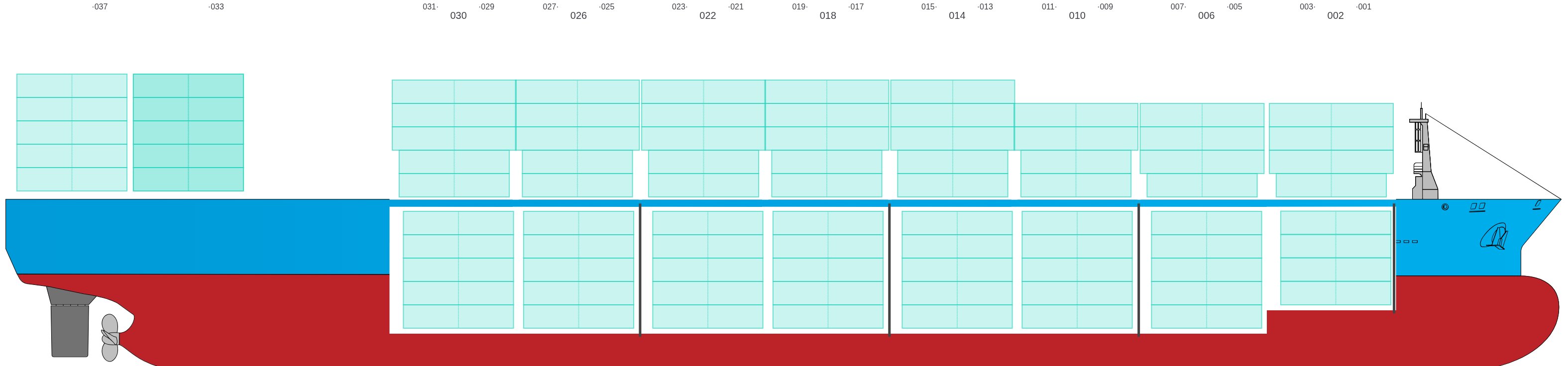

Side View

Side view of MAERSK WILLEMSTADT

Hatch-Covers View

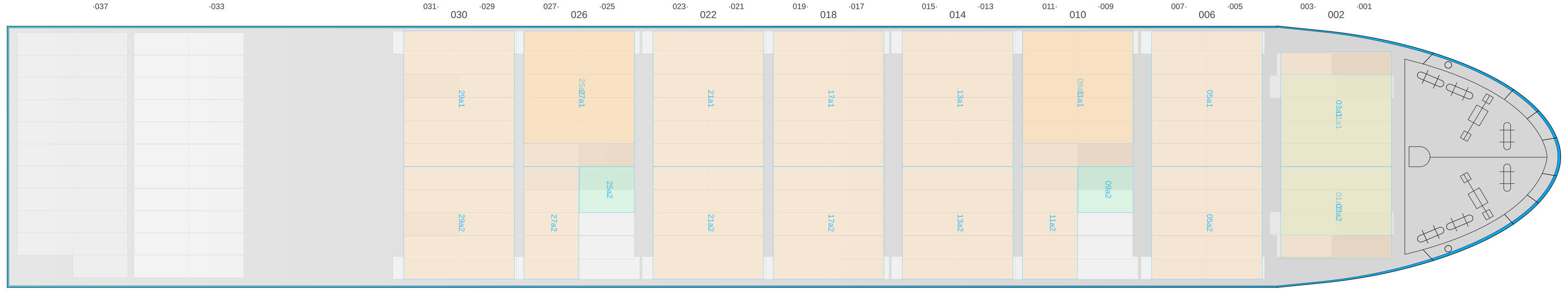

Deck view of MAERSK WILLEMSTADT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

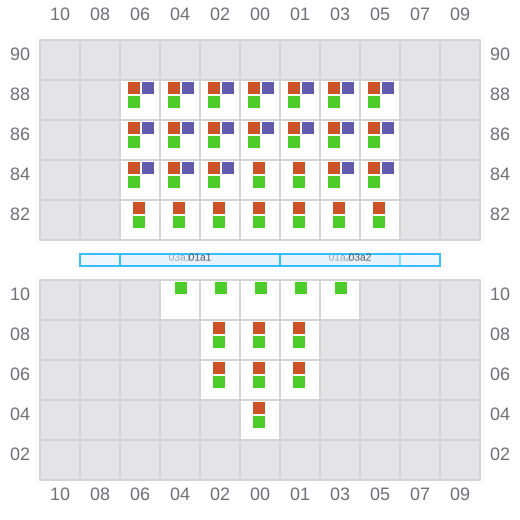

Bay 001 view and slots of MAERSK WILLEMSTADT

003

  • ←
  • →

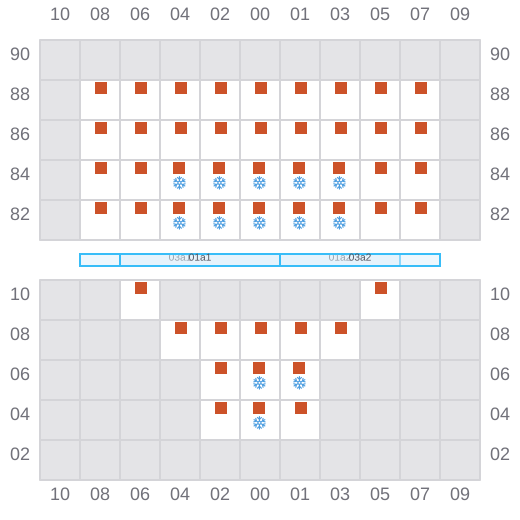

Bay 003 view and slots of MAERSK WILLEMSTADT

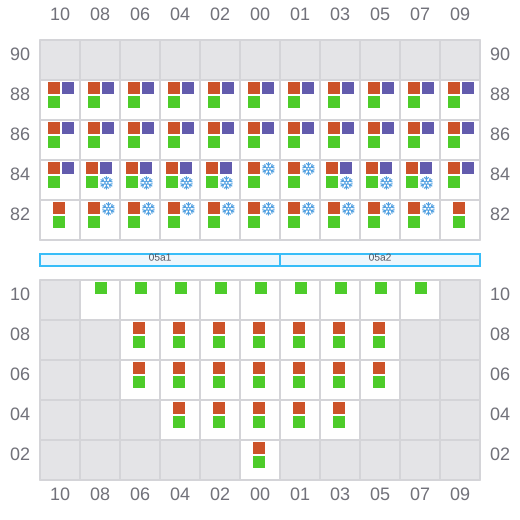

005 (006)

  • →
  • ← / ?
Bay 005 view and slots of MAERSK WILLEMSTADT

007

  • ←
  • ? / →

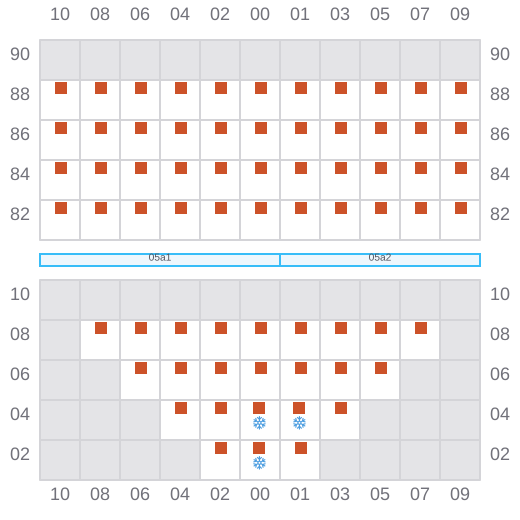

Bay 007 view and slots of MAERSK WILLEMSTADT

009 (010)

  • →

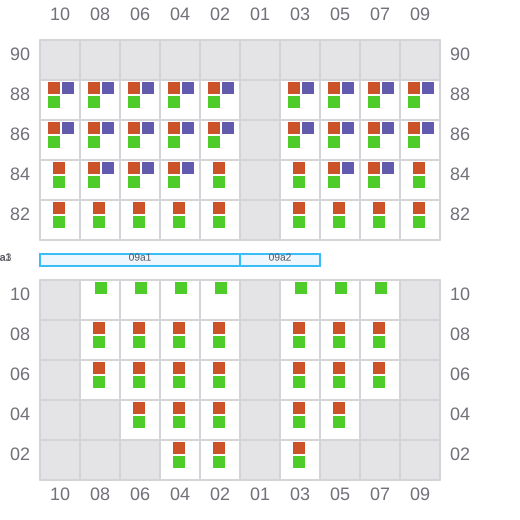

Bay 009 view and slots of MAERSK WILLEMSTADT

011

  • ←
  • → / ?

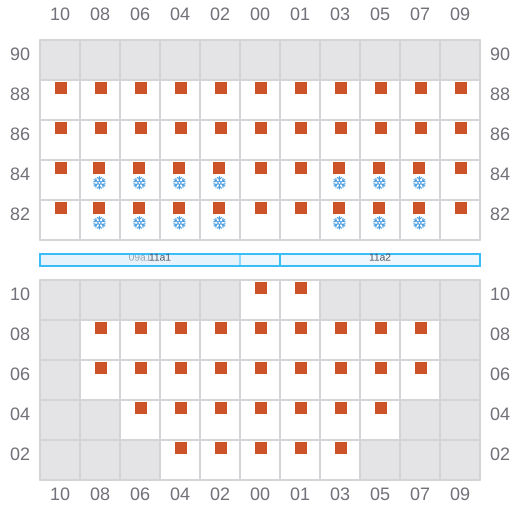

Bay 011 view and slots of MAERSK WILLEMSTADT

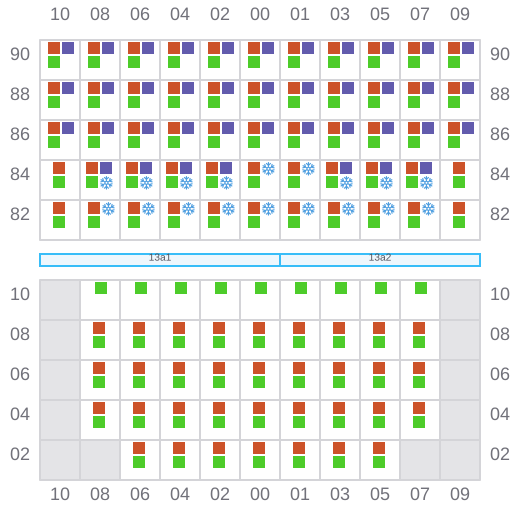

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of MAERSK WILLEMSTADT

015

  • ←
  • ? / →

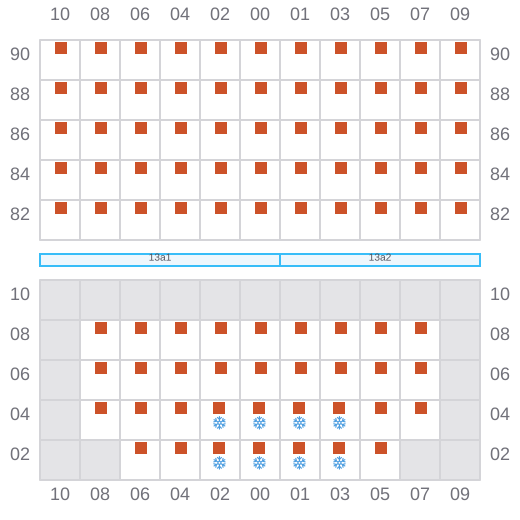

Bay 015 view and slots of MAERSK WILLEMSTADT

017 (018)

  • →

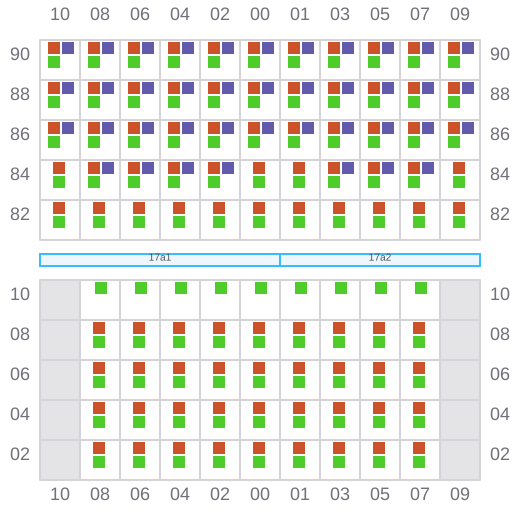

Bay 017 view and slots of MAERSK WILLEMSTADT

019

  • ←
  • → / ?

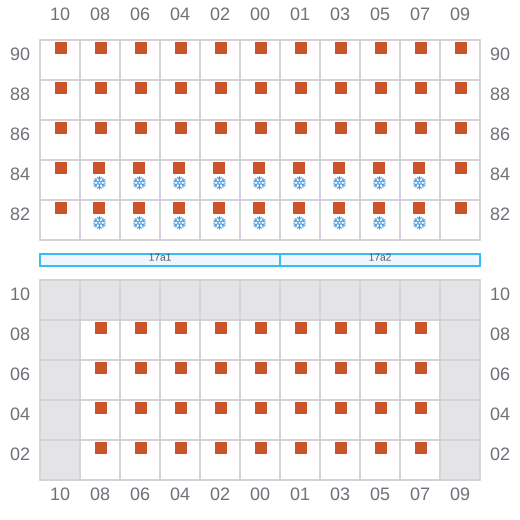

Bay 019 view and slots of MAERSK WILLEMSTADT

021 (022)

  • →
  • ← / ?

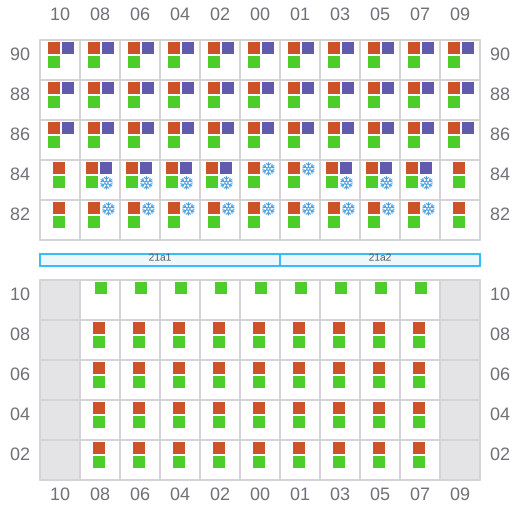

Bay 021 view and slots of MAERSK WILLEMSTADT

023

  • ←
  • ? / →

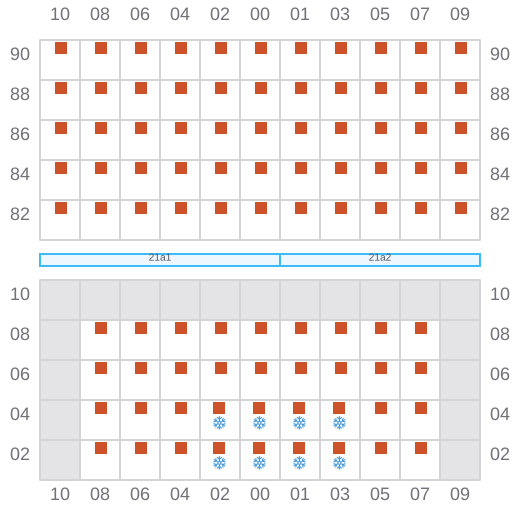

Bay 023 view and slots of MAERSK WILLEMSTADT

025 (026)

  • →

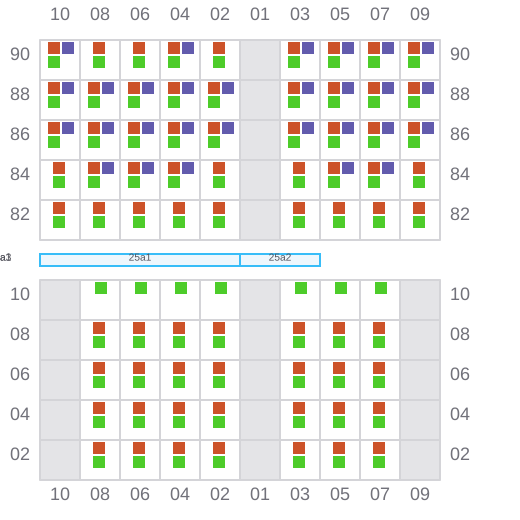

Bay 025 view and slots of MAERSK WILLEMSTADT

027

  • ←
  • → / ?

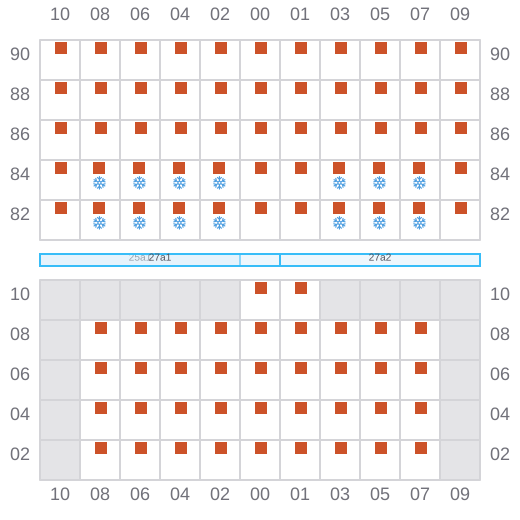

Bay 027 view and slots of MAERSK WILLEMSTADT

029 (030)

  • →
  • ← / ?

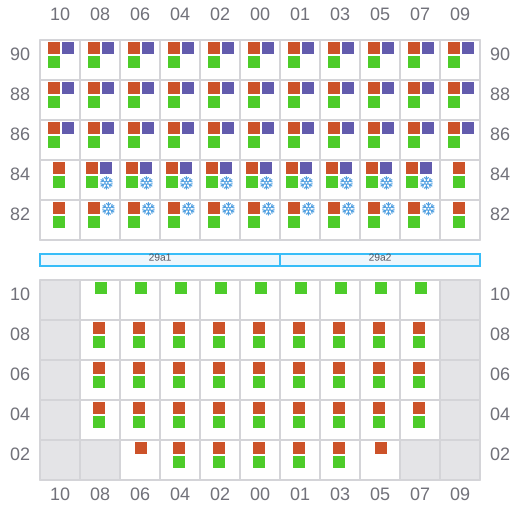

Bay 029 view and slots of MAERSK WILLEMSTADT

031

  • ←
  • ? / →
Bay 031 view and slots of MAERSK WILLEMSTADT

033 (034)

  • → / ?
  • ← / ?

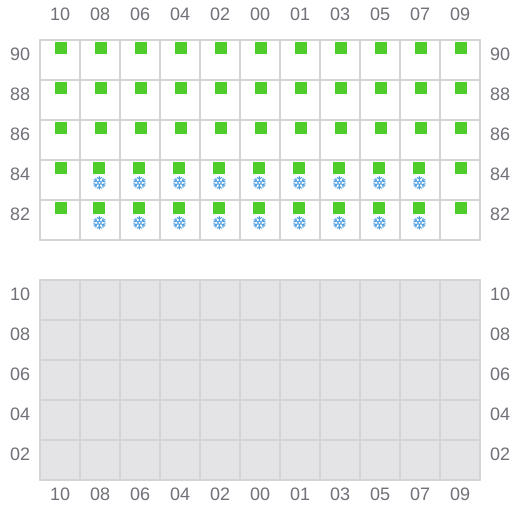

Bay 033 view and slots of MAERSK WILLEMSTADT

035

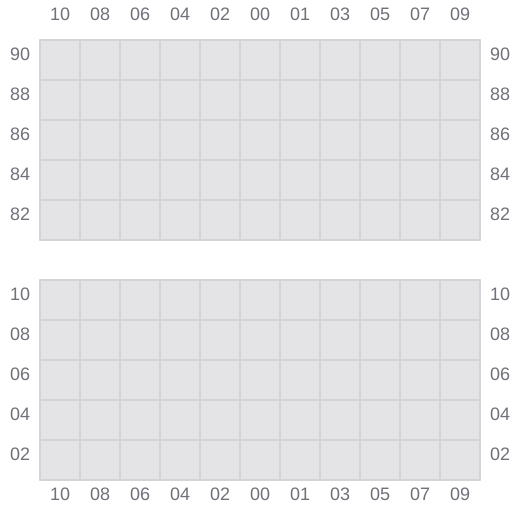

Bay 035 view and slots of MAERSK WILLEMSTADT

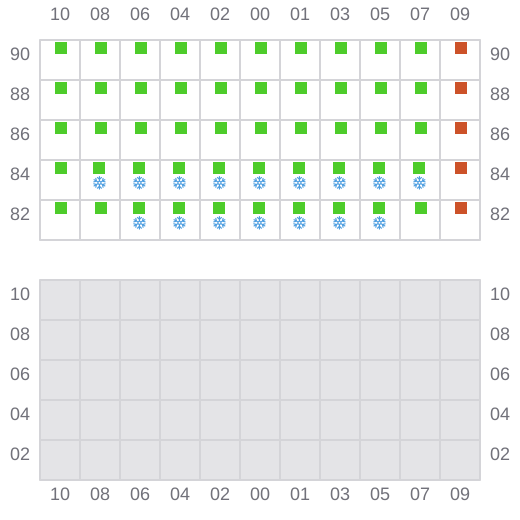

037 (038)

  • → / ?
  • ← / ?
Bay 037 view and slots of MAERSK WILLEMSTADT
