MAERSK WILLEMSTADT
9362401 | 9V7729 | 9362401 by ********* Last update: Wed May 01 2024

General Info

Ship Name:MAERSK WILLEMSTADT
IMO Code:9362401
Call Sign:9V7729
Line Operator:9362401
Class Name for Sister Ships:BAHIA CASTILLO
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):241.99
LOA (Length Overall):254.07
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:059
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,776

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

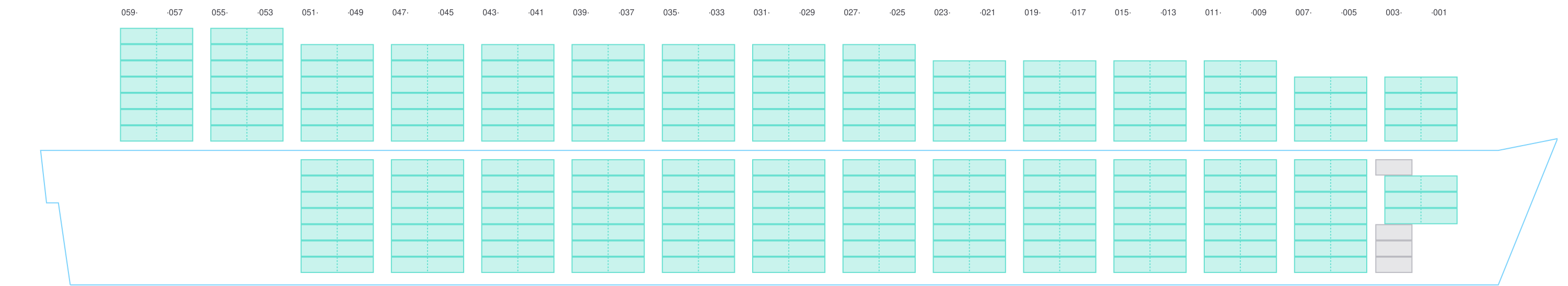

Side View

Side view of MAERSK WILLEMSTADT

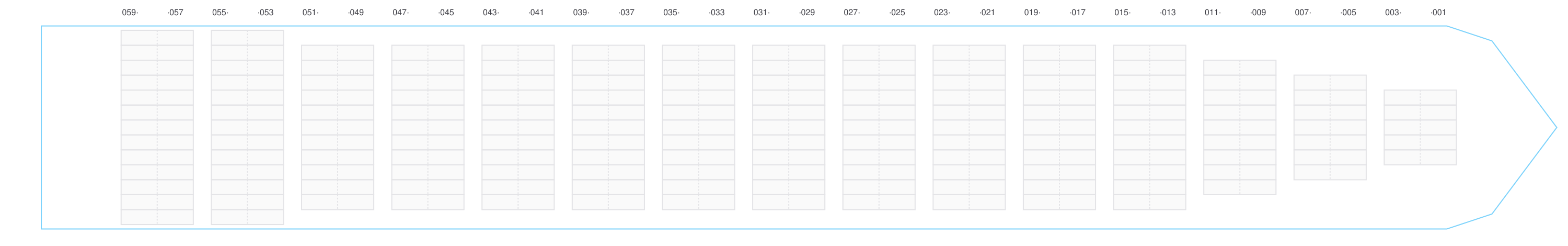

Hatch-Covers View

Deck view of MAERSK WILLEMSTADT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

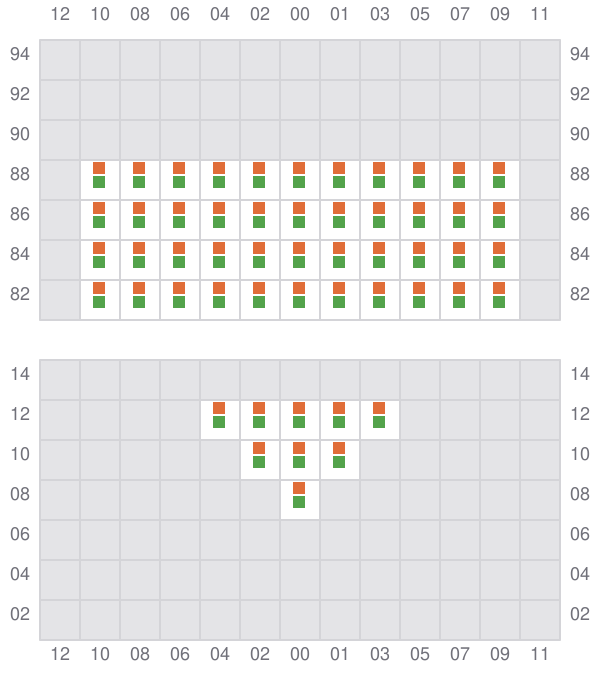

001 (002)

  • →
  • →
Bay 001 view and slots of MAERSK WILLEMSTADT

003

  • ←
  • →

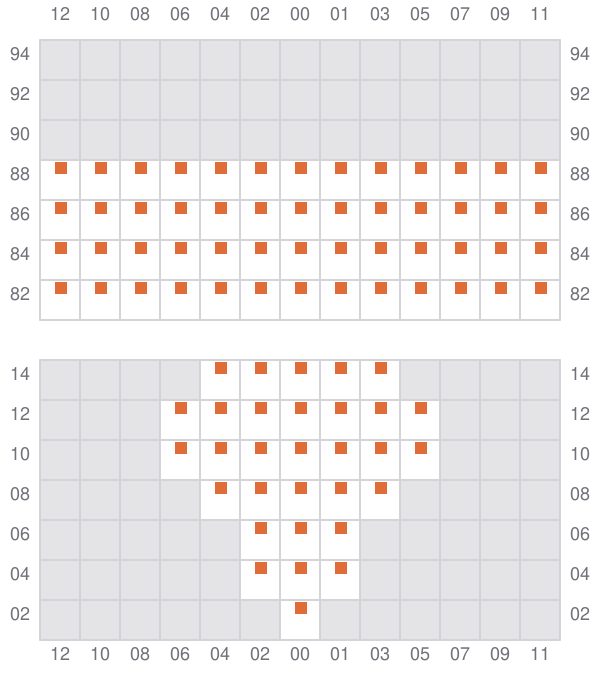

Bay 003 view and slots of MAERSK WILLEMSTADT

005 (006)

  • →
  • →

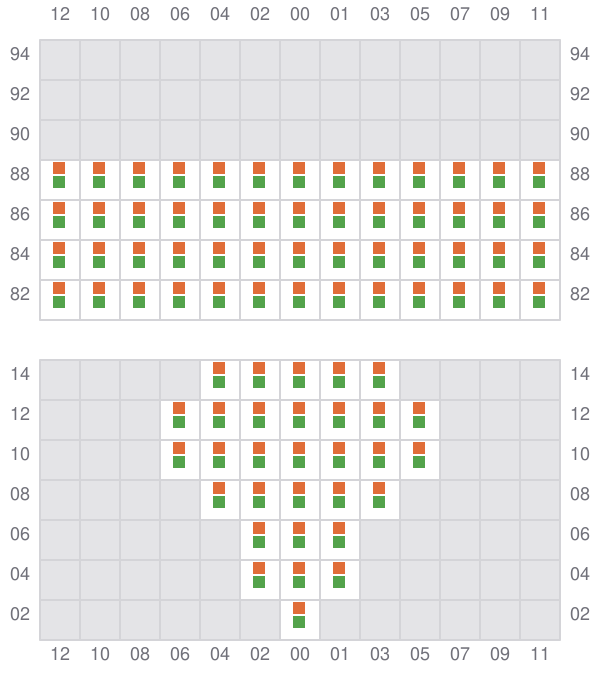

Bay 005 view and slots of MAERSK WILLEMSTADT

007

  • ←
  • →
Bay 007 view and slots of MAERSK WILLEMSTADT

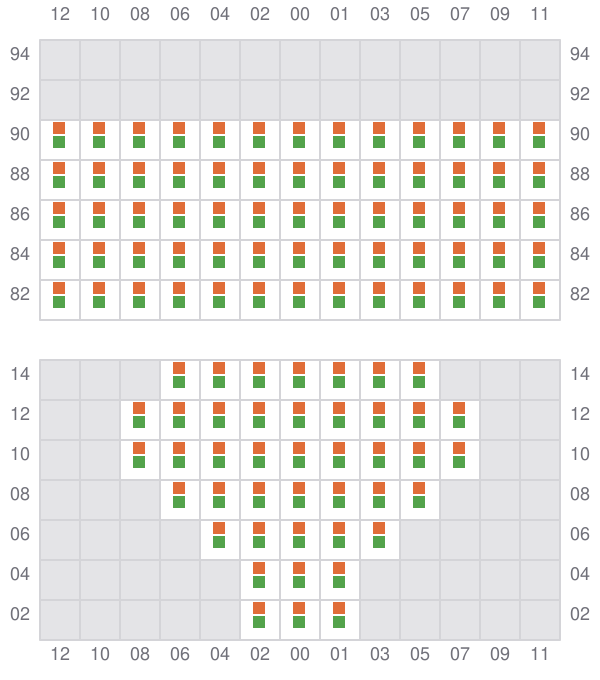

009 (010)

  • →
  • →
Bay 009 view and slots of MAERSK WILLEMSTADT

011

  • ←
  • →
Bay 011 view and slots of MAERSK WILLEMSTADT

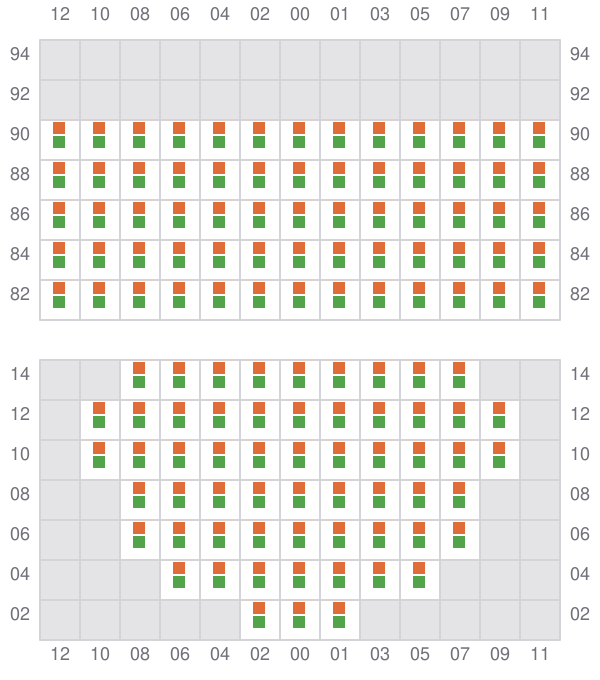

013 (014)

  • →
  • →
Bay 013 view and slots of MAERSK WILLEMSTADT

015

  • ←
  • →

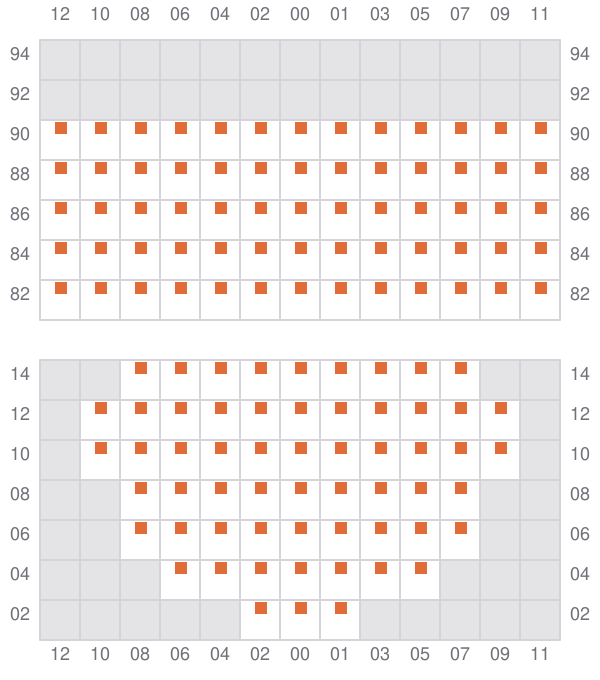

Bay 015 view and slots of MAERSK WILLEMSTADT

017 (018)

  • →
  • →
Bay 017 view and slots of MAERSK WILLEMSTADT

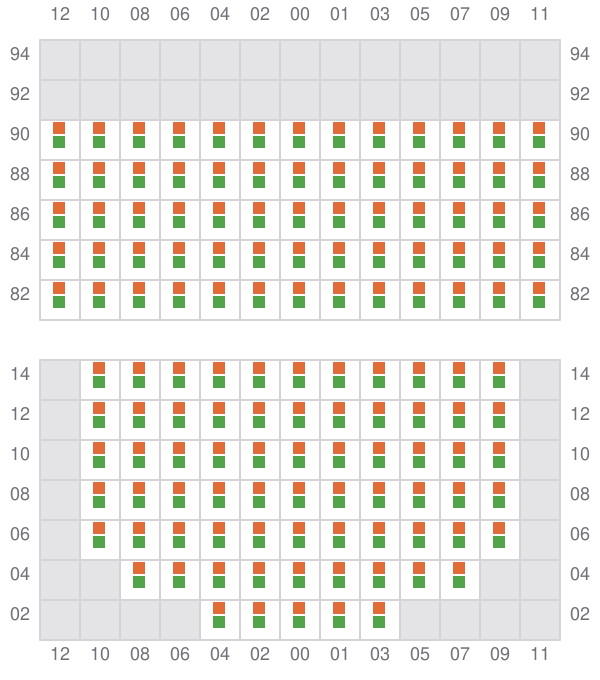

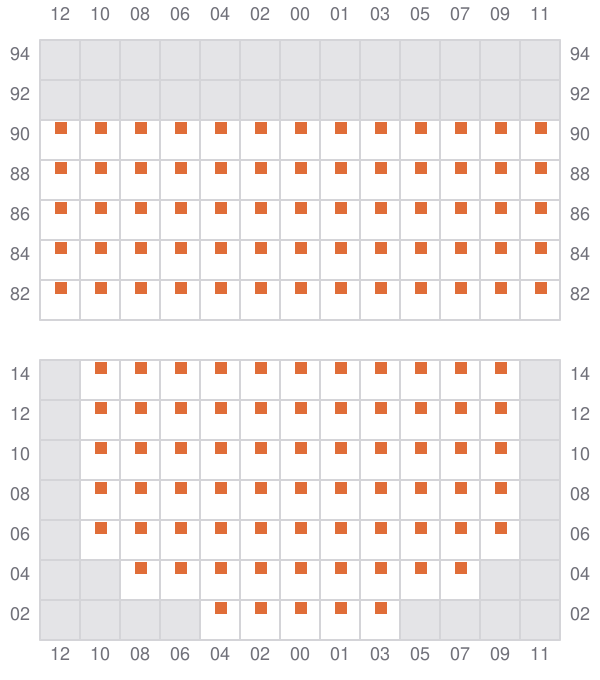

019

  • ←
  • →
Bay 019 view and slots of MAERSK WILLEMSTADT

021 (022)

  • →
  • →

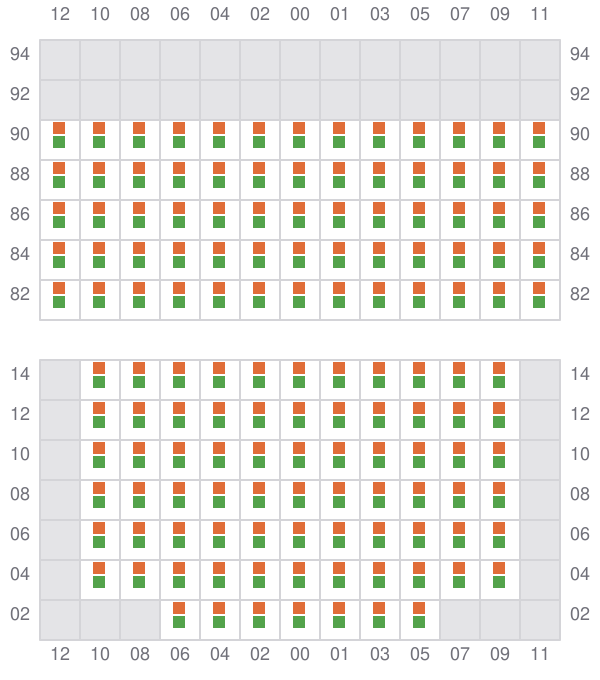

Bay 021 view and slots of MAERSK WILLEMSTADT

023

  • ←
  • →
Bay 023 view and slots of MAERSK WILLEMSTADT

025 (026)

  • →
  • →
Bay 025 view and slots of MAERSK WILLEMSTADT

027

  • ←
  • →
Bay 027 view and slots of MAERSK WILLEMSTADT

029 (030)

  • →
  • →

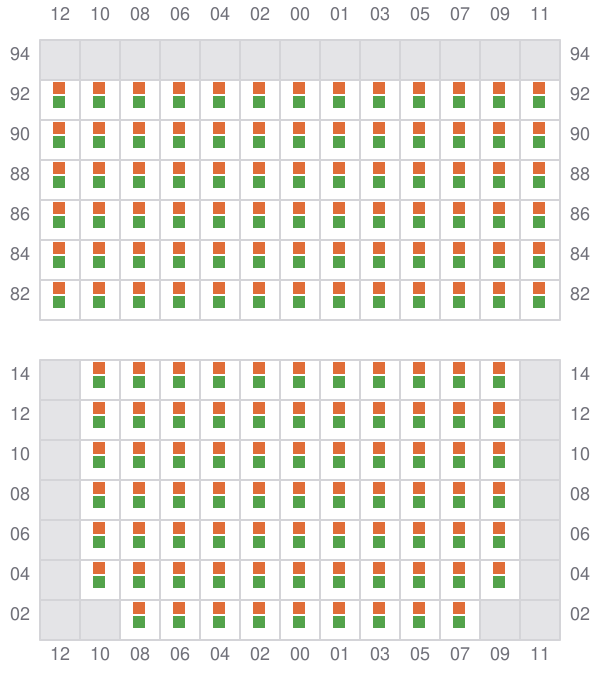

Bay 029 view and slots of MAERSK WILLEMSTADT

031

  • ←
  • →
Bay 031 view and slots of MAERSK WILLEMSTADT

033 (034)

  • →
  • →
Bay 033 view and slots of MAERSK WILLEMSTADT

035

  • ←
  • →
Bay 035 view and slots of MAERSK WILLEMSTADT

037 (038)

  • →
  • →
Bay 037 view and slots of MAERSK WILLEMSTADT

039

  • ←
  • →
Bay 039 view and slots of MAERSK WILLEMSTADT

041 (042)

  • →
  • →
Bay 041 view and slots of MAERSK WILLEMSTADT

043

  • ←
  • →

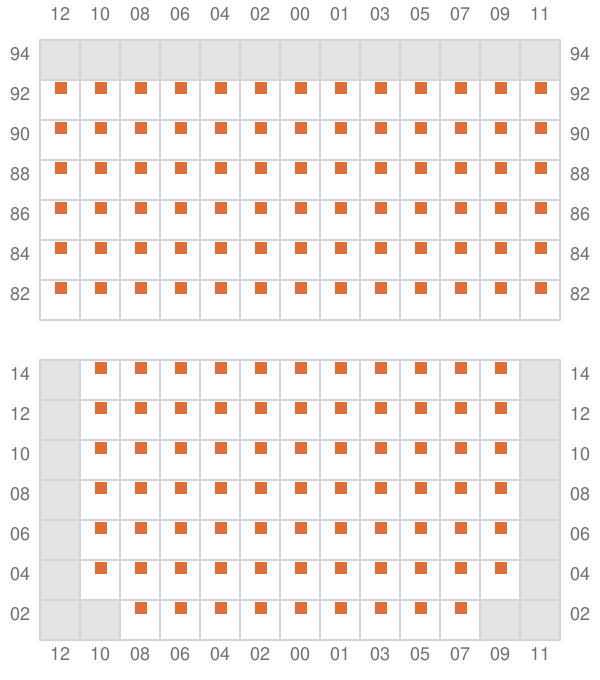

Bay 043 view and slots of MAERSK WILLEMSTADT

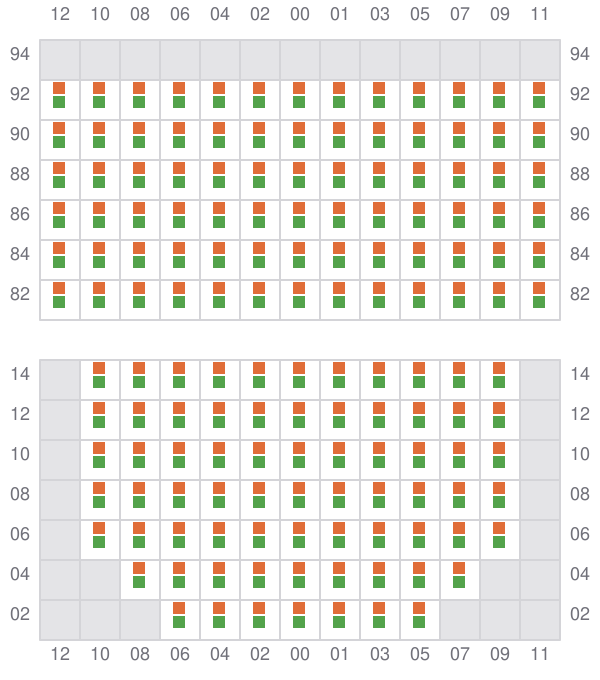

045 (046)

  • →
  • →
Bay 045 view and slots of MAERSK WILLEMSTADT

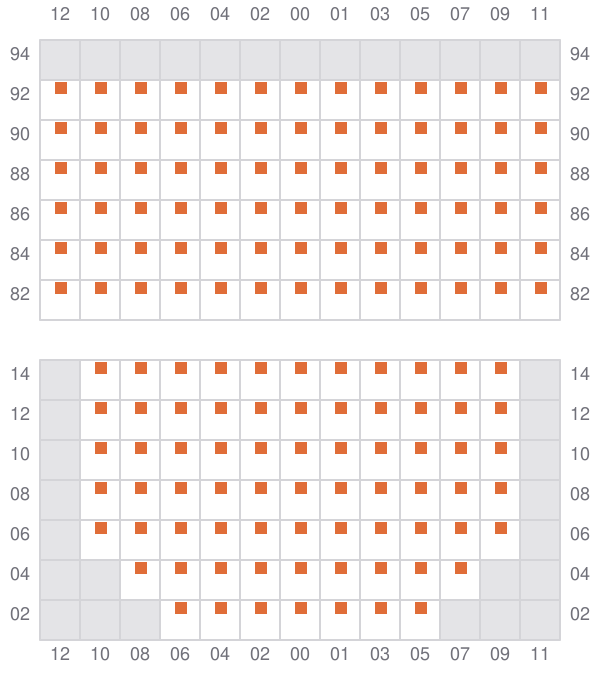

047

  • ←
  • →
Bay 047 view and slots of MAERSK WILLEMSTADT

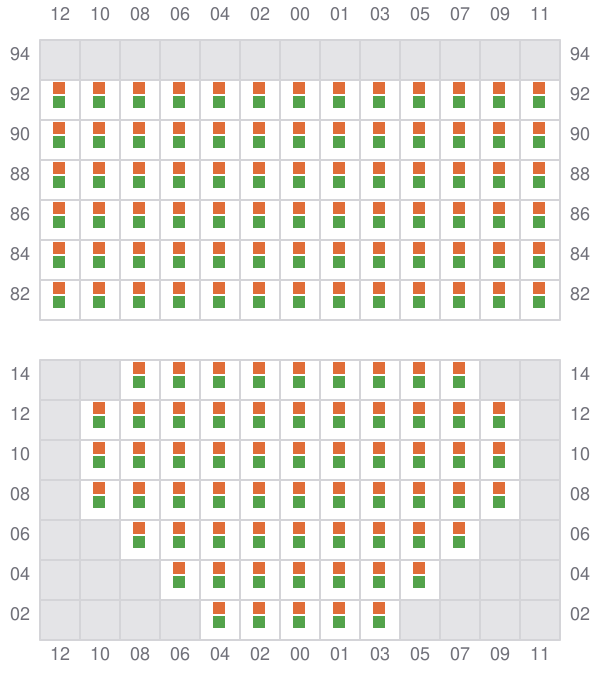

049 (050)

  • →
  • →
Bay 049 view and slots of MAERSK WILLEMSTADT

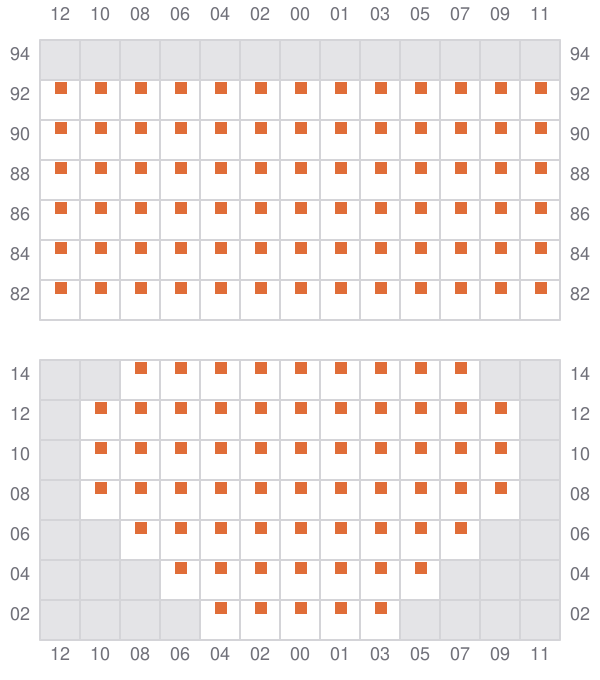

051

  • ←
  • →
Bay 051 view and slots of MAERSK WILLEMSTADT

053 (054)

  • → / ?
  • → / ?

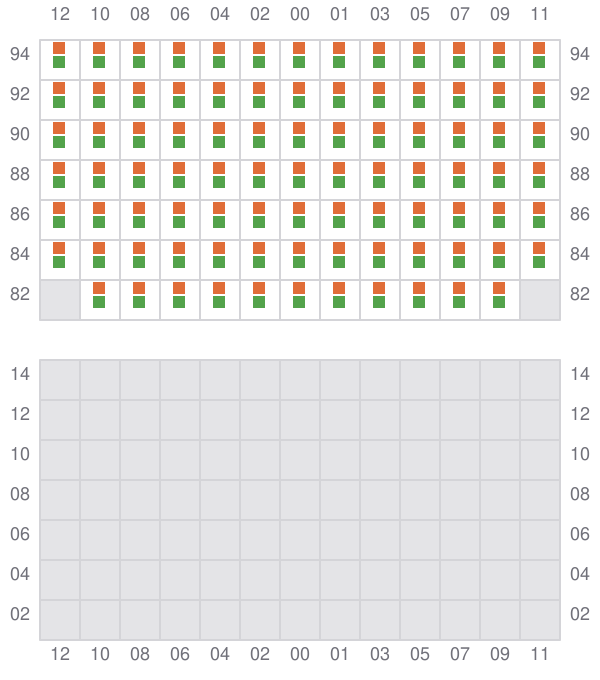

Bay 053 view and slots of MAERSK WILLEMSTADT

055

  • ← / ?
  • → / ?
Bay 055 view and slots of MAERSK WILLEMSTADT

057 (058)

  • → / ?
  • → / ?
Bay 057 view and slots of MAERSK WILLEMSTADT

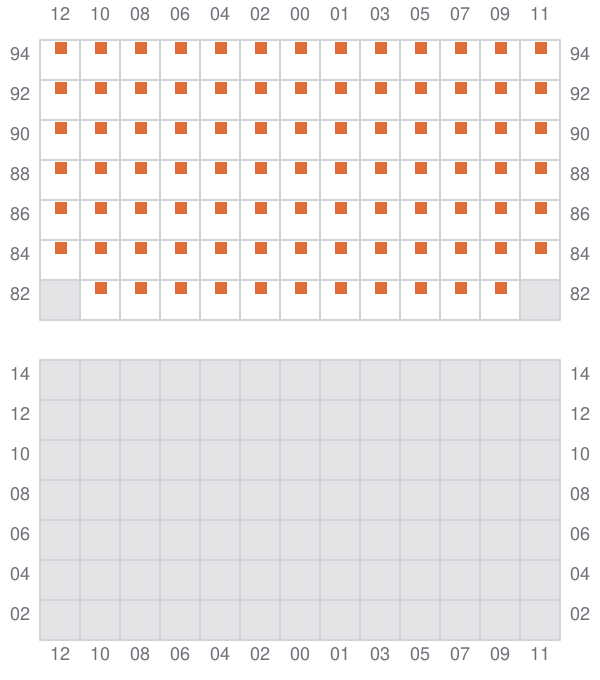

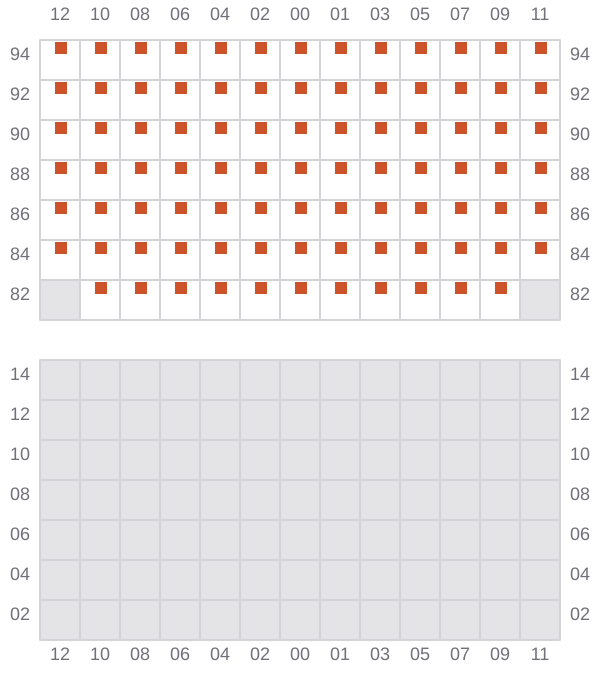

059

  • ← / ?
  • → / ?
Bay 059 view and slots of MAERSK WILLEMSTADT
