MAERSK YUKON
9398436 | 9V6458 | MSK by ************************** Last update: Thu Jun 29 2023

General Info

Ship Name:MAERSK YUKON
IMO Code:9398436
Call Sign:9V6458
Line Operator:MSK
Class Name for Sister Ships:YUK
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:081
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,062

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

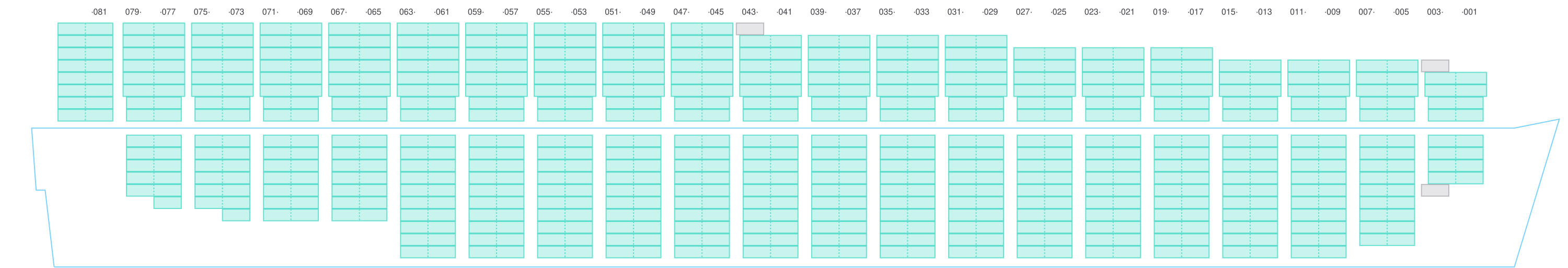

Side view of MAERSK YUKON

Hatch-Covers View

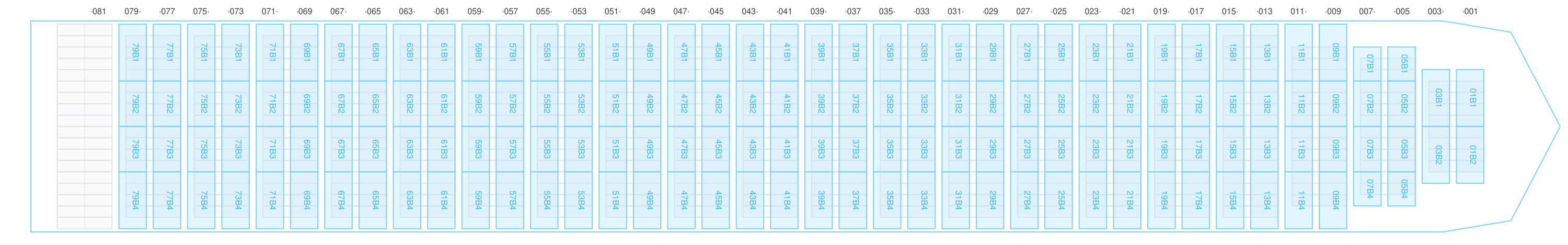

Deck view of MAERSK YUKON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

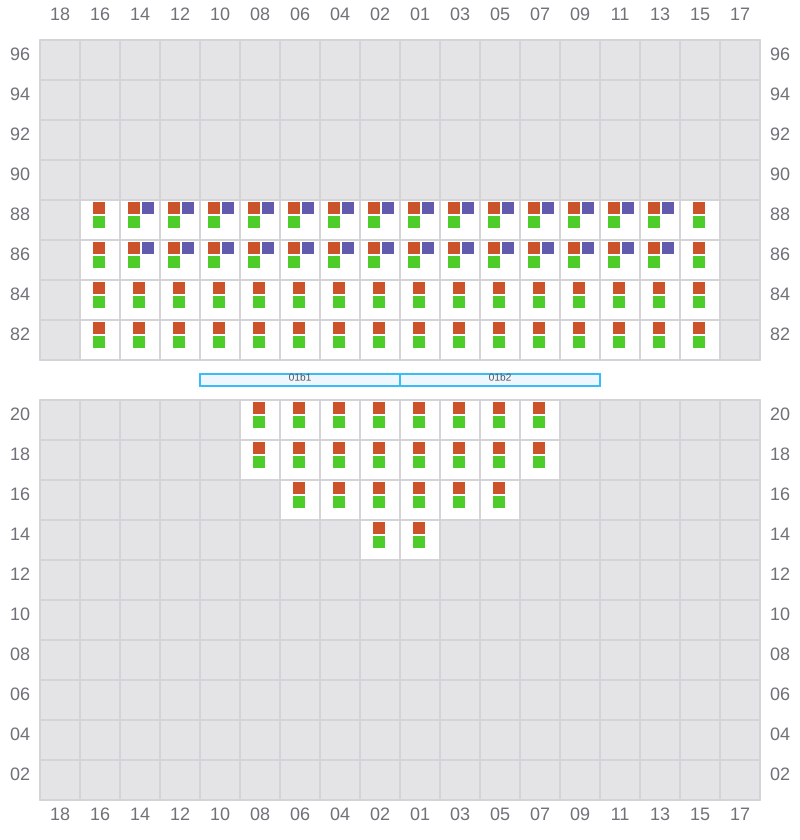

Bay 001 view and slots of MAERSK YUKON

003

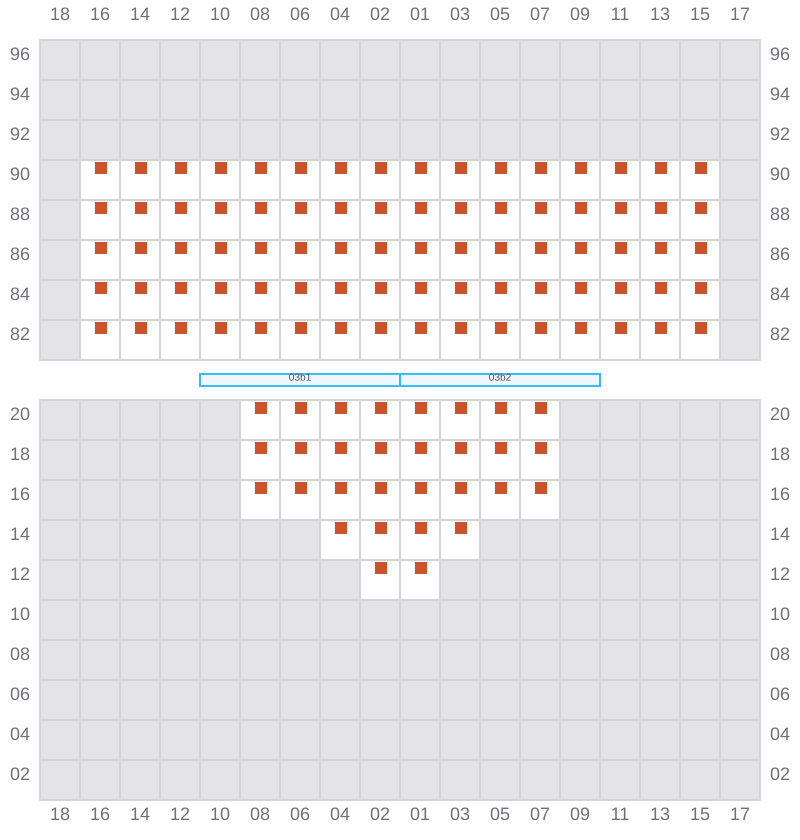

Bay 003 view and slots of MAERSK YUKON

005 (006)

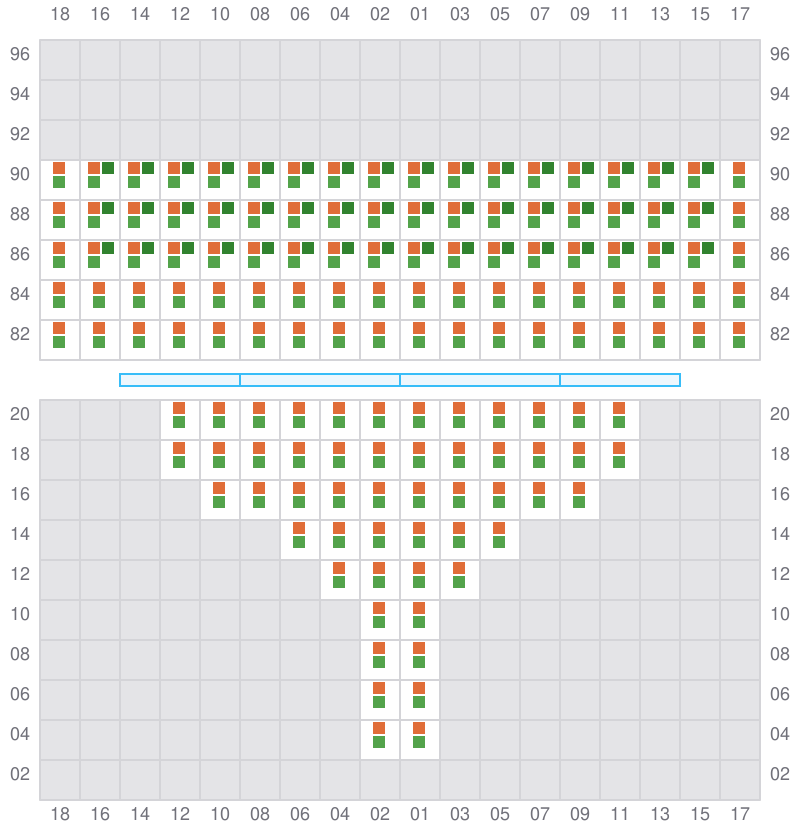

Bay 005 view and slots of MAERSK YUKON

007

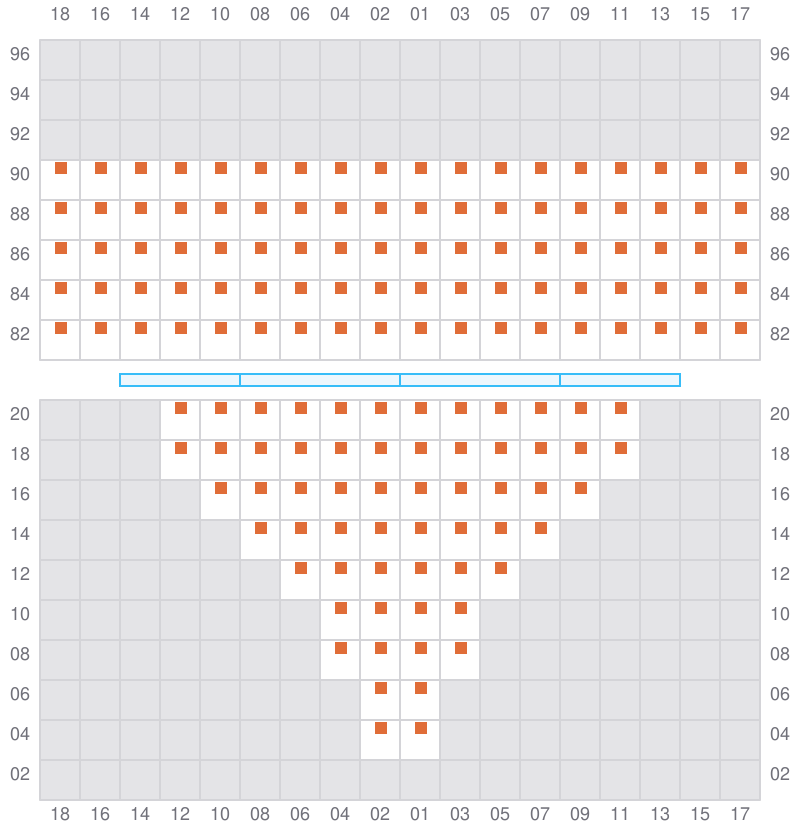

Bay 007 view and slots of MAERSK YUKON

009 (010)

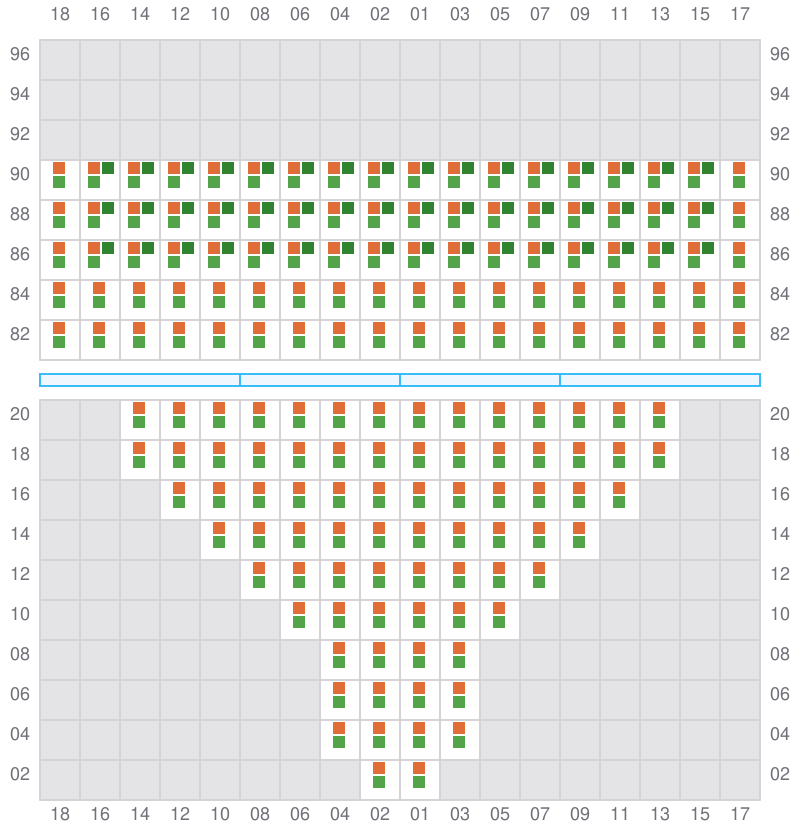

Bay 009 view and slots of MAERSK YUKON

011

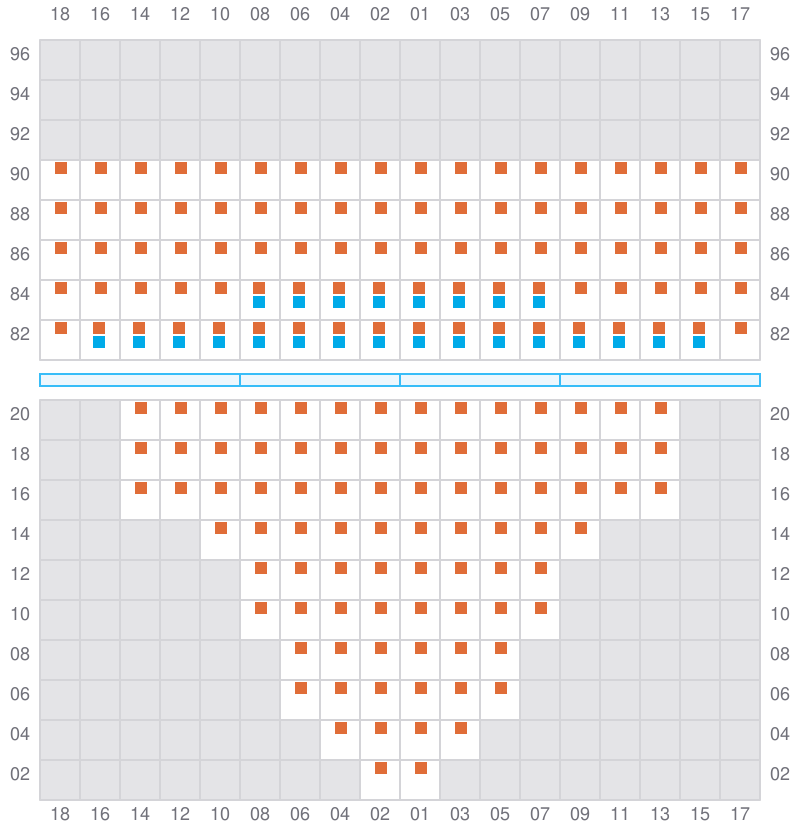

Bay 011 view and slots of MAERSK YUKON

013 (014)

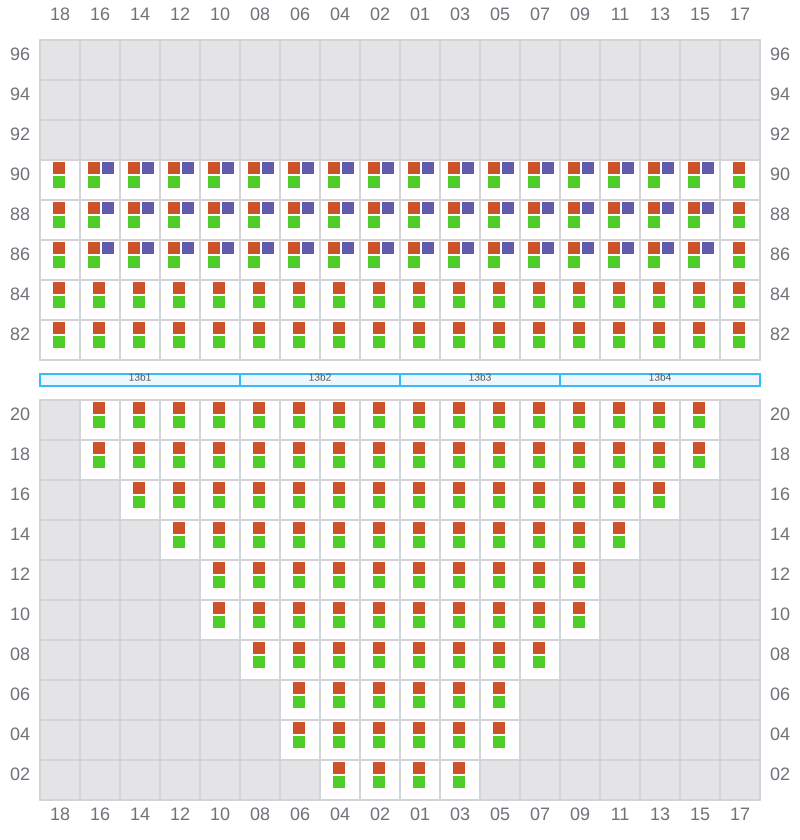

Bay 013 view and slots of MAERSK YUKON

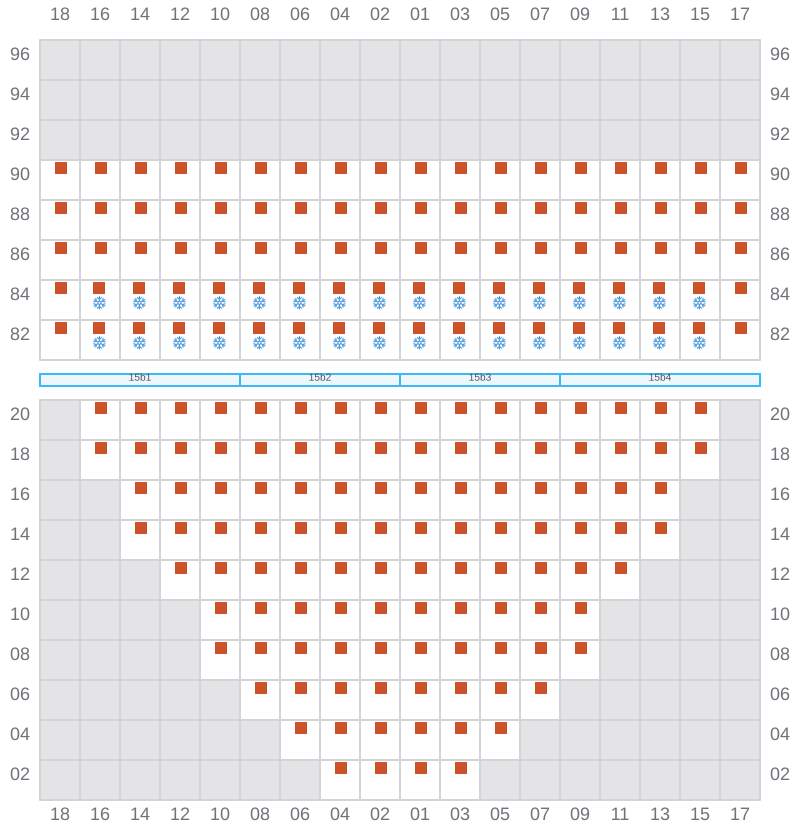

015

Bay 015 view and slots of MAERSK YUKON

017 (018)

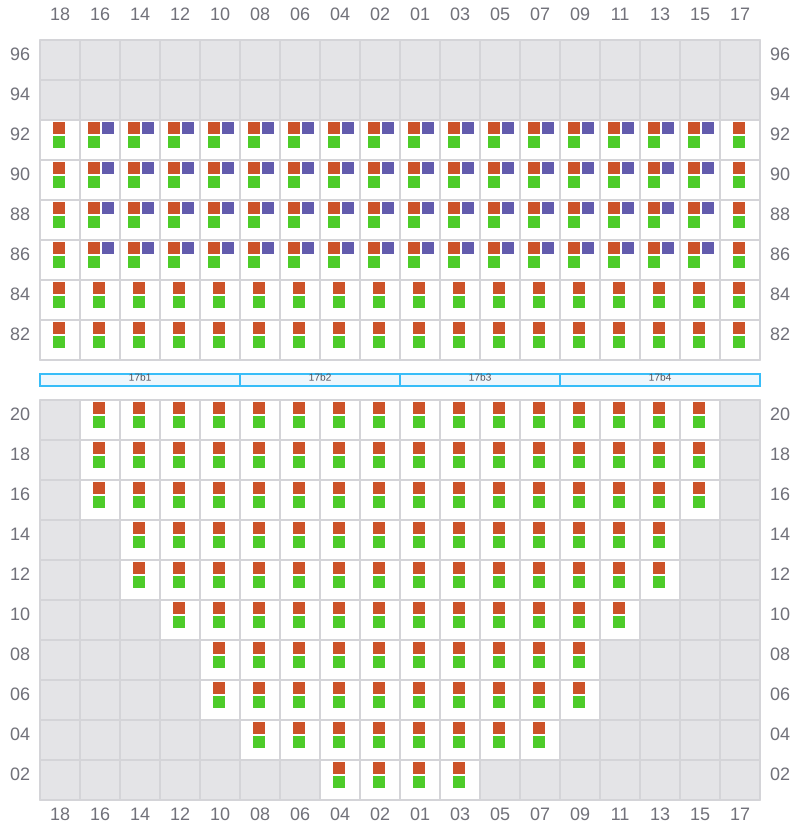

Bay 017 view and slots of MAERSK YUKON

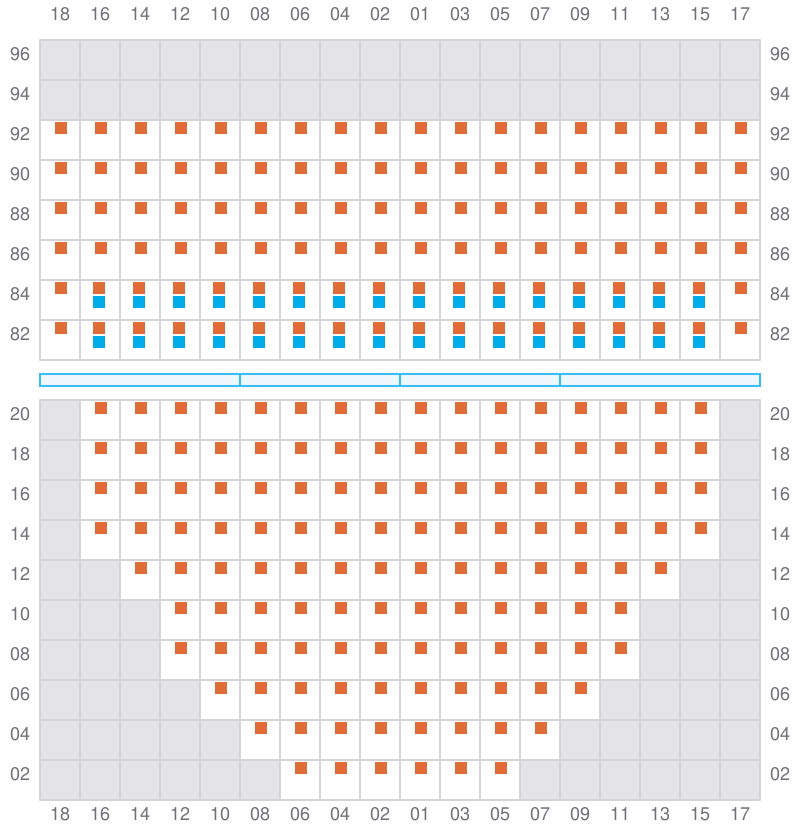

019

Bay 019 view and slots of MAERSK YUKON

021 (022)

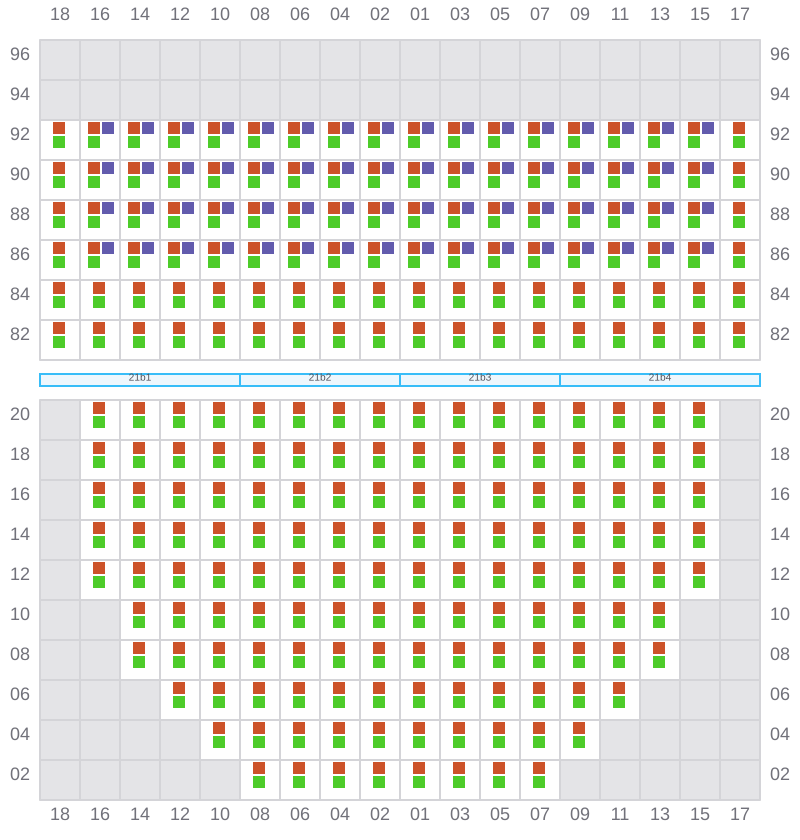

Bay 021 view and slots of MAERSK YUKON

023

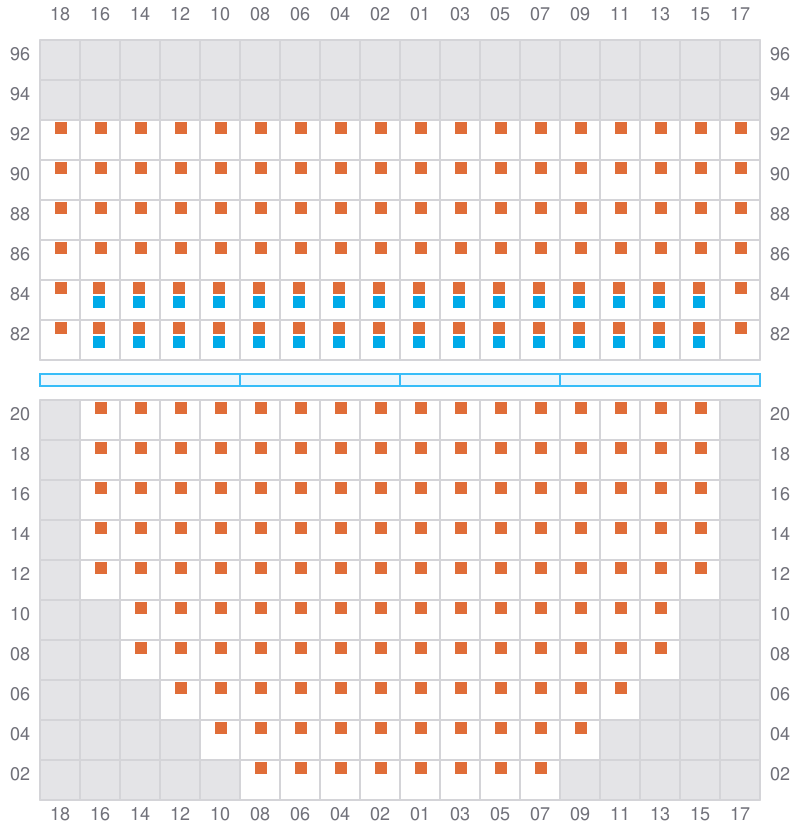

Bay 023 view and slots of MAERSK YUKON

025 (026)

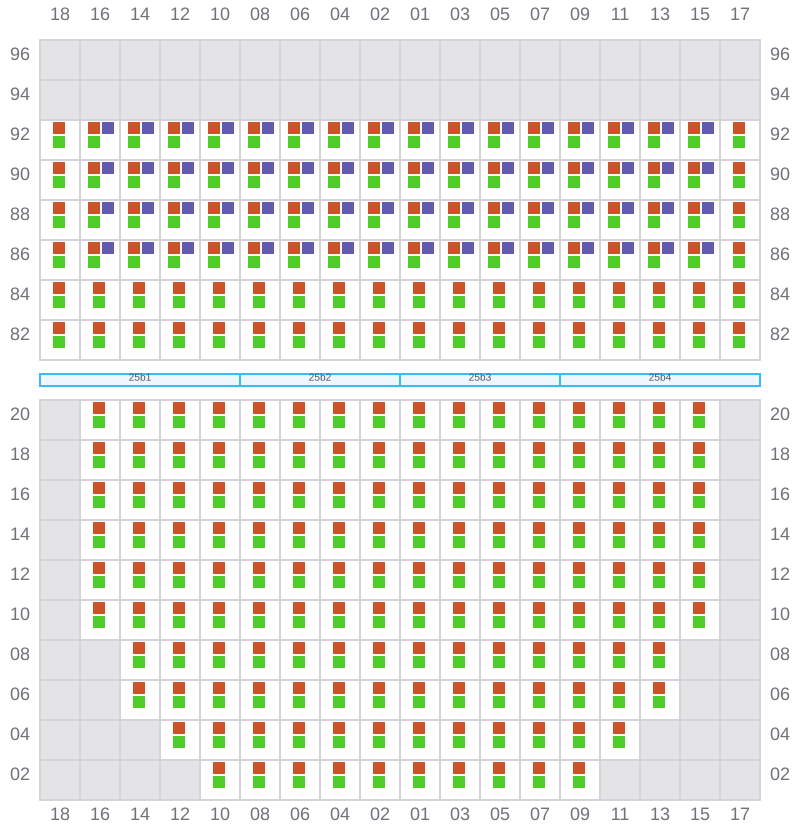

Bay 025 view and slots of MAERSK YUKON

027

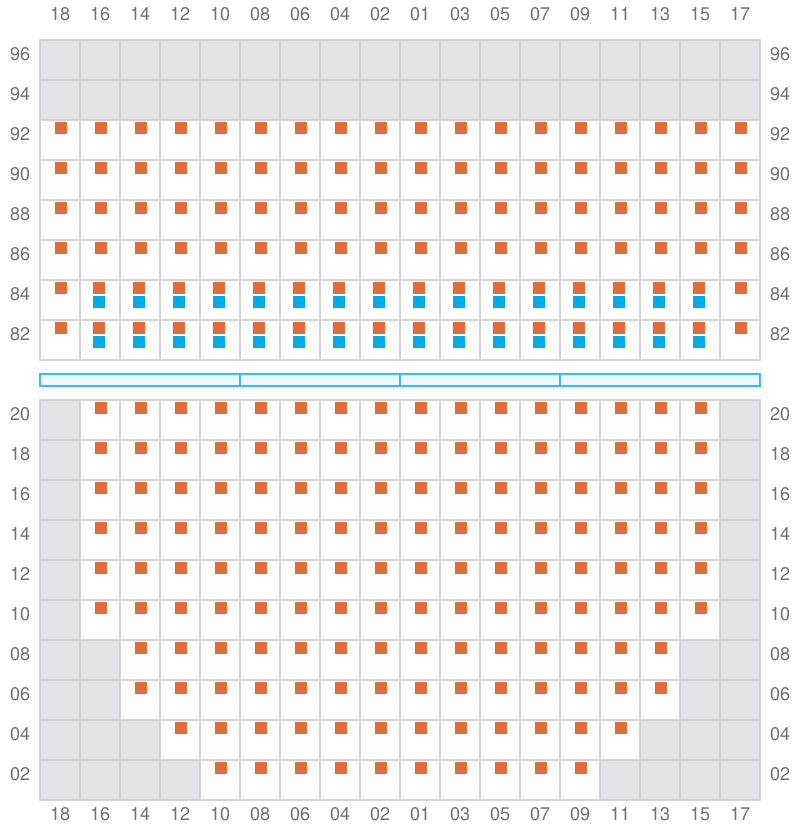

Bay 027 view and slots of MAERSK YUKON

029 (030)

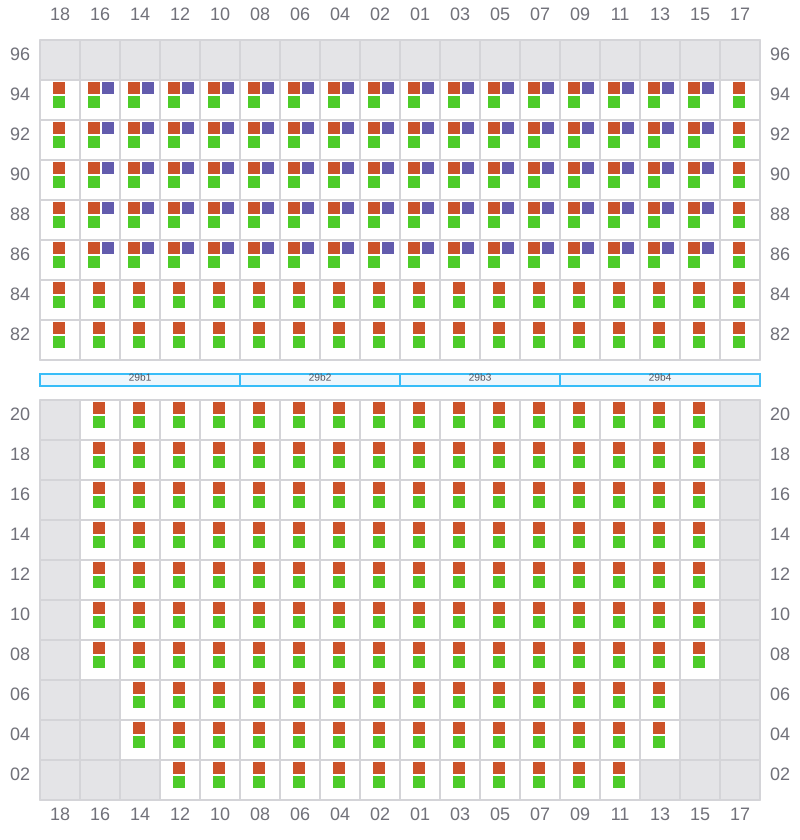

Bay 029 view and slots of MAERSK YUKON

031

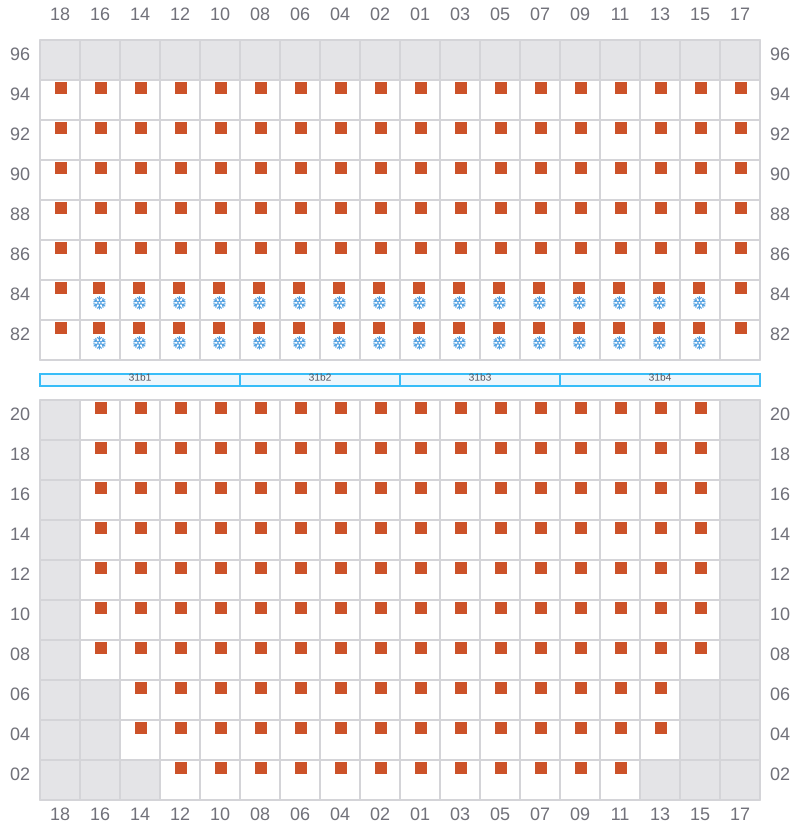

Bay 031 view and slots of MAERSK YUKON

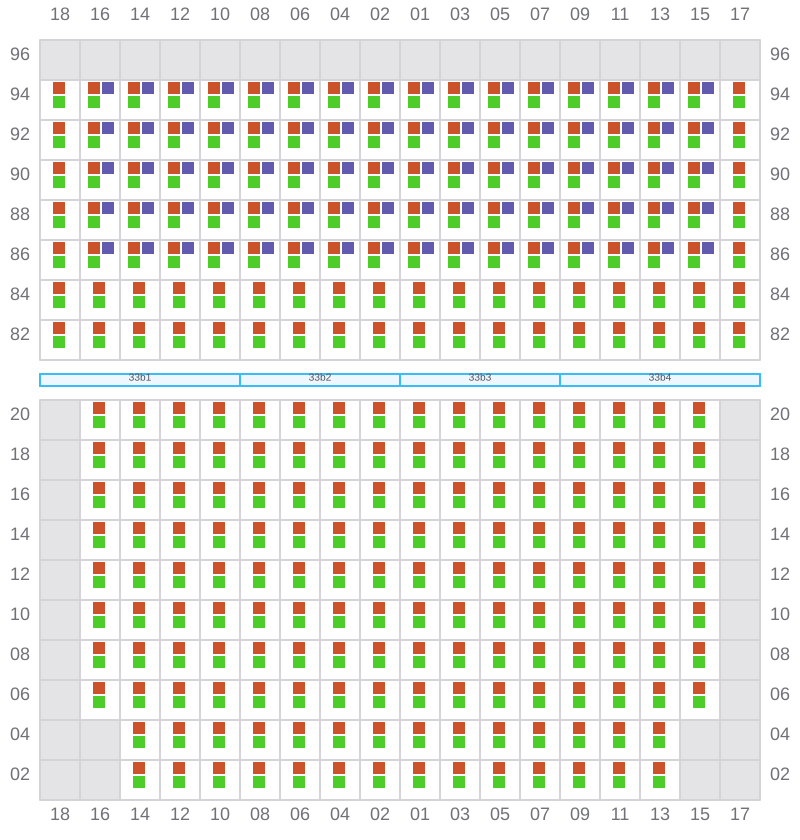

033 (034)

Bay 033 view and slots of MAERSK YUKON

035

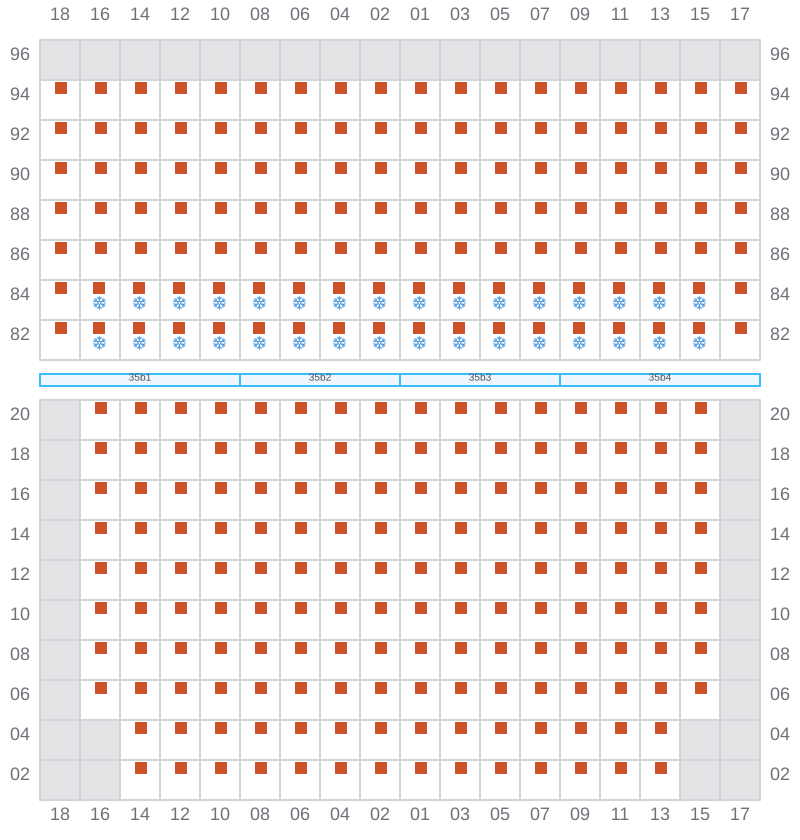

Bay 035 view and slots of MAERSK YUKON

037 (038)

Bay 037 view and slots of MAERSK YUKON

039

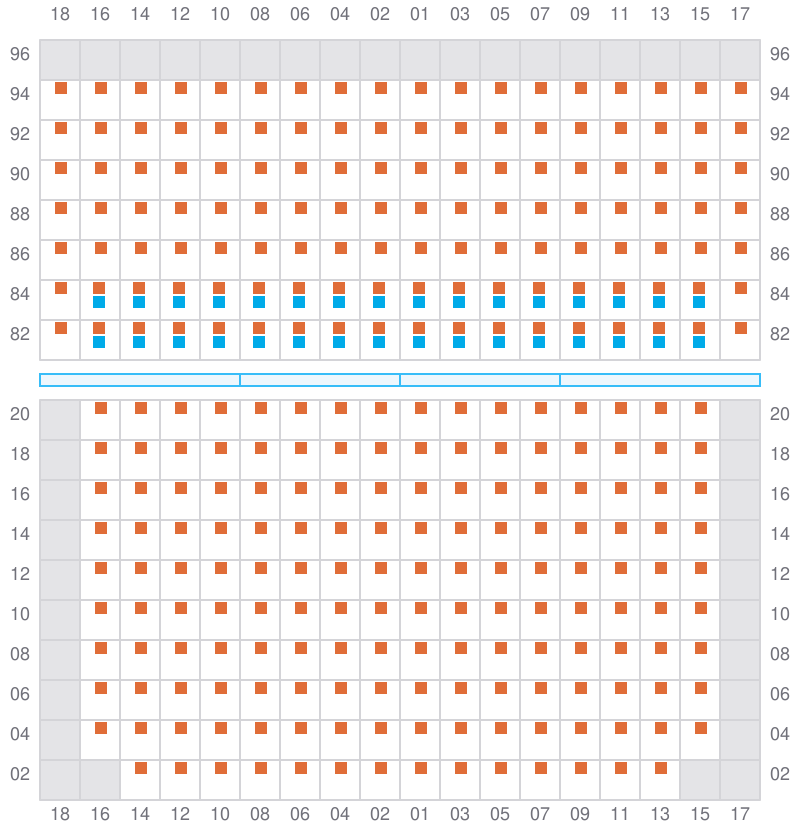

Bay 039 view and slots of MAERSK YUKON

041 (042)

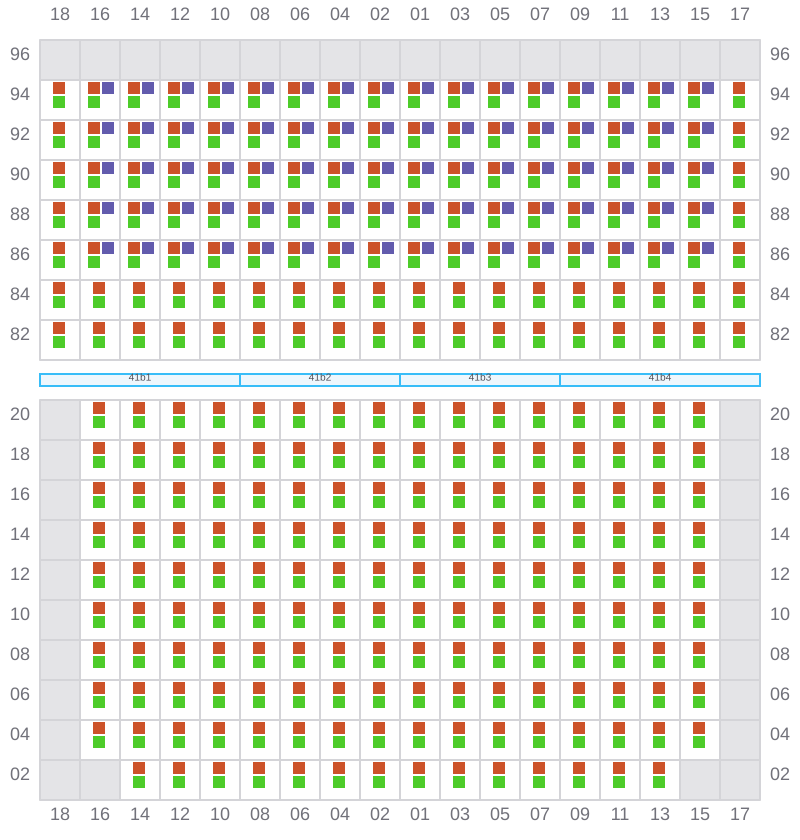

Bay 041 view and slots of MAERSK YUKON

043

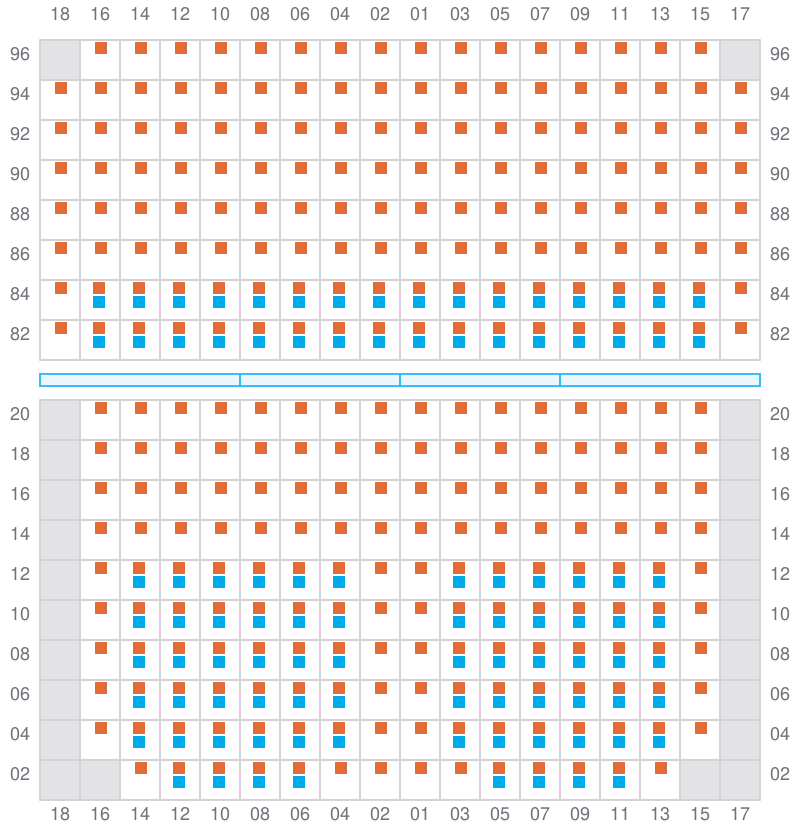

Bay 043 view and slots of MAERSK YUKON

045 (046)

Bay 045 view and slots of MAERSK YUKON

047

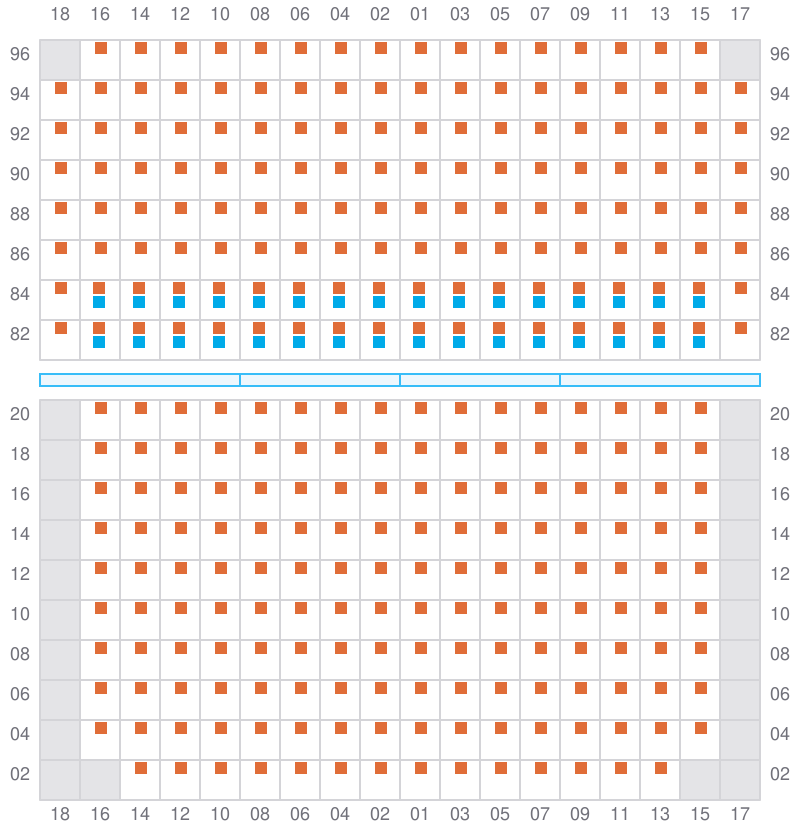

Bay 047 view and slots of MAERSK YUKON

049 (050)

Bay 049 view and slots of MAERSK YUKON

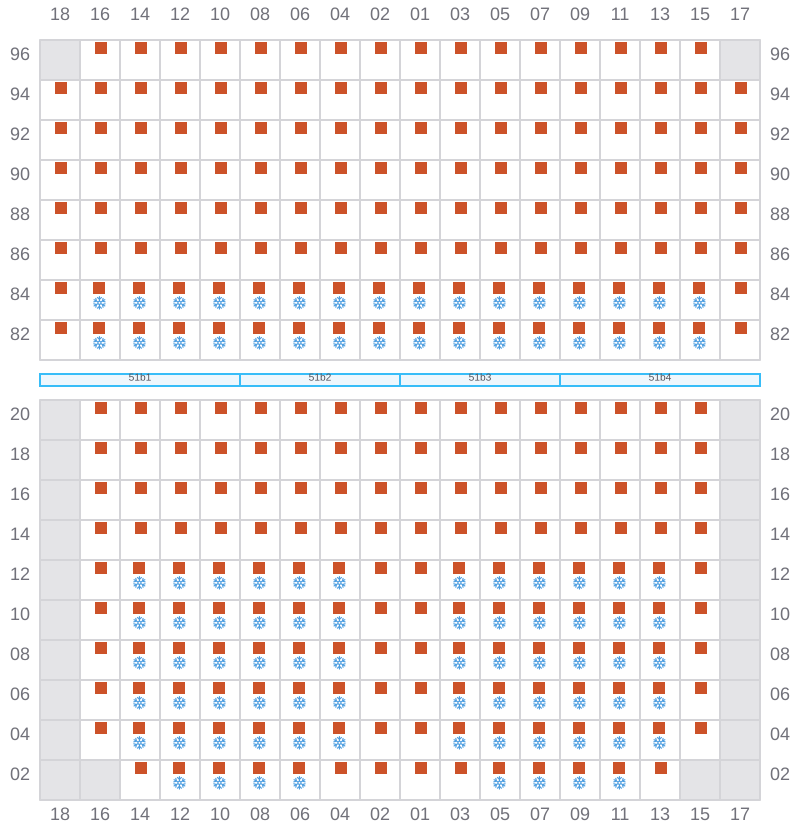

051

Bay 051 view and slots of MAERSK YUKON

053 (054)

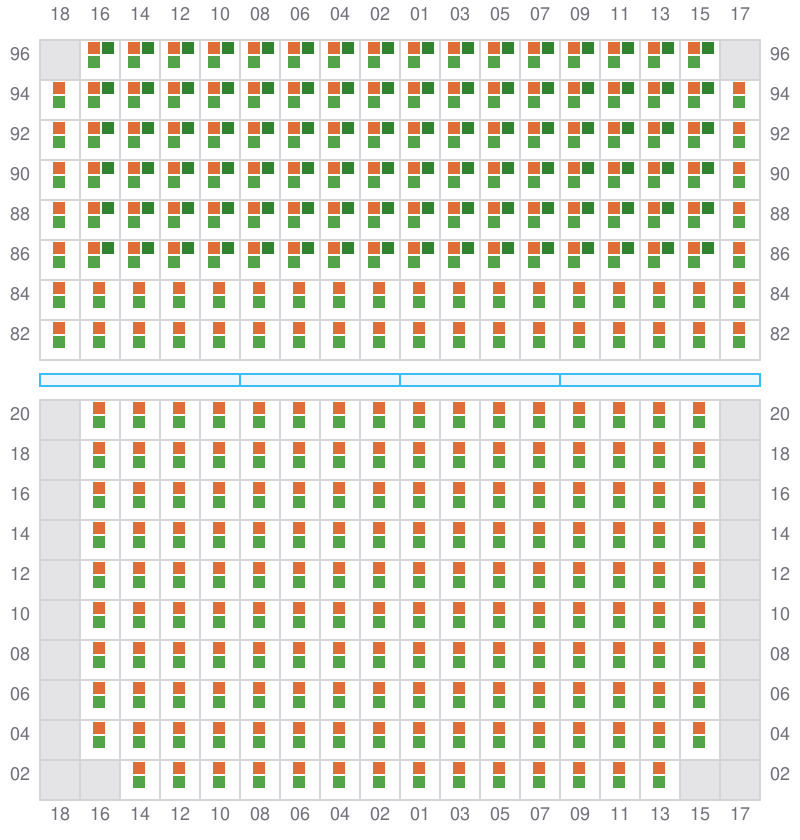

Bay 053 view and slots of MAERSK YUKON

055

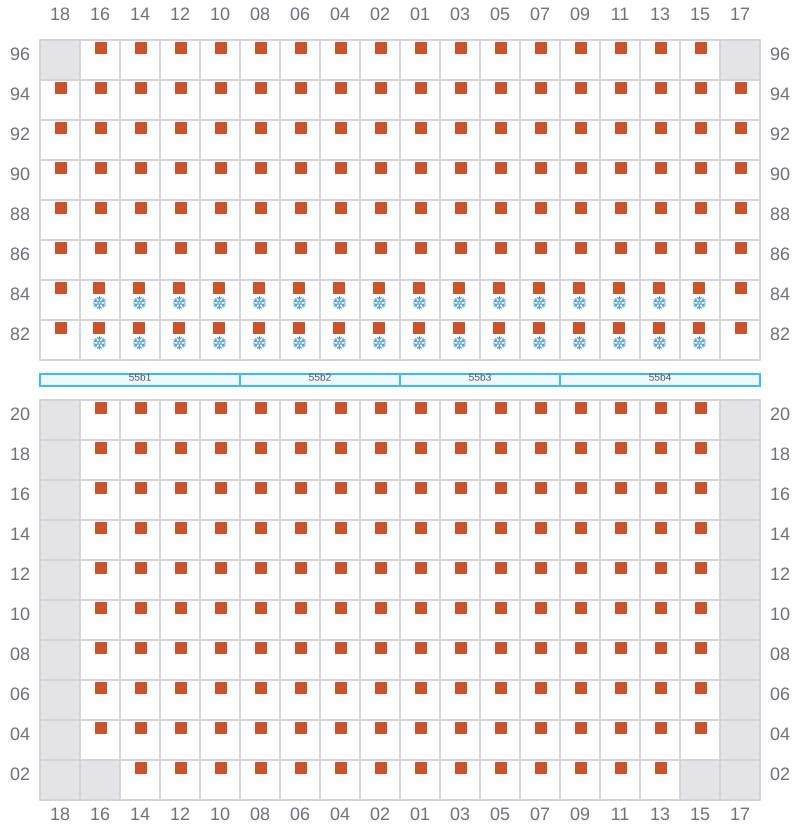

Bay 055 view and slots of MAERSK YUKON

057 (058)

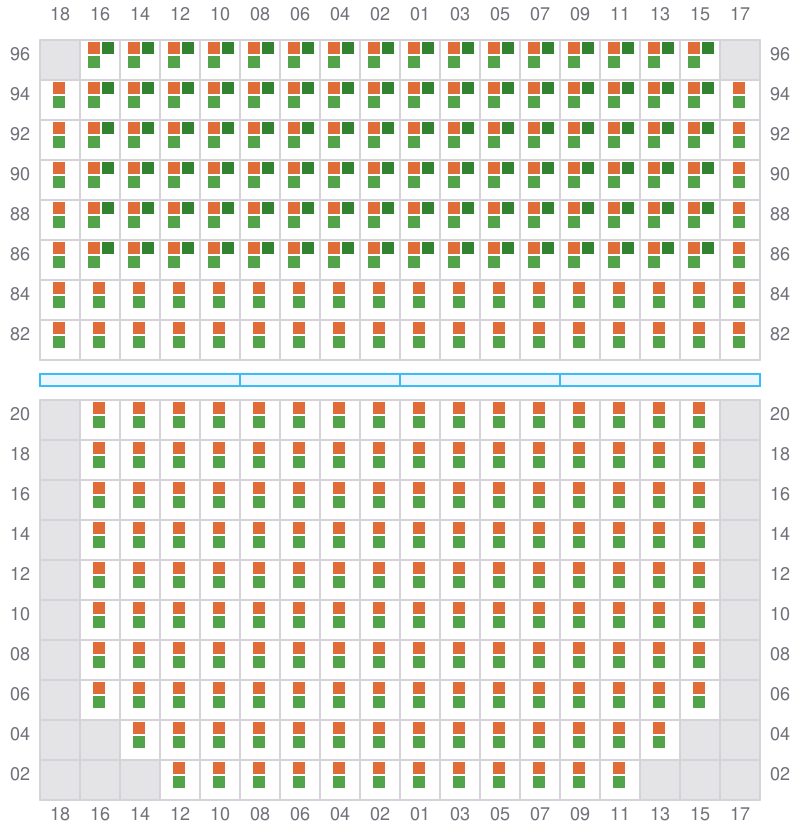

Bay 057 view and slots of MAERSK YUKON

059

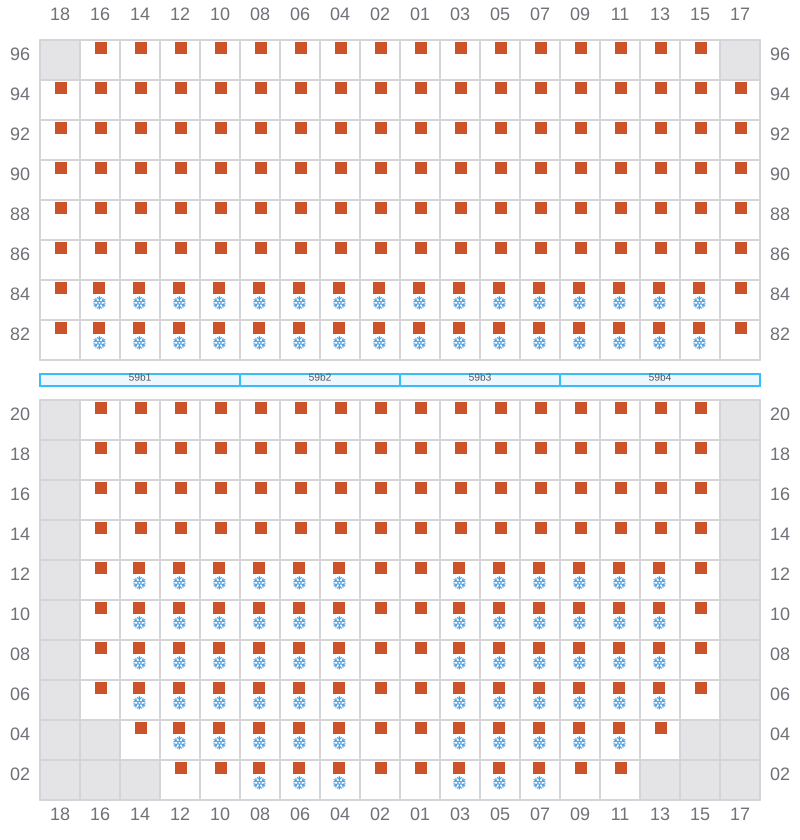

Bay 059 view and slots of MAERSK YUKON

061 (062)

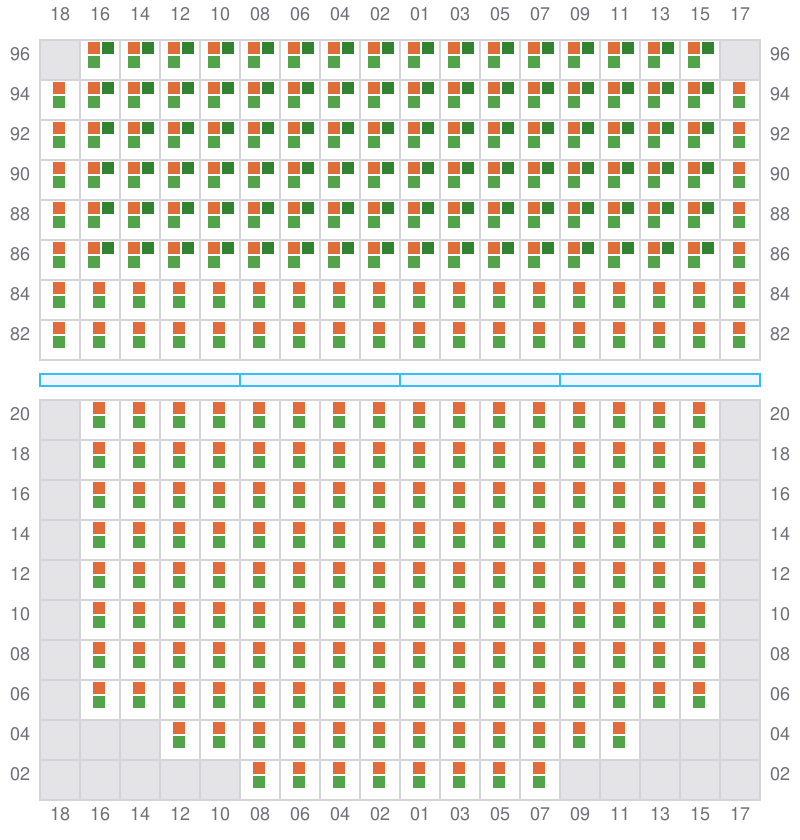

Bay 061 view and slots of MAERSK YUKON

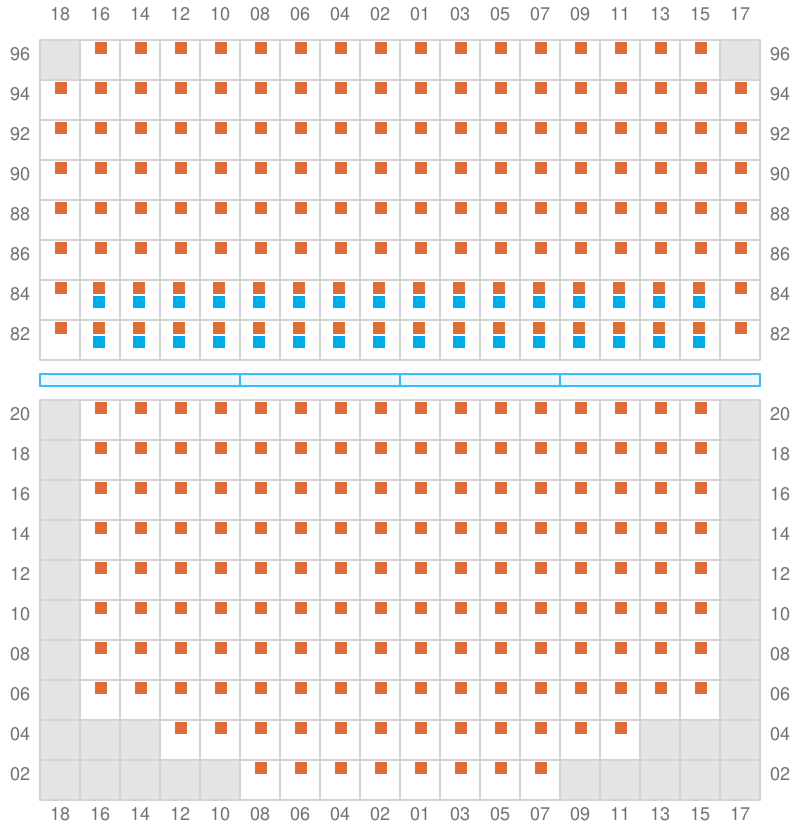

063

Bay 063 view and slots of MAERSK YUKON

065 (066)

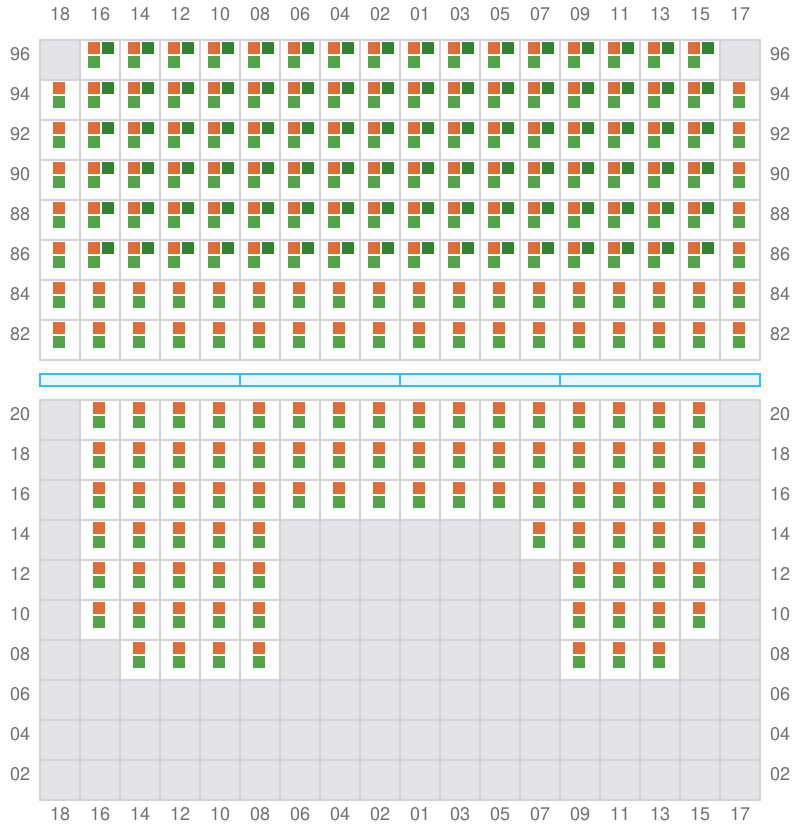

Bay 065 view and slots of MAERSK YUKON

067

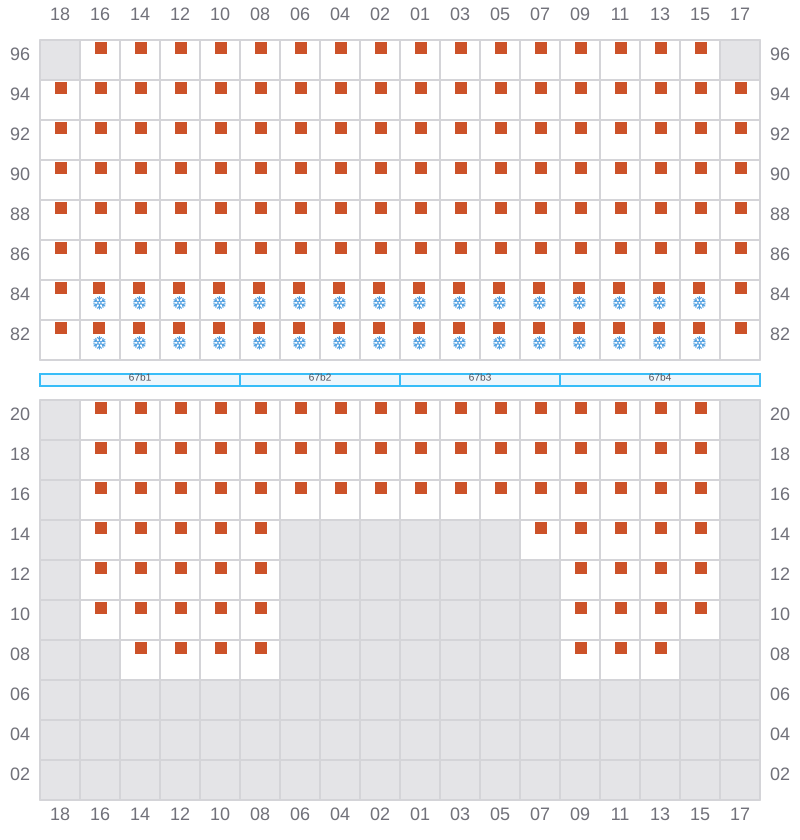

Bay 067 view and slots of MAERSK YUKON

069 (070)

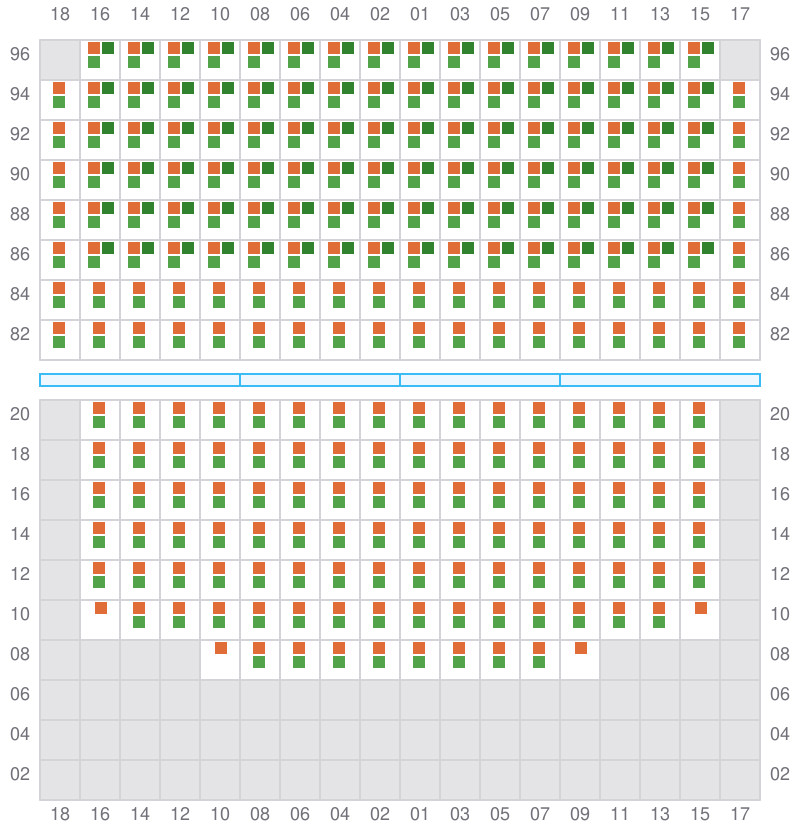

Bay 069 view and slots of MAERSK YUKON

071

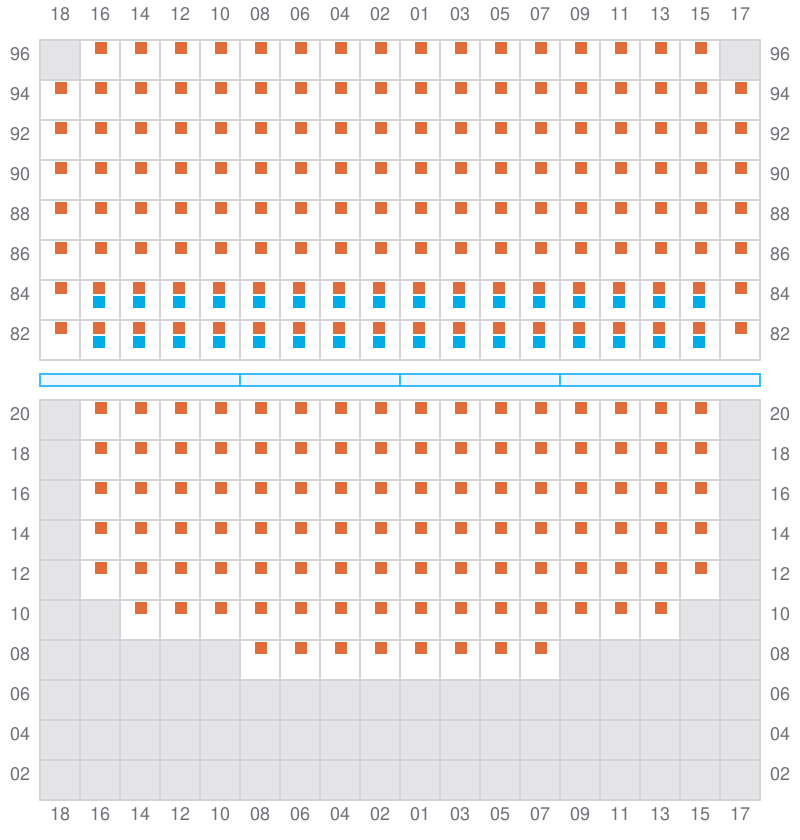

Bay 071 view and slots of MAERSK YUKON

073 (074)

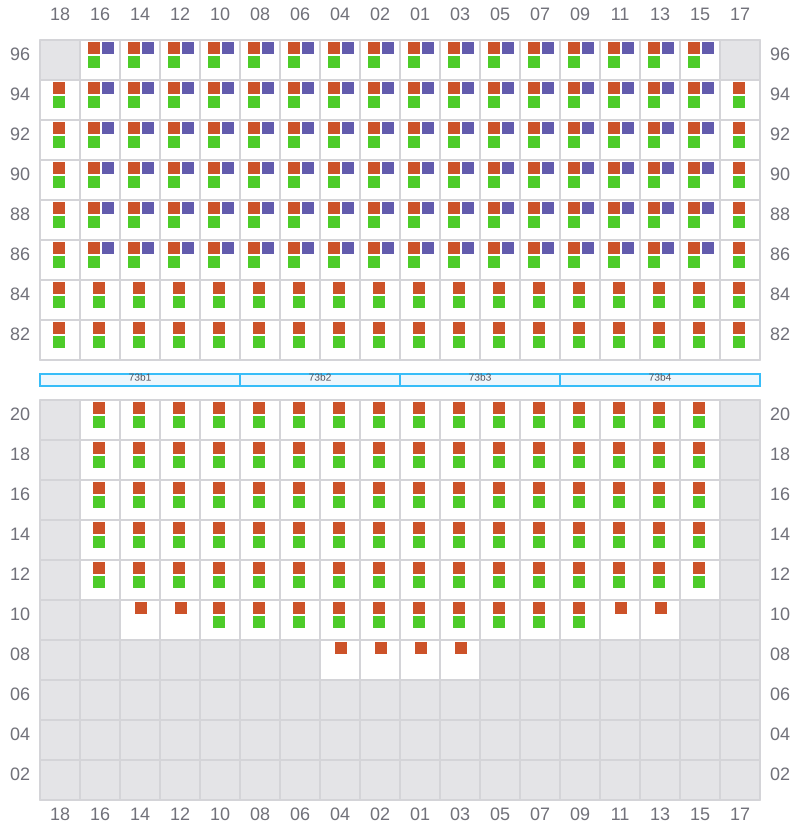

Bay 073 view and slots of MAERSK YUKON

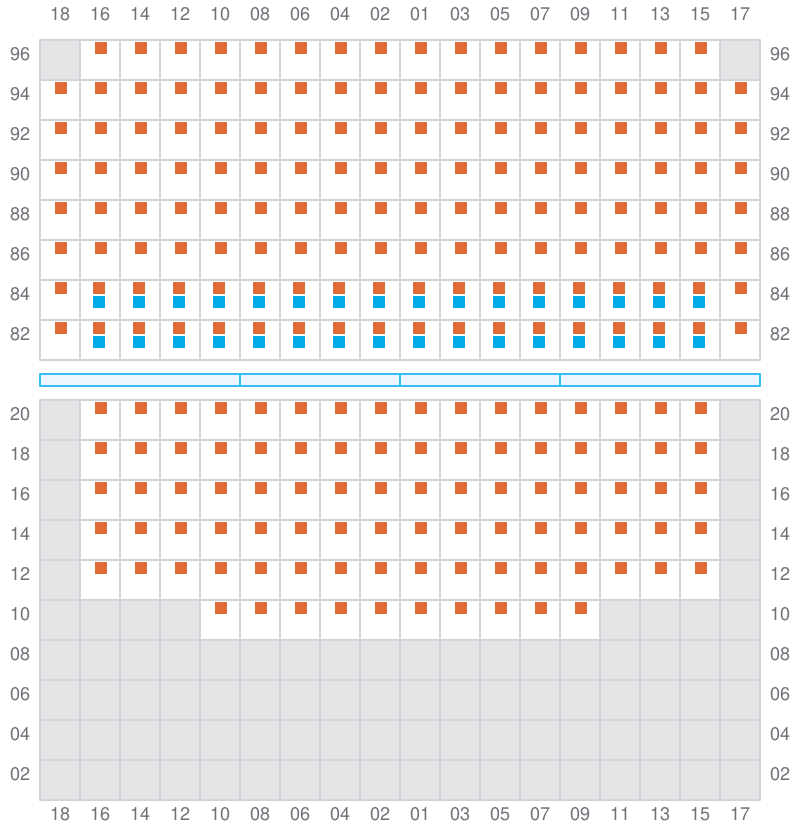

075

Bay 075 view and slots of MAERSK YUKON

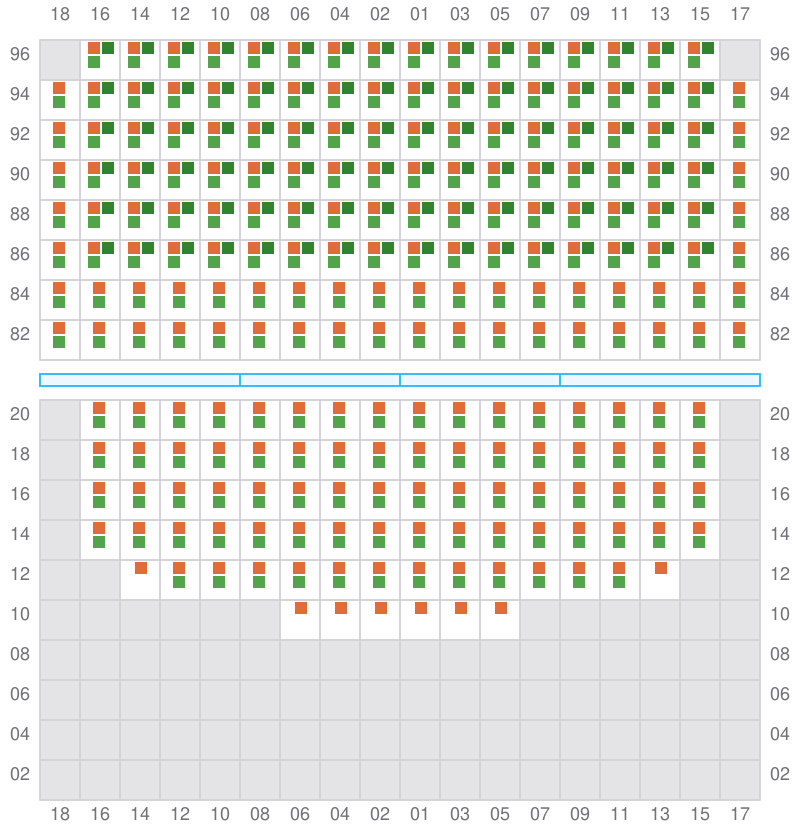

077 (078)

Bay 077 view and slots of MAERSK YUKON

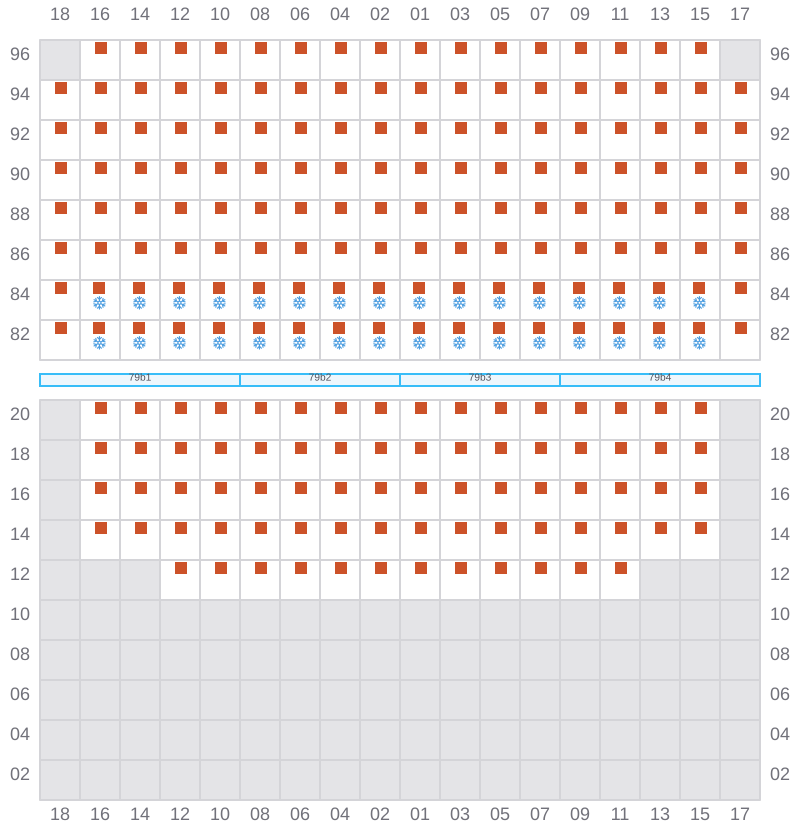

079

Bay 079 view and slots of MAERSK YUKON

081 (082)

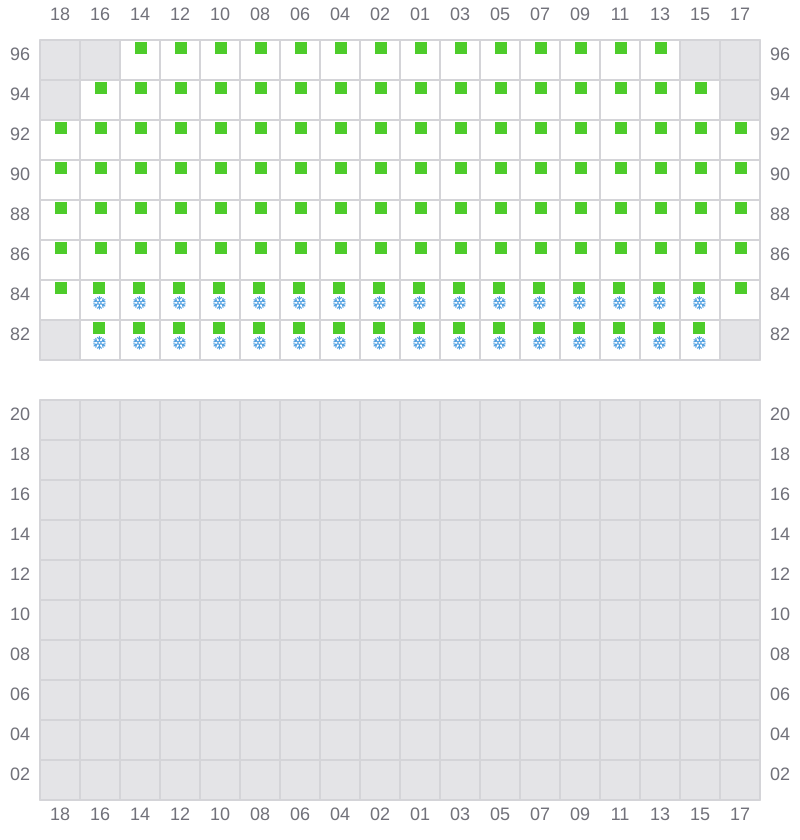

Bay 081 view and slots of MAERSK YUKON
