MAIKE D
9226372 | D5IL7 | 9226372 by ********* Last update: Thu Jul 25 2024
General Info
Ship Name:MAIKE D
IMO Code:9226372
Call Sign:D5IL7
Line Operator:9226372
Class Name for Sister Ships:FDMA
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:027
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:650
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

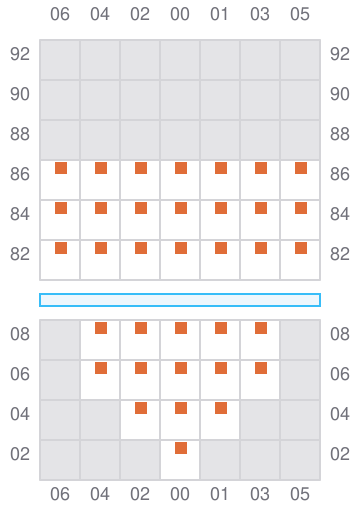

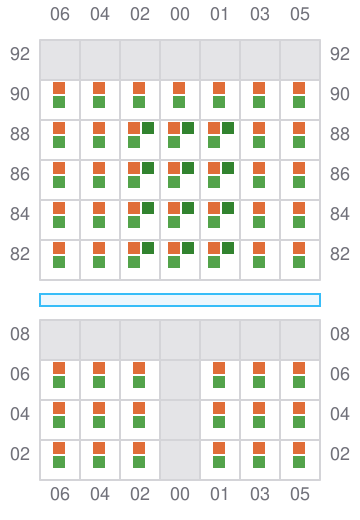

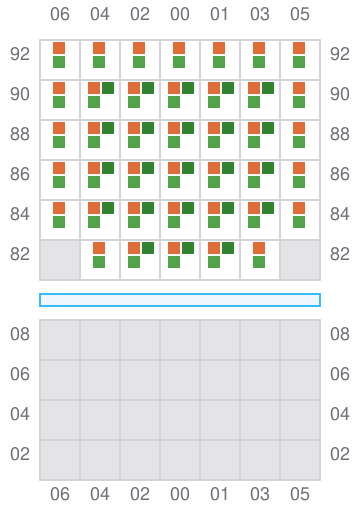

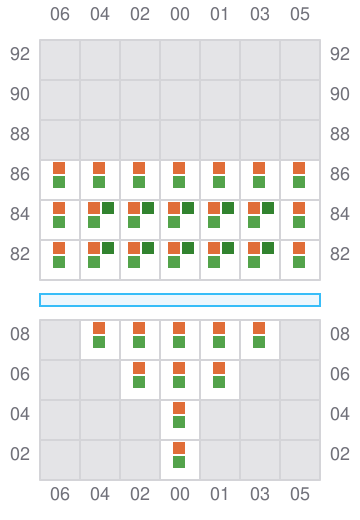

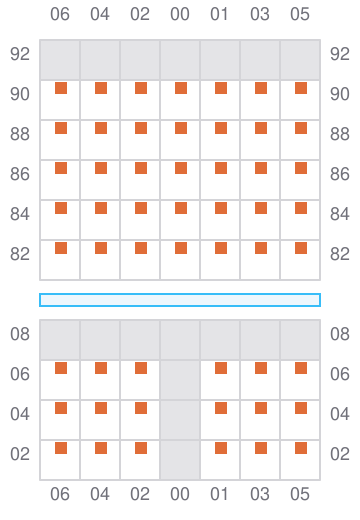

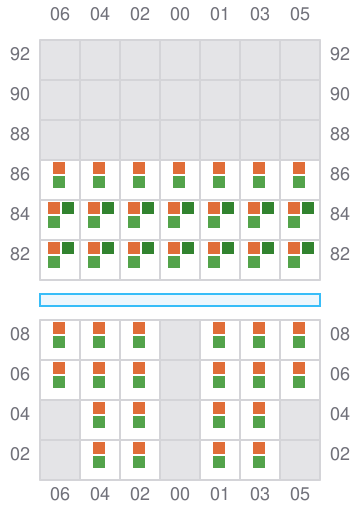

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
- →
003
- ←
- →
- →
005 (006)
- →
- →

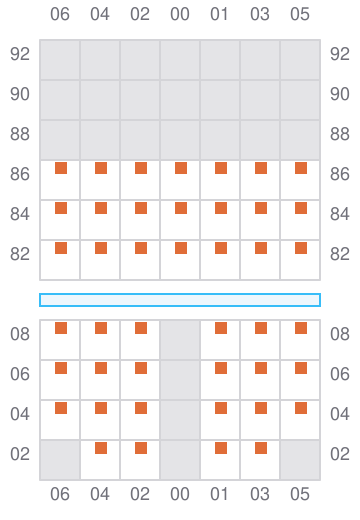

007
- ←
- →
- →
009 (010)
- →
- ←
- →
011
- ←
- →
013 (014)
- →
- →
015
- ←
- → / ?
- →
017 (018)
- →
- ←
- →
019
- ←
- →
021 (022)
- →
- →
023
- ←
- → / ?
- →
025 (026)
- → / ?
- ← / ?
- → / ?

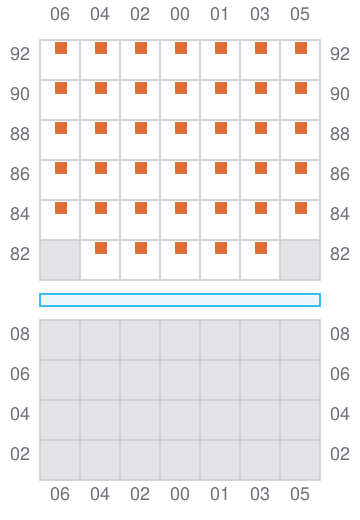

027
- ← / ?
- → / ?
