MAIRA
9203502 | 3FHC3 | CHI by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:MAIRA
IMO Code:9203502
Call Sign:3FHC3
Line Operator:CHI
Class Name for Sister Ships:ANN
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,531
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

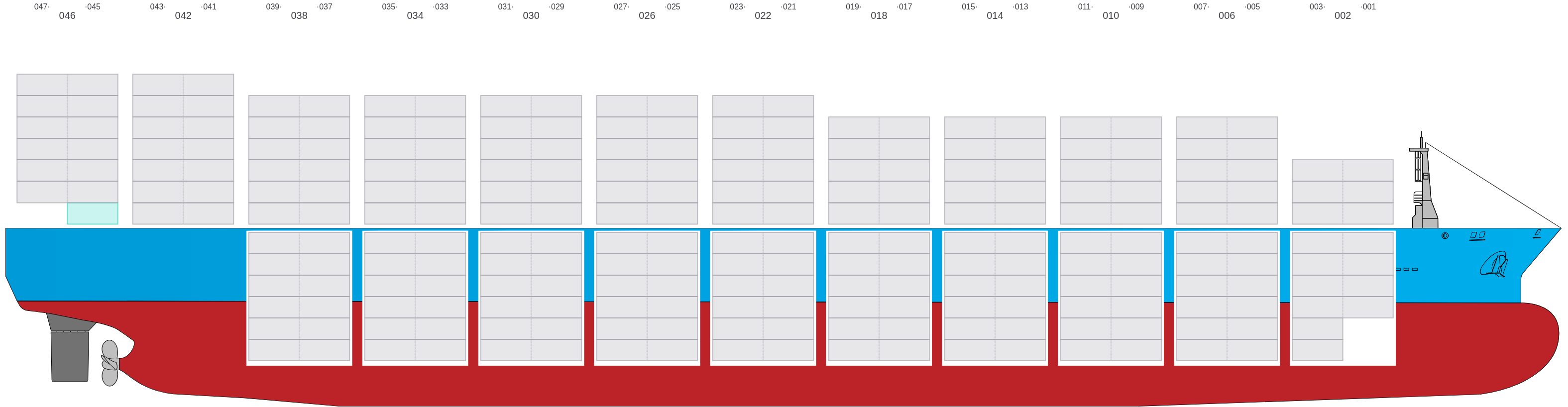

Side View
![Side view of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-sideView.png?v=1688061085398)

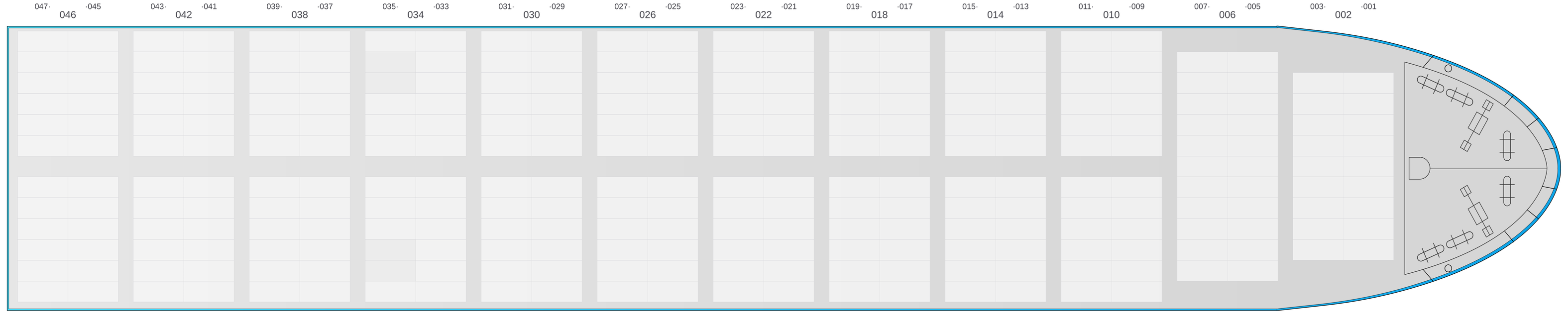

Hatch-Covers View
![Deck view of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-deckView.png?v=1688061085398)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

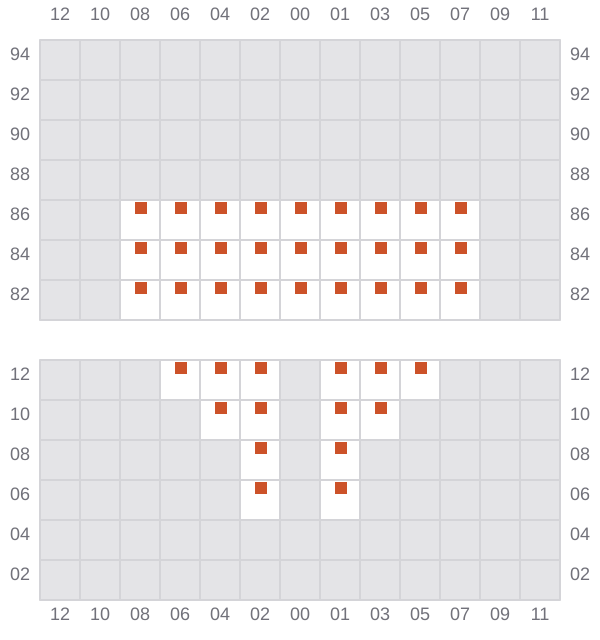

001
- →
![Bay 001 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b001.png?v=1688061085398)

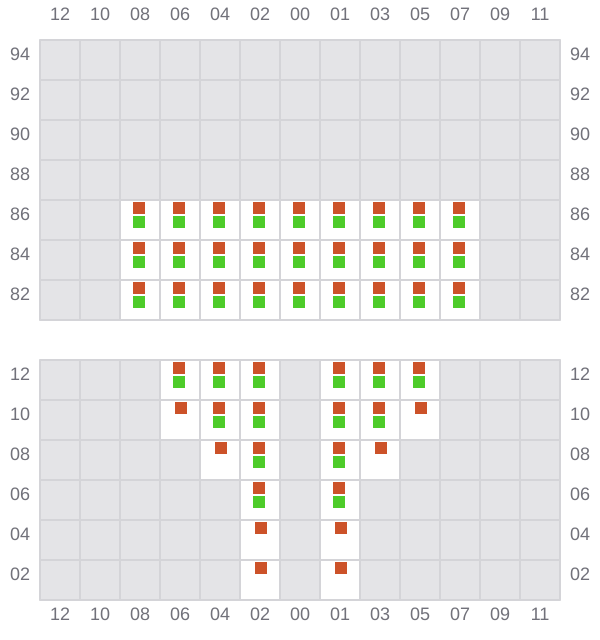

003 (002)
- ←
![Bay 003 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b003.png?v=1688061085398)

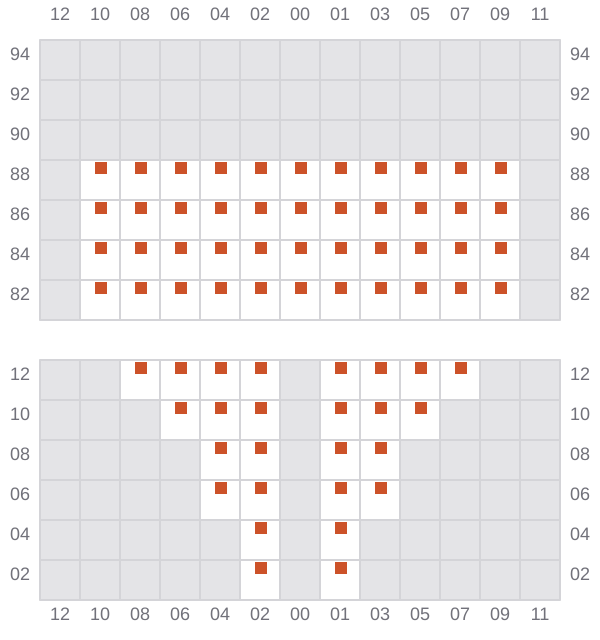

005
- →
![Bay 005 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b005.png?v=1688061085398)

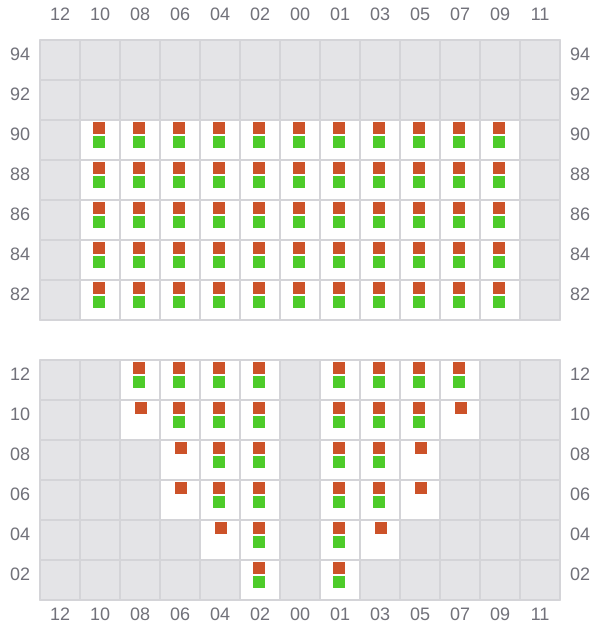

007 (006)
- ←
![Bay 007 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b007.png?v=1688061085398)

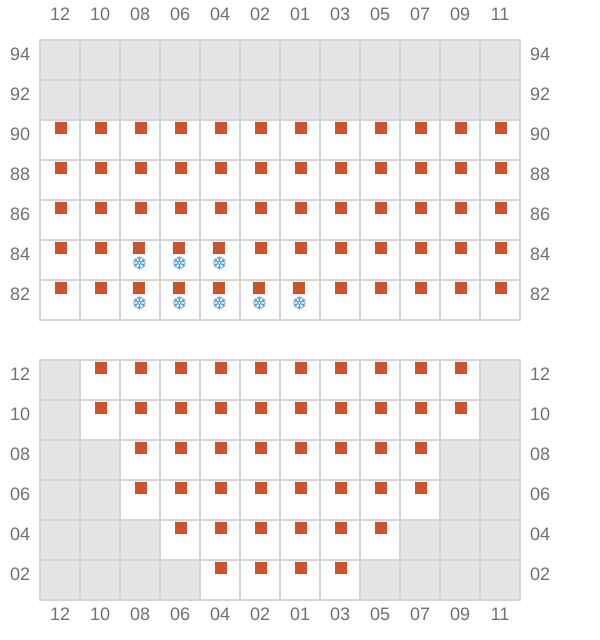

009
- →
![Bay 009 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b009.png?v=1688061085398)

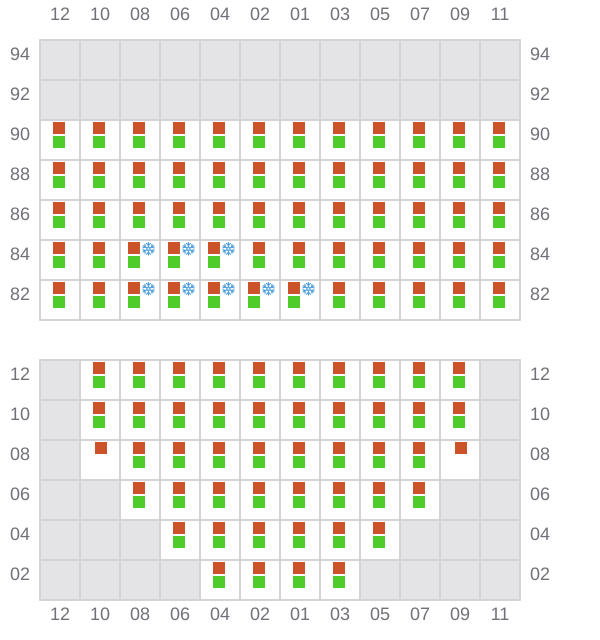

011 (010)
- ←
![Bay 011 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b011.png?v=1688061085398)
013
- →
![Bay 013 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b013.png?v=1688061085398)
015 (014)
- ←
![Bay 015 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b015.png?v=1688061085398)
017
- →
![Bay 017 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b017.png?v=1688061085398)
019 (018)
- ←
![Bay 019 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b019.png?v=1688061085398)

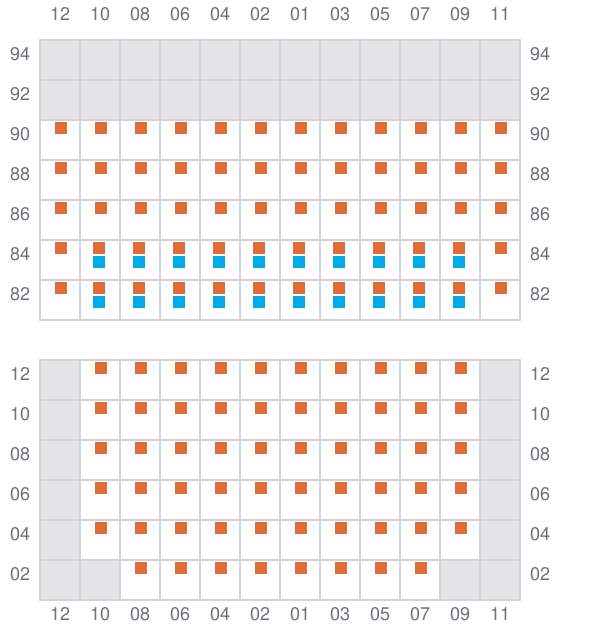

021
- →
![Bay 021 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b021.png?v=1688061085398)
023 (022)
- ←
![Bay 023 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b023.png?v=1688061085398)
025
- →
![Bay 025 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b025.png?v=1688061085398)
027 (026)
- ←
![Bay 027 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b027.png?v=1688061085398)

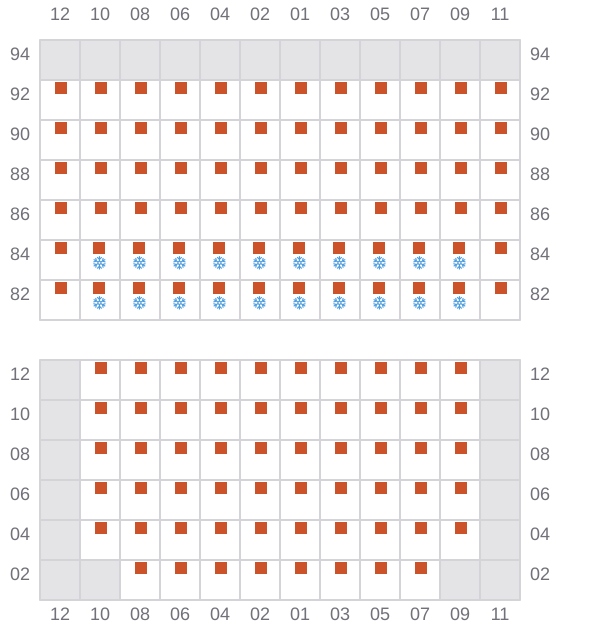

029
- →
![Bay 029 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b029.png?v=1688061085398)
031 (030)
- ←
![Bay 031 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b031.png?v=1688061085398)
033
- →
![Bay 033 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b033.png?v=1688061085398)

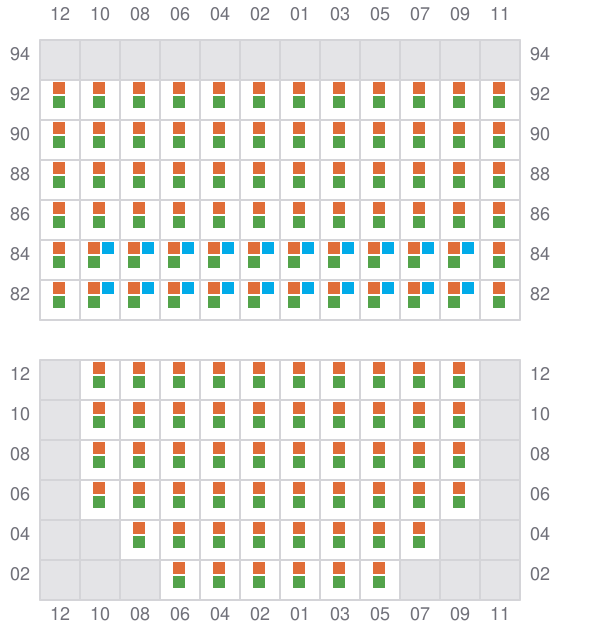

035 (034)
- ←
![Bay 035 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b035.png?v=1688061085398)

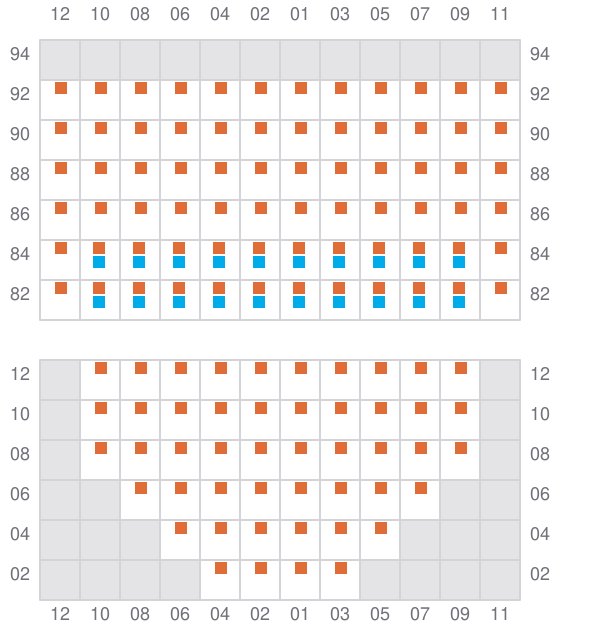

037
- →
![Bay 037 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b037.png?v=1688061085398)
039 (038)
- ←
![Bay 039 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b039.png?v=1688061085398)

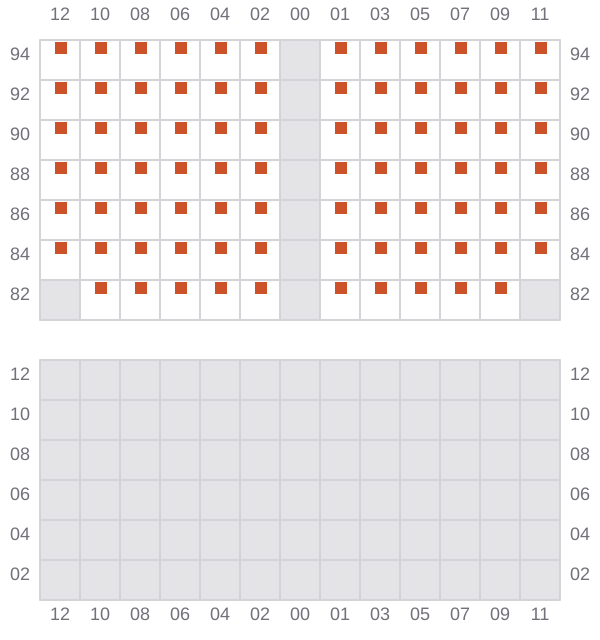

041
- → / ?
![Bay 041 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b041.png?v=1688061085398)

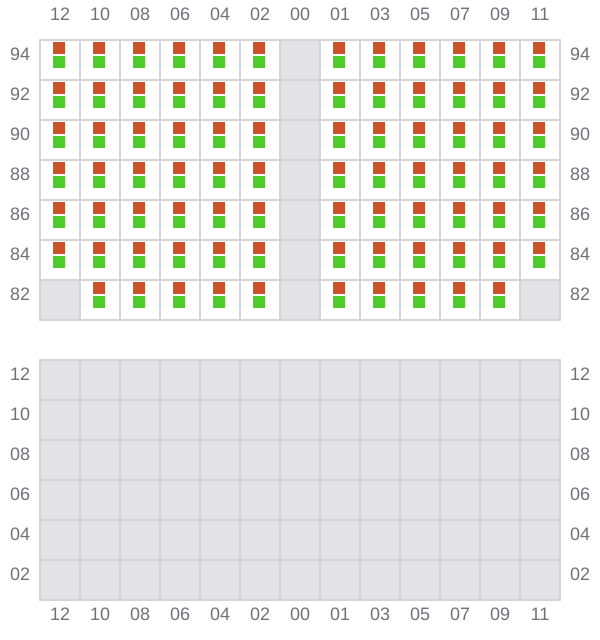

043 (042)
- ← / ?
![Bay 043 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b043.png?v=1688061085398)

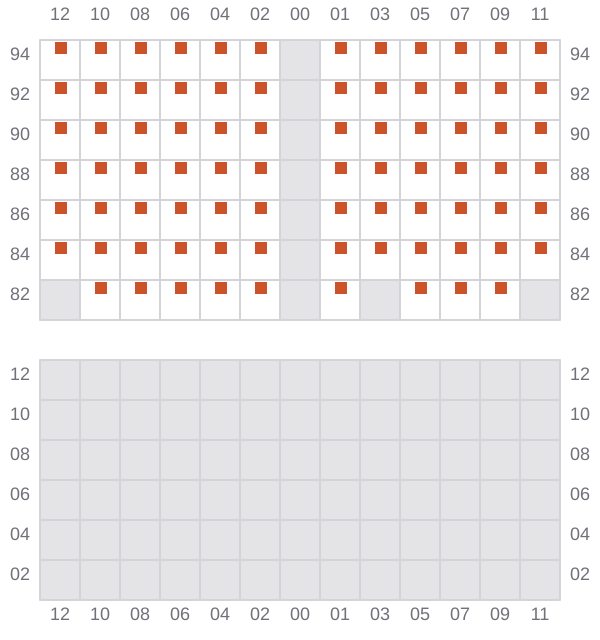

045
- → / ?
![Bay 045 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b045.png?v=1688061085398)

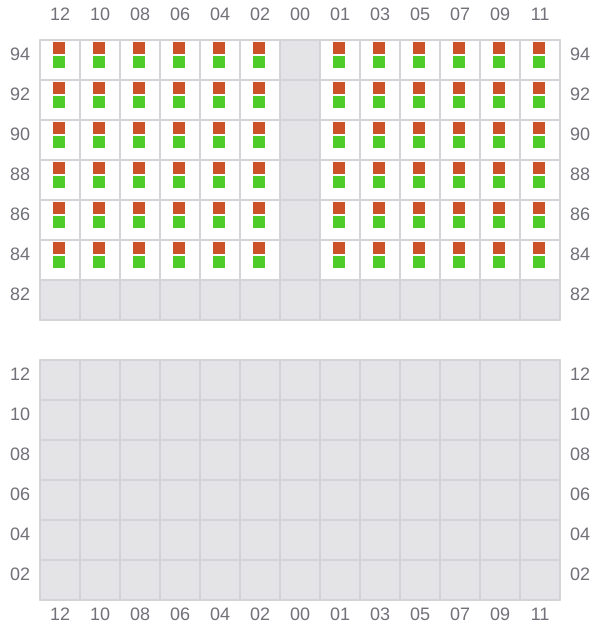

047 (046)
- ← / ?
![Bay 047 view and slots of MAIRA](/vessel-images/c66c2165-e820-44bc-9c82-5c2e61c333d7-b047.png?v=1688061085398)
