MAJD
9323027 | A7HR | HANSA by ********* Last update: Thu Jun 20 2024

General Info

Ship Name:MAJD
IMO Code:9323027
Call Sign:A7HR
Line Operator:HANSA
Class Name for Sister Ships:STX 3500
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):232.30
LOA (Length Overall):246.80
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:057
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,768

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

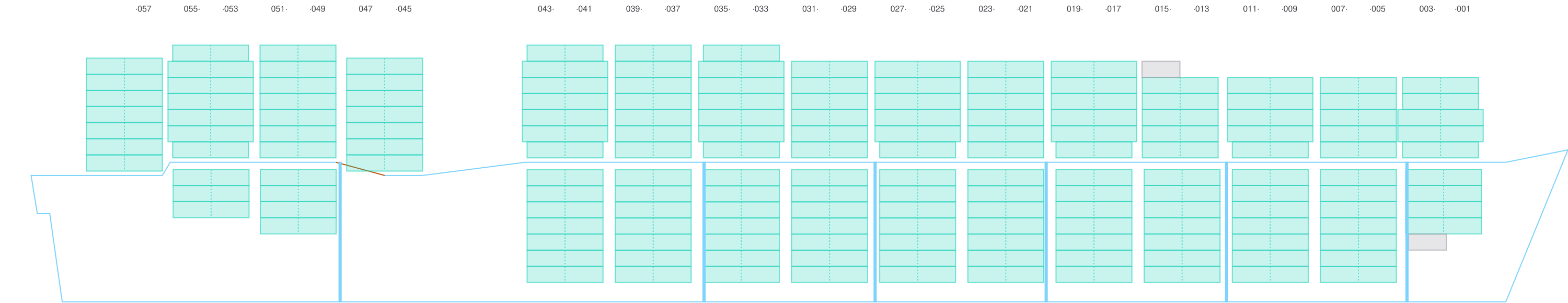

Side view of MAJD

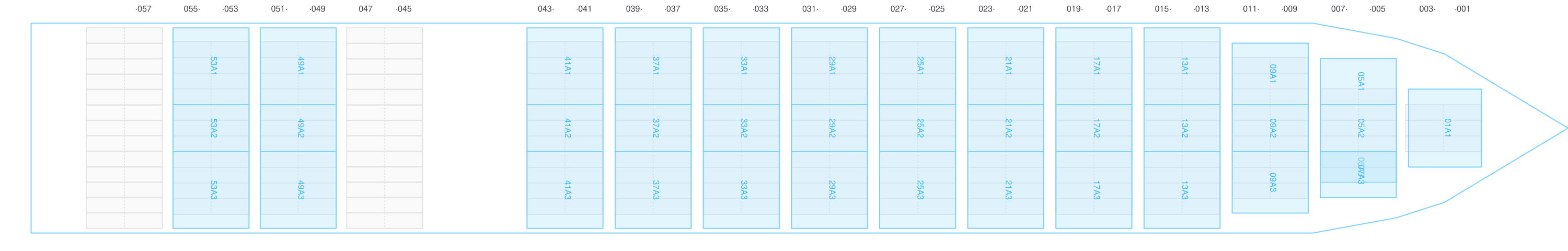

Hatch-Covers View

Deck view of MAJD

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

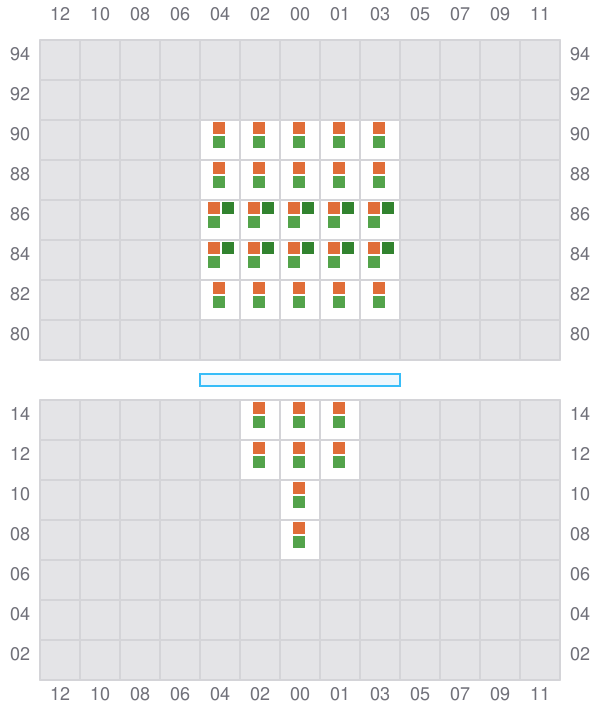

Bay 001 view and slots of MAJD

003

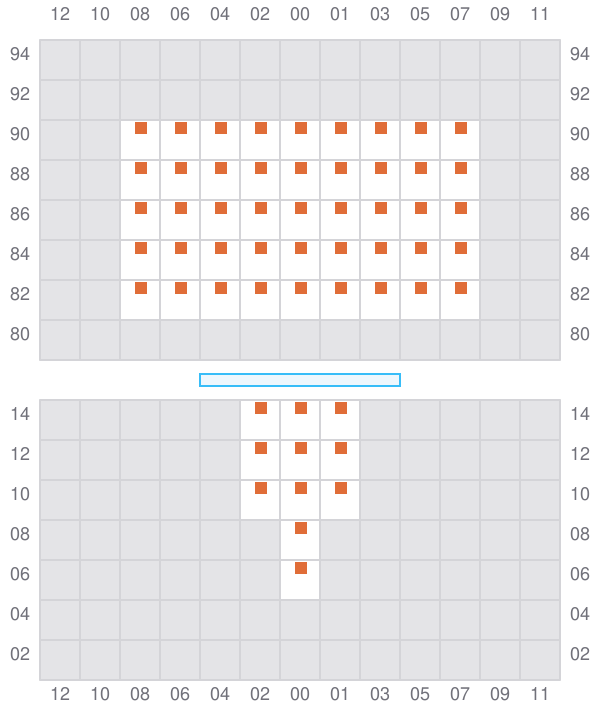

Bay 003 view and slots of MAJD

005 (006)

Bay 005 view and slots of MAJD

007

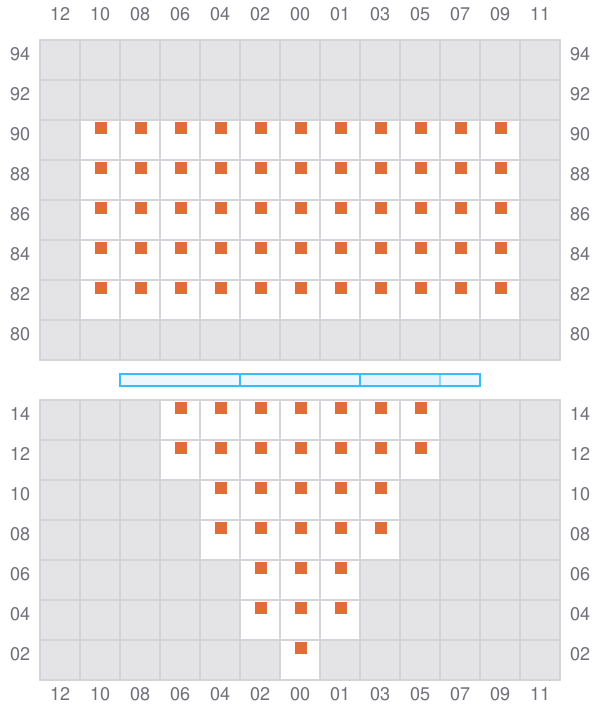

Bay 007 view and slots of MAJD

009 (010)

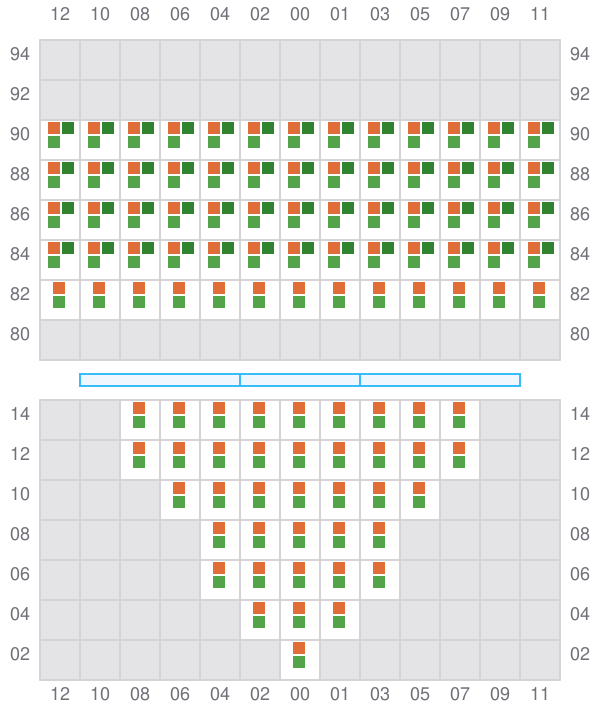

Bay 009 view and slots of MAJD

011

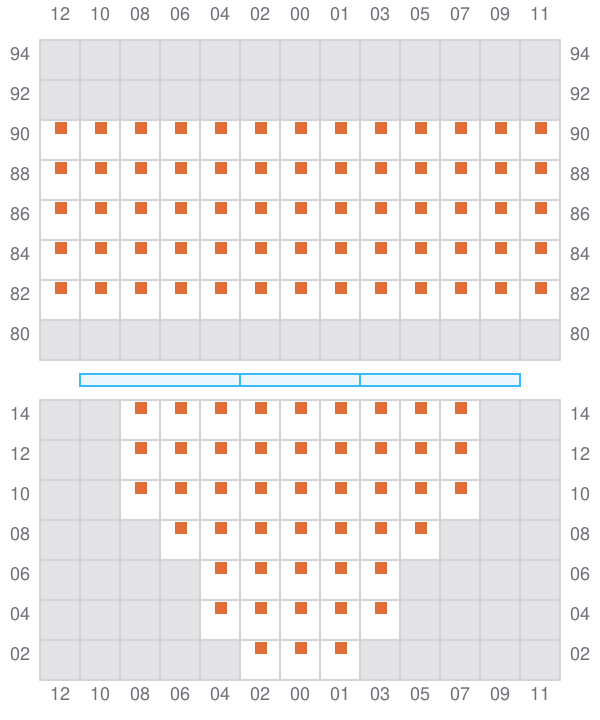

Bay 011 view and slots of MAJD

013 (014)

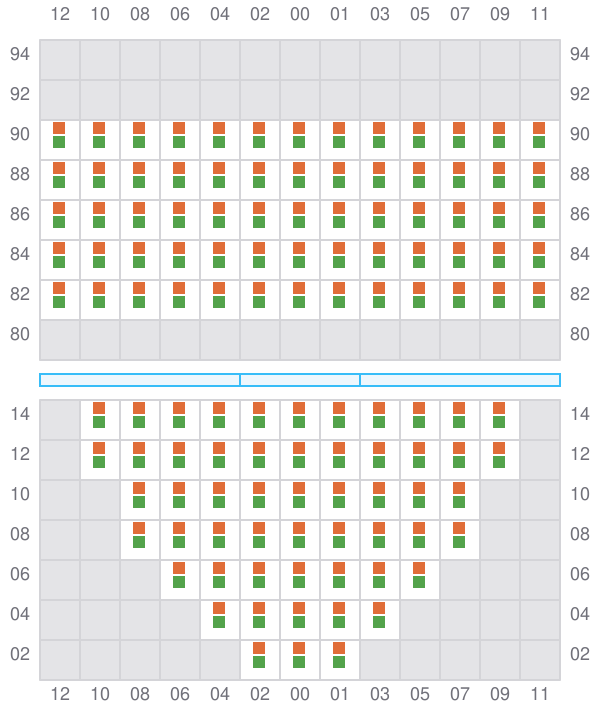

Bay 013 view and slots of MAJD

015

Bay 015 view and slots of MAJD

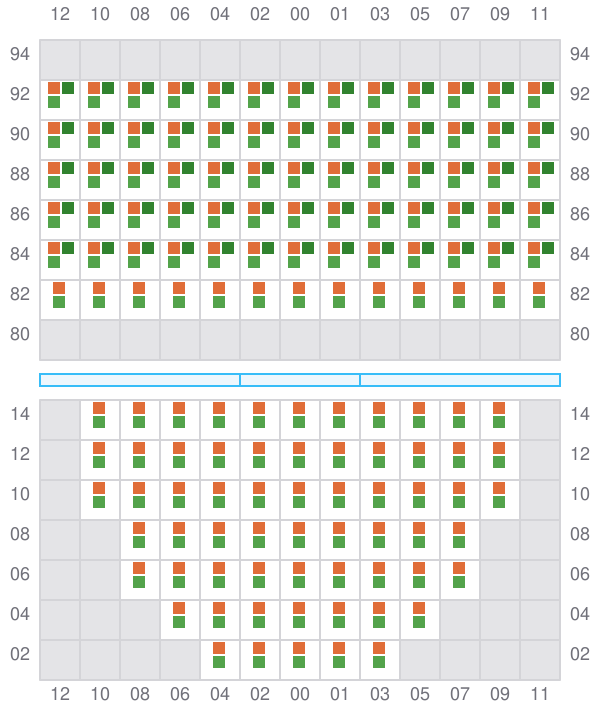

017 (018)

Bay 017 view and slots of MAJD

019

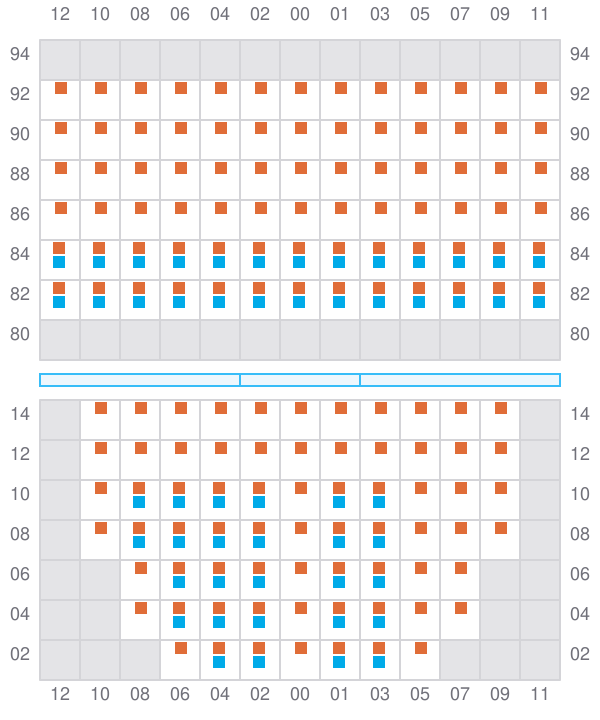

Bay 019 view and slots of MAJD

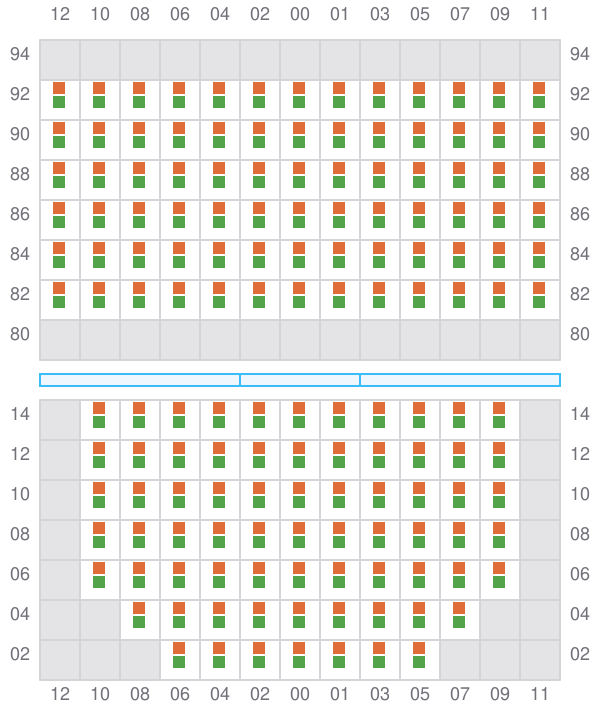

021 (022)

Bay 021 view and slots of MAJD

023

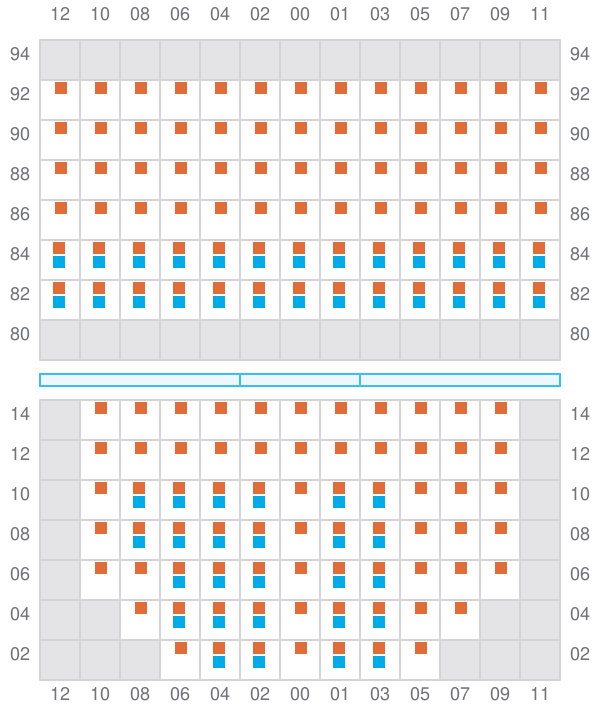

Bay 023 view and slots of MAJD

025 (026)

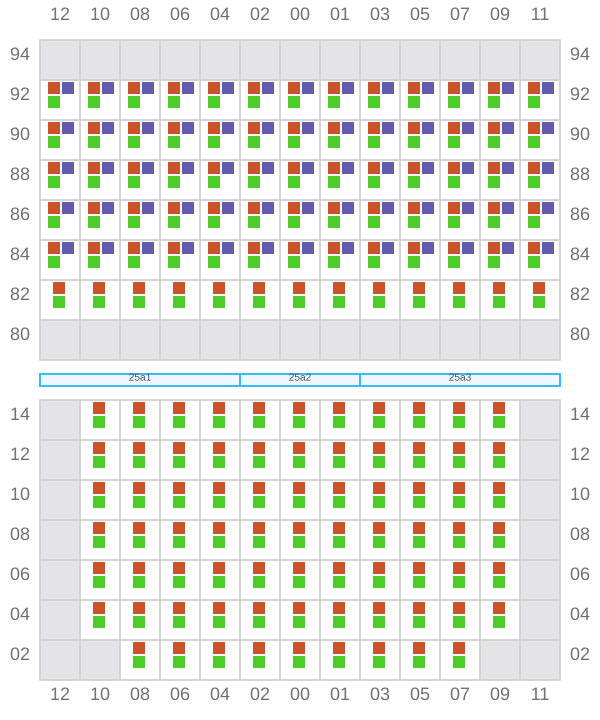

Bay 025 view and slots of MAJD

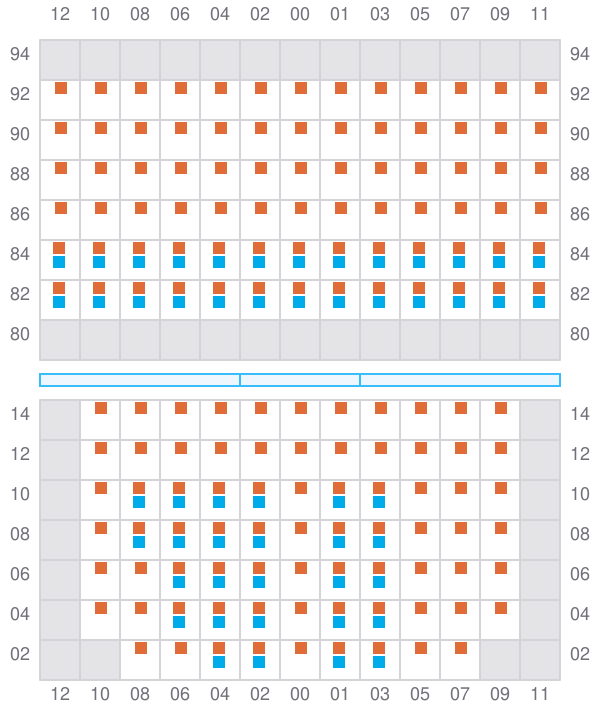

027

Bay 027 view and slots of MAJD

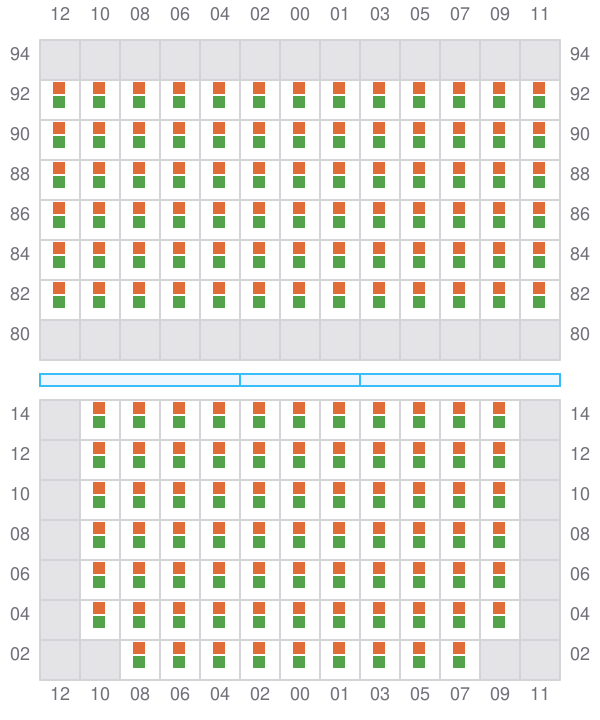

029 (030)

Bay 029 view and slots of MAJD

031

Bay 031 view and slots of MAJD

033 (034)

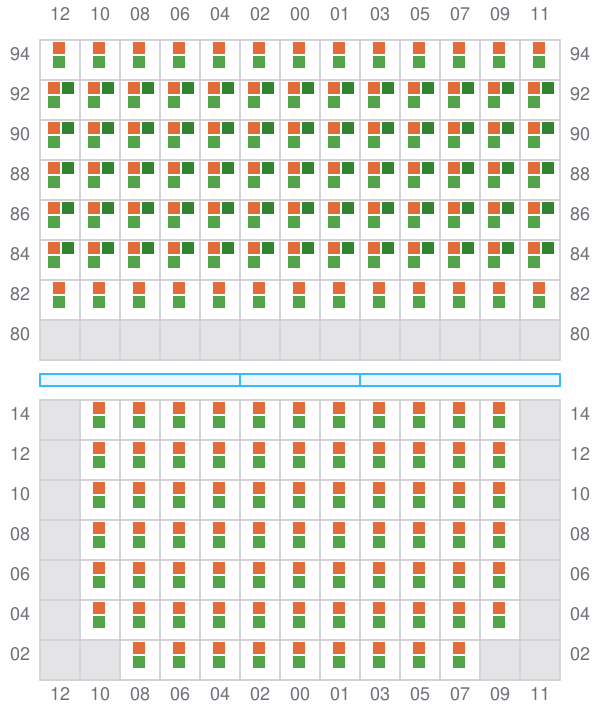

Bay 033 view and slots of MAJD

035

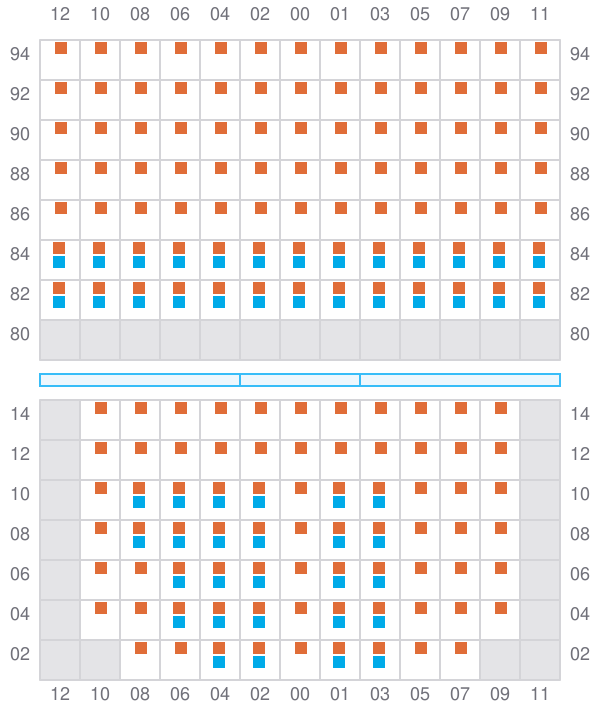

Bay 035 view and slots of MAJD

037 (038)

Bay 037 view and slots of MAJD

039

Bay 039 view and slots of MAJD

041 (042)

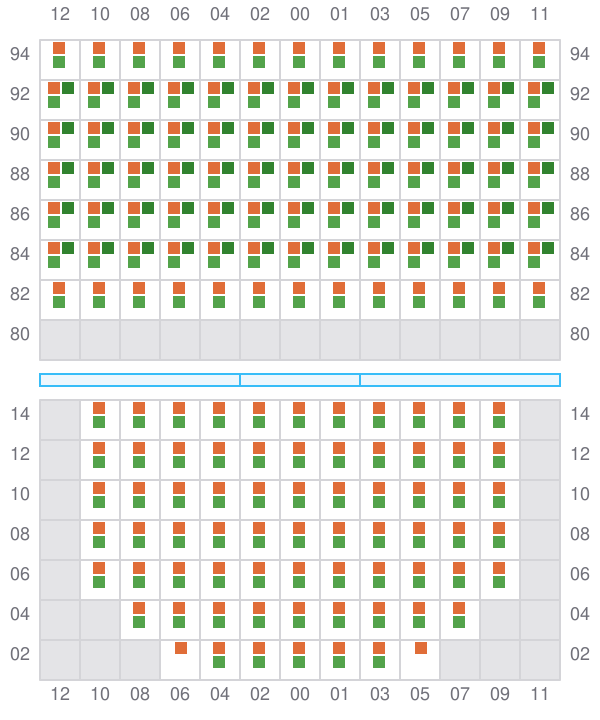

Bay 041 view and slots of MAJD

043

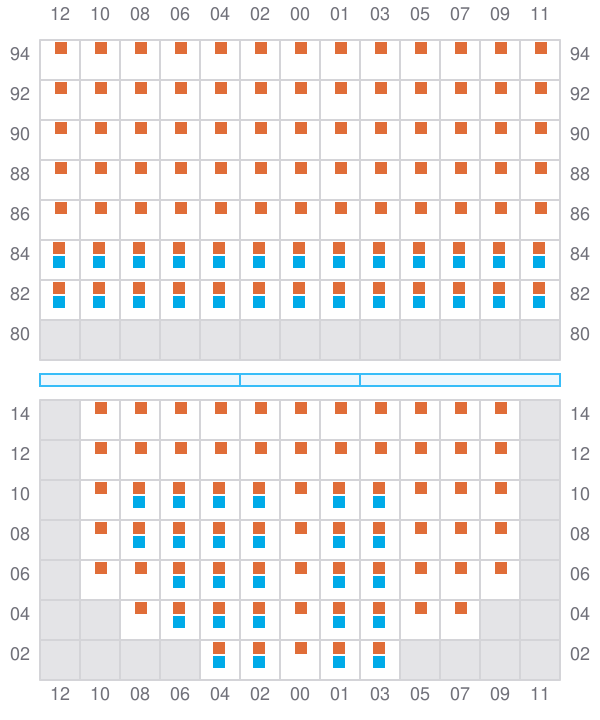

Bay 043 view and slots of MAJD

045 (046)

  • / ?

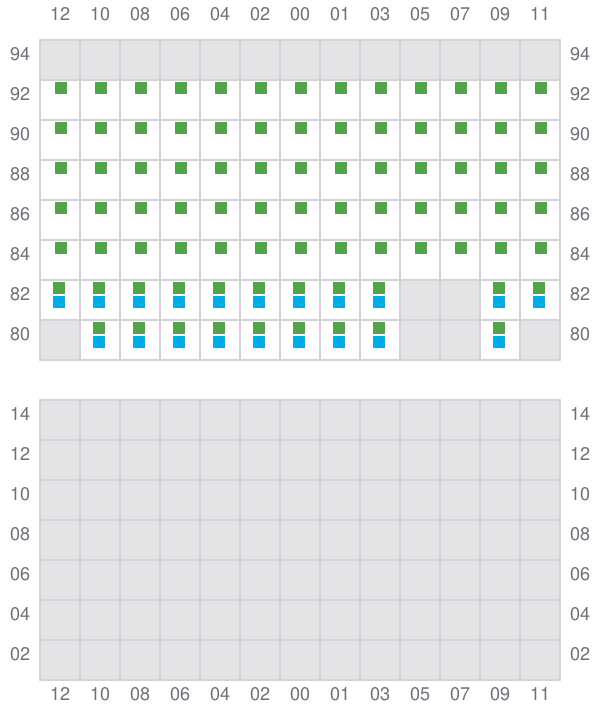

Bay 045 view and slots of MAJD

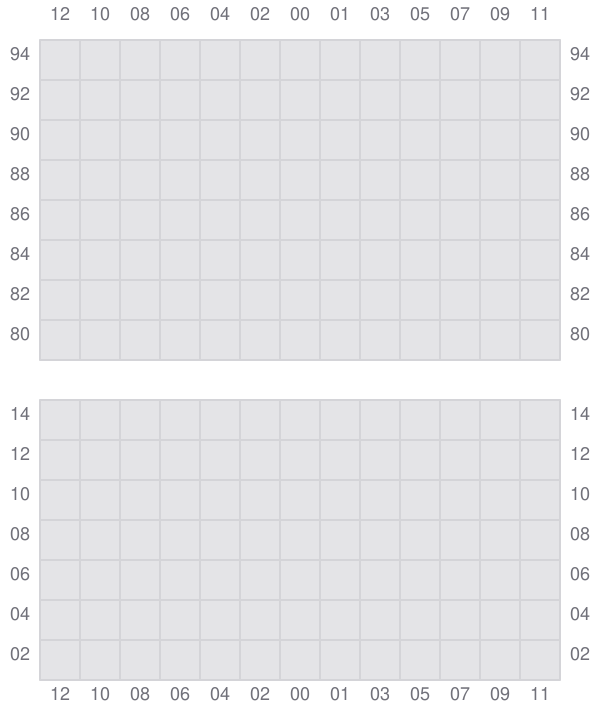

047

Bay 047 view and slots of MAJD

049 (050)

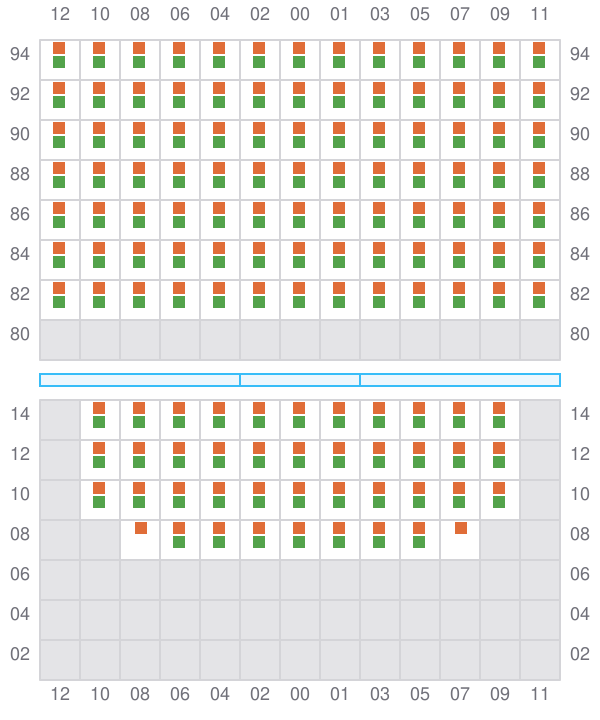

Bay 049 view and slots of MAJD

051

  • / ?

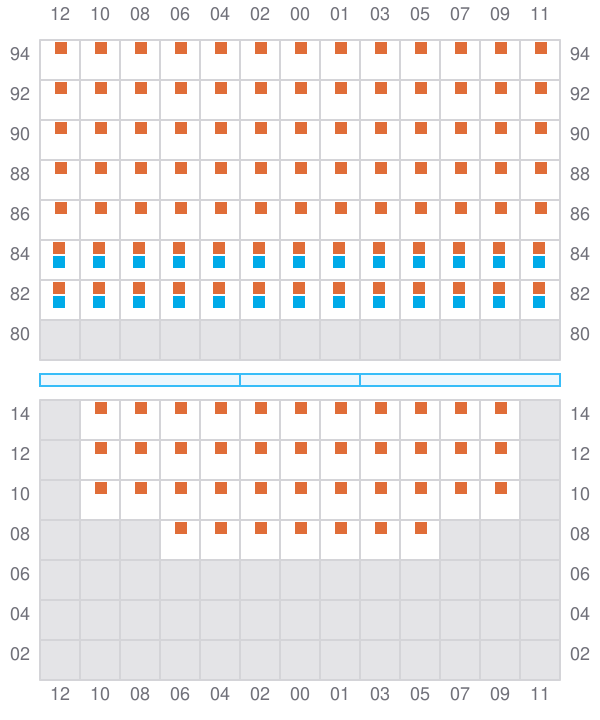

Bay 051 view and slots of MAJD

053 (054)

Bay 053 view and slots of MAJD

055

  • / ?

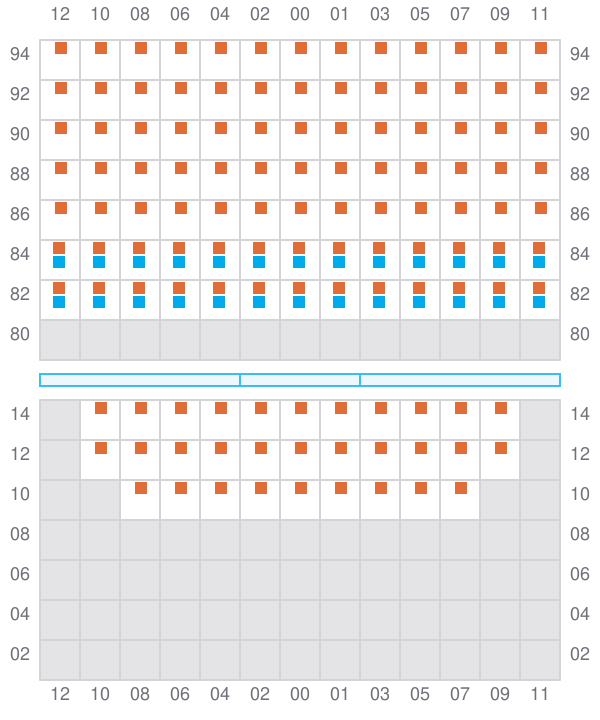

Bay 055 view and slots of MAJD

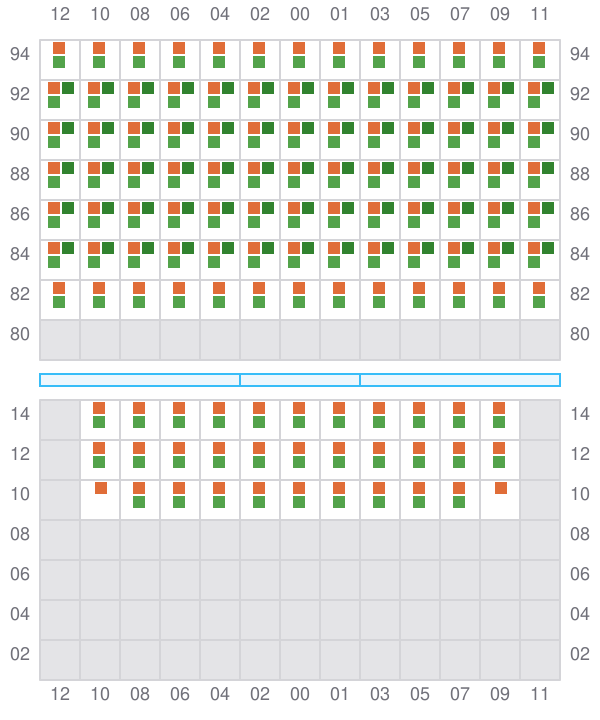

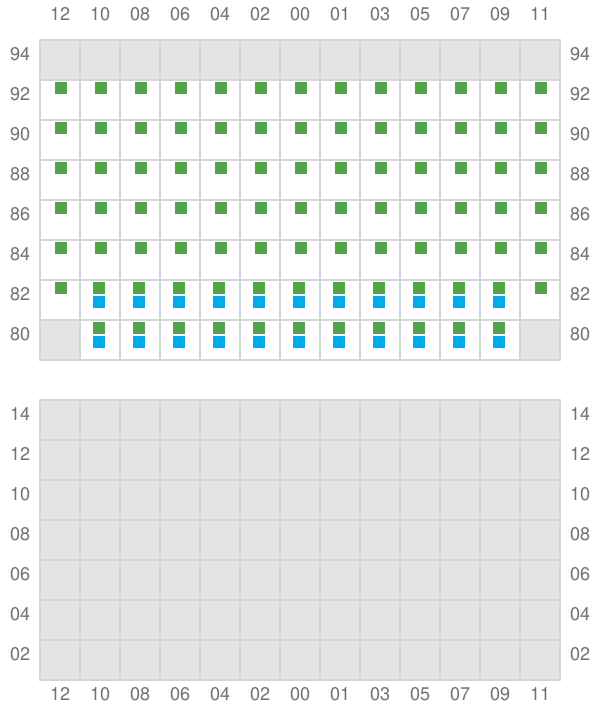

057 (058)

  • / ?
Bay 057 view and slots of MAJD
