MANILA EXPRESS
9540120 | DCAU2 | HLC by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:MANILA EXPRESS

IMO Code:9540120

Call Sign:DCAU2

Line Operator:HLC

Class Name for Sister Ships:HMLX

Year Built:2023

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:093

Max ISO Row:24

Center Line Row:No

Max Above ISO Tier:96

Min Above ISO Tier:68

Max Below ISO Tier:24

Min Below ISO Tier:02

Total TEU:23,488

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

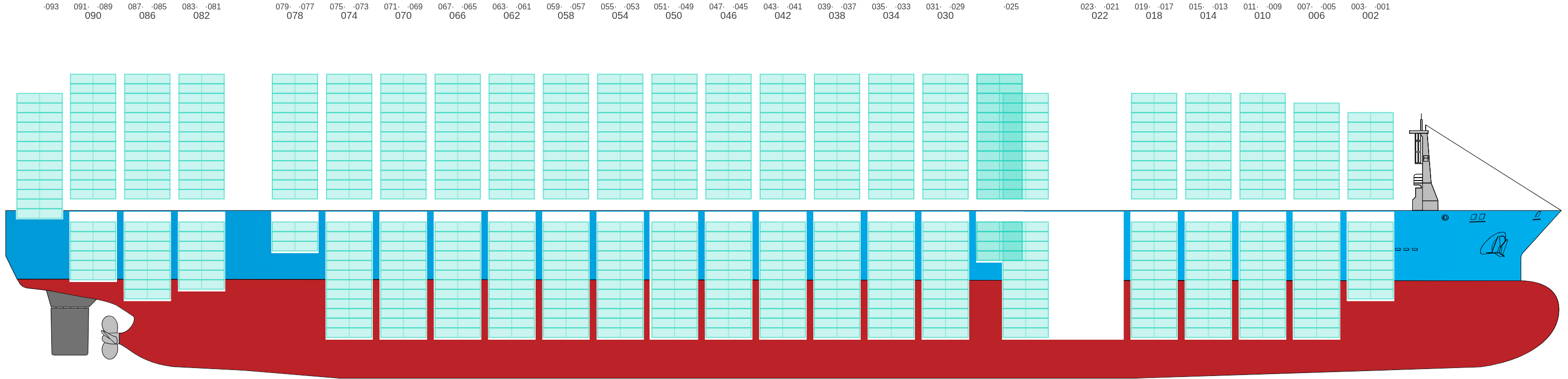

Side View

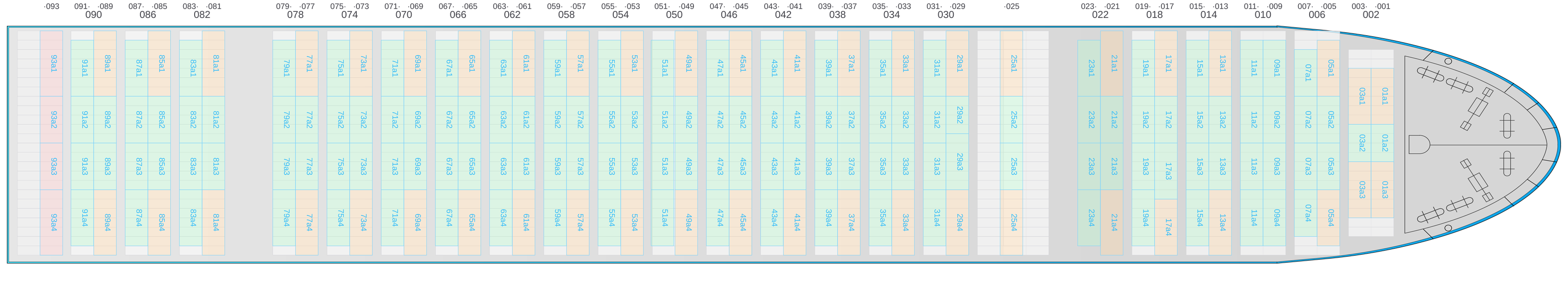

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

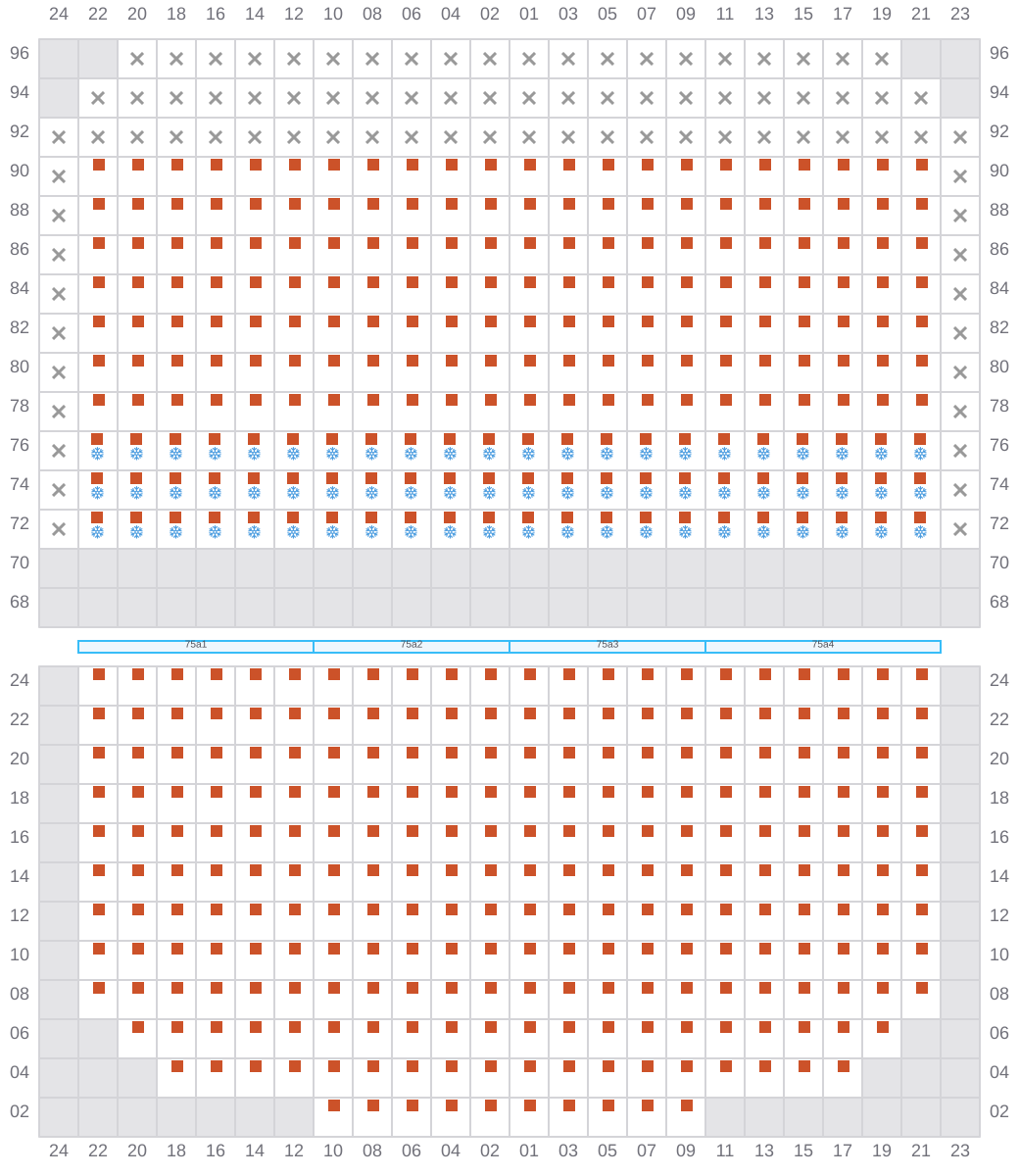

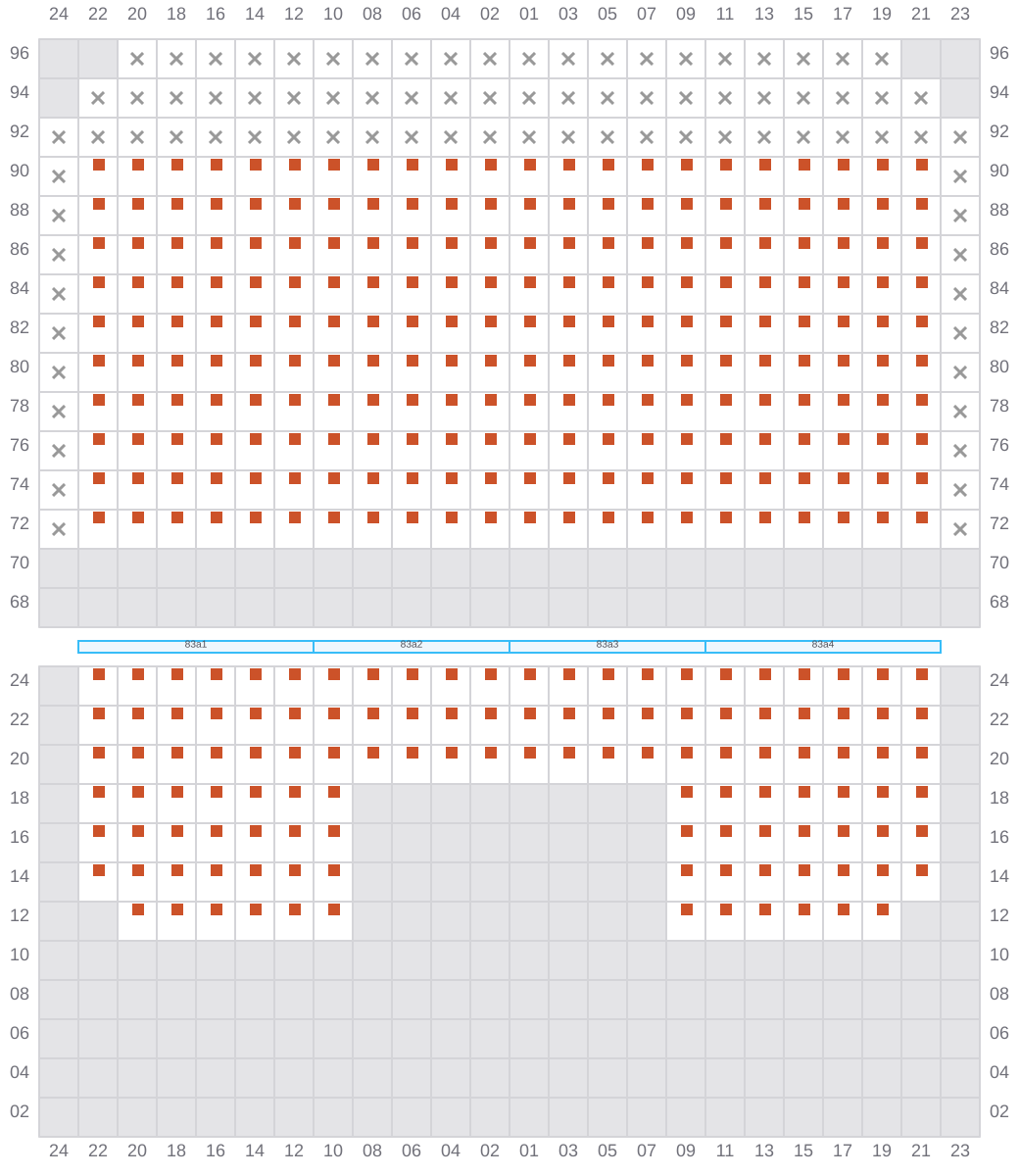

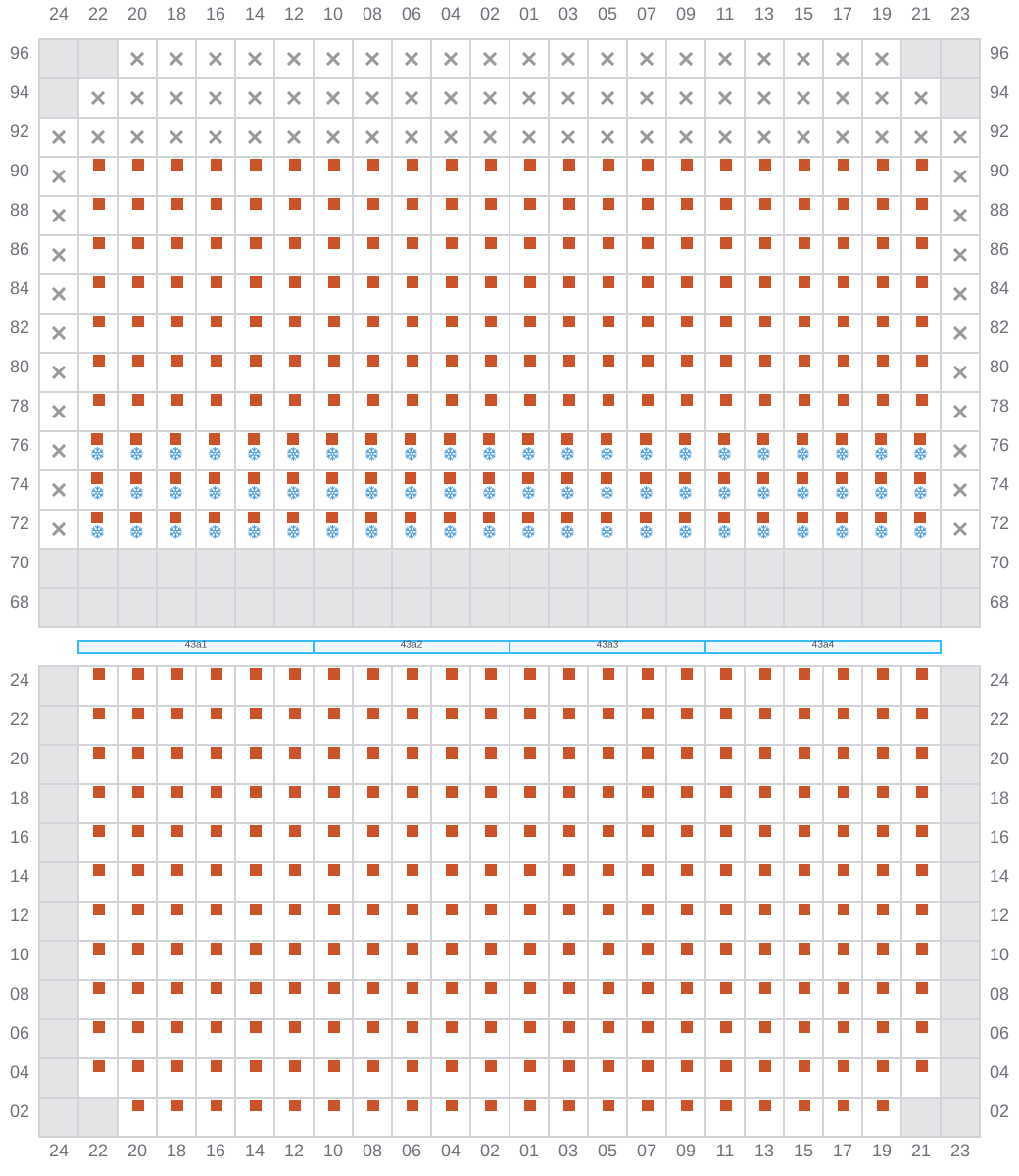

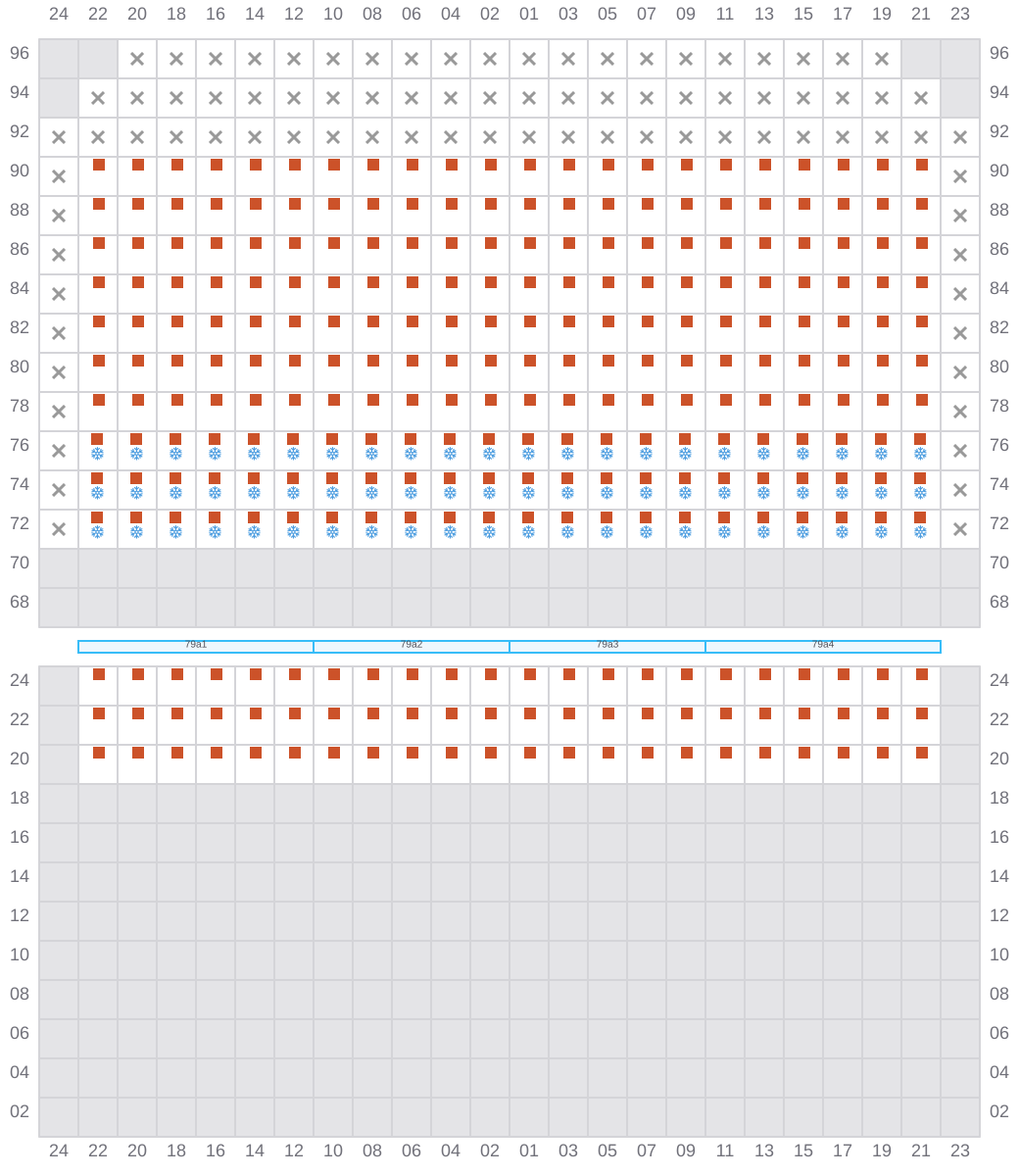

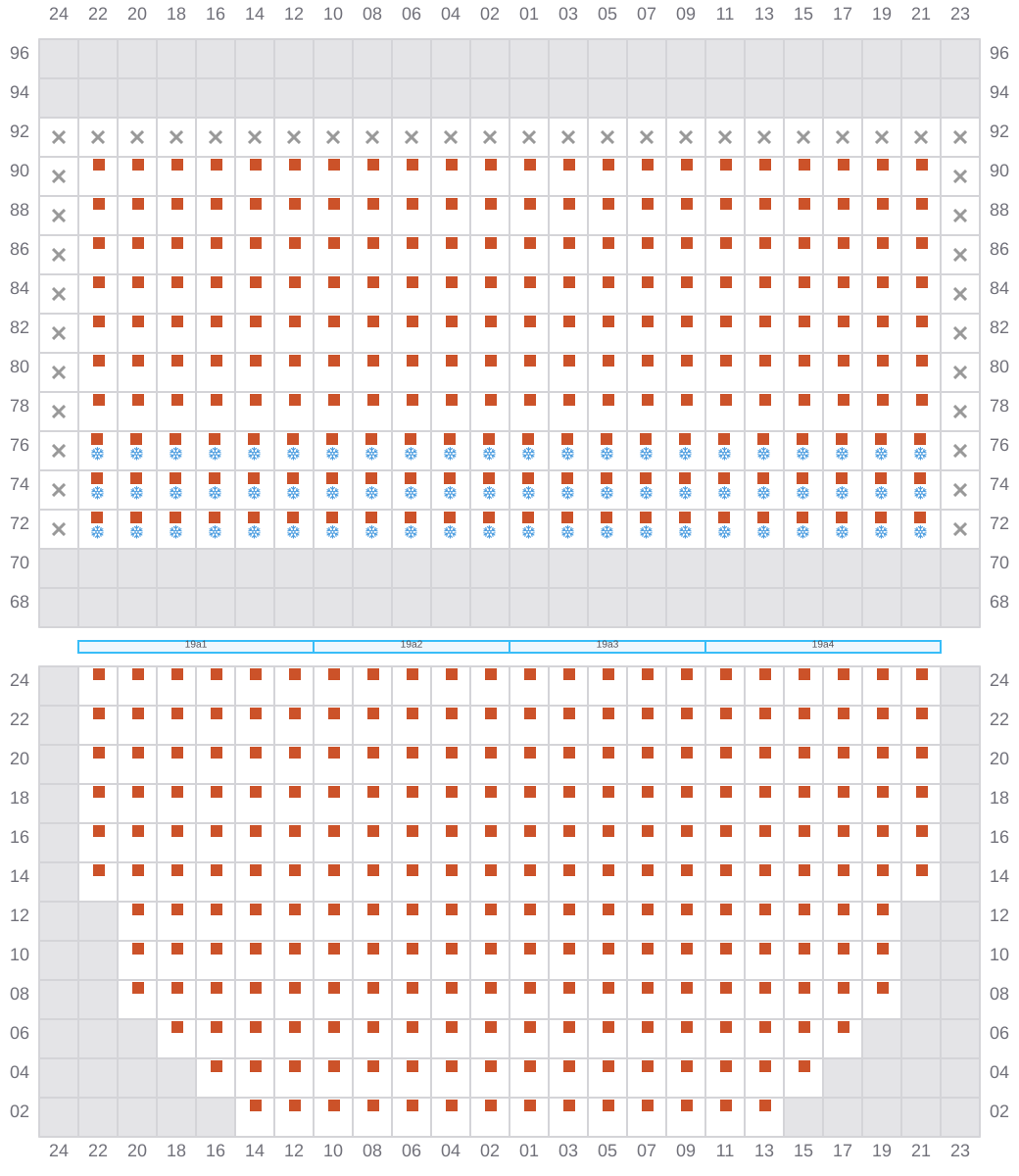

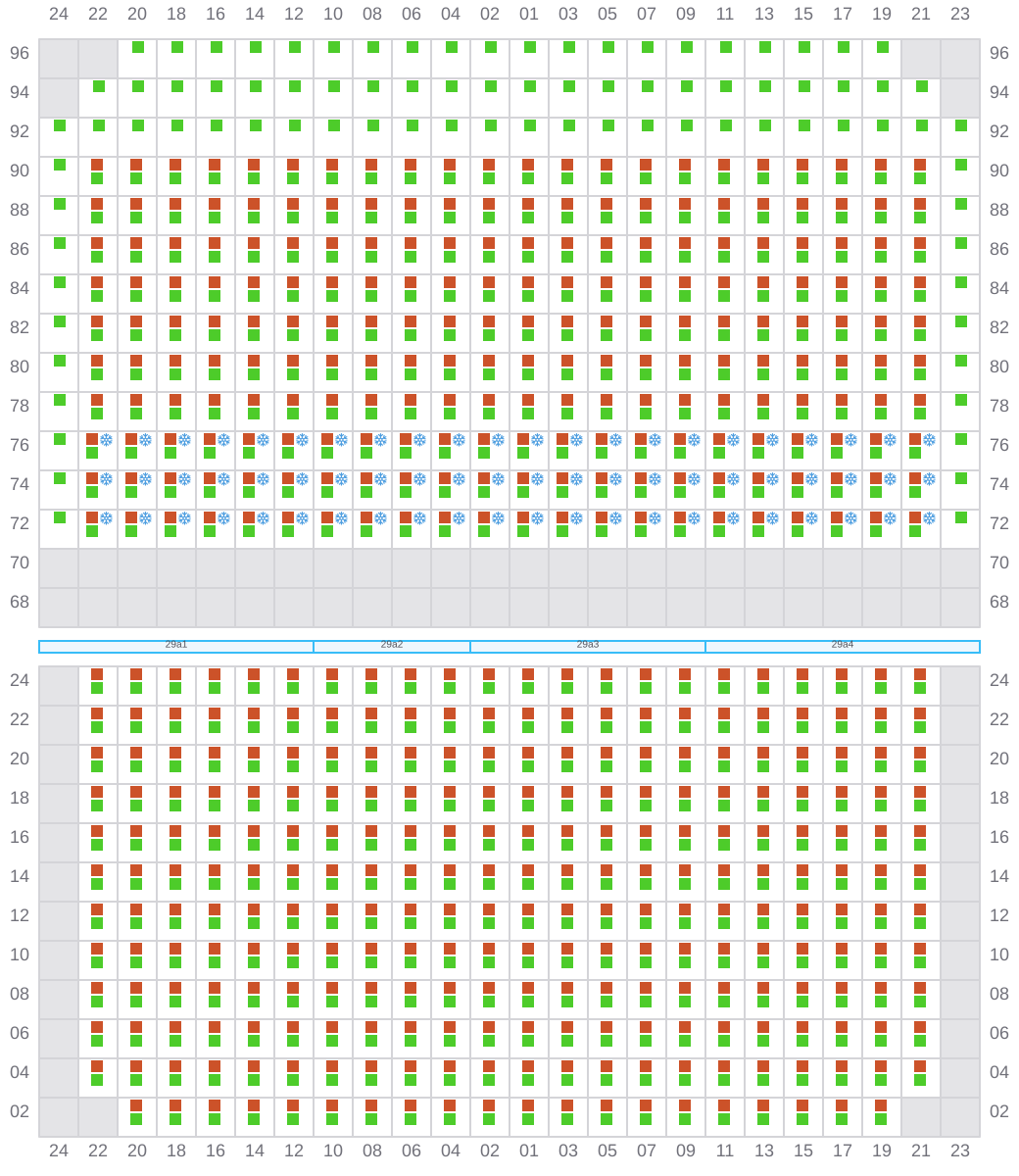

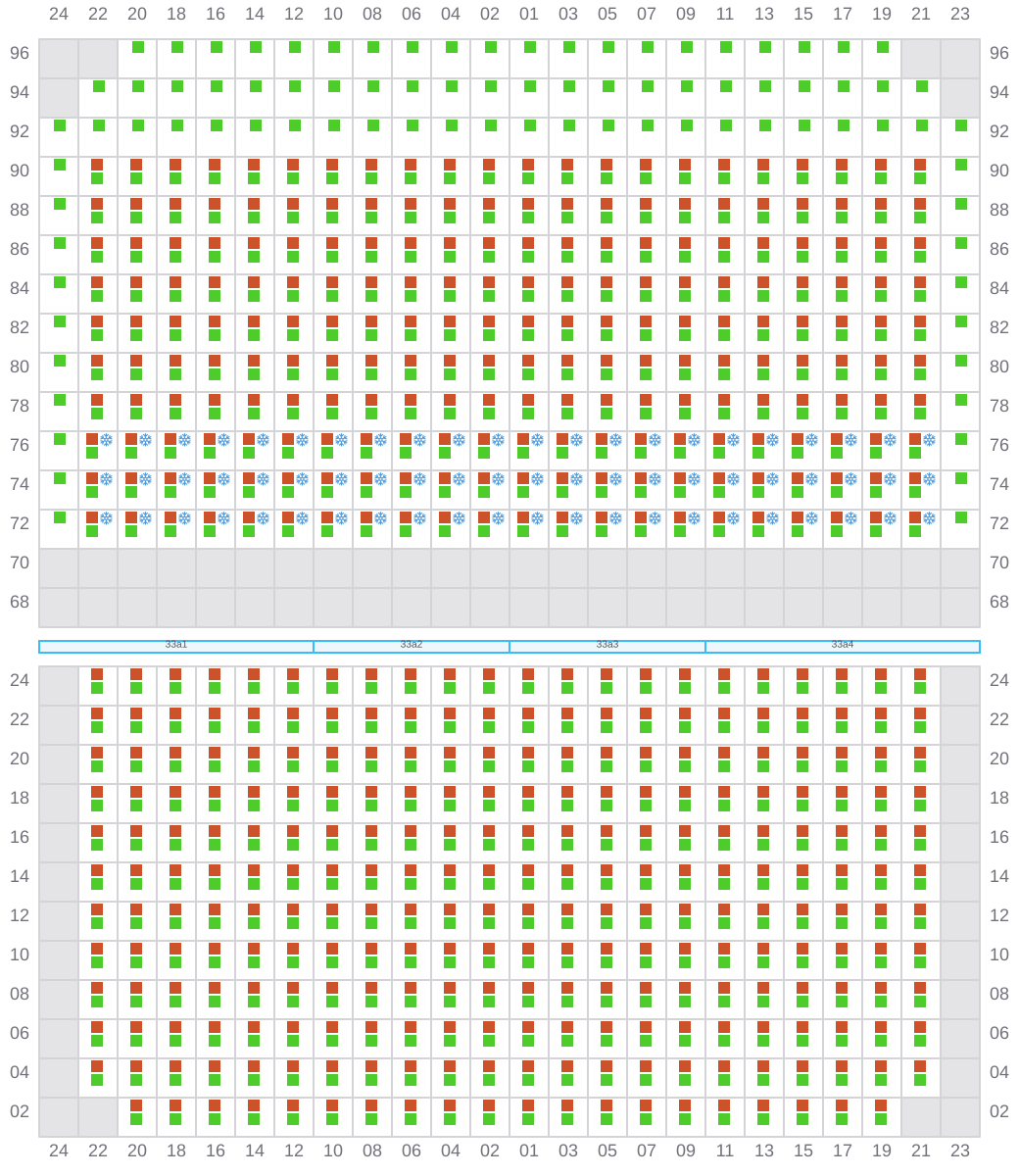

Bay 001 view and slots of MANILA EXPRESS

003

Bay 003 view and slots of MANILA EXPRESS

005 (006)

→
^→ / _?
→

Bay 005 view and slots of MANILA EXPRESS

007

←
^→ / _?
→

Bay 007 view and slots of MANILA EXPRESS

009 (010)

→
^→ / _?
→

Bay 009 view and slots of MANILA EXPRESS

011

←
^→ / _?
→

Bay 011 view and slots of MANILA EXPRESS

013 (014)

→
^→ / _?
→

Bay 013 view and slots of MANILA EXPRESS

015

←
^→ / _?
^→ / _?

Bay 015 view and slots of MANILA EXPRESS

017 (018)

→
^→ / _?
→

Bay 017 view and slots of MANILA EXPRESS

019

←
^→ / _?
→

Bay 019 view and slots of MANILA EXPRESS

021 (022)

→
^→ / _?
→

Bay 021 view and slots of MANILA EXPRESS

023

←
^→ / _?
→

Bay 023 view and slots of MANILA EXPRESS

025 (026)

→
^→ / _?
→

Bay 025 view and slots of MANILA EXPRESS

027

Bay 027 view and slots of MANILA EXPRESS

029 (030)

→
^→ / _?
→

Bay 029 view and slots of MANILA EXPRESS

031

←
^→ / _?
^→ / _?

Bay 031 view and slots of MANILA EXPRESS

033 (034)

→
^→ / _?
^→ / _?

Bay 033 view and slots of MANILA EXPRESS

035

←
^→ / _?
^→ / _?

Bay 035 view and slots of MANILA EXPRESS

037 (038)

→
^→ / _?
→

Bay 037 view and slots of MANILA EXPRESS

039

←
^→ / _?
^→ / _?

Bay 039 view and slots of MANILA EXPRESS

041 (042)

→
^→ / _?
→

Bay 041 view and slots of MANILA EXPRESS

043

←
^→ / _?
^→ / _?

Bay 043 view and slots of MANILA EXPRESS

045 (046)

→
^→ / _?
→

Bay 045 view and slots of MANILA EXPRESS

047

←
^→ / _?
^→ / _?

Bay 047 view and slots of MANILA EXPRESS

049 (050)

→
^→ / _?
→

Bay 049 view and slots of MANILA EXPRESS

051

←
^→ / _?
^→ / _?

Bay 051 view and slots of MANILA EXPRESS

053 (054)

→
^→ / _?
→

Bay 053 view and slots of MANILA EXPRESS

055

←
^→ / _?
^→ / _?

Bay 055 view and slots of MANILA EXPRESS

057 (058)

→
^→ / _?
→

Bay 057 view and slots of MANILA EXPRESS

059

←
^→ / _?
^→ / _?

Bay 059 view and slots of MANILA EXPRESS

061 (062)

→
^→ / _?
→

Bay 061 view and slots of MANILA EXPRESS

063

←
^→ / _?
^→ / _?

Bay 063 view and slots of MANILA EXPRESS

065 (066)

→
^→ / _?
→

Bay 065 view and slots of MANILA EXPRESS

067

←
^→ / _?
^→ / _?

Bay 067 view and slots of MANILA EXPRESS

069 (070)

→
^→ / _?
→

Bay 069 view and slots of MANILA EXPRESS

071

←
^→ / _?
^→ / _?

Bay 071 view and slots of MANILA EXPRESS

073 (074)

→
^→ / _?
→

Bay 073 view and slots of MANILA EXPRESS

075

←
^→ / _?
^→ / _?

Bay 075 view and slots of MANILA EXPRESS

077 (078)

→
^→ / _?
→

Bay 077 view and slots of MANILA EXPRESS

079

←
^→ / _?
^→ / _?

Bay 079 view and slots of MANILA EXPRESS

081 (082)

→
^← / _?
→

Bay 081 view and slots of MANILA EXPRESS

083

←
^→ / _?
→

Bay 083 view and slots of MANILA EXPRESS

085 (086)

→
^← / _?
→

Bay 085 view and slots of MANILA EXPRESS

087

←
^→ / _?
→

Bay 087 view and slots of MANILA EXPRESS

089 (090)

→
^← / _?
→

Bay 089 view and slots of MANILA EXPRESS

091

←
^→ / _?
→

Bay 091 view and slots of MANILA EXPRESS

093 (094)

^→ / _?
^← / _?
^→ / _?

Bay 093 view and slots of MANILA EXPRESS
