MANILA VOYAGER
9128099 | V7A4937 | 9128099 by ********* Last update: Thu Jun 20 2024
General Info
Ship Name:MANILA VOYAGER
IMO Code:9128099
Call Sign:V7A4937
Line Operator:9128099
Class Name for Sister Ships:PIL
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):195.77
LOA (Length Overall):205.50
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:3,022
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

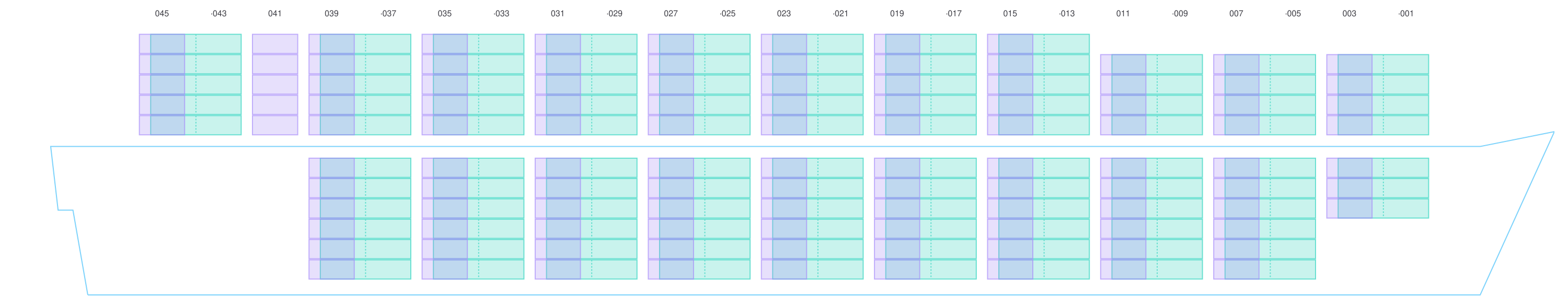

Side View

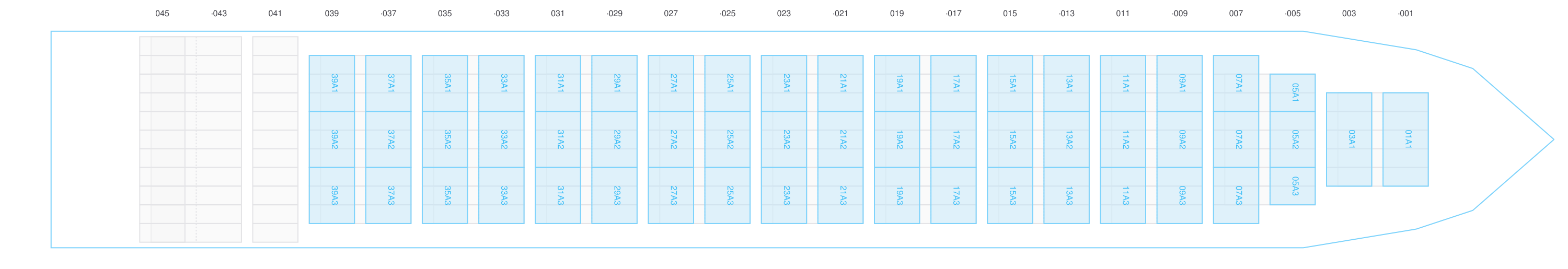

Hatch-Covers View

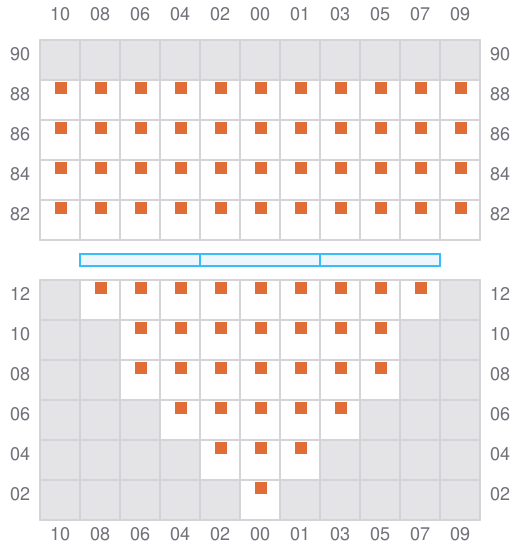

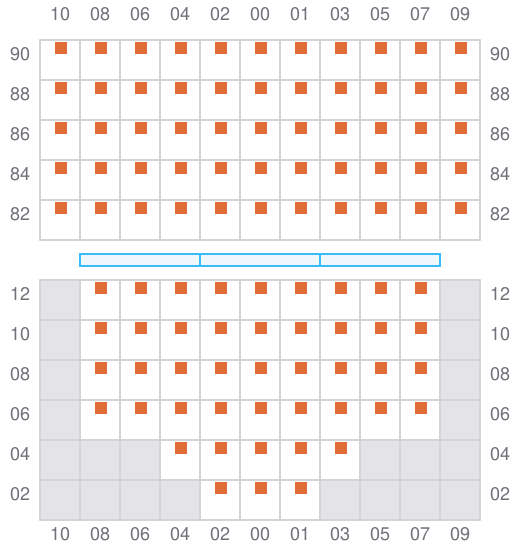

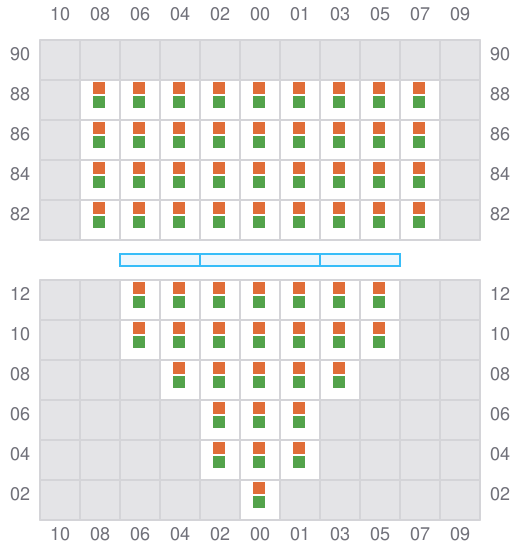

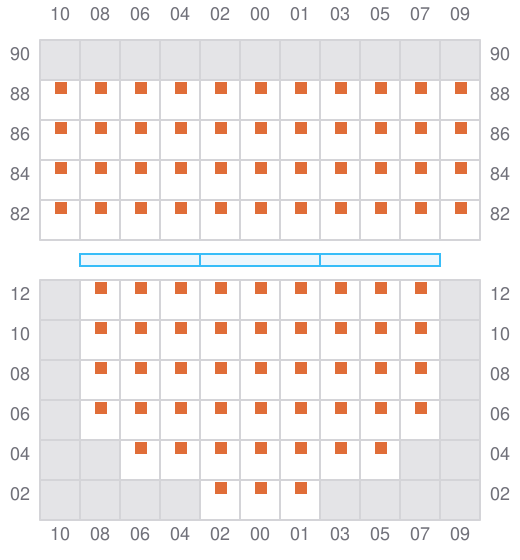

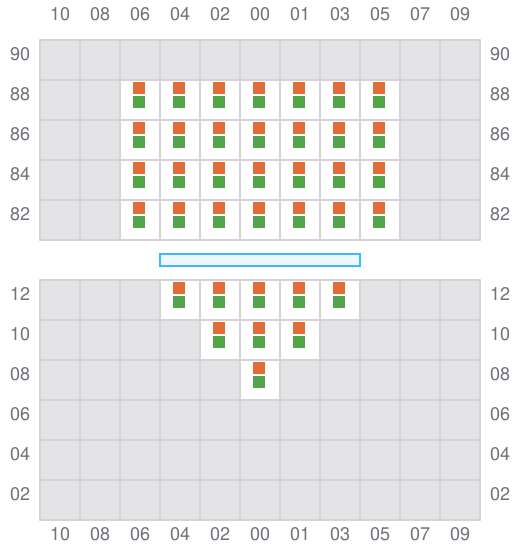

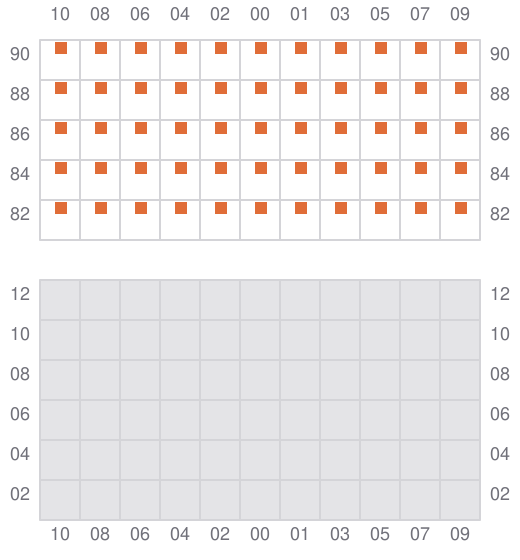

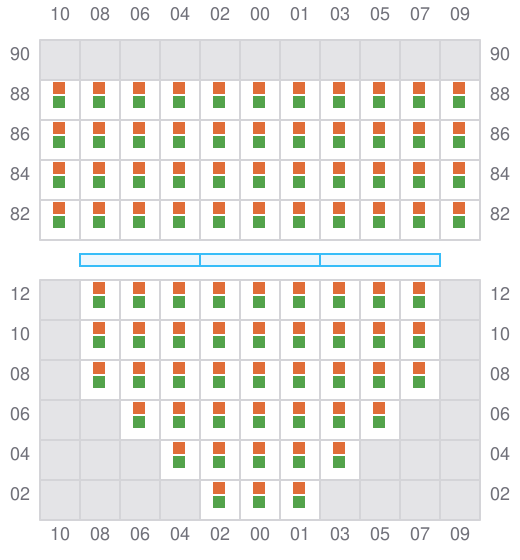

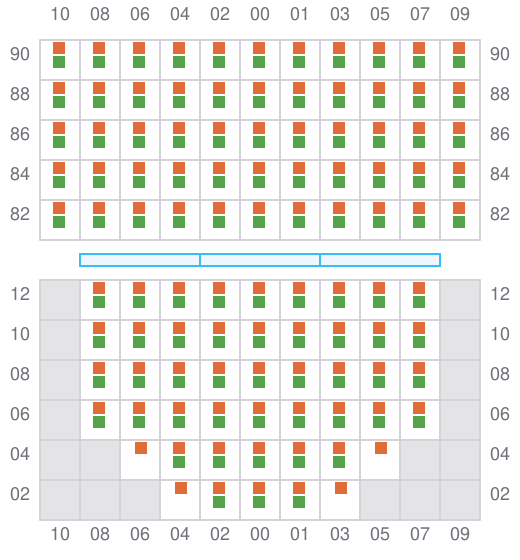

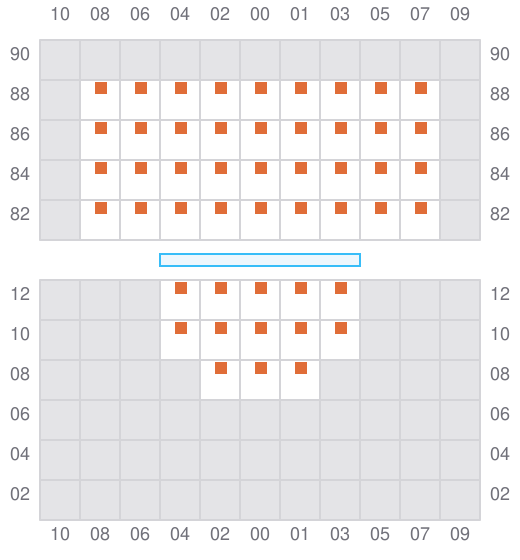

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
005 (006)
- →
007
009 (010)
- →
011

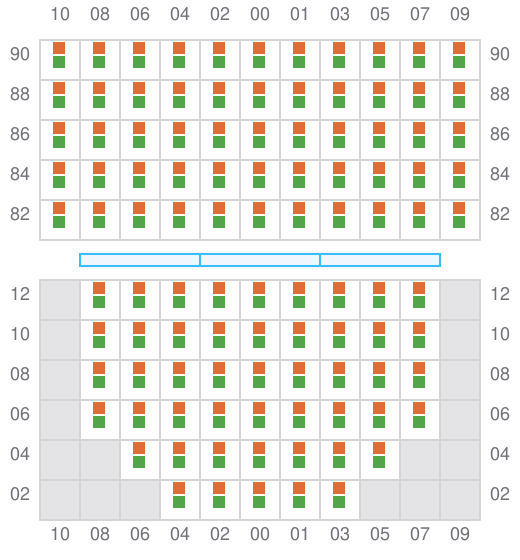

013 (014)
- →
015
017 (018)
- →

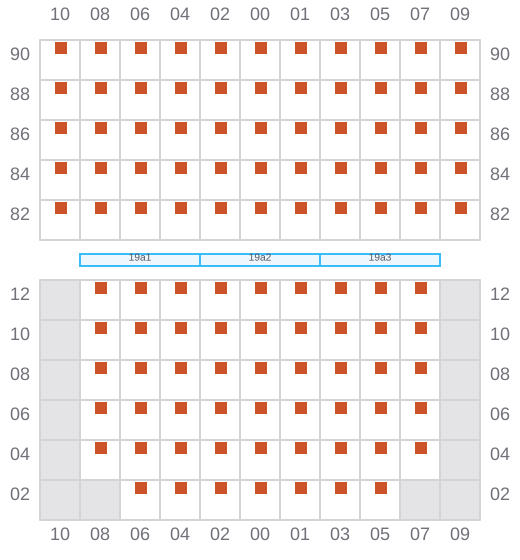

019

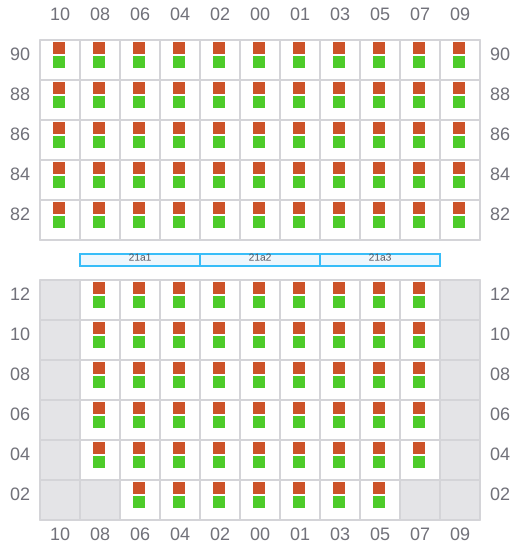

021 (022)
- →
023
025 (026)
- →
027
029 (030)
- →

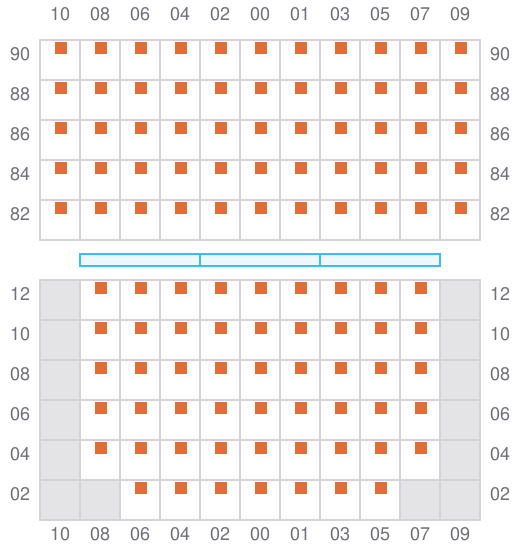

031

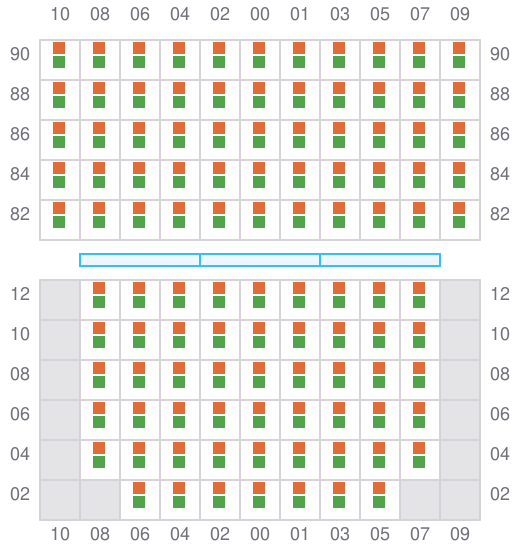

033 (034)
- →
035
037 (038)
- →

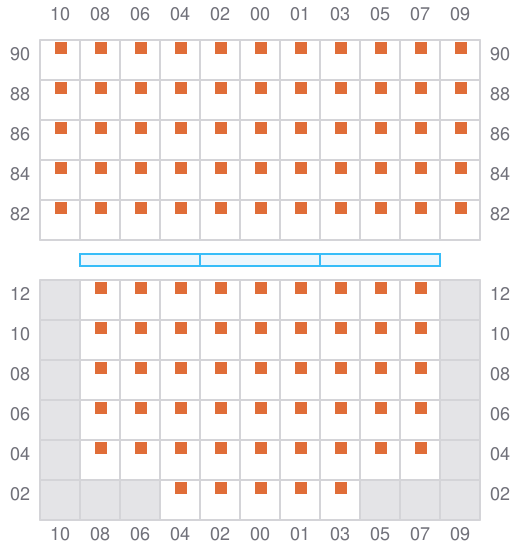

039
041

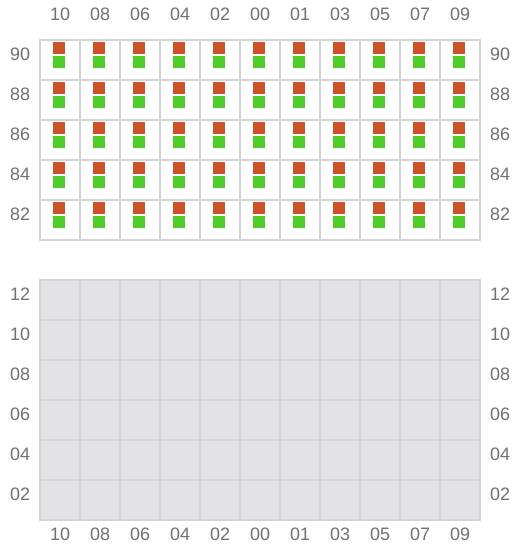

043 (044)
- → / ?
045
