MANIS 7
9165449 | D6A3282 | 9165449 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:MANIS 7
IMO Code:9165449
Call Sign:D6A3282
Line Operator:9165449
Class Name for Sister Ships:72B
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,116
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-sideView.png?v=1709937274856)

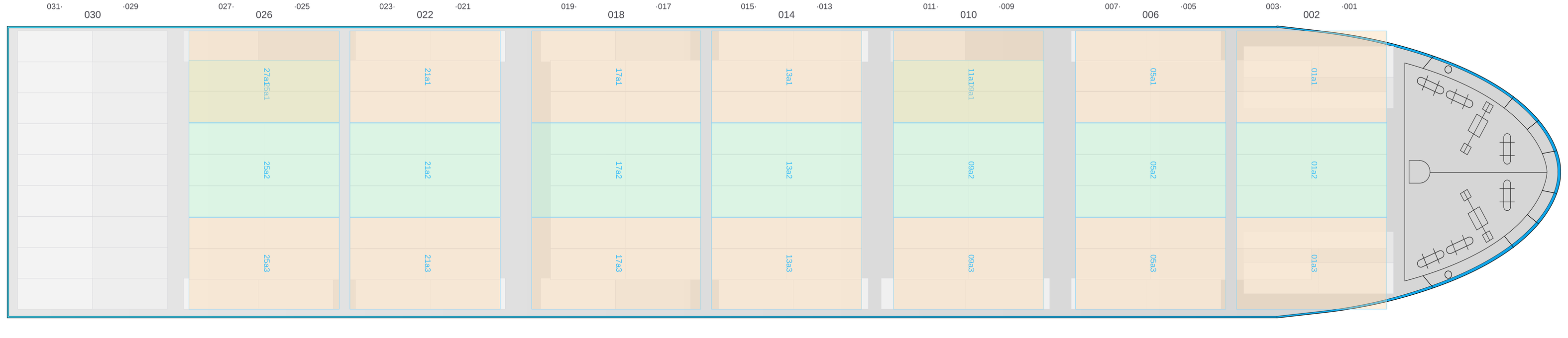

Hatch-Covers View
![Deck view of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-deckView.png?v=1709937274856)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

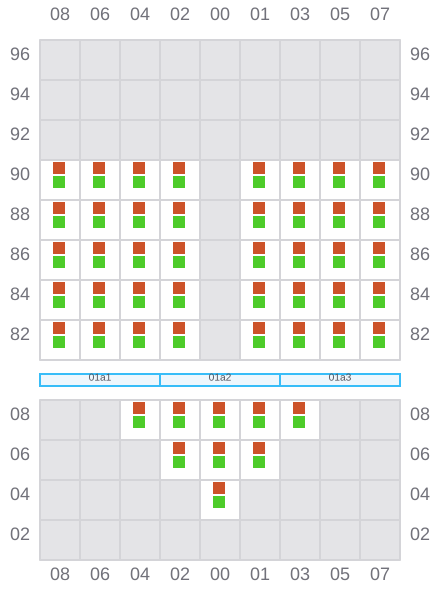

001 (002)
- →
![Bay 001 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b001.png?v=1709937274856)

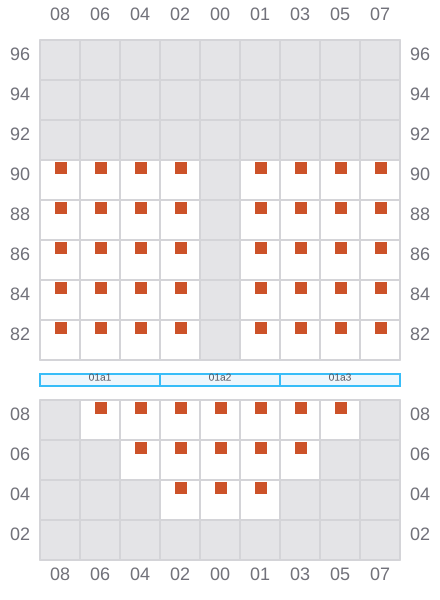

003
- ←
- → / ?
![Bay 003 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b003.png?v=1709937274856)

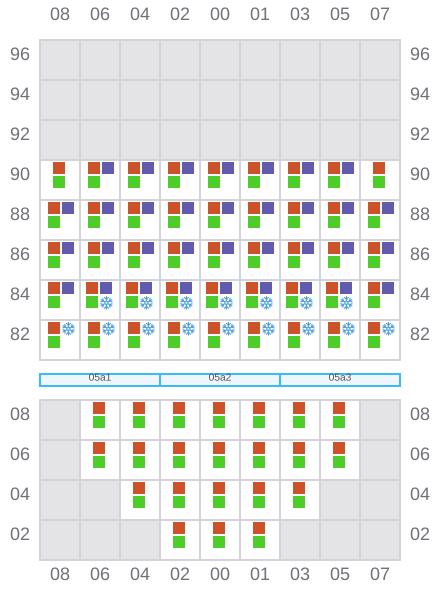

005 (006)
- →
- ← / ?
![Bay 005 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b005.png?v=1709937274856)

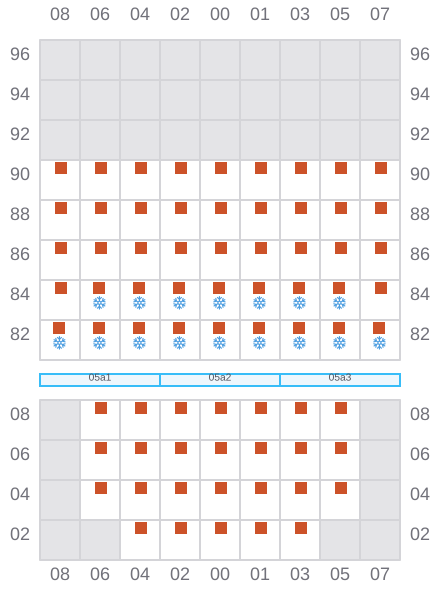

007
- ←
- → / ?
![Bay 007 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b007.png?v=1709937274856)

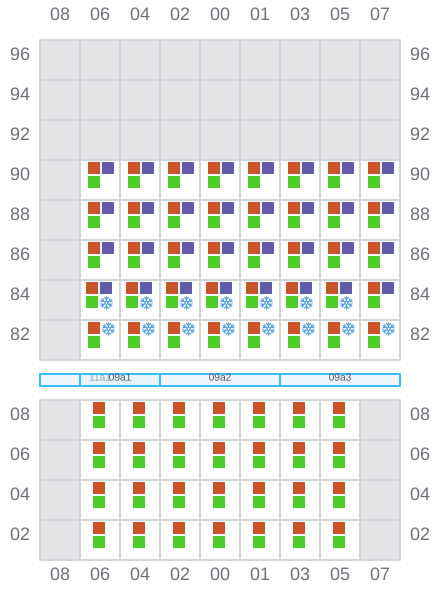

009 (010)
- →
- ← / ?
![Bay 009 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b009.png?v=1709937274856)

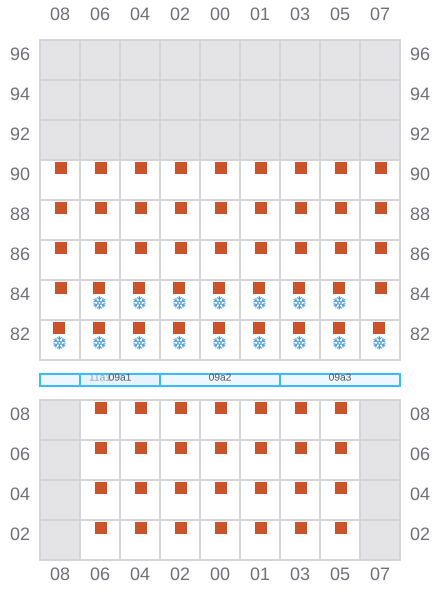

011
- ←
- → / ?
![Bay 011 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b011.png?v=1709937274856)

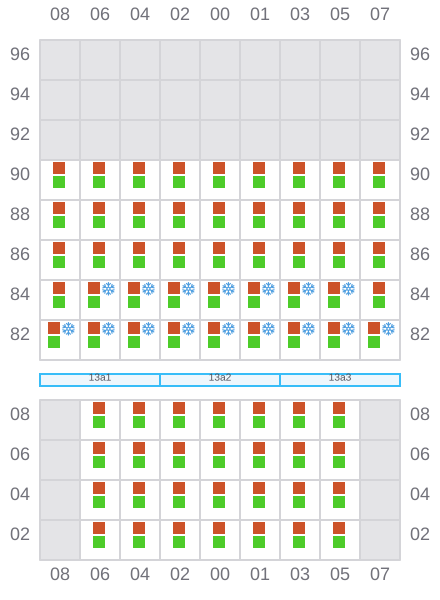

013 (014)
- →
- ← / ?
![Bay 013 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b013.png?v=1709937274856)

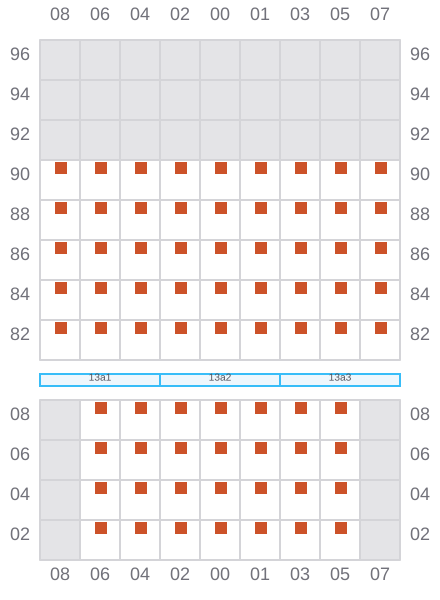

015
- ←
![Bay 015 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b015.png?v=1709937274856)

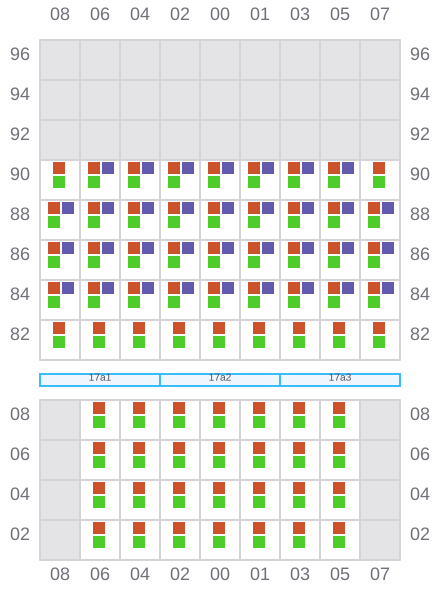

017 (018)
- →
![Bay 017 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b017.png?v=1709937274856)

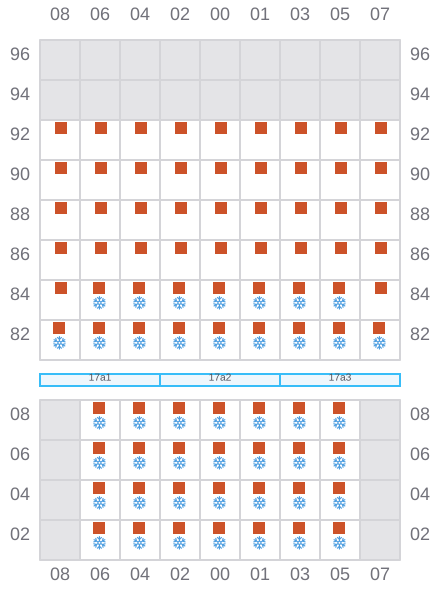

019
- ←
- →
![Bay 019 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b019.png?v=1709937274856)

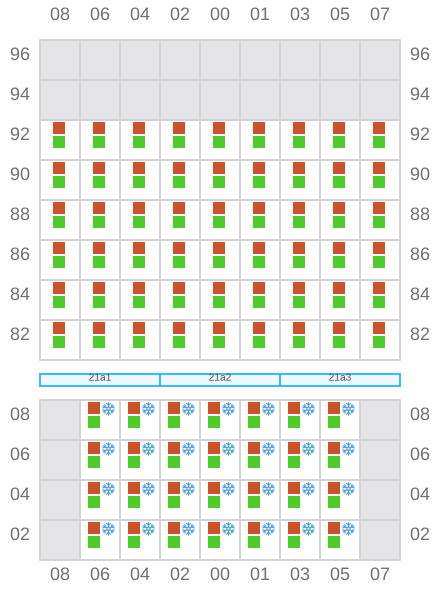

021 (022)
- →
- ? / ←
![Bay 021 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b021.png?v=1709937274856)

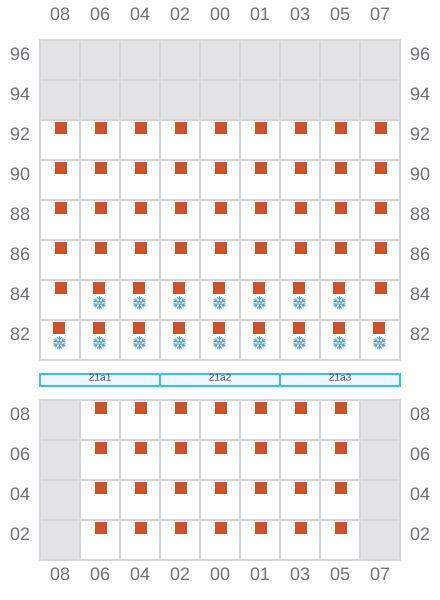

023
- ←
- → / ?
![Bay 023 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b023.png?v=1709937274856)

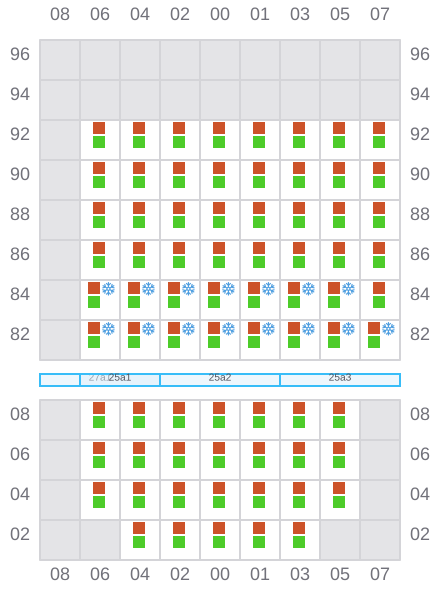

025 (026)
- →
- ← / ?
![Bay 025 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b025.png?v=1709937274856)

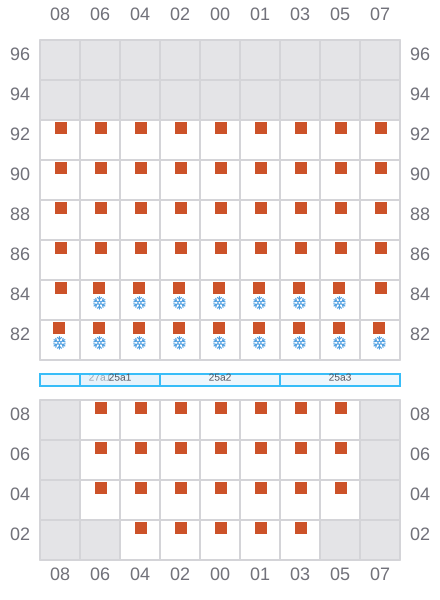

027
- ←
- → / ?
![Bay 027 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b027.png?v=1709937274856)

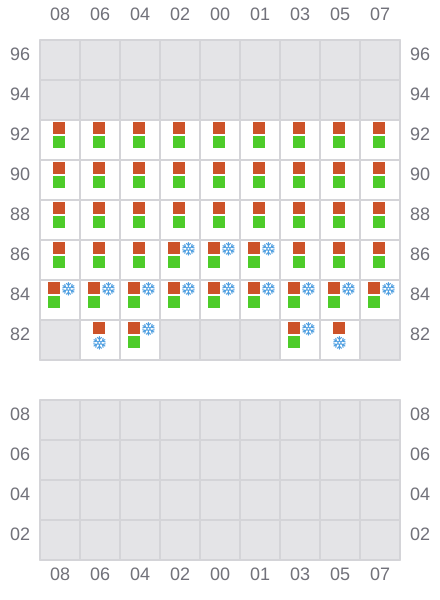

029 (030)
- → / ?
- ← / ?
![Bay 029 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b029.png?v=1709937274856)

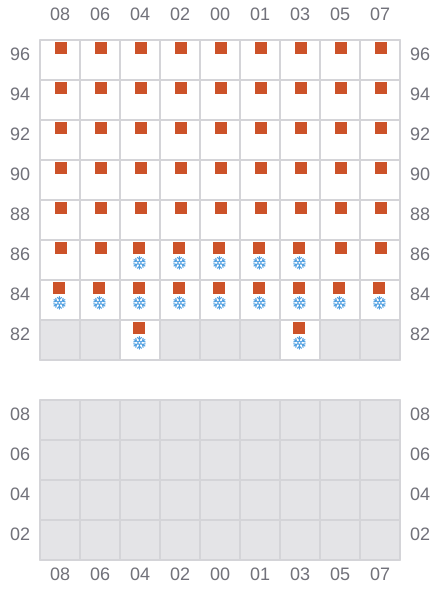

031
- ← / ?
![Bay 031 view and slots of MANIS 7](/vessel-images/96b3aad7-f720-4f64-aae4-739cb7613179-b031.png?v=1709937274856)
