MARCOS V
9307059 | 3ECH9 | 9307059 by ********* Last update: Mon May 20 2024

General Info

Ship Name:MARCOS V
IMO Code:9307059
Call Sign:3ECH9
Line Operator:9307059
Class Name for Sister Ships:MOL PARAMOUNT
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,456

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

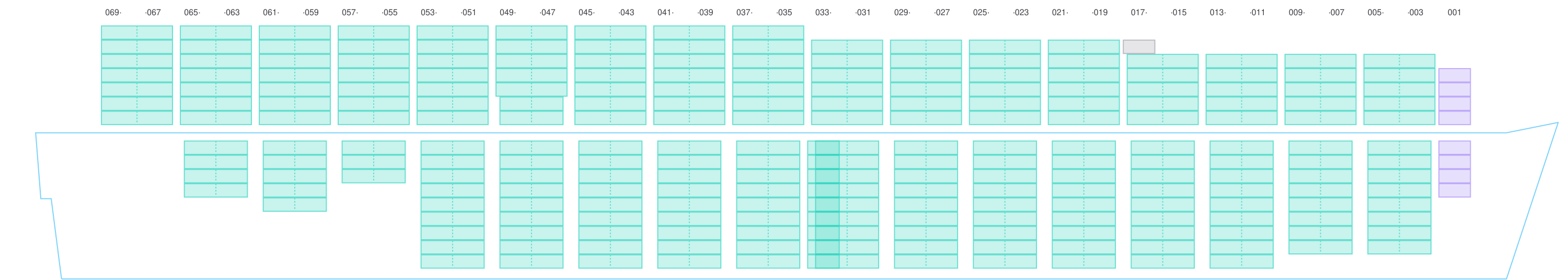

Side view of MARCOS V

Hatch-Covers View

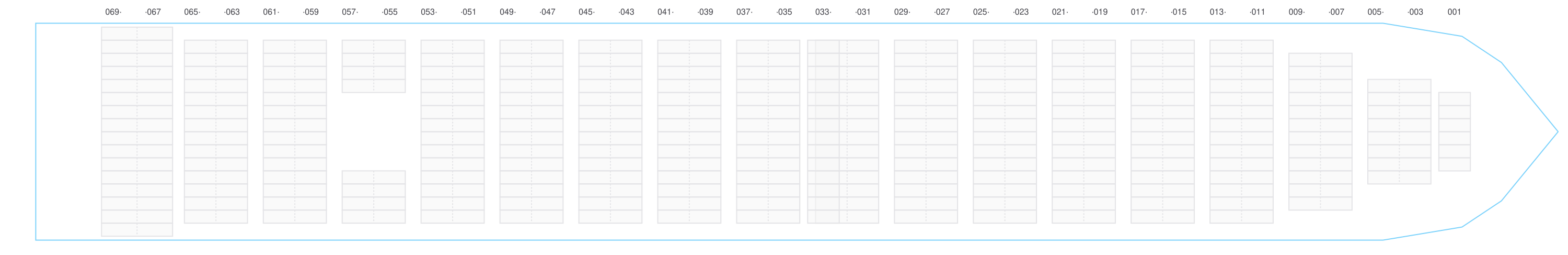

Deck view of MARCOS V

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

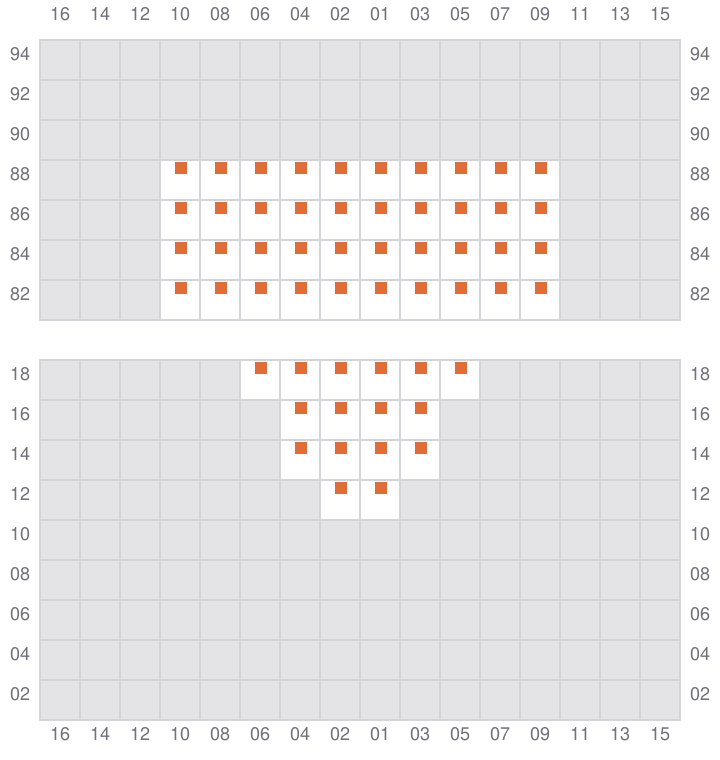

001

Bay 001 view and slots of MARCOS V

003 (004)

  • →

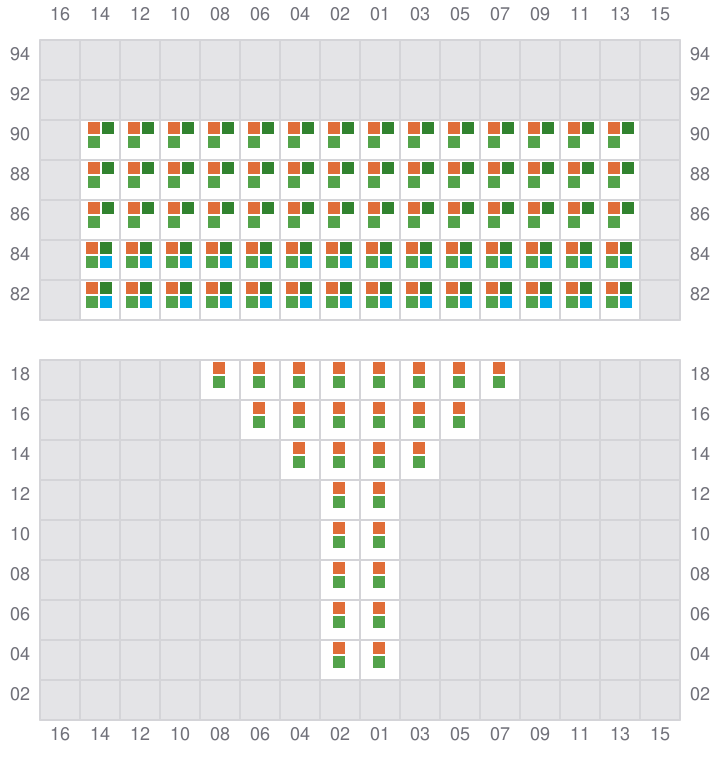

Bay 003 view and slots of MARCOS V

005

  • ←

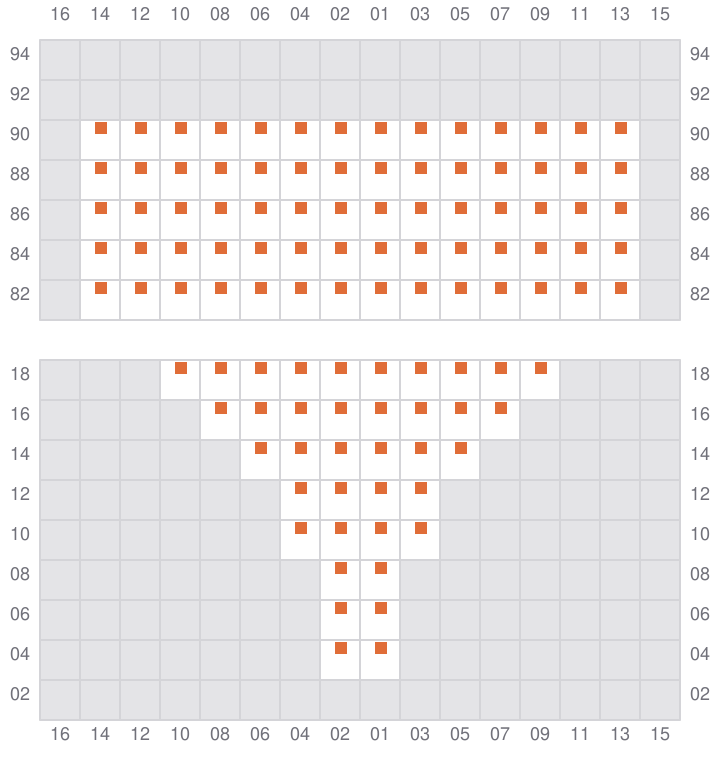

Bay 005 view and slots of MARCOS V

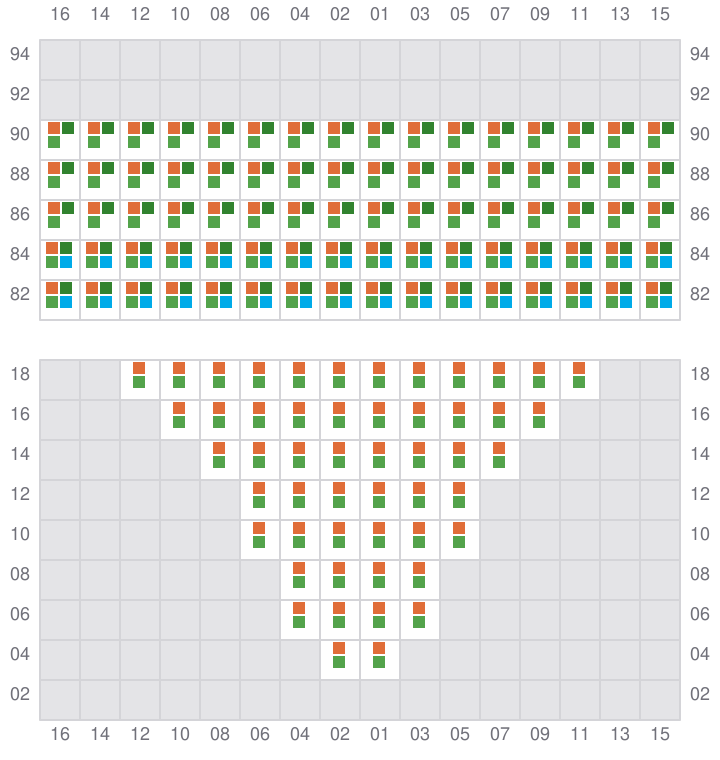

007 (008)

  • →
Bay 007 view and slots of MARCOS V

009

  • ←

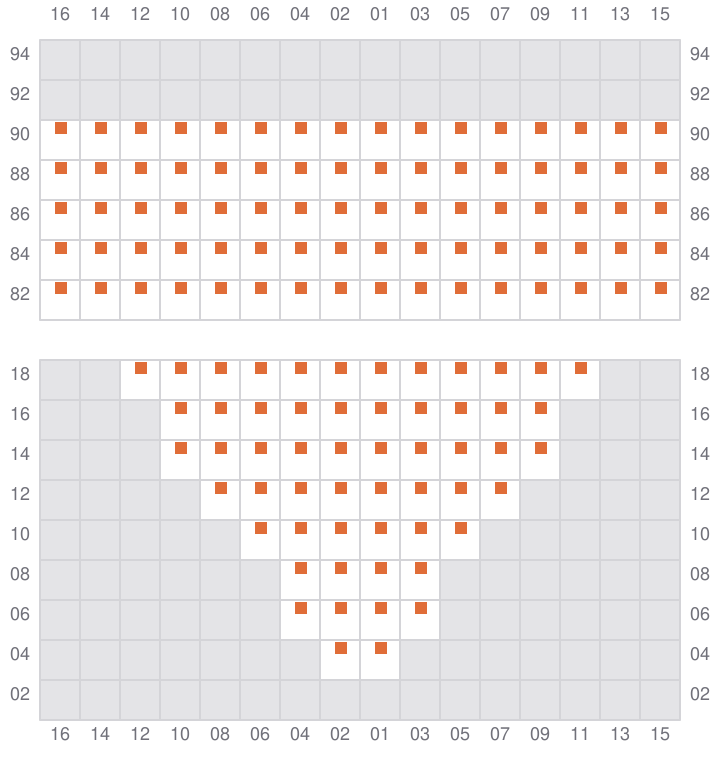

Bay 009 view and slots of MARCOS V

011 (012)

  • →

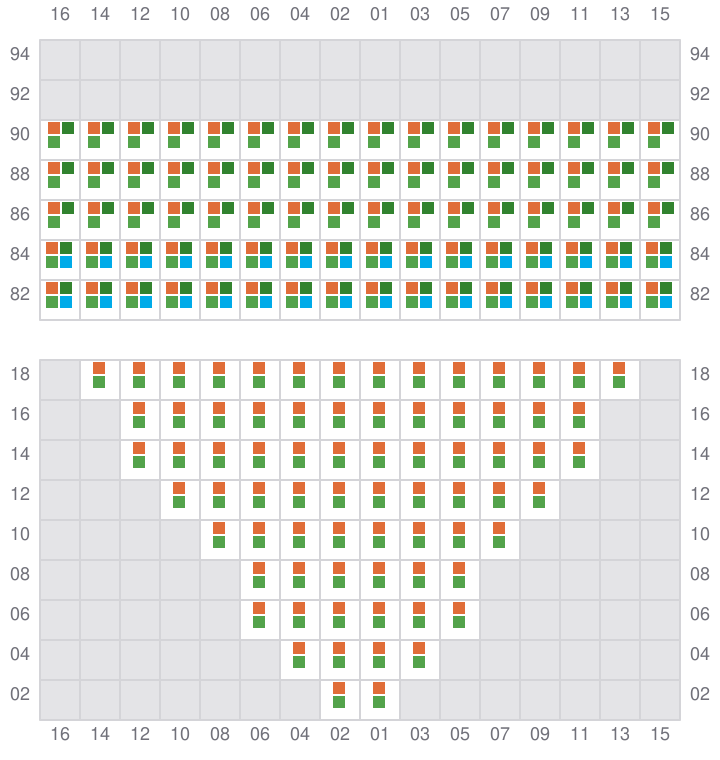

Bay 011 view and slots of MARCOS V

013

  • ←

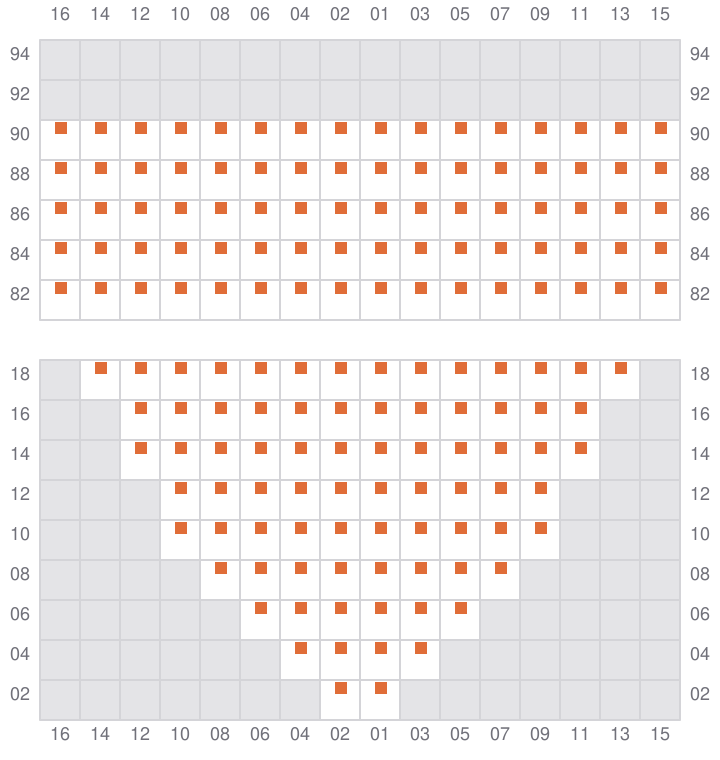

Bay 013 view and slots of MARCOS V

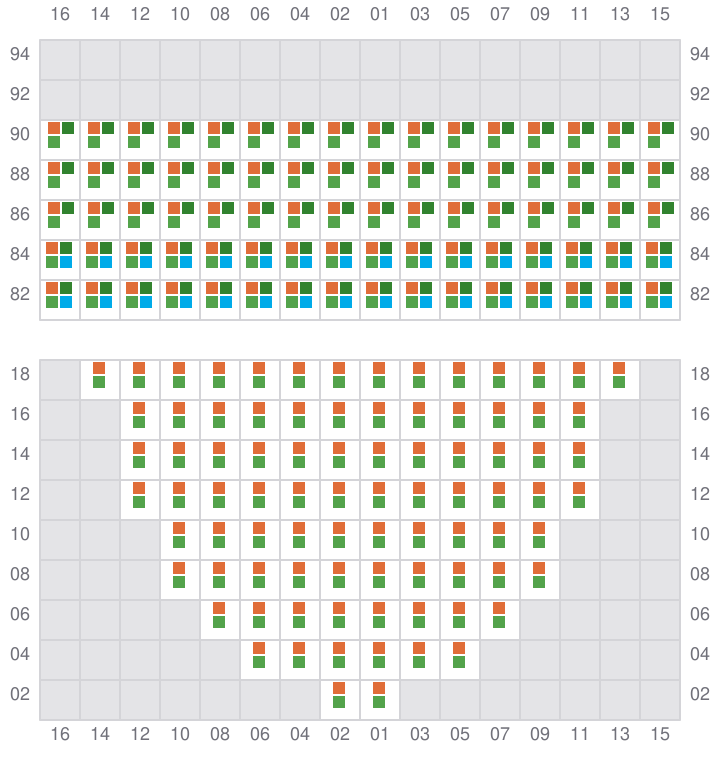

015 (016)

  • →
Bay 015 view and slots of MARCOS V

017

  • ←

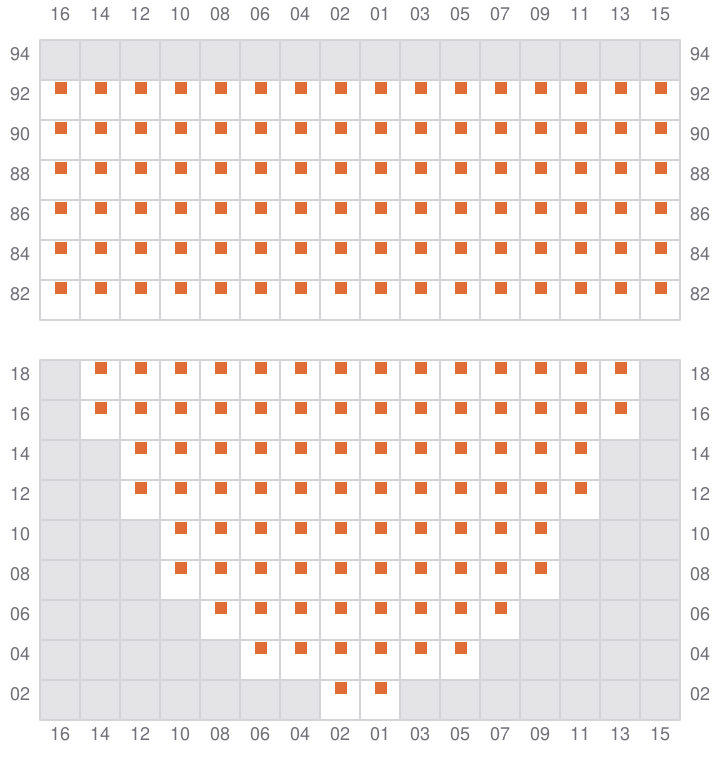

Bay 017 view and slots of MARCOS V

019 (020)

  • →

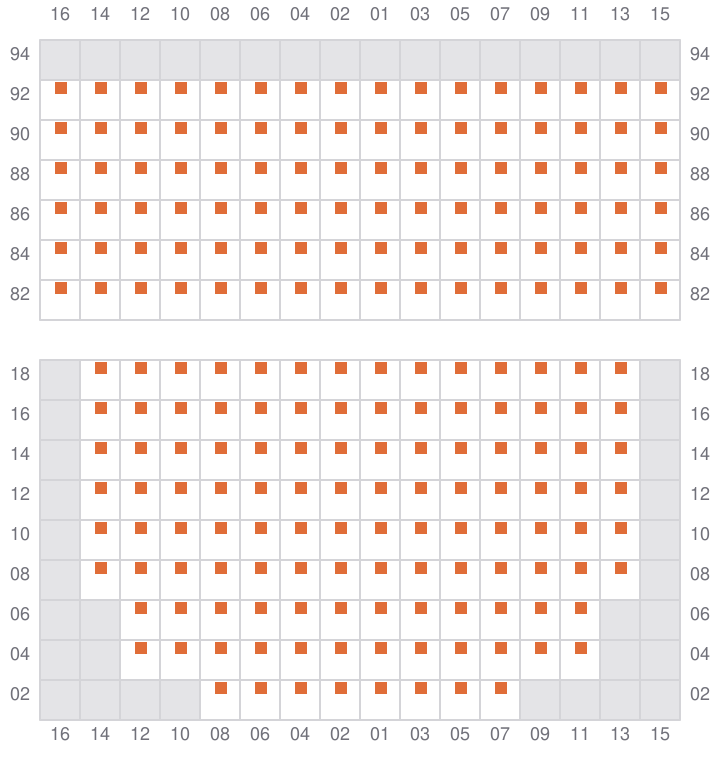

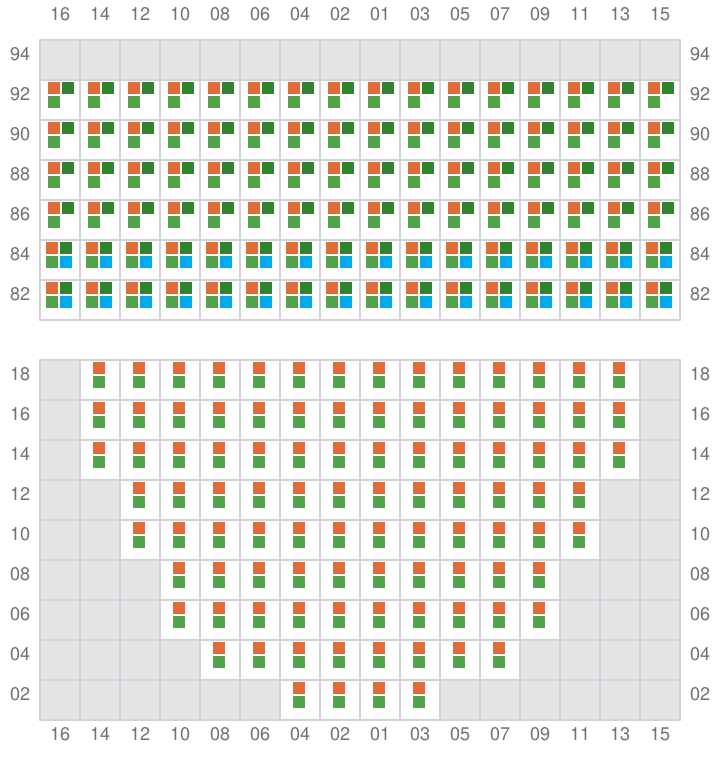

Bay 019 view and slots of MARCOS V

021

  • ←

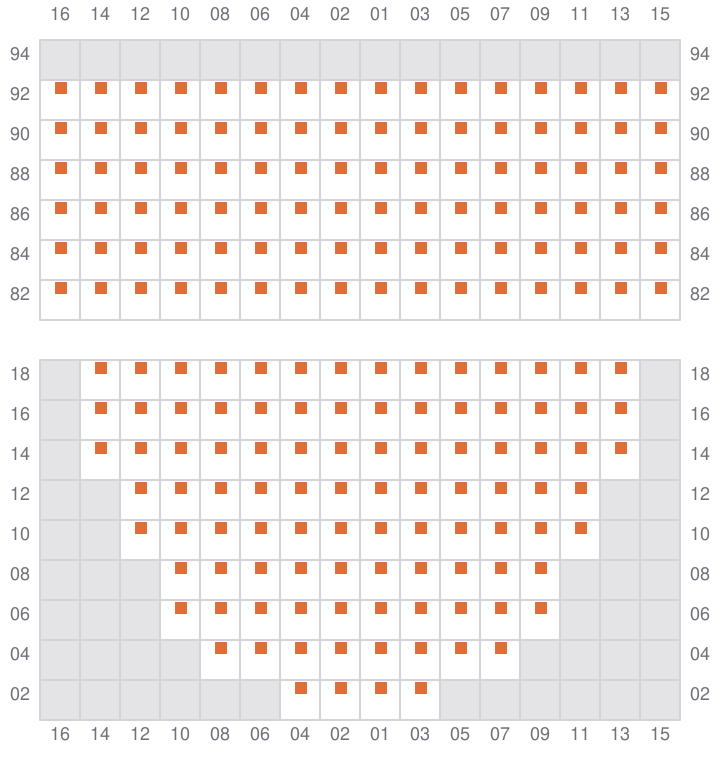

Bay 021 view and slots of MARCOS V

023 (024)

  • →

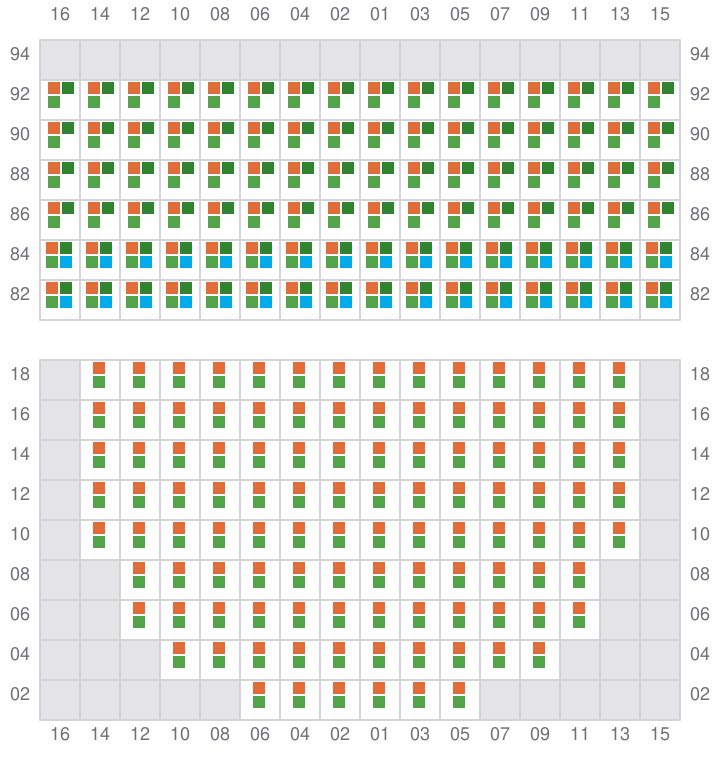

Bay 023 view and slots of MARCOS V

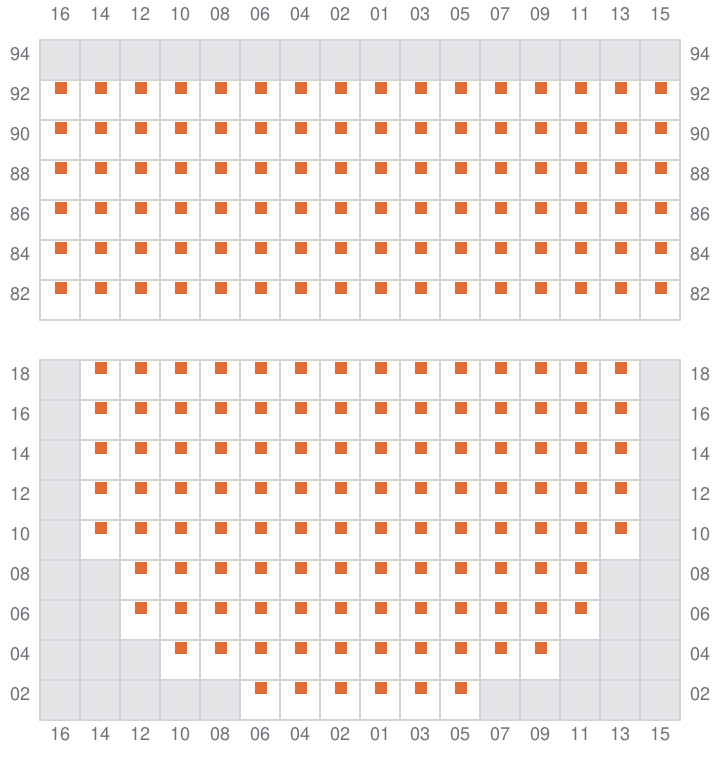

025

  • ←
Bay 025 view and slots of MARCOS V

027 (028)

  • →

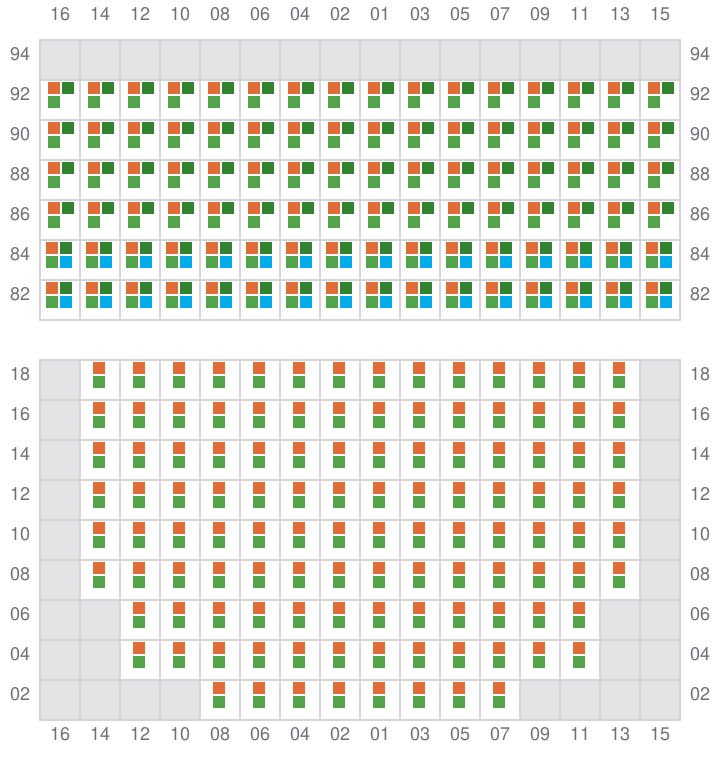

Bay 027 view and slots of MARCOS V

029

  • ←
Bay 029 view and slots of MARCOS V

031 (032)

  • →

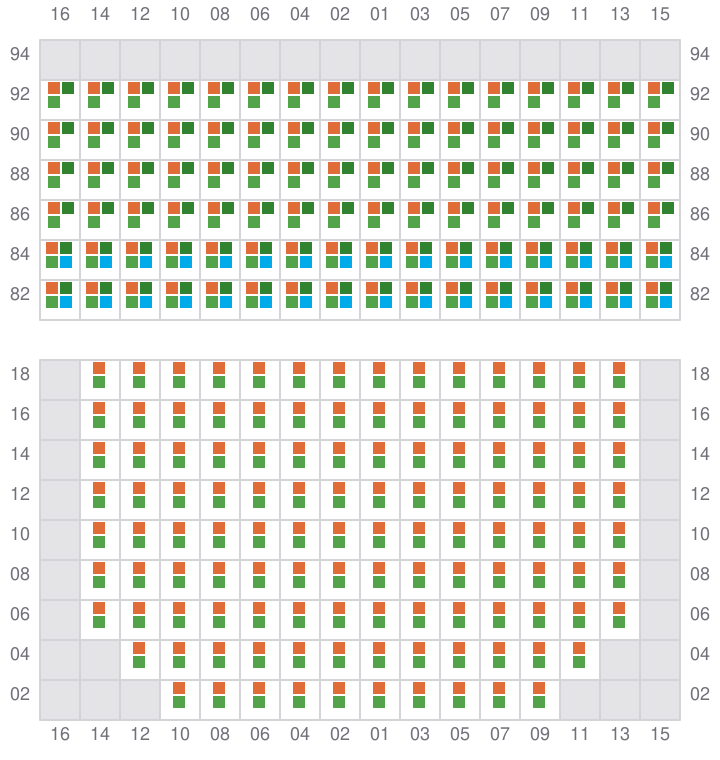

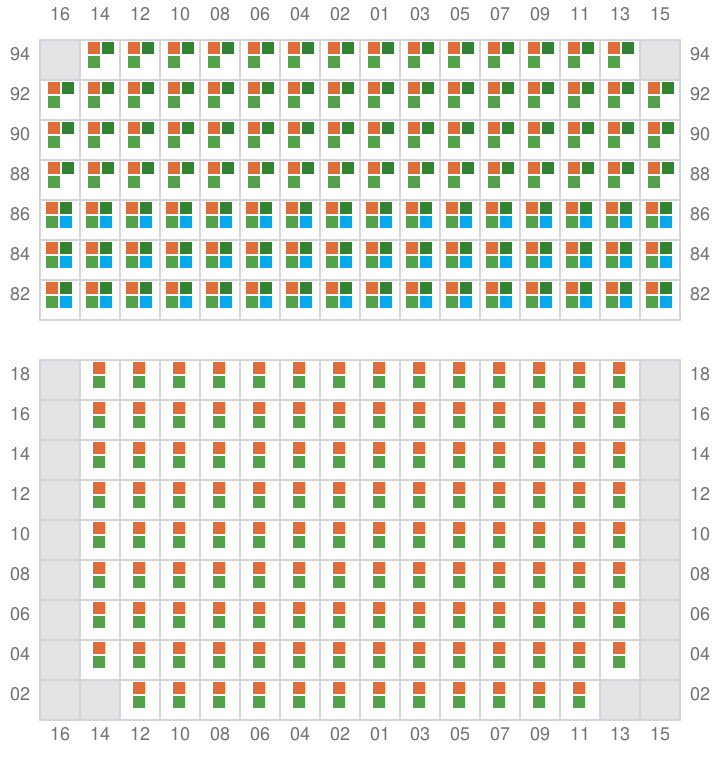

Bay 031 view and slots of MARCOS V

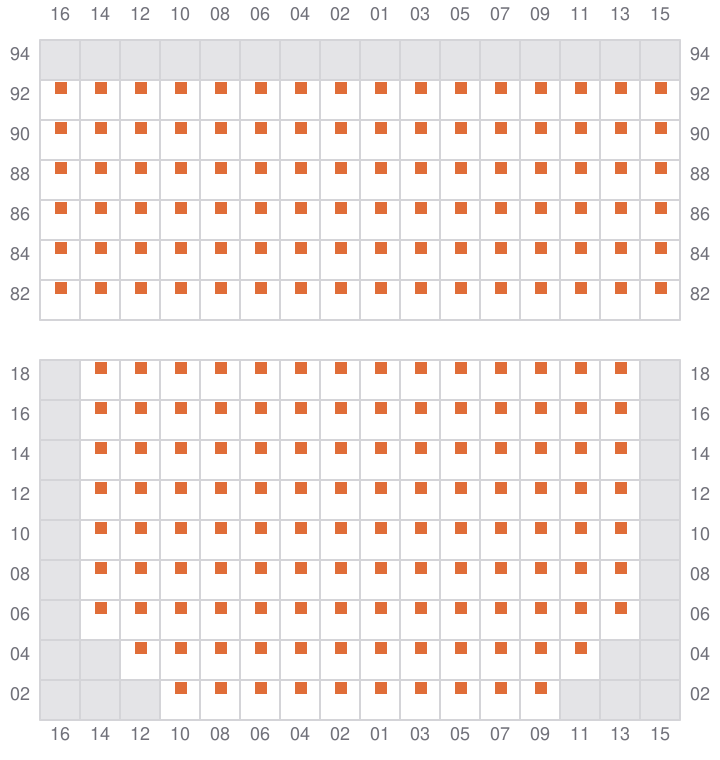

033

  • ← / →
Bay 033 view and slots of MARCOS V

035 (036)

  • →
Bay 035 view and slots of MARCOS V

037

  • ←
Bay 037 view and slots of MARCOS V

039 (040)

  • →
Bay 039 view and slots of MARCOS V

041

  • ←

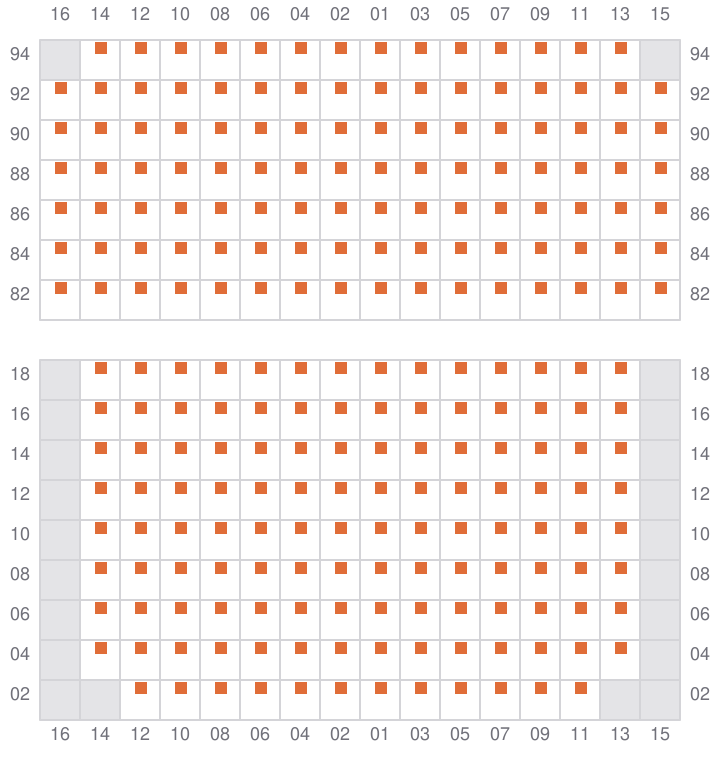

Bay 041 view and slots of MARCOS V

043 (044)

  • →
Bay 043 view and slots of MARCOS V

045

  • ←
Bay 045 view and slots of MARCOS V

047 (048)

  • →

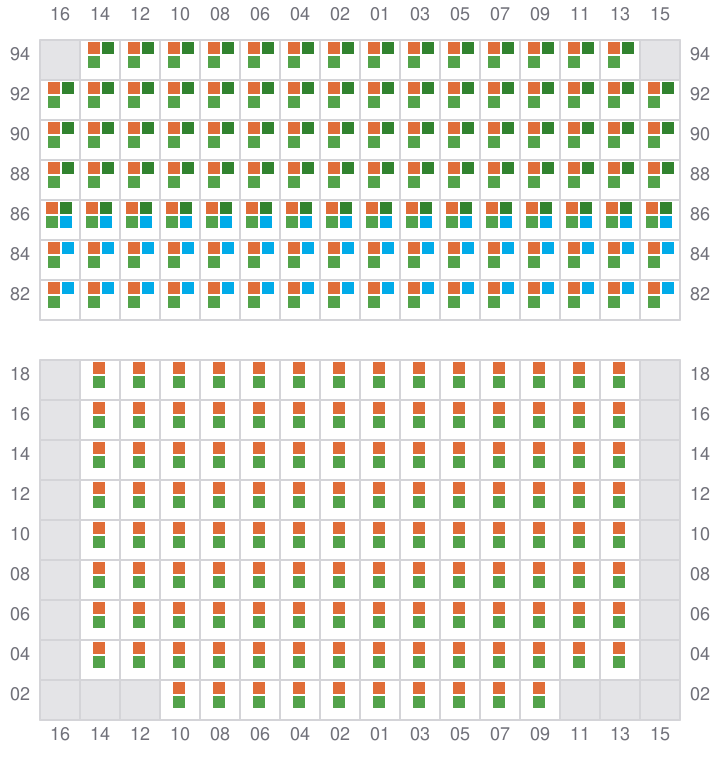

Bay 047 view and slots of MARCOS V

049

  • ←

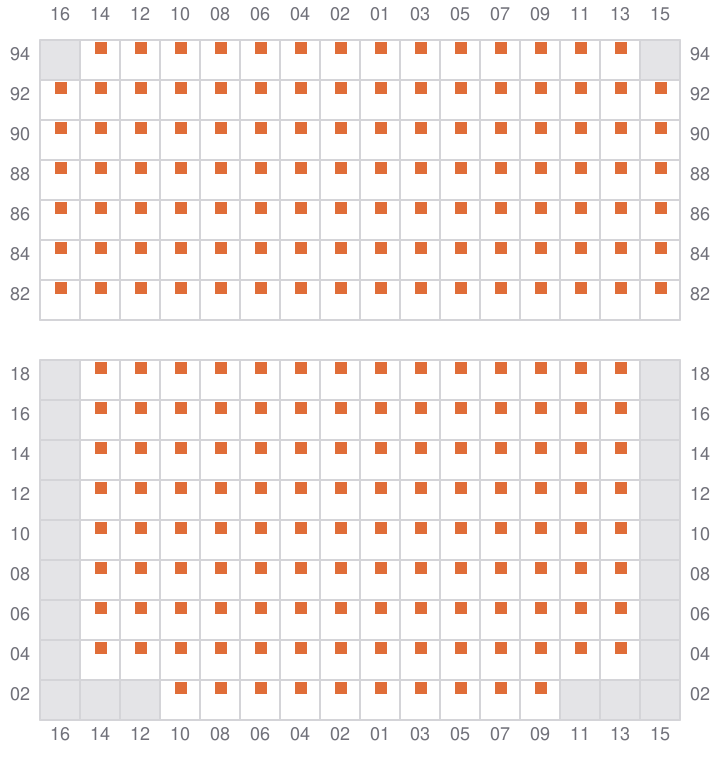

Bay 049 view and slots of MARCOS V

051 (052)

  • →

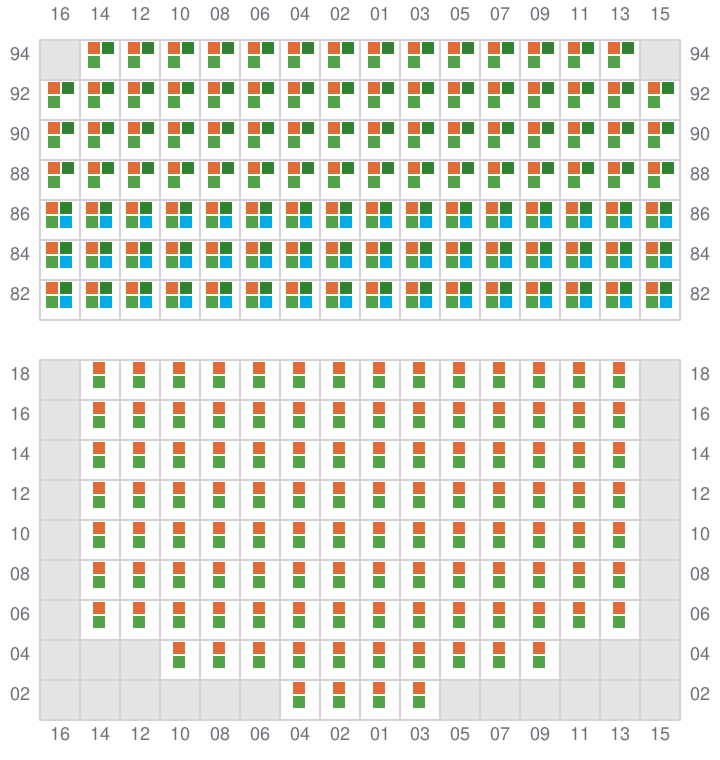

Bay 051 view and slots of MARCOS V

053

  • ←
Bay 053 view and slots of MARCOS V

055 (056)

  • →

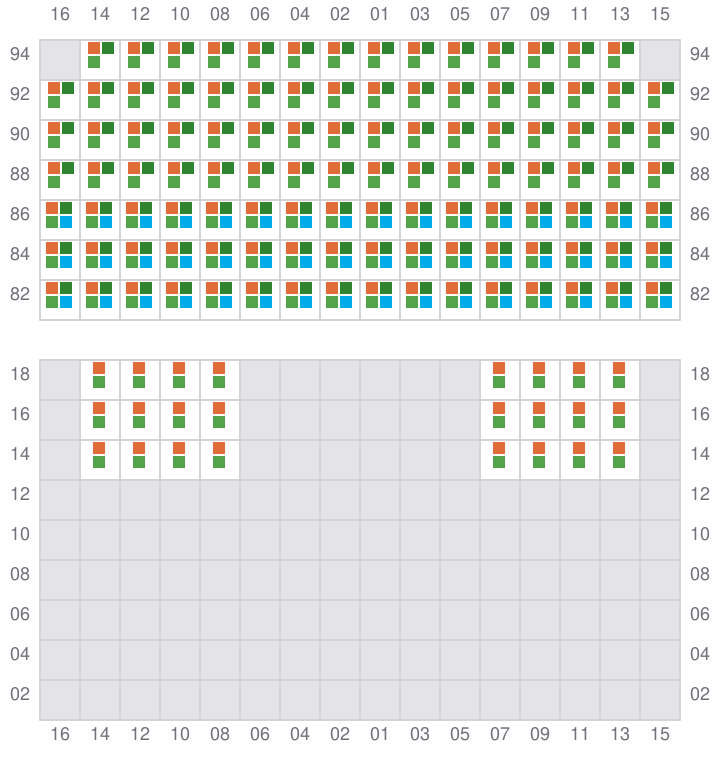

Bay 055 view and slots of MARCOS V

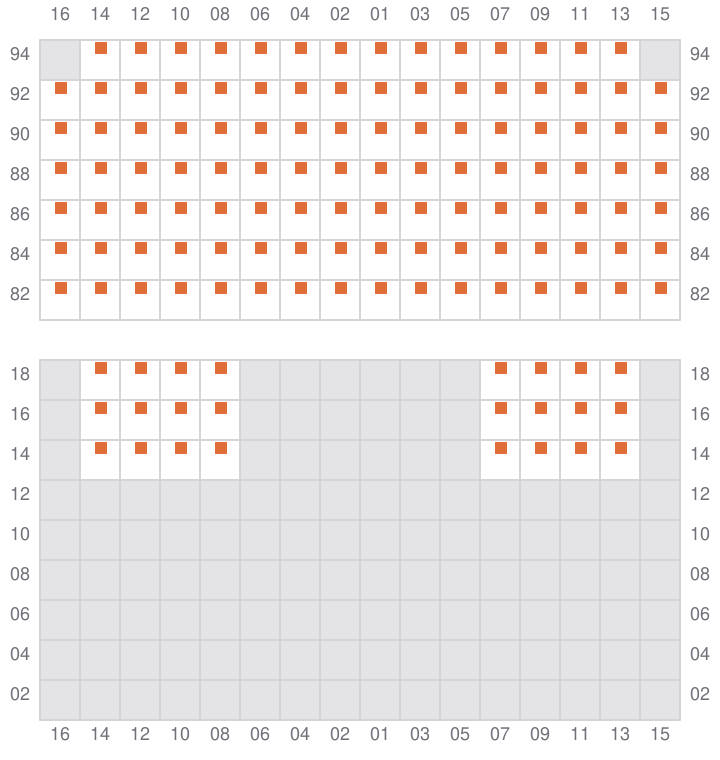

057

  • ←
Bay 057 view and slots of MARCOS V

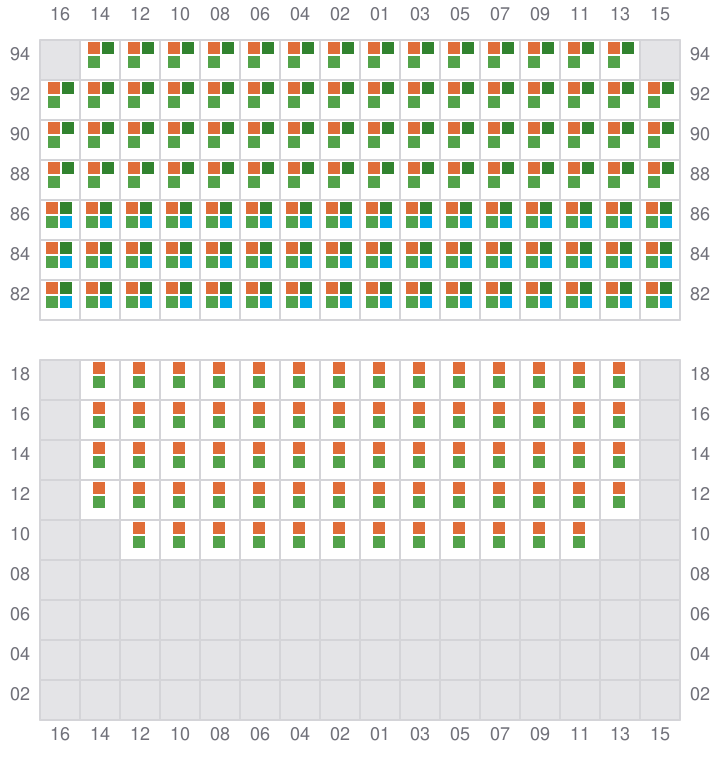

059 (060)

  • →
Bay 059 view and slots of MARCOS V

061

  • ←

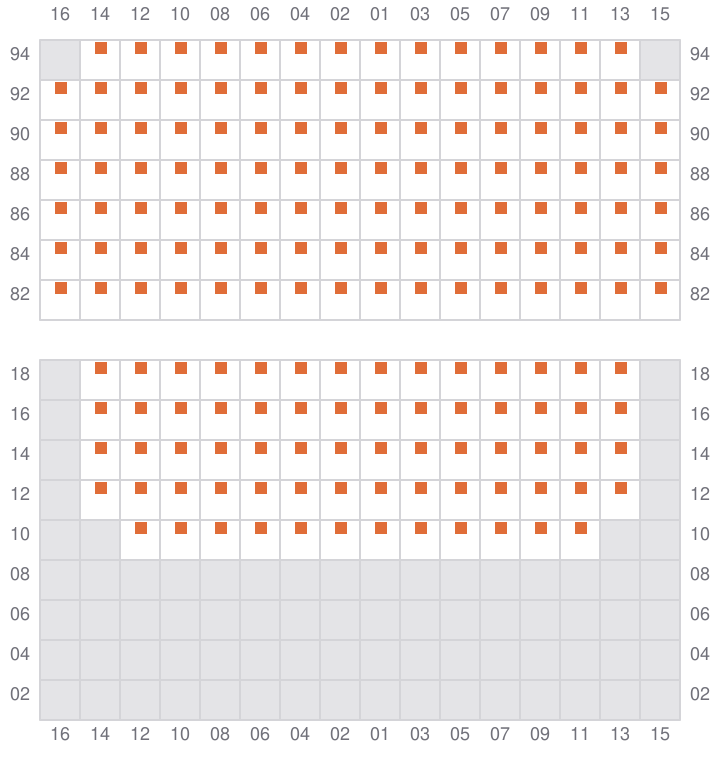

Bay 061 view and slots of MARCOS V

063 (064)

  • →

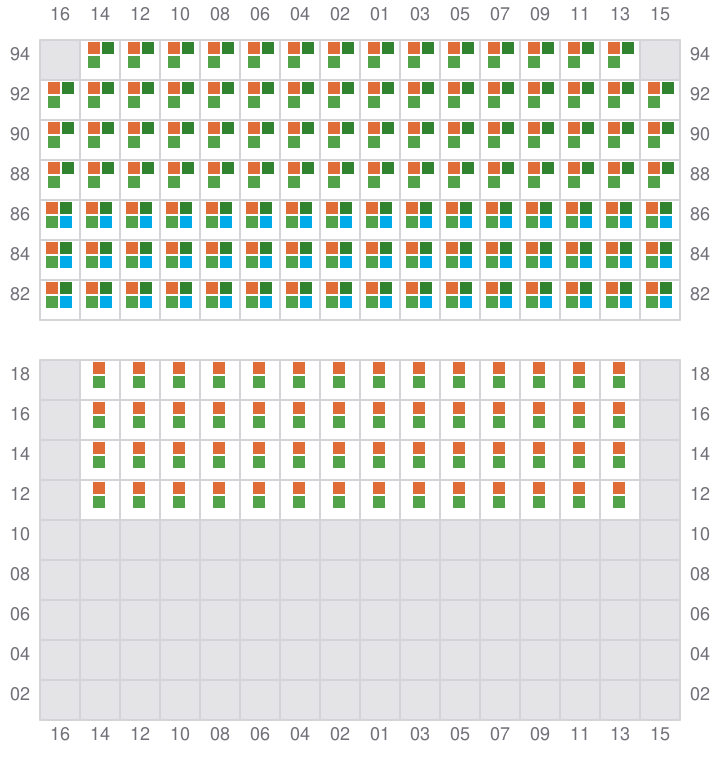

Bay 063 view and slots of MARCOS V

065

  • ←

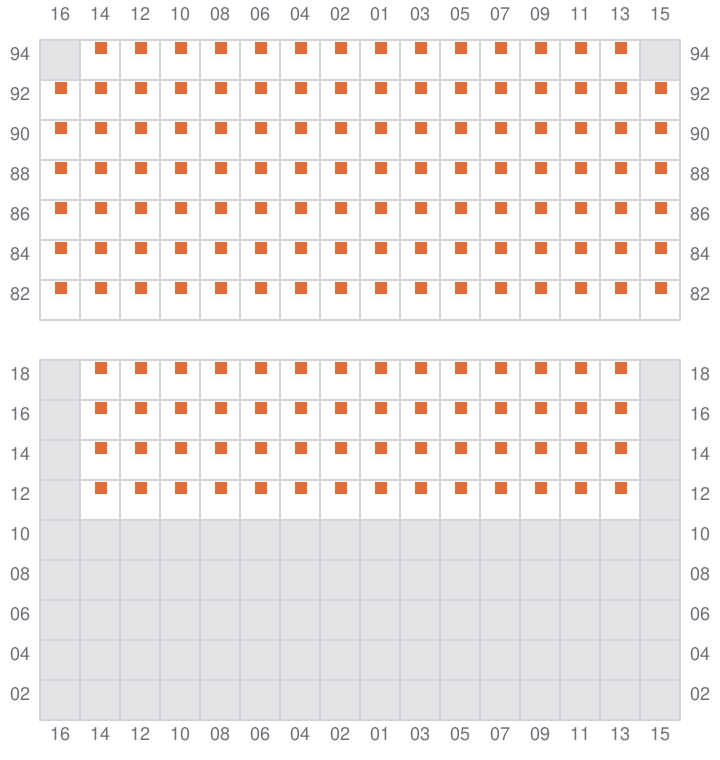

Bay 065 view and slots of MARCOS V

067 (068)

  • → / ?

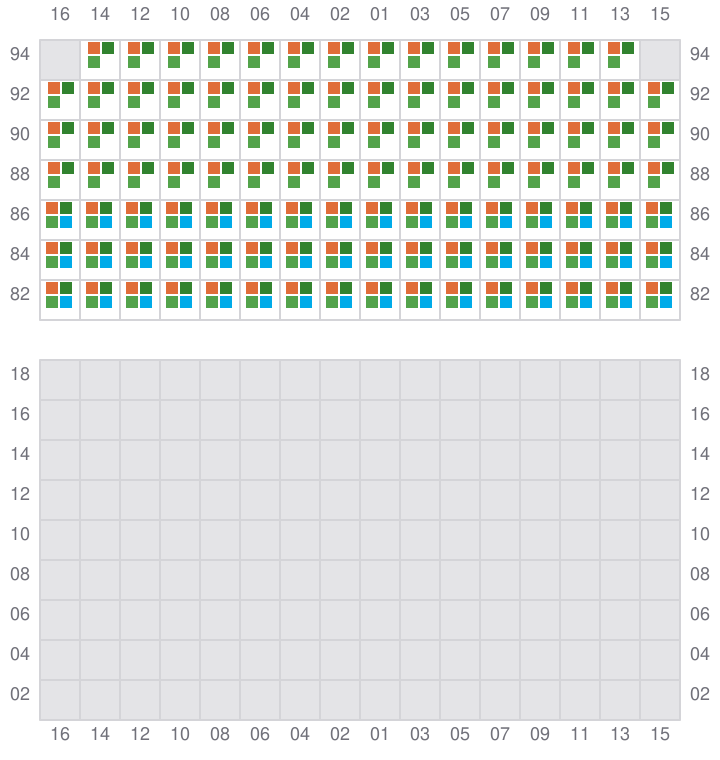

Bay 067 view and slots of MARCOS V

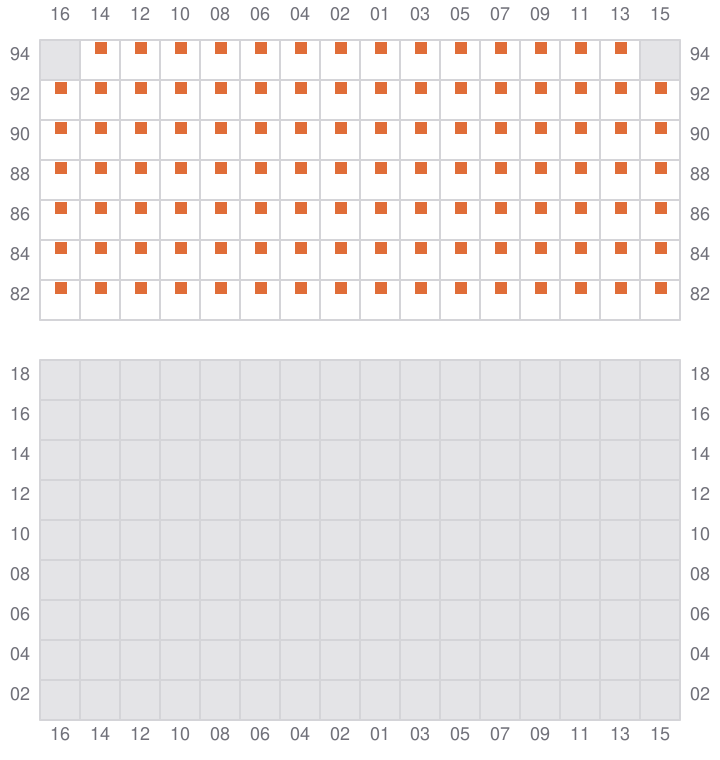

069

  • ← / ?
Bay 069 view and slots of MARCOS V
