MARFRET GUYANE
9362334 | FNMV | CMA by *********************** Last update: Mon Jan 27 2025

General Info

Ship Name:MARFRET GUYANE

IMO Code:9362334

Call Sign:FNMV

Line Operator:CMA

Class Name for Sister Ships:MFGY

Year Built:2007

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:037

Max ISO Row:10

Center Line Row:Yes

Max Above ISO Tier:92

Min Above ISO Tier:80

Max Below ISO Tier:12

Min Below ISO Tier:02

Total TEU:1,737

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Known

TCG Data:100%

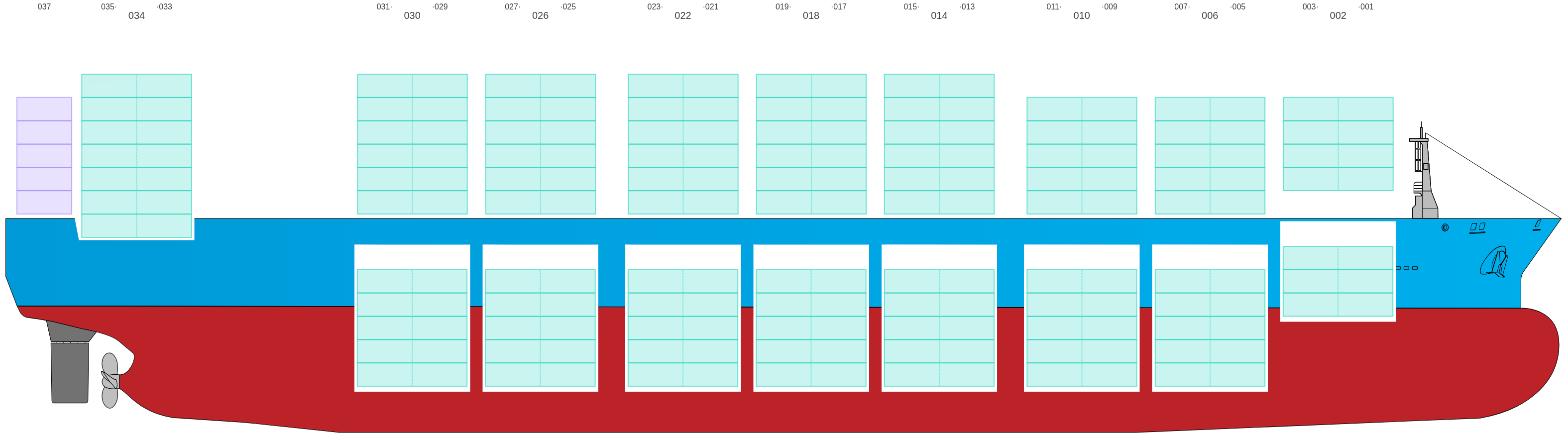

Side View

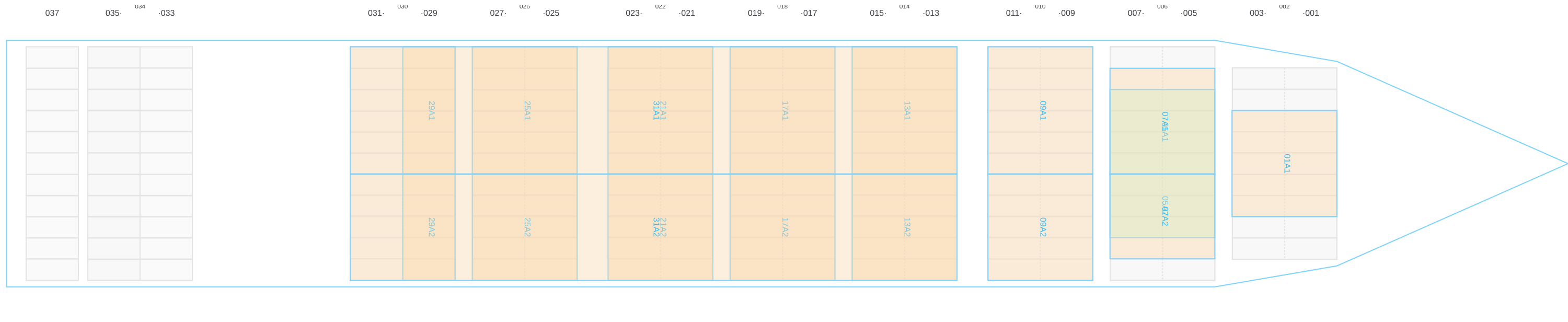

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

→
^→ / _?
→

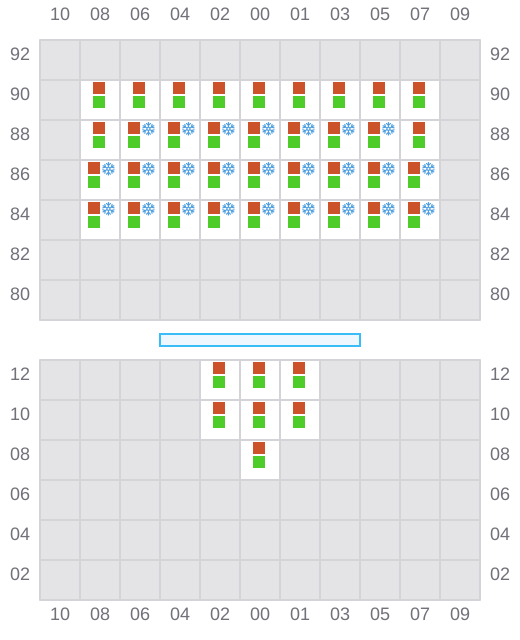

Bay 001 view and slots of MARFRET GUYANE

003

←
^→ / _?
→

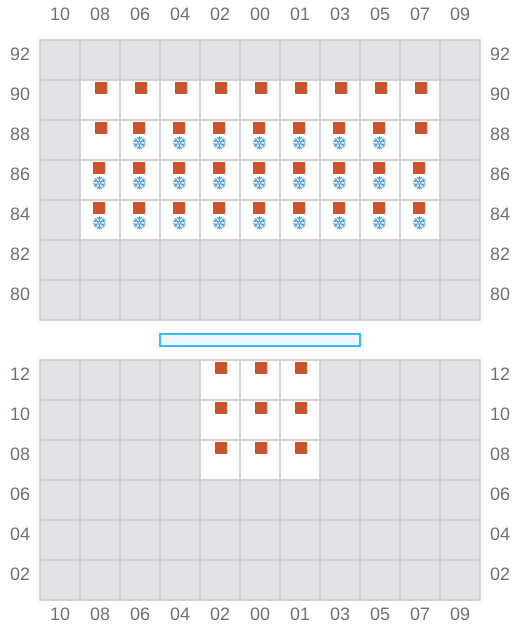

Bay 003 view and slots of MARFRET GUYANE

005 (006)

→
^→ / _?
→

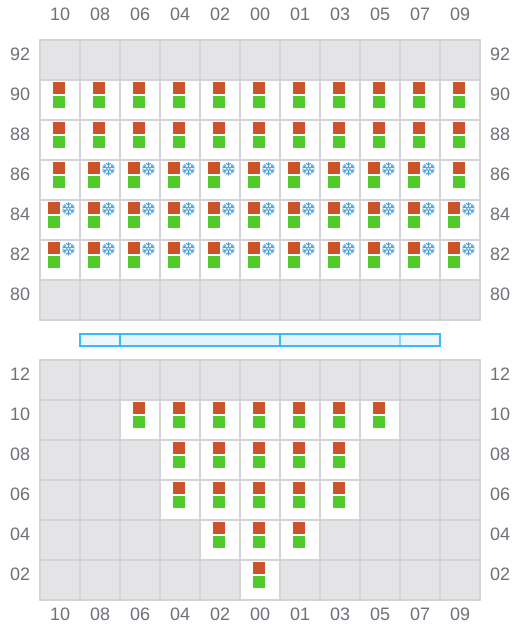

Bay 005 view and slots of MARFRET GUYANE

007

←
^→ / _?
→

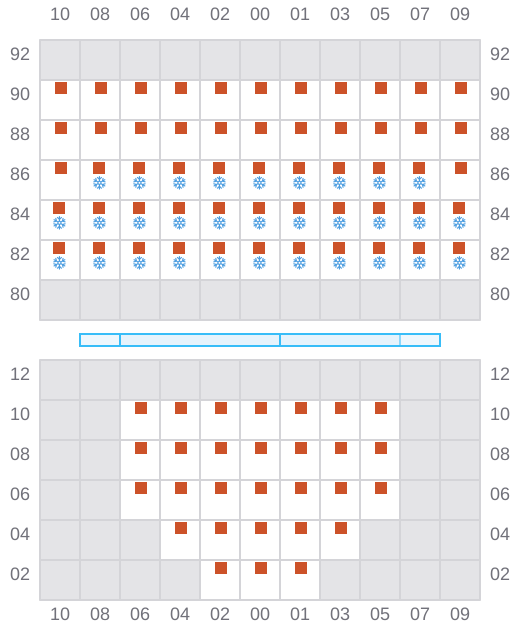

Bay 007 view and slots of MARFRET GUYANE

009 (010)

→
^→ / _?
→

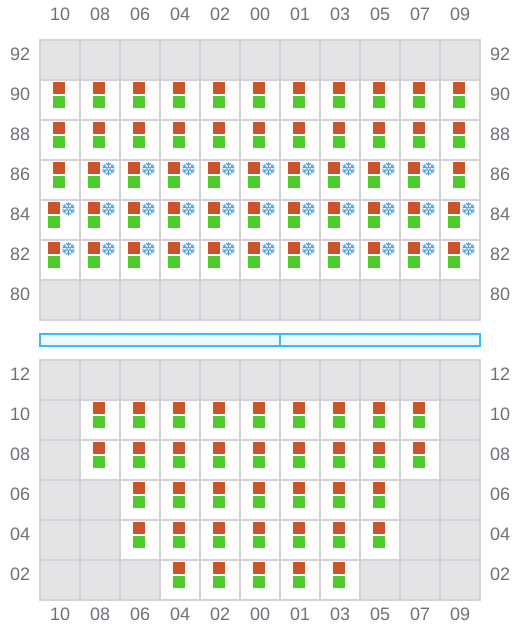

Bay 009 view and slots of MARFRET GUYANE

011

←
^→ / _?
→

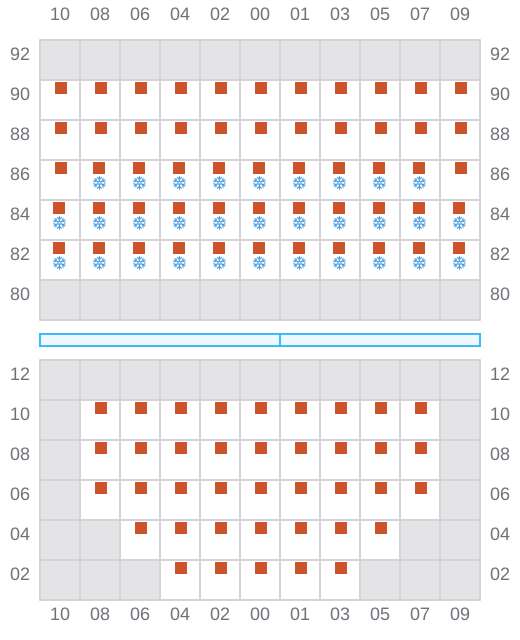

Bay 011 view and slots of MARFRET GUYANE

013 (014)

→
^→ / _?
→

Bay 013 view and slots of MARFRET GUYANE

015

←
^→ / _?
→

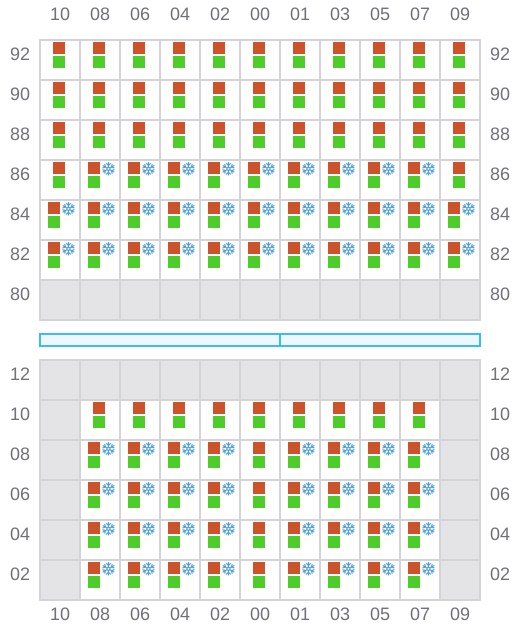

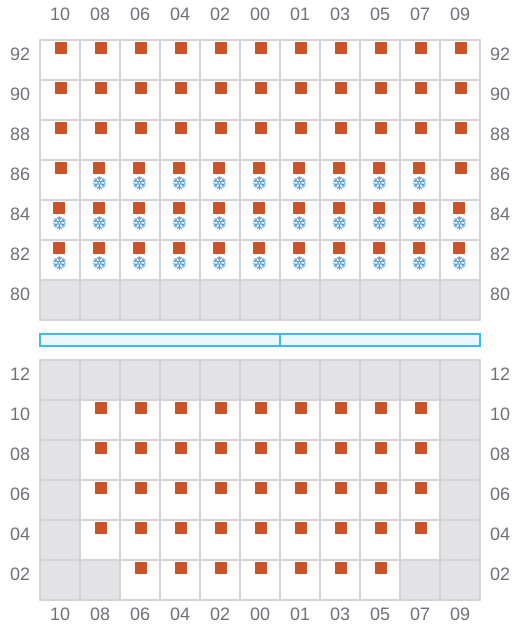

Bay 015 view and slots of MARFRET GUYANE

017 (018)

→
^→ / _?
→

Bay 017 view and slots of MARFRET GUYANE

019

←
^→ / _?
→

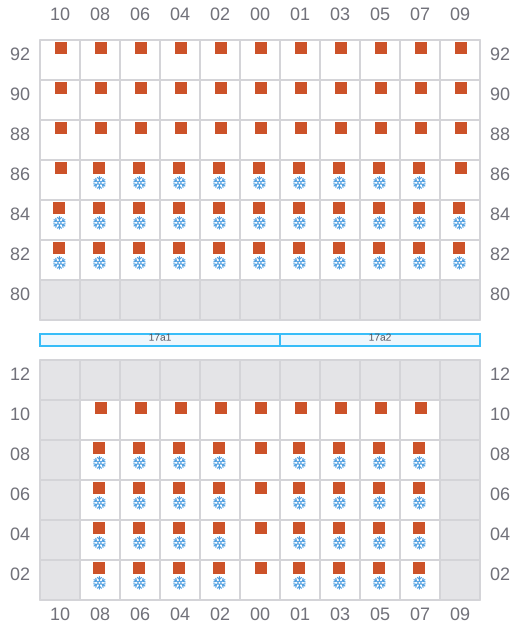

Bay 019 view and slots of MARFRET GUYANE

021 (022)

→
^→ / _←
→

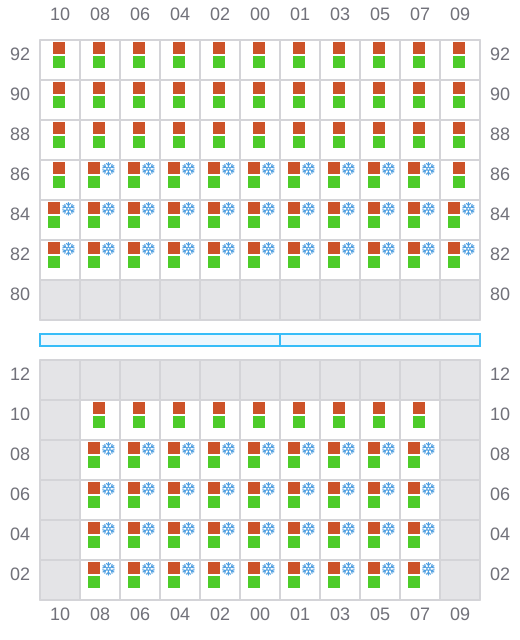

Bay 021 view and slots of MARFRET GUYANE

023

←
^→ / _←
→

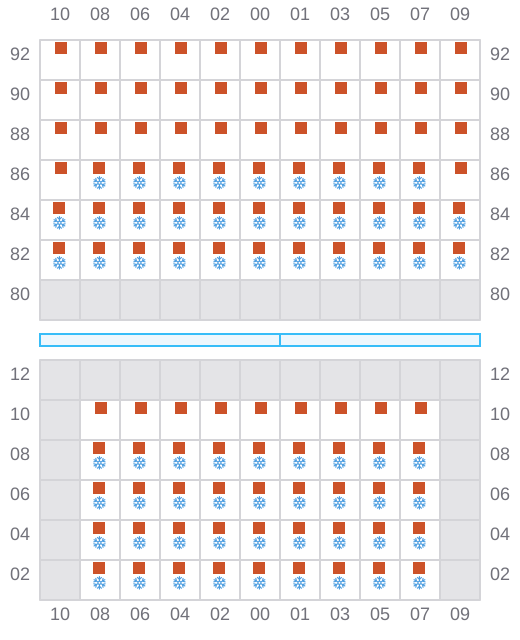

Bay 023 view and slots of MARFRET GUYANE

025 (026)

→
^→ / _?
→

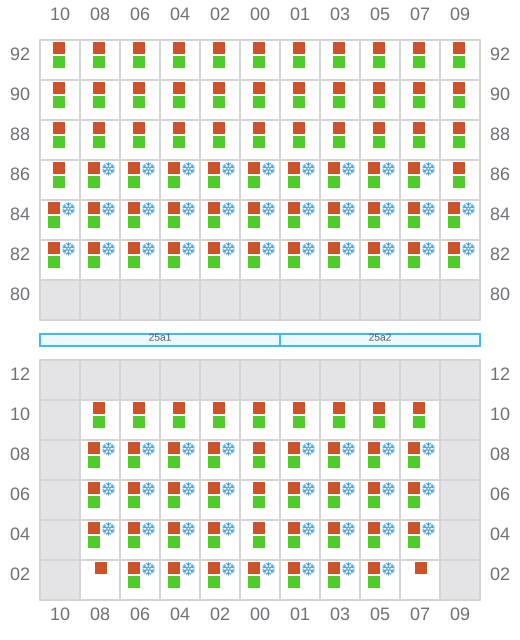

Bay 025 view and slots of MARFRET GUYANE

027

←
^→ / _?
→

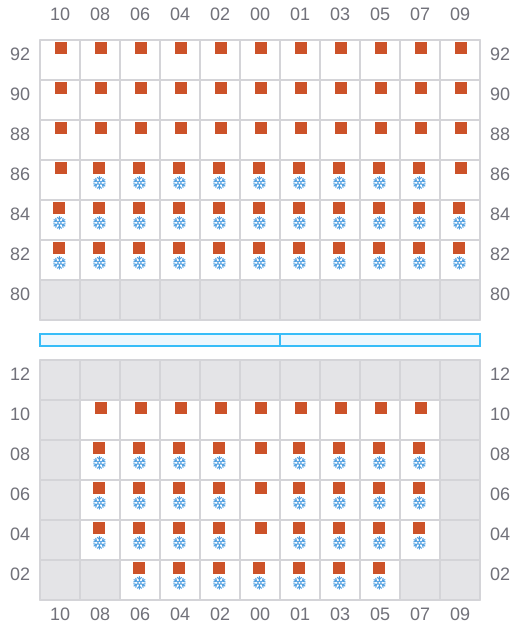

Bay 027 view and slots of MARFRET GUYANE

029 (030)

→
^→ / _←
→

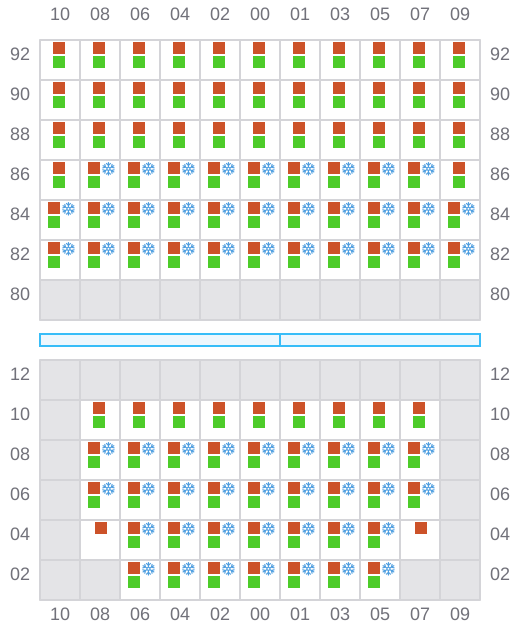

Bay 029 view and slots of MARFRET GUYANE

031

←
^→ / _←
→

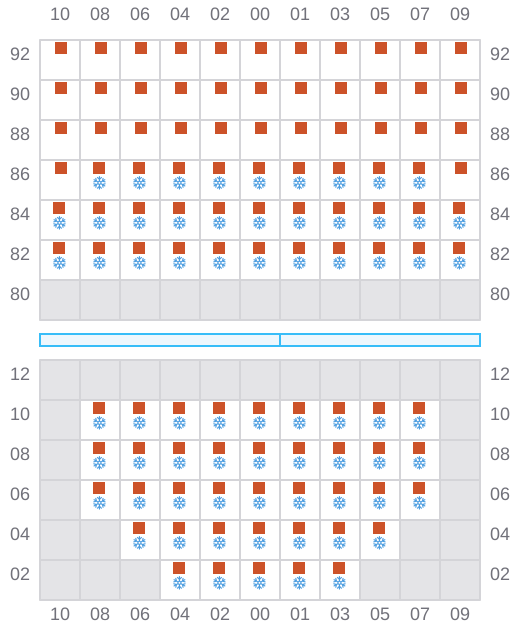

Bay 031 view and slots of MARFRET GUYANE

033 (034)

^→ / _?
^→ / _?
^→ / _?

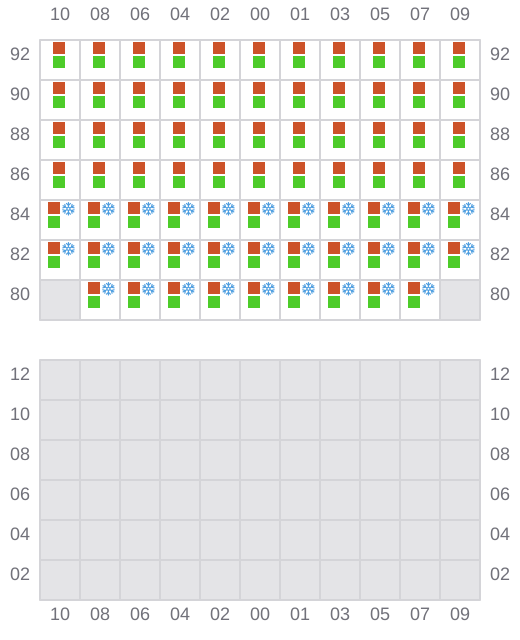

Bay 033 view and slots of MARFRET GUYANE

035

^← / _?
^→ / _?
^→ / _?

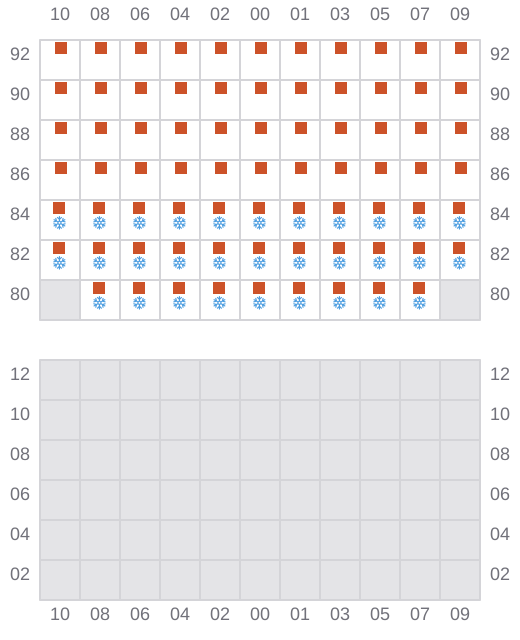

Bay 035 view and slots of MARFRET GUYANE

037

^→ / _?

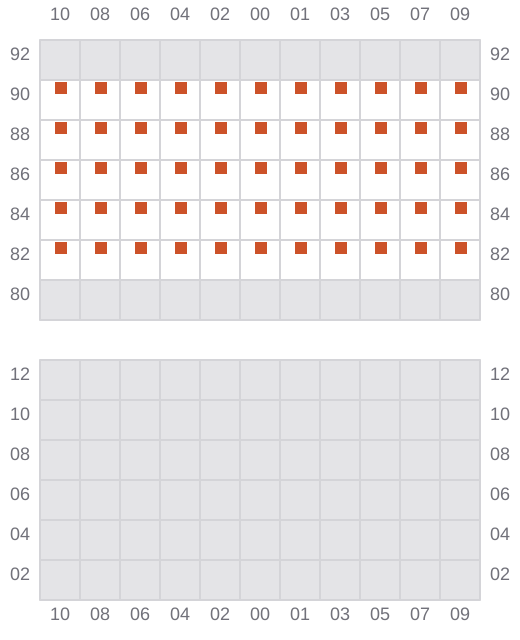

Bay 037 view and slots of MARFRET GUYANE
