MARGARETE SCHULTE
9302944 | 9HA2032 | MSK by ************************** Last update: Sun Jun 25 2023
General Info
Ship Name:MARGARETE SCHULTE
IMO Code:9302944
Call Sign:9HA2032
Line Operator:MSK
Class Name for Sister Ships:MGS
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):198.80
LOA (Length Overall):210.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,580
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Estimated
TCG Data:0%

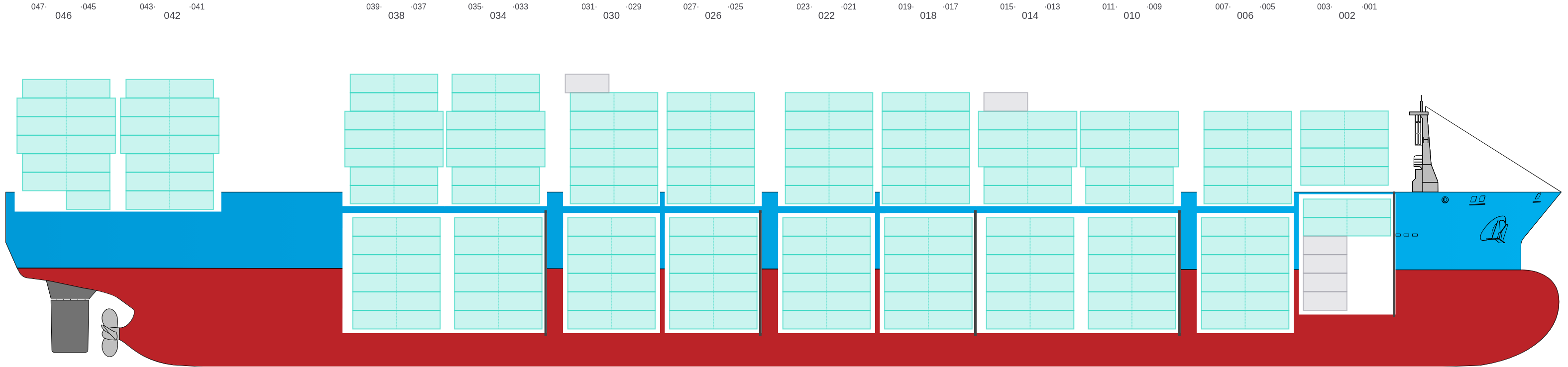

Side View
![Side view of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-sideView.png?v=1687713447130)

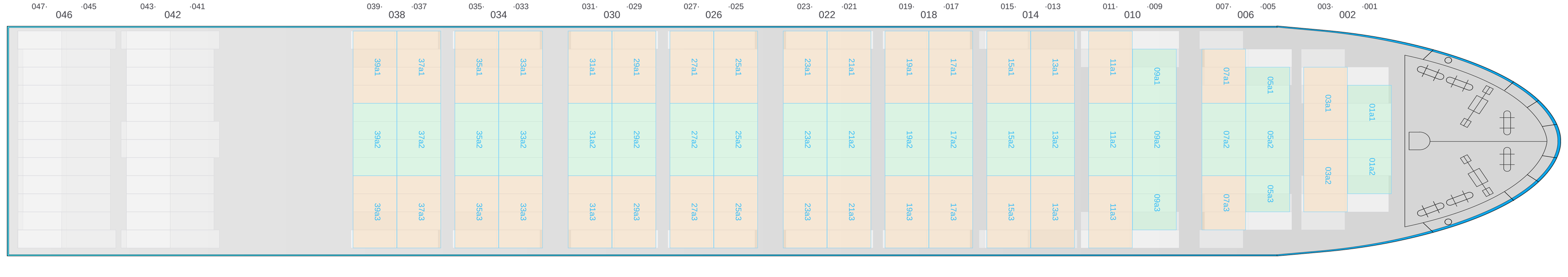

Hatch-Covers View
![Deck view of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-deckView.png?v=1687713447130)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

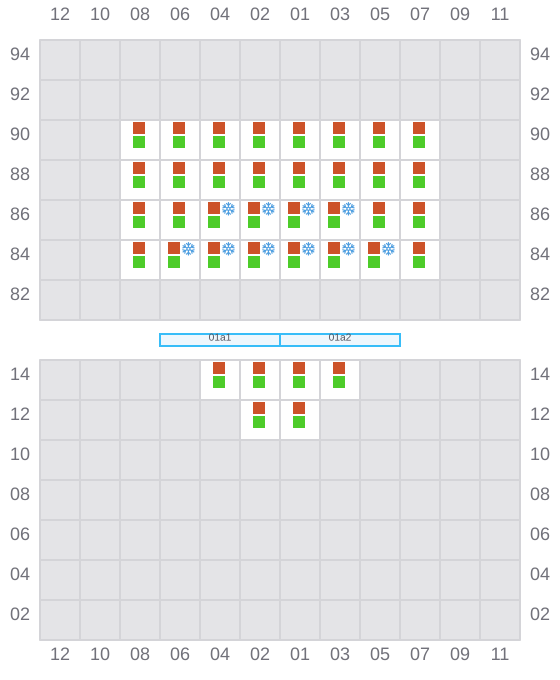

001 (002)
- →
- ← / ?
![Bay 001 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b001.png?v=1687713447130)

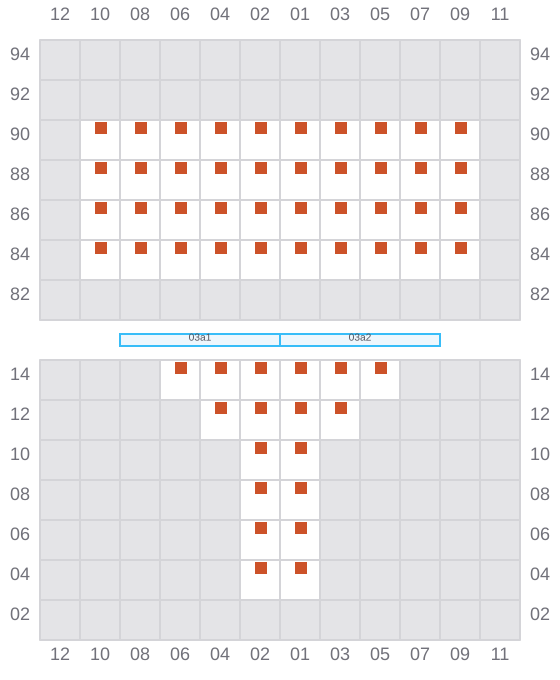

003
- ←
![Bay 003 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b003.png?v=1687713447130)

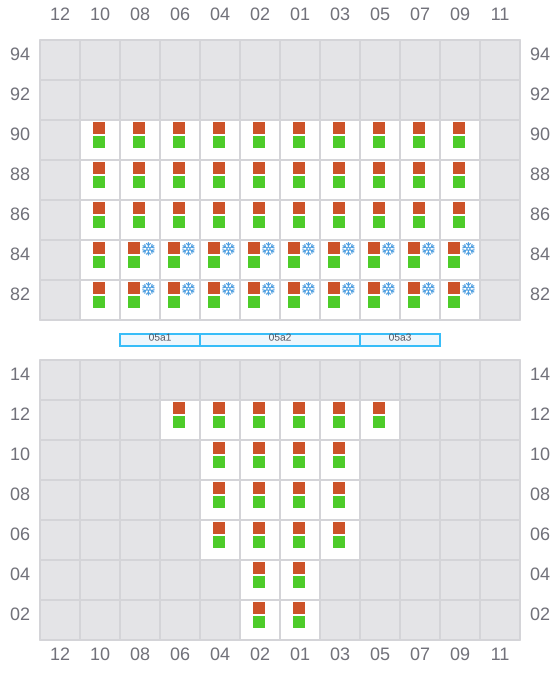

005 (006)
- →
- ← / ?
![Bay 005 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b005.png?v=1687713447130)

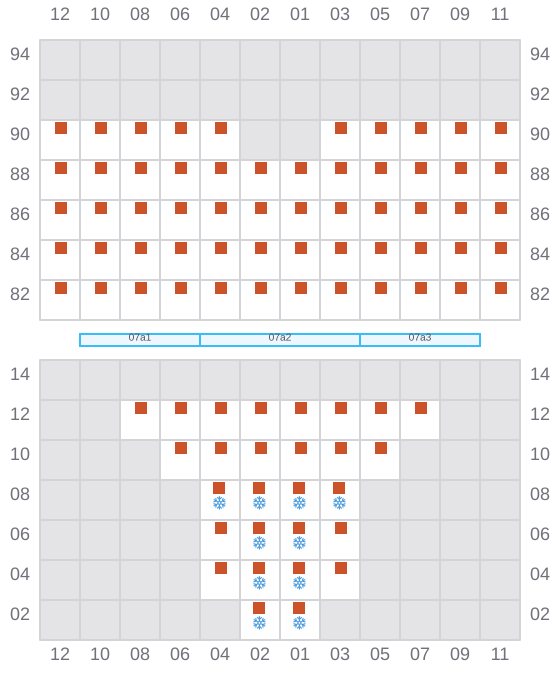

007
- ←
![Bay 007 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b007.png?v=1687713447130)

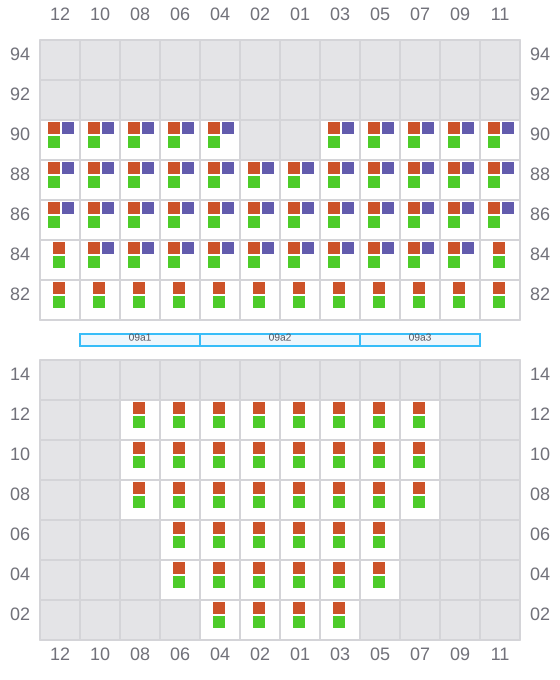

009 (010)
- →
![Bay 009 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b009.png?v=1687713447130)
011
- ←
- → / ?
![Bay 011 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b011.png?v=1687713447130)

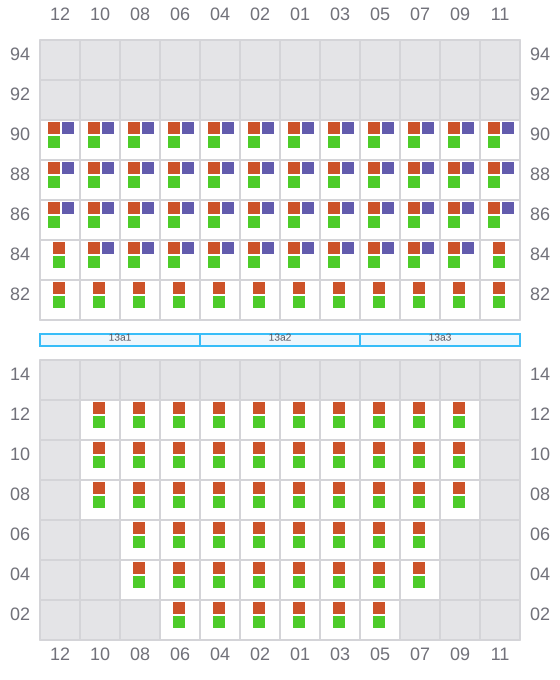

013 (014)
- →
![Bay 013 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b013.png?v=1687713447130)

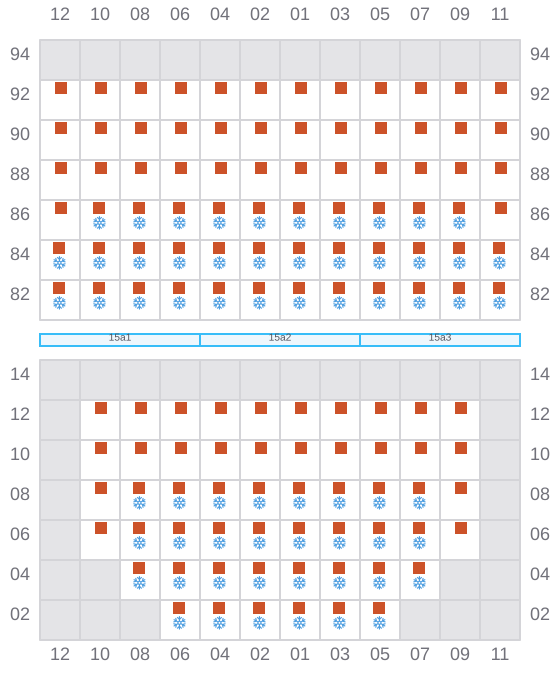

015
- ←
- → / ?
![Bay 015 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b015.png?v=1687713447130)

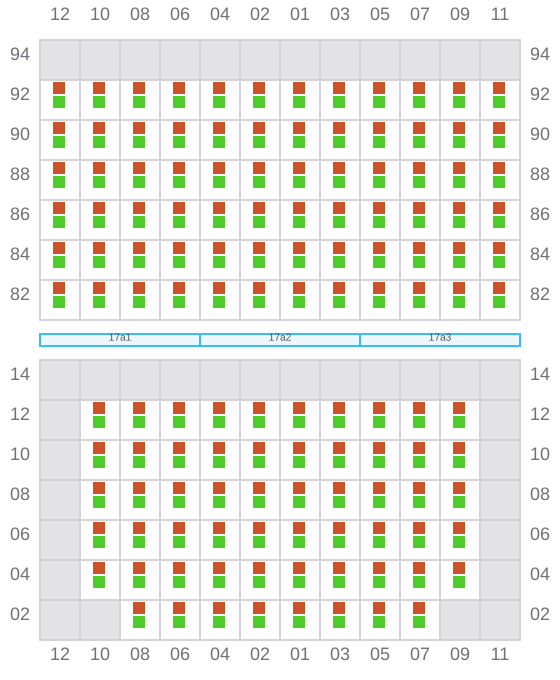

017 (018)
- →
![Bay 017 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b017.png?v=1687713447130)
019
- ←
- → / ?
![Bay 019 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b019.png?v=1687713447130)
021 (022)
- →
- ← / ?
![Bay 021 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b021.png?v=1687713447130)

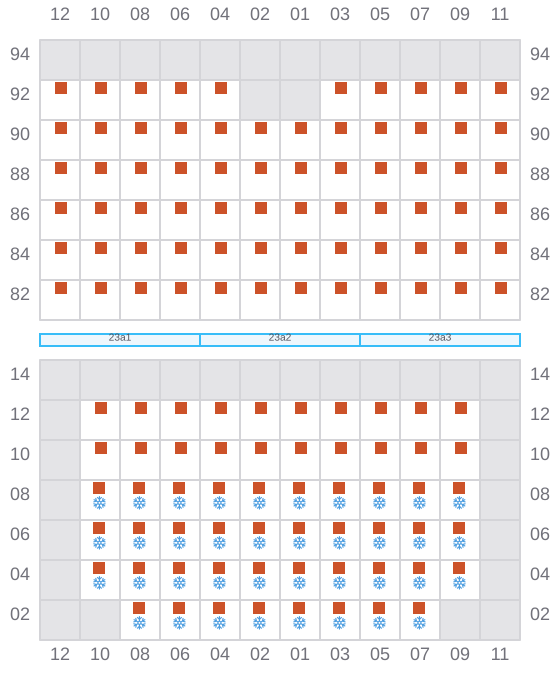

023
- ←
- ? / →
![Bay 023 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b023.png?v=1687713447130)

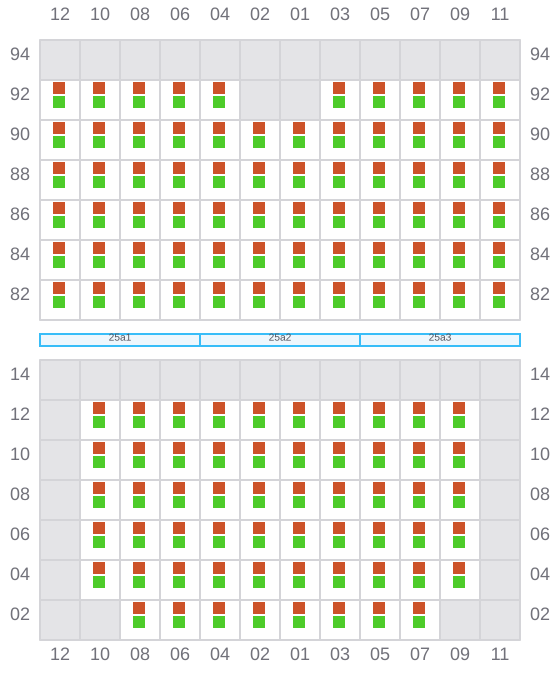

025 (026)
- →
![Bay 025 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b025.png?v=1687713447130)

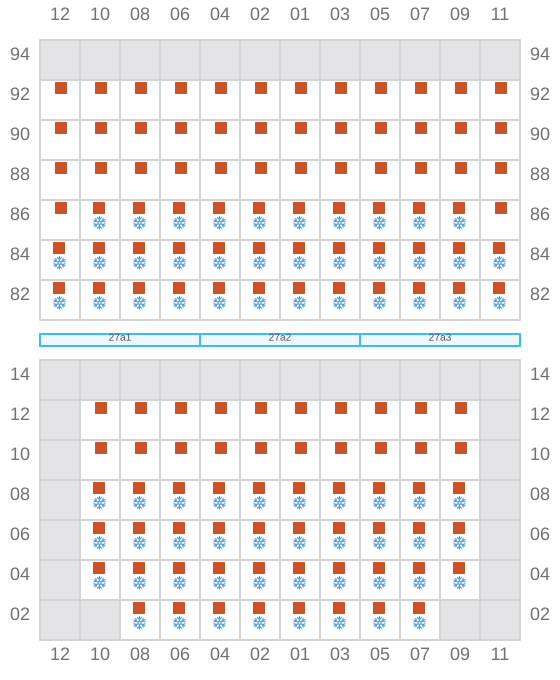

027
- ←
- →
![Bay 027 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b027.png?v=1687713447130)

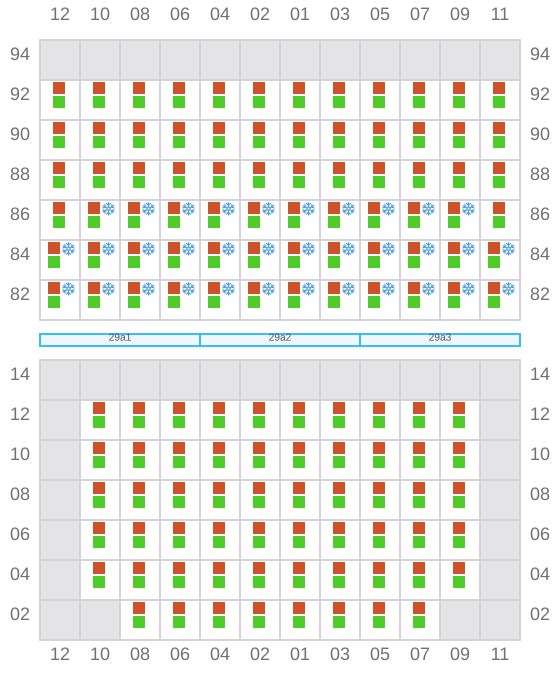

029 (030)
- →
- ← / ?
![Bay 029 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b029.png?v=1687713447130)

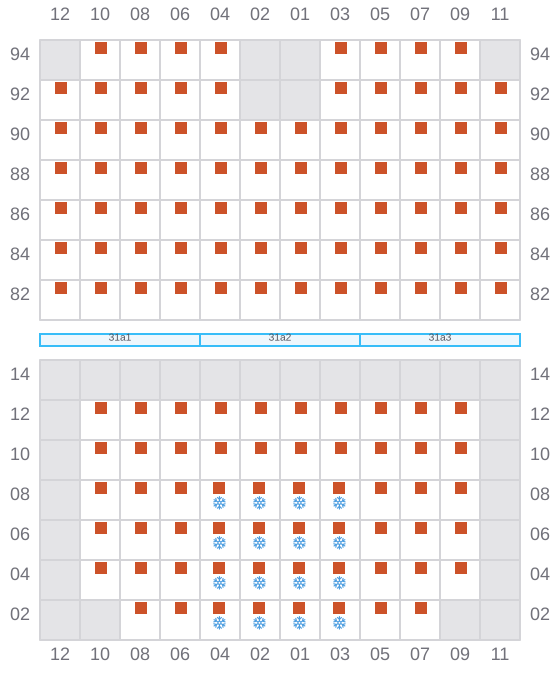

031
- ←
- ? / →
![Bay 031 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b031.png?v=1687713447130)

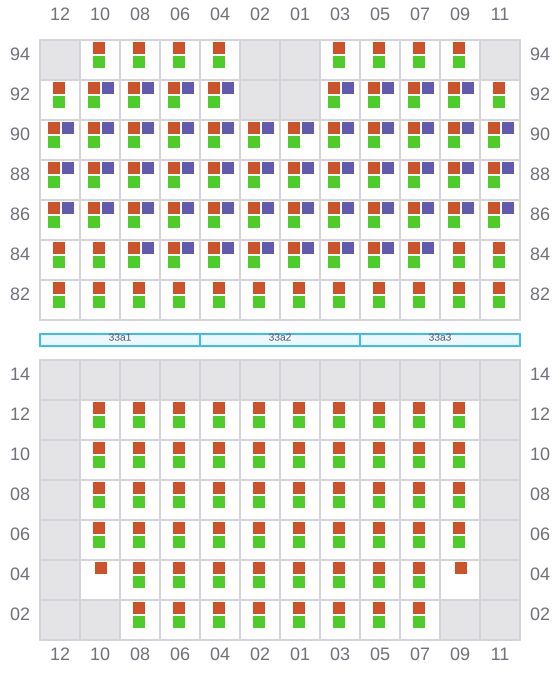

033 (034)
- →
![Bay 033 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b033.png?v=1687713447130)
035
- ←
- →
![Bay 035 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b035.png?v=1687713447130)

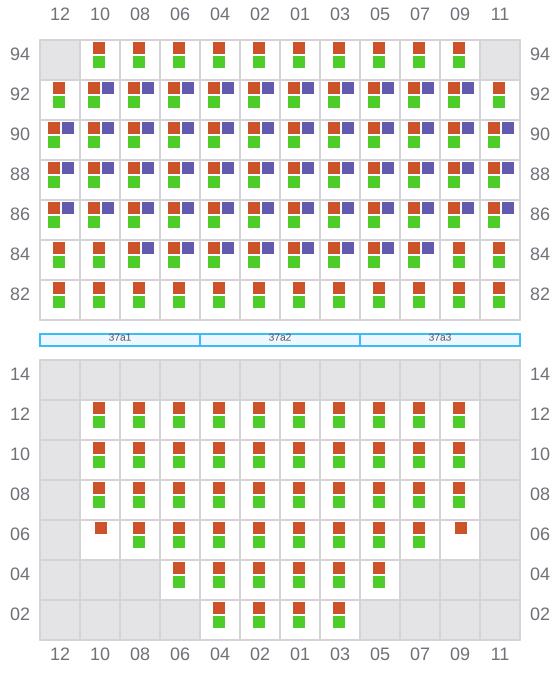

037 (038)
- →
![Bay 037 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b037.png?v=1687713447130)

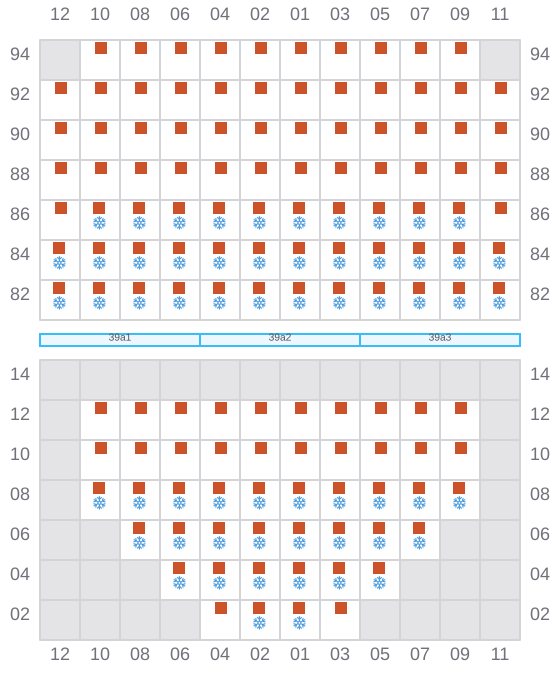

039
- ←
- →
![Bay 039 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b039.png?v=1687713447130)

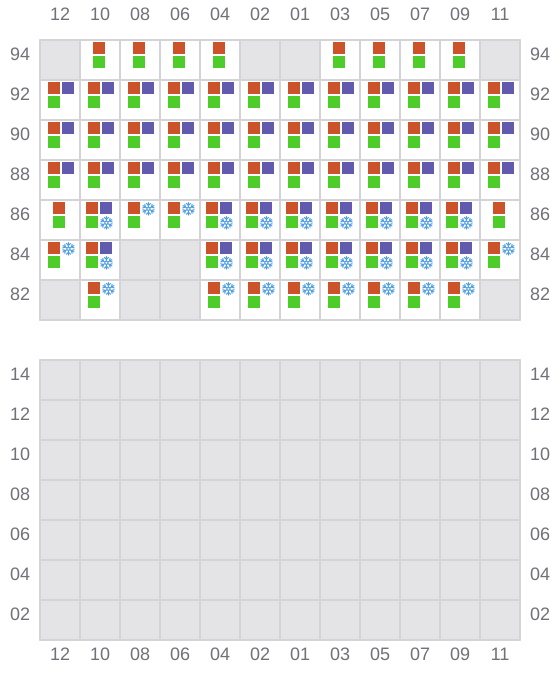

041 (042)
- → / ?
![Bay 041 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b041.png?v=1687713447130)

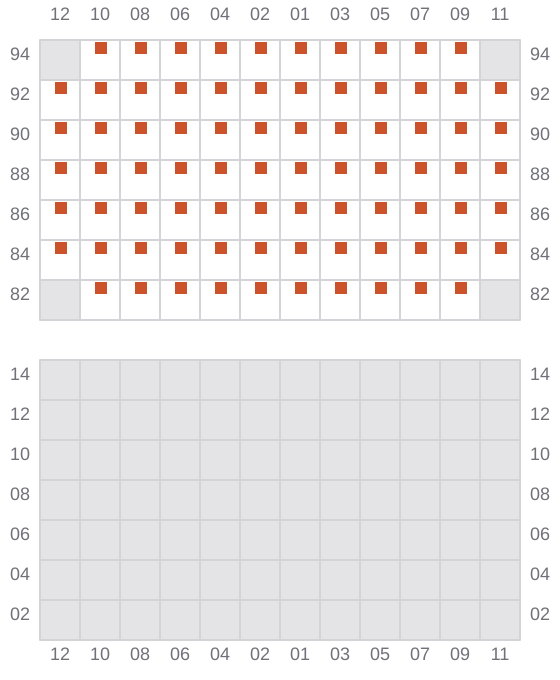

043
- ← / ?
![Bay 043 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b043.png?v=1687713447130)

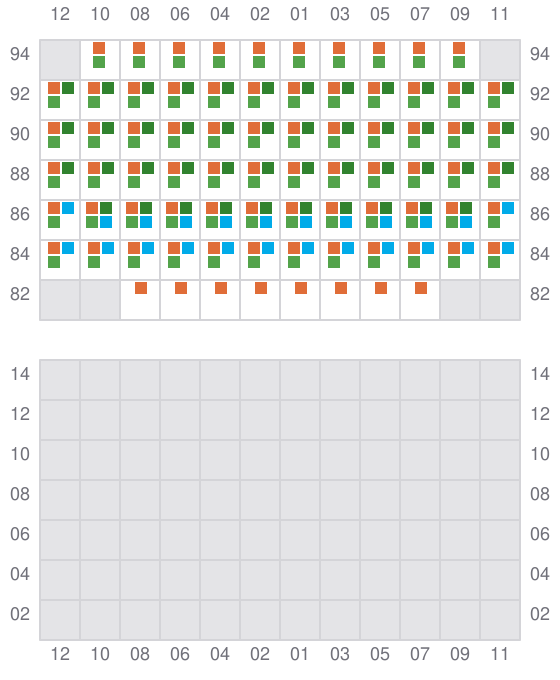

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b045.png?v=1687713447130)

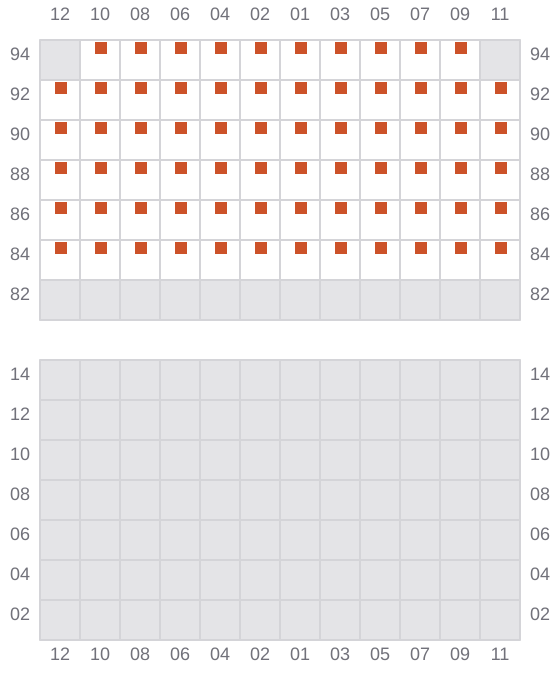

047
- ← / ?
![Bay 047 view and slots of MARGARETE SCHULTE](/vessel-images/15b19a57-2d30-44ee-b8b7-8dda70080954-b047.png?v=1687713447130)
