MARGAUX
9128427 | 5VEH9 | 9128427 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:MARGAUX
IMO Code:9128427
Call Sign:5VEH9
Line Operator:9128427
Class Name for Sister Ships:54Z
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):114.50
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:021
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:522
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-sideView.png?v=1709847237870)
Hatch-Covers View
![Deck view of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-deckView.png?v=1709847237870)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

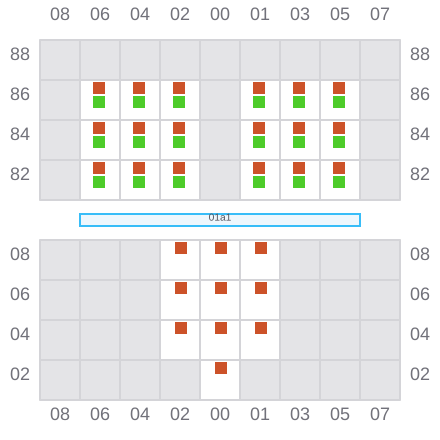

001 (002)
- → / ?
![Bay 001 view and slots of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-b001.png?v=1709847237870)

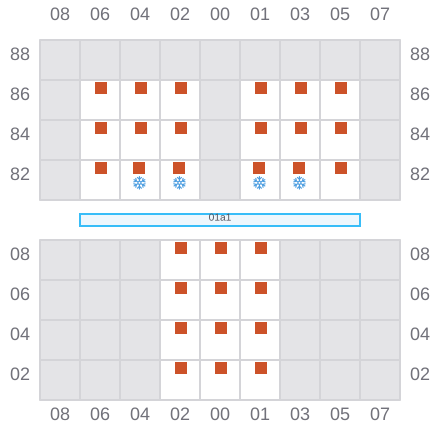

003
- ← / ?
- → / ?
![Bay 003 view and slots of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-b003.png?v=1709847237870)

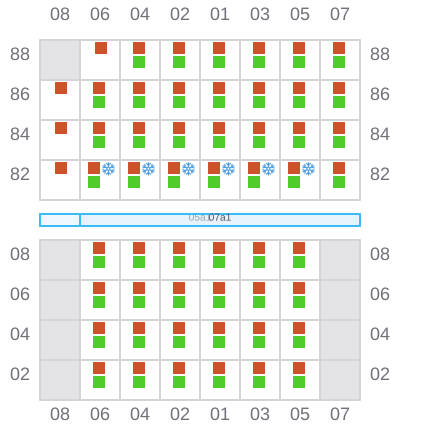

005 (006)
- →
- ← / ?
![Bay 005 view and slots of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-b005.png?v=1709847237870)
007
- ←
![Bay 007 view and slots of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-b007.png?v=1709847237870)

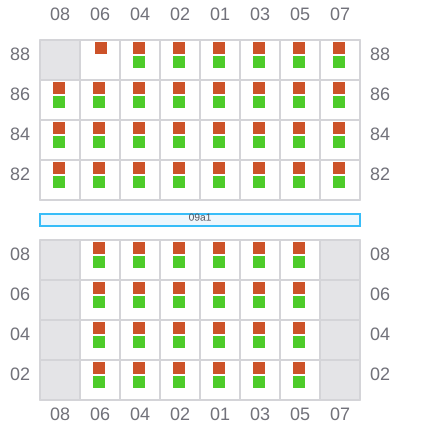

009 (010)
- →
![Bay 009 view and slots of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-b009.png?v=1709847237870)

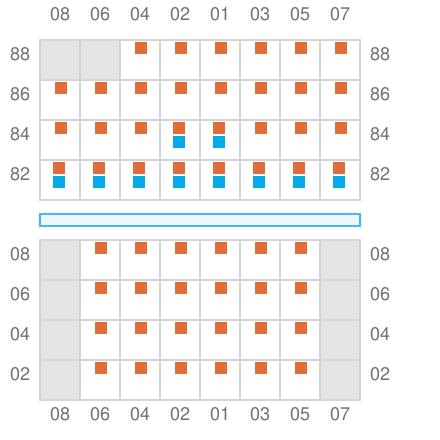

011
- ←
- → / ?
![Bay 011 view and slots of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-b011.png?v=1709847237870)

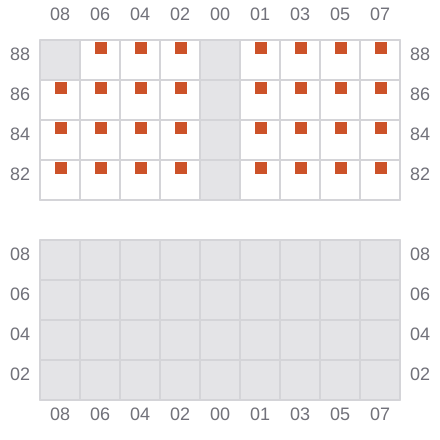

013
![Bay 013 view and slots of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-b013.png?v=1709847237870)

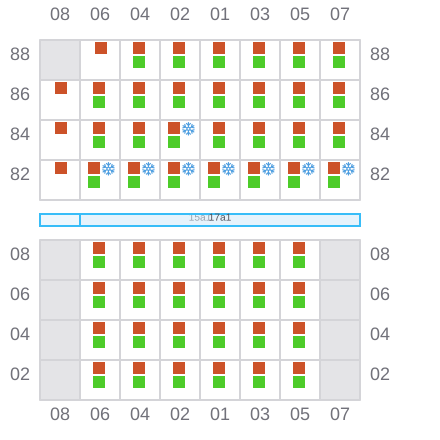

015 (016)
- →
- ← / ?
![Bay 015 view and slots of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-b015.png?v=1709847237870)

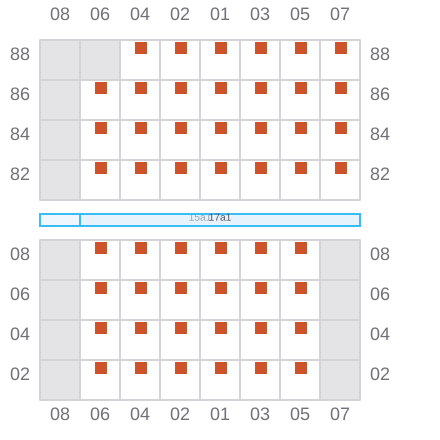

017
- ←
![Bay 017 view and slots of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-b017.png?v=1709847237870)
019 (020)
- →
![Bay 019 view and slots of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-b019.png?v=1709847237870)

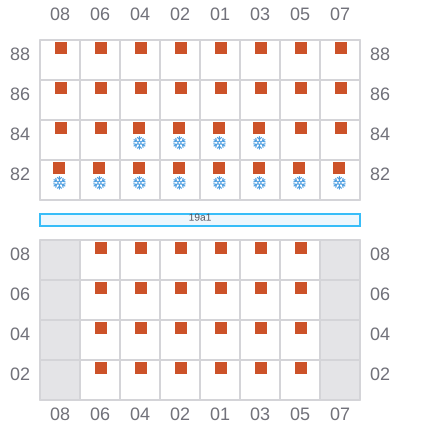

021
- ←
- → / ?
![Bay 021 view and slots of MARGAUX](/vessel-images/afe31b6d-9b63-4480-91e8-5379e22c95a7-b021.png?v=1709847237870)
