MARIANNA I
9162227 | D5YU6 | 9162227 by ********* Last update: Fri Mar 08 2024

General Info

Ship Name:MARIANNA I
IMO Code:9162227
Call Sign:D5YU6
Line Operator:9162227
Class Name for Sister Ships:8JF
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,287

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MARIANNA I

Hatch-Covers View

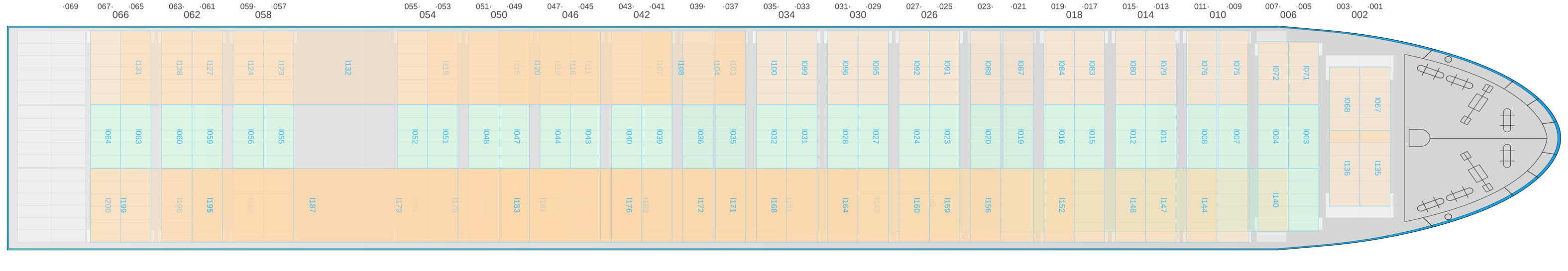

Deck view of MARIANNA I

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • → / ?

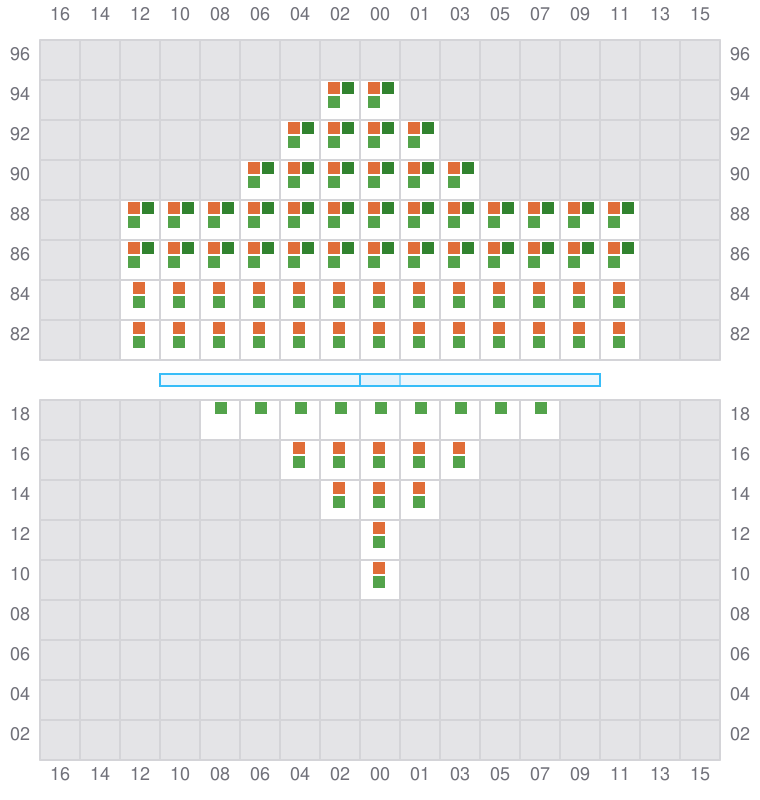

Bay 001 view and slots of MARIANNA I

003

  • ←
  • → / ?

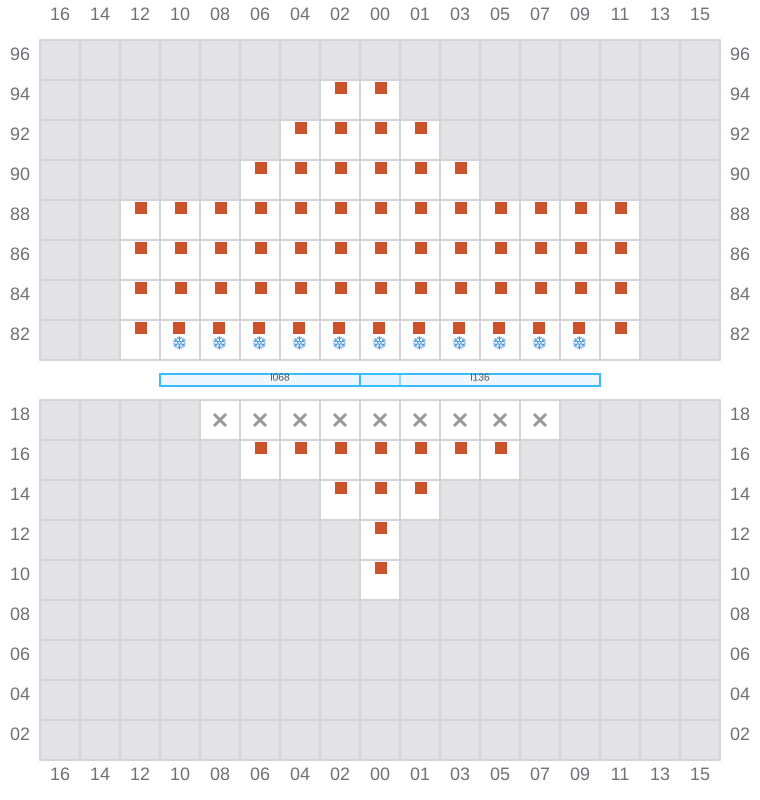

Bay 003 view and slots of MARIANNA I

005 (006)

  • →
  • ← / ?

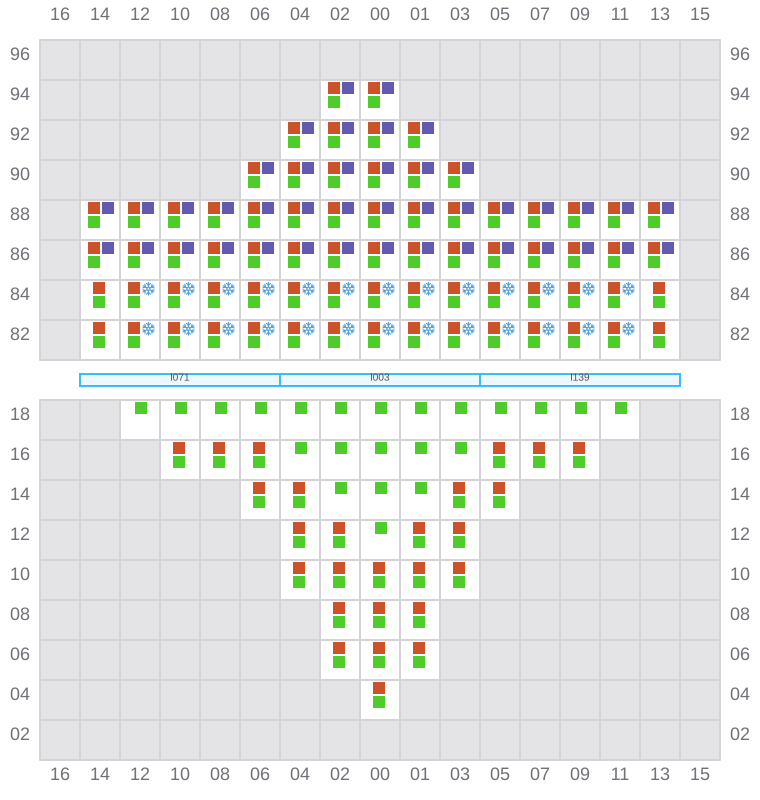

Bay 005 view and slots of MARIANNA I

007

  • ←

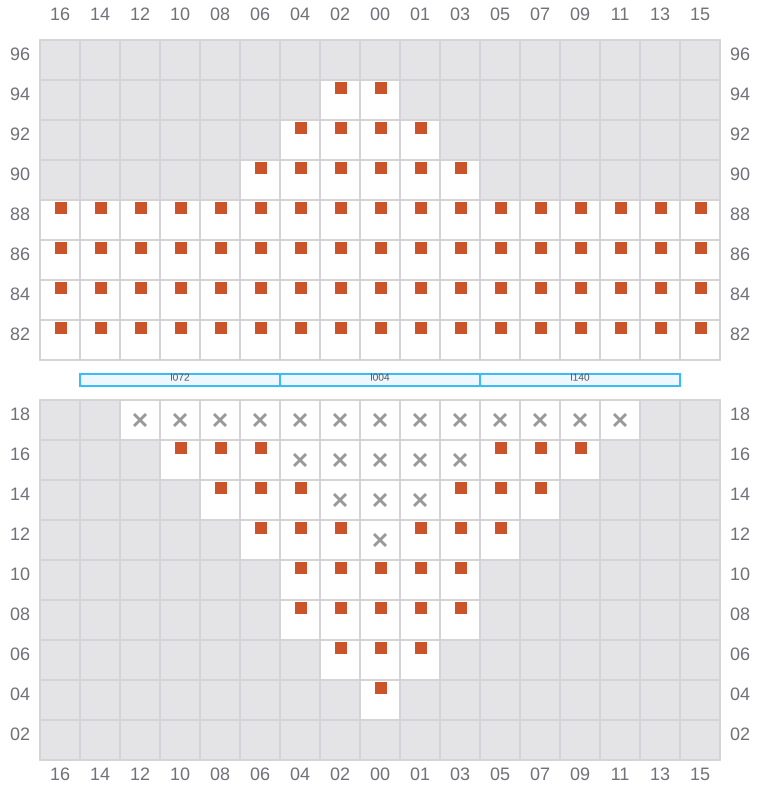

Bay 007 view and slots of MARIANNA I

009 (010)

  • →
  • → / ?
  • → / ?

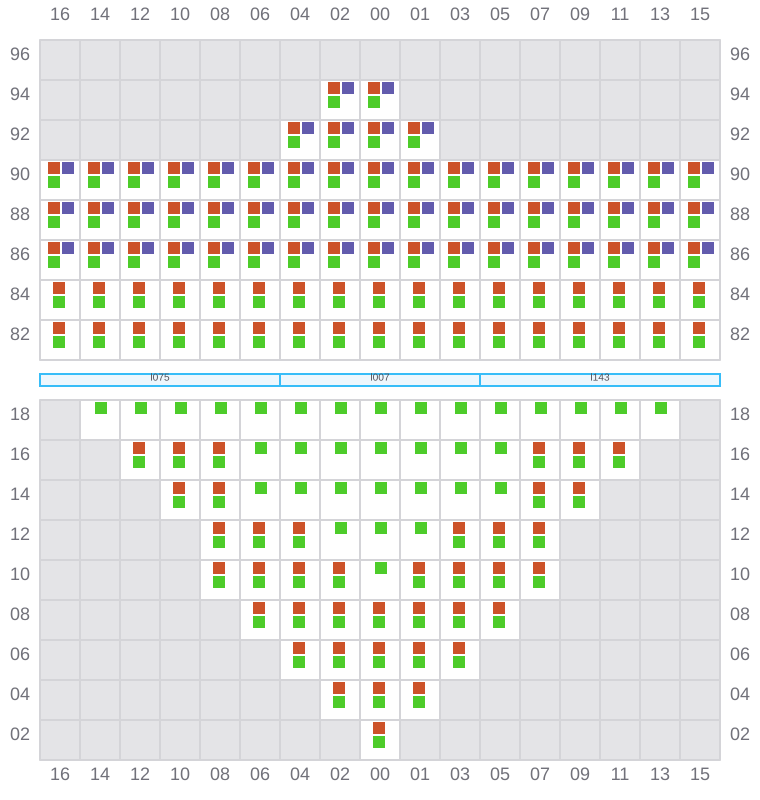

Bay 009 view and slots of MARIANNA I

011

  • ←
  • → / ?

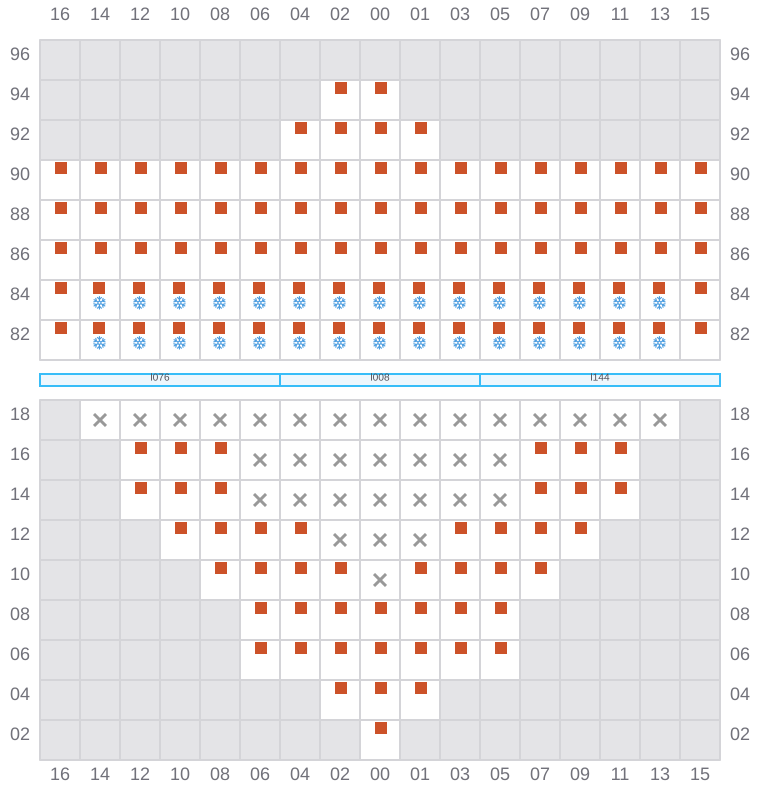

Bay 011 view and slots of MARIANNA I

013 (014)

  • →
  • ← / ?
  • → / ?

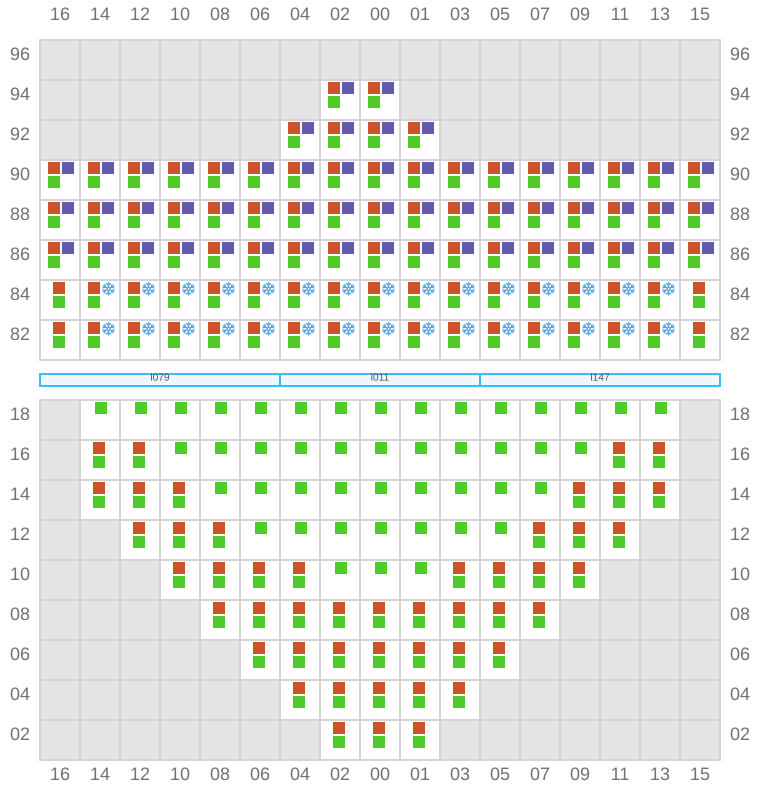

Bay 013 view and slots of MARIANNA I

015

  • ←

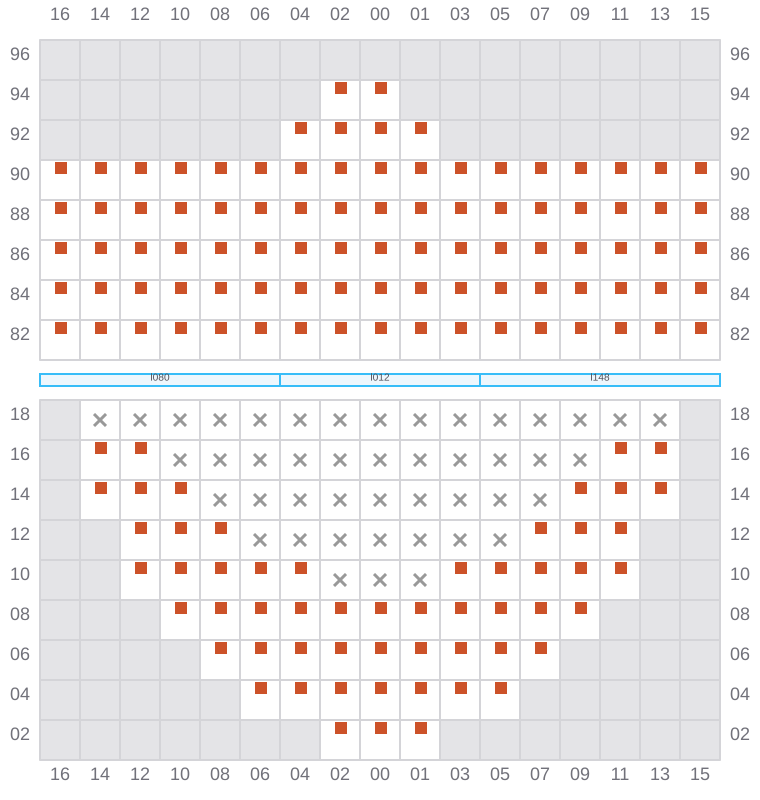

Bay 015 view and slots of MARIANNA I

017 (018)

  • →
  • → / ?

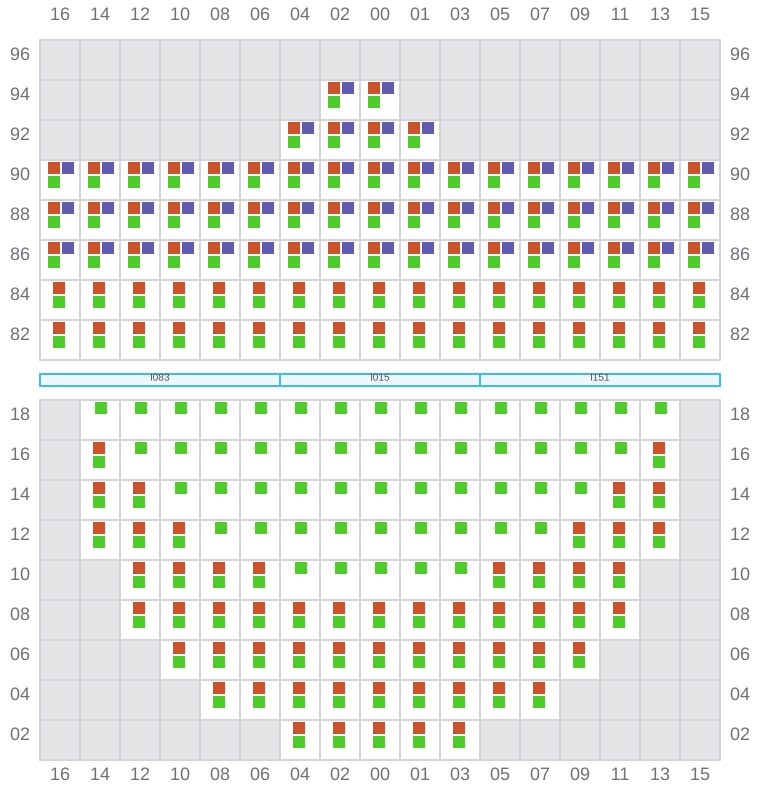

Bay 017 view and slots of MARIANNA I

019

  • ←
  • → / ?

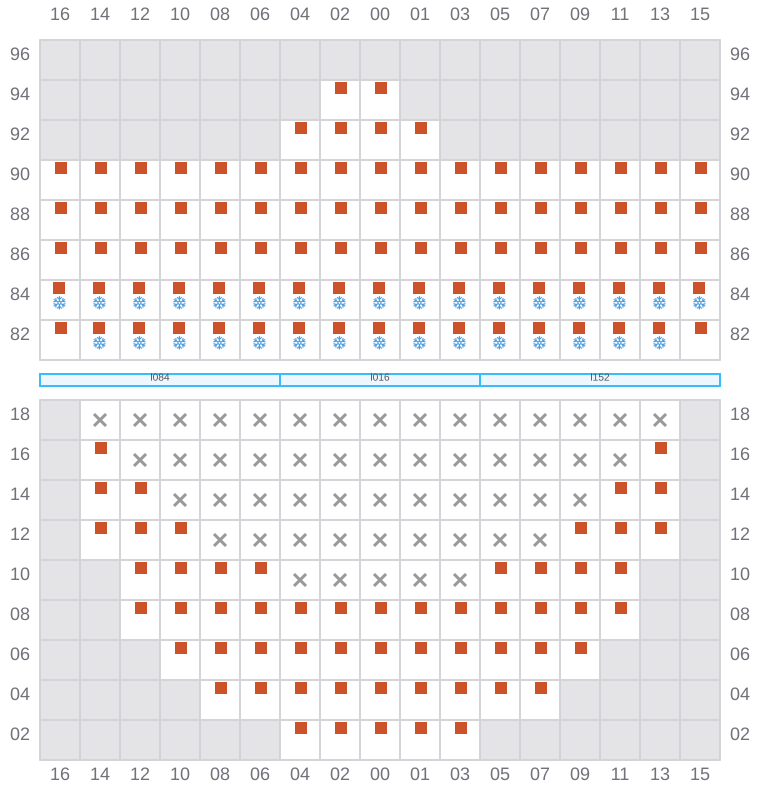

Bay 019 view and slots of MARIANNA I

021 (022)

  • → / ?
  • ← / ?

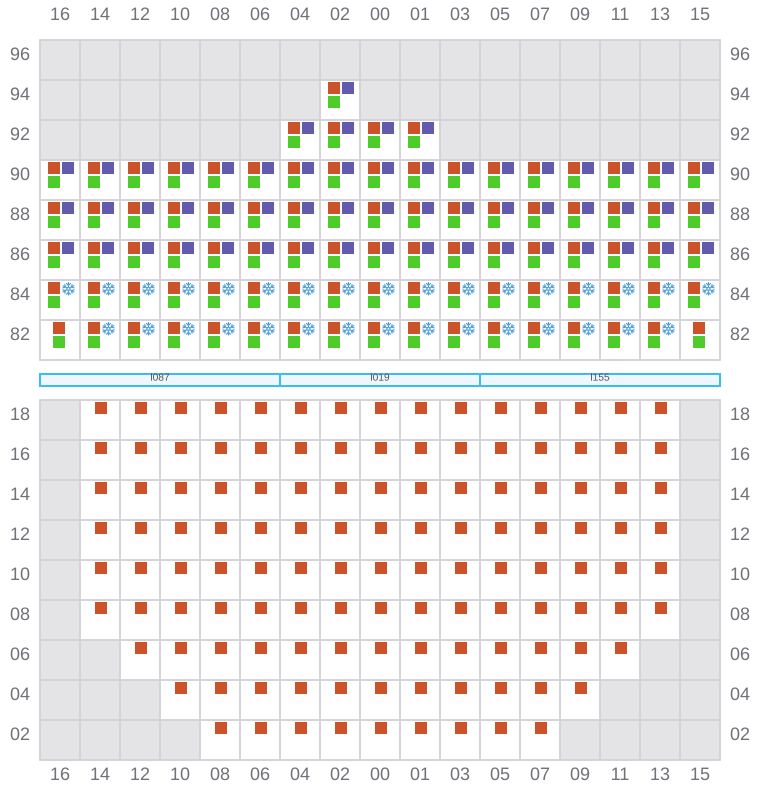

Bay 021 view and slots of MARIANNA I

023

  • ← / ?

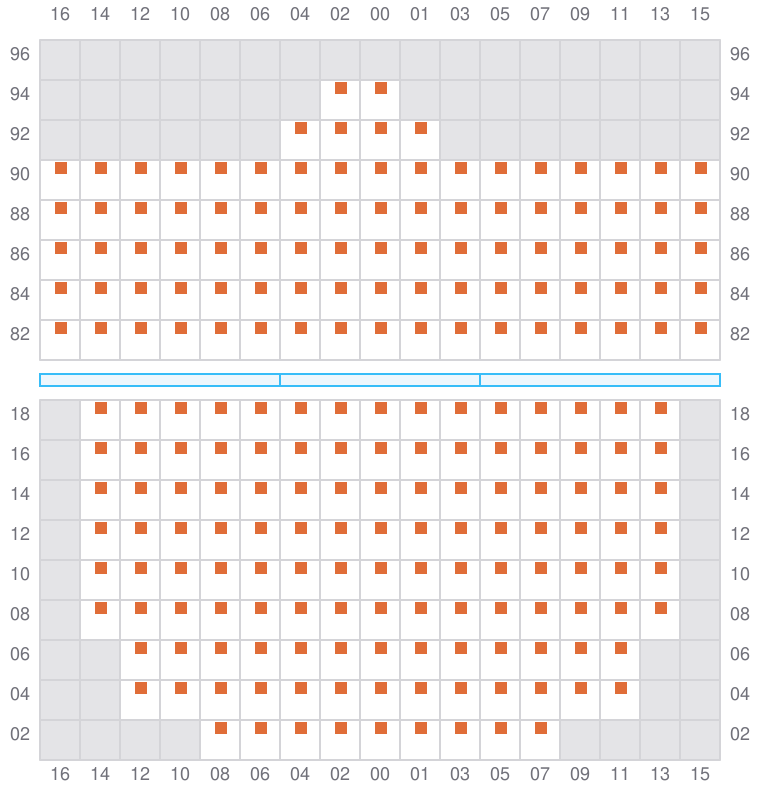

Bay 023 view and slots of MARIANNA I

025 (026)

  • →
  • → / ?

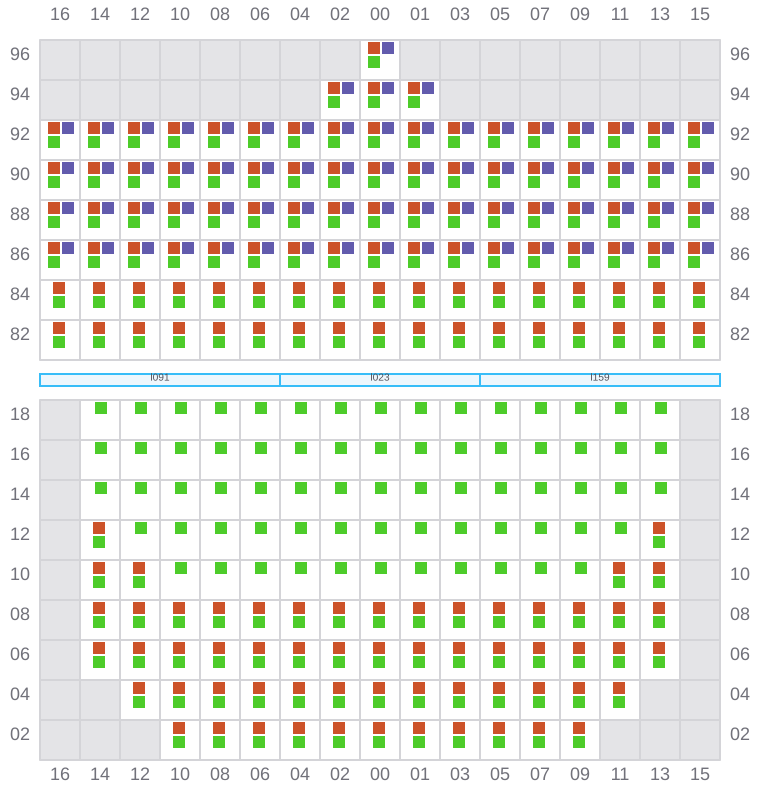

Bay 025 view and slots of MARIANNA I

027

  • ←
  • → / ?

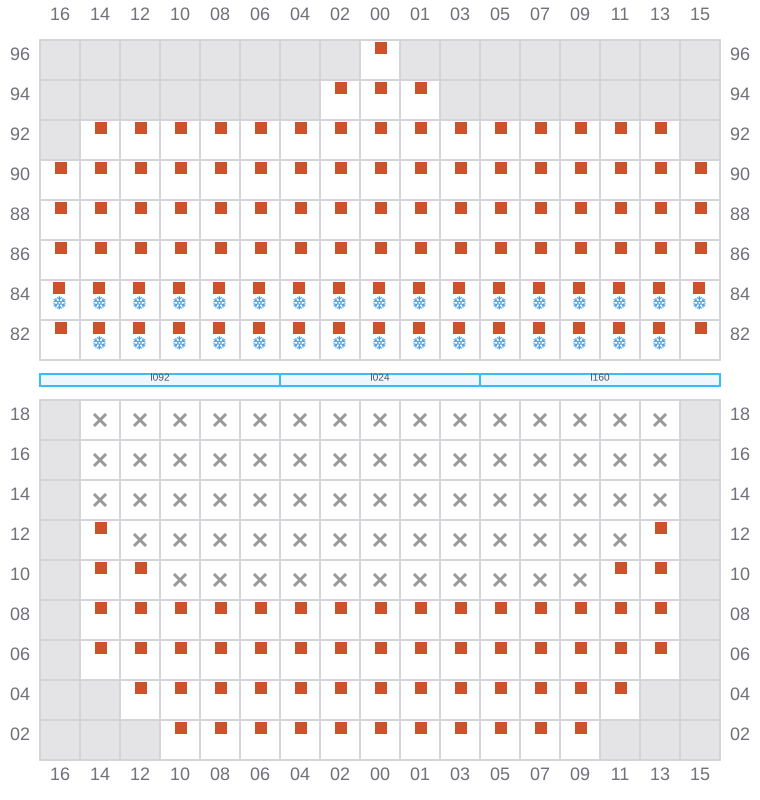

Bay 027 view and slots of MARIANNA I

029 (030)

  • →
  • ← / ?

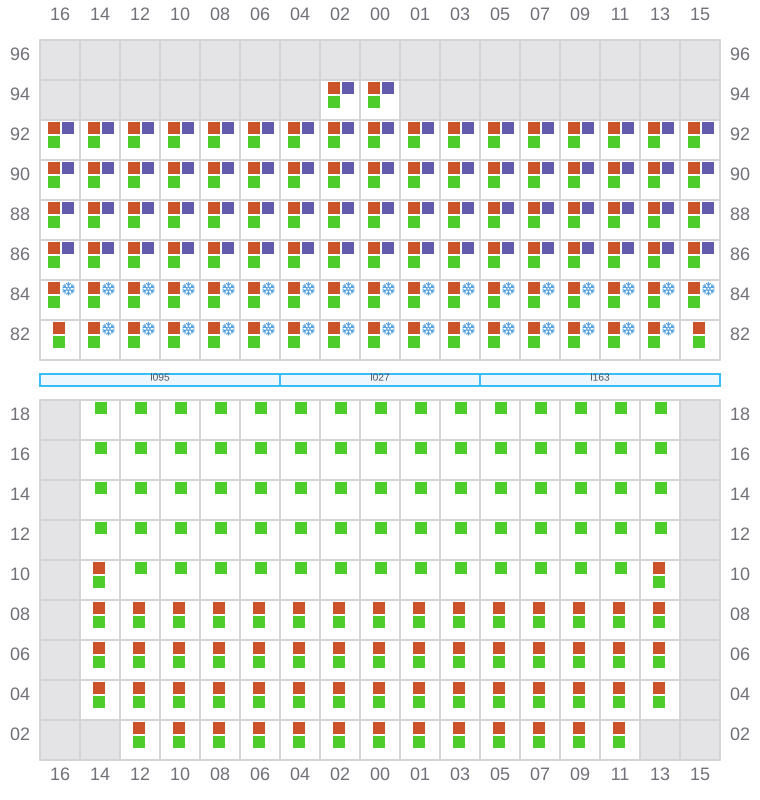

Bay 029 view and slots of MARIANNA I

031

  • ←

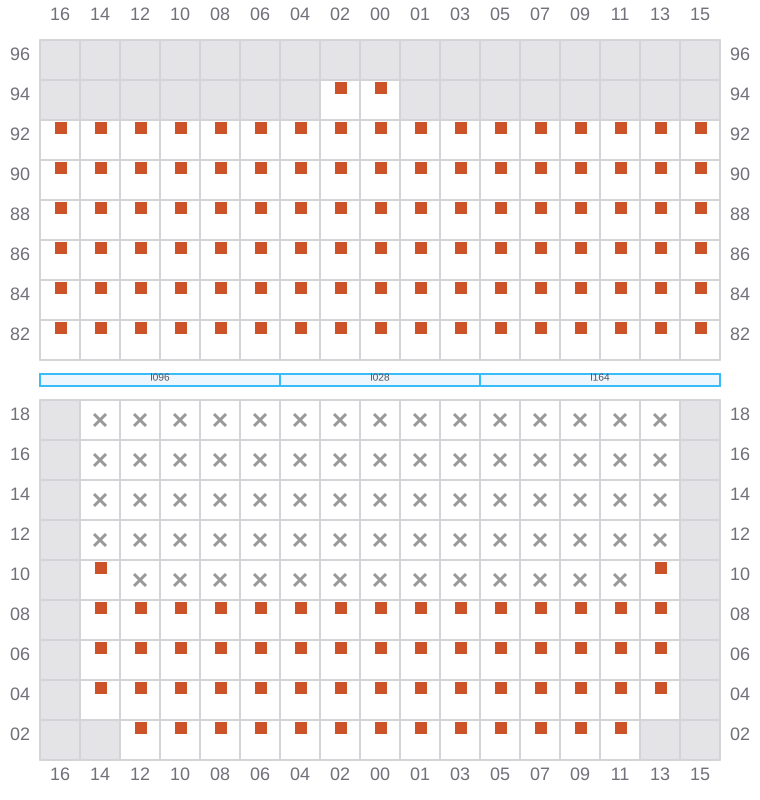

Bay 031 view and slots of MARIANNA I

033 (034)

  • →

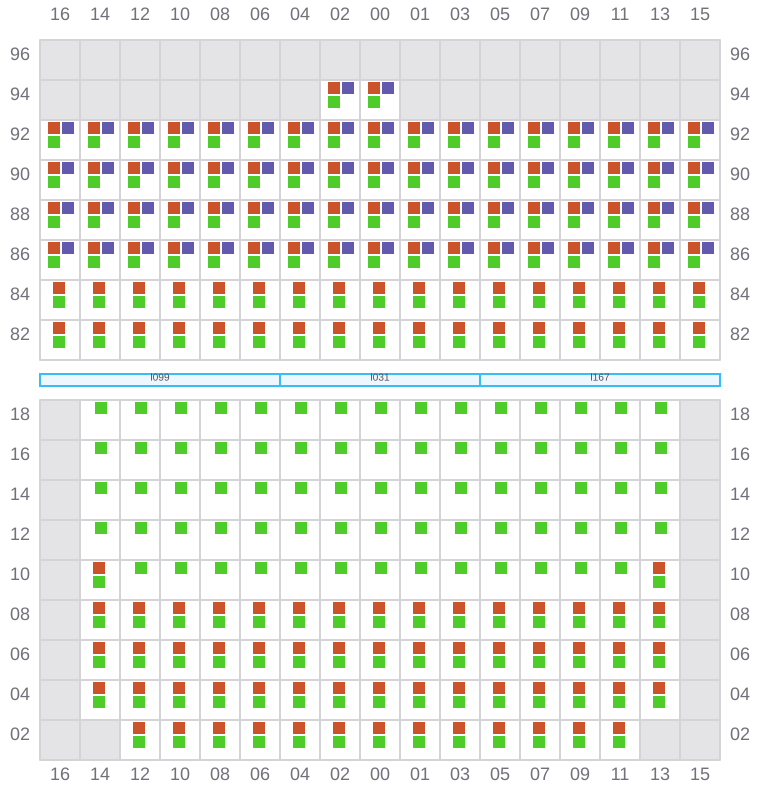

Bay 033 view and slots of MARIANNA I

035

  • ←
  • → / ?

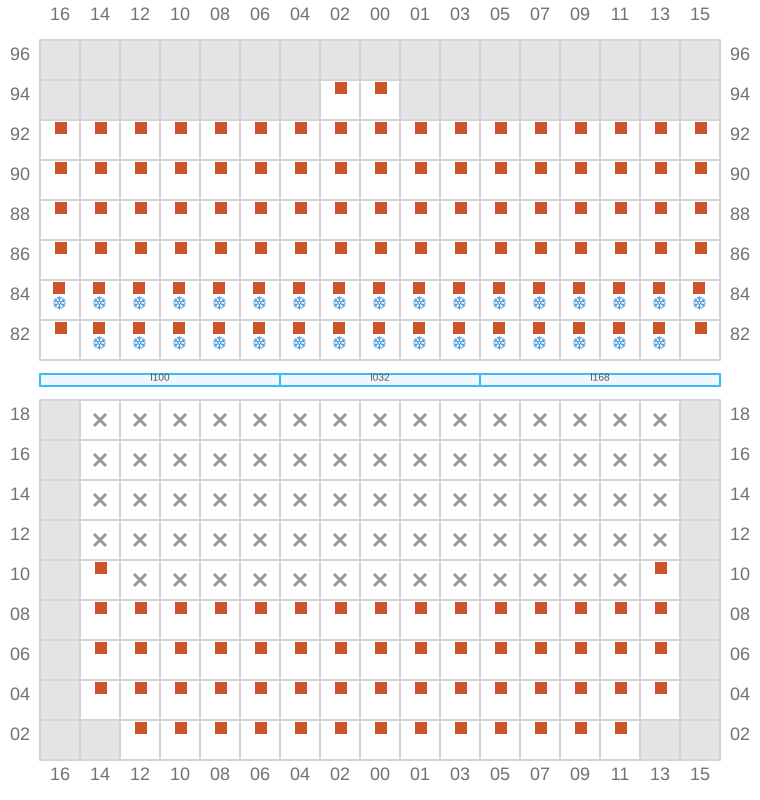

Bay 035 view and slots of MARIANNA I

037 (038)

  • → / ?
  • ← / ?

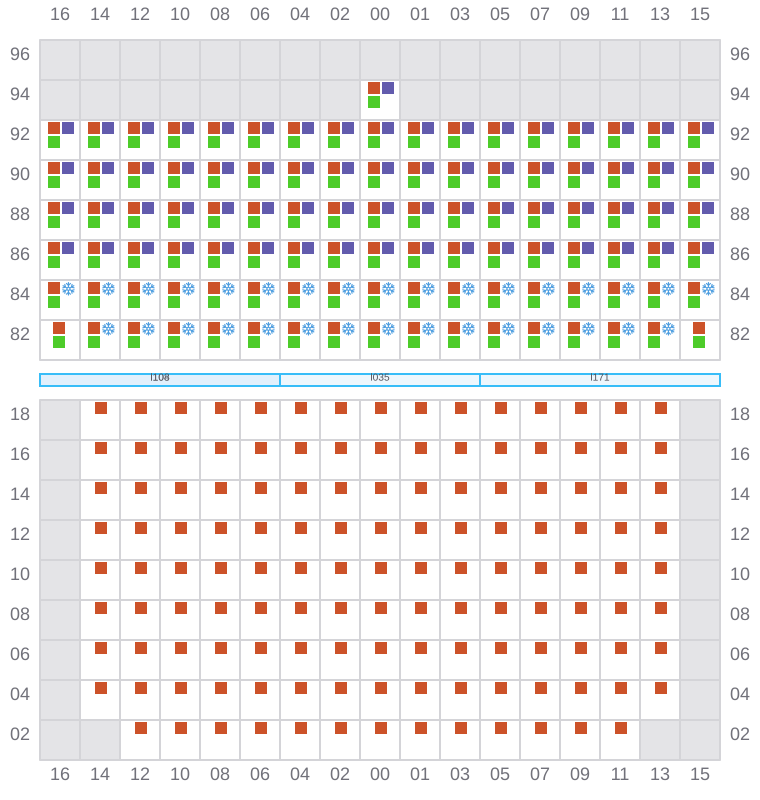

Bay 037 view and slots of MARIANNA I

039

  • ← / ?

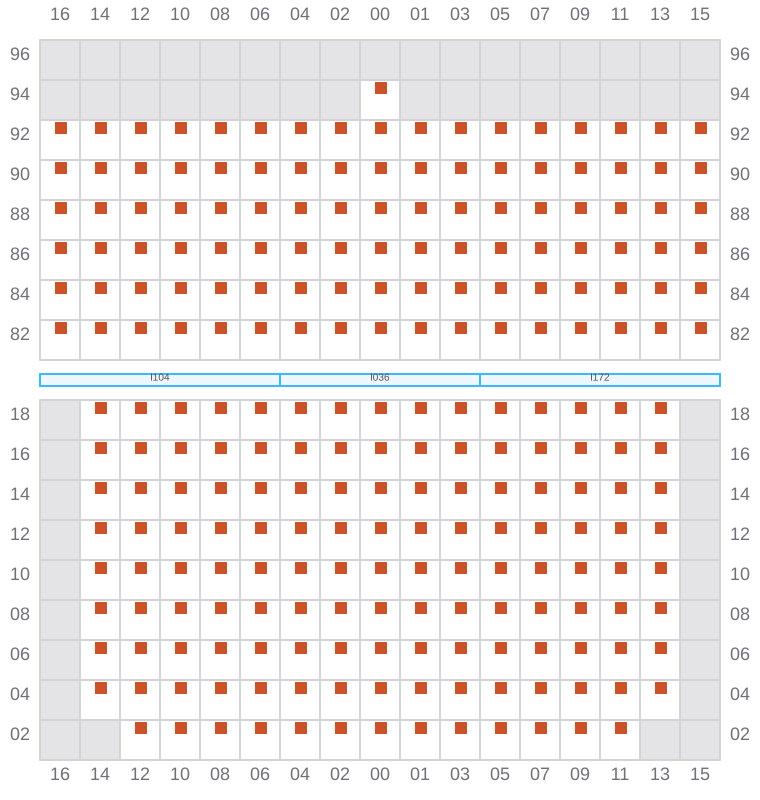

Bay 039 view and slots of MARIANNA I

041 (042)

  • →

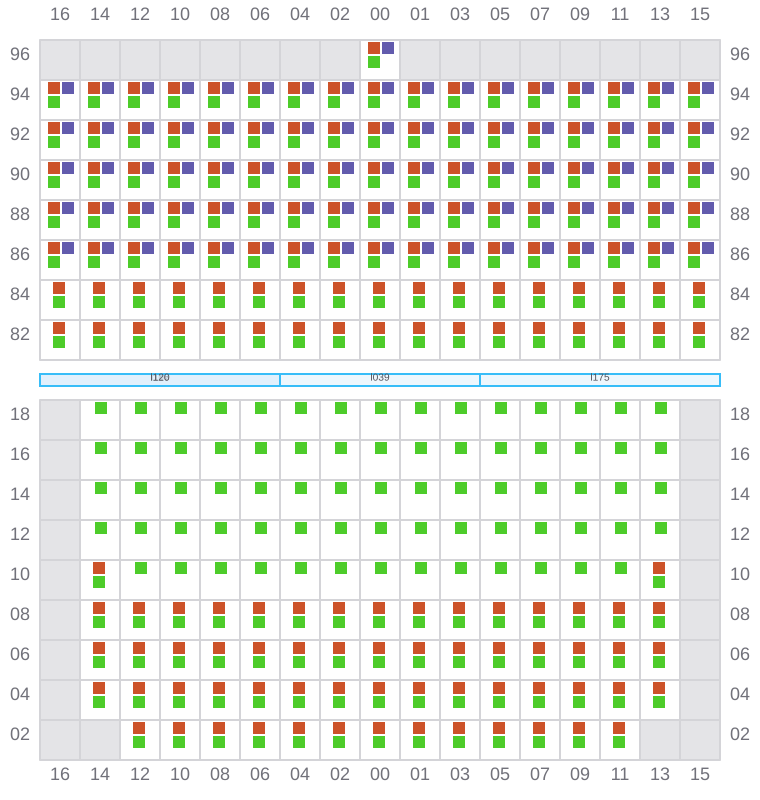

Bay 041 view and slots of MARIANNA I

043

  • ←
  • → / ?

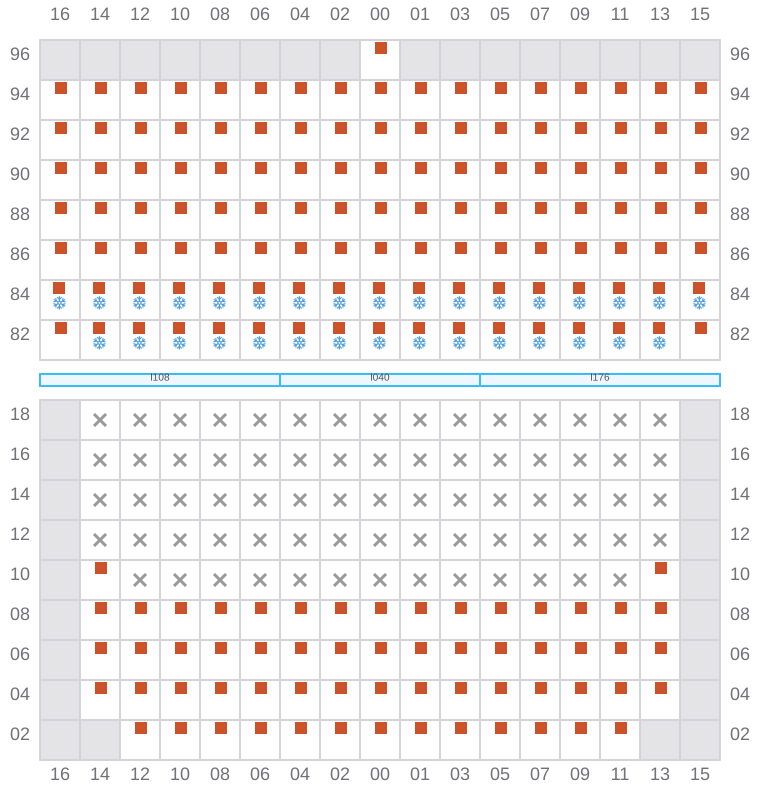

Bay 043 view and slots of MARIANNA I

045 (046)

  • →
  • ← / ?
Bay 045 view and slots of MARIANNA I

047

  • ←

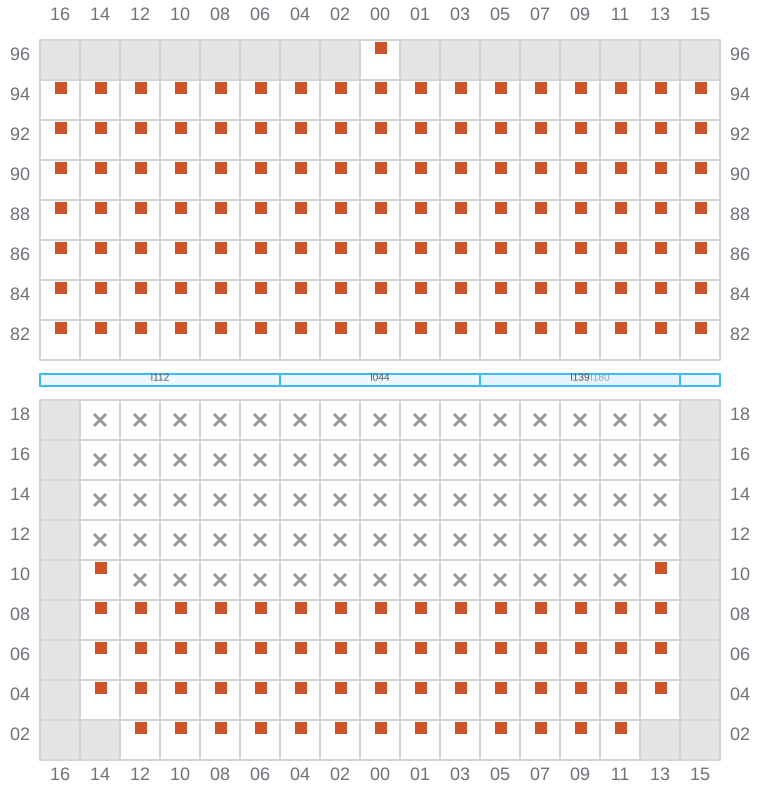

Bay 047 view and slots of MARIANNA I

049 (050)

  • →

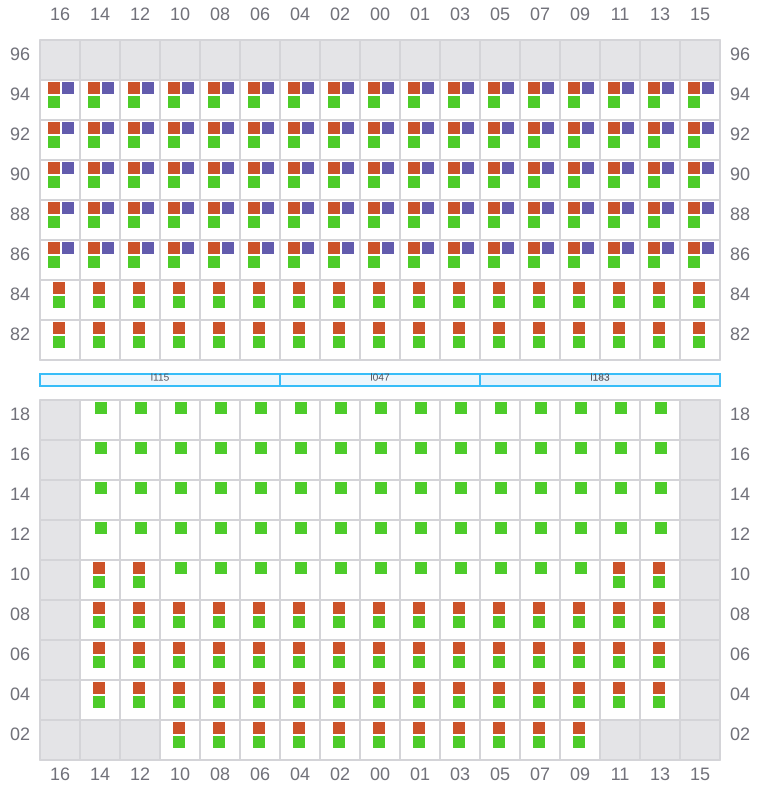

Bay 049 view and slots of MARIANNA I

051

  • ←
  • → / ?

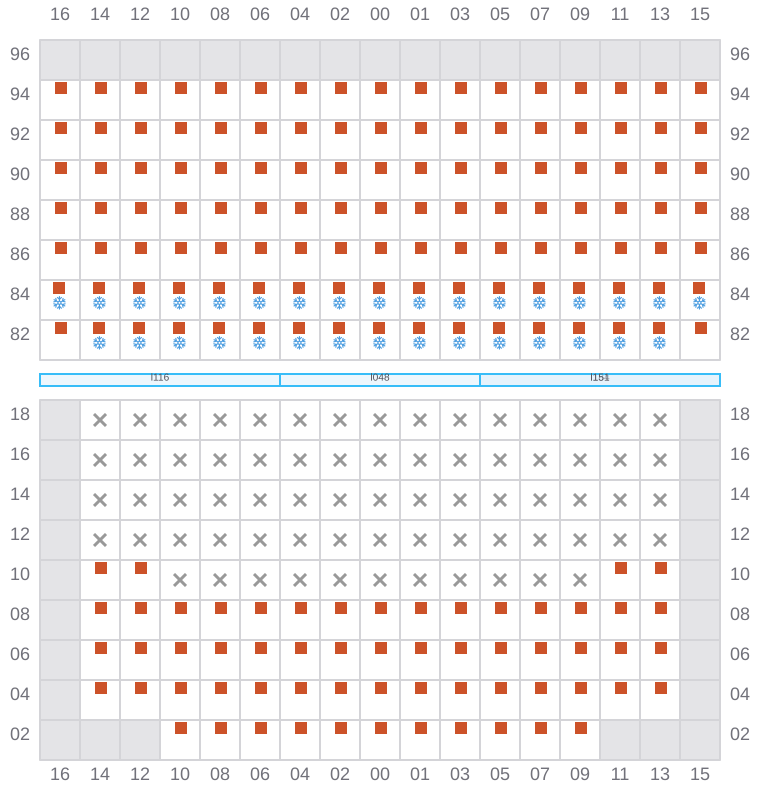

Bay 051 view and slots of MARIANNA I

053 (054)

  • →
  • ← / →

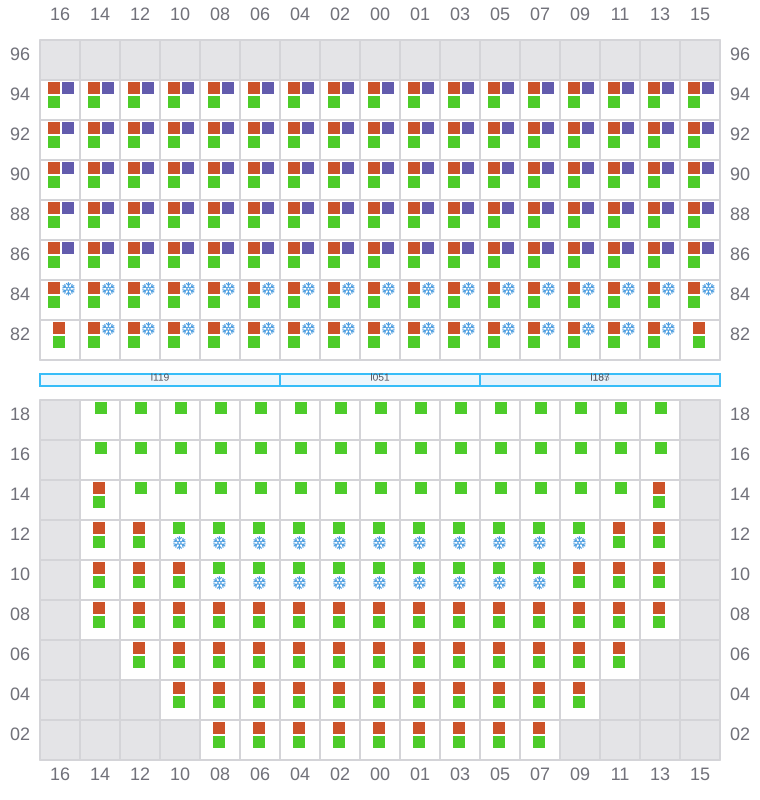

Bay 053 view and slots of MARIANNA I

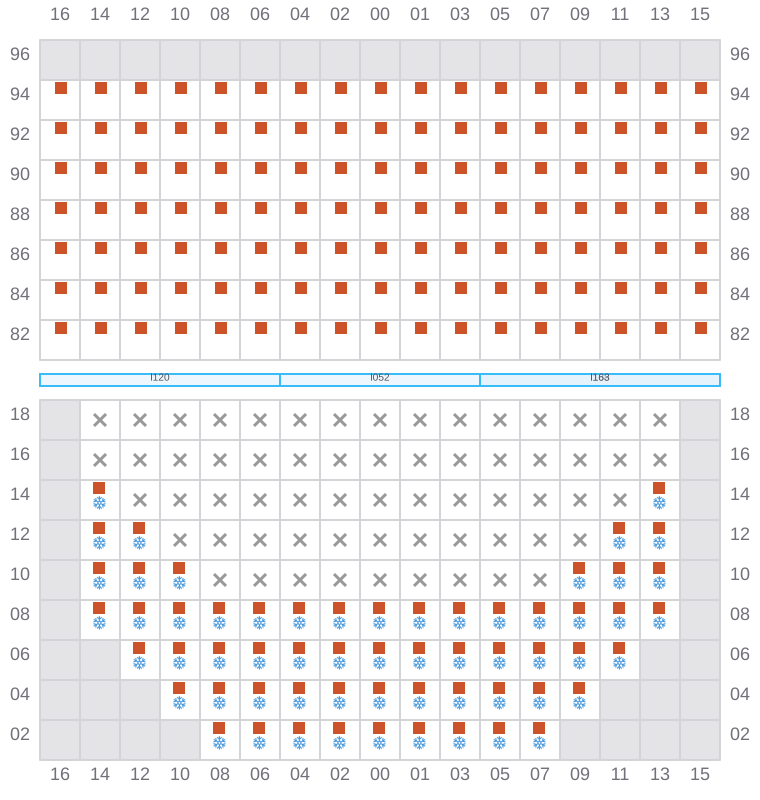

055

  • ←
  • ? / →
Bay 055 view and slots of MARIANNA I

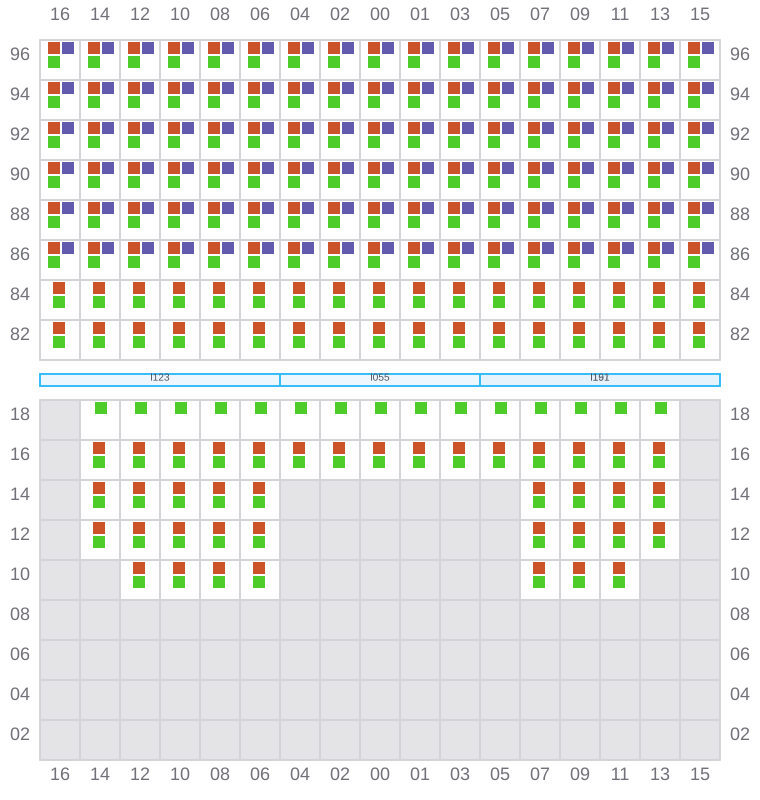

057 (058)

  • →
Bay 057 view and slots of MARIANNA I

059

  • ←
  • →

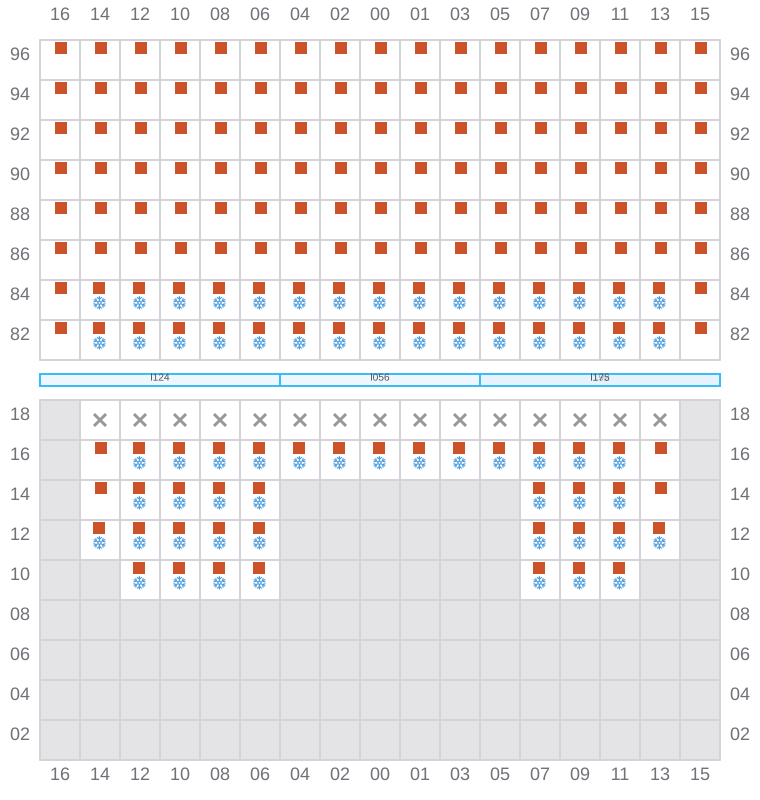

Bay 059 view and slots of MARIANNA I

061 (062)

  • →
  • ← / ?

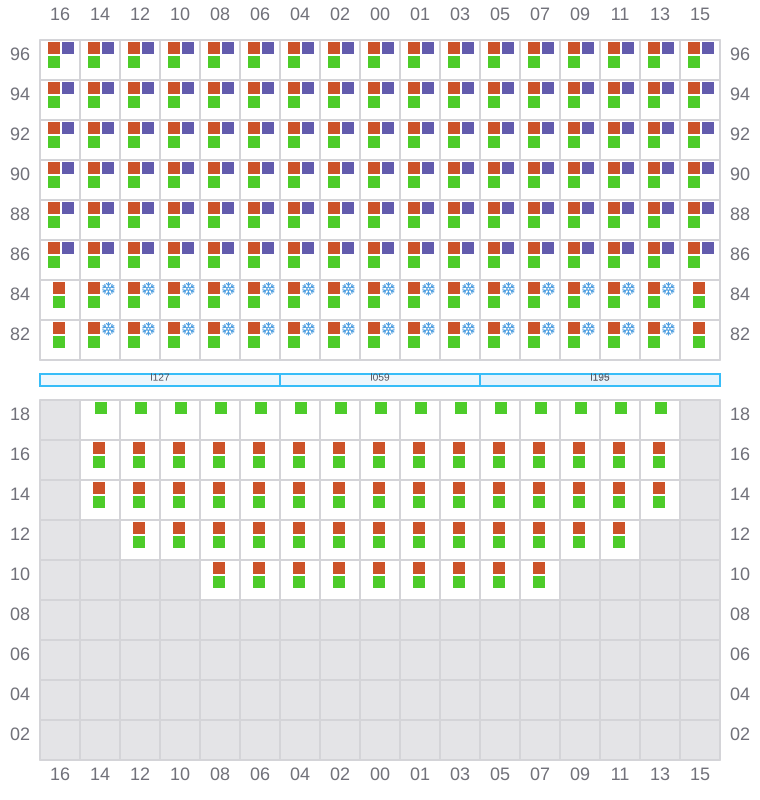

Bay 061 view and slots of MARIANNA I

063

  • ←
  • ? / →

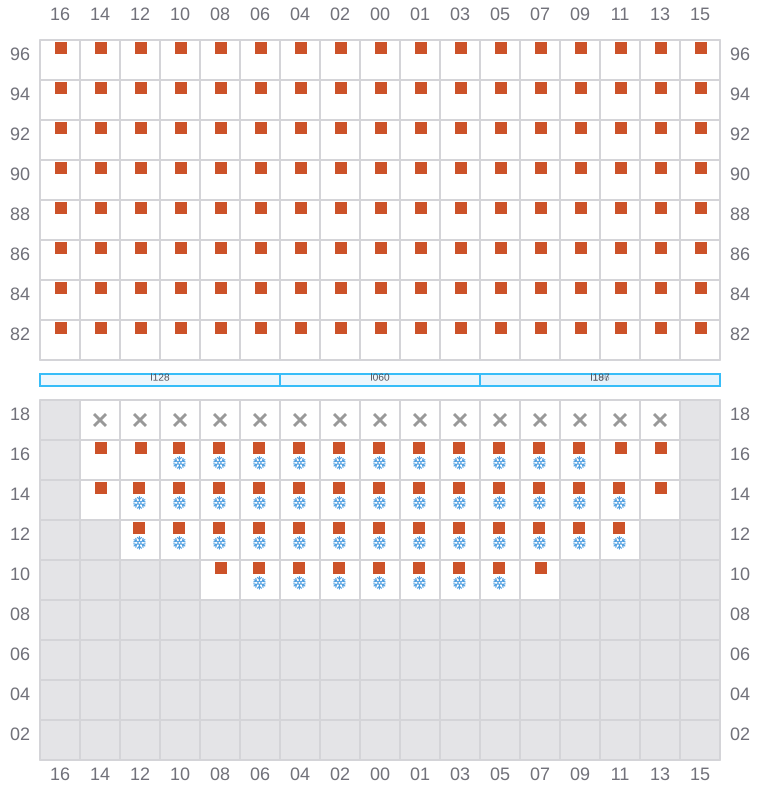

Bay 063 view and slots of MARIANNA I

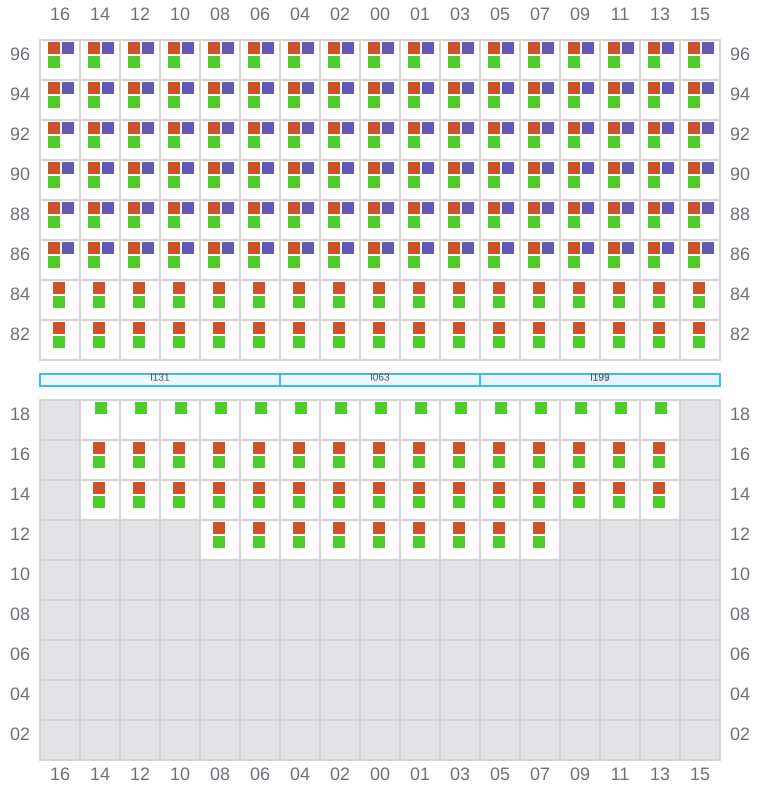

065 (066)

  • →
Bay 065 view and slots of MARIANNA I

067

  • ←
  • → / ?

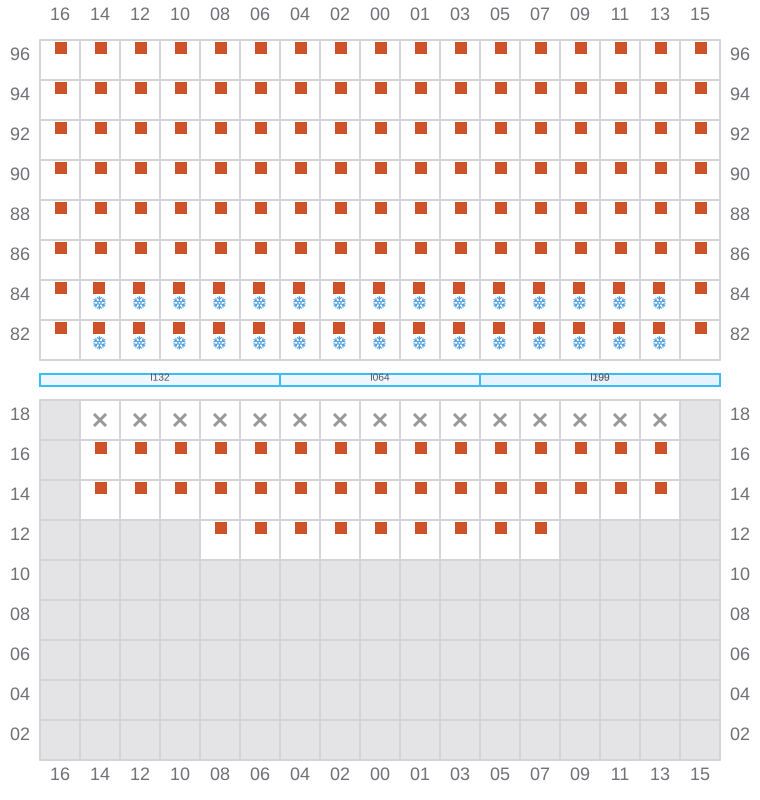

Bay 067 view and slots of MARIANNA I

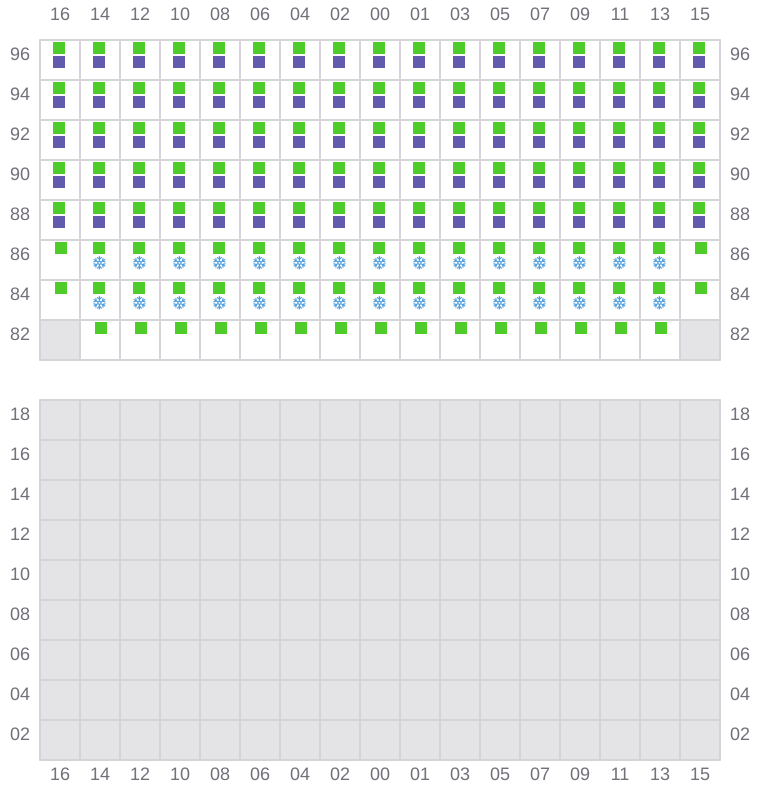

069 (070)

  • → / ?
  • ← / ?
Bay 069 view and slots of MARIANNA I
