MARIE
9252929 | ONJC | CMA by *********************** Last update: Thu Jan 16 2025
General Info
Ship Name:MARIE
IMO Code:9252929
Call Sign:ONJC
Line Operator:CMA
Class Name for Sister Ships:FMRI
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:031
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:656
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

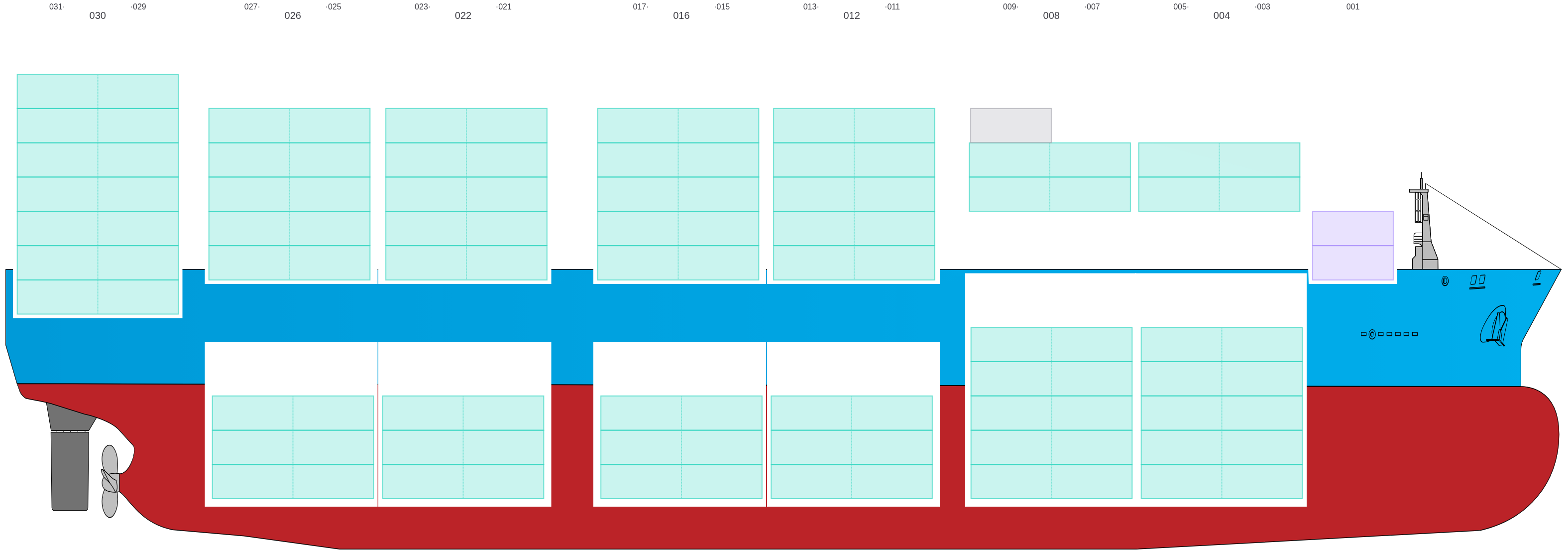

Side View

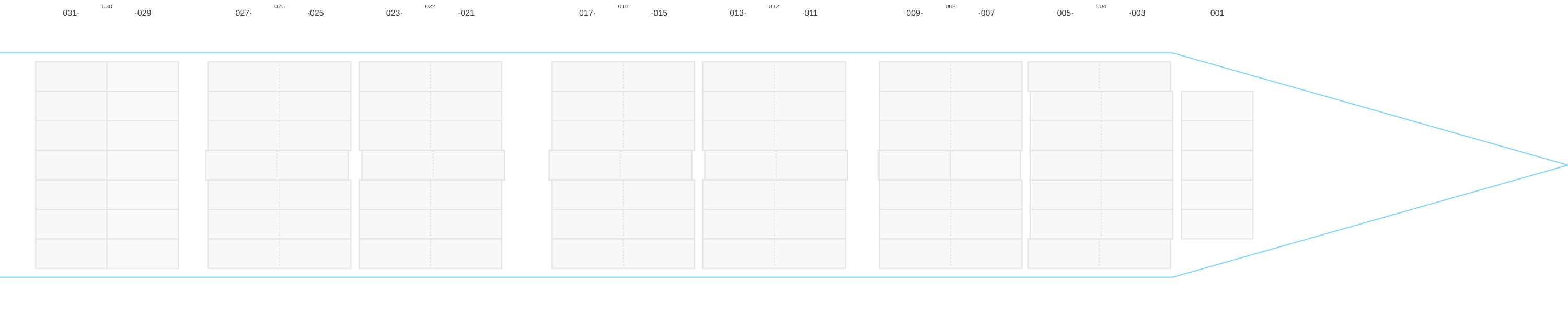

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

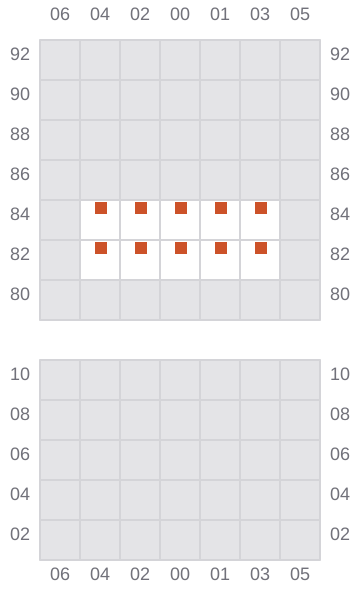

001
- → / ?

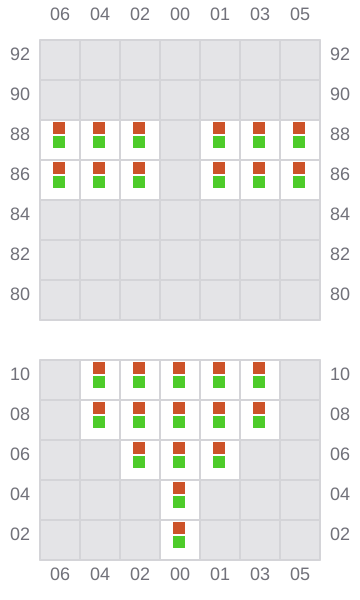

003 (004)
- →
- →
005
- ←
- →

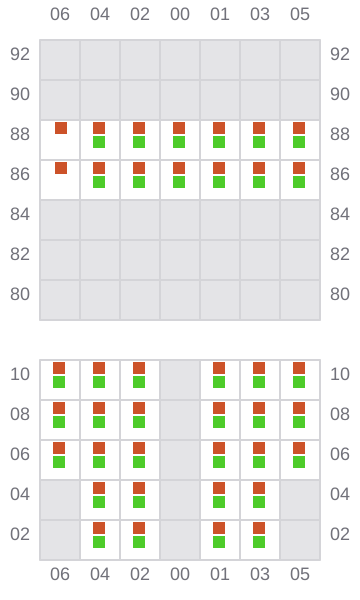

007 (008)
- →
- →

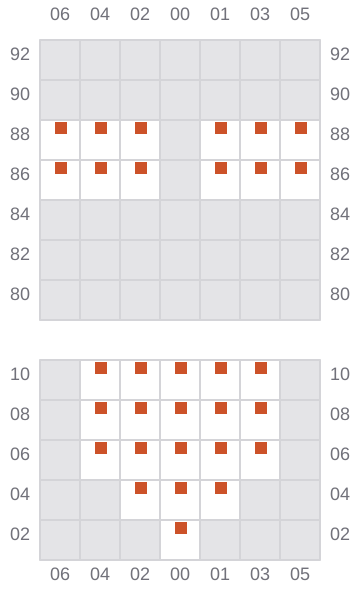

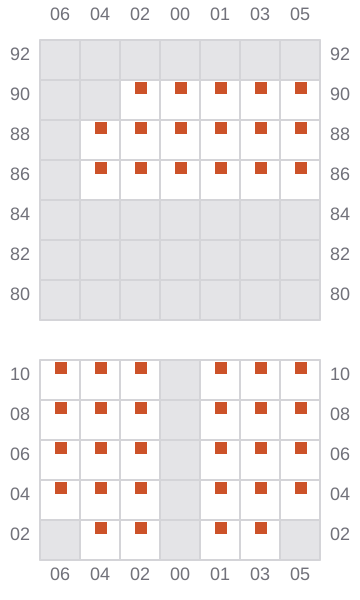

009
- ←
- →
011 (012)
- →
- ? / →
- →
013
- ←
- → / ?
- →
015 (016)
- →
- → / ←
- →

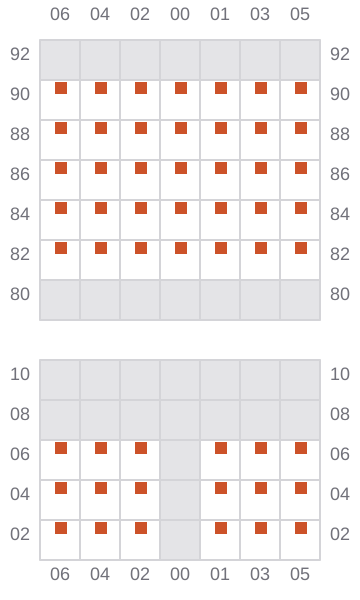

017
- ←
- →

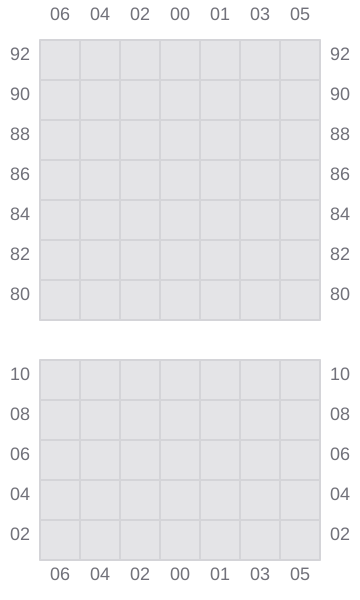

019

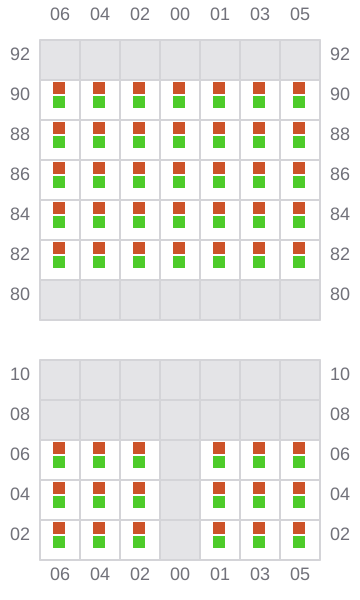

021 (022)
- →
- →
023
- ←
- →

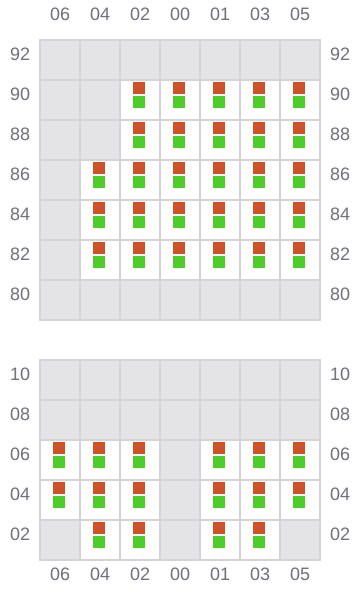

025 (026)
- →
- →

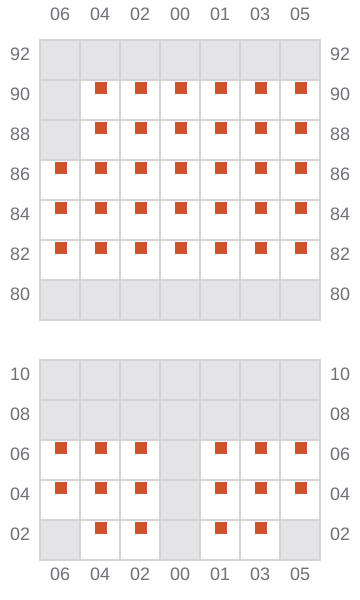

027
- ←
- →

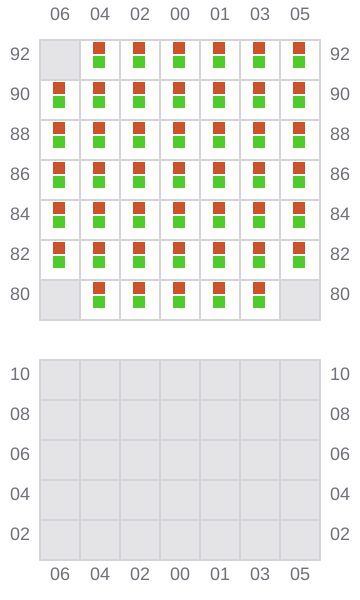

029 (030)
- → / ?
- → / ?

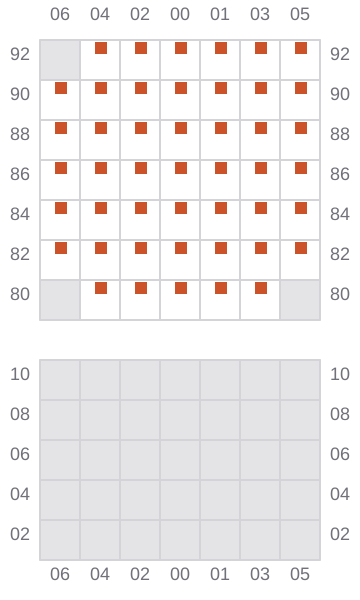

031
- ← / ?
- → / ?
