MARINA VOYAGER
9400813 | 3EQS9 | 9400813 by ********* Last update: Thu May 09 2024

General Info

Ship Name:MARINA VOYAGER
IMO Code:9400813
Call Sign:3EQS9
Line Operator:9400813
Class Name for Sister Ships:CSCL KINGSTON
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,583

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MARINA VOYAGER

Hatch-Covers View

Deck view of MARINA VOYAGER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

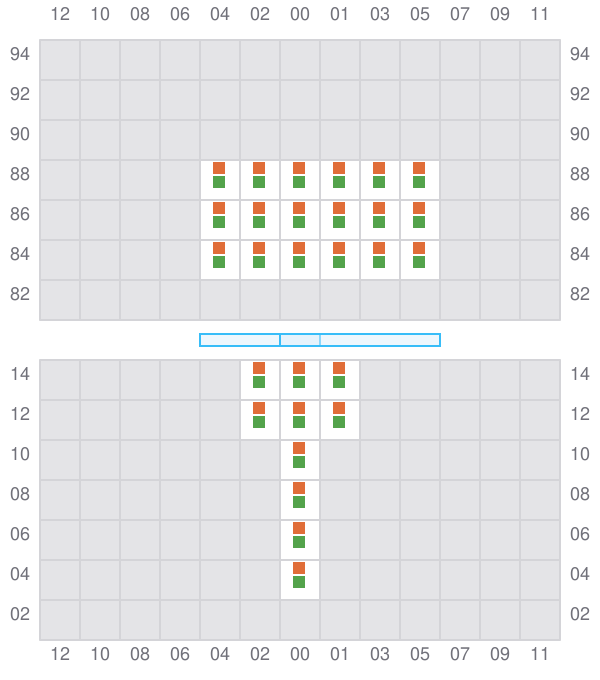

001 (002)

  • →
Bay 001 view and slots of MARINA VOYAGER

003

  • ←

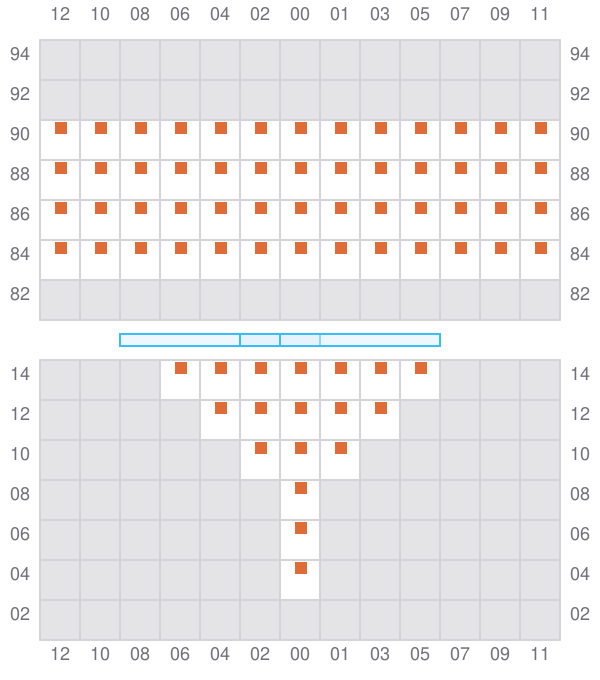

Bay 003 view and slots of MARINA VOYAGER

005 (006)

  • →

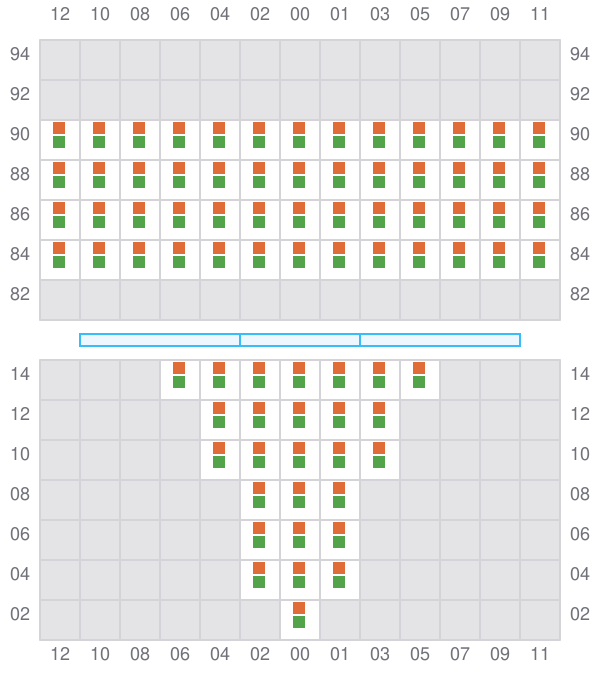

Bay 005 view and slots of MARINA VOYAGER

007

  • ←
  • → / ?

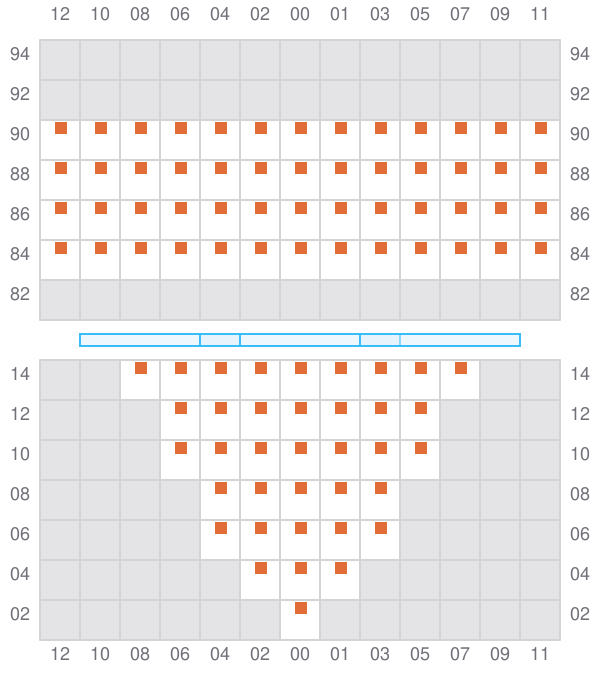

Bay 007 view and slots of MARINA VOYAGER

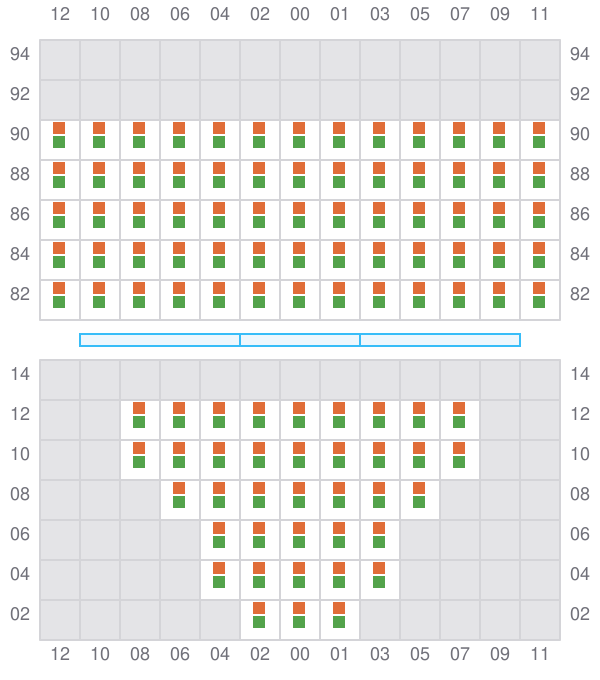

009 (010)

  • →
Bay 009 view and slots of MARINA VOYAGER

011

  • ←
  • → / ?

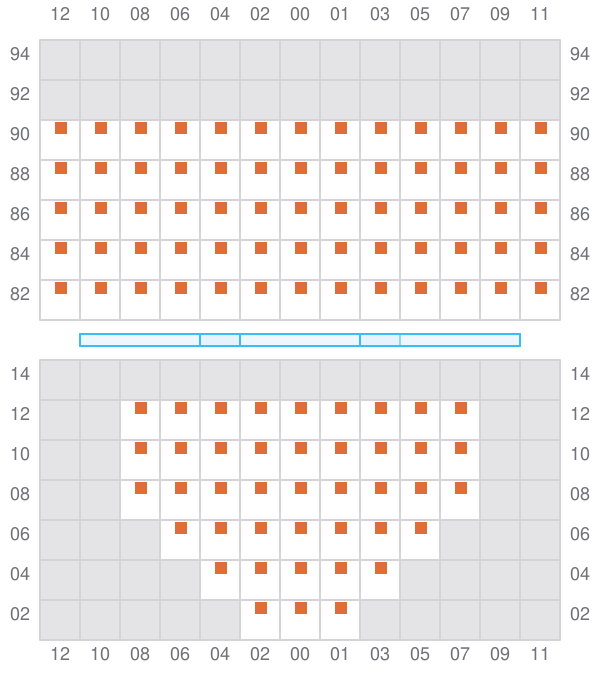

Bay 011 view and slots of MARINA VOYAGER

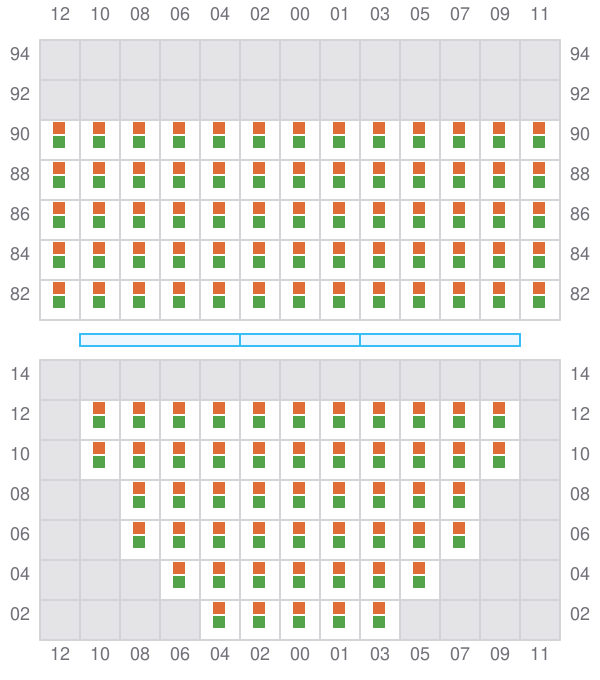

013 (014)

  • →
Bay 013 view and slots of MARINA VOYAGER

015

  • ←
  • → / ?

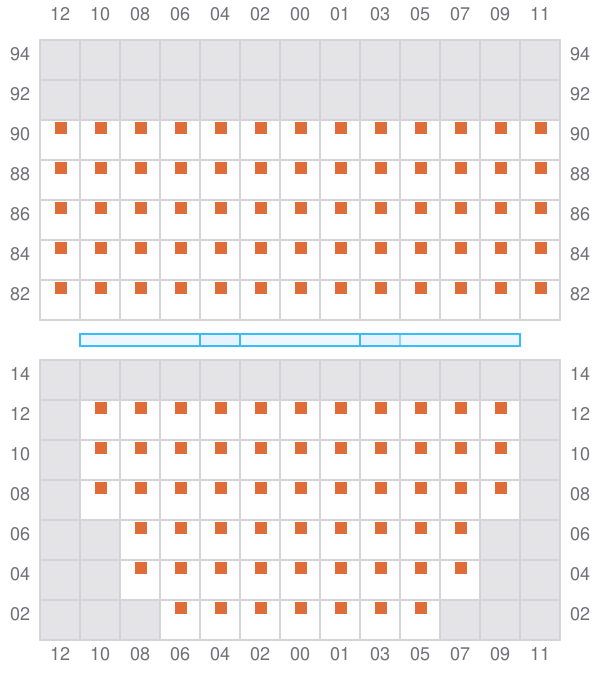

Bay 015 view and slots of MARINA VOYAGER

017 (018)

  • →

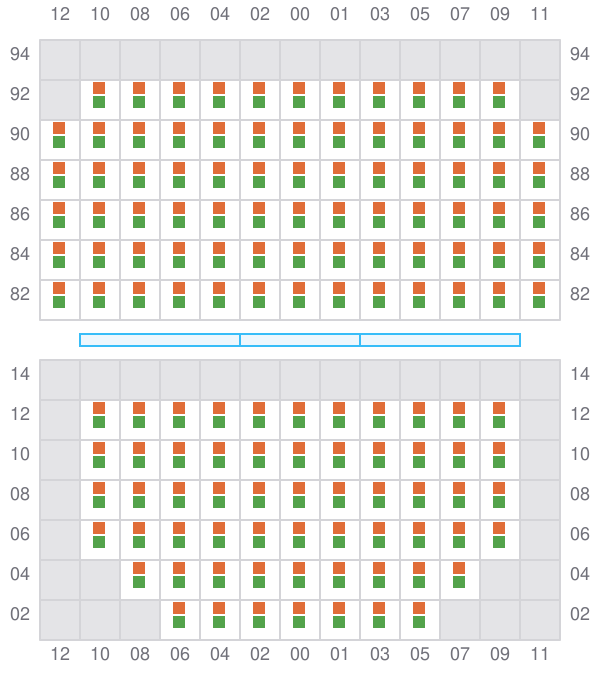

Bay 017 view and slots of MARINA VOYAGER

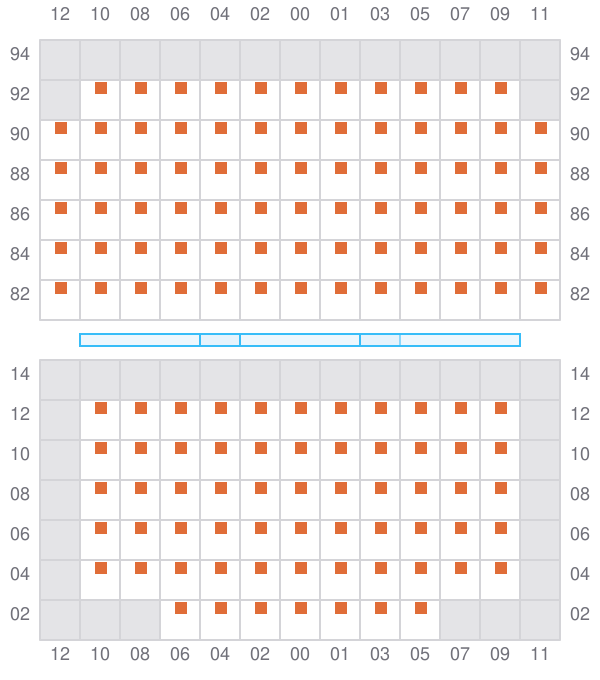

019

  • ←
  • → / ?
Bay 019 view and slots of MARINA VOYAGER

021 (022)

  • →
Bay 021 view and slots of MARINA VOYAGER

023

  • ←
  • → / ?
Bay 023 view and slots of MARINA VOYAGER

025 (026)

  • →
Bay 025 view and slots of MARINA VOYAGER

027

  • ←
  • → / ?
Bay 027 view and slots of MARINA VOYAGER

029 (030)

  • →
Bay 029 view and slots of MARINA VOYAGER

031

  • ←
  • → / ?

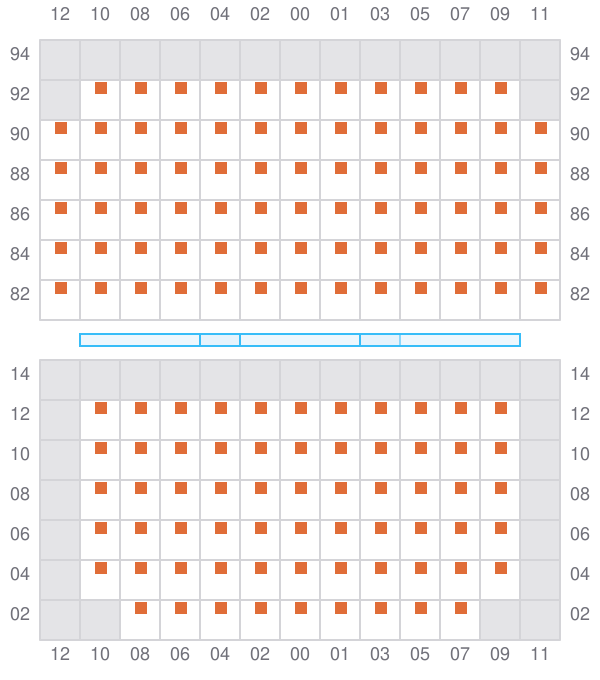

Bay 031 view and slots of MARINA VOYAGER

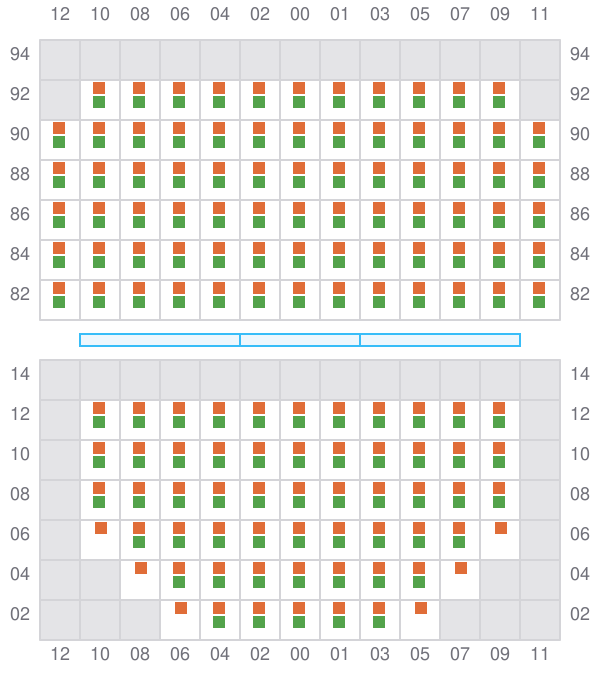

033 (034)

  • →
Bay 033 view and slots of MARINA VOYAGER

035

  • ←
  • → / ?

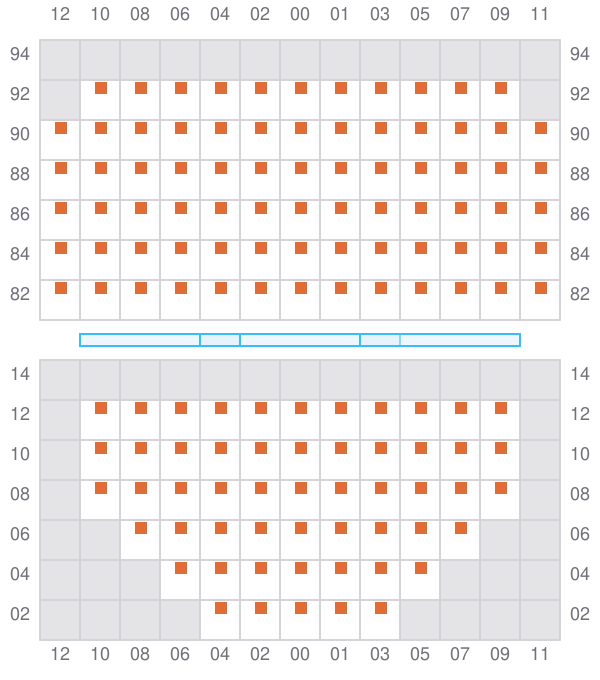

Bay 035 view and slots of MARINA VOYAGER

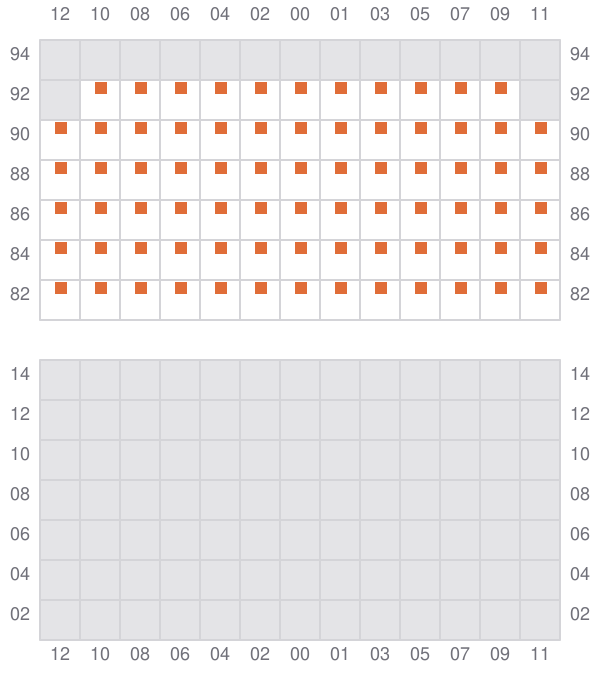

037

  • → / ?
Bay 037 view and slots of MARINA VOYAGER

039 (040)

  • →

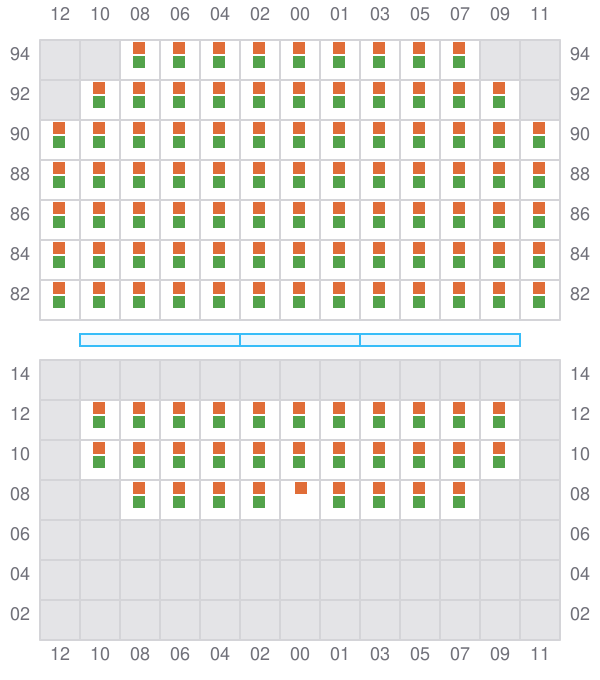

Bay 039 view and slots of MARINA VOYAGER

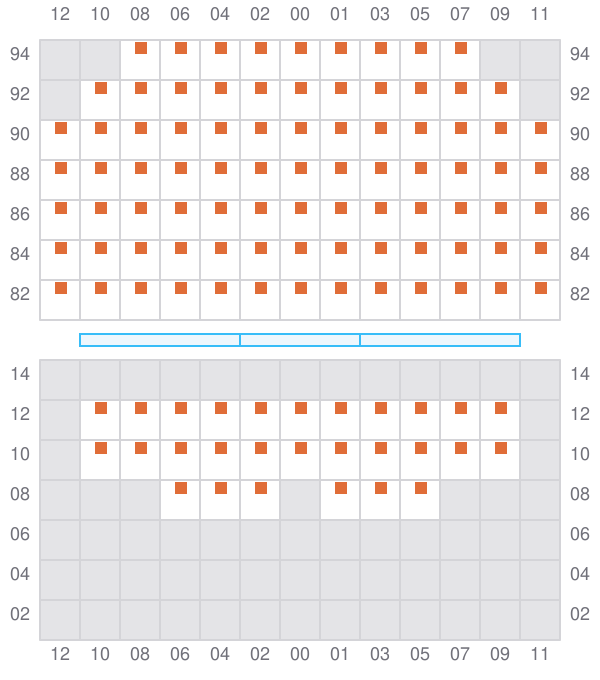

041

  • ← / ?
Bay 041 view and slots of MARINA VOYAGER

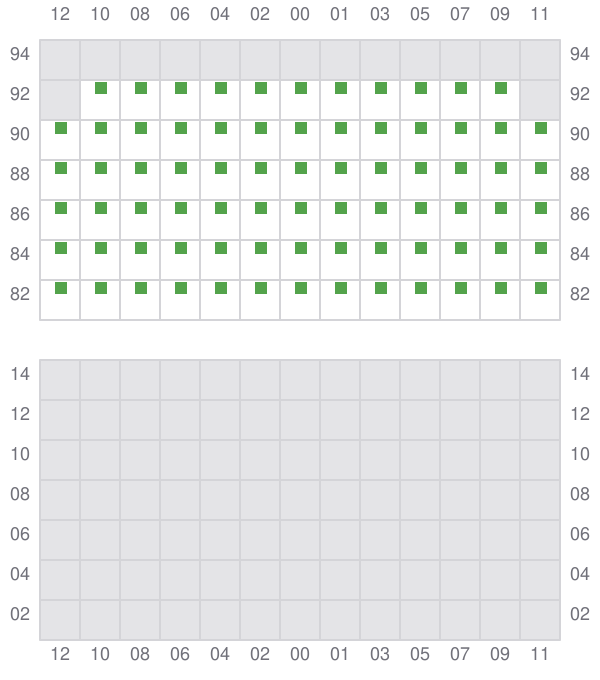

043 (044)

  • → / ?

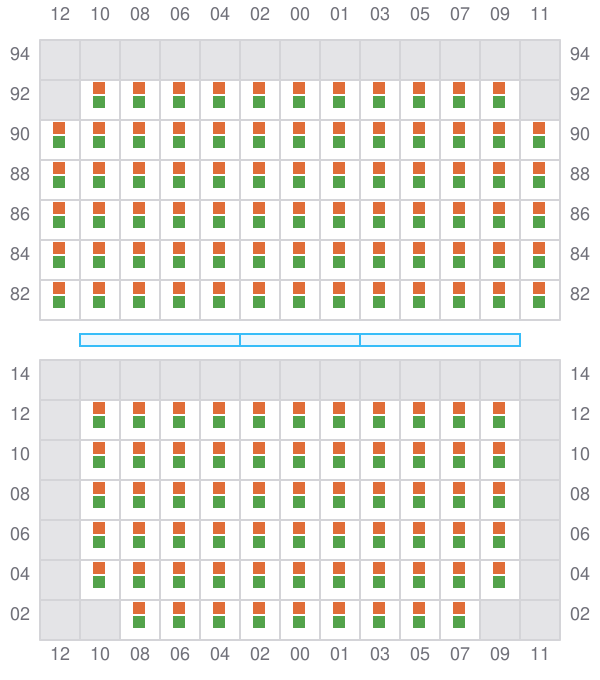

Bay 043 view and slots of MARINA VOYAGER
