MARINER
9694414 | 9V3398 | 9694414 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:MARINER
IMO Code:9694414
Call Sign:9V3398
Line Operator:9694414
Class Name for Sister Ships:A7R
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:041
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,365
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

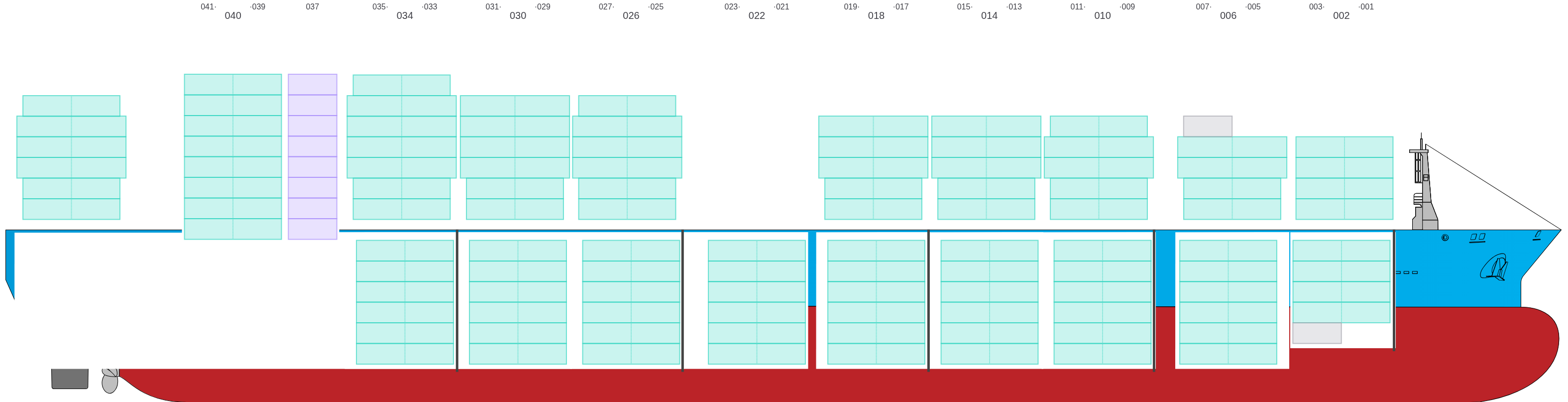

Side View
![Side view of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-sideView.png?v=1711663668076)

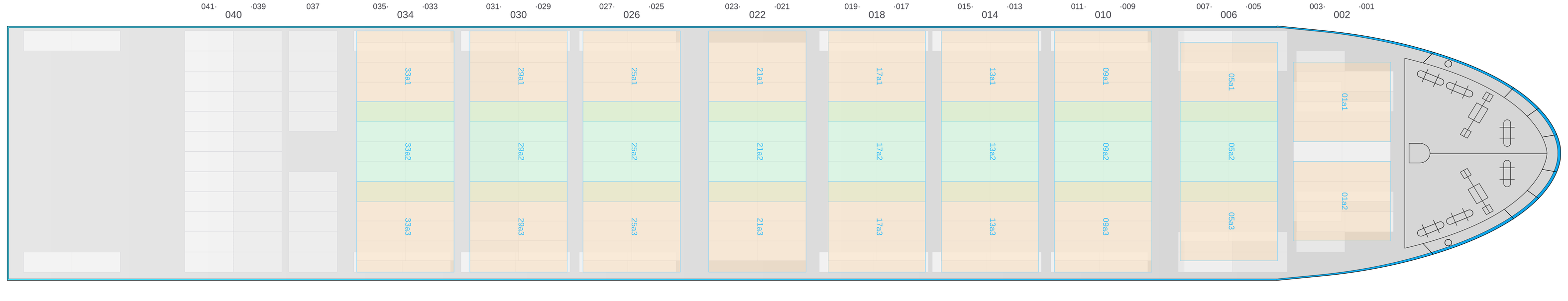

Hatch-Covers View
![Deck view of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-deckView.png?v=1711663668076)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

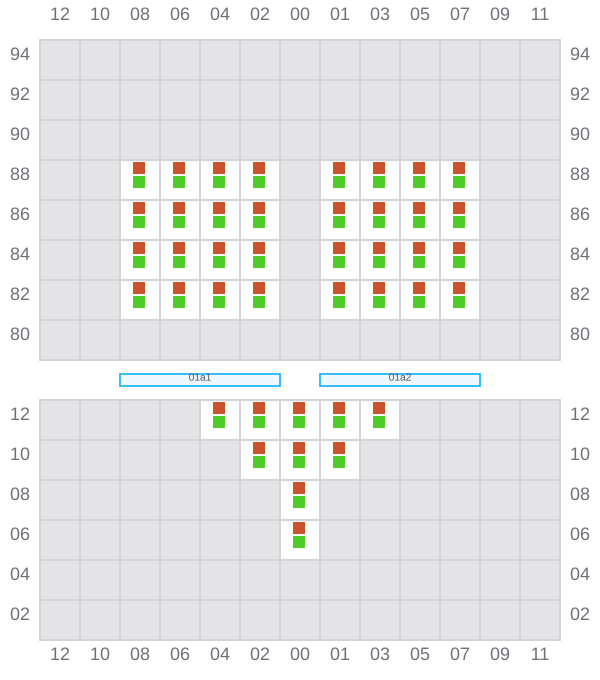

001 (002)
- →
![Bay 001 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b001.png?v=1711663668076)

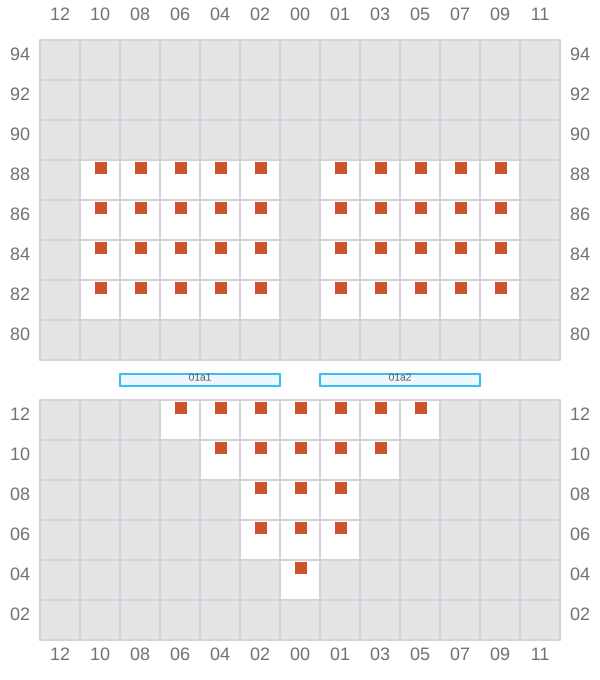

003
- ←
- ? / →
![Bay 003 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b003.png?v=1711663668076)

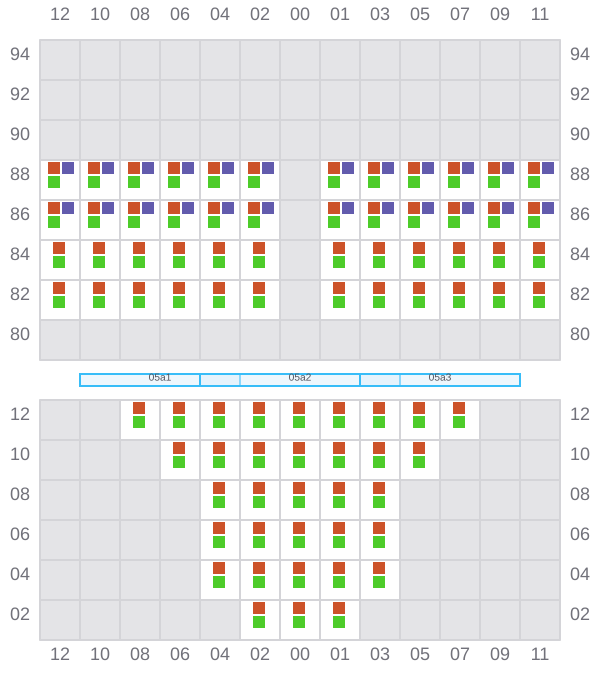

005 (006)
- →
![Bay 005 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b005.png?v=1711663668076)

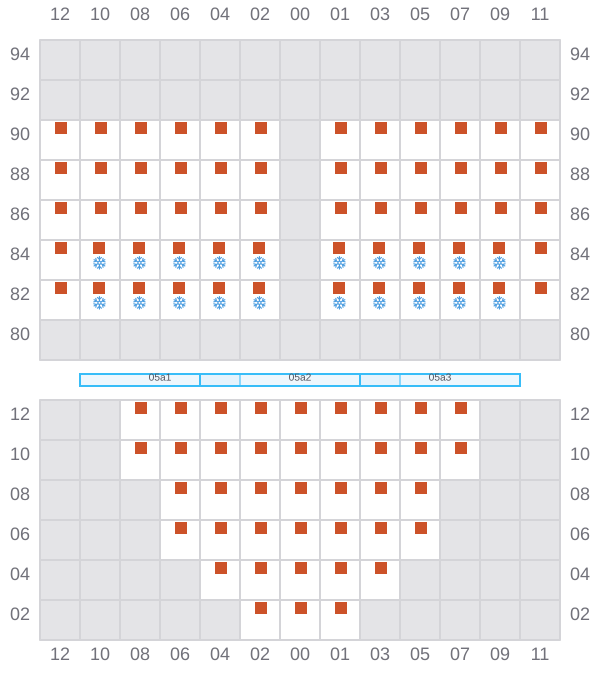

007
- ←
- →
![Bay 007 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b007.png?v=1711663668076)

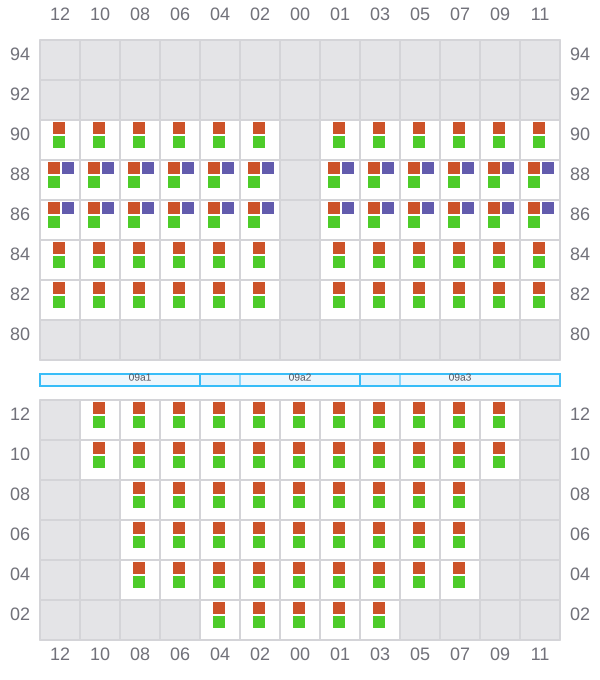

009 (010)
- →
- ? / ←
![Bay 009 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b009.png?v=1711663668076)

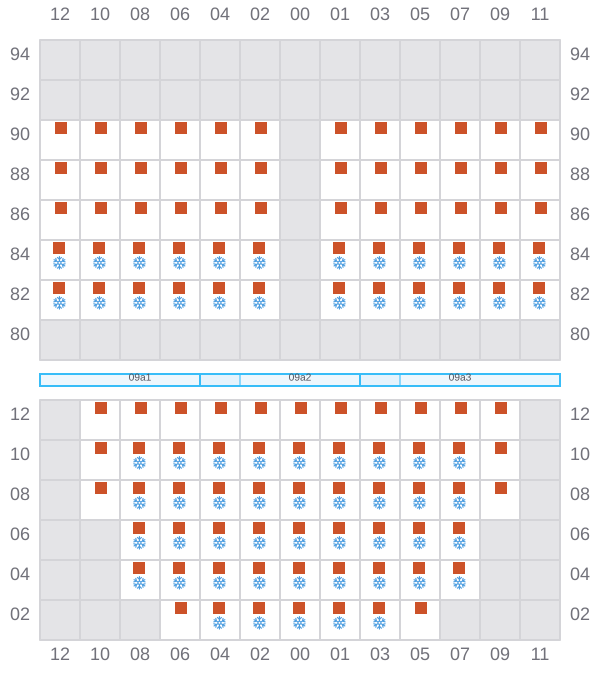

011
- ←
- → / ?
![Bay 011 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b011.png?v=1711663668076)

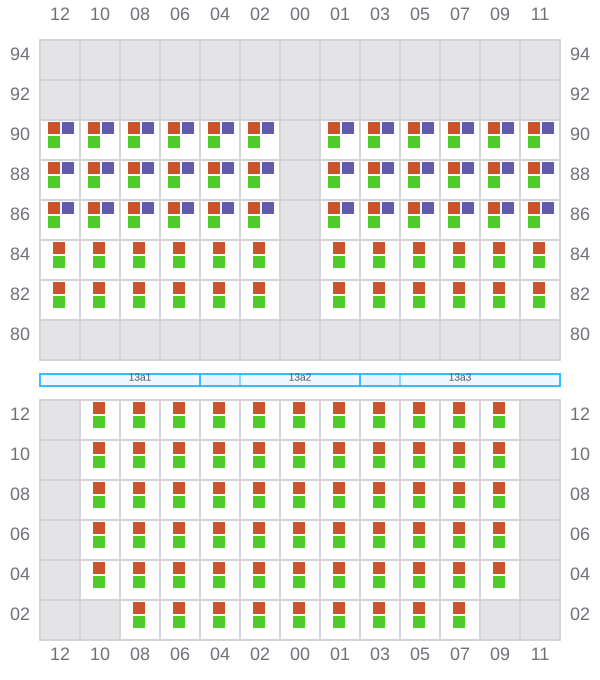

013 (014)
- →
![Bay 013 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b013.png?v=1711663668076)

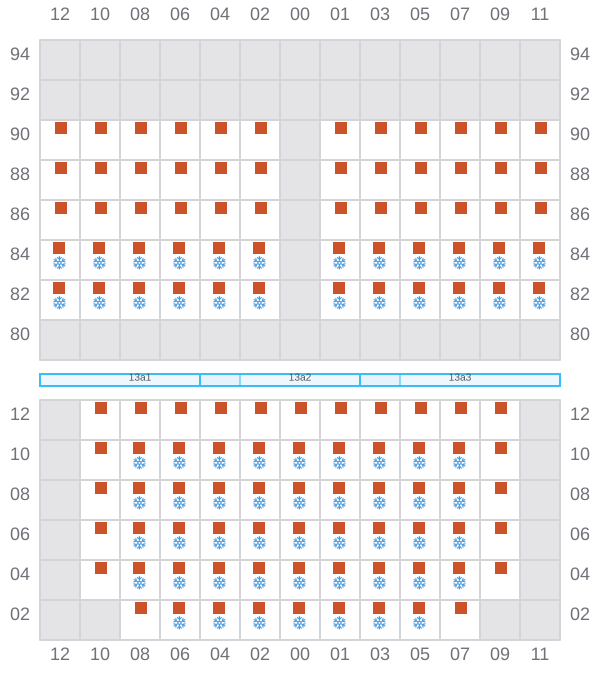

015
- ←
- →
![Bay 015 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b015.png?v=1711663668076)
017 (018)
- →
- ? / ←
![Bay 017 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b017.png?v=1711663668076)
019
- ←
- →
![Bay 019 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b019.png?v=1711663668076)

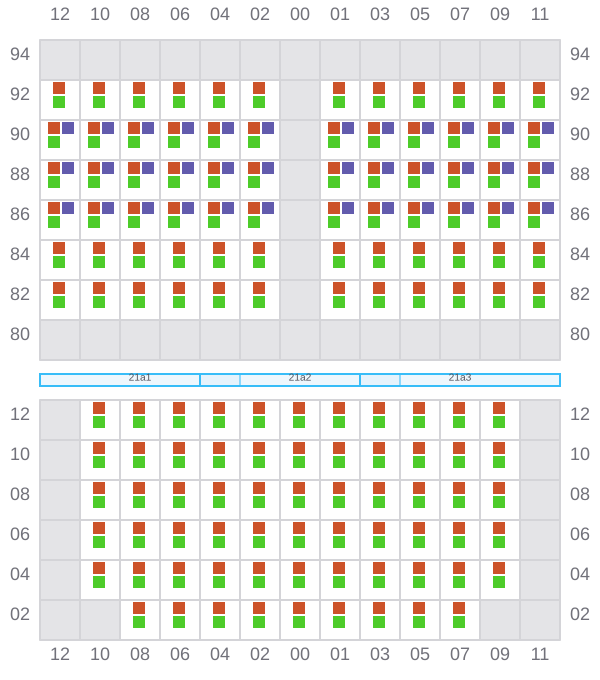

021 (022)
- →
![Bay 021 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b021.png?v=1711663668076)
023
- ←
- →
![Bay 023 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b023.png?v=1711663668076)

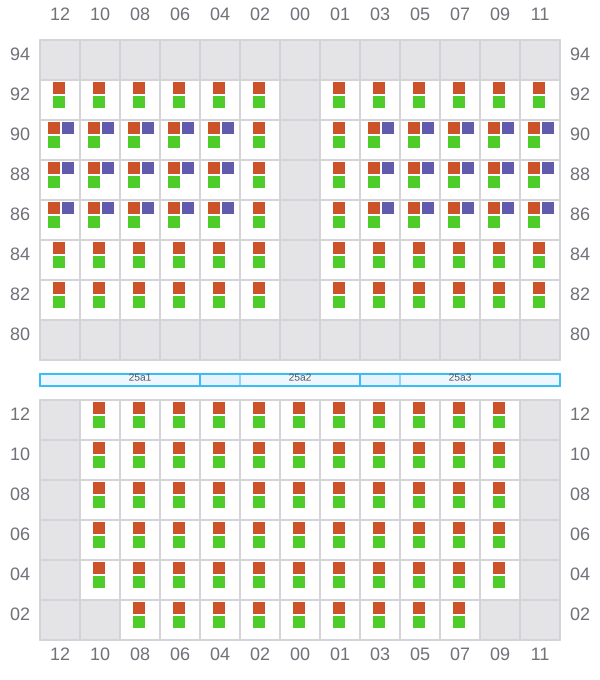

025 (026)
- →
- ? / ←
![Bay 025 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b025.png?v=1711663668076)

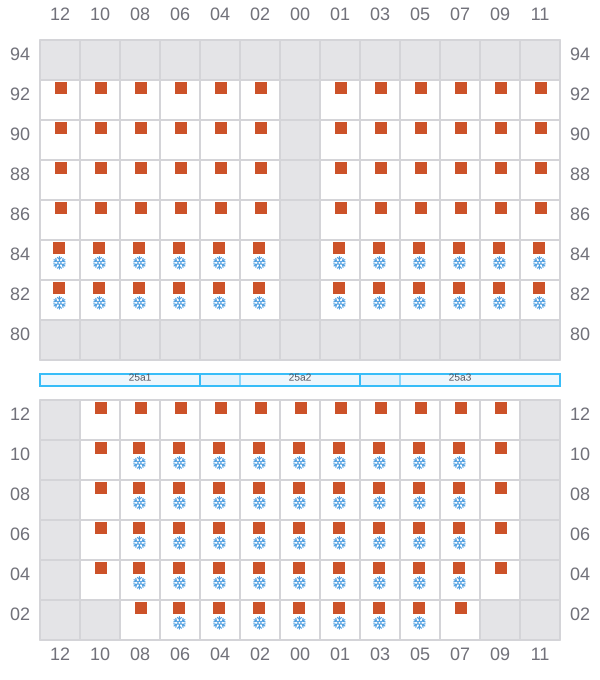

027
- ←
- →
![Bay 027 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b027.png?v=1711663668076)

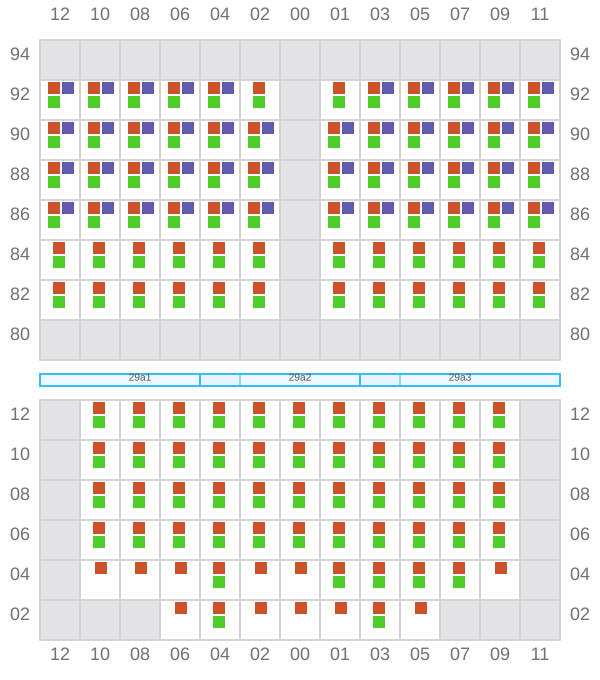

029 (030)
- →
![Bay 029 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b029.png?v=1711663668076)

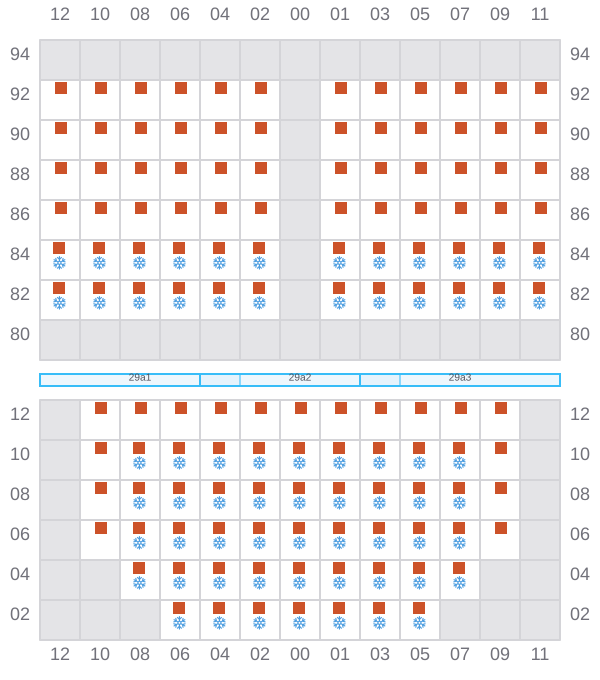

031
- ←
- →
![Bay 031 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b031.png?v=1711663668076)

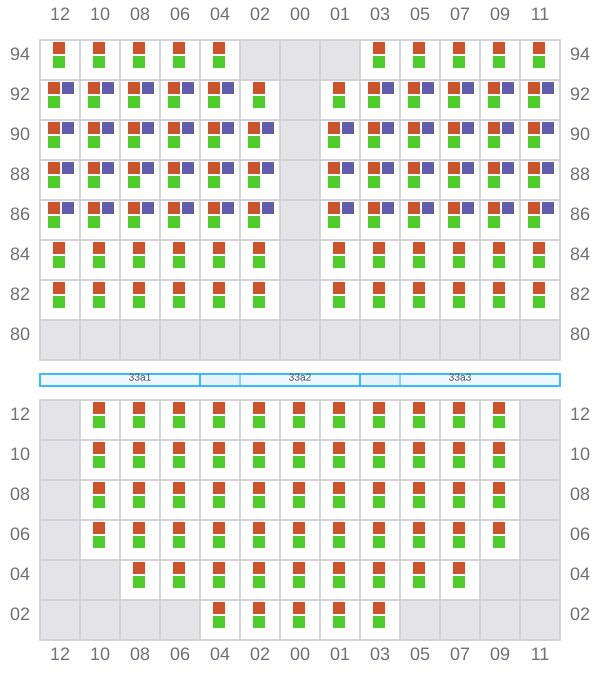

033 (034)
- →
- ? / ←
![Bay 033 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b033.png?v=1711663668076)

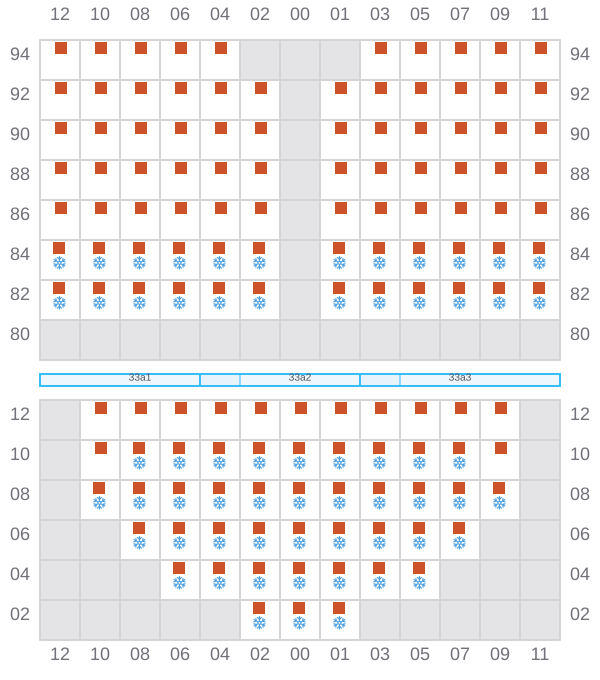

035
- ←
- → / ?
![Bay 035 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b035.png?v=1711663668076)

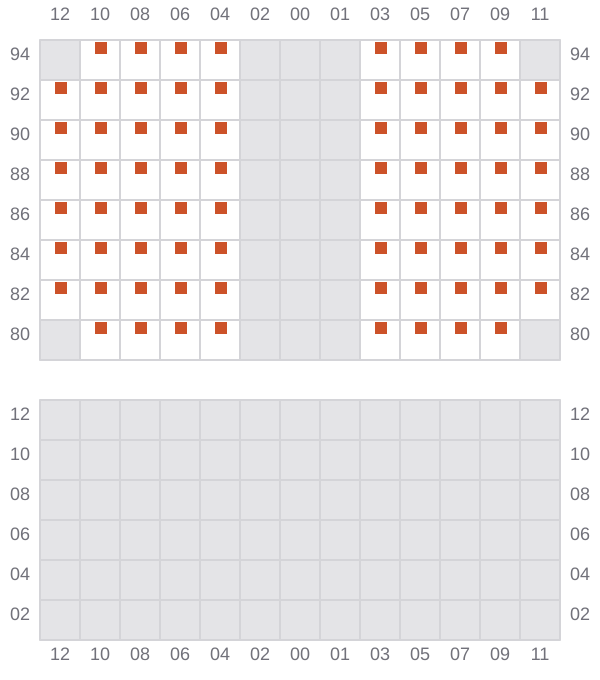

037
- ← / ?
![Bay 037 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b037.png?v=1711663668076)

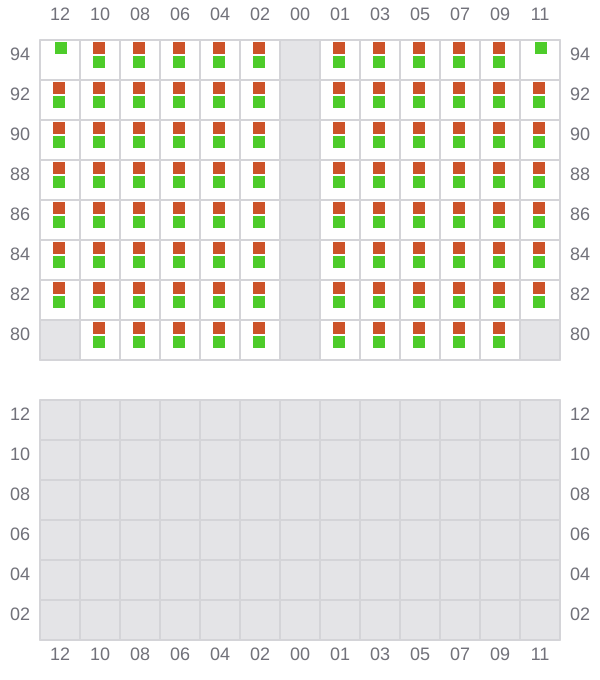

039 (040)
- → / ?
![Bay 039 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b039.png?v=1711663668076)

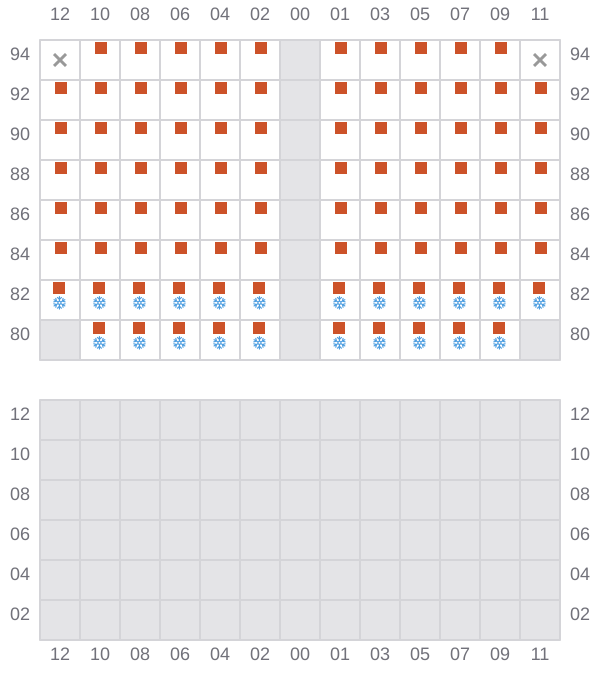

041
- ← / ?
- ← / ?
![Bay 041 view and slots of MARINER](/vessel-images/a1924af7-82de-4126-8e9d-e28700054977-b041.png?v=1711663668076)
