MARSA NEPTUNE
9217022 | V4UW3 | 9217022 by ********* Last update: Thu Mar 14 2024
General Info
Ship Name:MARSA NEPTUNE
IMO Code:9217022
Call Sign:V4UW3
Line Operator:9217022
Class Name for Sister Ships:MTW
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,478
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

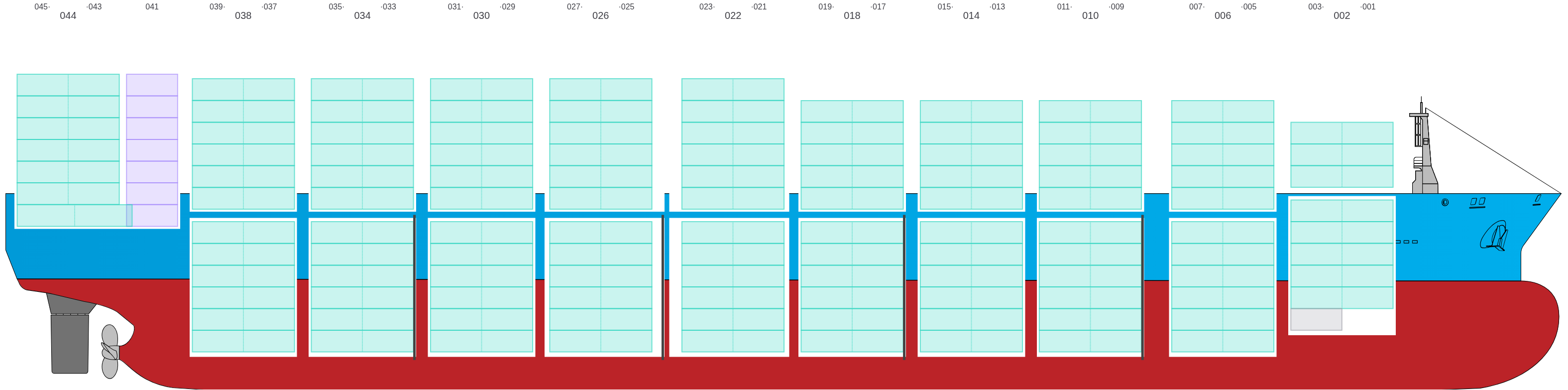

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

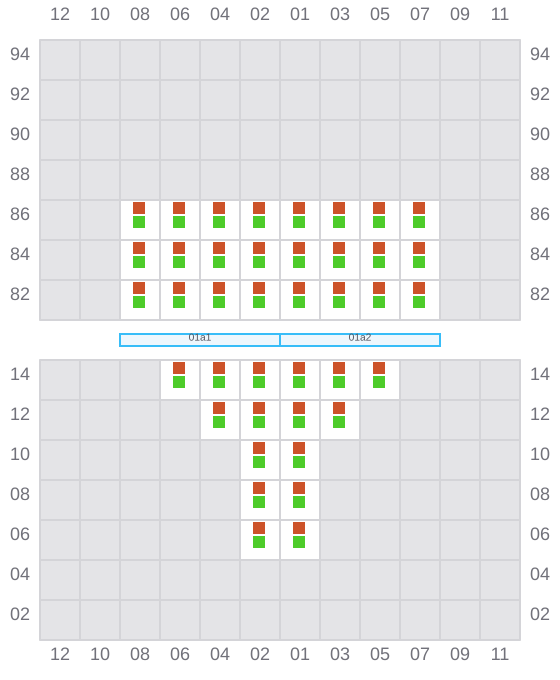

001 (002)
- →

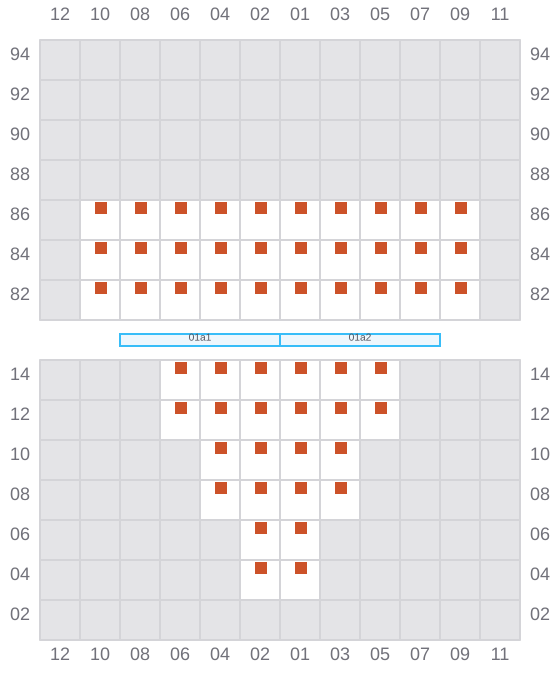

003
- ←

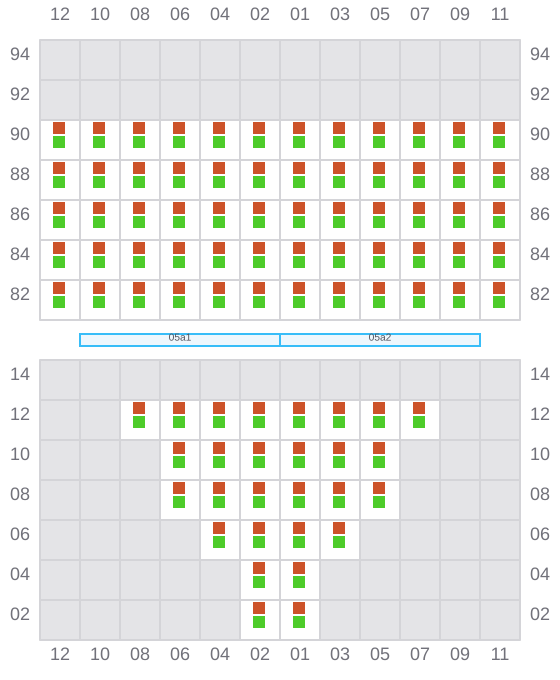

005 (006)
- →

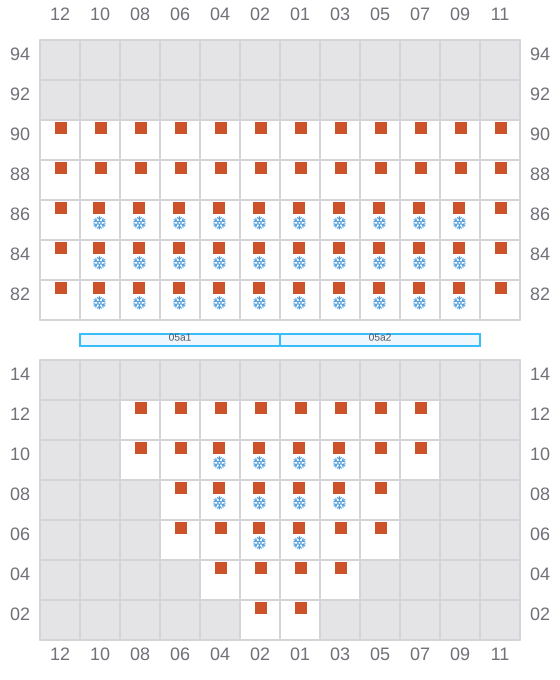

007
- ←
- →

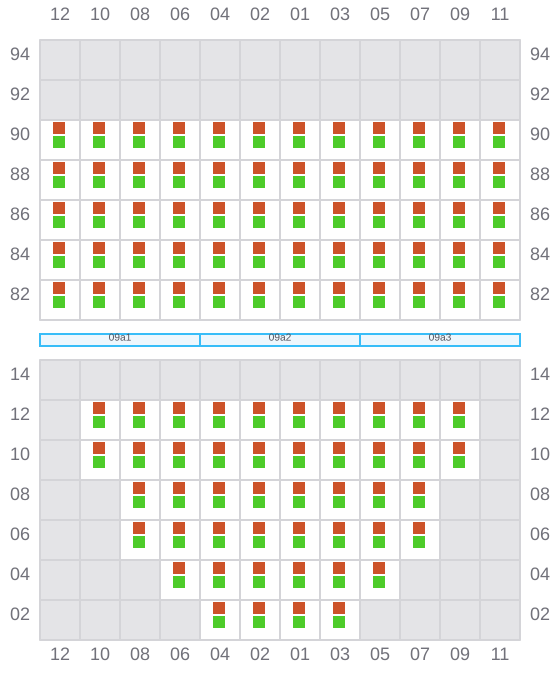

009 (010)
- →

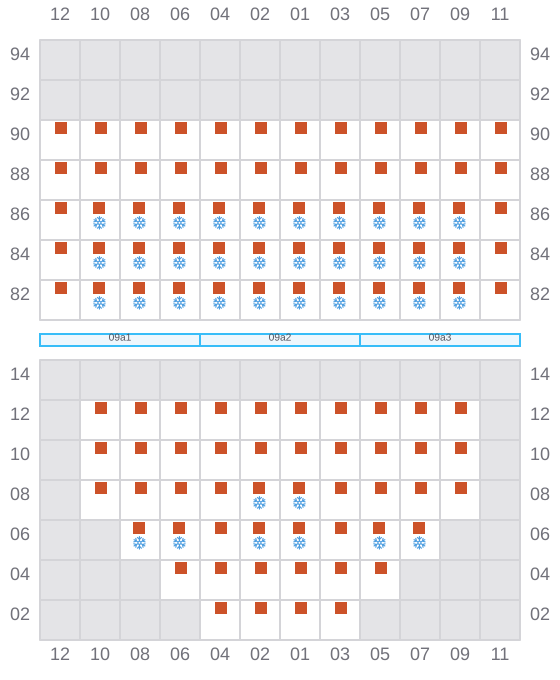

011
- ←
- →

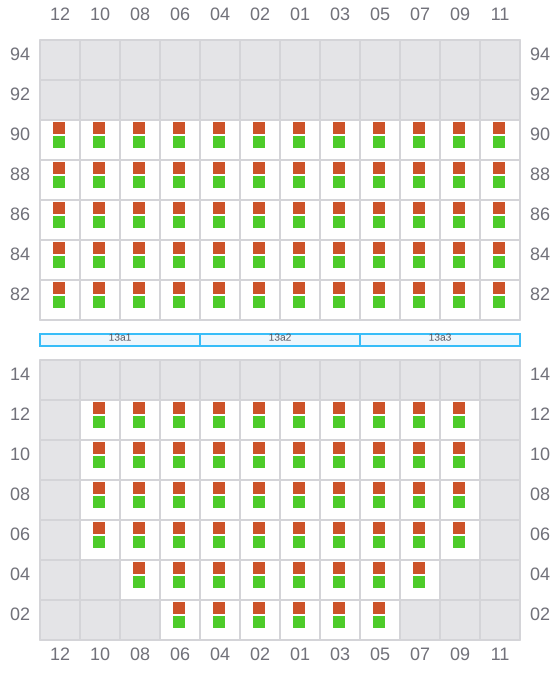

013 (014)
- →

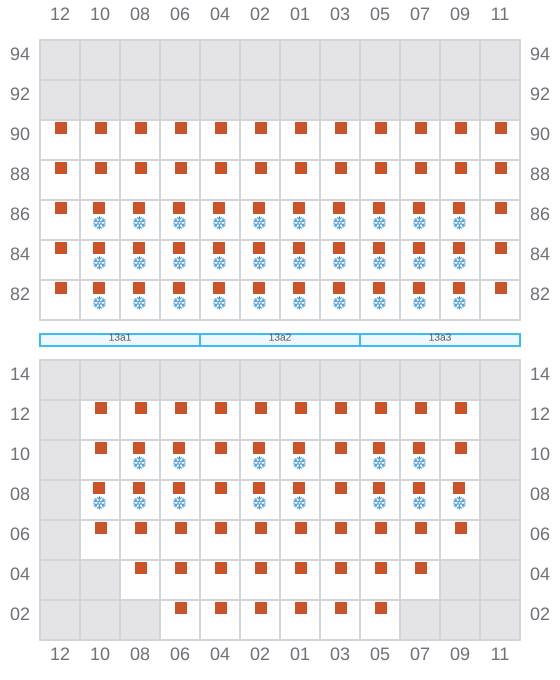

015
- ←
- →

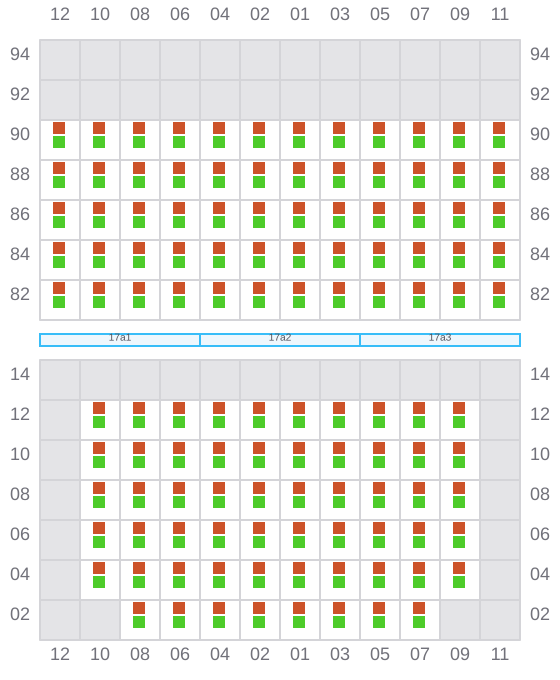

017 (018)
- →
019
- ←
- →

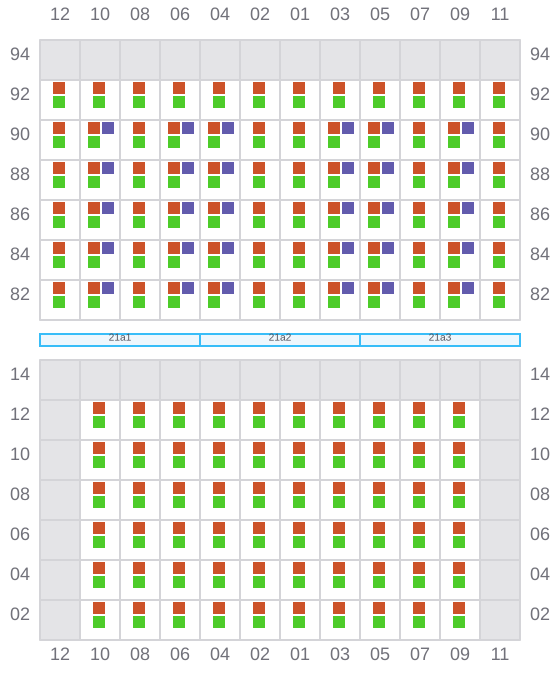

021 (022)
- →

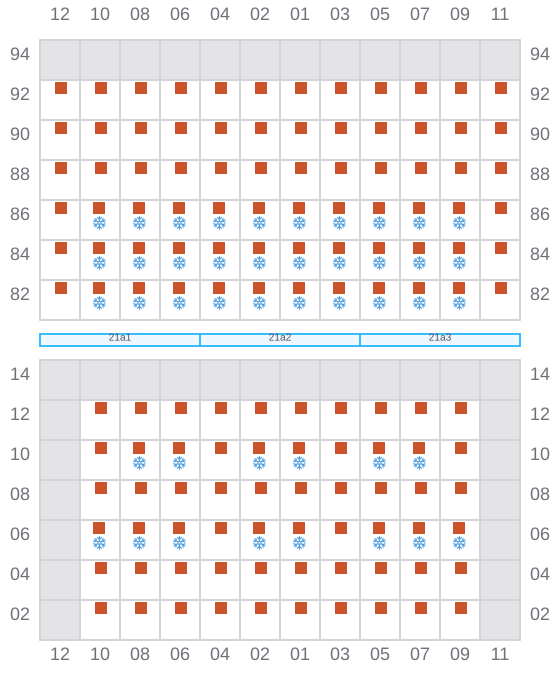

023
- ←
- →

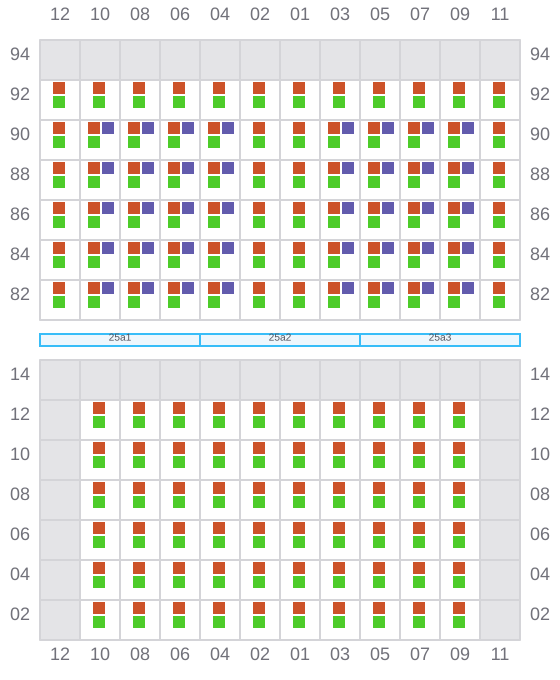

025 (026)
- →

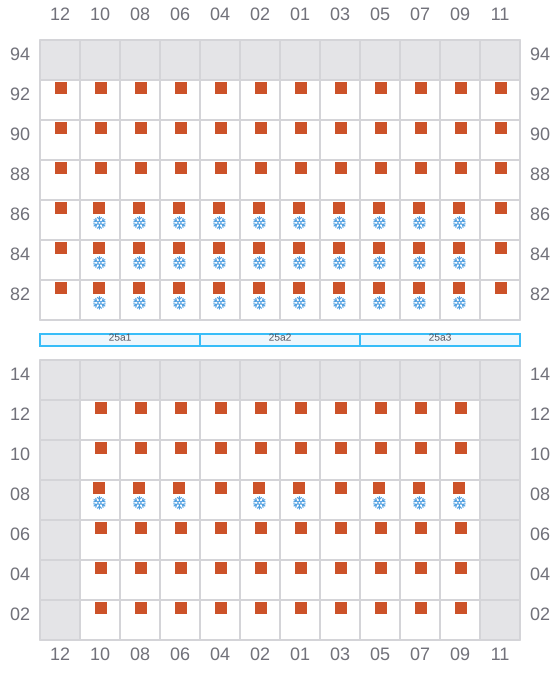

027
- ←
- →

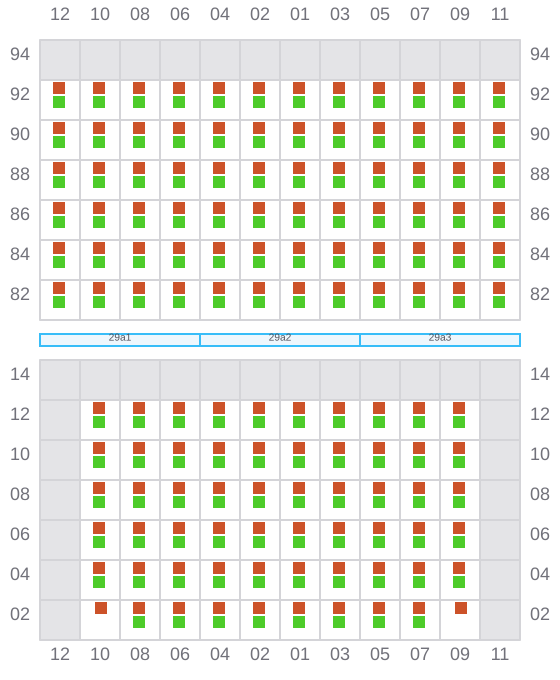

029 (030)
- →

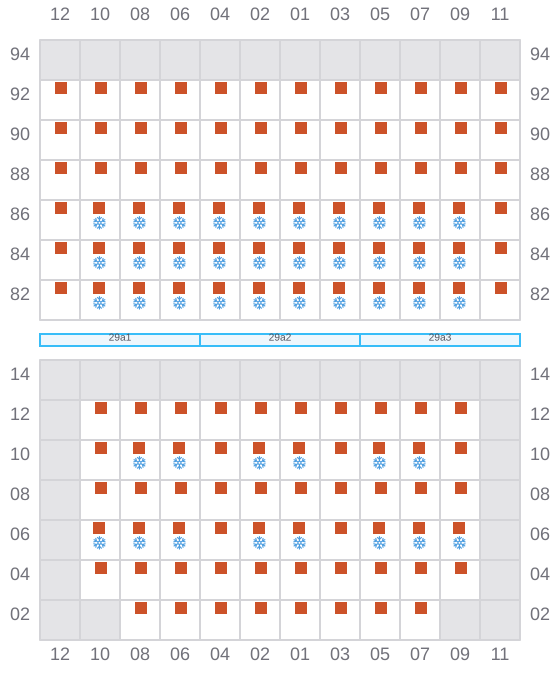

031
- ←
- →
033 (034)
- →

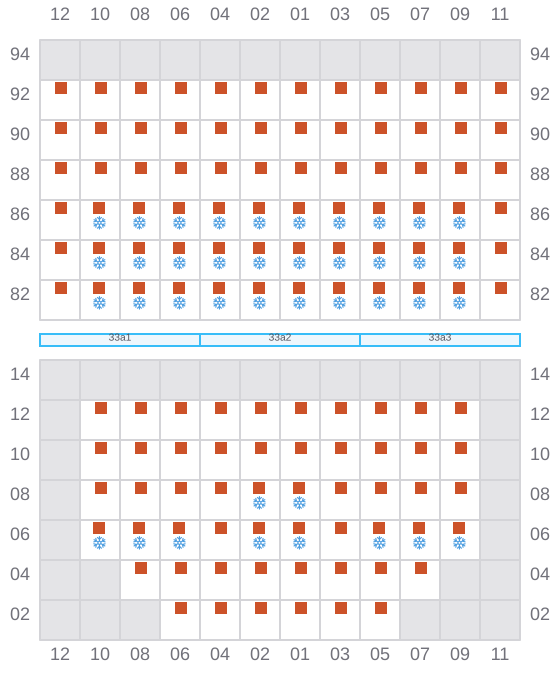

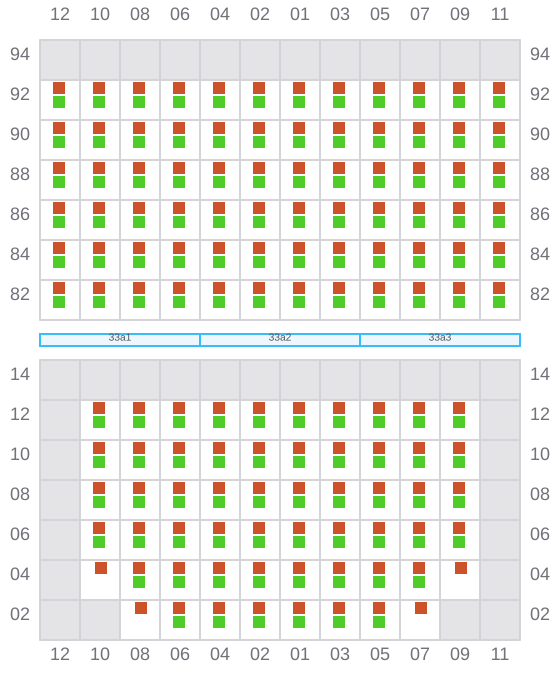

035
- ←
- →

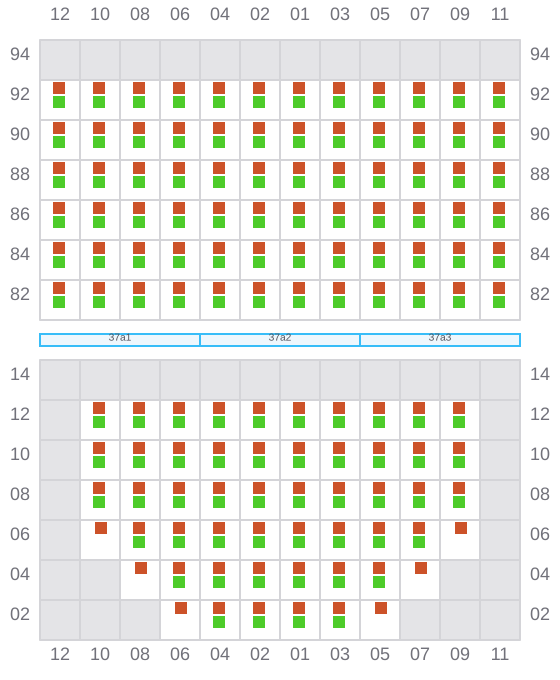

037 (038)
- →

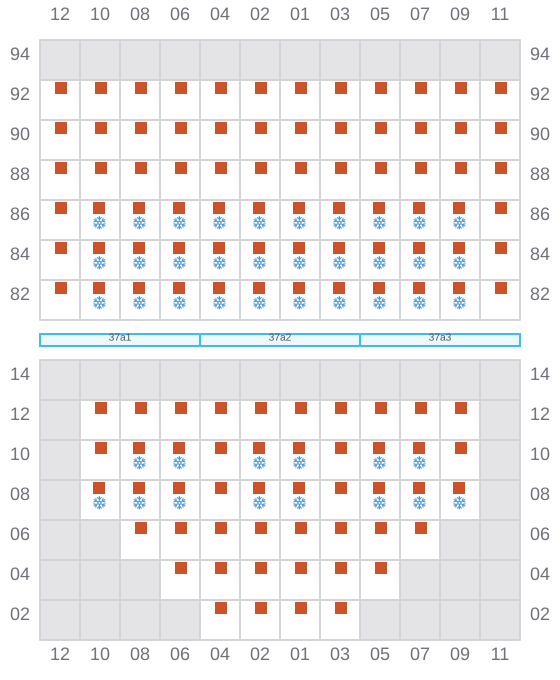

039
- ←
- →

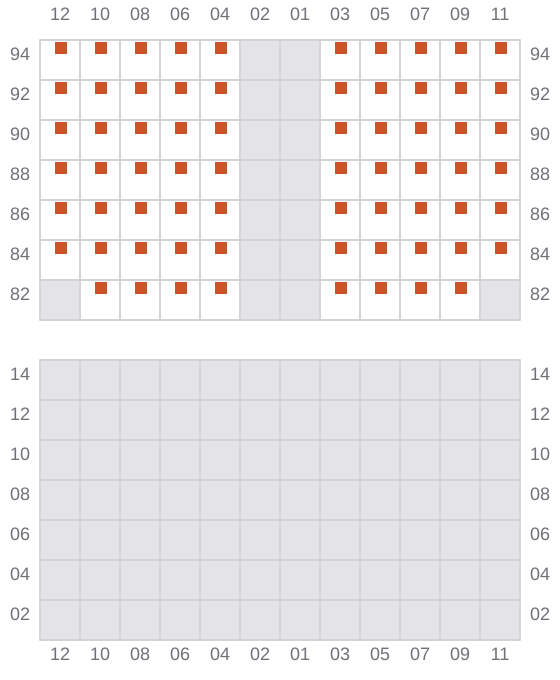

041

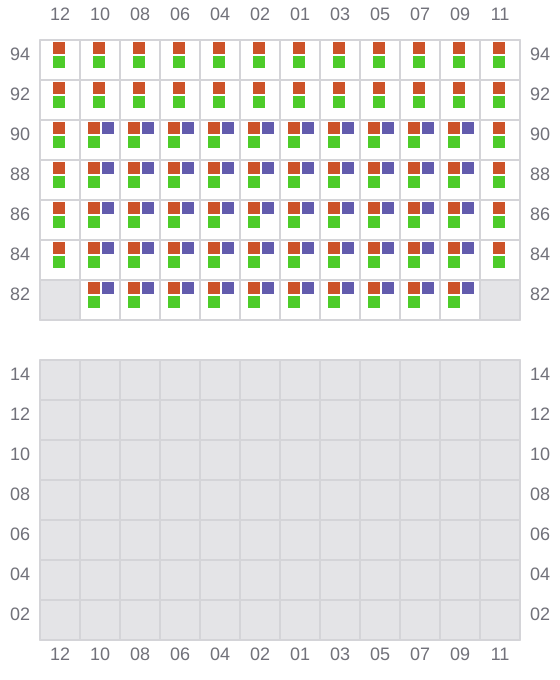

043 (044)
- → / ?

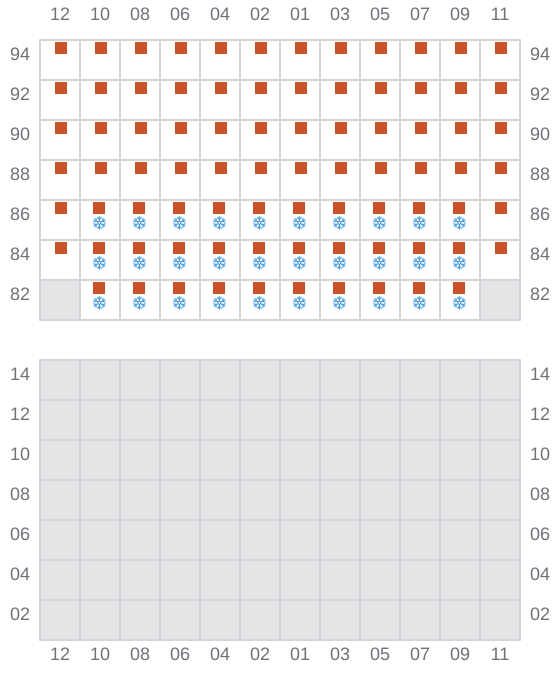

045
- ← / ?
- → / ?
