MARSA VICTORY
9204116 | V4BL3 | 9204116 by ********* Last update: Thu Mar 14 2024
General Info
Ship Name:MARSA VICTORY
IMO Code:9204116
Call Sign:V4BL3
Line Operator:9204116
Class Name for Sister Ships:9X9
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,110
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

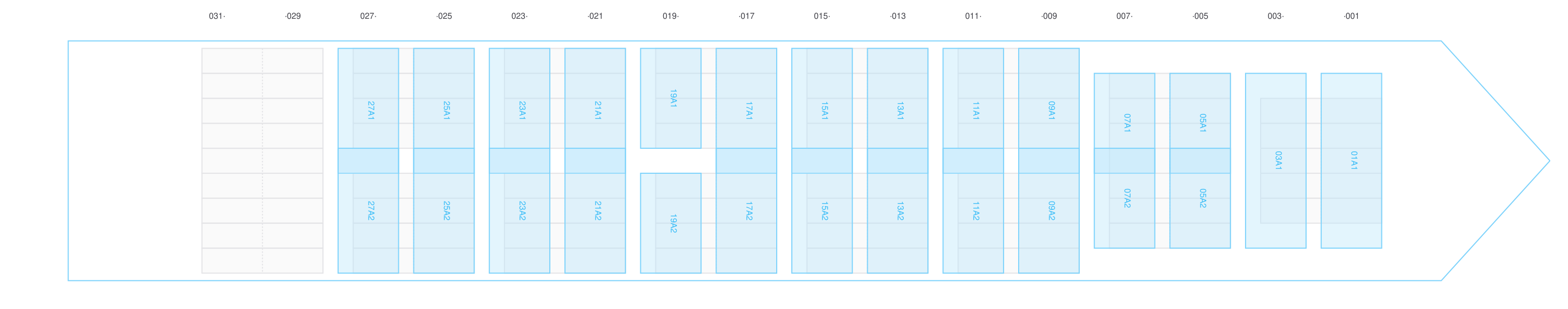

Hatch-Covers View

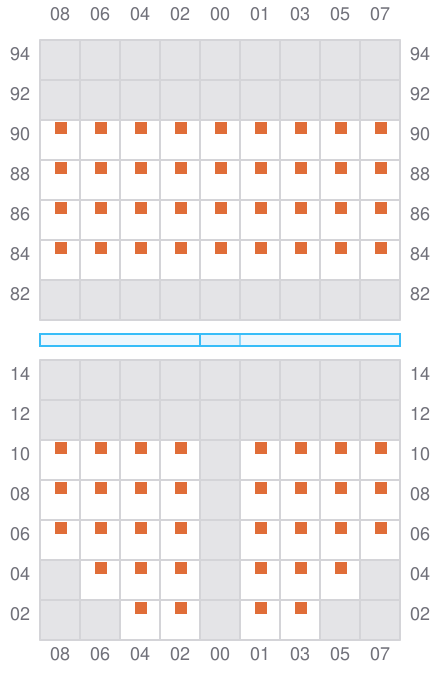

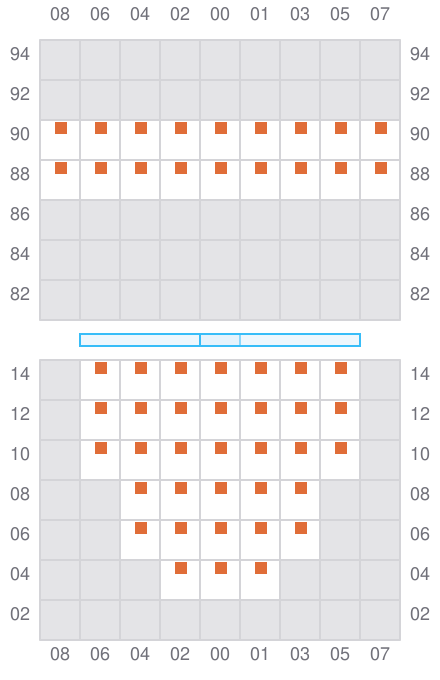

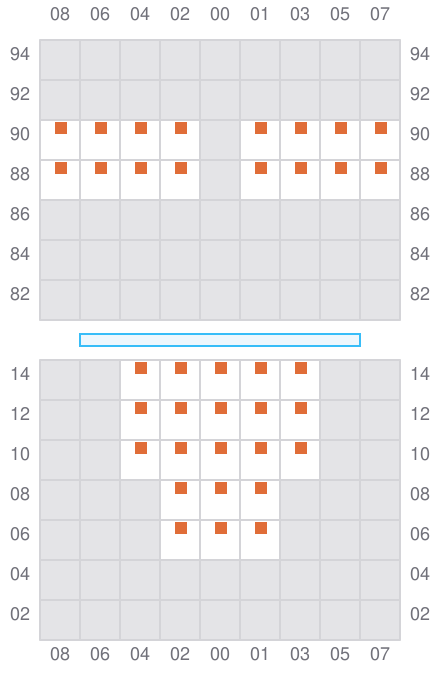

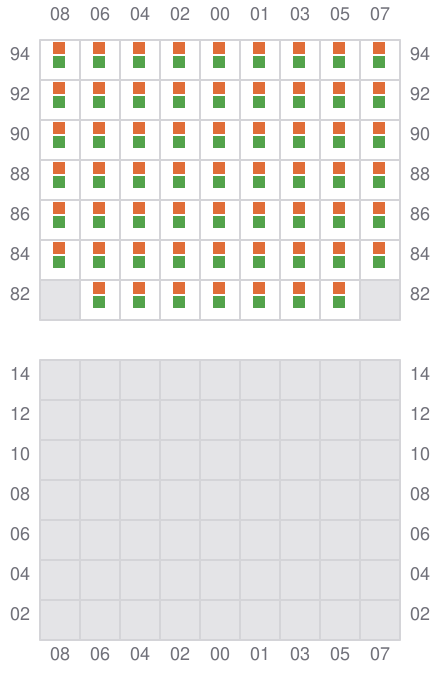

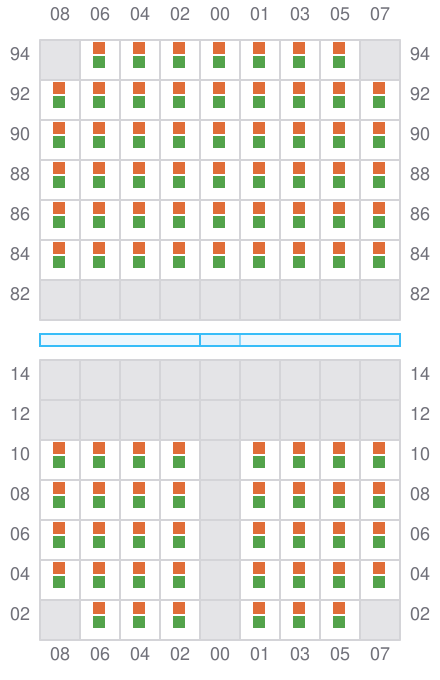

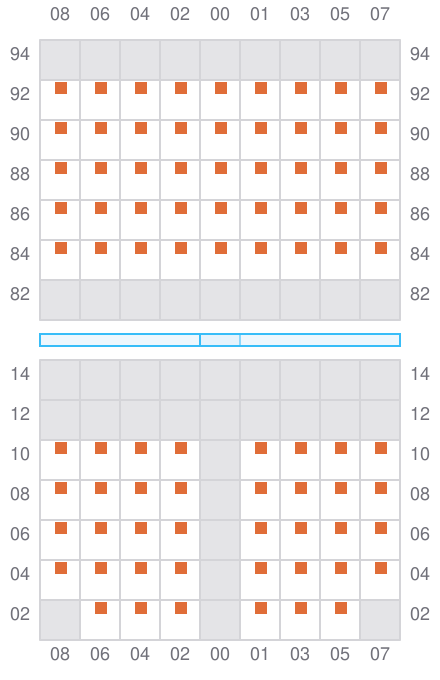

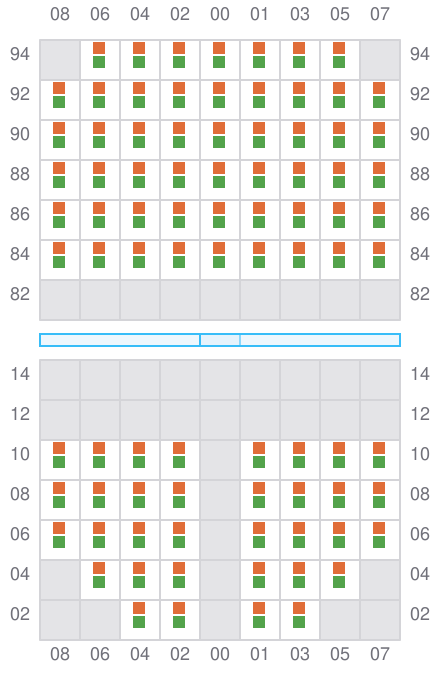

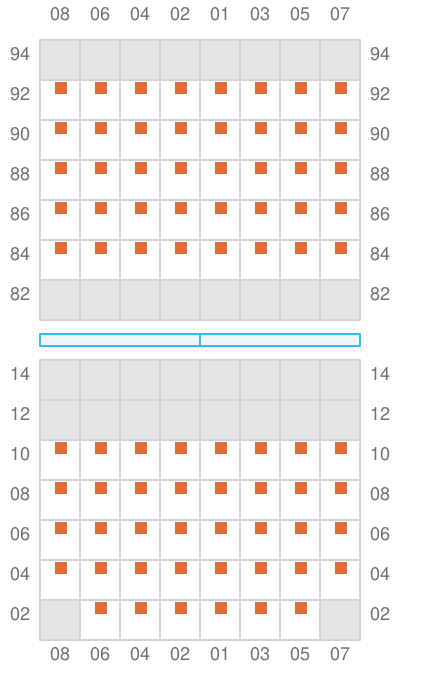

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

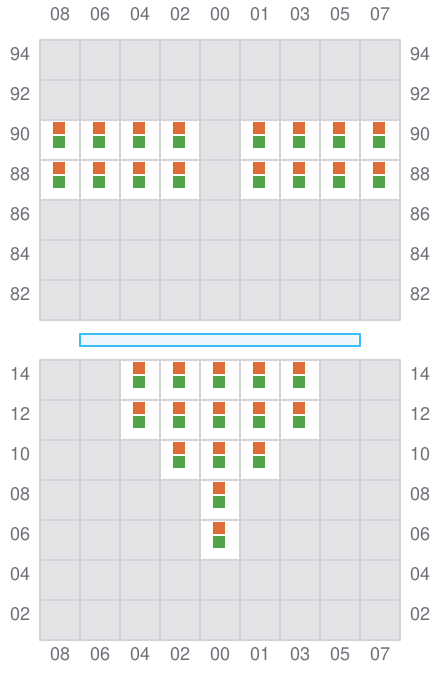

001 (002)
- →
003
- ←

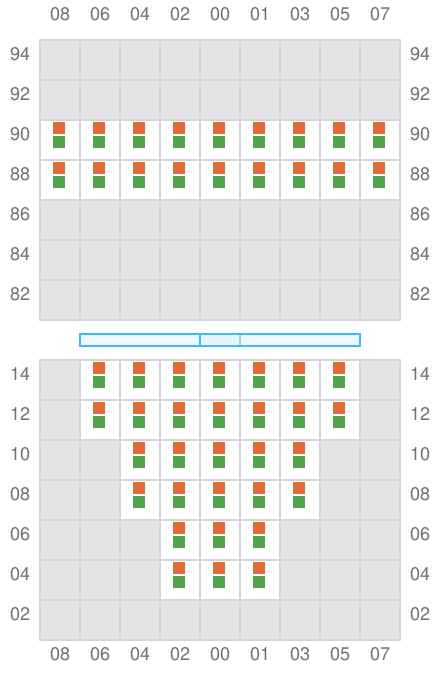

005 (006)
- →
007
- ←

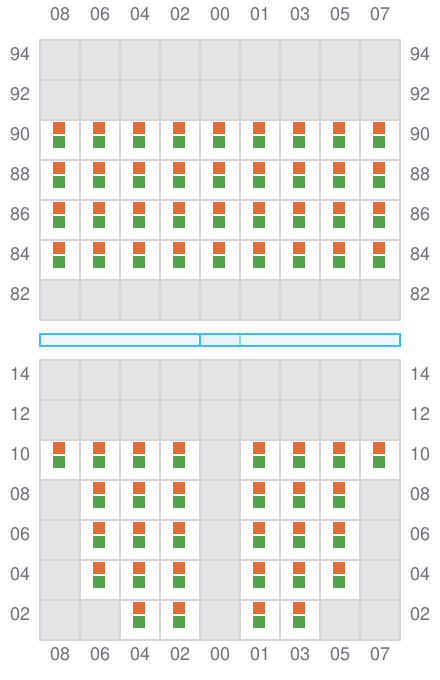

009 (010)
- →
011
- ←

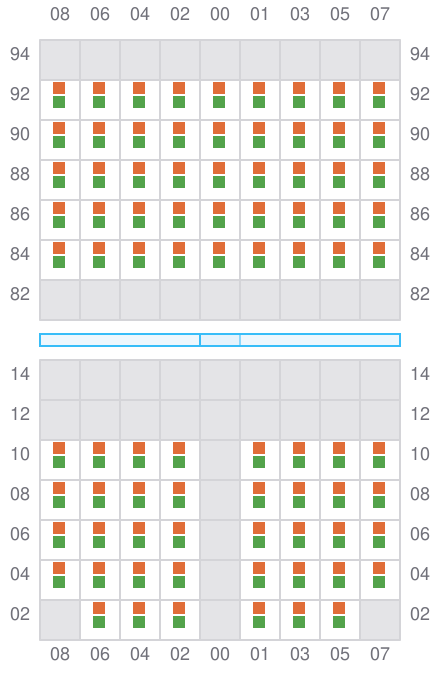

013 (014)
- →
015
- ←
017 (018)
- →
019
- ←
021 (022)
- →

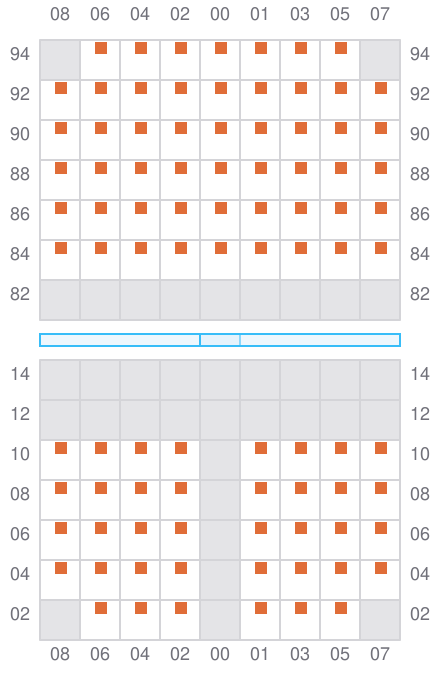

023
- ←
025 (026)
- →

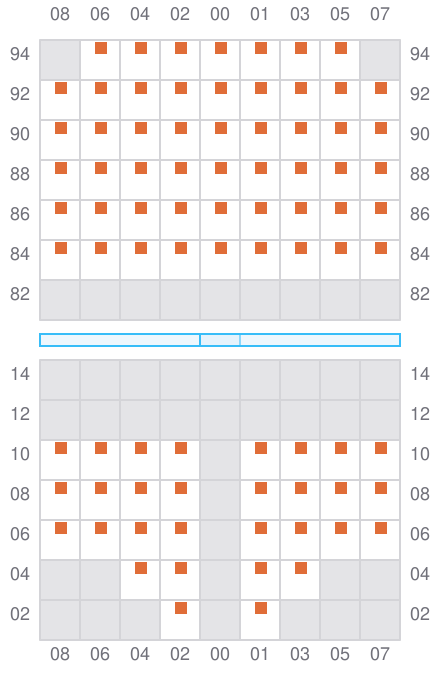

027
- ←
029 (030)
- → / ?

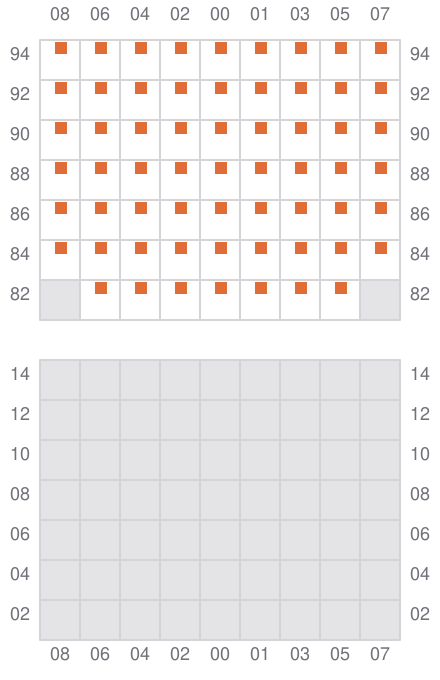

031
- ← / ?
