MARSA ZENITH
9238698 | 5LDF3 | 9238698 by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:MARSA ZENITH
IMO Code:9238698
Call Sign:5LDF3
Line Operator:9238698
Class Name for Sister Ships:85Q
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,209
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

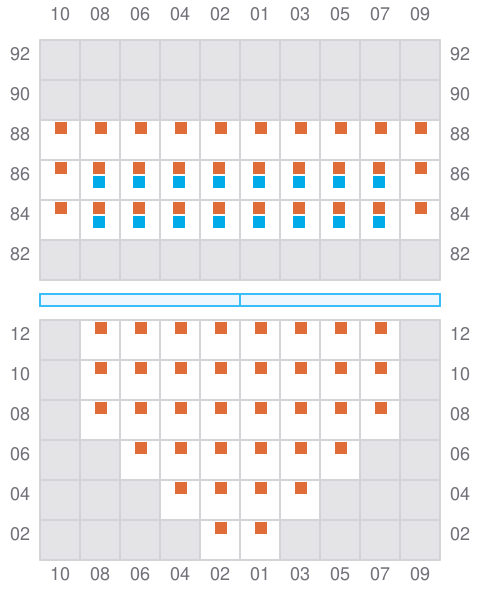

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

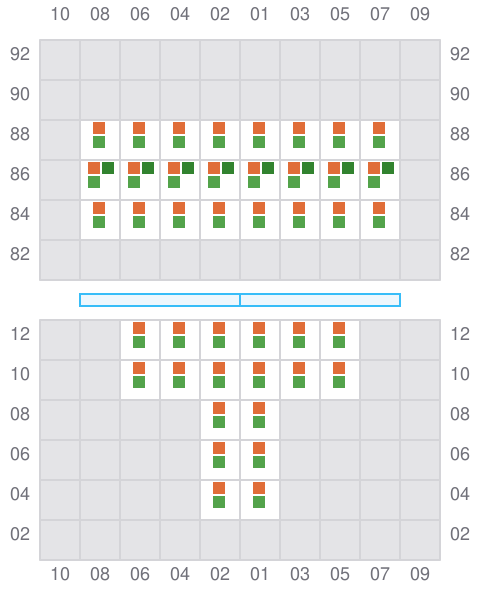

001 (002)
- →

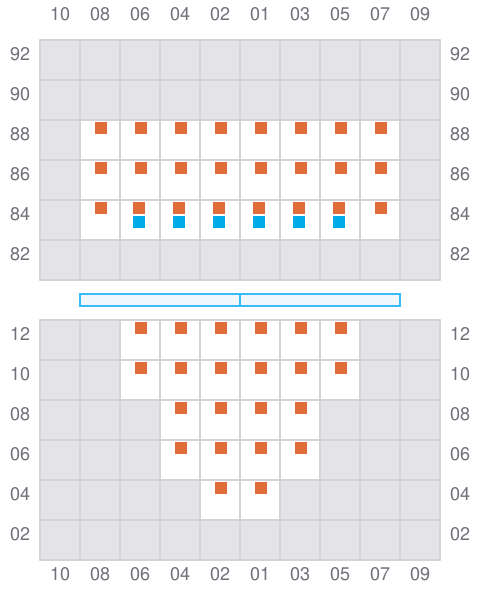

003
- ←
- → / ?

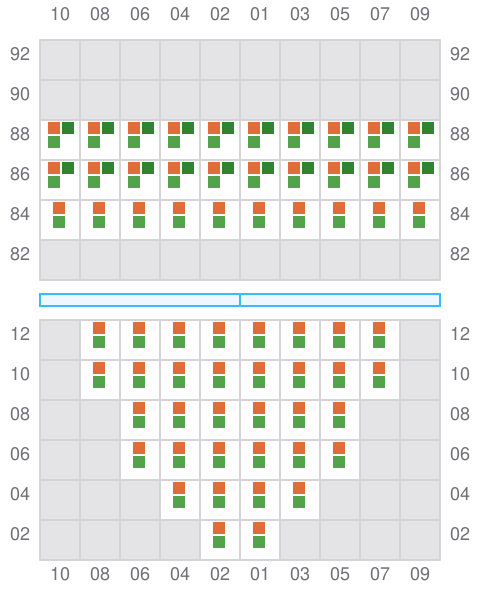

005 (006)
- →
007
- ←
- → / ?

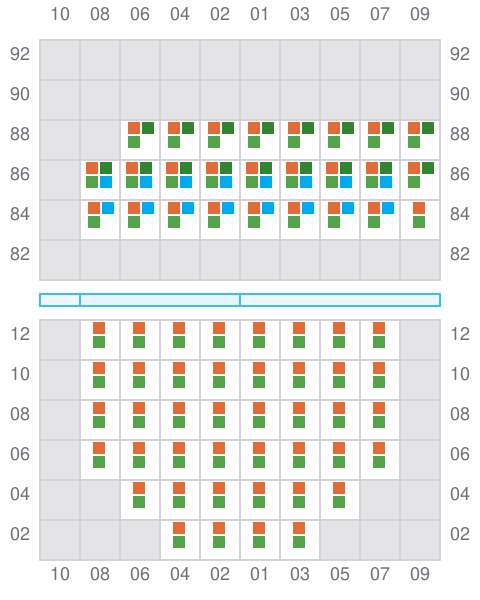

009 (010)
- →
- ← / ?

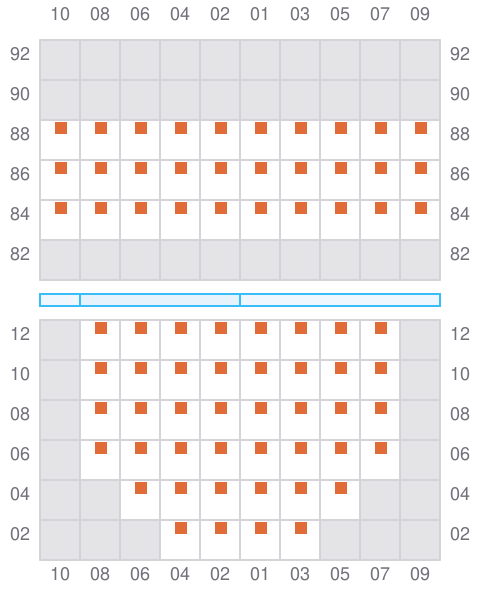

011
- ←

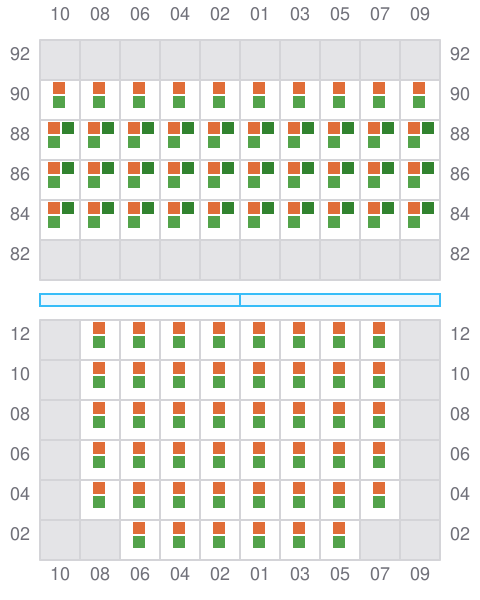

013 (014)
- →
- → / ?

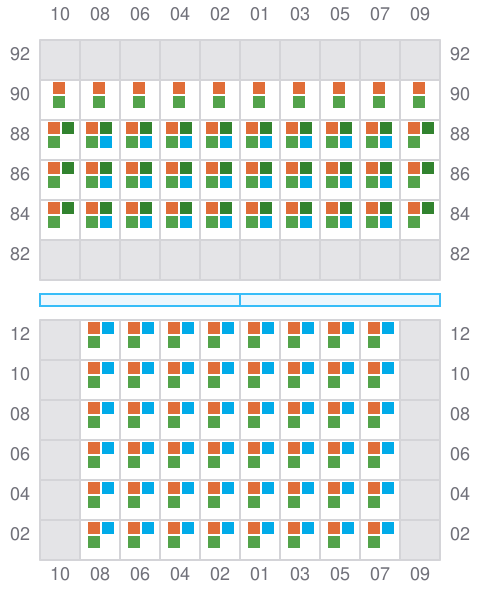

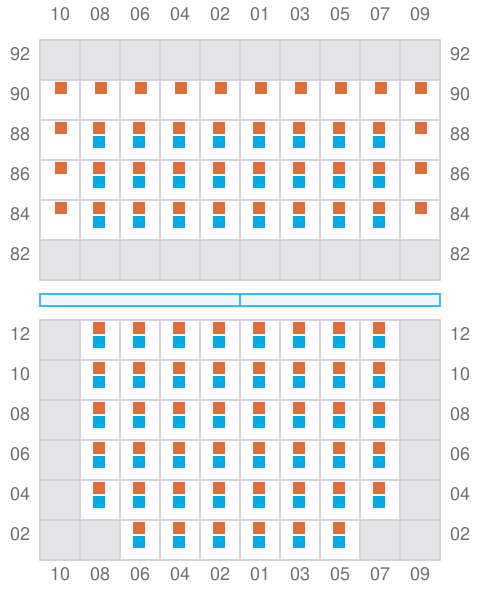

015
- ←
- →
017 (018)
- →
- ←

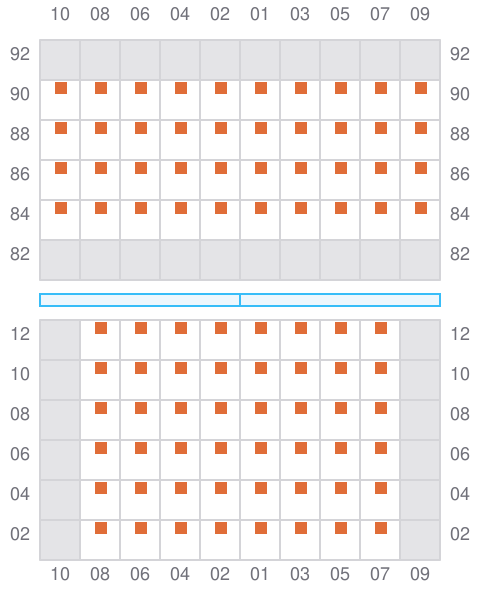

019
- ←

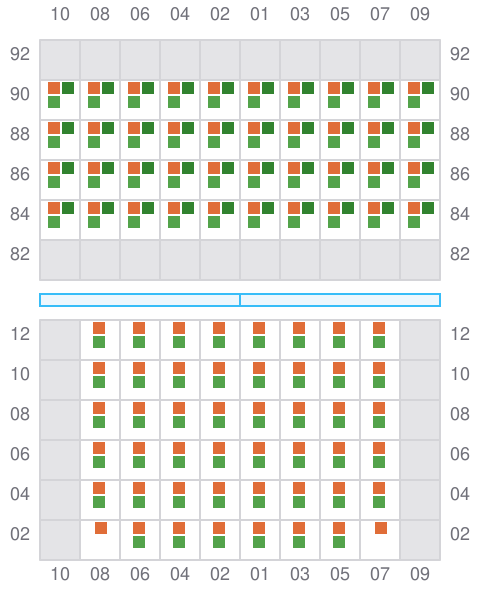

021 (022)
- →
- → / ?
023
- ←
- →

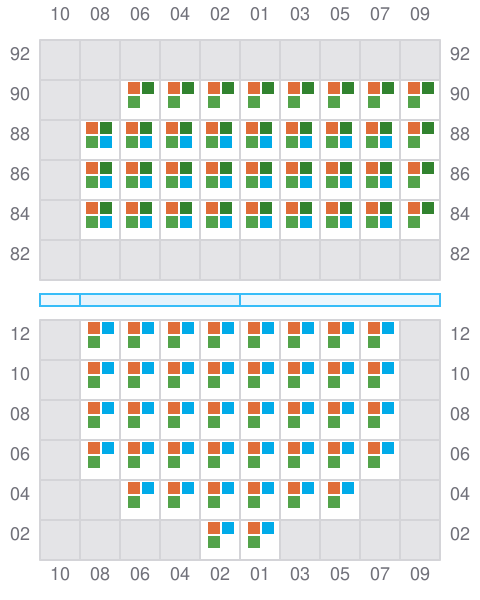

025 (026)
- →
- ←

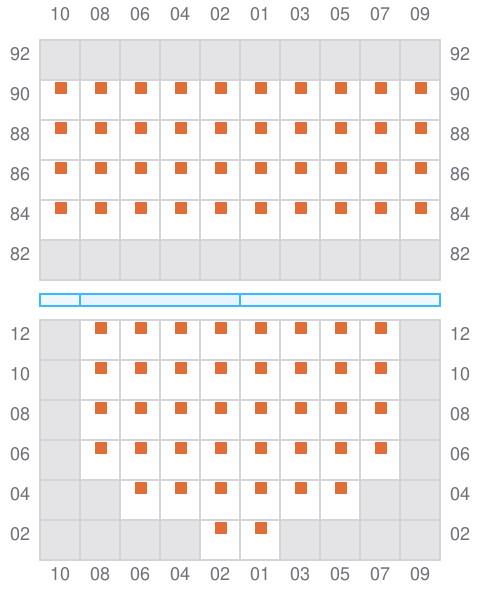

027
- ←

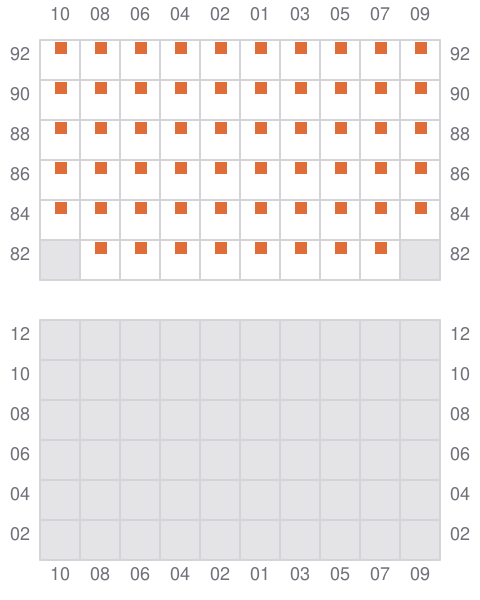

029

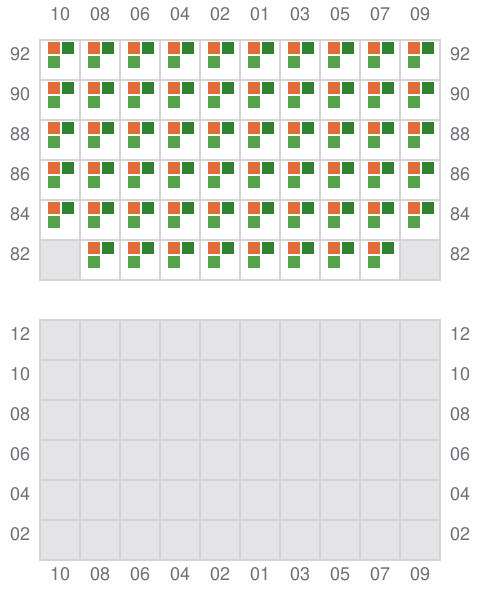

031 (032)
- → / ?
033
- ← / ?
- → / ?
