MARTHA A
9299484 | TCA3420 | 9299484 by ********* Last update: Mon Jul 08 2024

General Info

Ship Name:MARTHA A
IMO Code:9299484
Call Sign:TCA3420
Line Operator:9299484
Class Name for Sister Ships:MAE
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,326

Centers of Gravity

LCG Values:Known
LCG Data:86%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

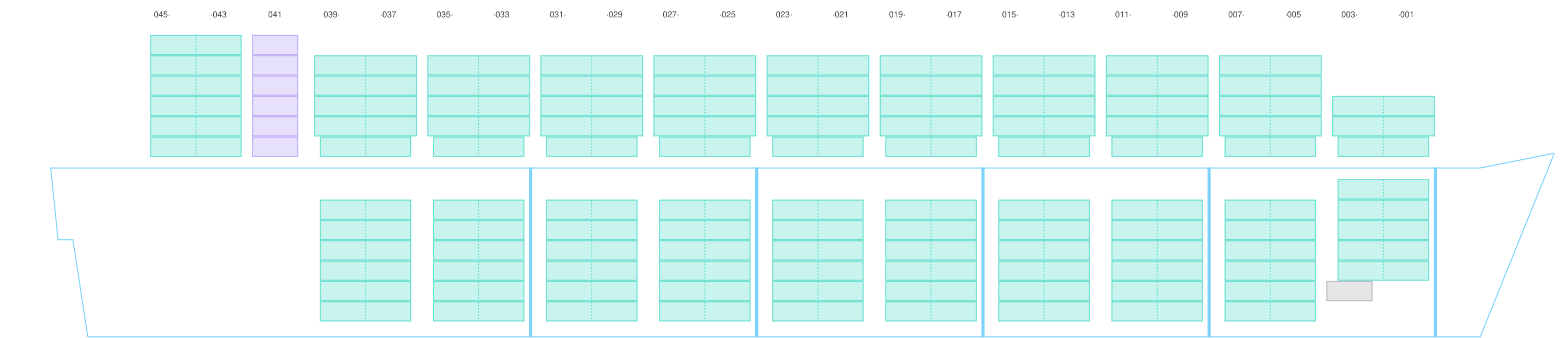

Side view of MARTHA A

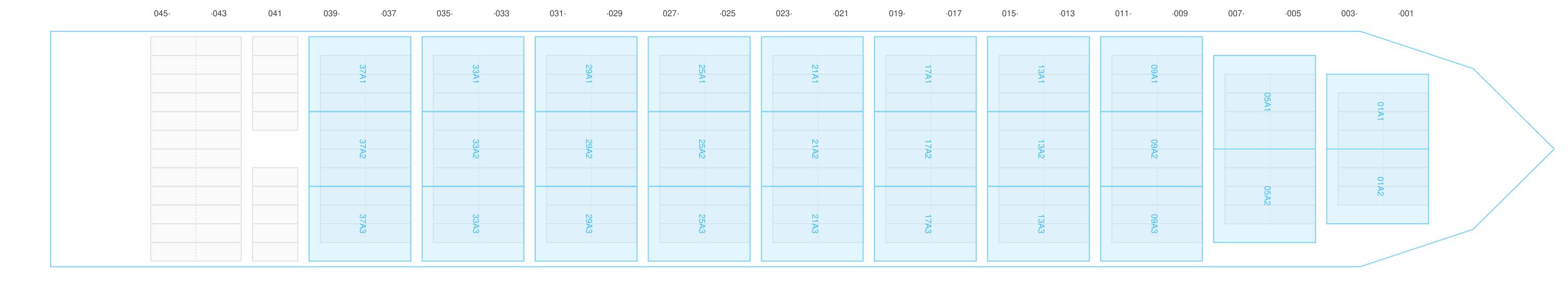

Hatch-Covers View

Deck view of MARTHA A

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

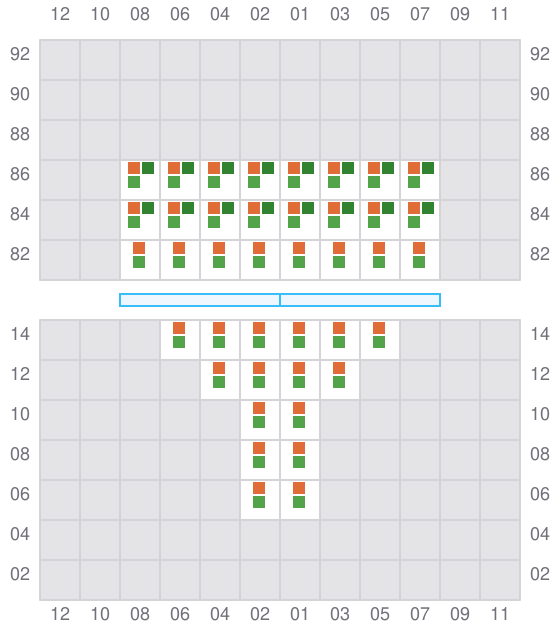

Bay 001 view and slots of MARTHA A

003

  • ←

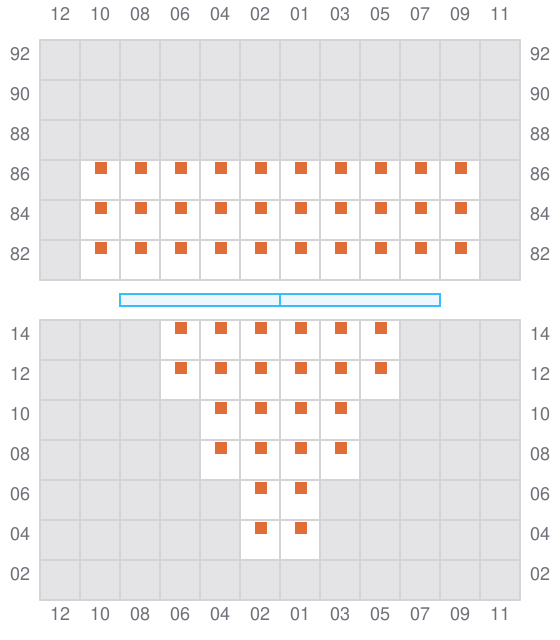

Bay 003 view and slots of MARTHA A

005 (006)

  • →

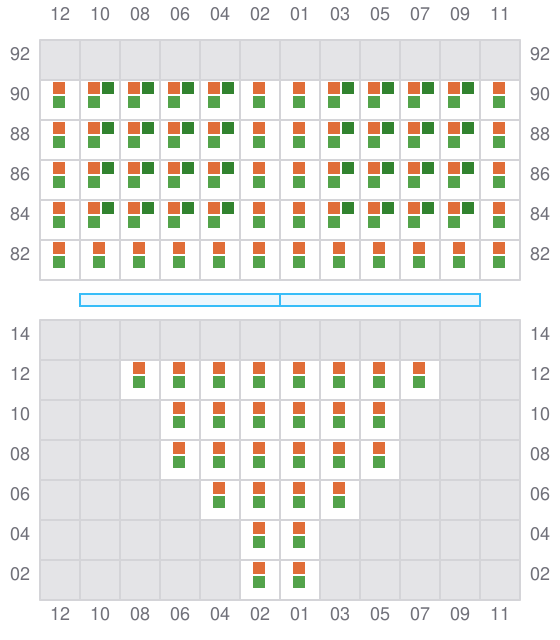

Bay 005 view and slots of MARTHA A

007

  • ←

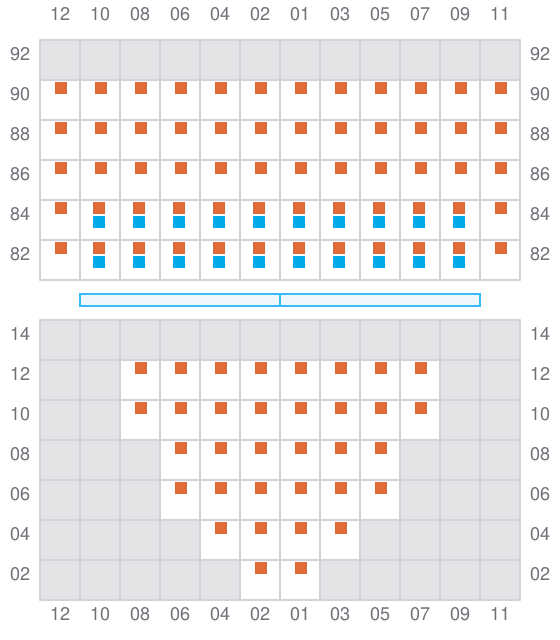

Bay 007 view and slots of MARTHA A

009 (010)

  • →

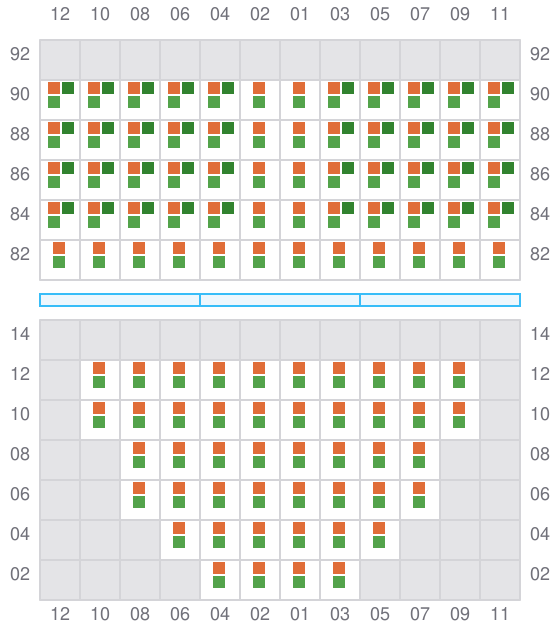

Bay 009 view and slots of MARTHA A

011

  • ←

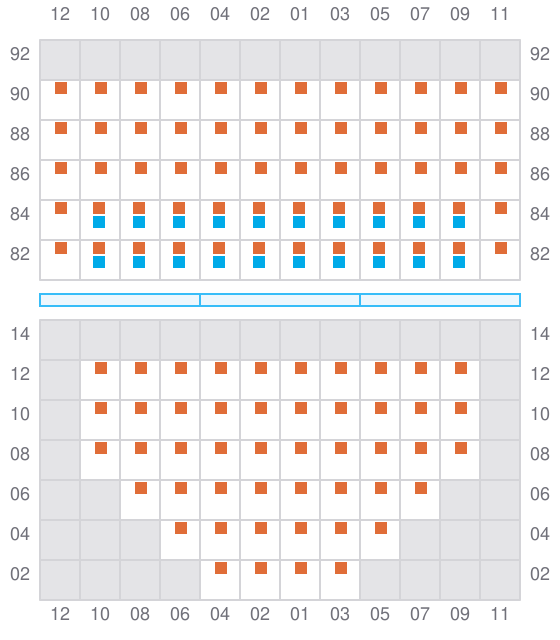

Bay 011 view and slots of MARTHA A

013 (014)

  • →

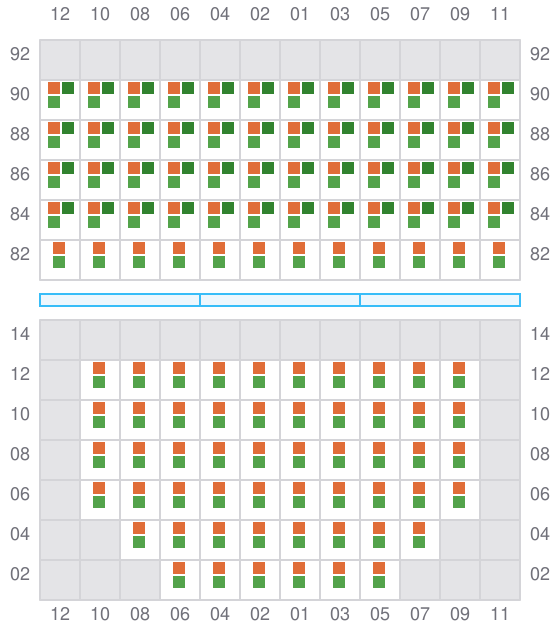

Bay 013 view and slots of MARTHA A

015

  • ←

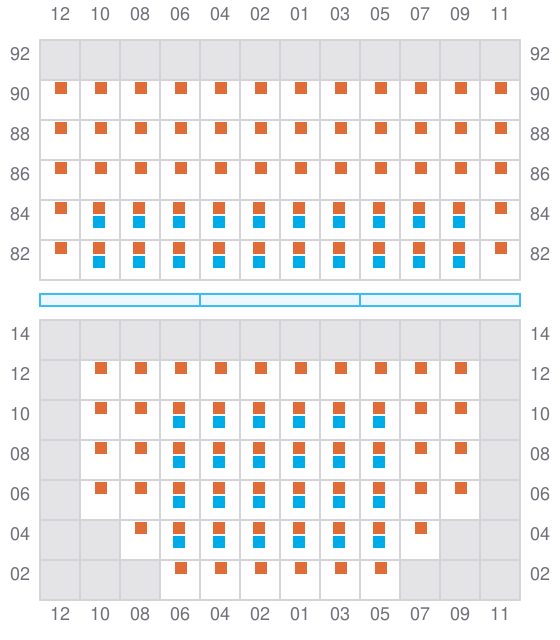

Bay 015 view and slots of MARTHA A

017 (018)

  • →

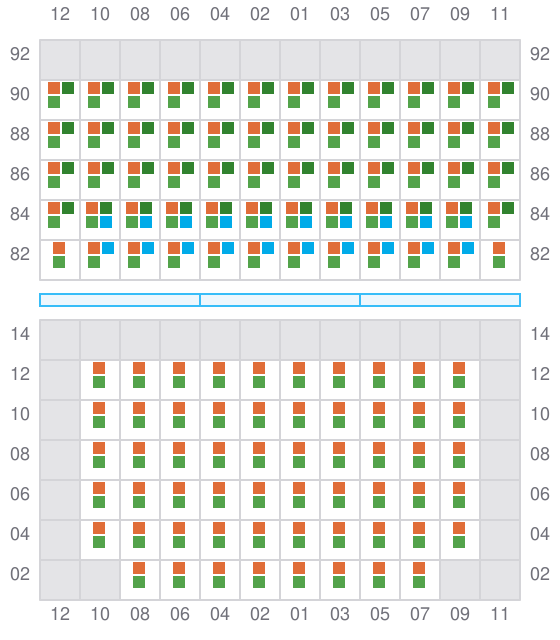

Bay 017 view and slots of MARTHA A

019

  • ←

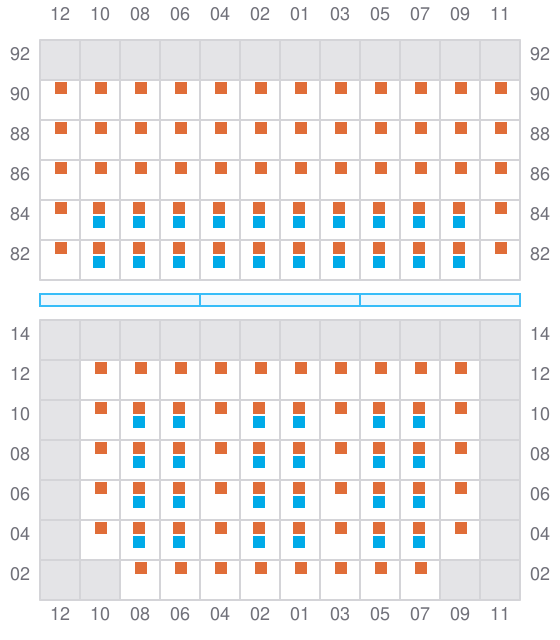

Bay 019 view and slots of MARTHA A

021 (022)

  • →
Bay 021 view and slots of MARTHA A

023

  • ←

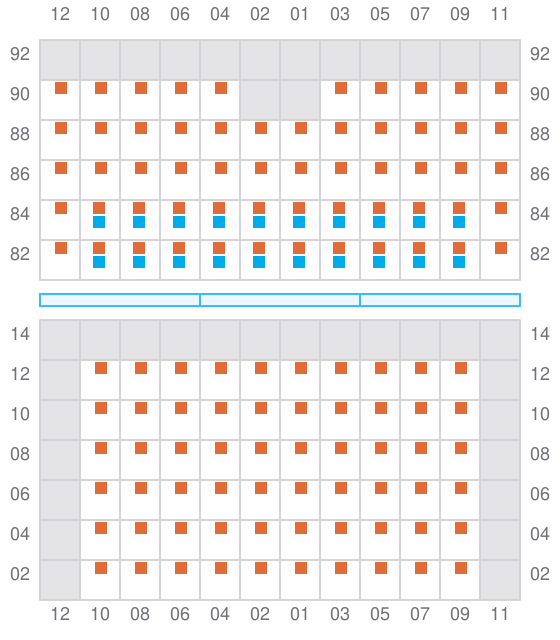

Bay 023 view and slots of MARTHA A

025 (026)

  • →

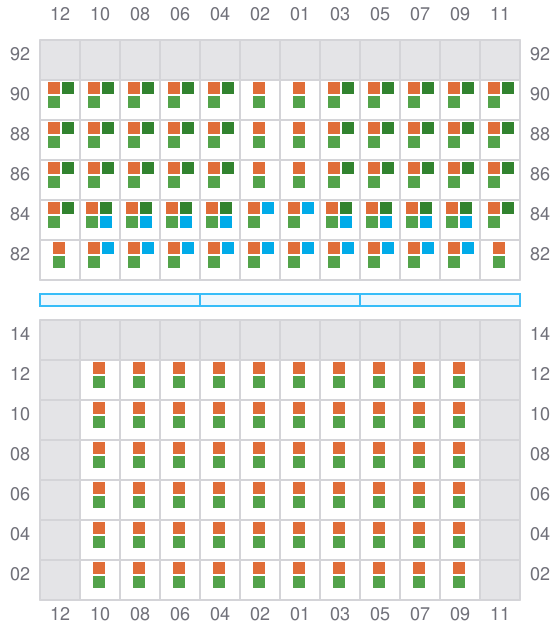

Bay 025 view and slots of MARTHA A

027

  • ←
Bay 027 view and slots of MARTHA A

029 (030)

  • →

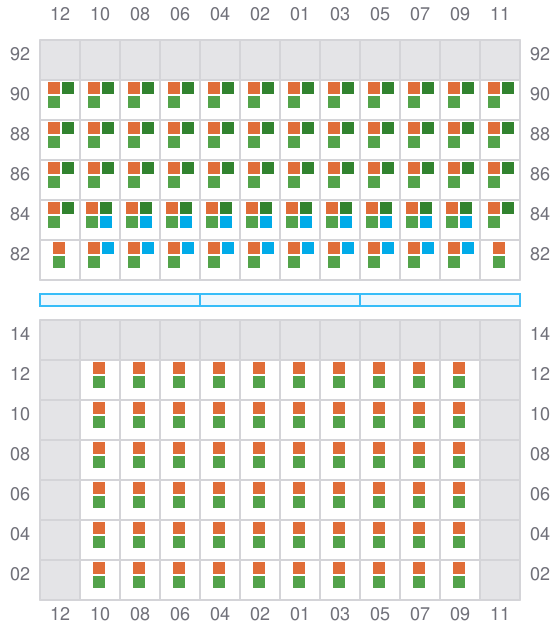

Bay 029 view and slots of MARTHA A

031

  • ←

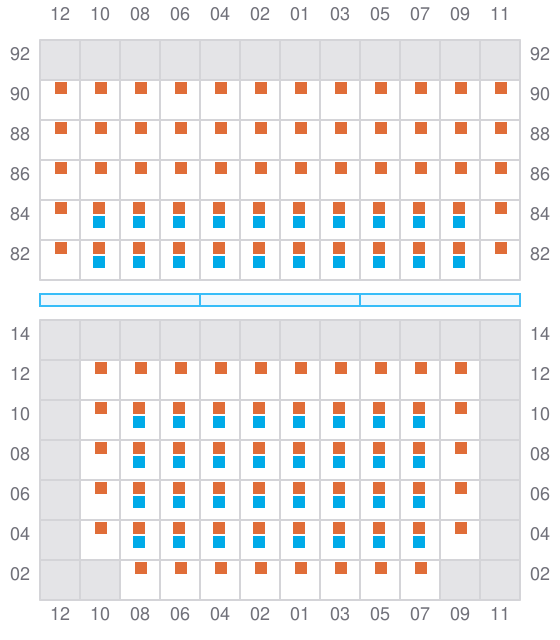

Bay 031 view and slots of MARTHA A

033 (034)

  • →

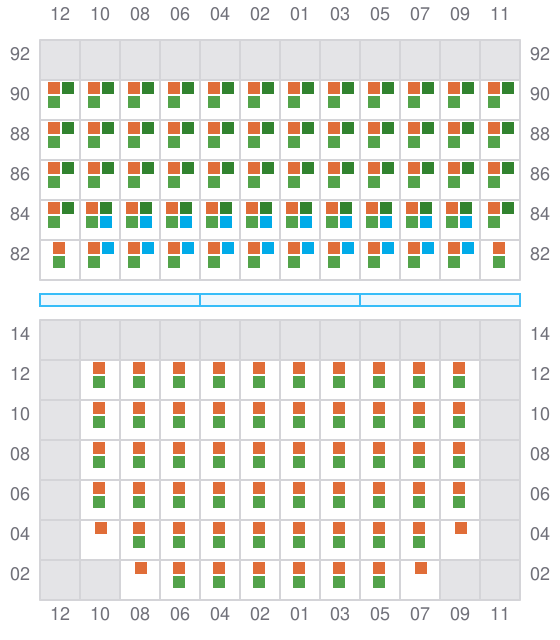

Bay 033 view and slots of MARTHA A

035

  • ←

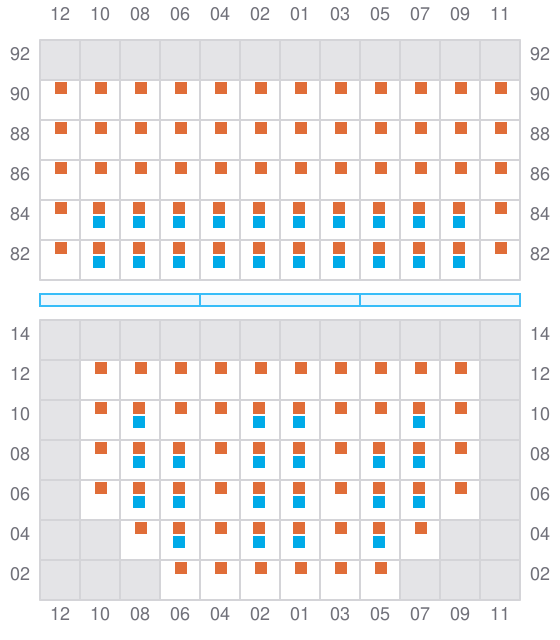

Bay 035 view and slots of MARTHA A

037 (038)

  • →
Bay 037 view and slots of MARTHA A

039

  • ←

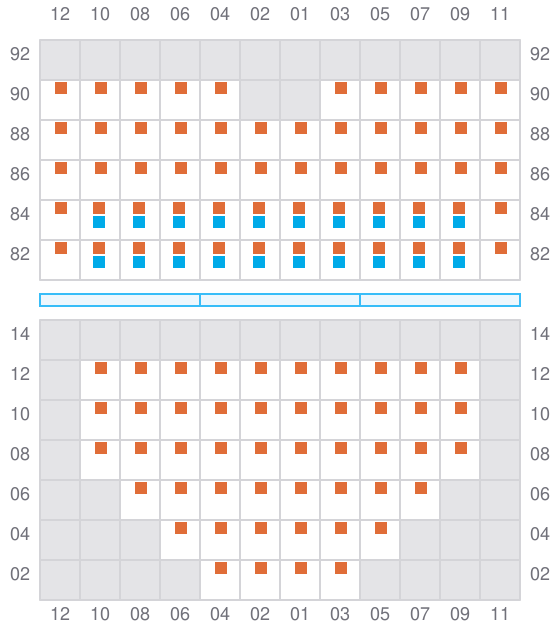

Bay 039 view and slots of MARTHA A

041

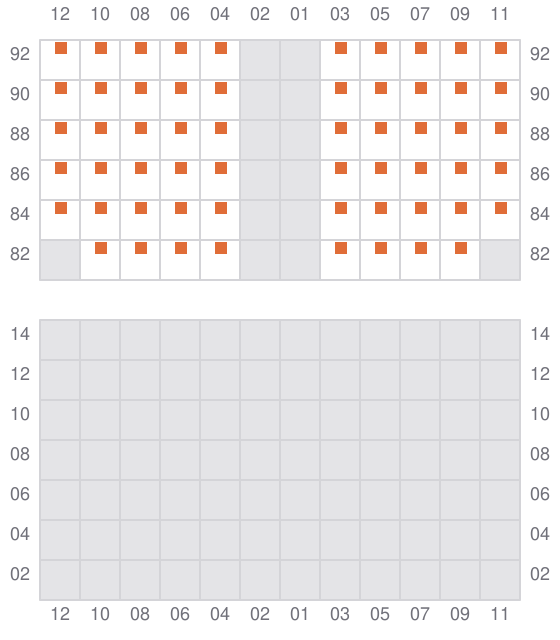

Bay 041 view and slots of MARTHA A

043 (044)

  • → / ?

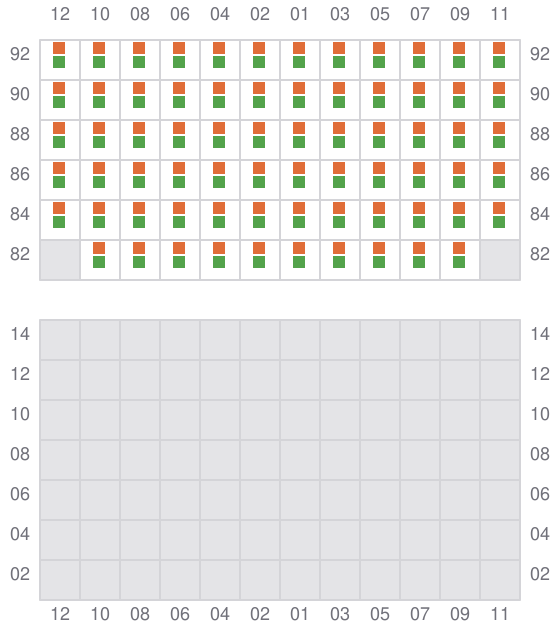

Bay 043 view and slots of MARTHA A

045

  • ← / ?

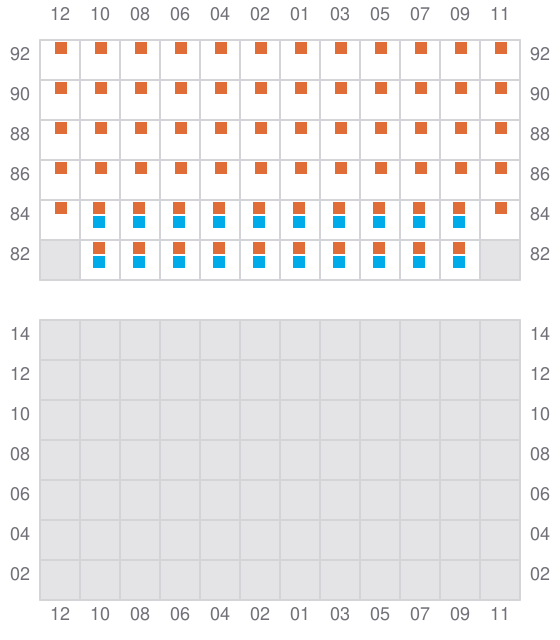

Bay 045 view and slots of MARTHA A
