MARVEL
9296456 | C6TI4 | 9296456 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:MARVEL
IMO Code:9296456
Call Sign:C6TI4
Line Operator:9296456
Class Name for Sister Ships:2EP
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):115.00
LOA (Length Overall):115.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:546
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

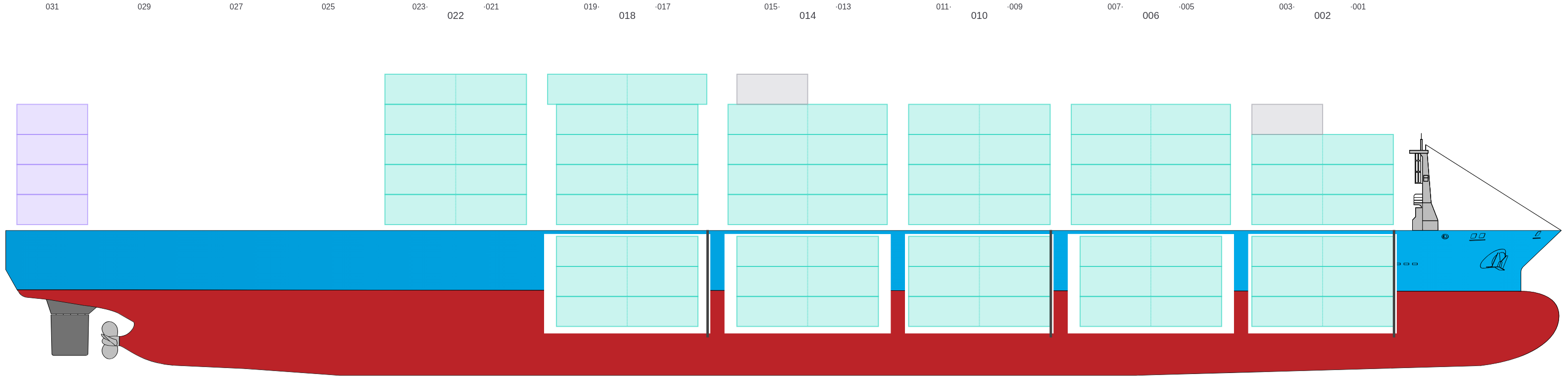

Side View
![Side view of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-sideView.png?v=1710786917721)

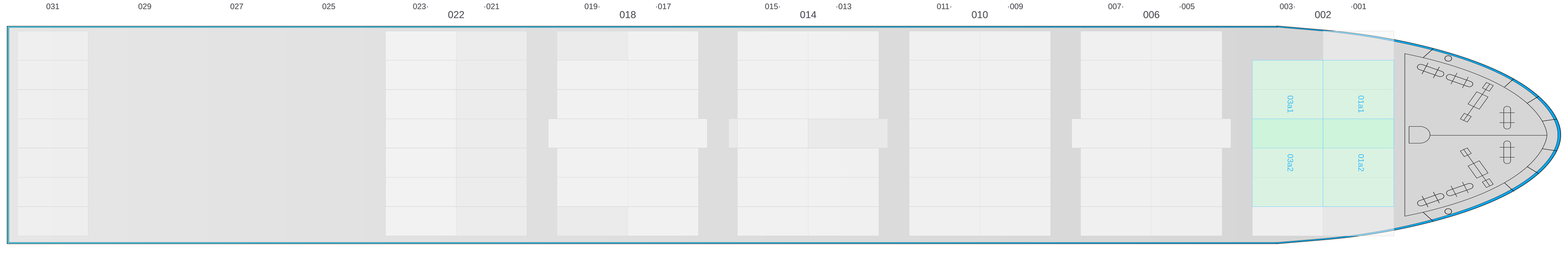

Hatch-Covers View
![Deck view of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-deckView.png?v=1710786917721)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

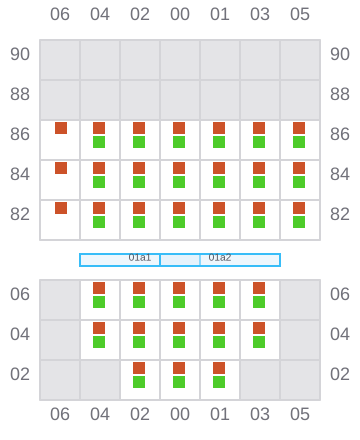

001 (002)
- →
![Bay 001 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b001.png?v=1710786917721)

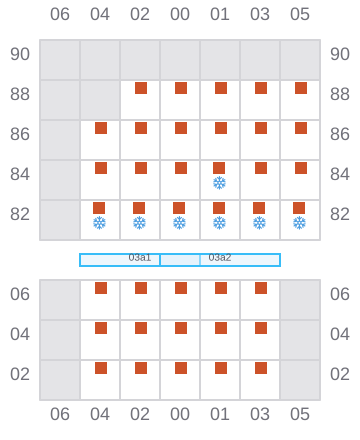

003
- ←
- → / ?
![Bay 003 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b003.png?v=1710786917721)
005 (006)
- →
- ← / ?
![Bay 005 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b005.png?v=1710786917721)

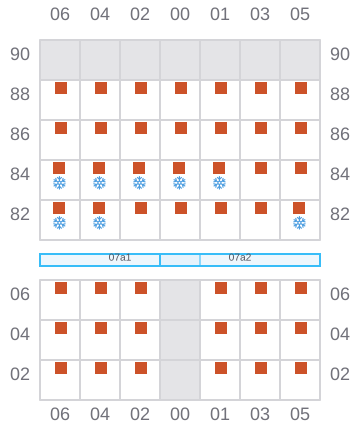

007
- ←
- → / ?
![Bay 007 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b007.png?v=1710786917721)

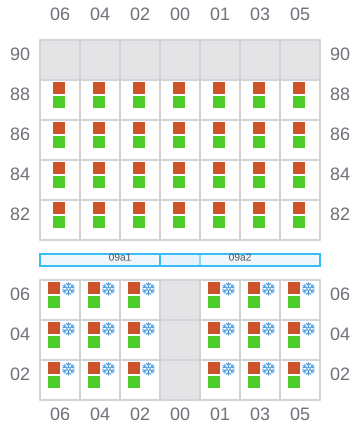

009 (010)
- →
- ? / ←
![Bay 009 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b009.png?v=1710786917721)

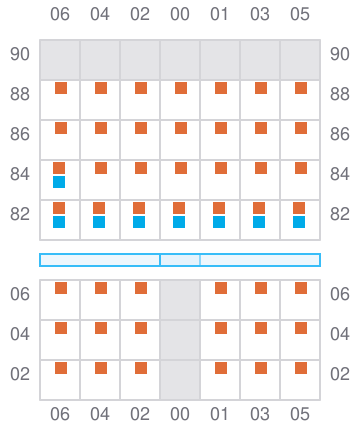

011
- ←
- → / ?
![Bay 011 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b011.png?v=1710786917721)

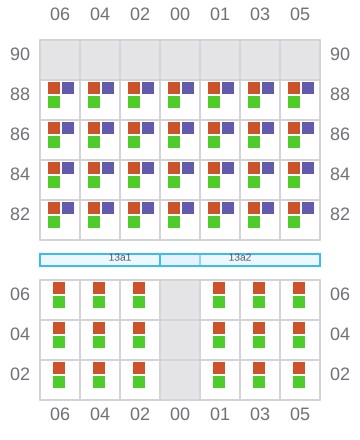

013 (014)
- →
![Bay 013 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b013.png?v=1710786917721)
015
- ←
- →
![Bay 015 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b015.png?v=1710786917721)

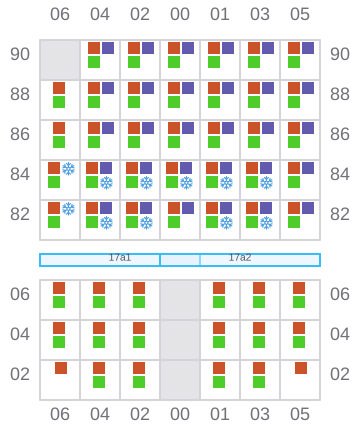

017 (018)
- →
- ← / ?
![Bay 017 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b017.png?v=1710786917721)

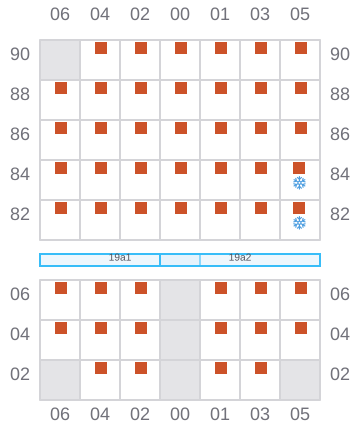

019
- ←
- → / ?
![Bay 019 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b019.png?v=1710786917721)

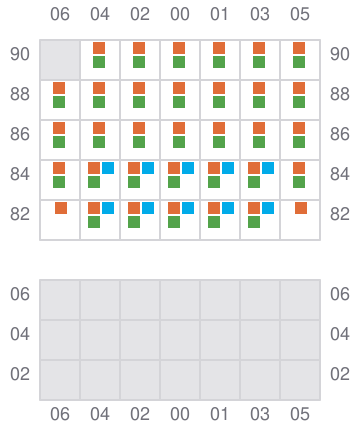

021 (022)
- → / ?
- ← / ?
![Bay 021 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b021.png?v=1710786917721)

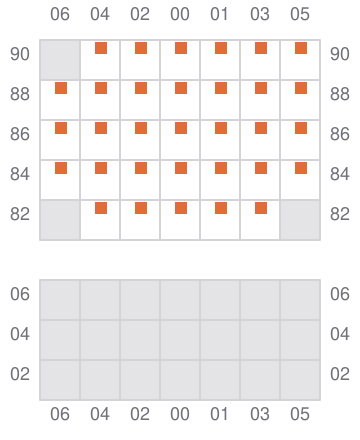

023
- ← / ?
![Bay 023 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b023.png?v=1710786917721)

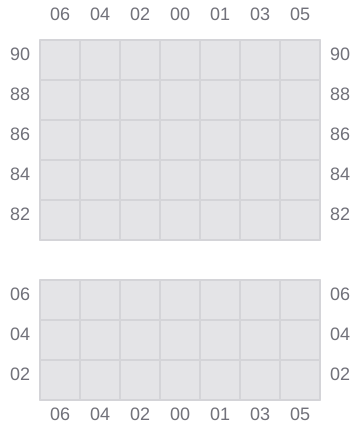

025
![Bay 025 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b025.png?v=1710786917721)
027
![Bay 027 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b027.png?v=1710786917721)

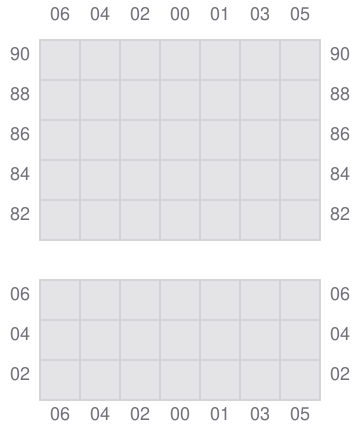

029
![Bay 029 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b029.png?v=1710786917721)

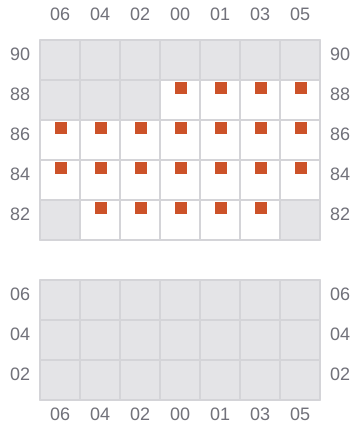

031
![Bay 031 view and slots of MARVEL](/vessel-images/8e299f46-438a-4fee-9c12-abf498f47475-b031.png?v=1710786917721)
