MARY MAERSK
9619921 | OWJE2 | 9619921 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:MARY MAERSK
IMO Code:9619921
Call Sign:OWJE2
Line Operator:9619921
Class Name for Sister Ships:1IM
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:093
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:78
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:18,420
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

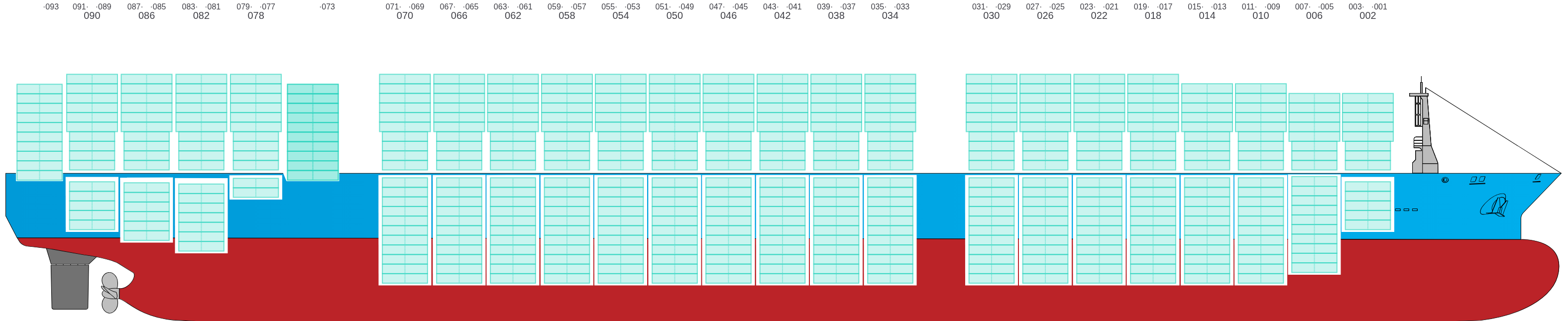

Side View
![Side view of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-sideView.png?v=1711662342405)
Hatch-Covers View
![Deck view of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-deckView.png?v=1711662342405)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

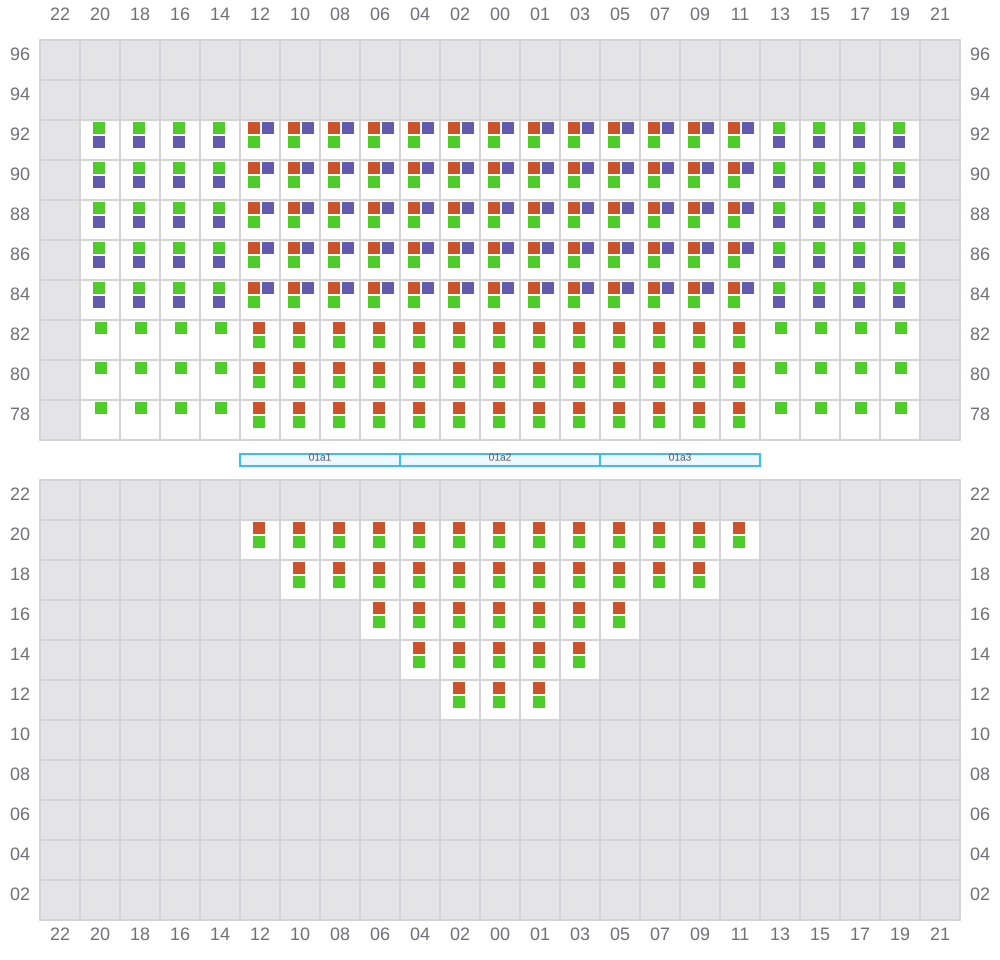

001 (002)
- →
![Bay 001 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b001.png?v=1711662342405)

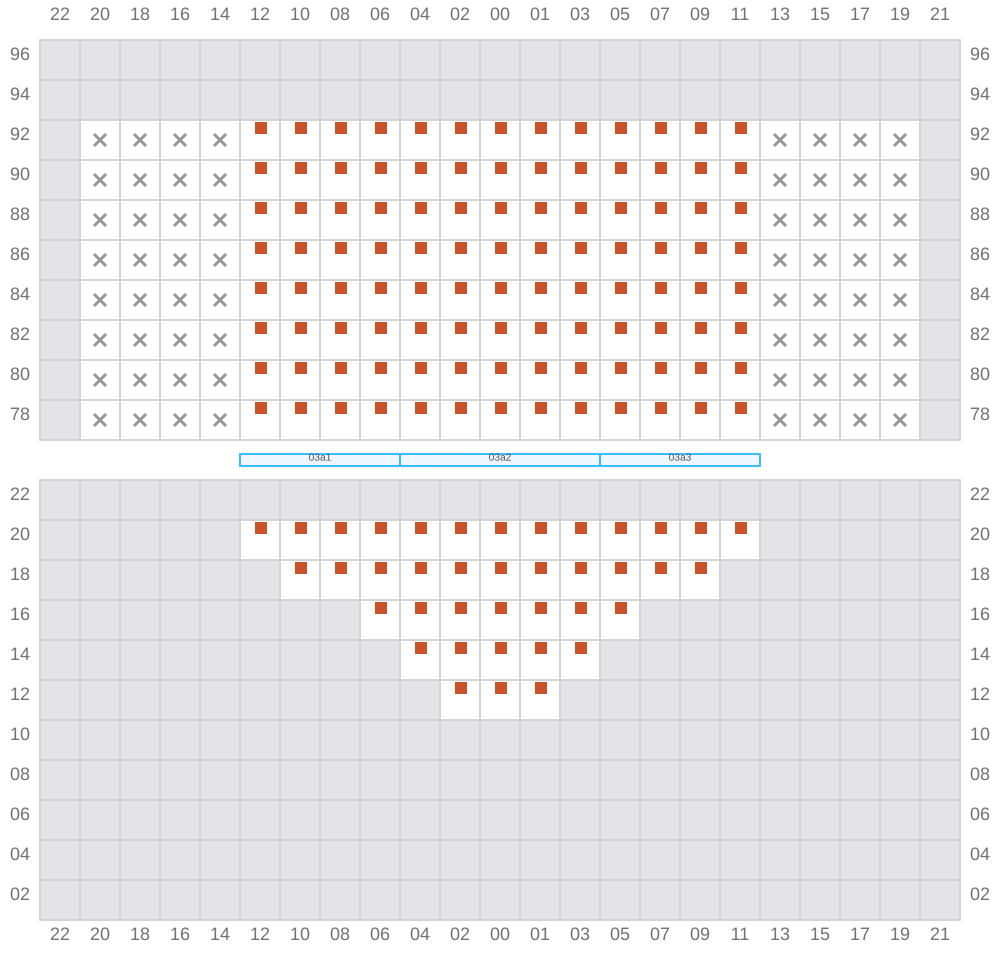

003
- ←
![Bay 003 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b003.png?v=1711662342405)

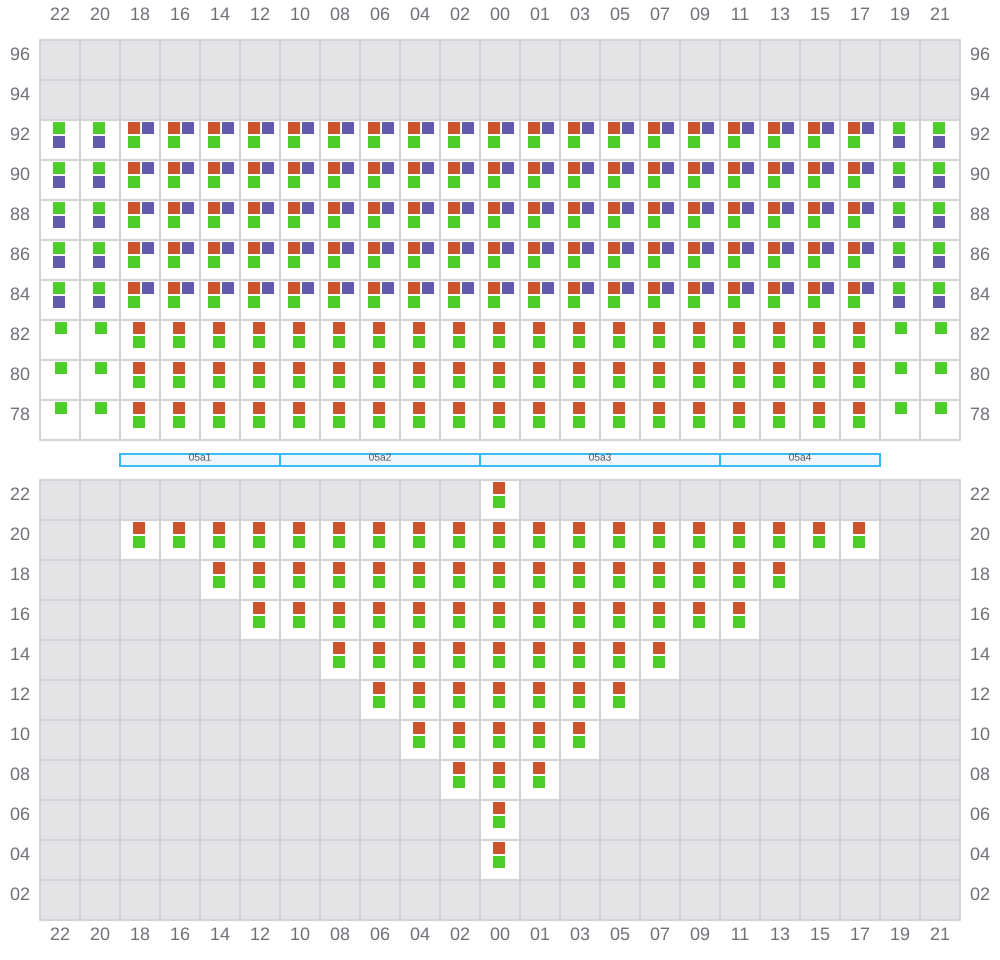

005 (006)
- →
![Bay 005 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b005.png?v=1711662342405)

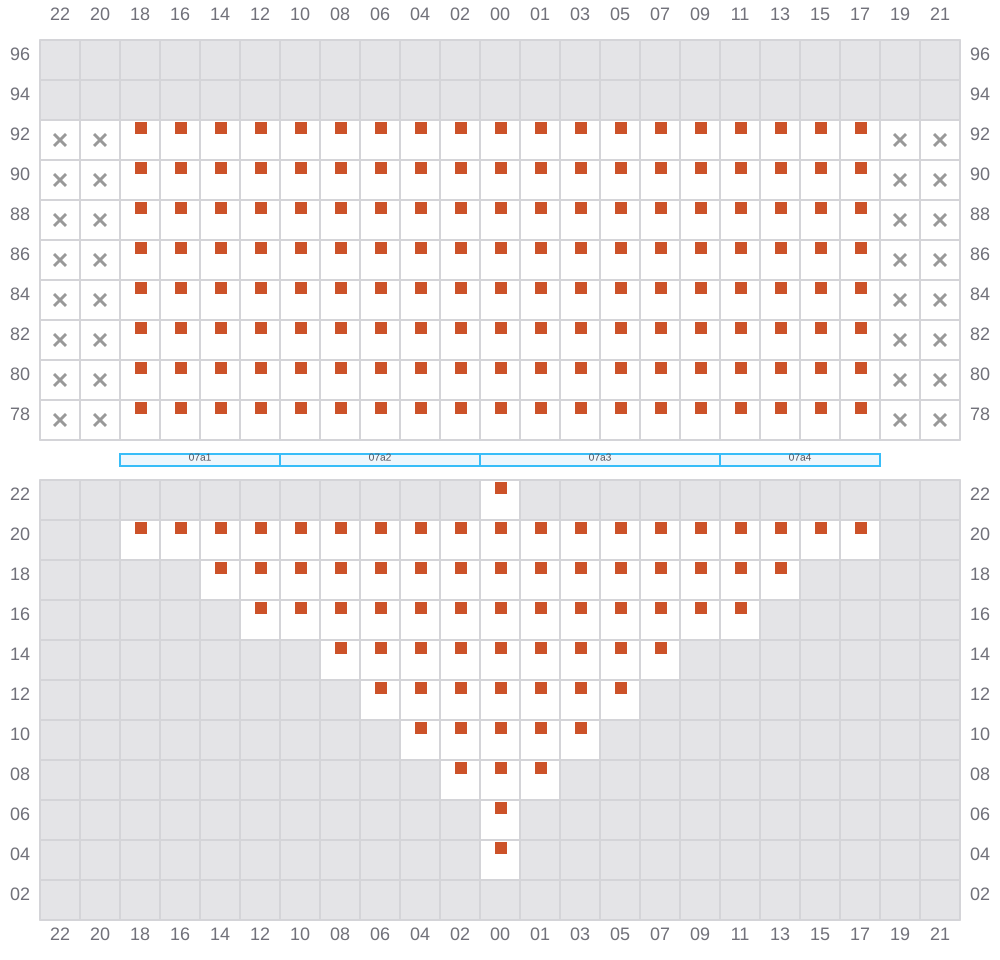

007
- ←
![Bay 007 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b007.png?v=1711662342405)

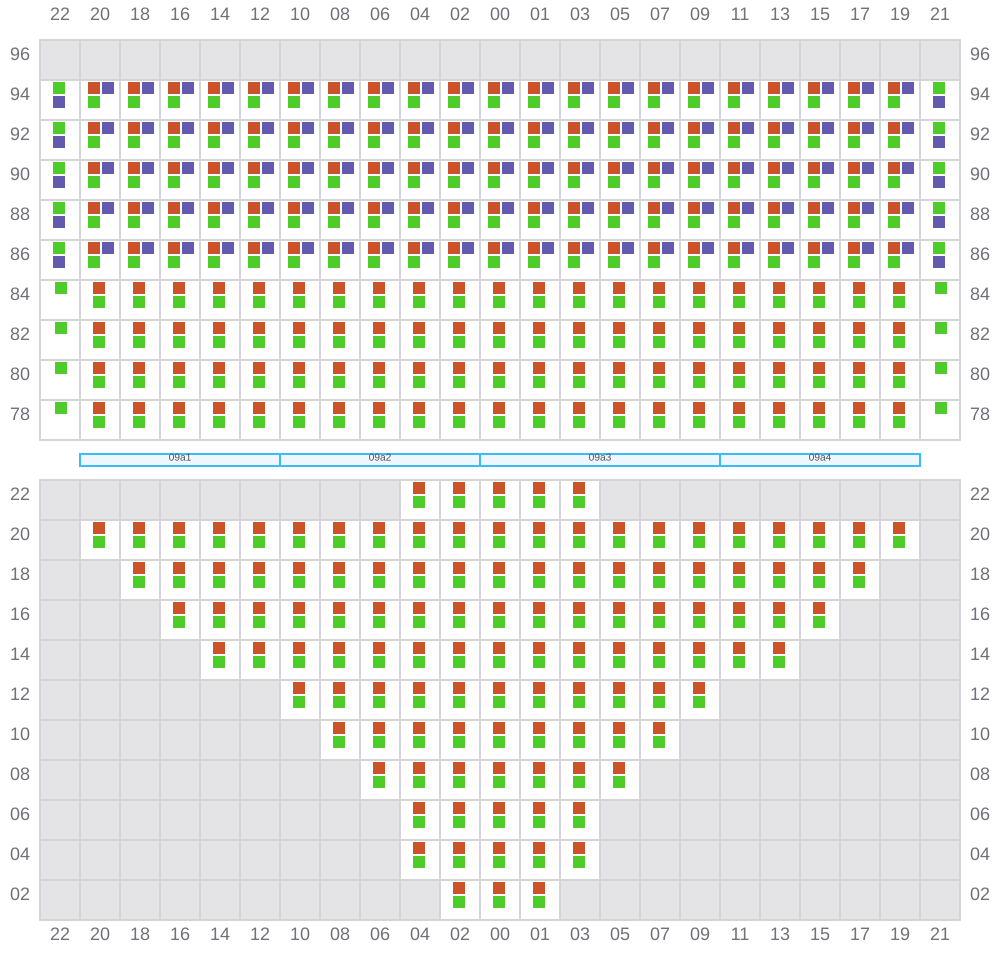

009 (010)
- →
![Bay 009 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b009.png?v=1711662342405)

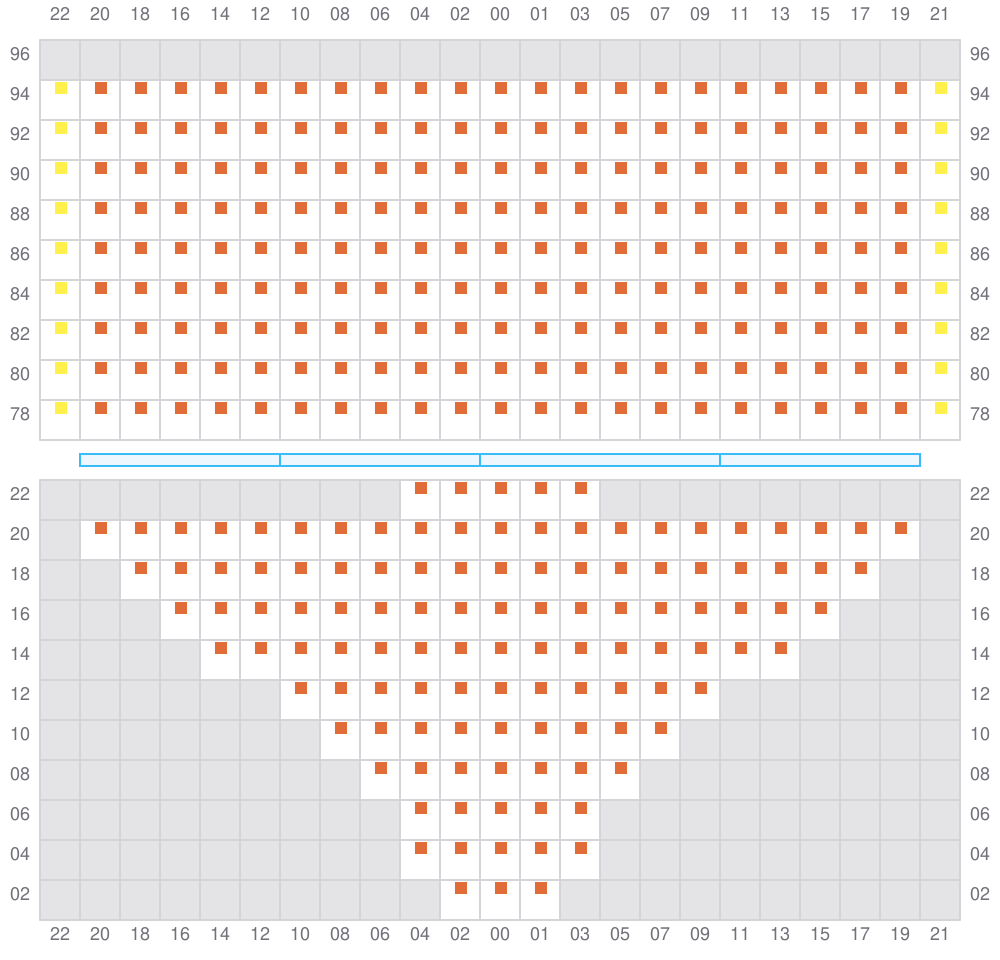

011
- ←
- → / ?
![Bay 011 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b011.png?v=1711662342405)

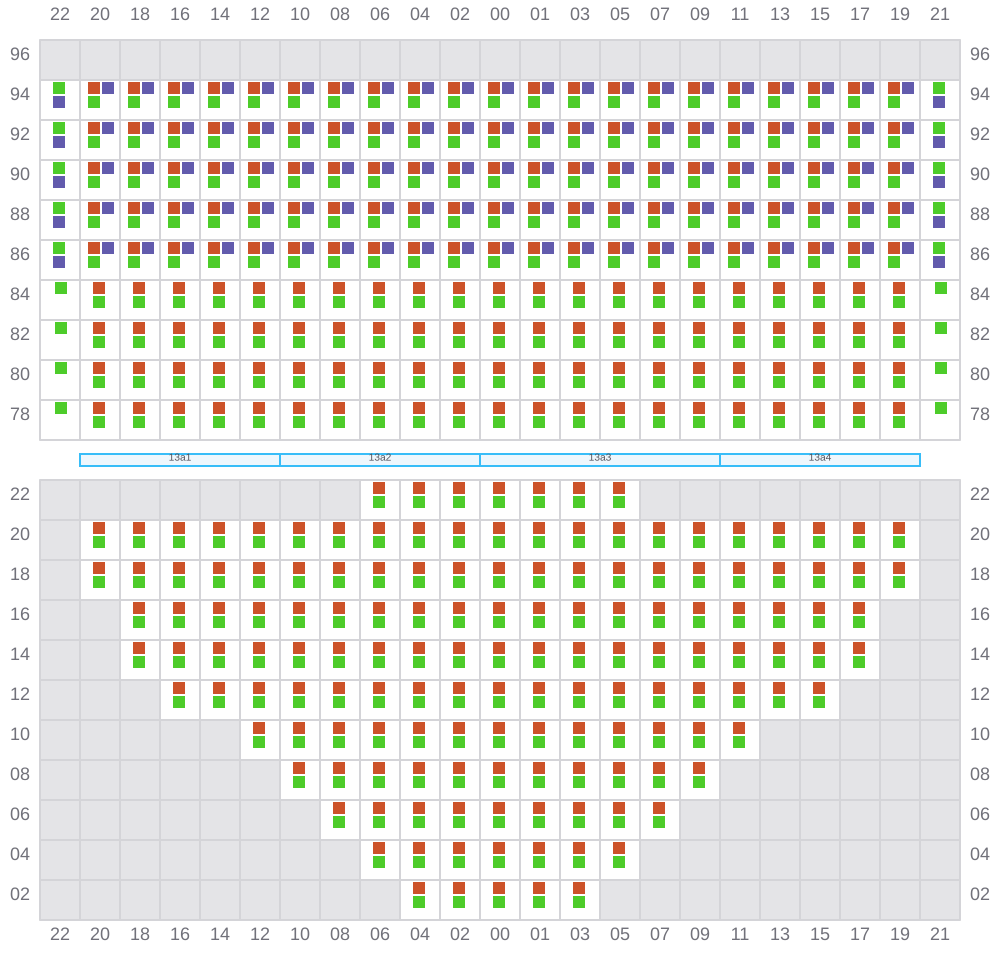

013 (014)
- →
![Bay 013 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b013.png?v=1711662342405)

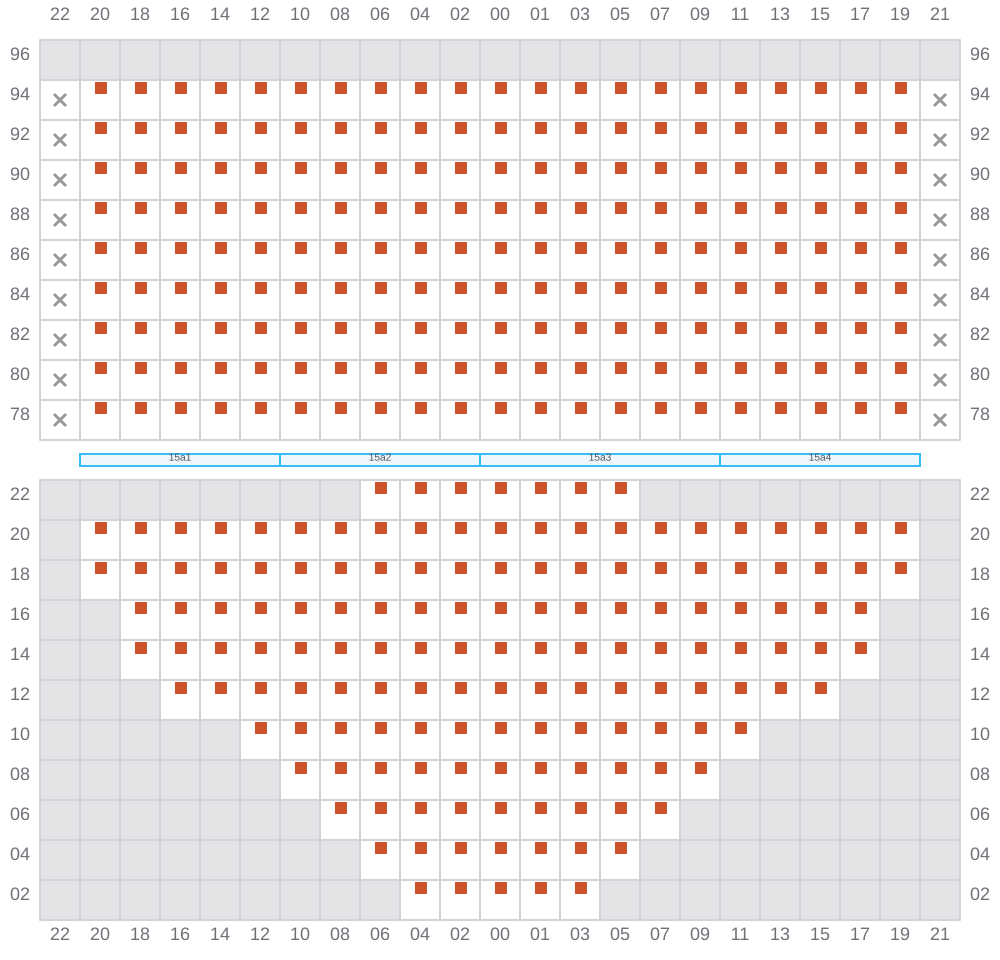

015
- ←
- → / ?
![Bay 015 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b015.png?v=1711662342405)

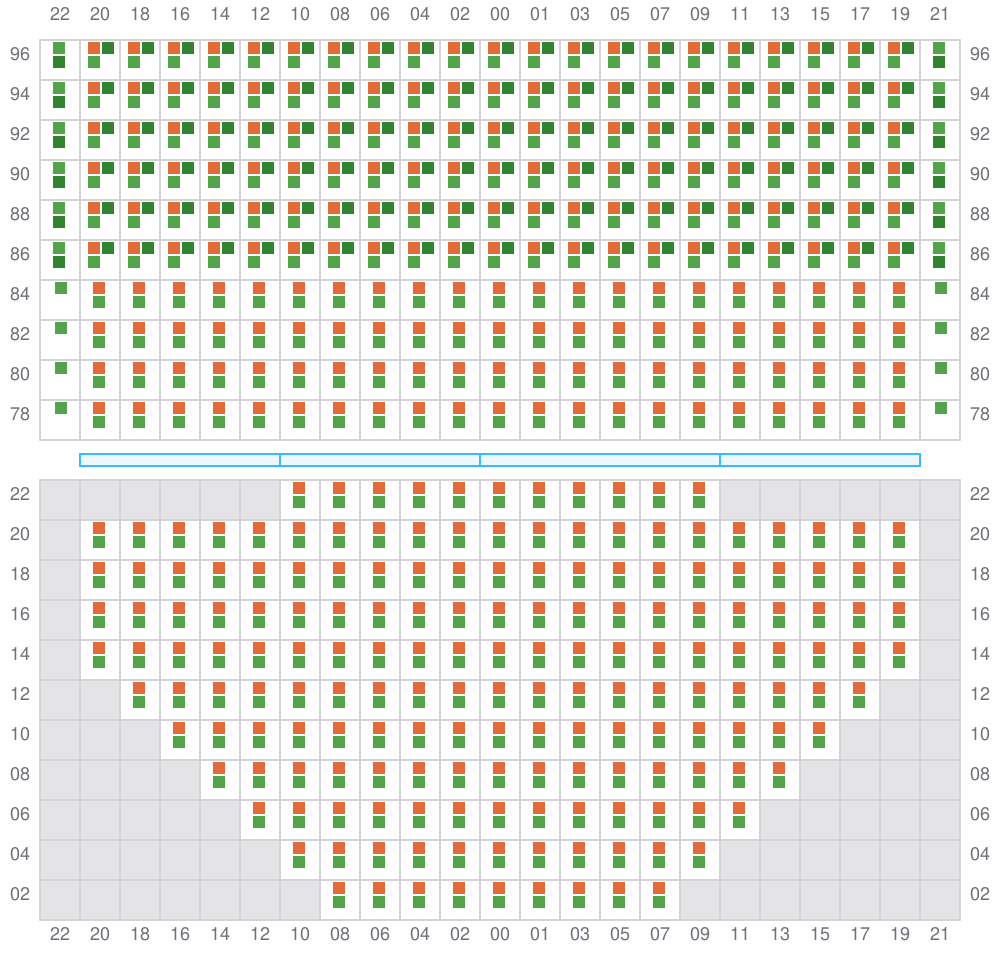

017 (018)
- →
![Bay 017 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b017.png?v=1711662342405)

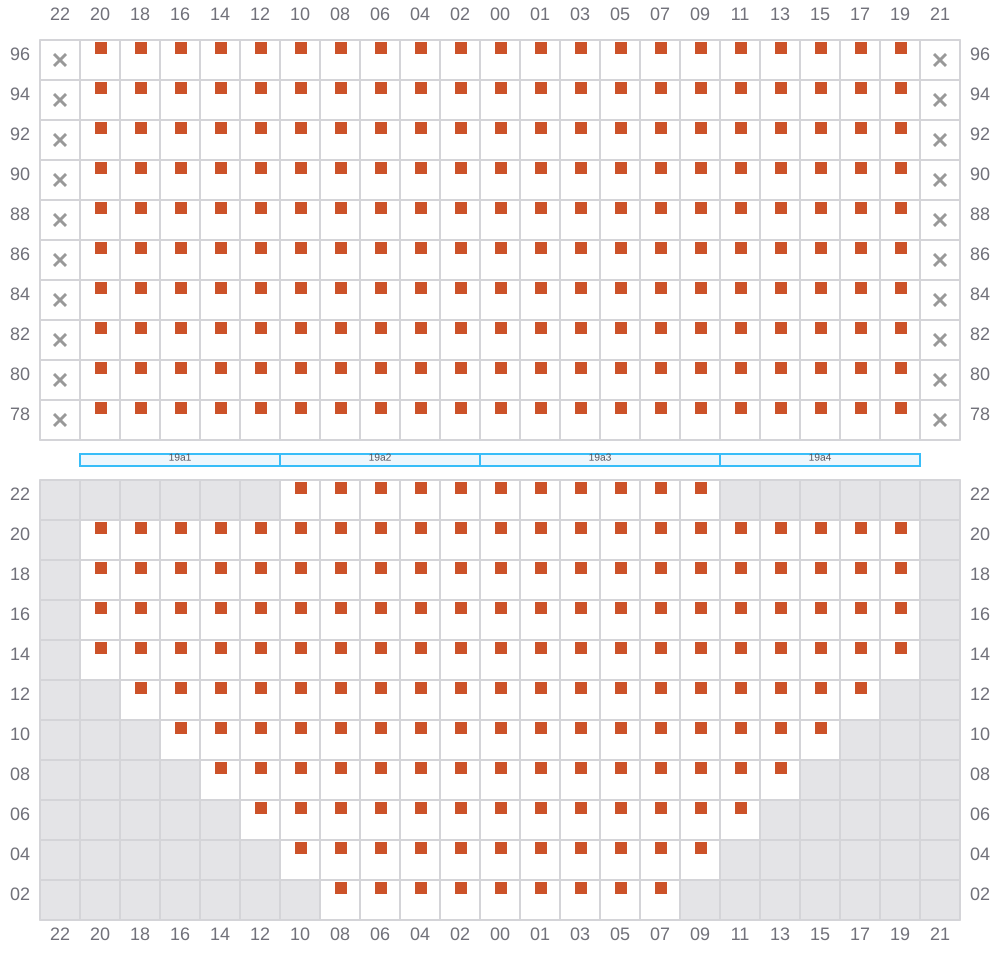

019
- ←
- → / ?
![Bay 019 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b019.png?v=1711662342405)

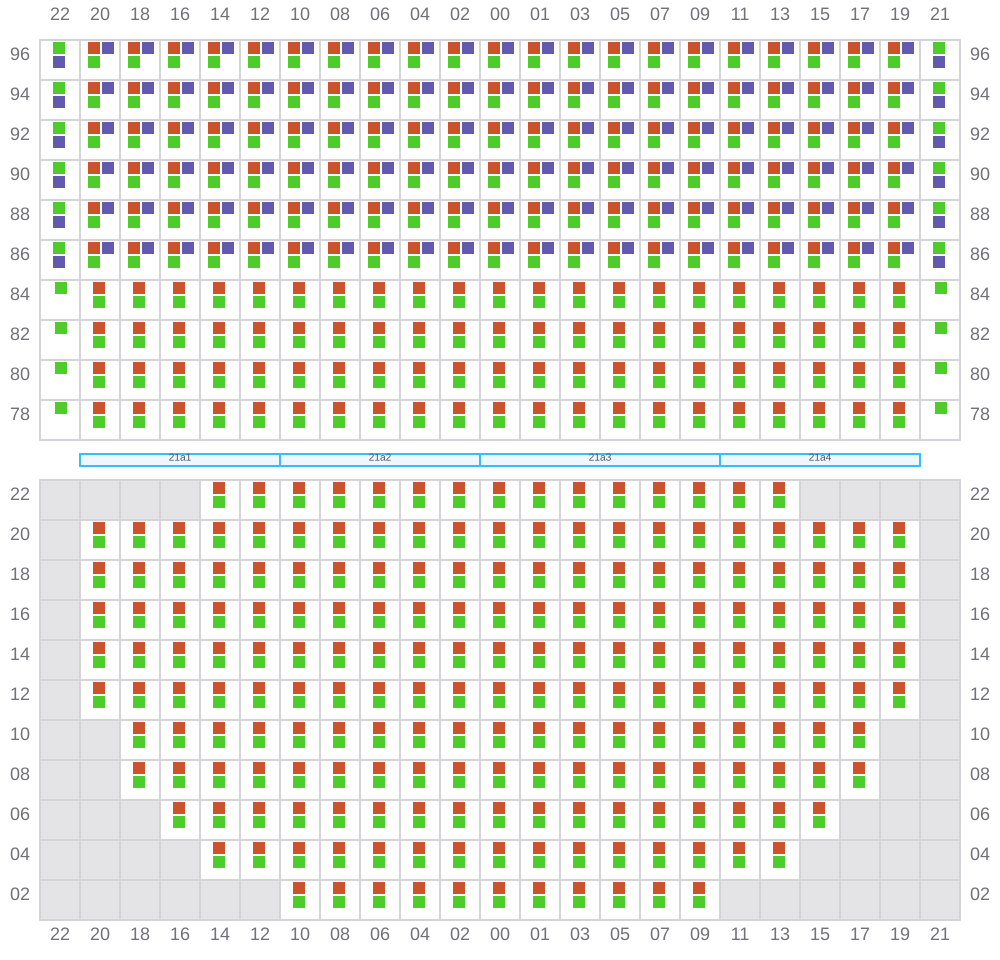

021 (022)
- →
![Bay 021 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b021.png?v=1711662342405)

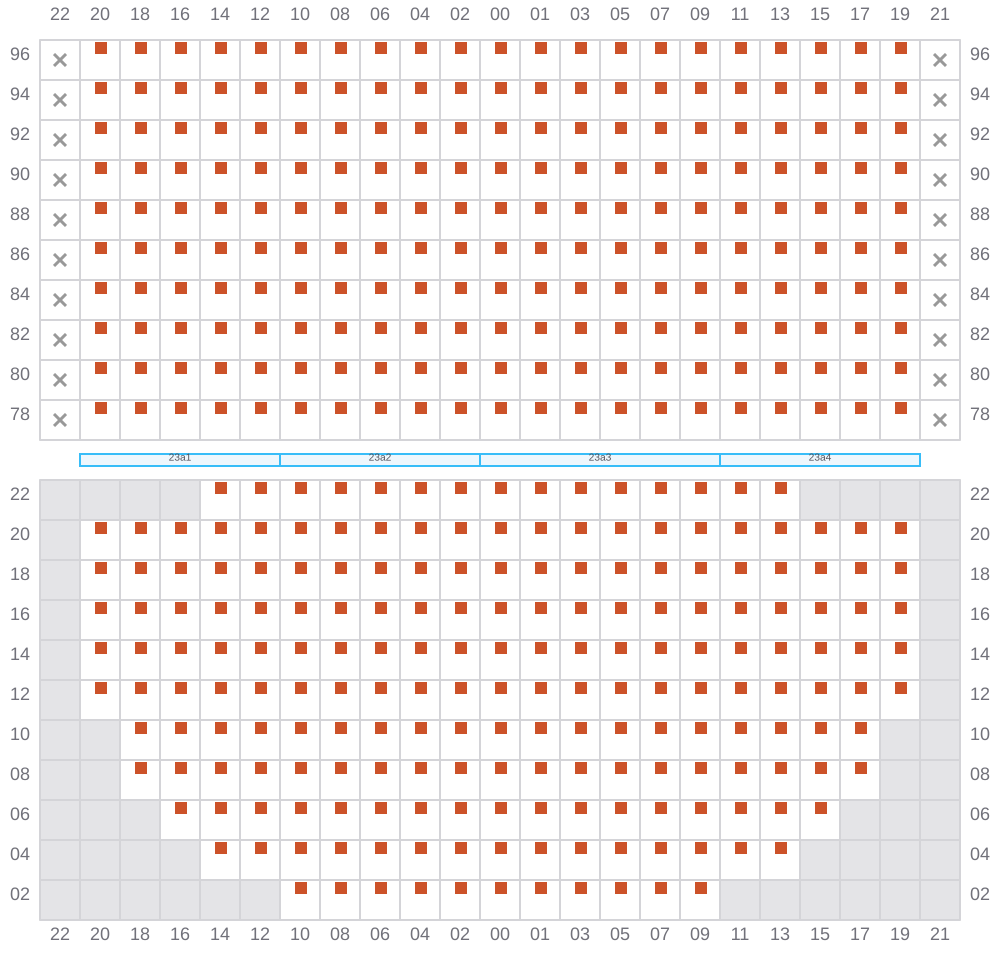

023
- ←
- → / ?
![Bay 023 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b023.png?v=1711662342405)

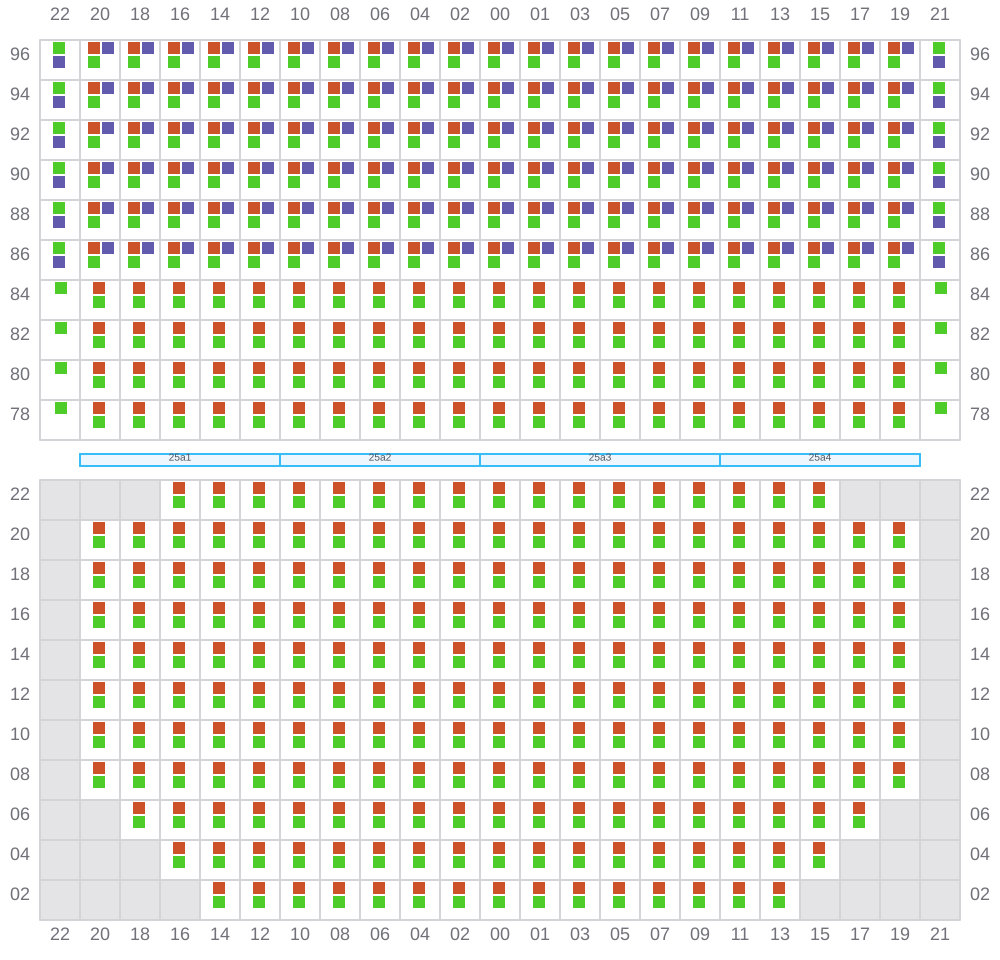

025 (026)
- →
![Bay 025 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b025.png?v=1711662342405)

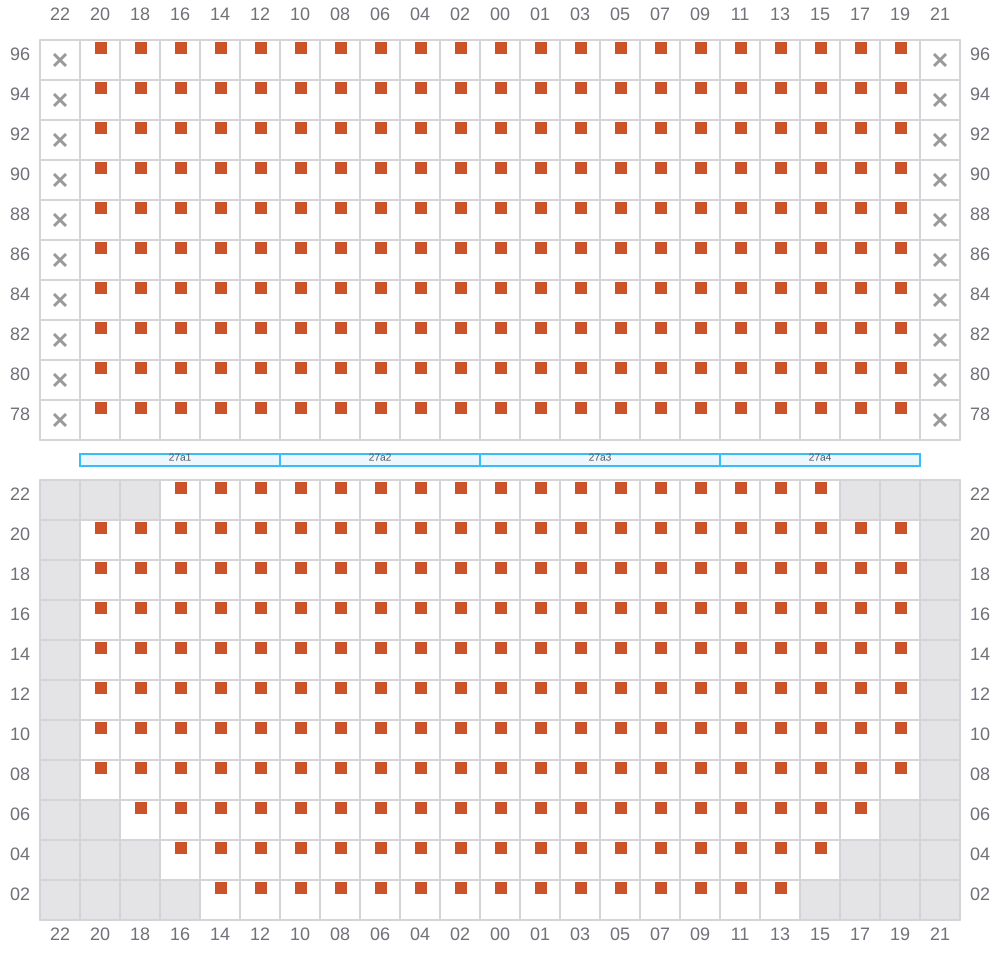

027
- ←
- → / ?
![Bay 027 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b027.png?v=1711662342405)

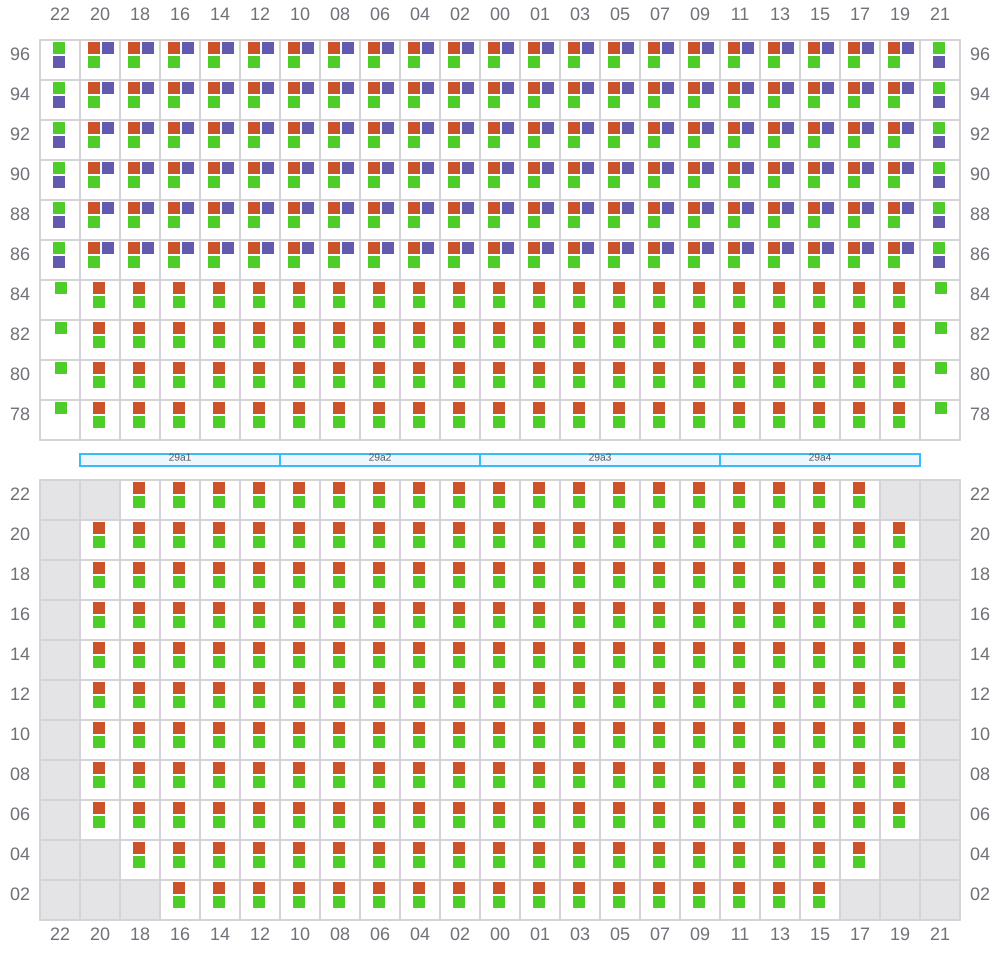

029 (030)
- →
![Bay 029 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b029.png?v=1711662342405)

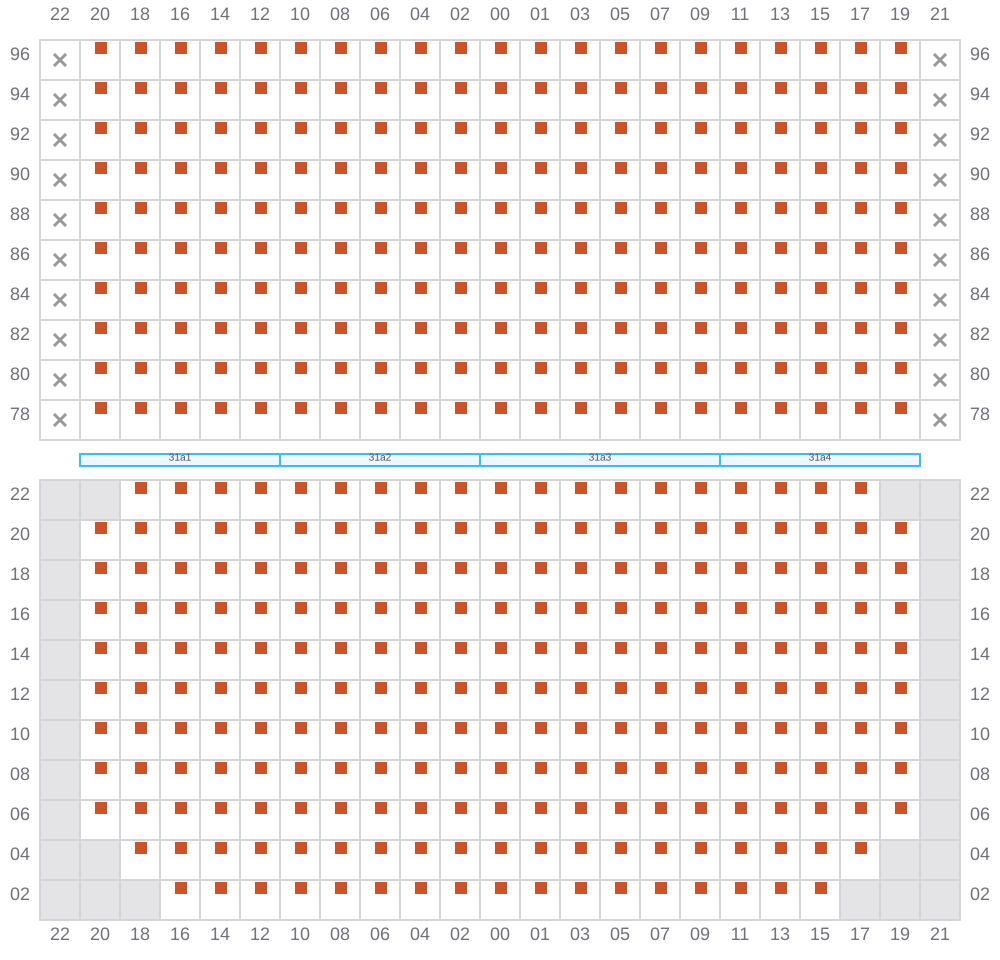

031
- ←
- → / ?
![Bay 031 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b031.png?v=1711662342405)

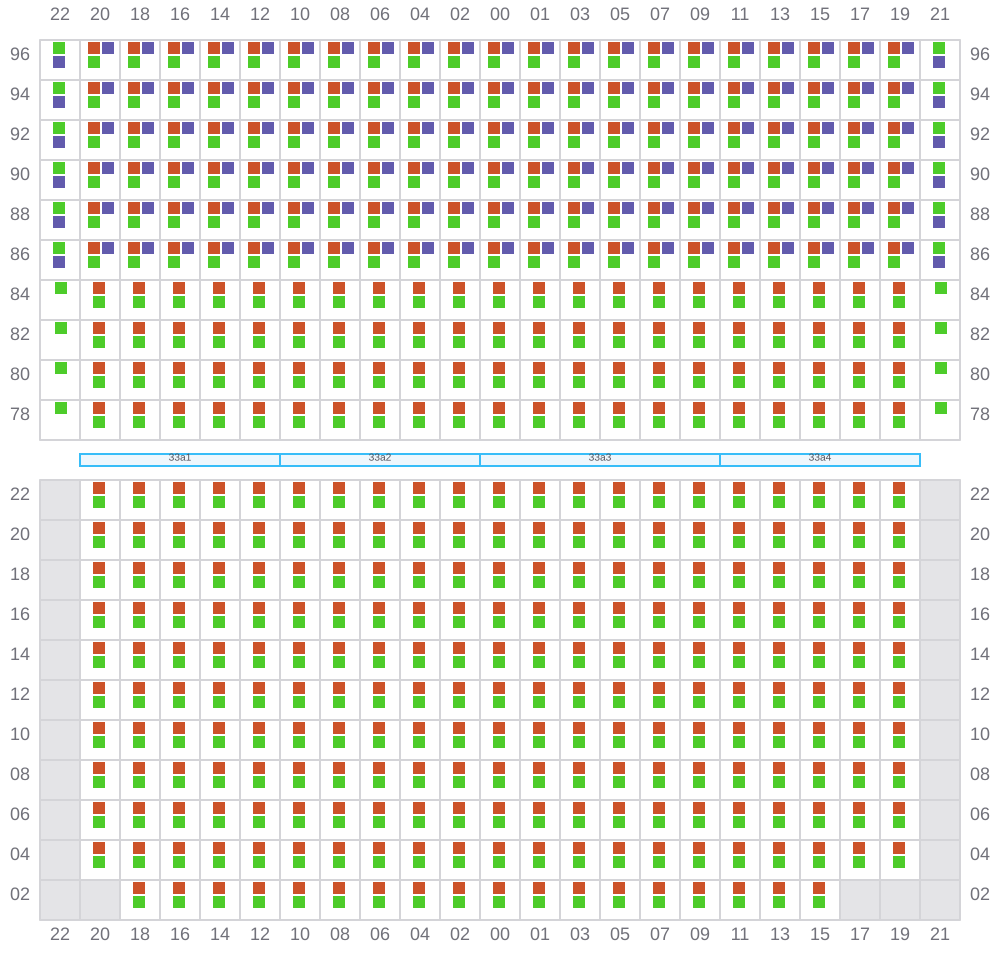

033 (034)
- →
![Bay 033 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b033.png?v=1711662342405)
035
- ←
- → / ?
![Bay 035 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b035.png?v=1711662342405)

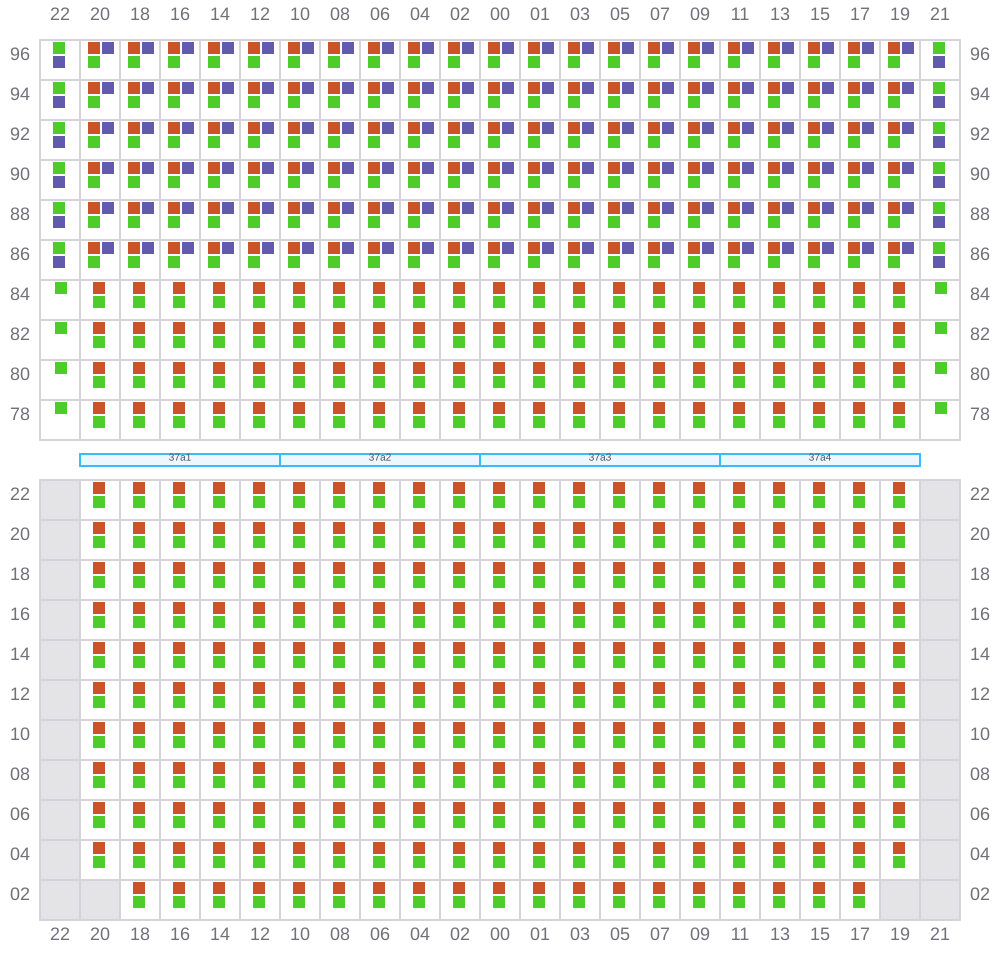

037 (038)
- →
![Bay 037 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b037.png?v=1711662342405)
039
- ←
- → / ?
![Bay 039 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b039.png?v=1711662342405)
041 (042)
- →
![Bay 041 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b041.png?v=1711662342405)
043
- ←
- → / ?
![Bay 043 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b043.png?v=1711662342405)
045 (046)
- →
![Bay 045 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b045.png?v=1711662342405)

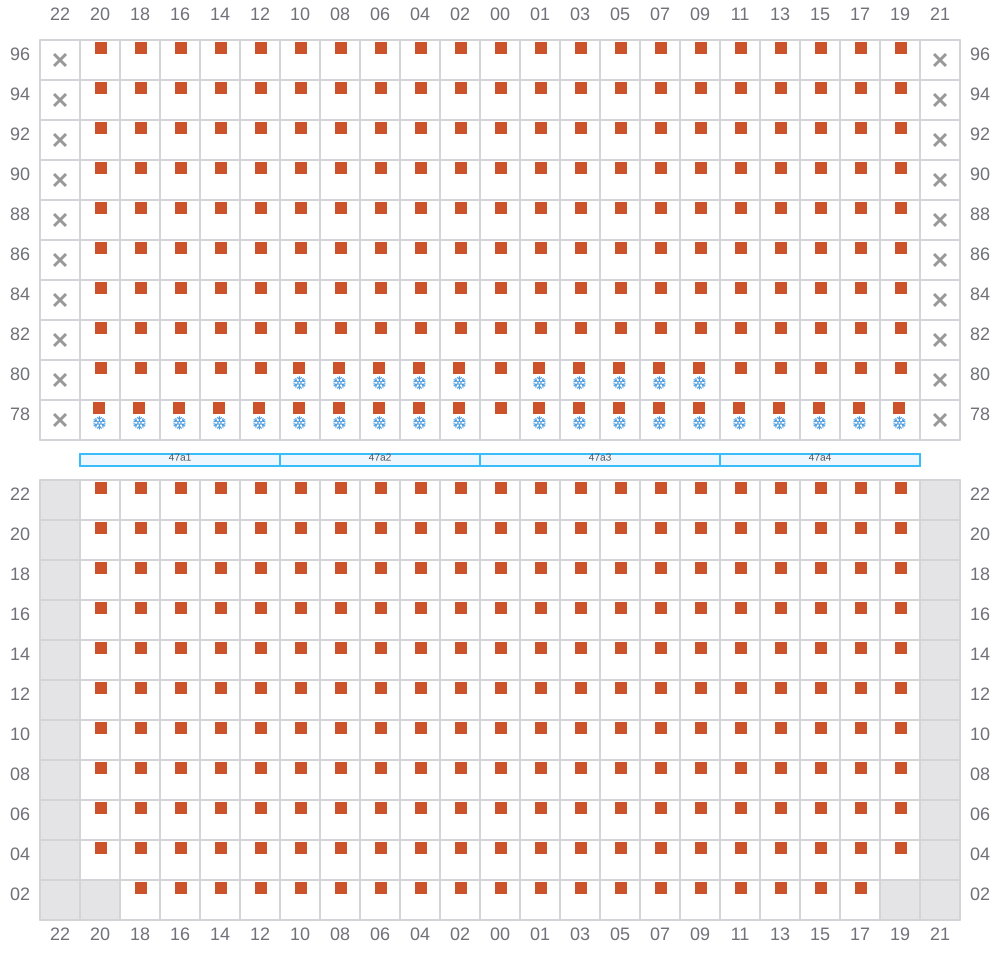

047
- ←
- → / ?
![Bay 047 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b047.png?v=1711662342405)

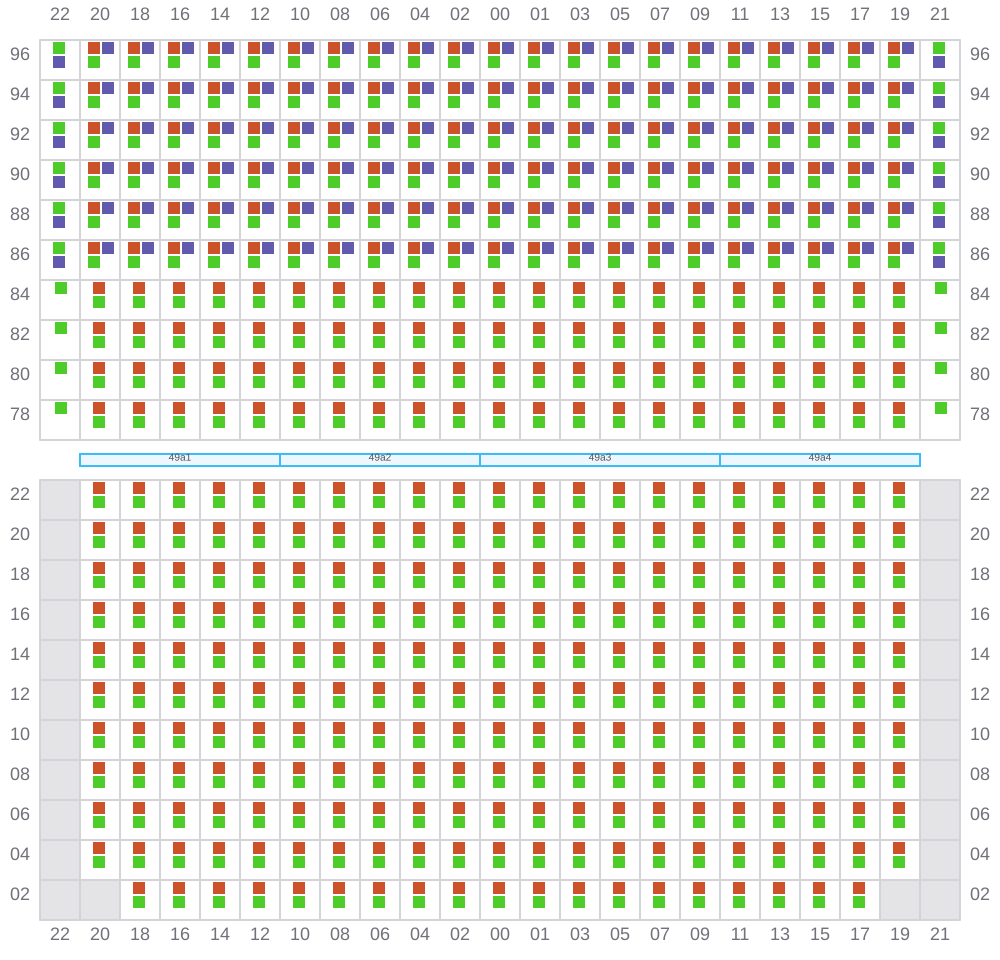

049 (050)
- →
![Bay 049 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b049.png?v=1711662342405)
051
- ←
- → / ?
![Bay 051 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b051.png?v=1711662342405)

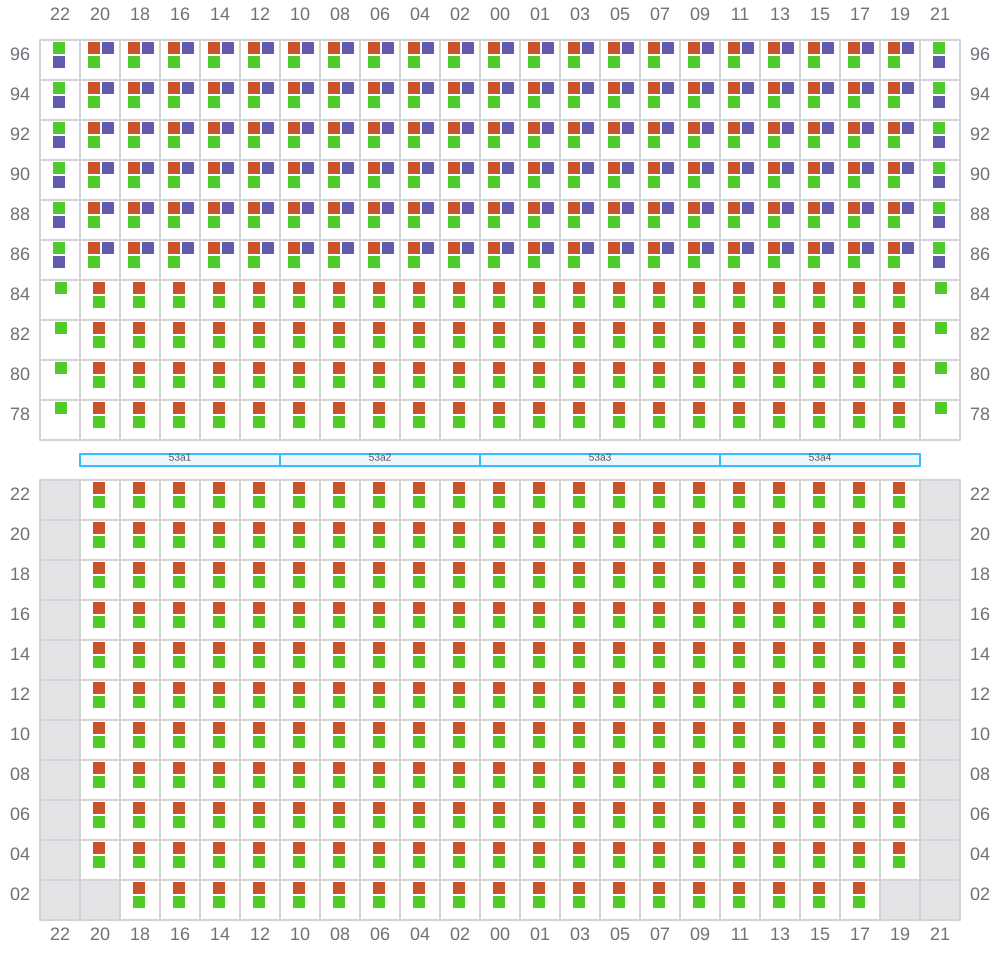

053 (054)
- →
![Bay 053 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b053.png?v=1711662342405)

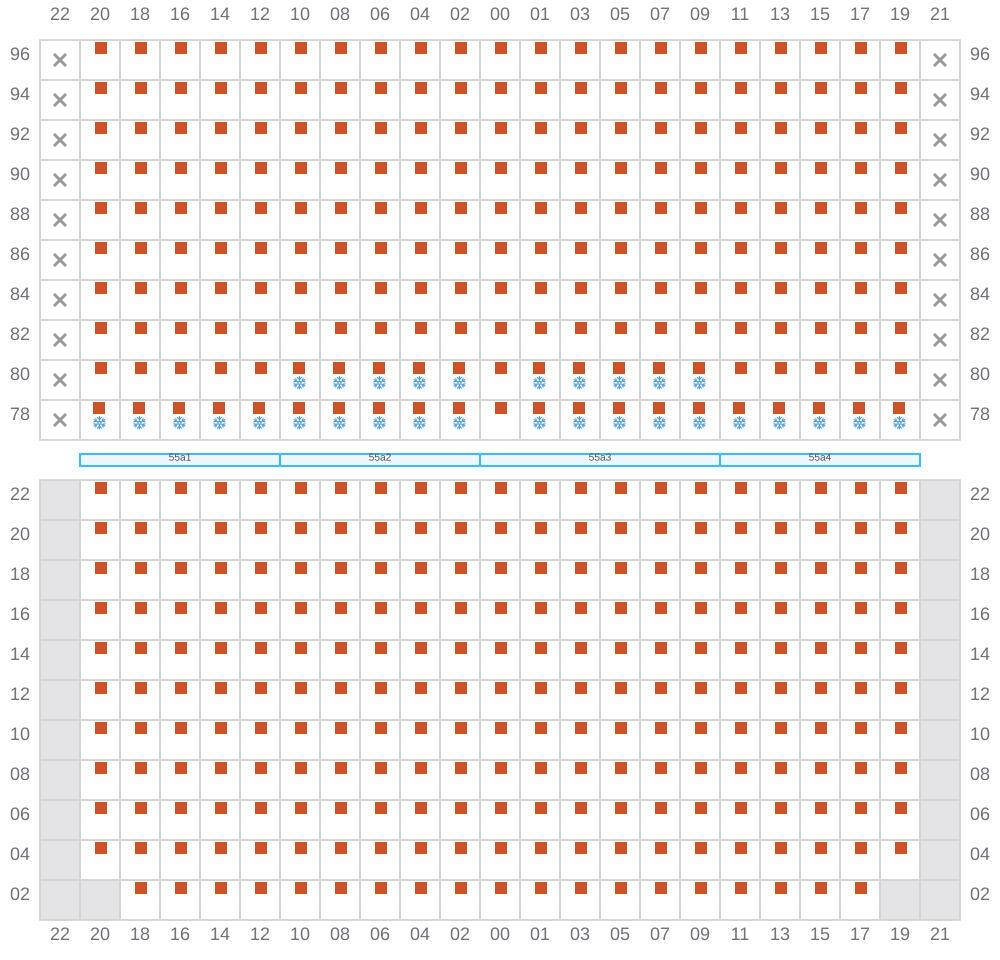

055
- ←
- → / ?
![Bay 055 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b055.png?v=1711662342405)
057 (058)
- →
![Bay 057 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b057.png?v=1711662342405)

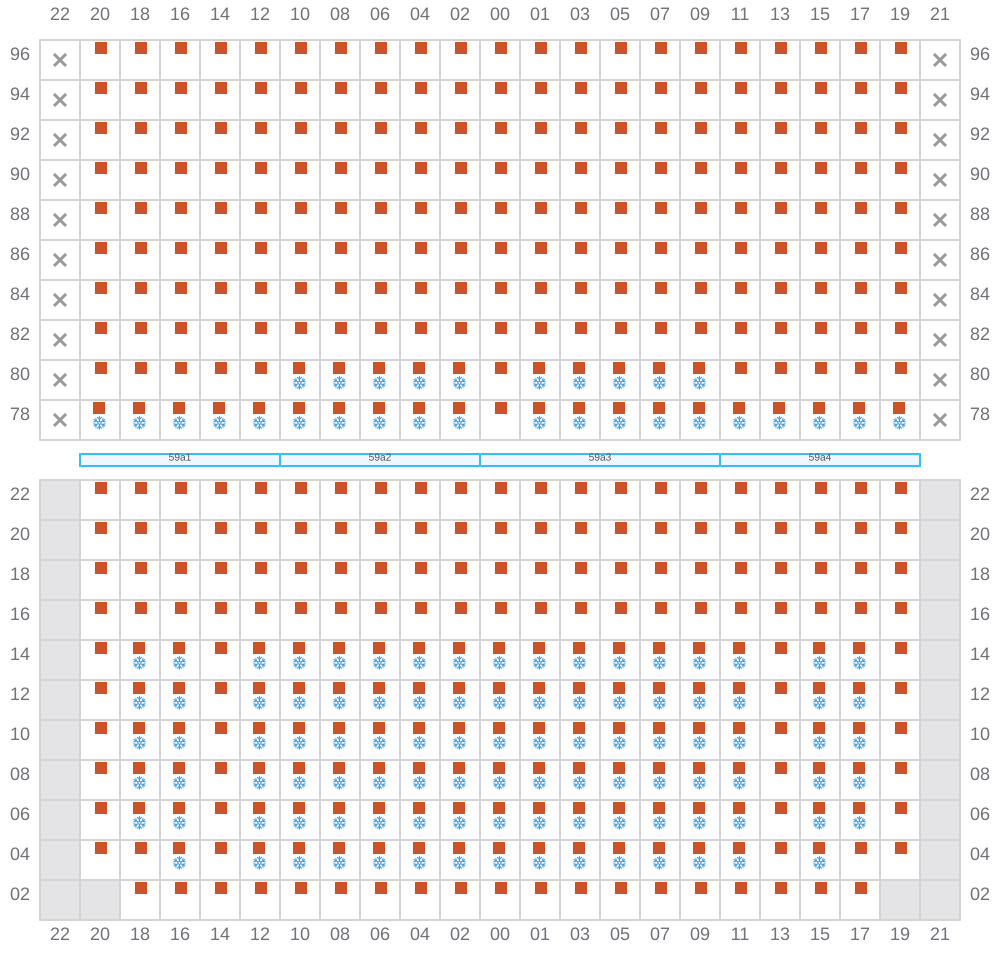

059
- ←
- →
![Bay 059 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b059.png?v=1711662342405)
061 (062)
- →
![Bay 061 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b061.png?v=1711662342405)
063
- ←
- → / ?
![Bay 063 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b063.png?v=1711662342405)

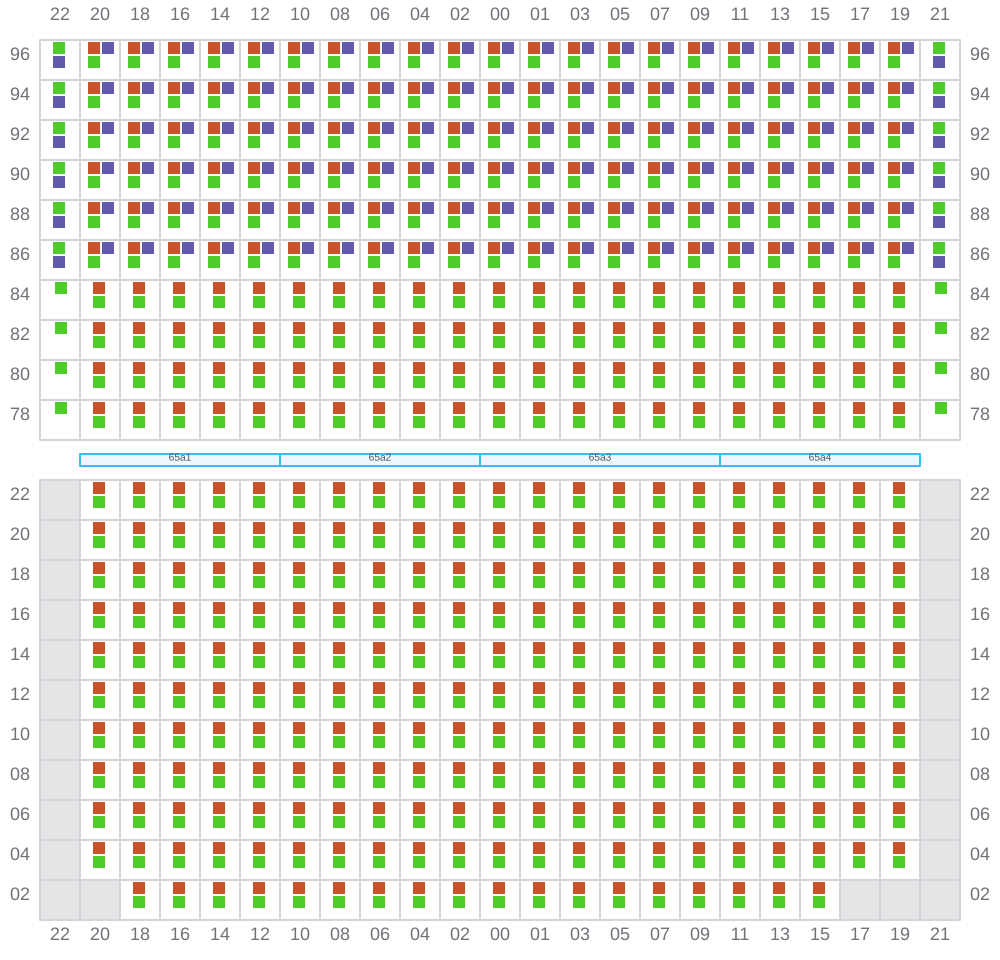

065 (066)
- →
![Bay 065 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b065.png?v=1711662342405)

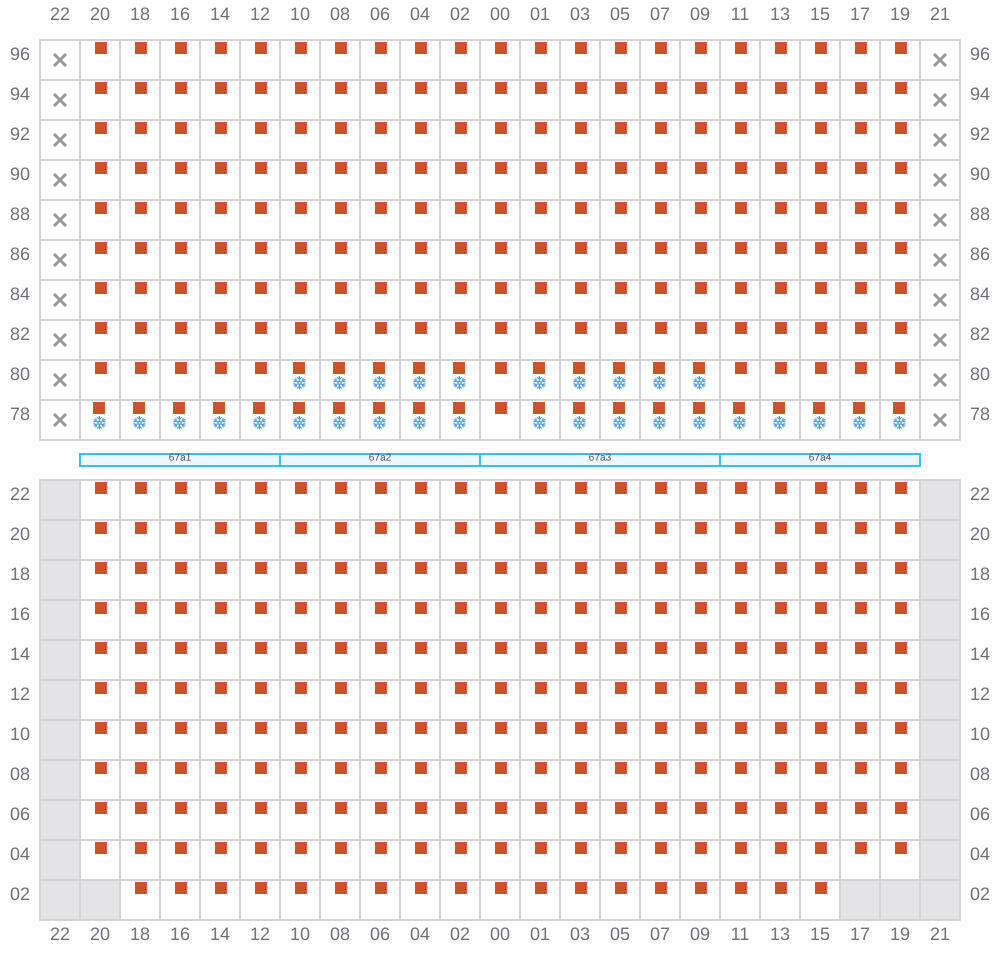

067
- ←
- → / ?
![Bay 067 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b067.png?v=1711662342405)

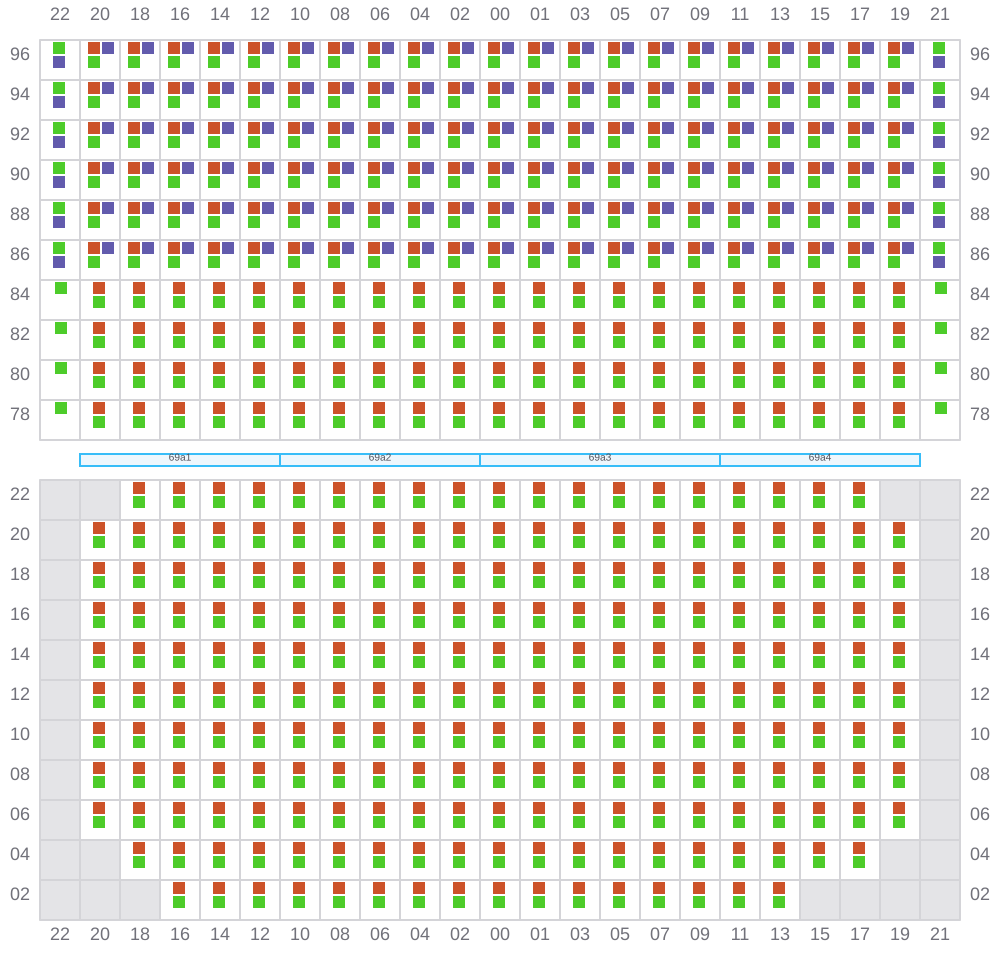

069 (070)
- →
![Bay 069 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b069.png?v=1711662342405)

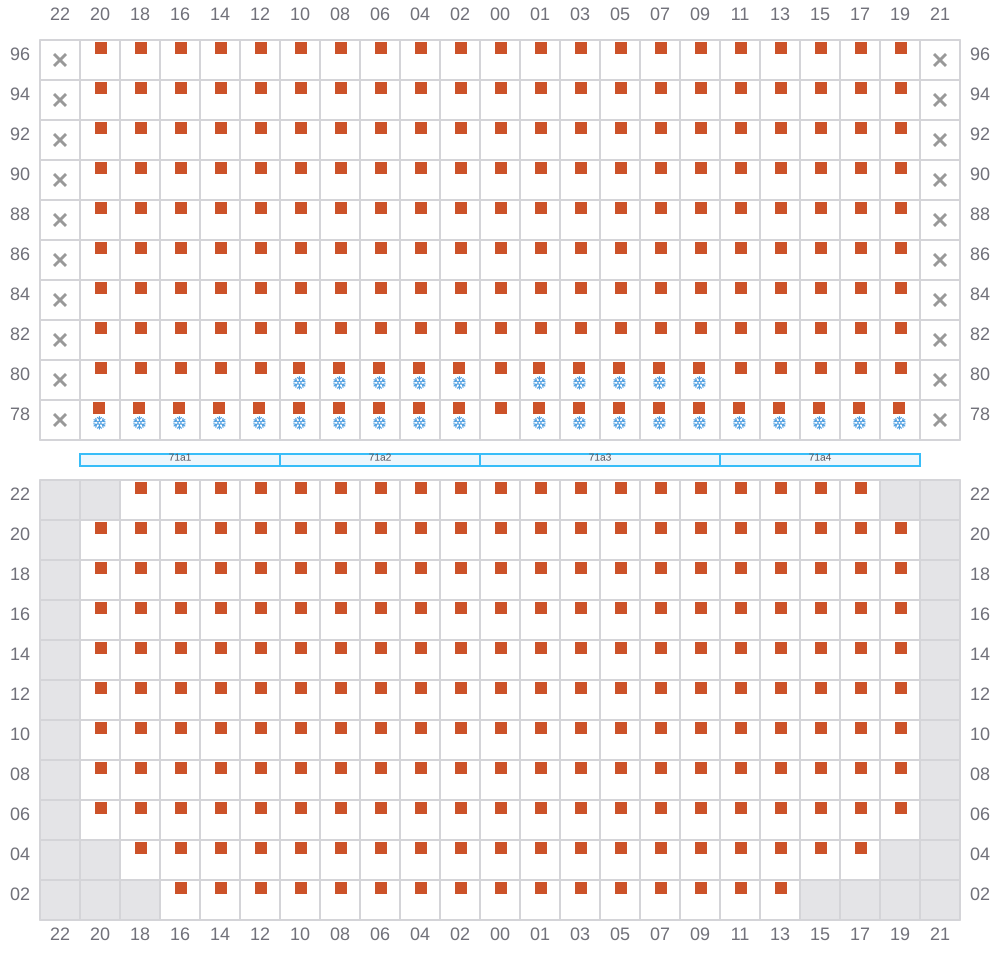

071
- ←
- → / ?
![Bay 071 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b071.png?v=1711662342405)

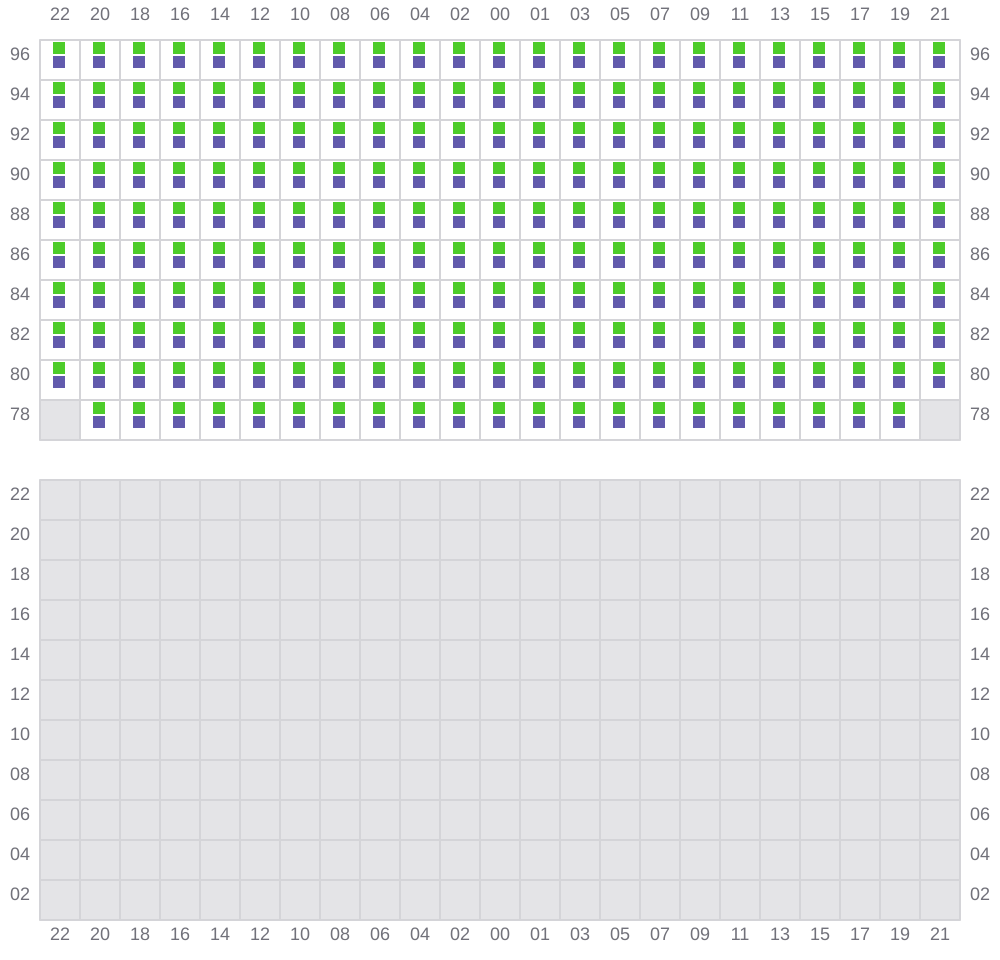

073 (074)
- → / ?
![Bay 073 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b073.png?v=1711662342405)

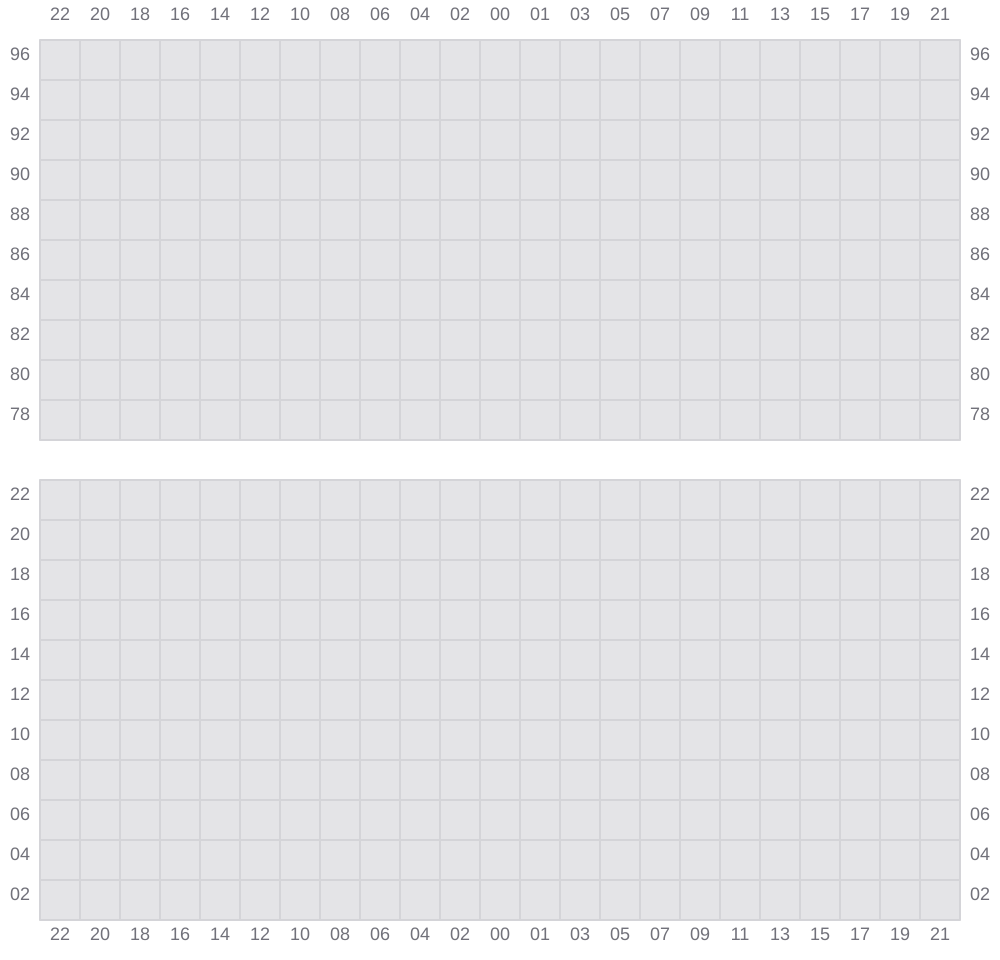

075
![Bay 075 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b075.png?v=1711662342405)

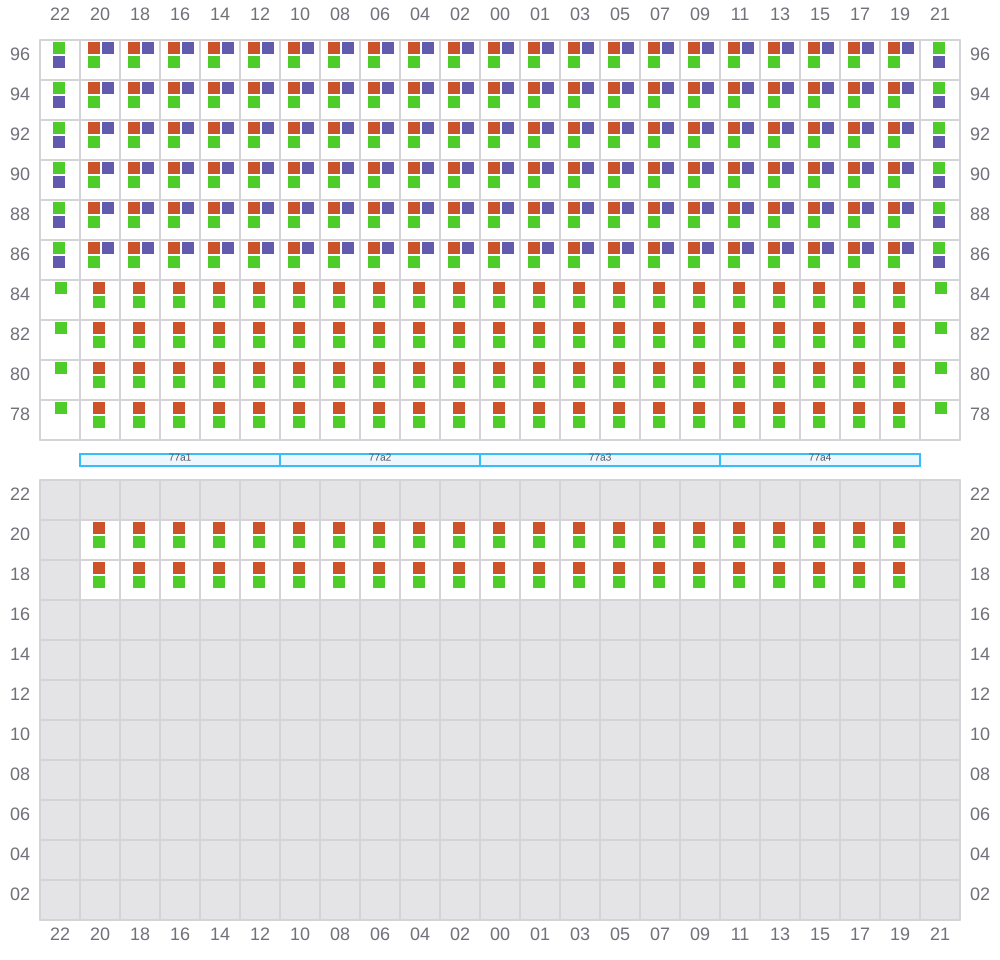

077 (078)
- →
![Bay 077 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b077.png?v=1711662342405)

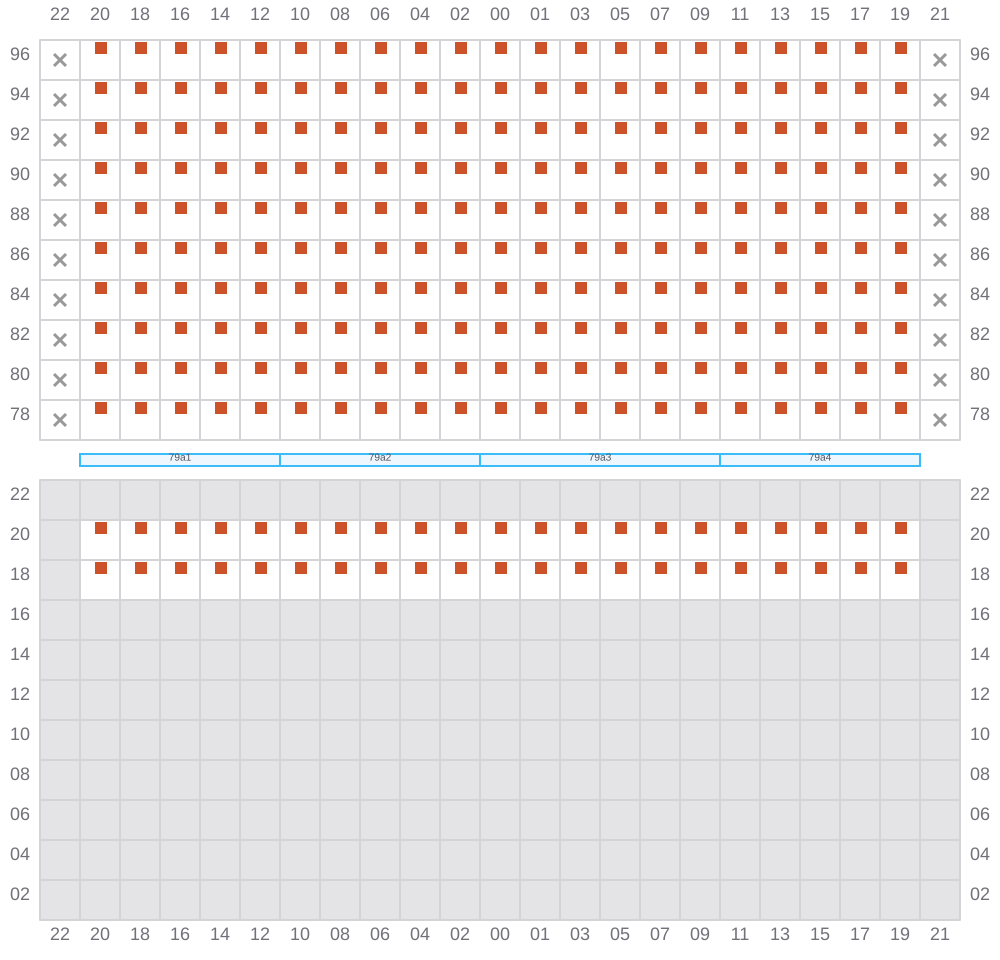

079
- ←
![Bay 079 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b079.png?v=1711662342405)

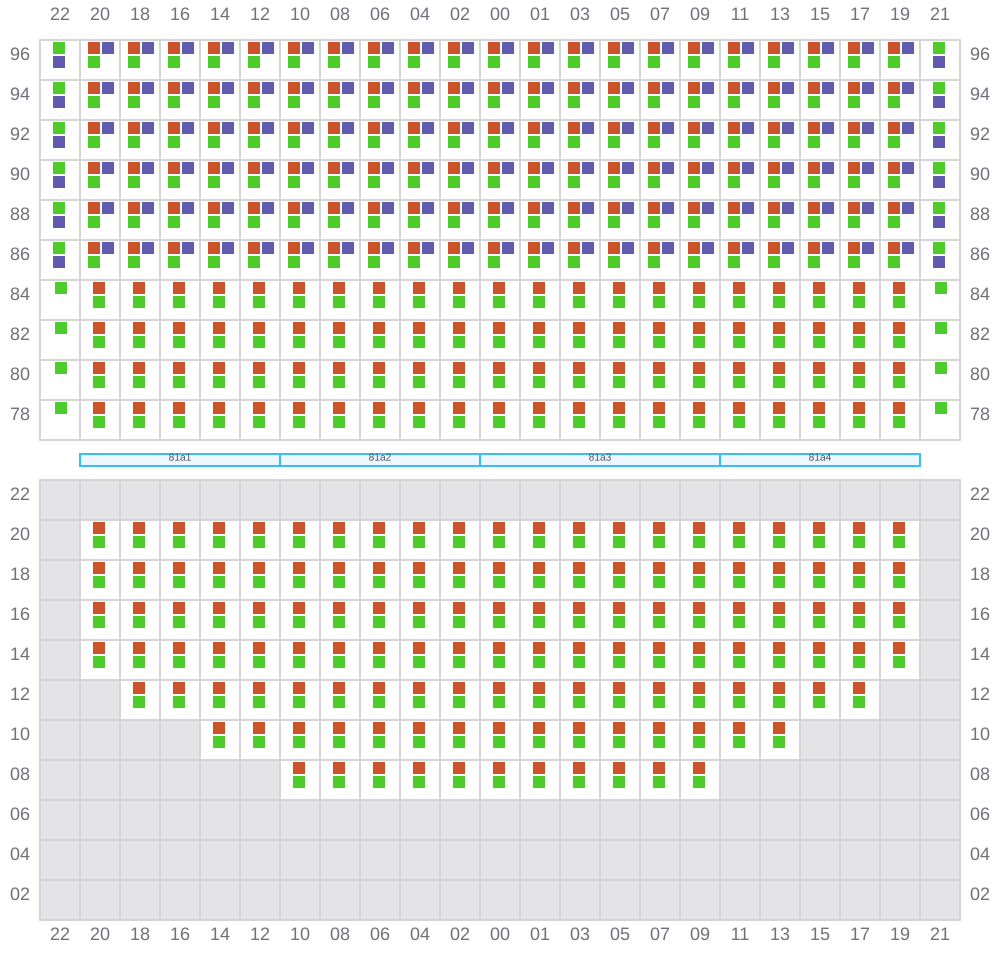

081 (082)
- →
![Bay 081 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b081.png?v=1711662342405)

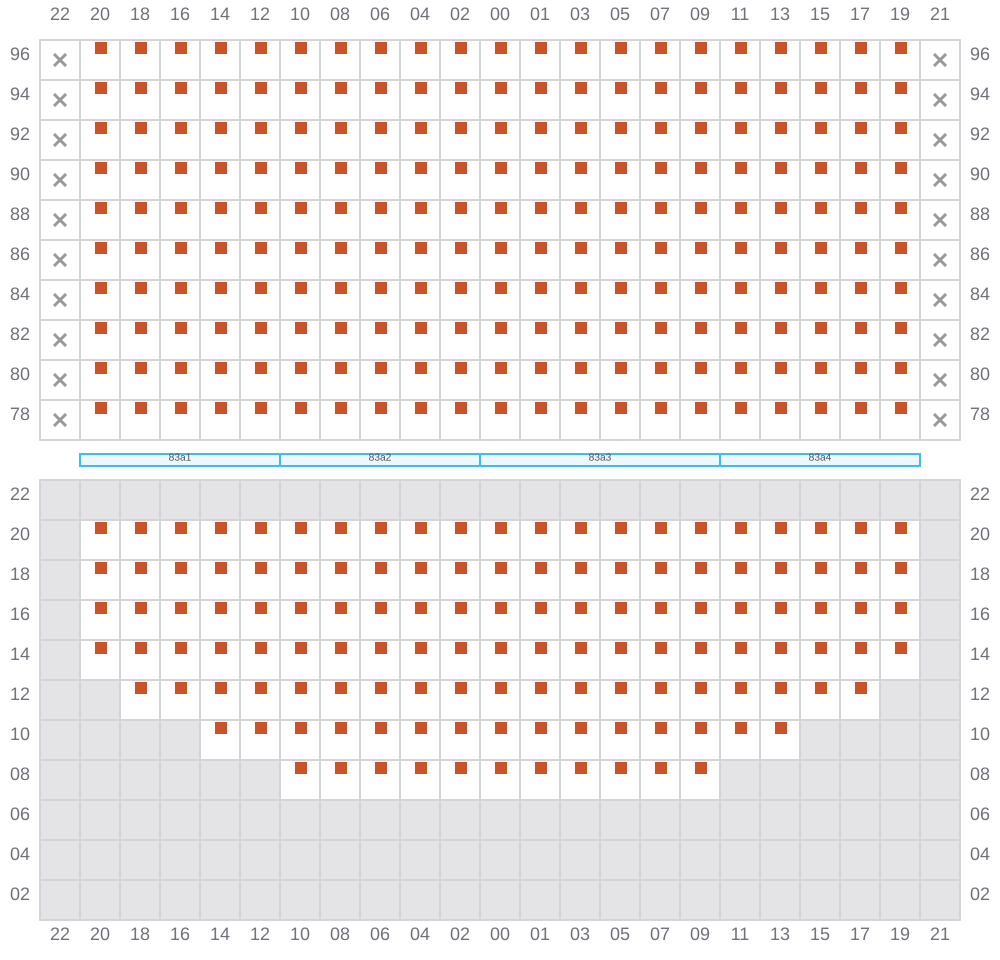

083
- ←
![Bay 083 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b083.png?v=1711662342405)
085 (086)
- →
![Bay 085 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b085.png?v=1711662342405)

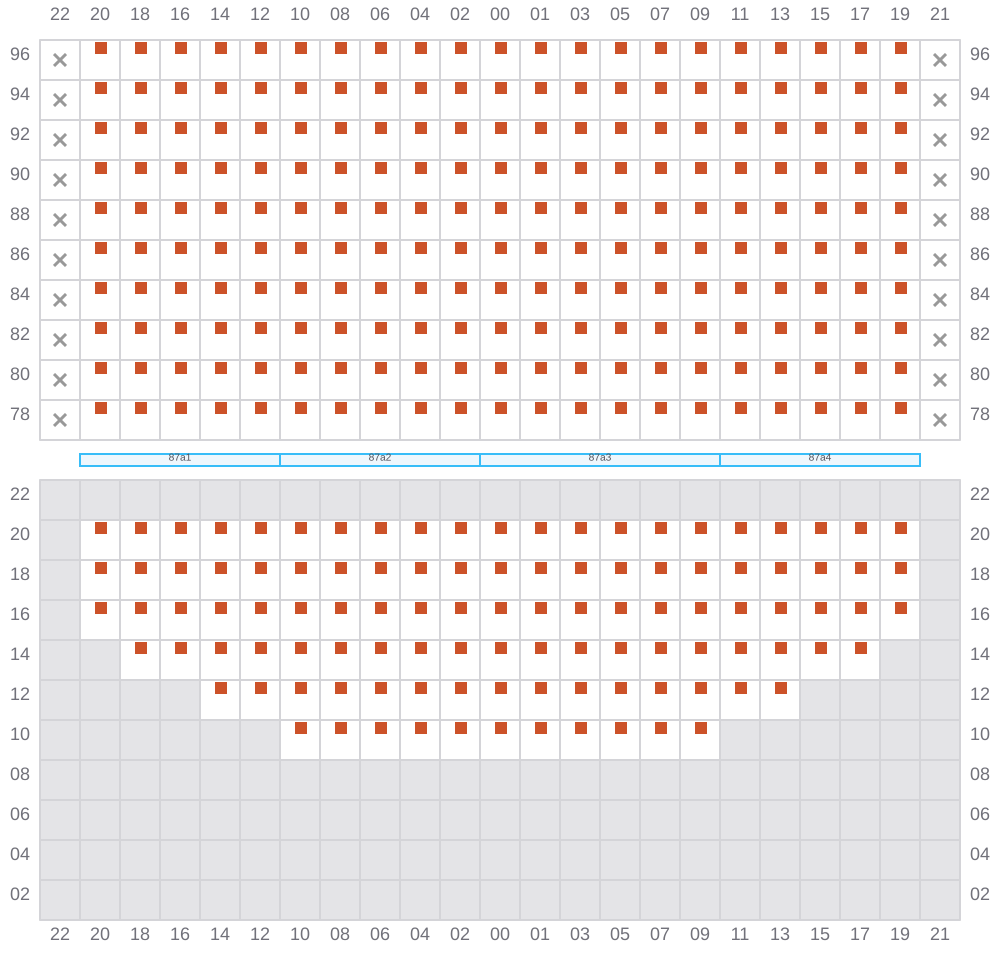

087
- ←
![Bay 087 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b087.png?v=1711662342405)

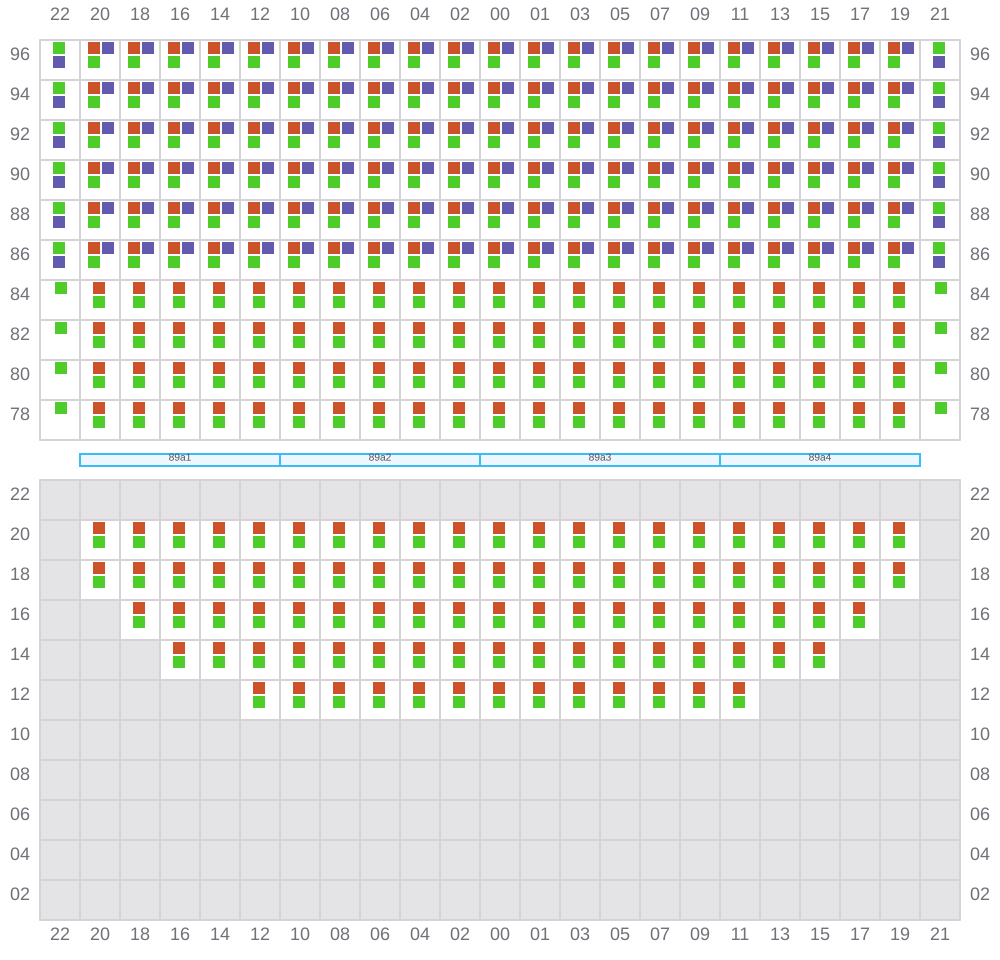

089 (090)
- →
![Bay 089 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b089.png?v=1711662342405)

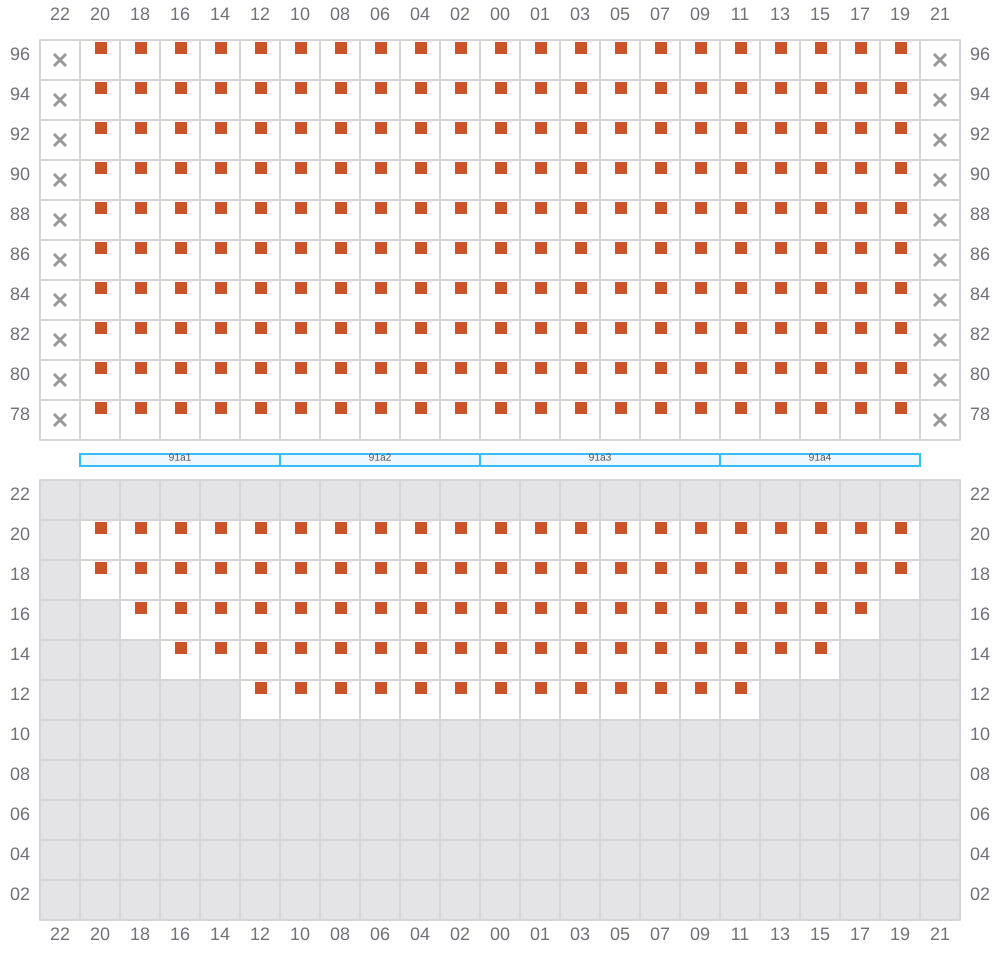

091
- ←
![Bay 091 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b091.png?v=1711662342405)

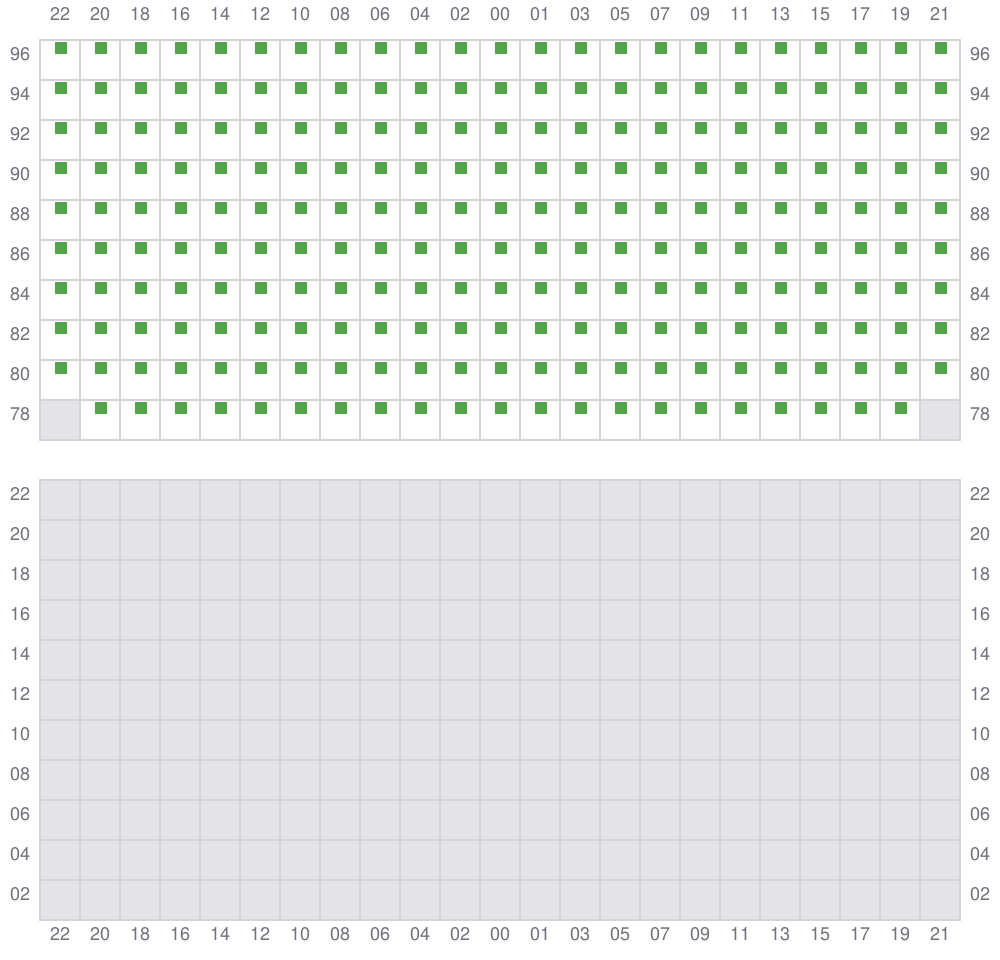

093 (094)
- → / ?
![Bay 093 view and slots of MARY MAERSK](/vessel-images/7a27eaeb-59d5-46e8-9779-8a0bfcc55630-b093.png?v=1711662342405)
