MATADI EXPRESS
9405112 | 5LCX8 | 9405112 by ********* Last update: Fri Jun 21 2024
General Info
Ship Name:MATADI EXPRESS
IMO Code:9405112
Call Sign:5LCX8
Line Operator:9405112
Class Name for Sister Ships:MSL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,115
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

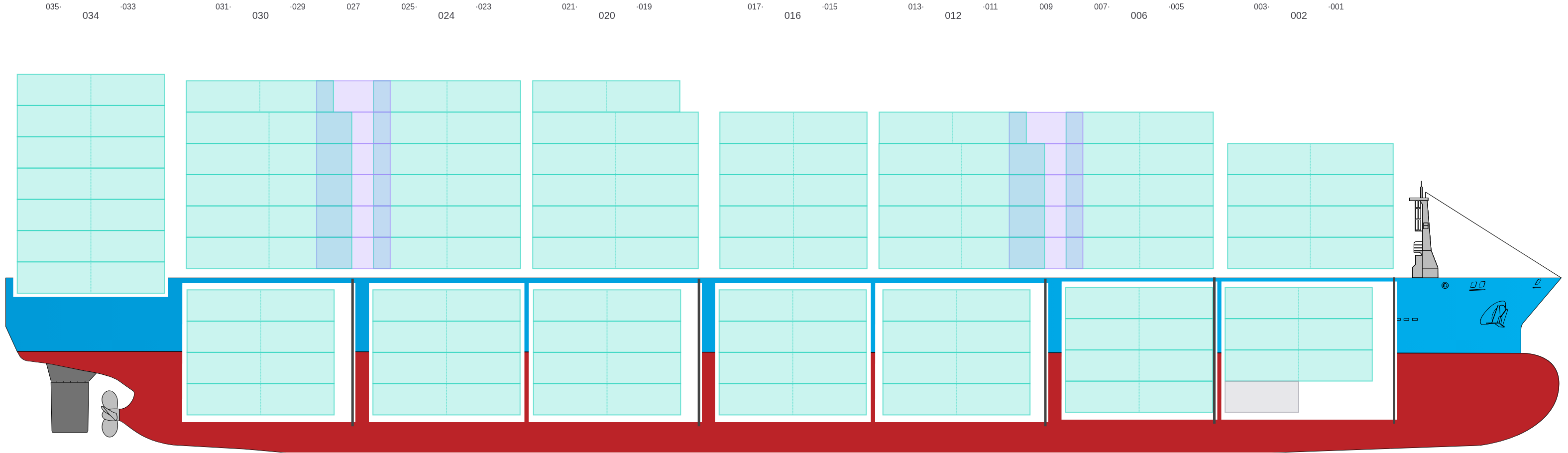

Side View

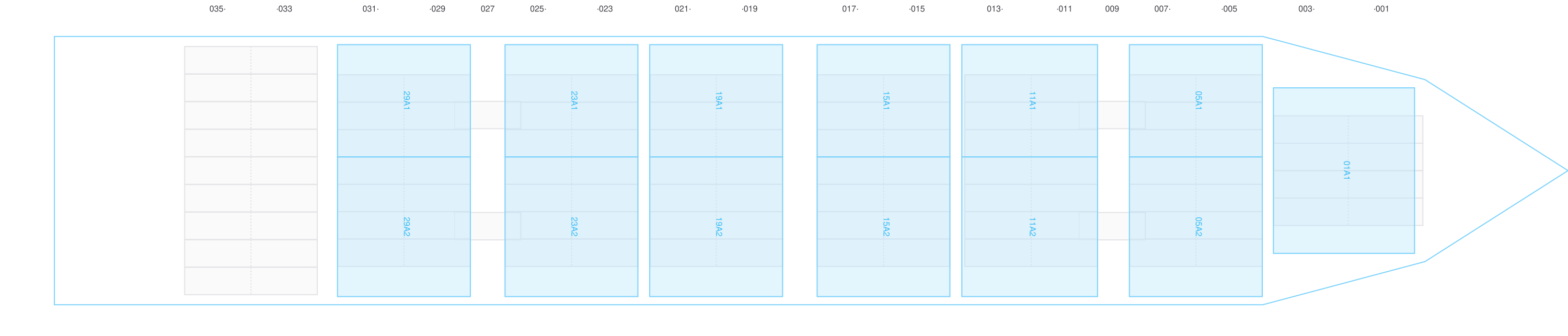

Hatch-Covers View

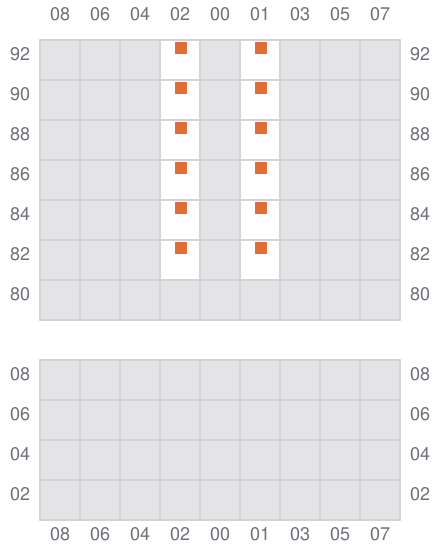

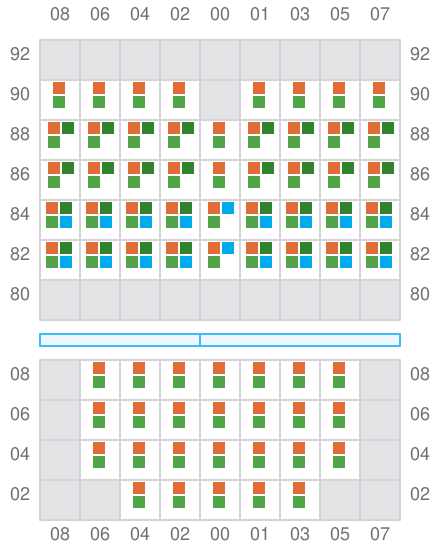

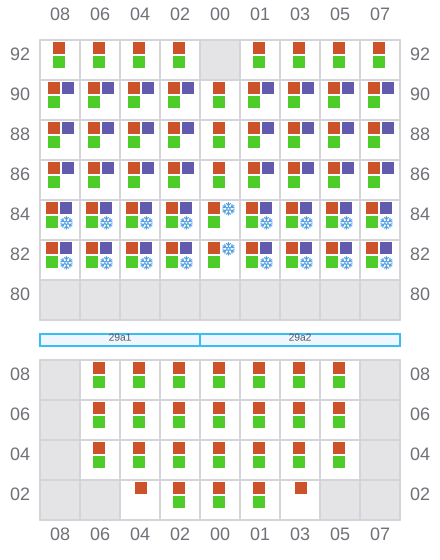

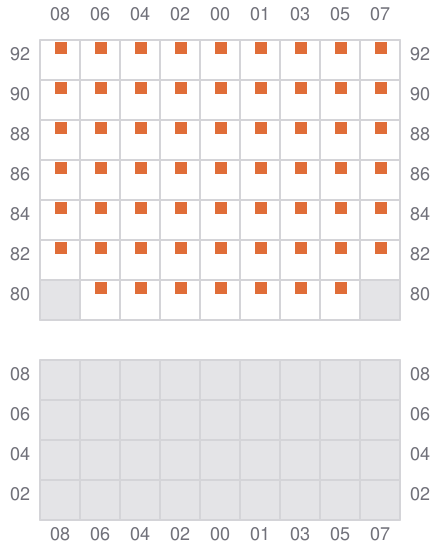

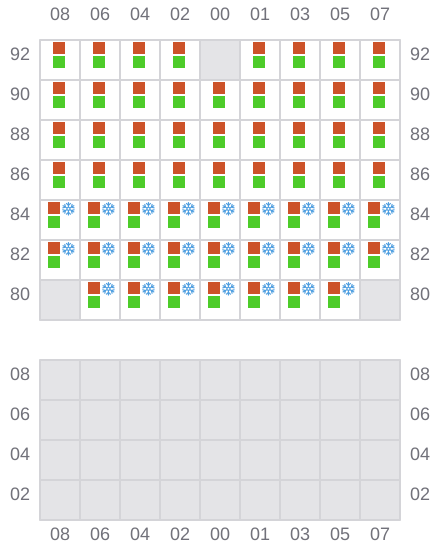

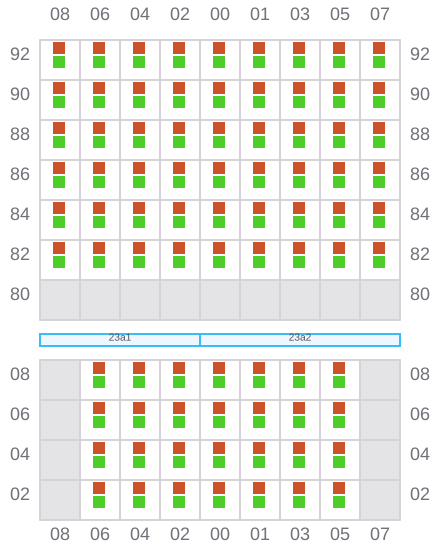

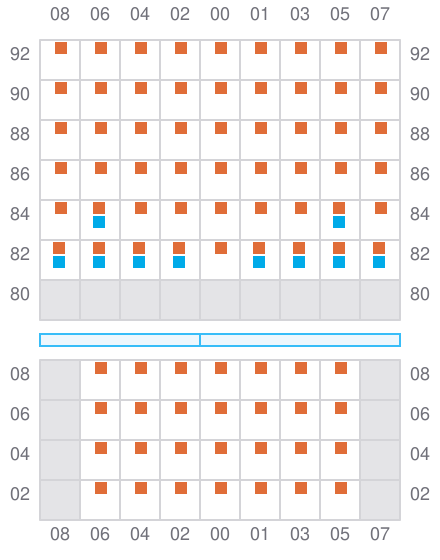

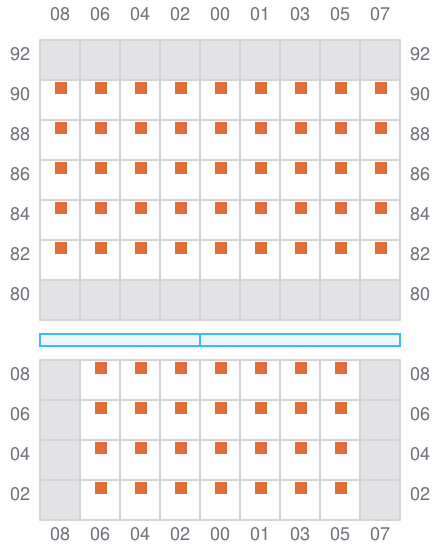

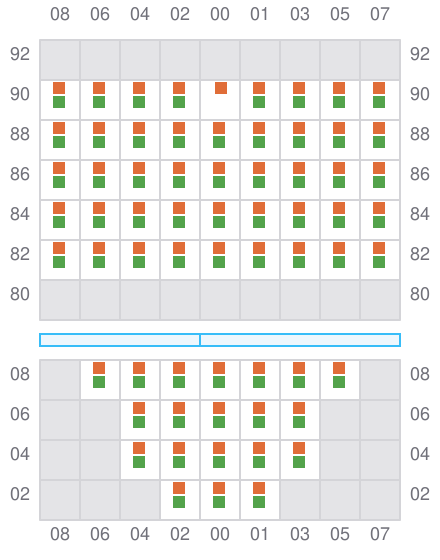

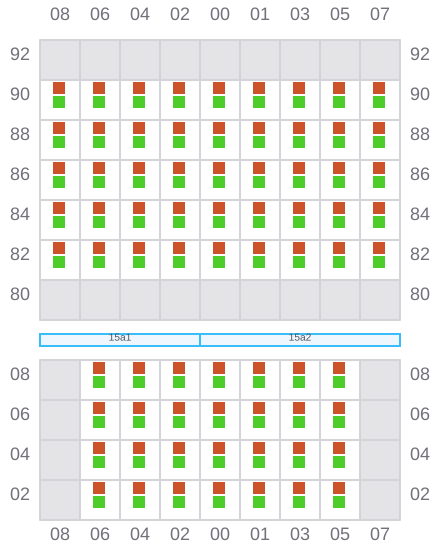

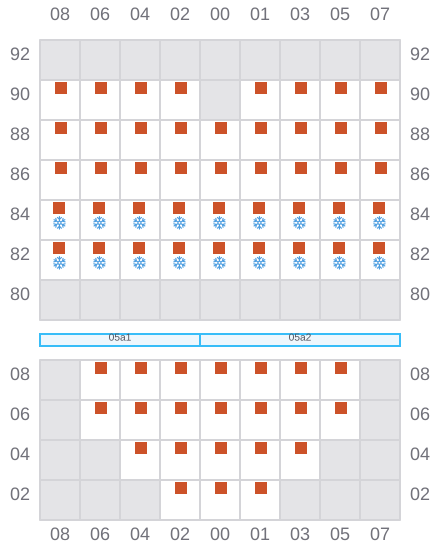

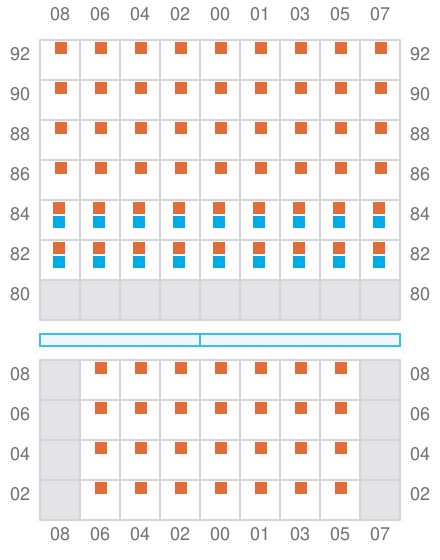

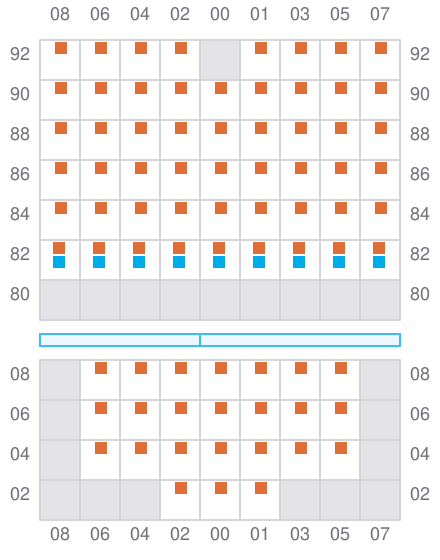

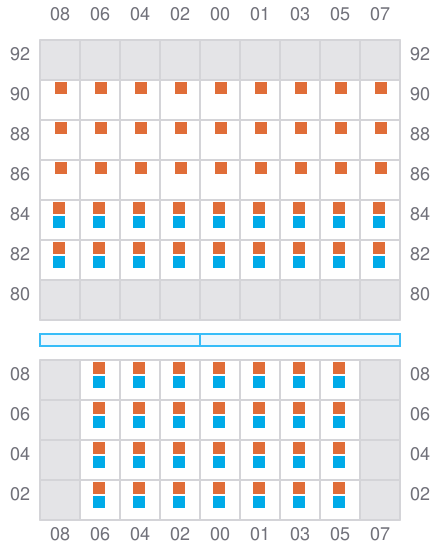

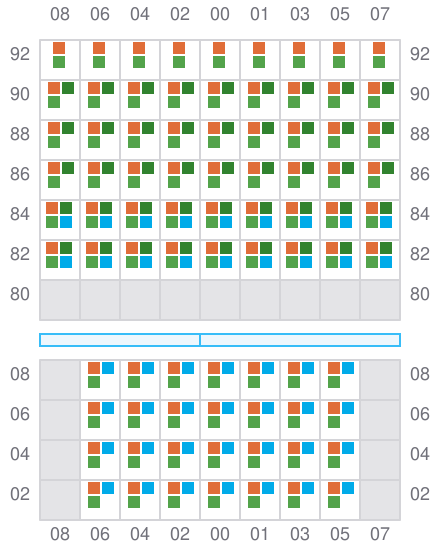

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- ← / ?
003
- ←
005 (006)
- →
007
- ←
- → / ?
009
011 (012)
- →
- ← / ?
013
- ←
015 (016)
- →
017
- ←
- →
019 (020)
- →
- ←
021
- ←
- → / ?
023 (024)
- →
025
- ←
- → / ?
027
029 (030)
- →
- ← / ?
031
- ←
- → / ?
033 (034)
- → / ?
- ← / ?
035
- ← / ?
