MATSON KODIAK
8419166 | KGTZ | 8419166 by ********* Last update: Tue Apr 23 2024
General Info
Ship Name:MATSON KODIAK
IMO Code:8419166
Call Sign:KGTZ
Line Operator:8419166
Class Name for Sister Ships:D-7
Year Built:1987
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):206.20
LOA (Length Overall):216.41
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,668
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

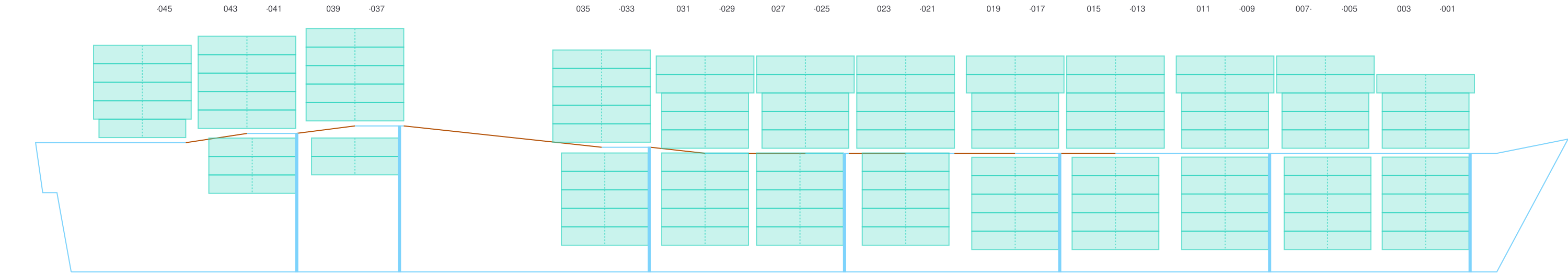

Side View

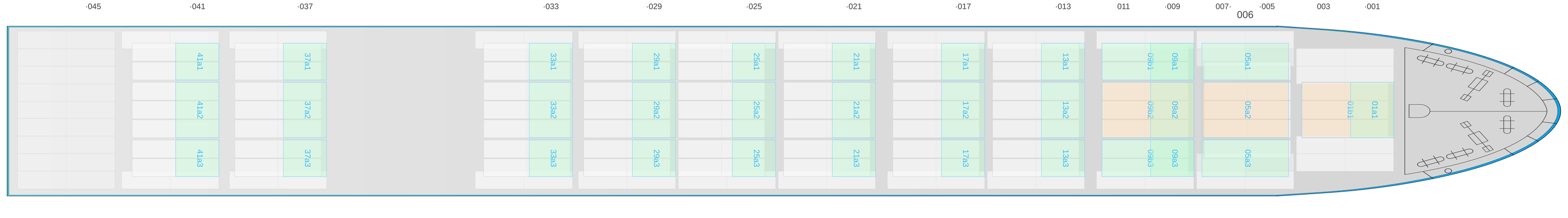

Hatch-Covers View

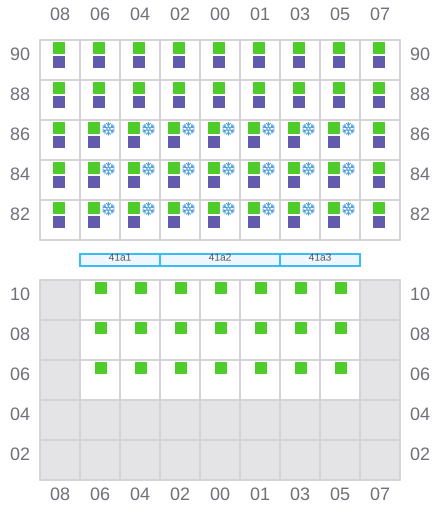

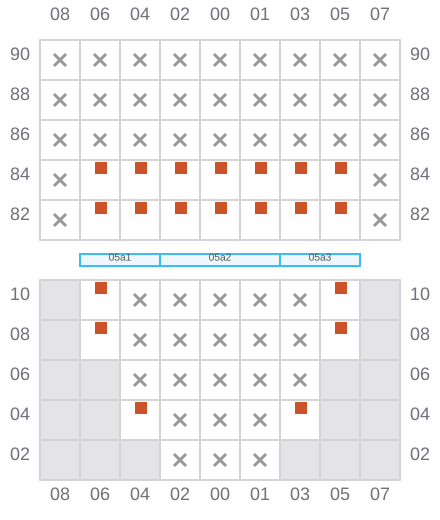

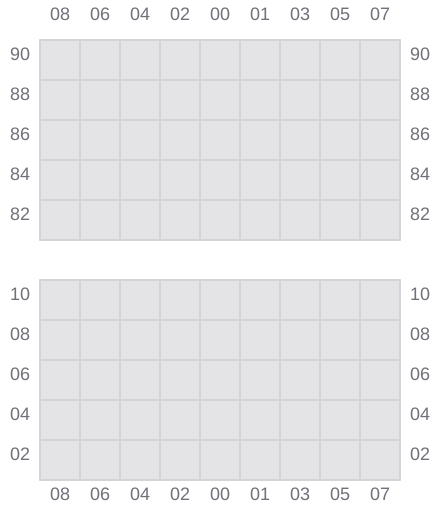

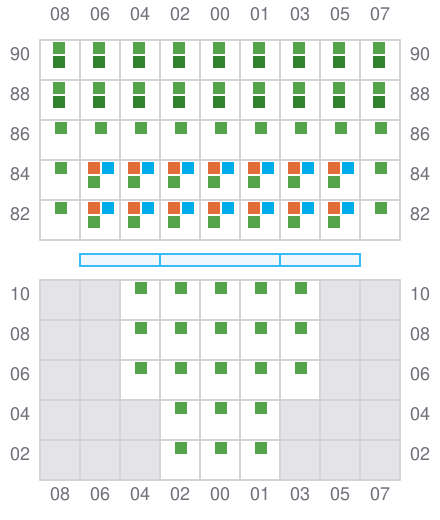

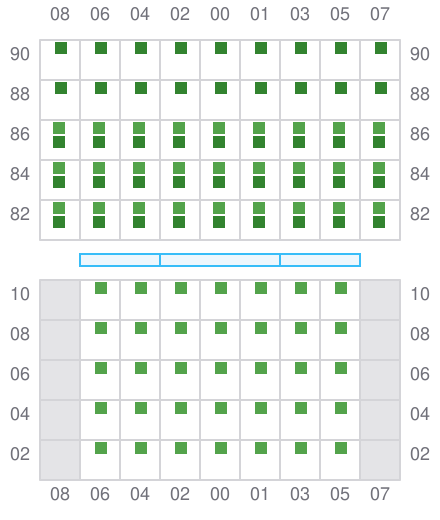

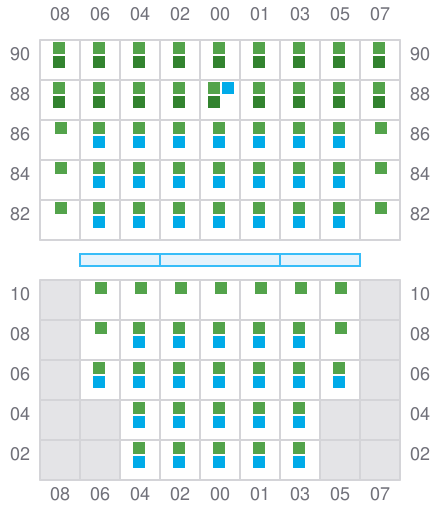

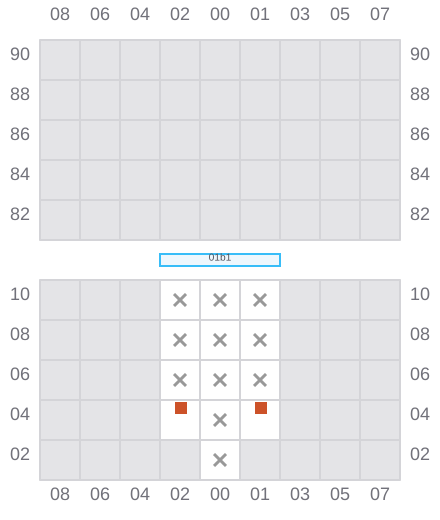

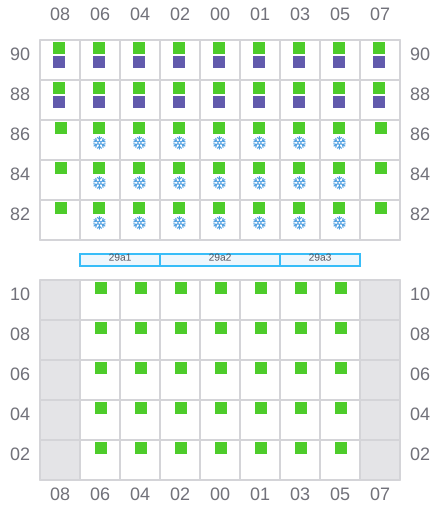

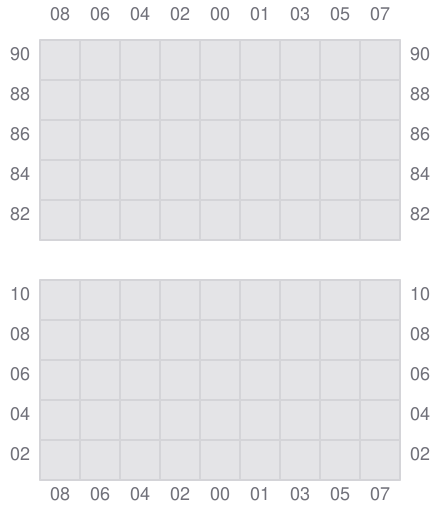

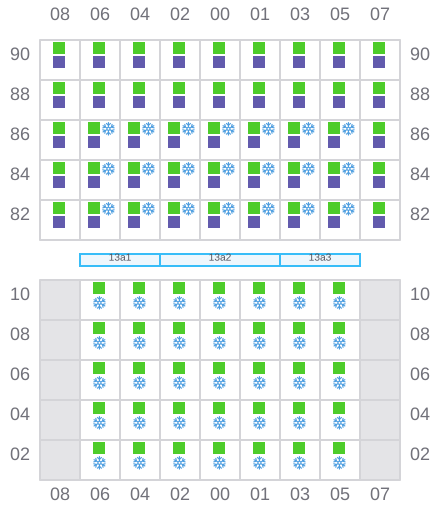

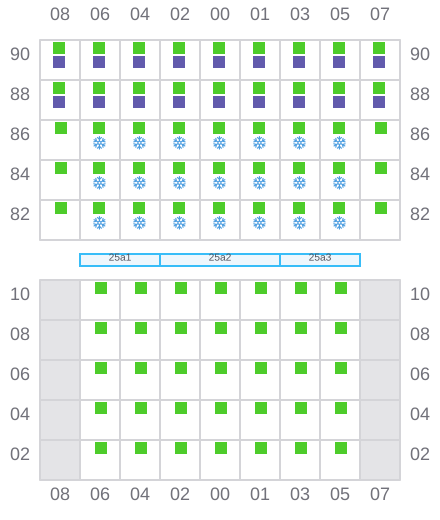

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- →
003
- ? / ←
- ? / →
005 (006)
- →
- →
007
- ←
- →
009 (010)
- →
- → / ?
- ←
011
- ? / ←
- ? / ←
013 (014)
- →
- → / ?
- ← / →
015
017 (018)
- →
- → / ?
- ←
019
021 (022)
- →
- → / ?
- ← / →
023
025 (026)
- →
- → / ?
- ←
027
029 (030)
- →
- → / ?
- ←
031
033 (034)
- →
- ←
035
037 (038)
- →
- ←
039
041 (042)
- →
- → / ?
- ←
043

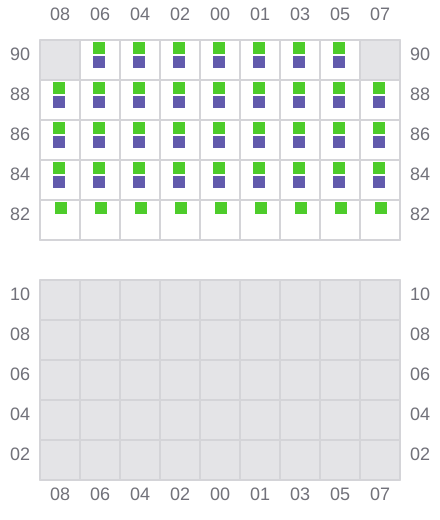

045 (046)
- → / ?
- ← / ?
