MATSON LANAI
9334143 | V7VR3 | 9334143 by ********* Last update: Wed May 01 2024
General Info
Ship Name:MATSON LANAI
IMO Code:9334143
Call Sign:V7VR3
Line Operator:9334143
Class Name for Sister Ships:CMA CGM ONYX
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,276
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-sideView.png?v=1714605143760)
Hatch-Covers View
![Deck view of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-deckView.png?v=1714605143760)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

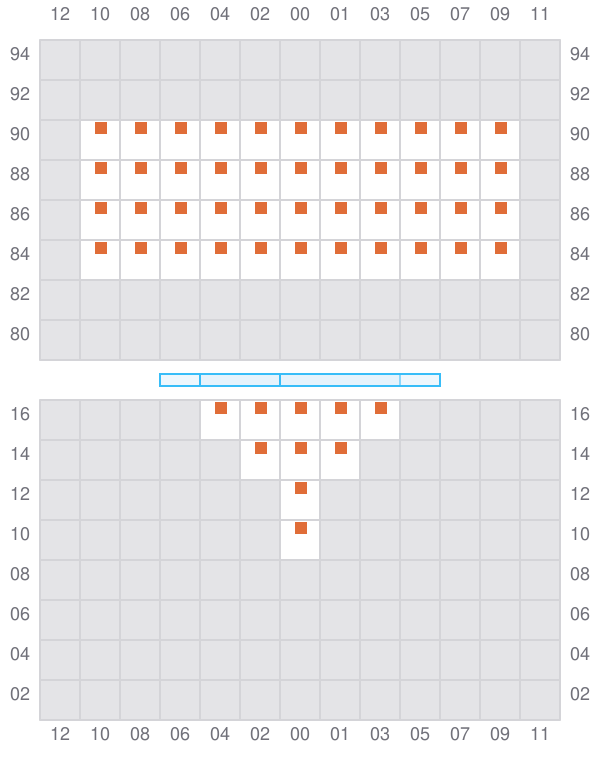

001
- →
![Bay 001 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b001.png?v=1714605143760)

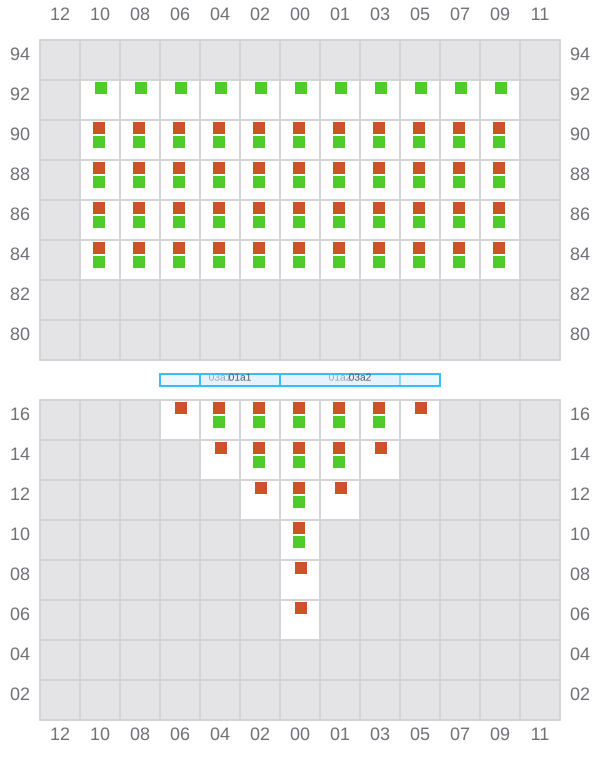

003 (002)
- ←
![Bay 003 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b003.png?v=1714605143760)

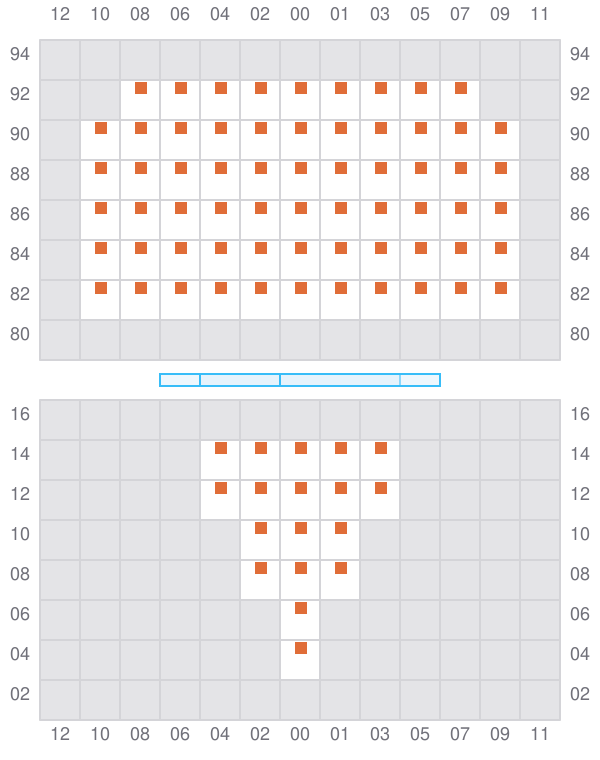

005
- →
![Bay 005 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b005.png?v=1714605143760)

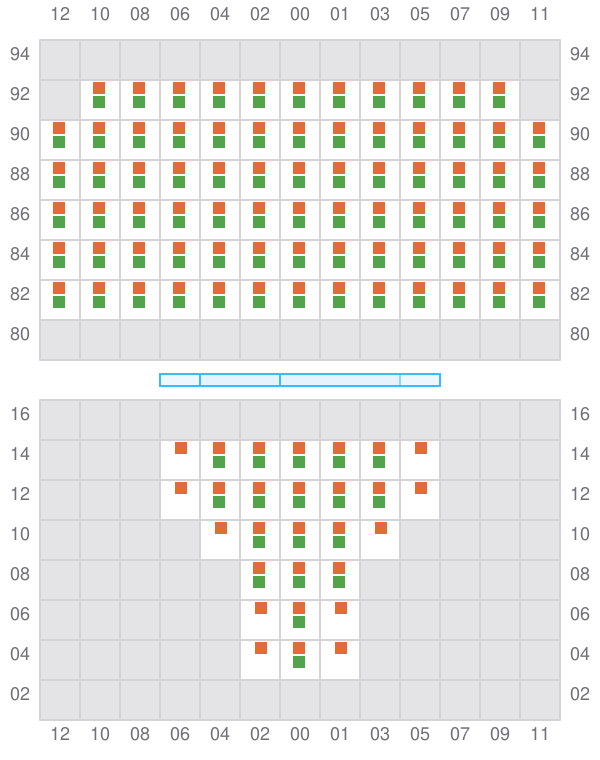

007 (006)
- ←
![Bay 007 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b007.png?v=1714605143760)

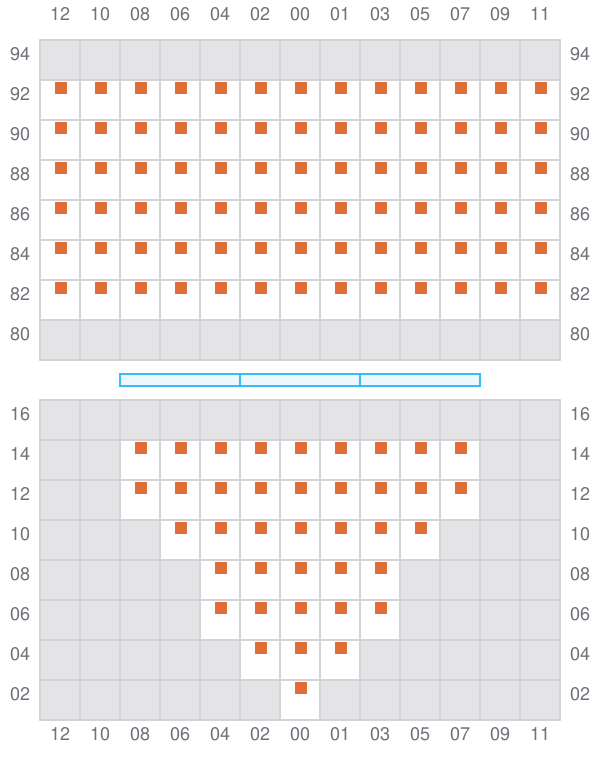

009
- →
![Bay 009 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b009.png?v=1714605143760)

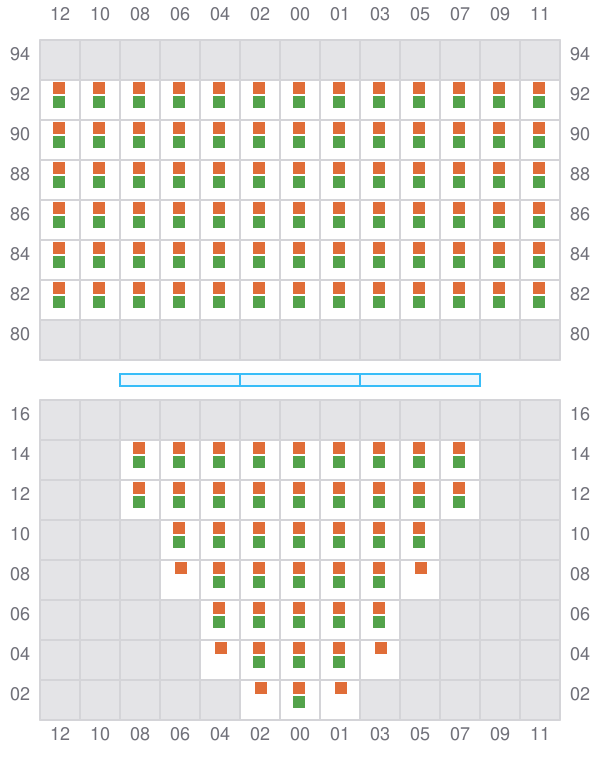

011 (010)
- ←
![Bay 011 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b011.png?v=1714605143760)

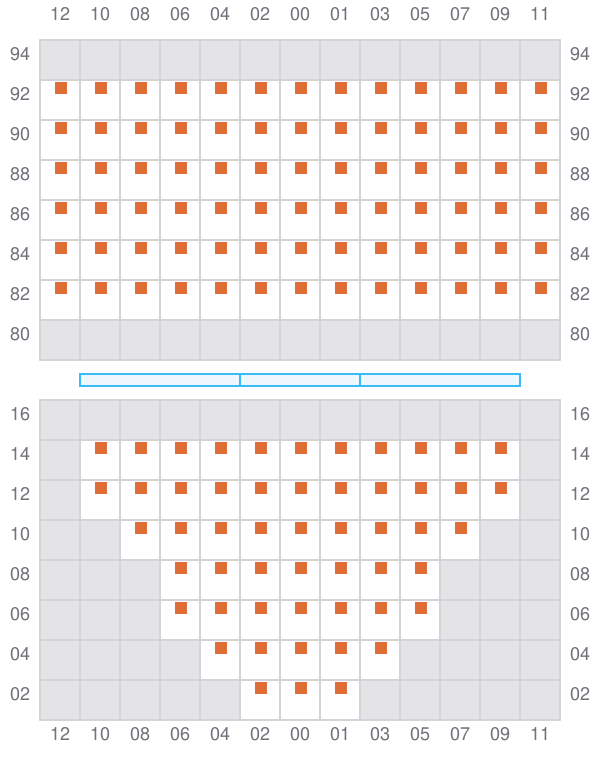

013
- →
![Bay 013 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b013.png?v=1714605143760)

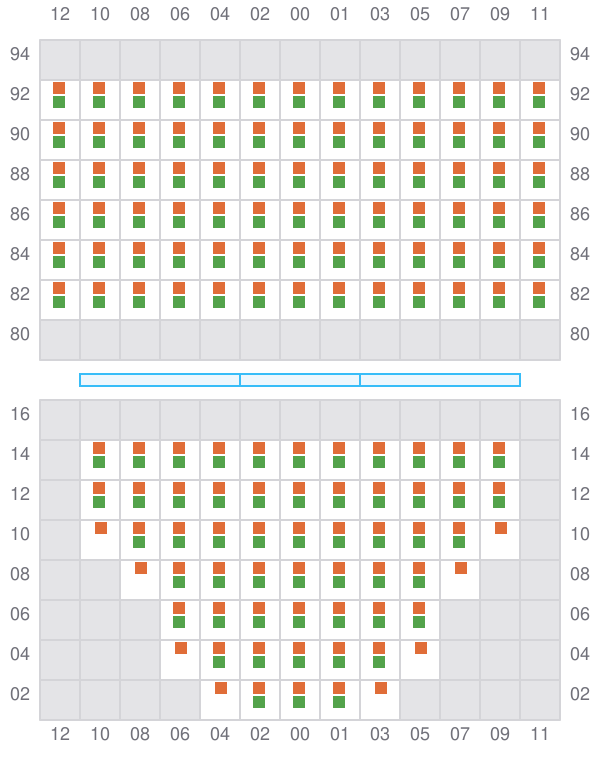

015 (014)
- ←
![Bay 015 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b015.png?v=1714605143760)

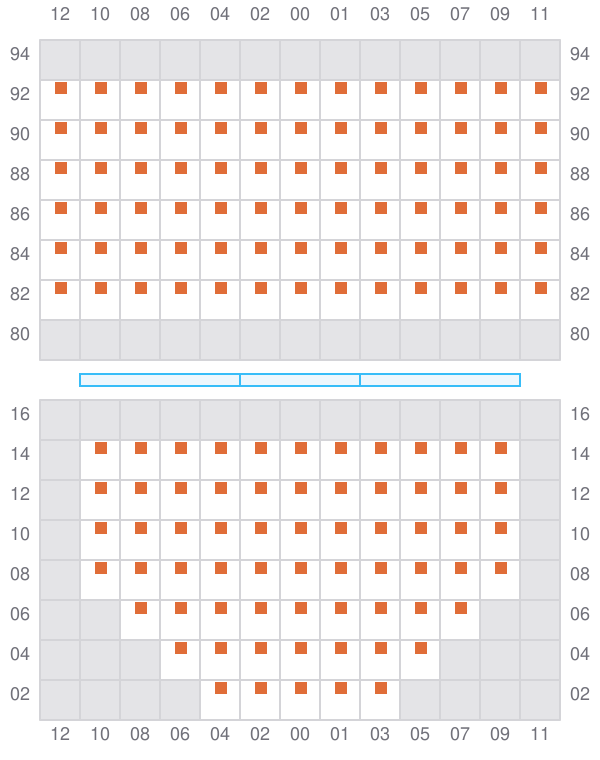

017
- →
![Bay 017 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b017.png?v=1714605143760)
019 (018)
- ←
![Bay 019 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b019.png?v=1714605143760)

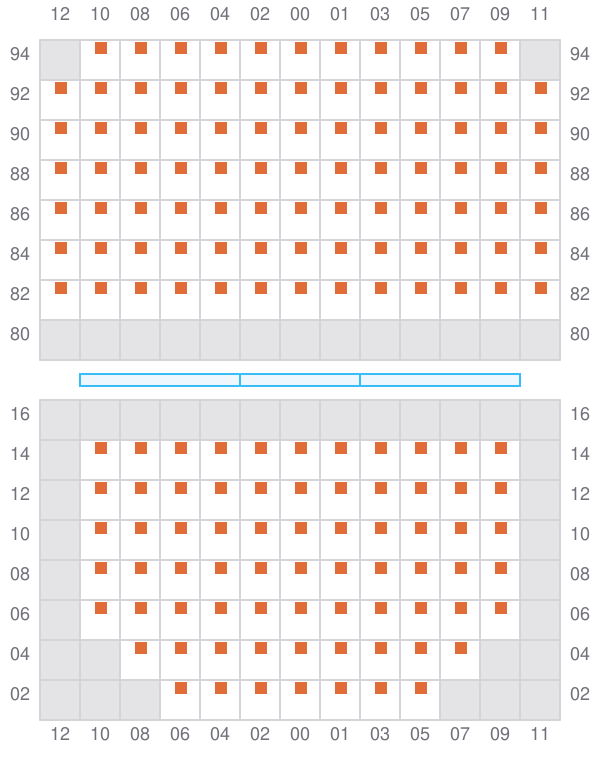

021
- →
![Bay 021 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b021.png?v=1714605143760)

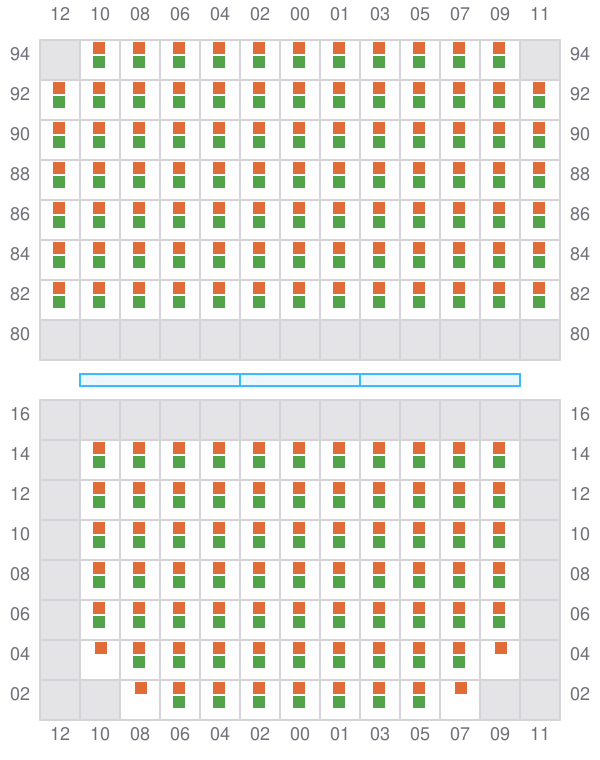

023 (022)
- ←
![Bay 023 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b023.png?v=1714605143760)

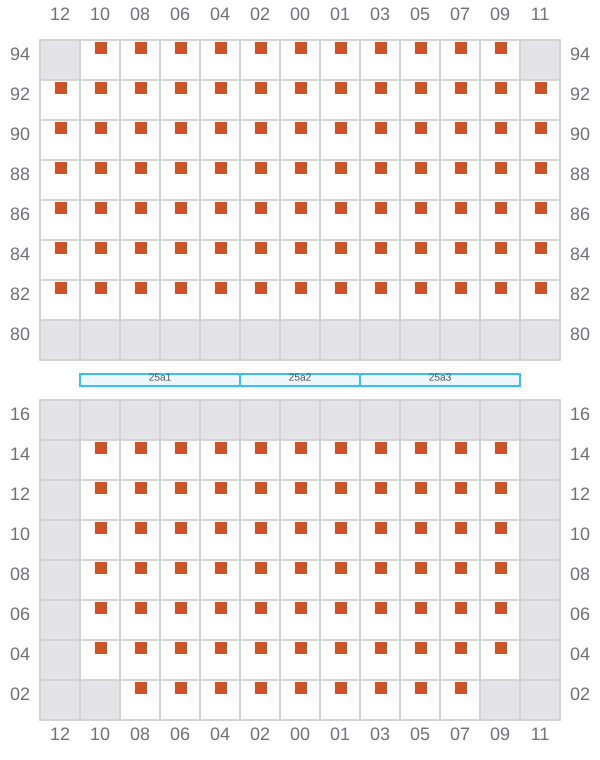

025
- →
![Bay 025 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b025.png?v=1714605143760)

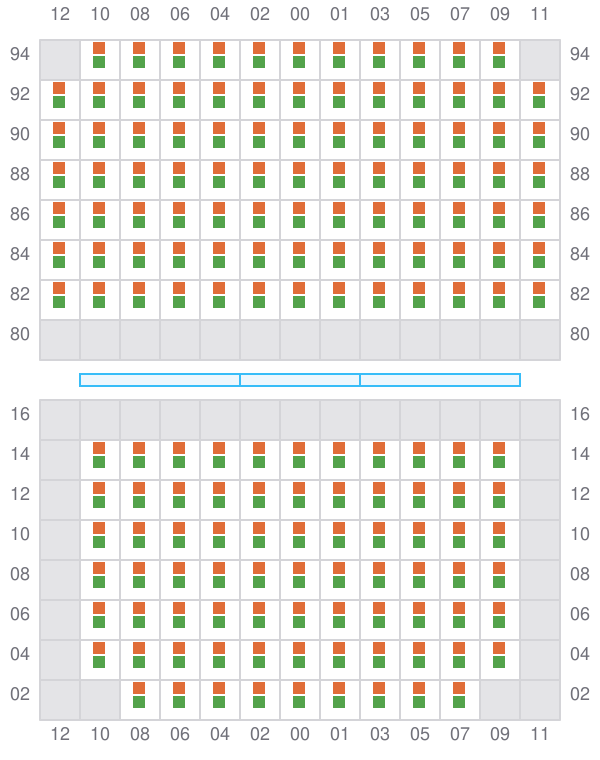

027 (026)
- ←
![Bay 027 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b027.png?v=1714605143760)
029
- →
![Bay 029 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b029.png?v=1714605143760)
031 (030)
- ←
![Bay 031 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b031.png?v=1714605143760)
033
- →
![Bay 033 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b033.png?v=1714605143760)
035 (034)
- ←
![Bay 035 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b035.png?v=1714605143760)

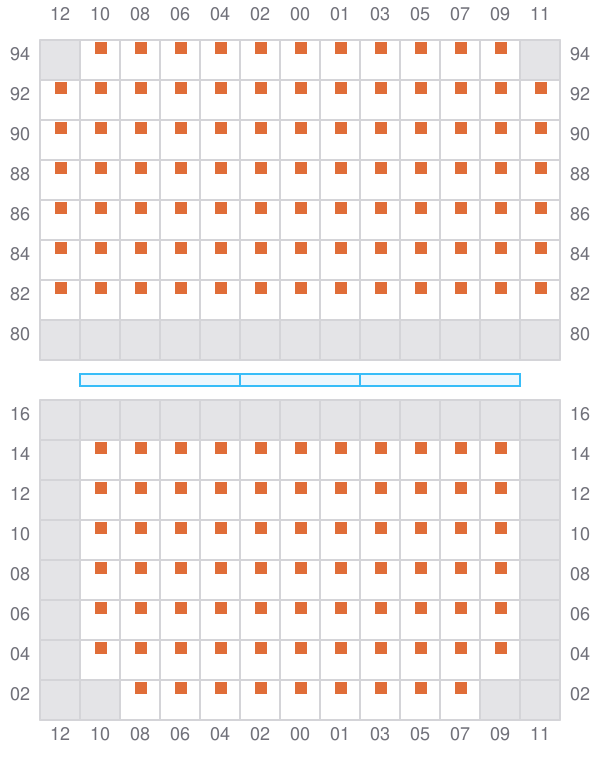

037
- →
![Bay 037 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b037.png?v=1714605143760)
039 (038)
- ←
![Bay 039 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b039.png?v=1714605143760)

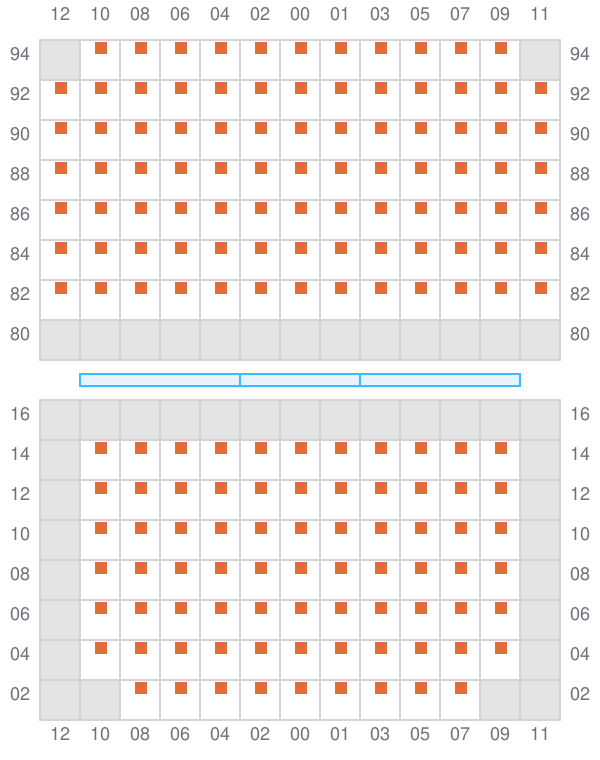

041
- →
![Bay 041 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b041.png?v=1714605143760)

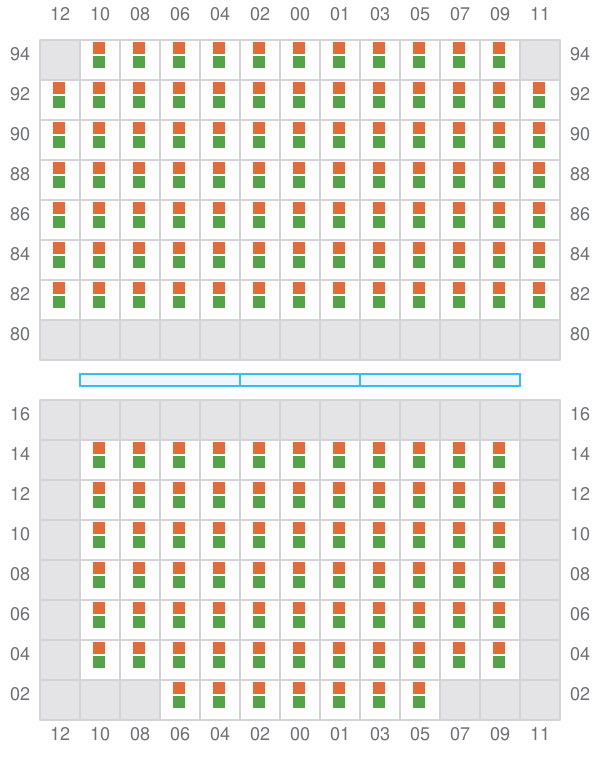

043 (042)
- ←
![Bay 043 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b043.png?v=1714605143760)

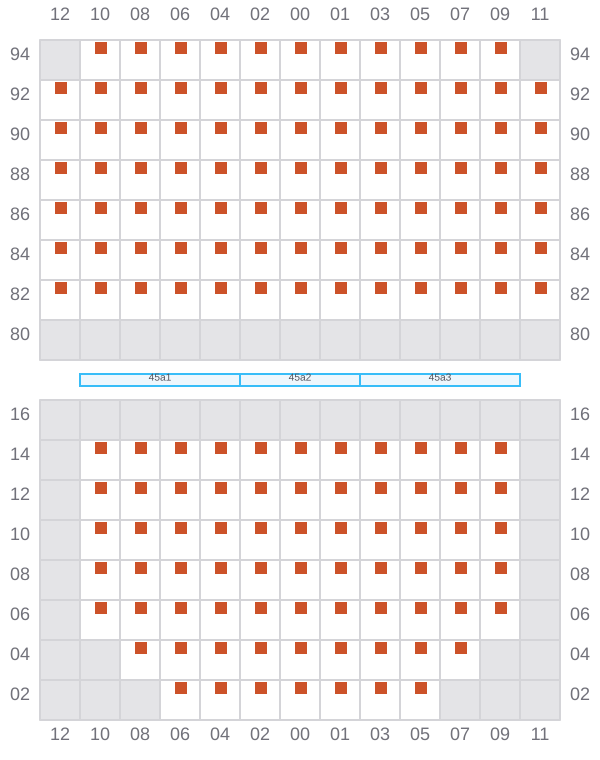

045
- →
![Bay 045 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b045.png?v=1714605143760)

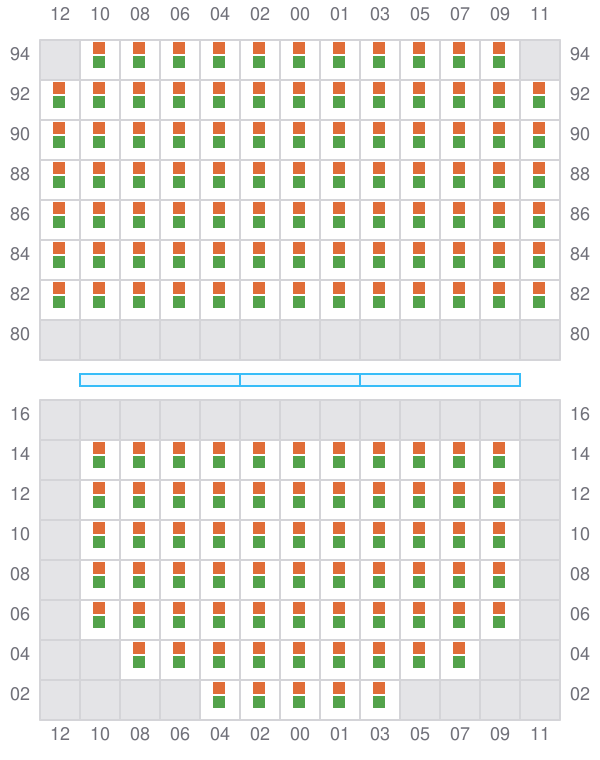

047 (046)
- ←
![Bay 047 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b047.png?v=1714605143760)
049
![Bay 049 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b049.png?v=1714605143760)

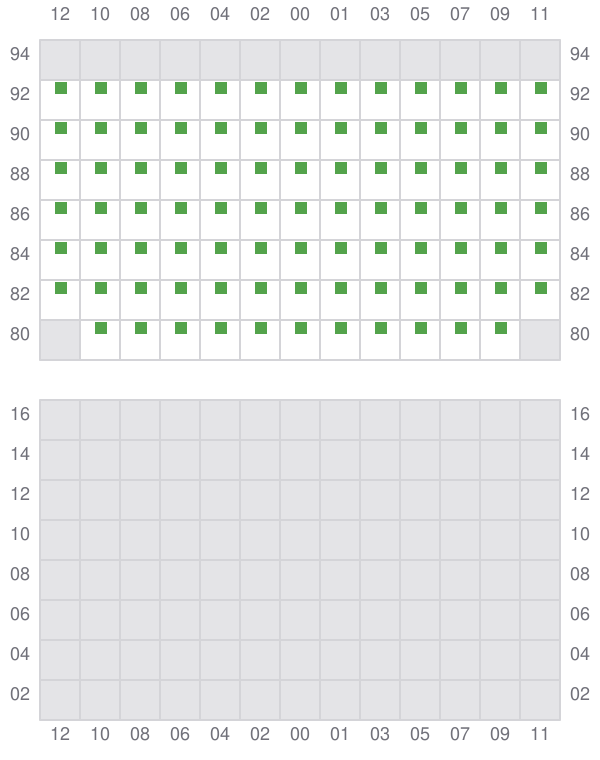

051 (050)
- ← / ?
![Bay 051 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b051.png?v=1714605143760)

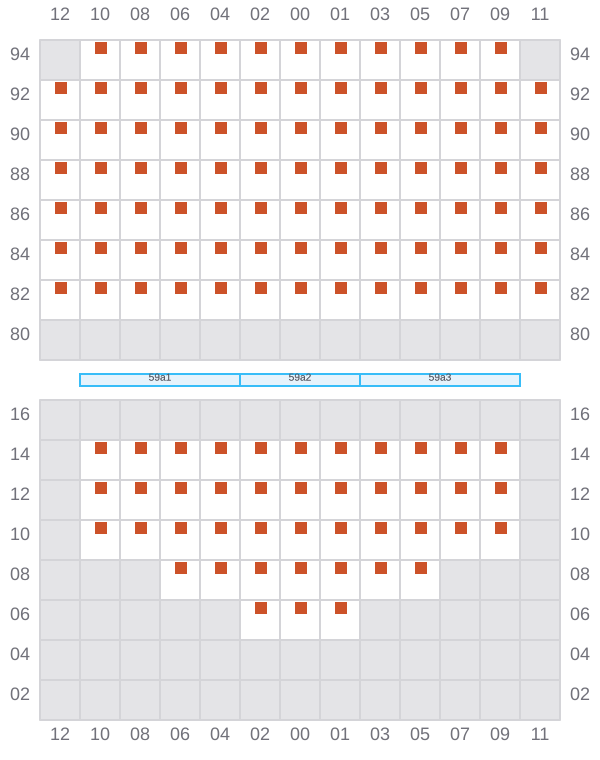

053
- →
![Bay 053 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b053.png?v=1714605143760)

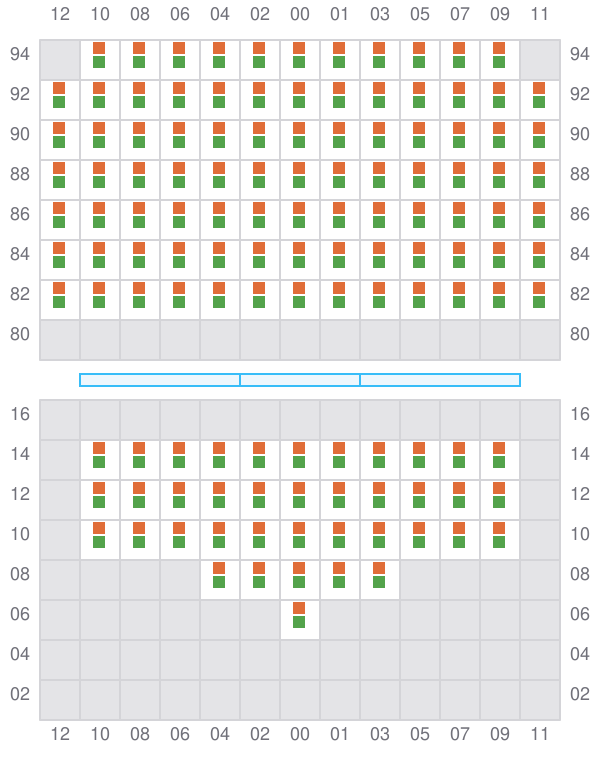

055 (054)
- ←
![Bay 055 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b055.png?v=1714605143760)
057
- →
![Bay 057 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b057.png?v=1714605143760)

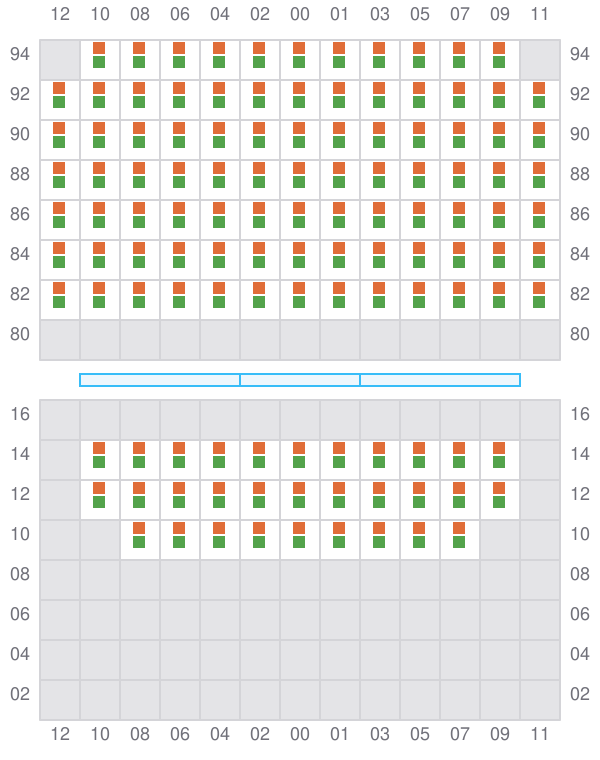

059 (058)
- ←
![Bay 059 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b059.png?v=1714605143760)
061
![Bay 061 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b061.png?v=1714605143760)
063 (062)
- ← / ?
![Bay 063 view and slots of MATSON LANAI](/vessel-images/ce49fdf6-7d15-4989-9f54-74e0e2c8e1bd-b063.png?v=1714605143760)
