MATSON MOLOKAI
9338084 | 5LBU2 | HAP by ************************** Last update: Thu Jun 08 2023
General Info
Ship Name:MATSON MOLOKAI
IMO Code:9338084
Call Sign:5LBU2
Line Operator:HAP
Class Name for Sister Ships:BET
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:051
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,832
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

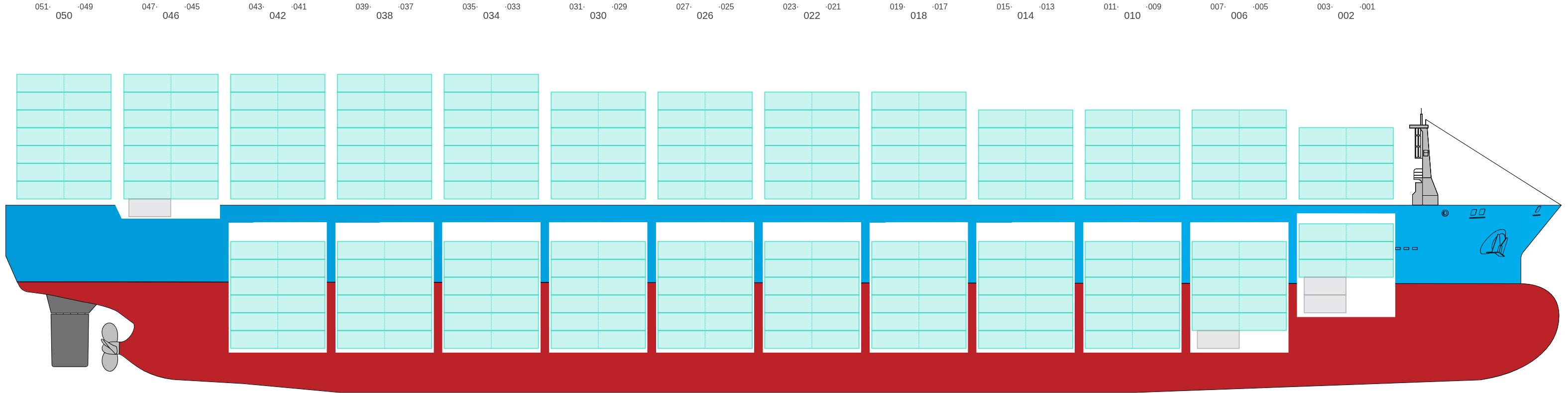

Side View
![Side view of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-sideView.png?v=1686251365366)
Hatch-Covers View
![Deck view of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-deckView.png?v=1686251365366)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

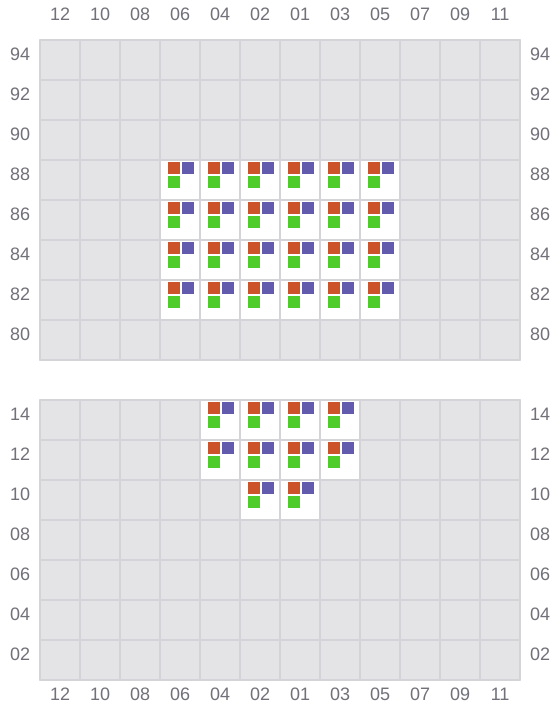

001 (002)
- →
![Bay 001 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b001.png?v=1686251365366)
003
- ←
![Bay 003 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b003.png?v=1686251365366)
005 (006)
- →
![Bay 005 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b005.png?v=1686251365366)
007
- ←
![Bay 007 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b007.png?v=1686251365366)

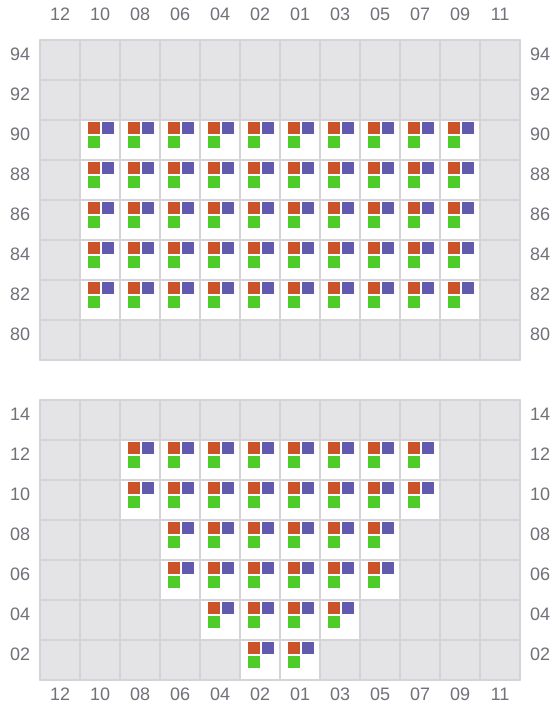

009 (010)
- →
![Bay 009 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b009.png?v=1686251365366)

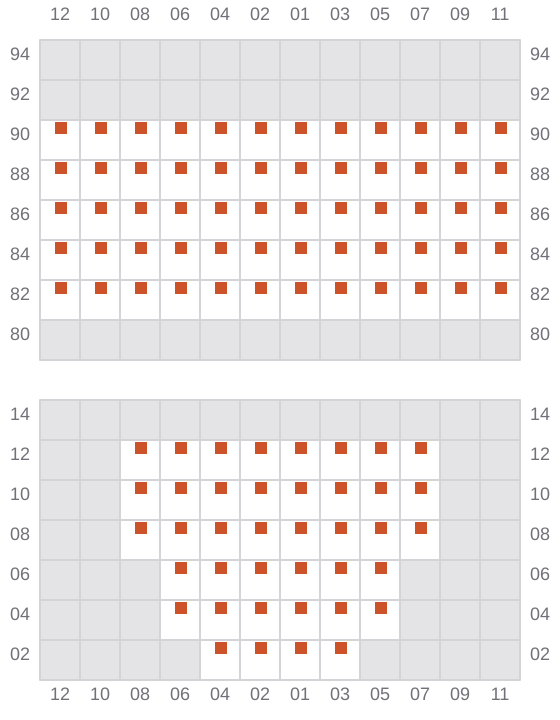

011
- ←
![Bay 011 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b011.png?v=1686251365366)

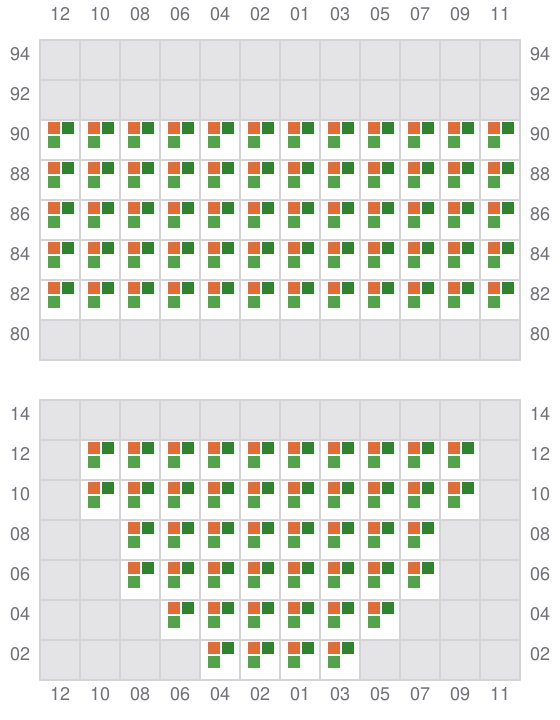

013 (014)
- →
![Bay 013 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b013.png?v=1686251365366)
015
- ←
![Bay 015 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b015.png?v=1686251365366)
017 (018)
- →
![Bay 017 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b017.png?v=1686251365366)

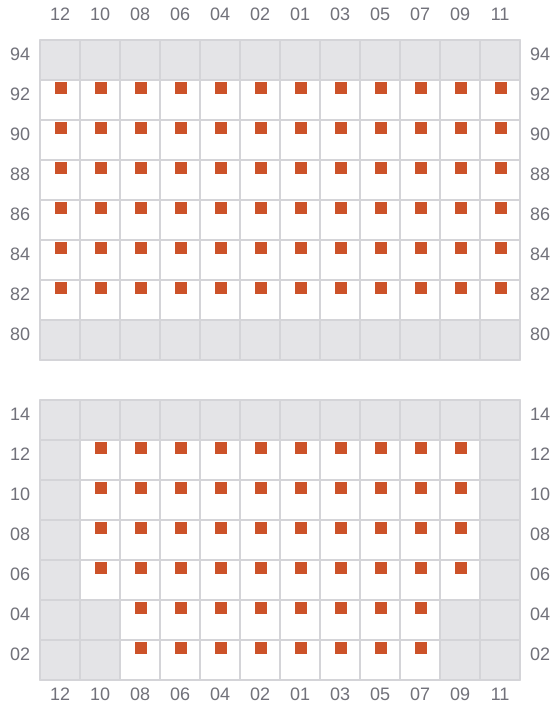

019
- ←
![Bay 019 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b019.png?v=1686251365366)
021 (022)
- →
![Bay 021 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b021.png?v=1686251365366)
023
- ←
![Bay 023 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b023.png?v=1686251365366)
025 (026)
- →
![Bay 025 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b025.png?v=1686251365366)
027
- ←
![Bay 027 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b027.png?v=1686251365366)

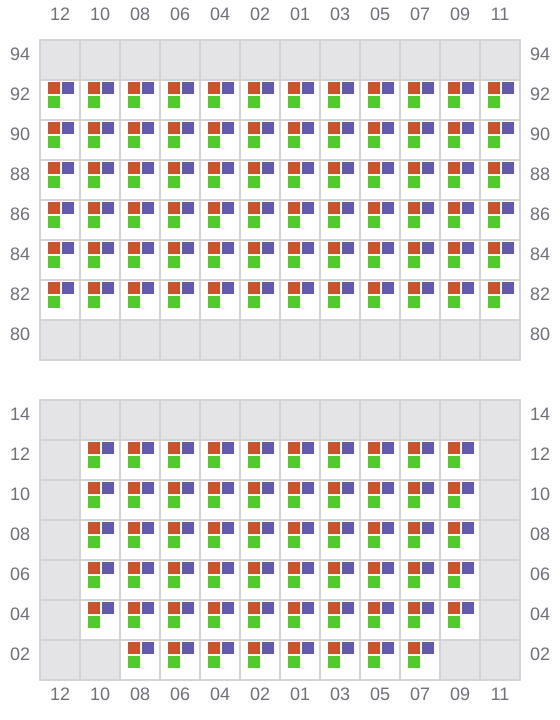

029 (030)
- →
![Bay 029 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b029.png?v=1686251365366)

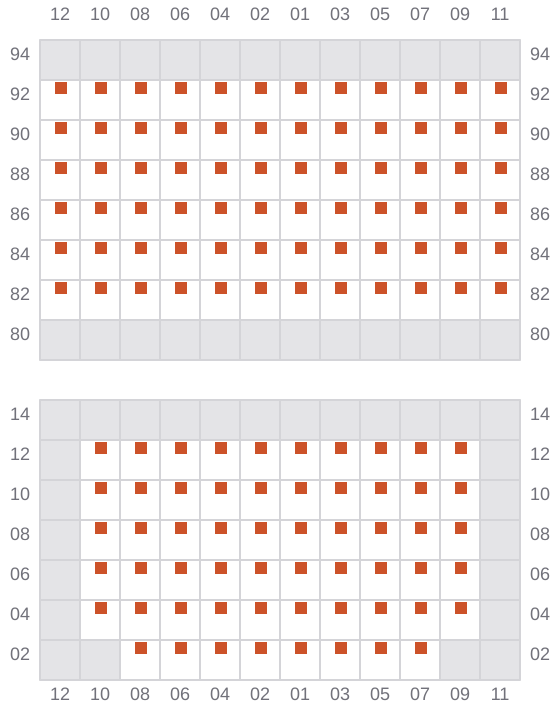

031
- ←
![Bay 031 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b031.png?v=1686251365366)
033 (034)
- →
![Bay 033 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b033.png?v=1686251365366)
035
- ←
![Bay 035 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b035.png?v=1686251365366)

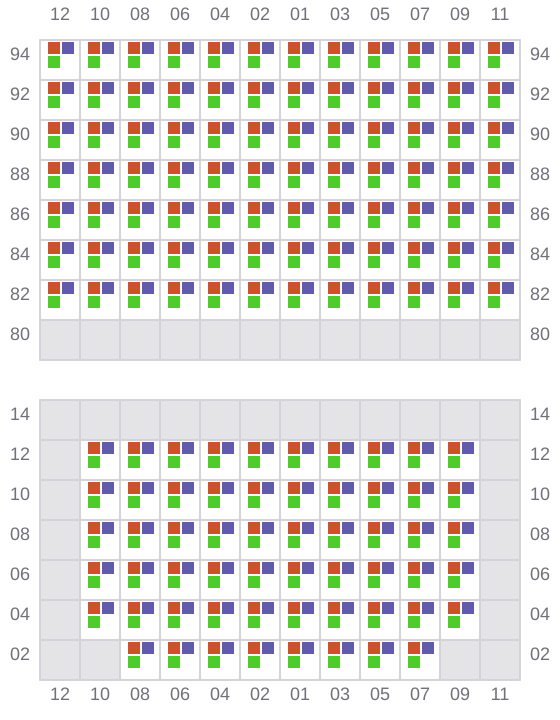

037 (038)
- →
![Bay 037 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b037.png?v=1686251365366)
039
- ←
![Bay 039 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b039.png?v=1686251365366)
041 (042)
- →
![Bay 041 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b041.png?v=1686251365366)

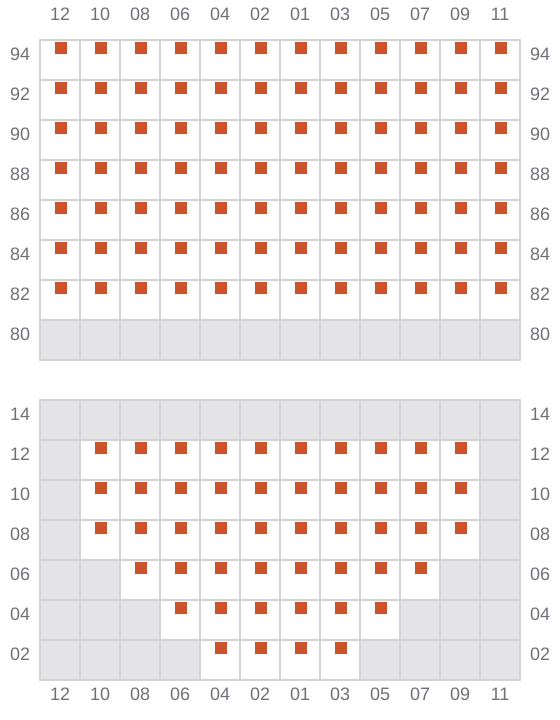

043
- ←
![Bay 043 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b043.png?v=1686251365366)

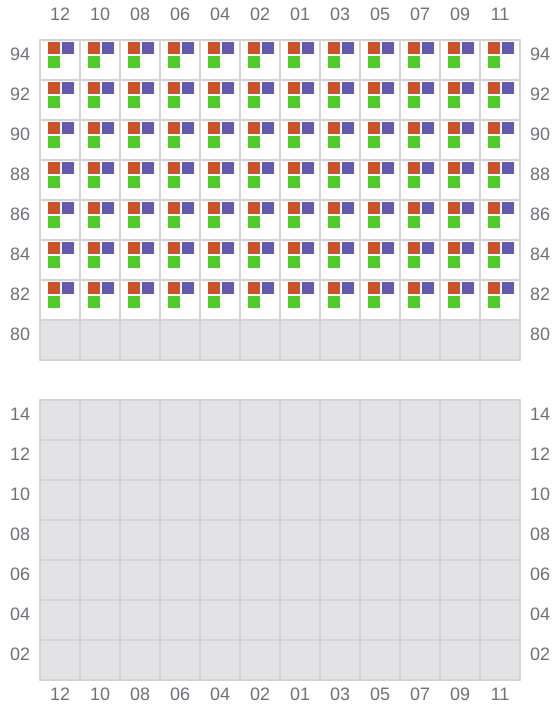

045 (046)
- → / ?
![Bay 045 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b045.png?v=1686251365366)

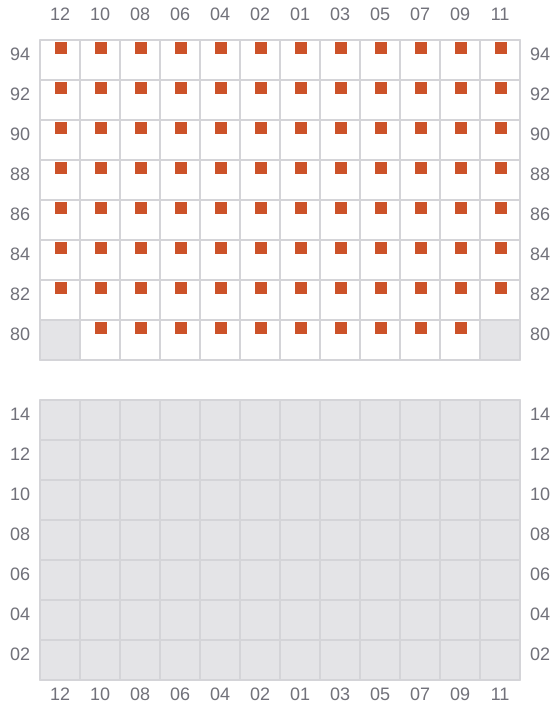

047
- ← / ?
![Bay 047 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b047.png?v=1686251365366)

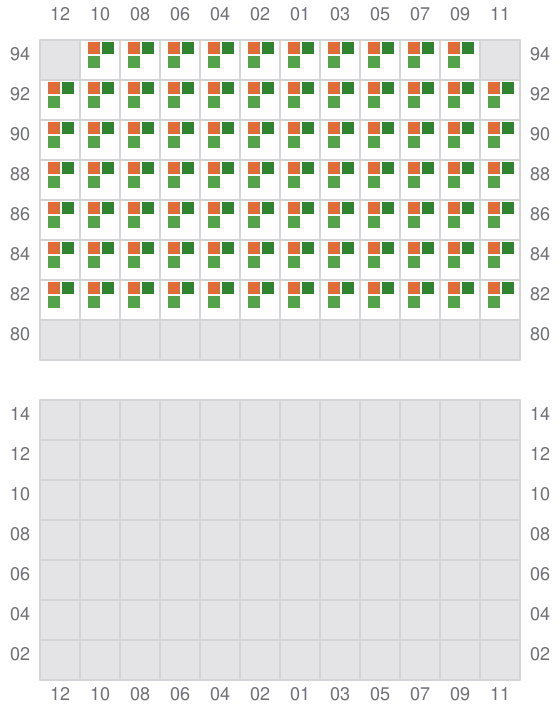

049 (050)
- → / ?
![Bay 049 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b049.png?v=1686251365366)
051
- ← / ?
![Bay 051 view and slots of MATSON MOLOKAI](/vessel-images/e8ff23b4-a4c9-4026-a07a-3c6f85301c25-b051.png?v=1686251365366)
