MATSON NAVIGATOR
7116315 | WPGK | 7116315 by ********* Last update: Tue Apr 23 2024

General Info

Ship Name:MATSON NAVIGATOR
IMO Code:7116315
Call Sign:WPGK
Line Operator:7116315
Class Name for Sister Ships:HORIZON NAVIGATOR
Year Built:1972
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):237.79
LOA (Length Overall):247.57
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:053
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,314

Centers of Gravity

LCG Values:Known
LCG Data:0%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

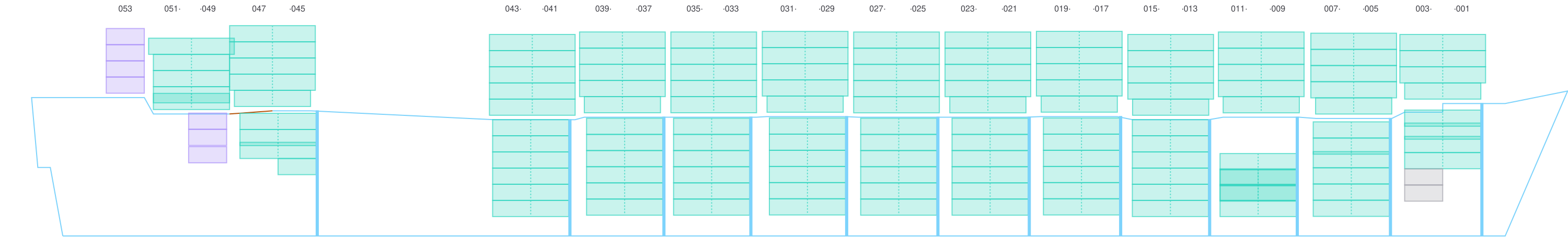

Side View

Side view of MATSON NAVIGATOR

Hatch-Covers View

Deck view of MATSON NAVIGATOR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

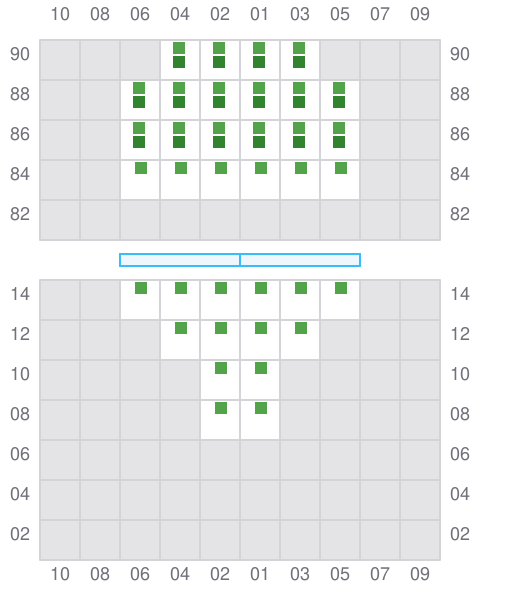

001 (002)

  • →
  • →
Bay 001 view and slots of MATSON NAVIGATOR

003

  • ←
  • →
Bay 003 view and slots of MATSON NAVIGATOR

005 (006)

  • →
  • →
Bay 005 view and slots of MATSON NAVIGATOR

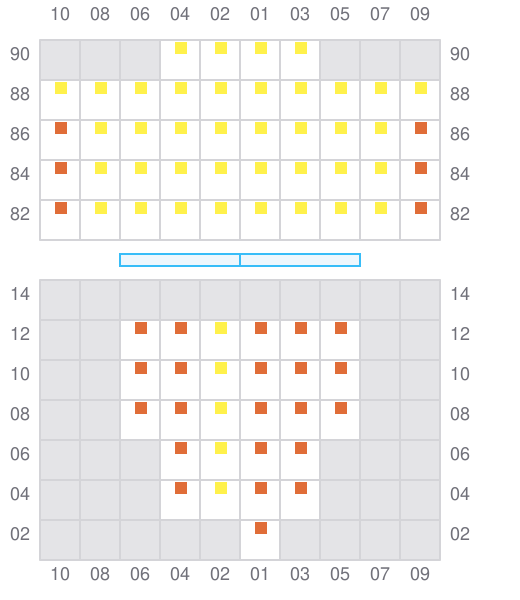

007

  • ←
  • →
Bay 007 view and slots of MATSON NAVIGATOR

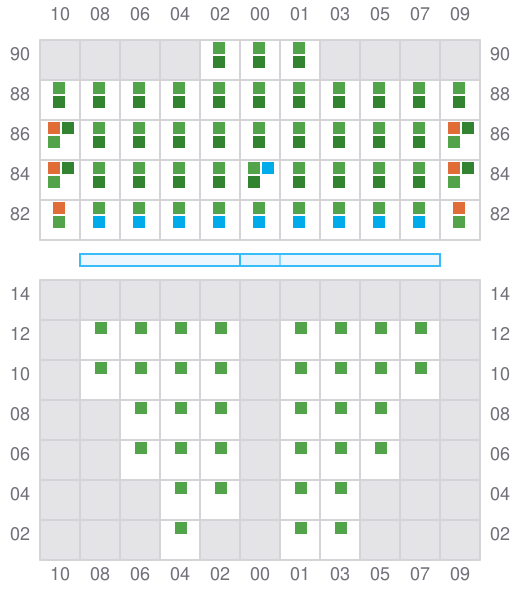

009 (010)

  • →
  • →
Bay 009 view and slots of MATSON NAVIGATOR

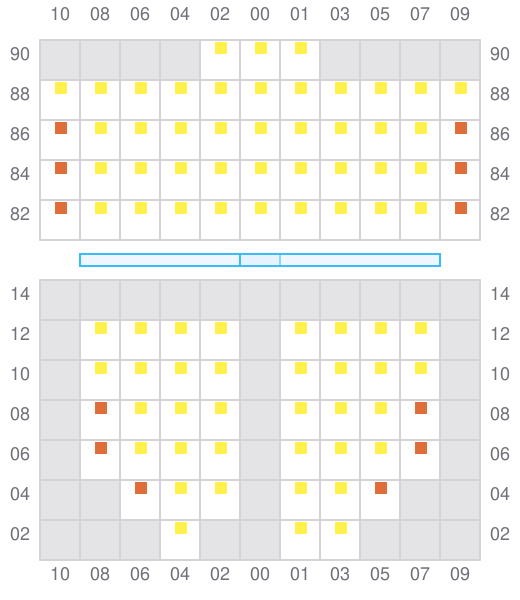

011

  • ←
  • →
Bay 011 view and slots of MATSON NAVIGATOR

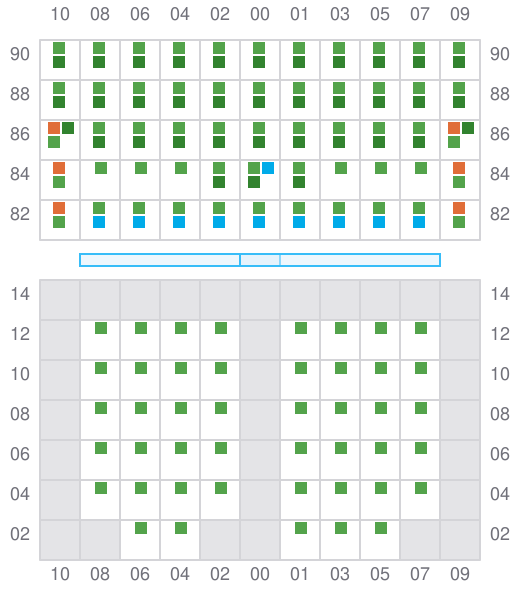

013 (014)

  • →
  • →
Bay 013 view and slots of MATSON NAVIGATOR

015

  • ← / ?
  • → / ?
Bay 015 view and slots of MATSON NAVIGATOR

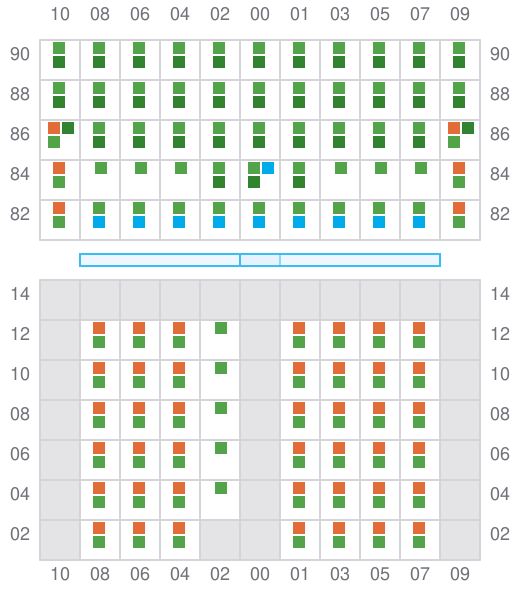

017 (018)

  • →
  • →
Bay 017 view and slots of MATSON NAVIGATOR

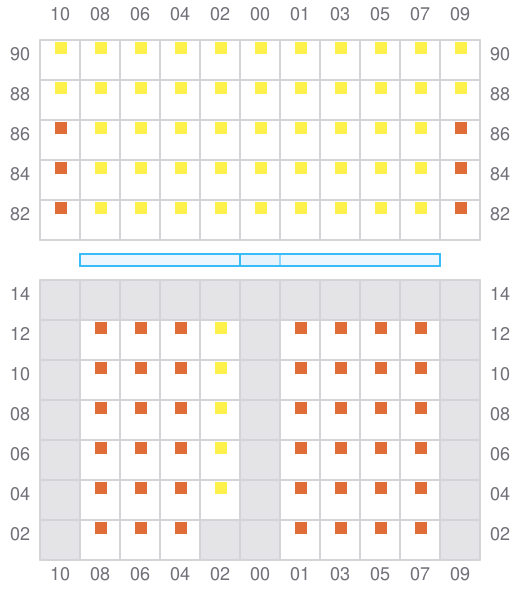

019

  • ←
  • →
Bay 019 view and slots of MATSON NAVIGATOR

021 (022)

  • →
  • →
Bay 021 view and slots of MATSON NAVIGATOR

023

  • ← / ?
  • → / ?
Bay 023 view and slots of MATSON NAVIGATOR

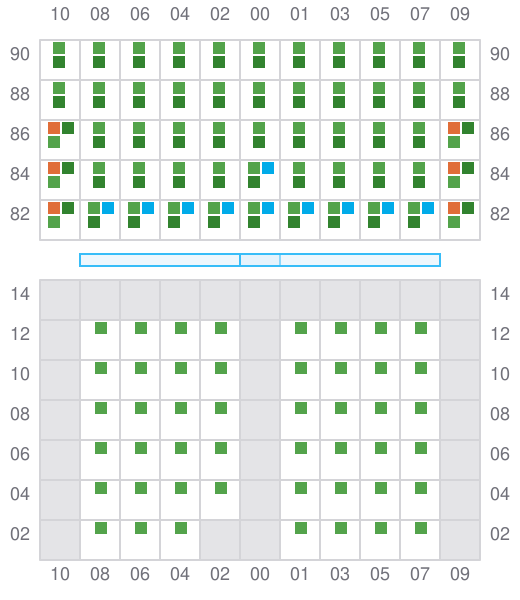

025 (026)

  • →
  • →
Bay 025 view and slots of MATSON NAVIGATOR

027

  • ← / ?
  • → / ?
Bay 027 view and slots of MATSON NAVIGATOR

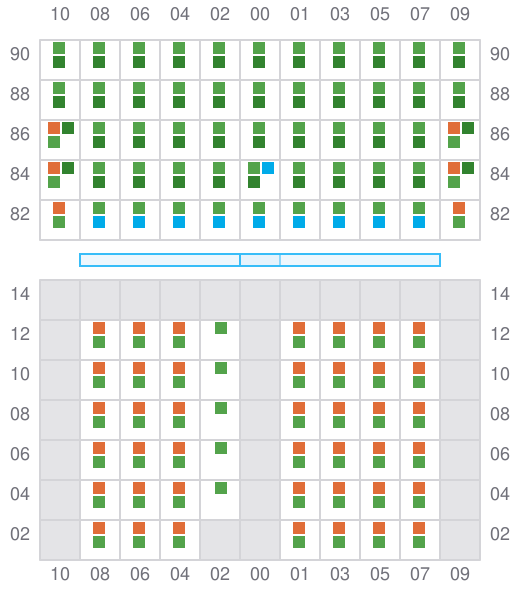

029 (030)

  • →
  • →
Bay 029 view and slots of MATSON NAVIGATOR

031

  • ←
  • →
Bay 031 view and slots of MATSON NAVIGATOR

033 (034)

  • →
  • →
Bay 033 view and slots of MATSON NAVIGATOR

035

  • ← / ?
  • → / ?
Bay 035 view and slots of MATSON NAVIGATOR

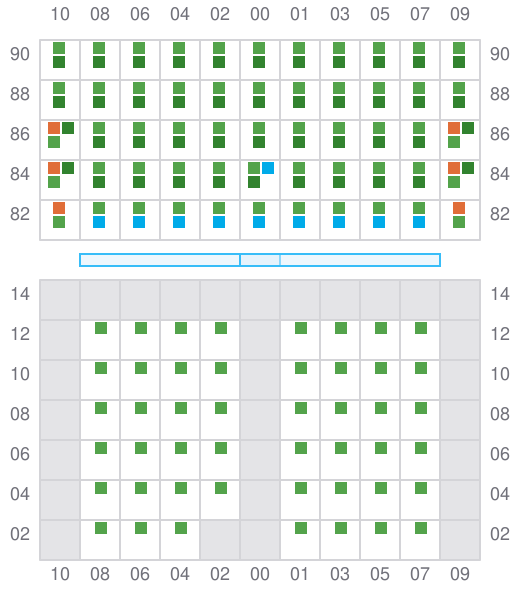

037 (038)

  • →
  • →
Bay 037 view and slots of MATSON NAVIGATOR

039

  • ← / ?
  • → / ?
Bay 039 view and slots of MATSON NAVIGATOR

041 (042)

  • →
  • →
Bay 041 view and slots of MATSON NAVIGATOR

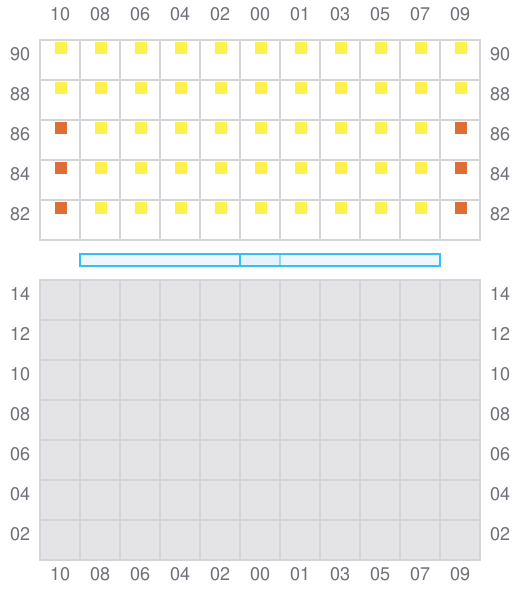

043

  • ← / ?
  • → / ?
Bay 043 view and slots of MATSON NAVIGATOR

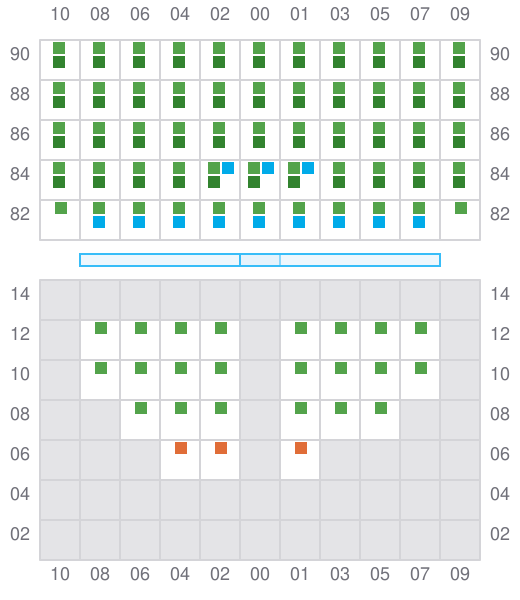

045 (046)

  • →
  • →
Bay 045 view and slots of MATSON NAVIGATOR

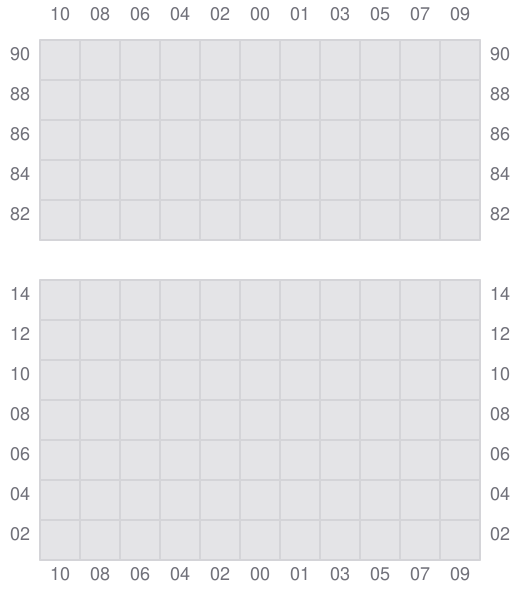

047

Bay 047 view and slots of MATSON NAVIGATOR

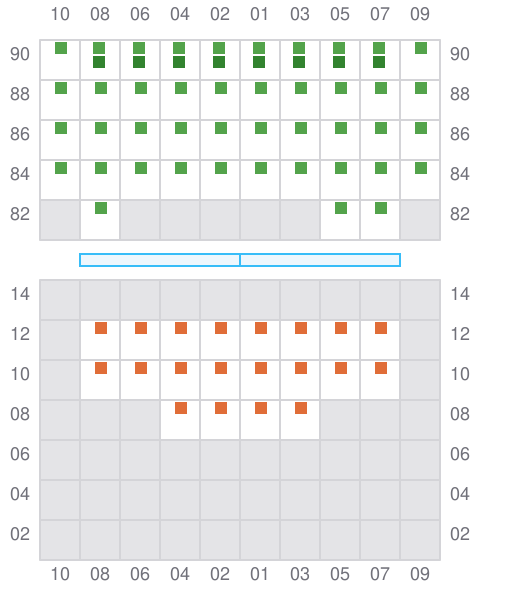

049 (050)

  • → / ?
  • →
Bay 049 view and slots of MATSON NAVIGATOR

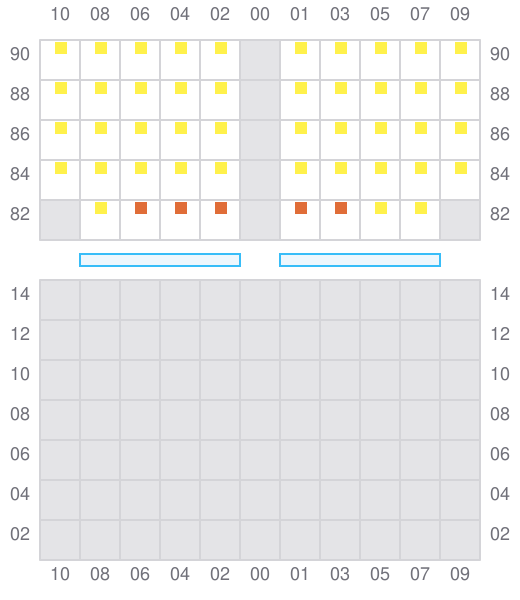

051

  • ← / ?
  • → / ?
Bay 051 view and slots of MATSON NAVIGATOR

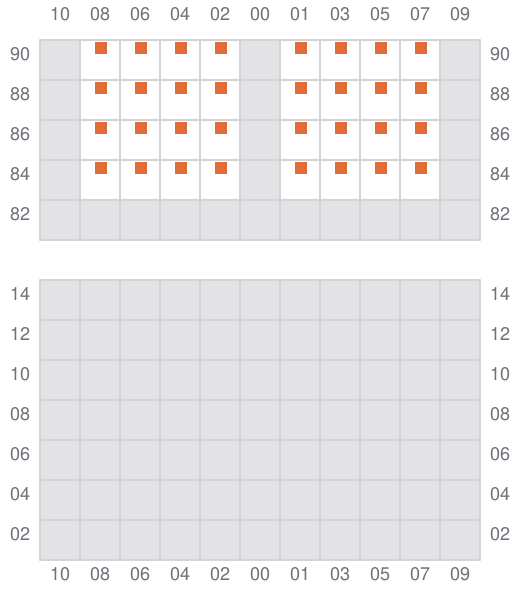

053

  • → / ?
Bay 053 view and slots of MATSON NAVIGATOR
