MATSON PRODUCER
7366312 | WJBJ | 7366312 by ********* Last update: Tue Apr 23 2024

General Info

Ship Name:MATSON PRODUCER
IMO Code:7366312
Call Sign:WJBJ
Line Operator:7366312
Class Name for Sister Ships:HORIZON PRODUCER
Year Built:1974
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):206.35
LOA (Length Overall):219.60
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:053
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,323

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MATSON PRODUCER

Hatch-Covers View

Deck view of MATSON PRODUCER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

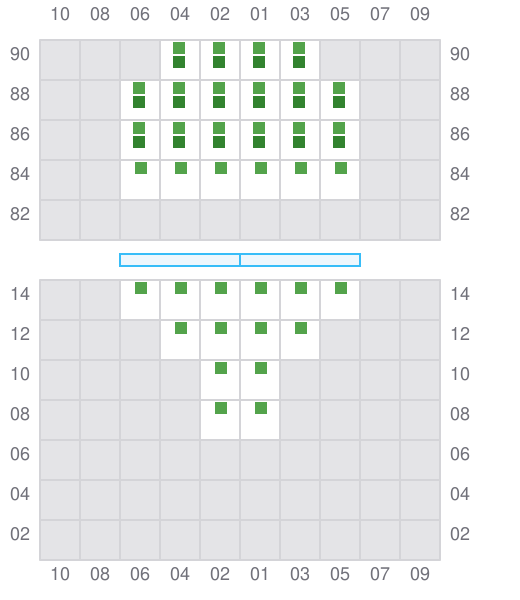

001 (002)

  • →
  • →
Bay 001 view and slots of MATSON PRODUCER

003

  • ←
  • →

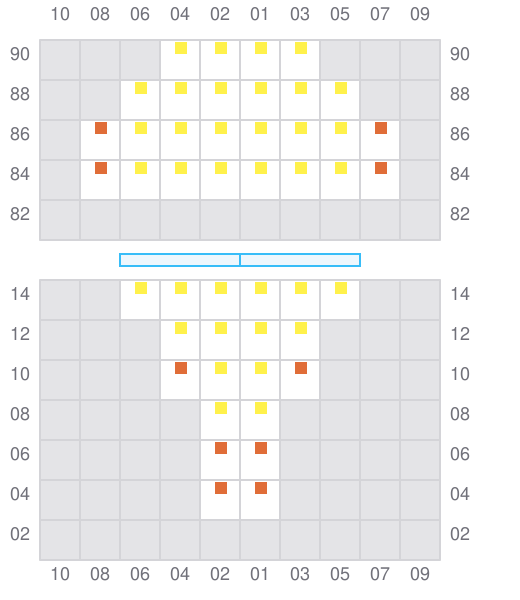

Bay 003 view and slots of MATSON PRODUCER

005 (006)

  • →
  • →

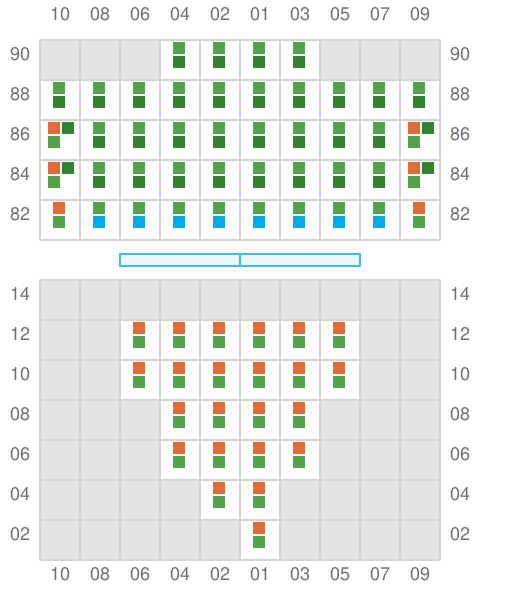

Bay 005 view and slots of MATSON PRODUCER

007

  • ←
  • →

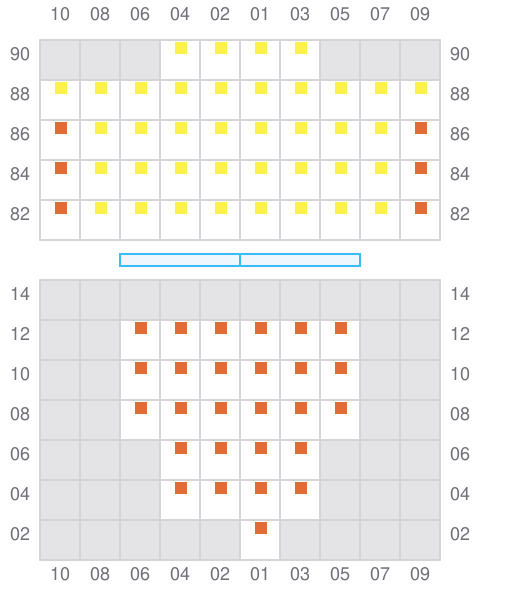

Bay 007 view and slots of MATSON PRODUCER

009 (010)

  • →
  • →

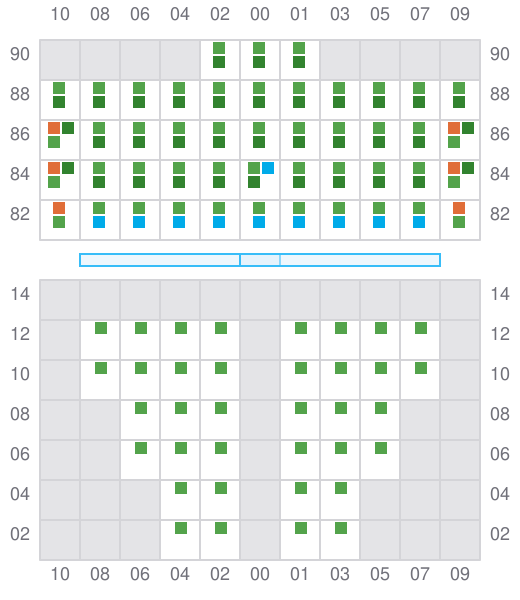

Bay 009 view and slots of MATSON PRODUCER

011

  • ←
  • →

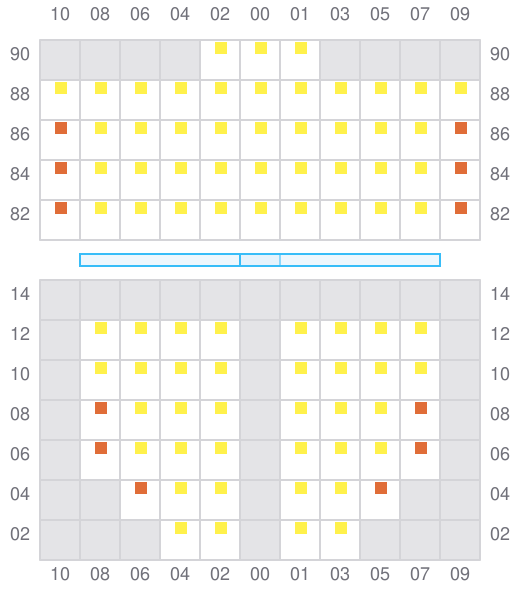

Bay 011 view and slots of MATSON PRODUCER

013 (014)

  • →
  • →

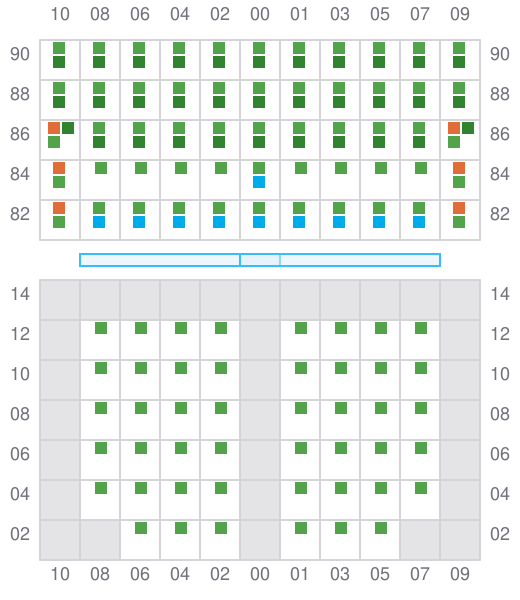

Bay 013 view and slots of MATSON PRODUCER

015

  • ← / ?
  • → / ?
Bay 015 view and slots of MATSON PRODUCER

017 (018)

  • →
  • →

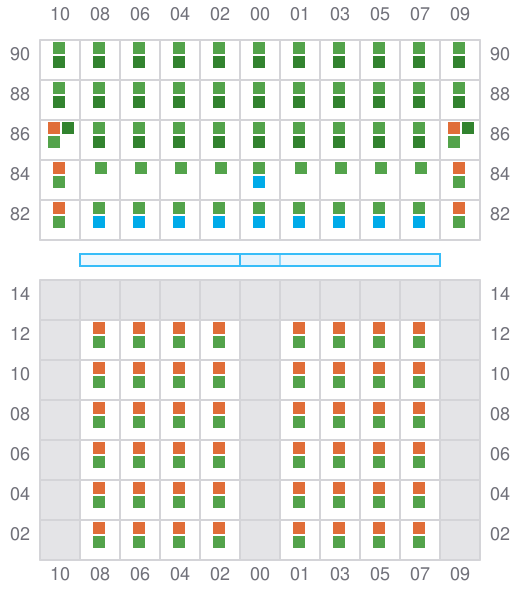

Bay 017 view and slots of MATSON PRODUCER

019

  • ←
  • →

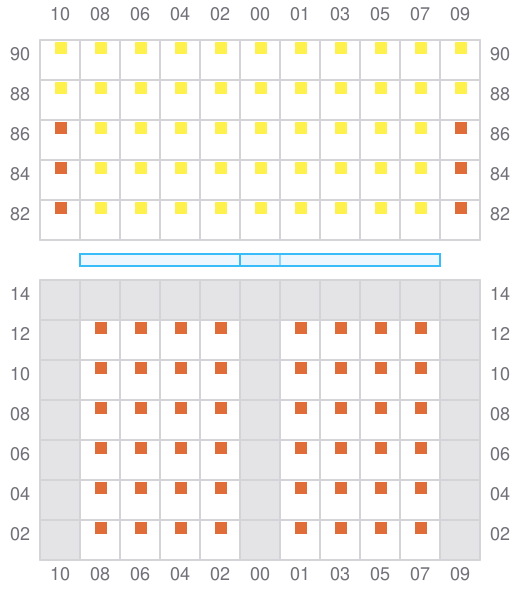

Bay 019 view and slots of MATSON PRODUCER

021 (022)

  • →
  • →
Bay 021 view and slots of MATSON PRODUCER

023

  • ← / ?
  • → / ?

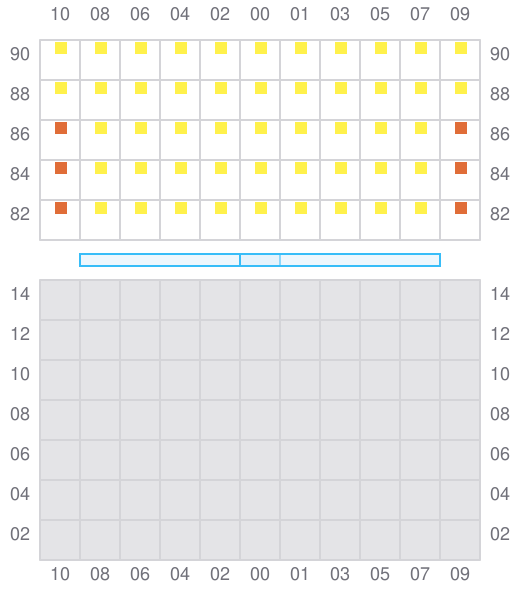

Bay 023 view and slots of MATSON PRODUCER

025 (026)

  • →
  • →

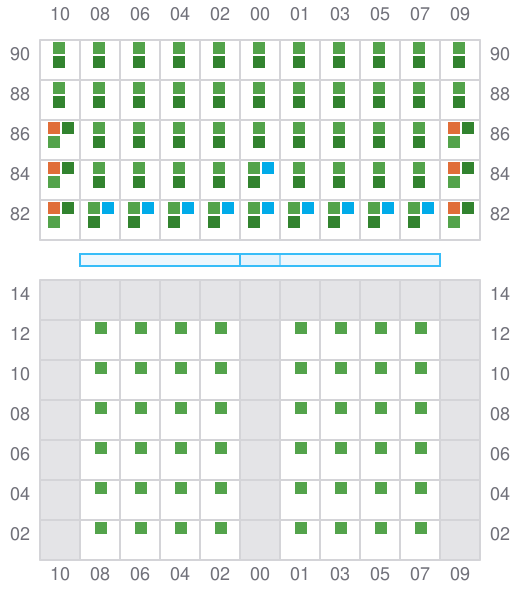

Bay 025 view and slots of MATSON PRODUCER

027

  • ← / ?
  • → / ?
Bay 027 view and slots of MATSON PRODUCER

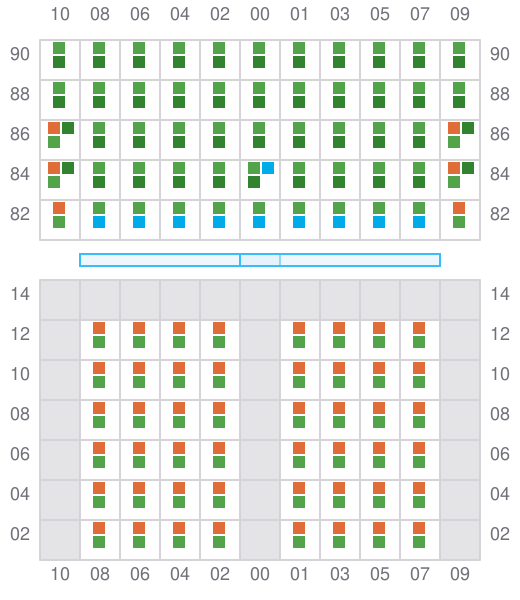

029 (030)

  • →
  • →
Bay 029 view and slots of MATSON PRODUCER

031

  • ←
  • →
Bay 031 view and slots of MATSON PRODUCER

033 (034)

  • →
  • →
Bay 033 view and slots of MATSON PRODUCER

035

  • ← / ?
  • → / ?
Bay 035 view and slots of MATSON PRODUCER

037 (038)

  • →
  • →

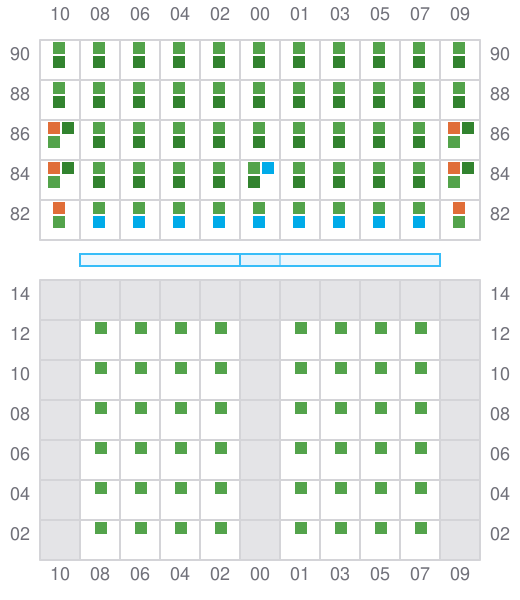

Bay 037 view and slots of MATSON PRODUCER

039

  • ← / ?
  • → / ?
Bay 039 view and slots of MATSON PRODUCER

041 (042)

  • →
  • →

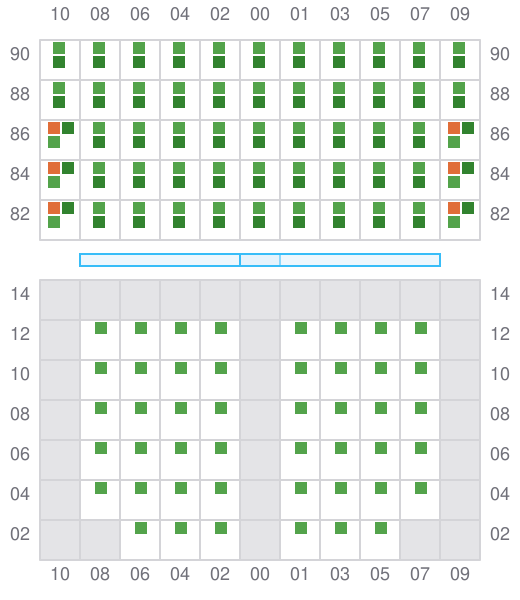

Bay 041 view and slots of MATSON PRODUCER

043

  • ← / ?
  • → / ?
Bay 043 view and slots of MATSON PRODUCER

045 (046)

  • →
  • →

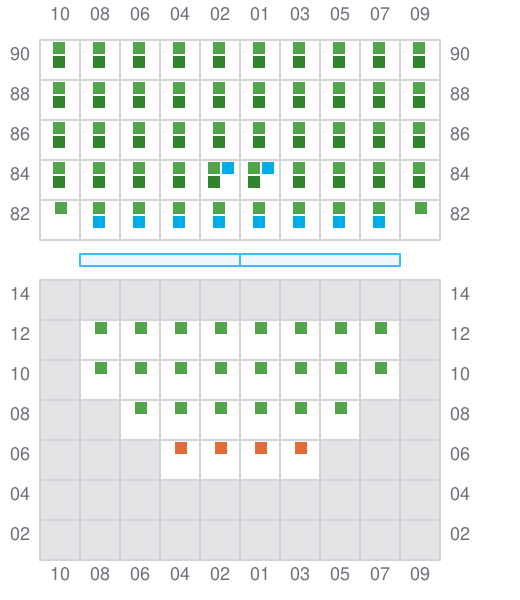

Bay 045 view and slots of MATSON PRODUCER

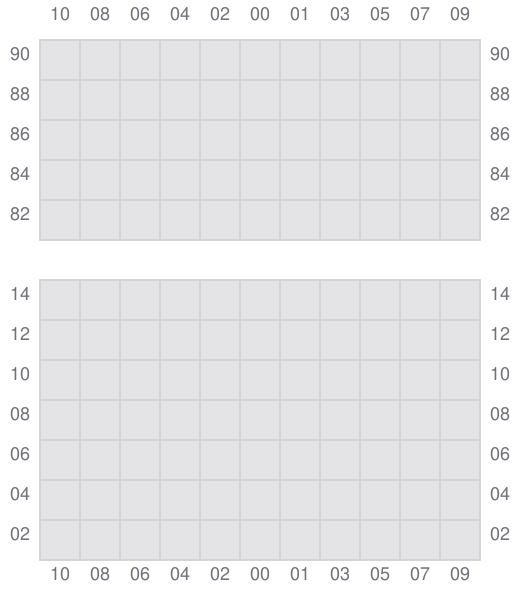

047

Bay 047 view and slots of MATSON PRODUCER

049 (050)

  • → / ?
  • →

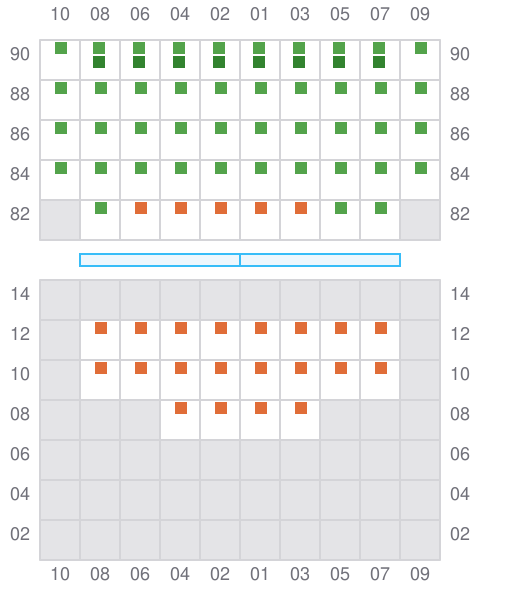

Bay 049 view and slots of MATSON PRODUCER

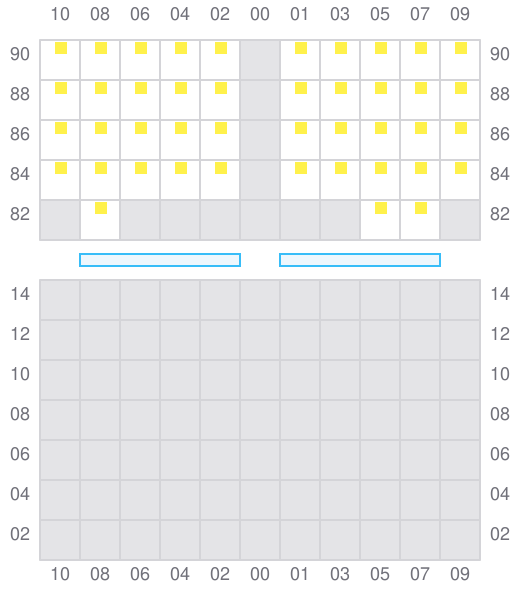

051

  • ← / ?
  • → / ?
Bay 051 view and slots of MATSON PRODUCER

053

  • → / ?

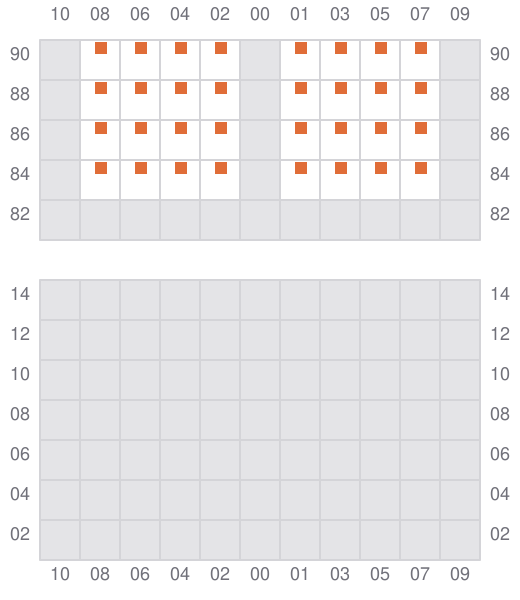

Bay 053 view and slots of MATSON PRODUCER
