MATZ MAERSK
9619983 | OWJM2 | 9619983 by ********* Last update: Mon Jul 01 2024
General Info
Ship Name:MATZ MAERSK
IMO Code:9619983
Call Sign:OWJM2
Line Operator:9619983
Class Name for Sister Ships:MSL
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:093
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:78
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:18,774
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

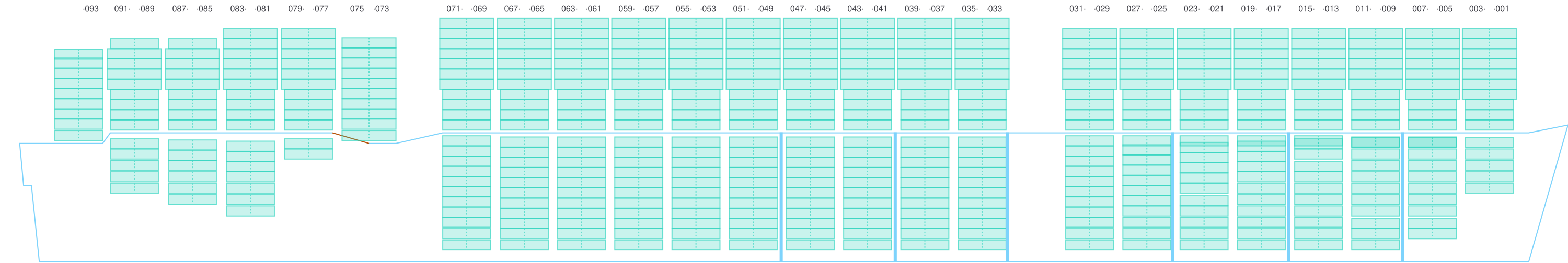

Side View
![Side view of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-sideView.png?v=1719852176750)
Hatch-Covers View
![Deck view of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-deckView.png?v=1719852176750)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

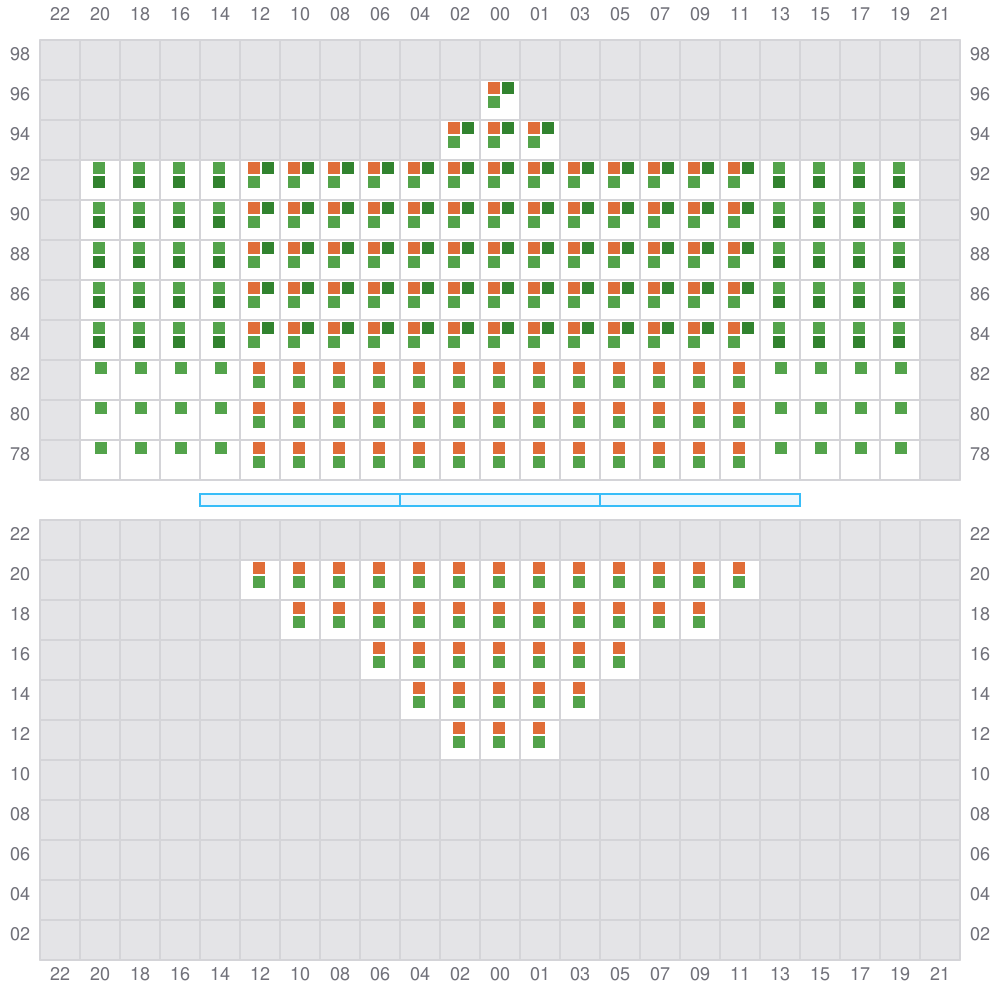

001 (002)
- →
![Bay 001 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b001.png?v=1719852176750)

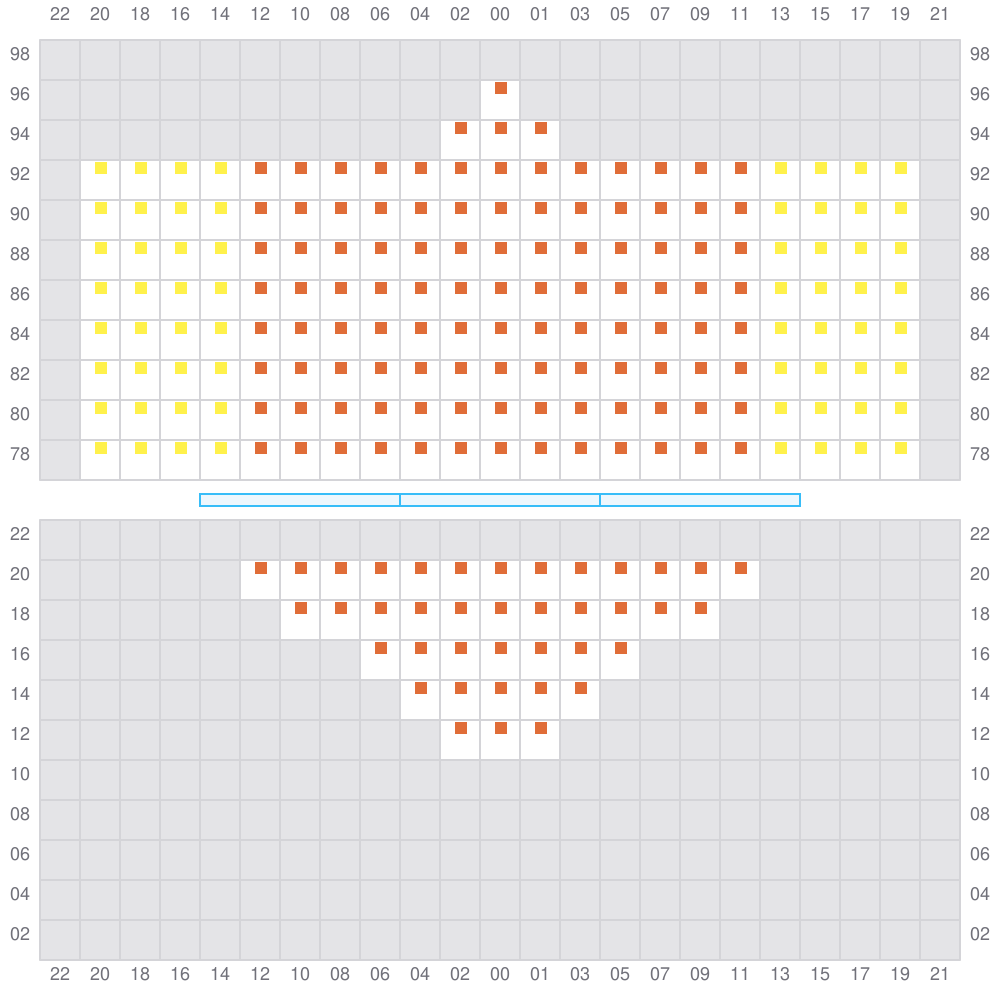

003
- ←
![Bay 003 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b003.png?v=1719852176750)

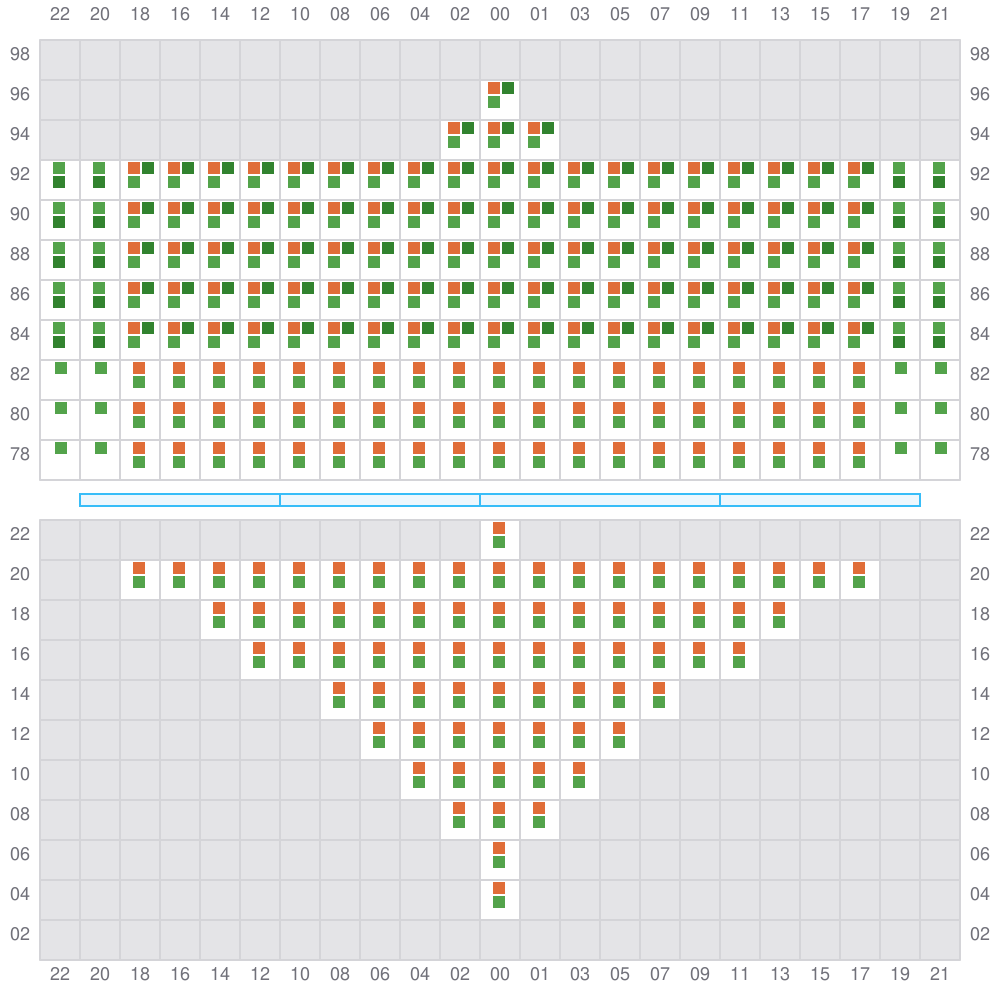

005 (006)
- →
![Bay 005 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b005.png?v=1719852176750)
007
- ←
![Bay 007 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b007.png?v=1719852176750)

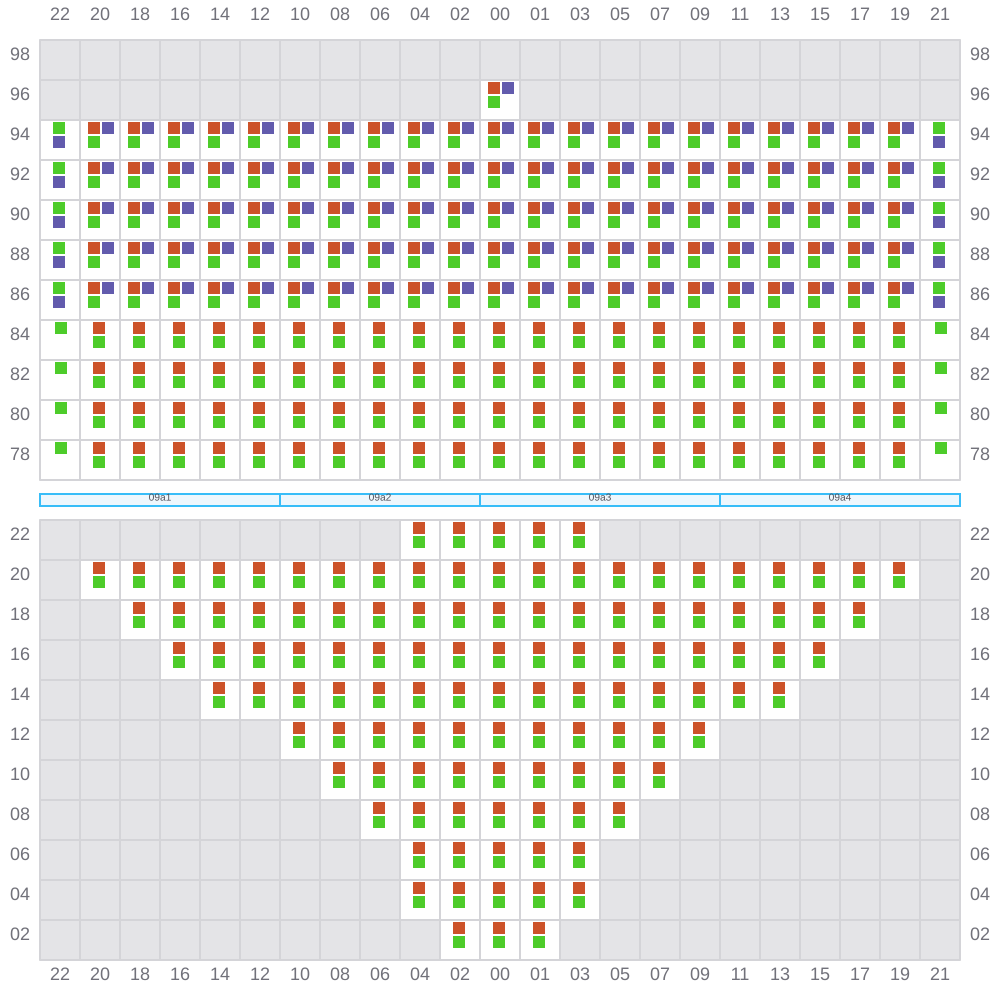

009 (010)
- →
![Bay 009 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b009.png?v=1719852176750)

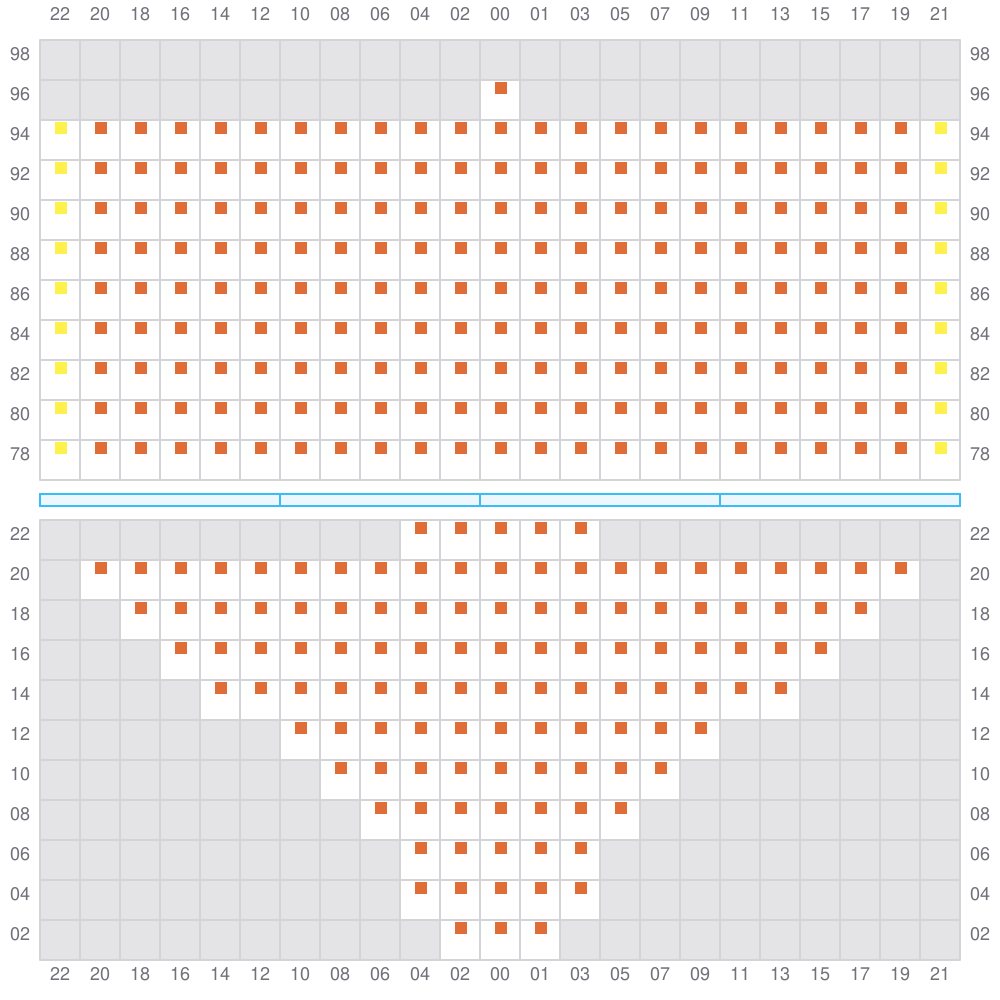

011
- ←
- → / ?
![Bay 011 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b011.png?v=1719852176750)

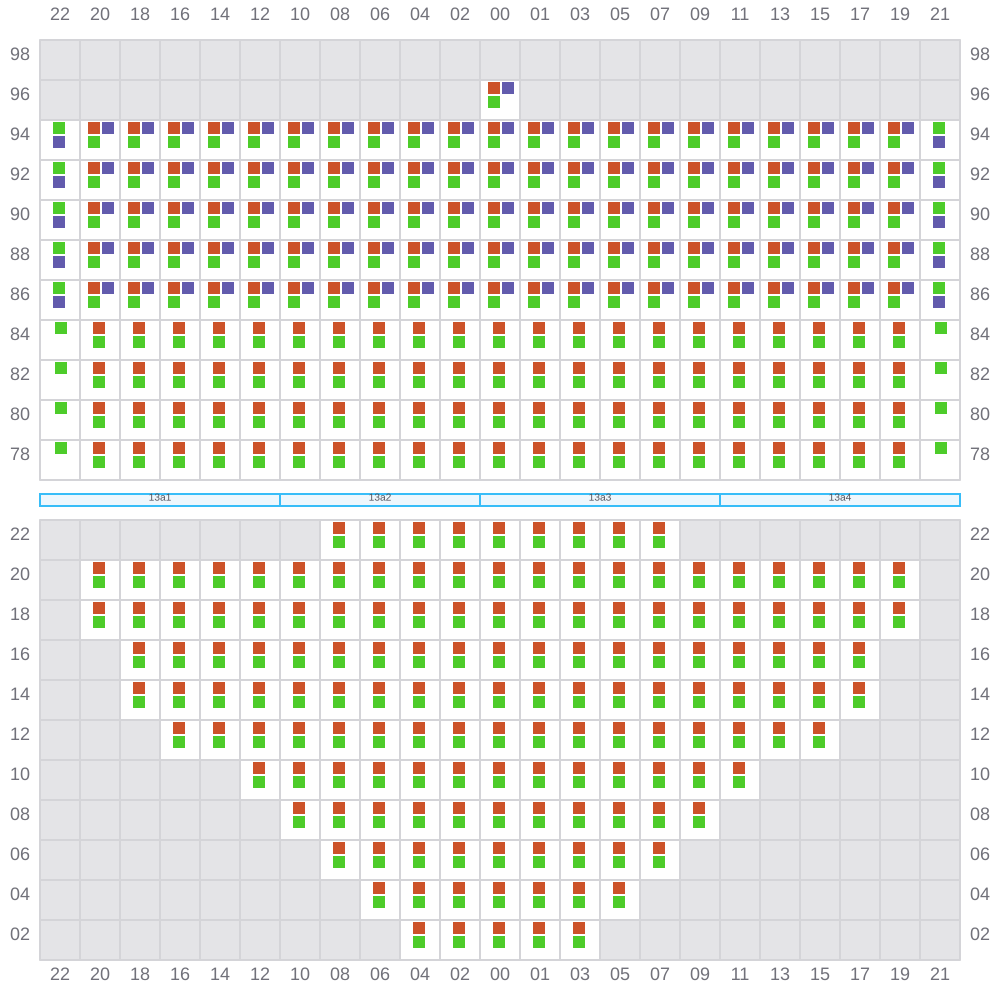

013 (014)
- →
![Bay 013 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b013.png?v=1719852176750)

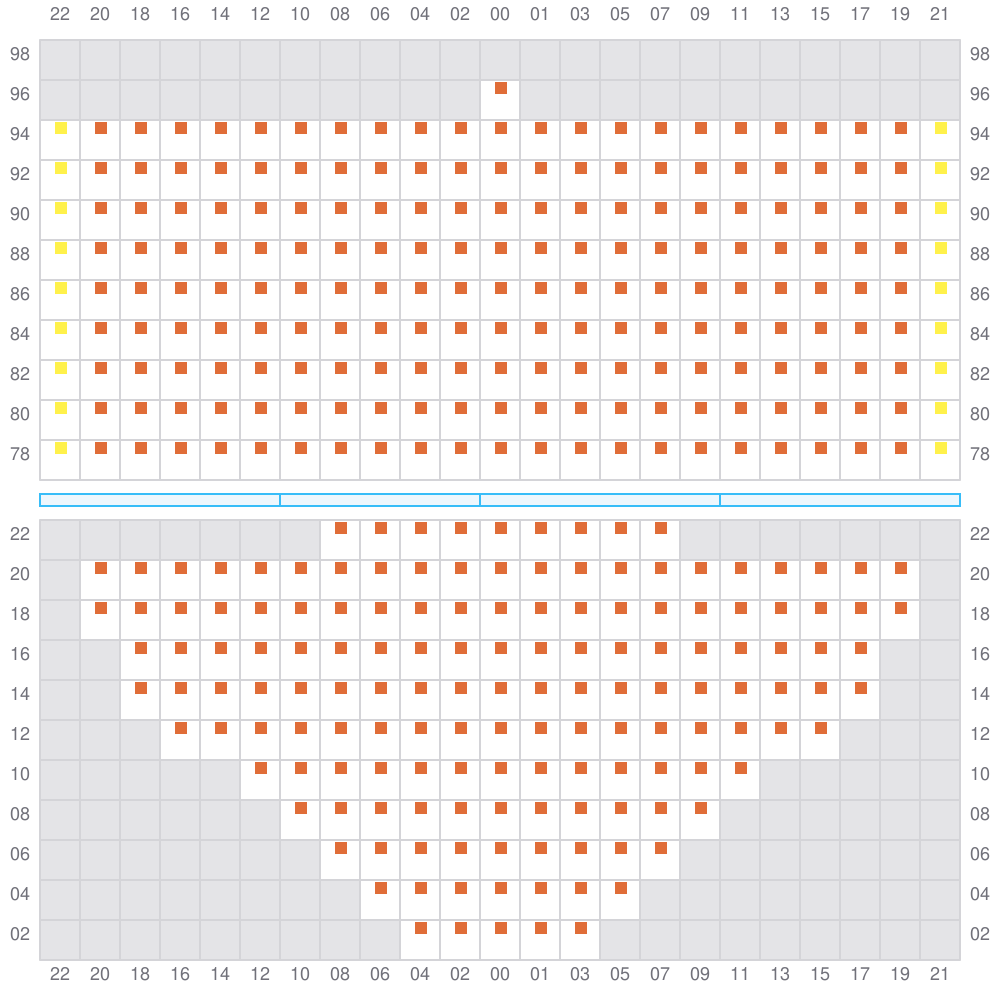

015
- ←
- → / ?
![Bay 015 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b015.png?v=1719852176750)

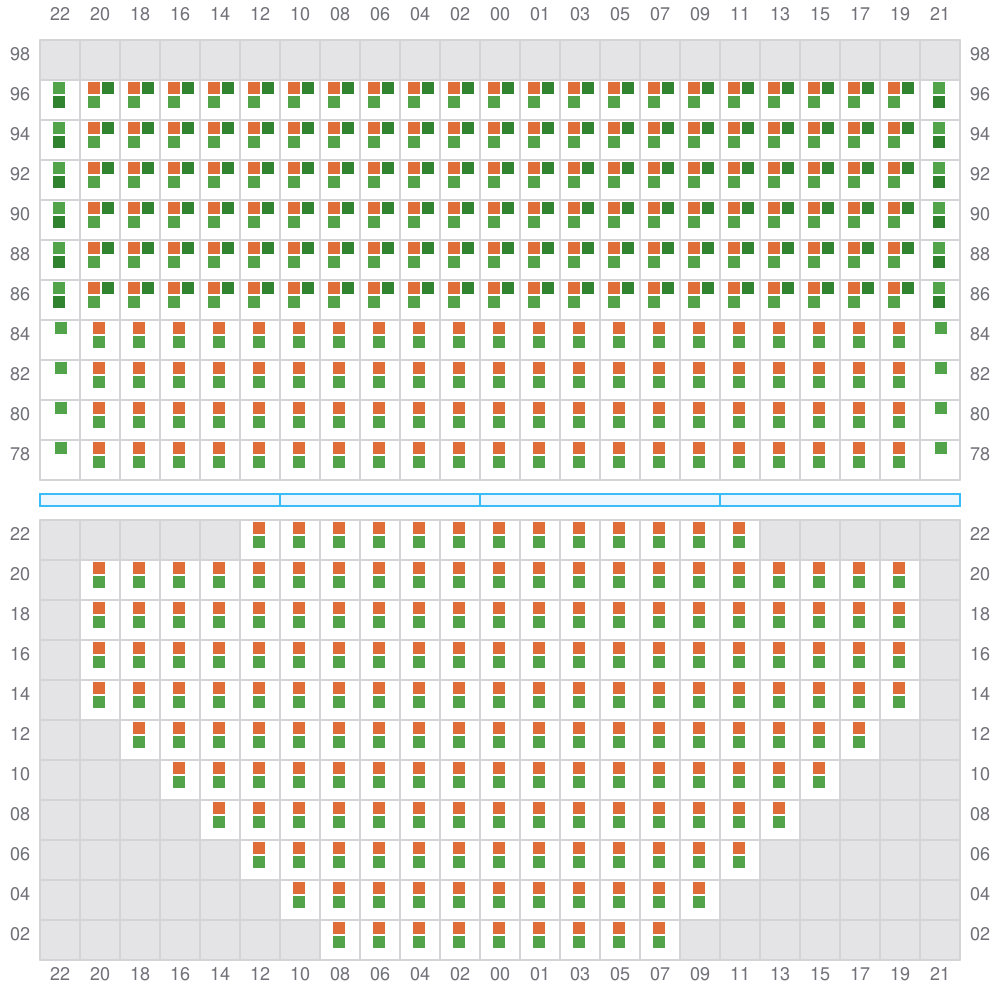

017 (018)
- →
![Bay 017 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b017.png?v=1719852176750)

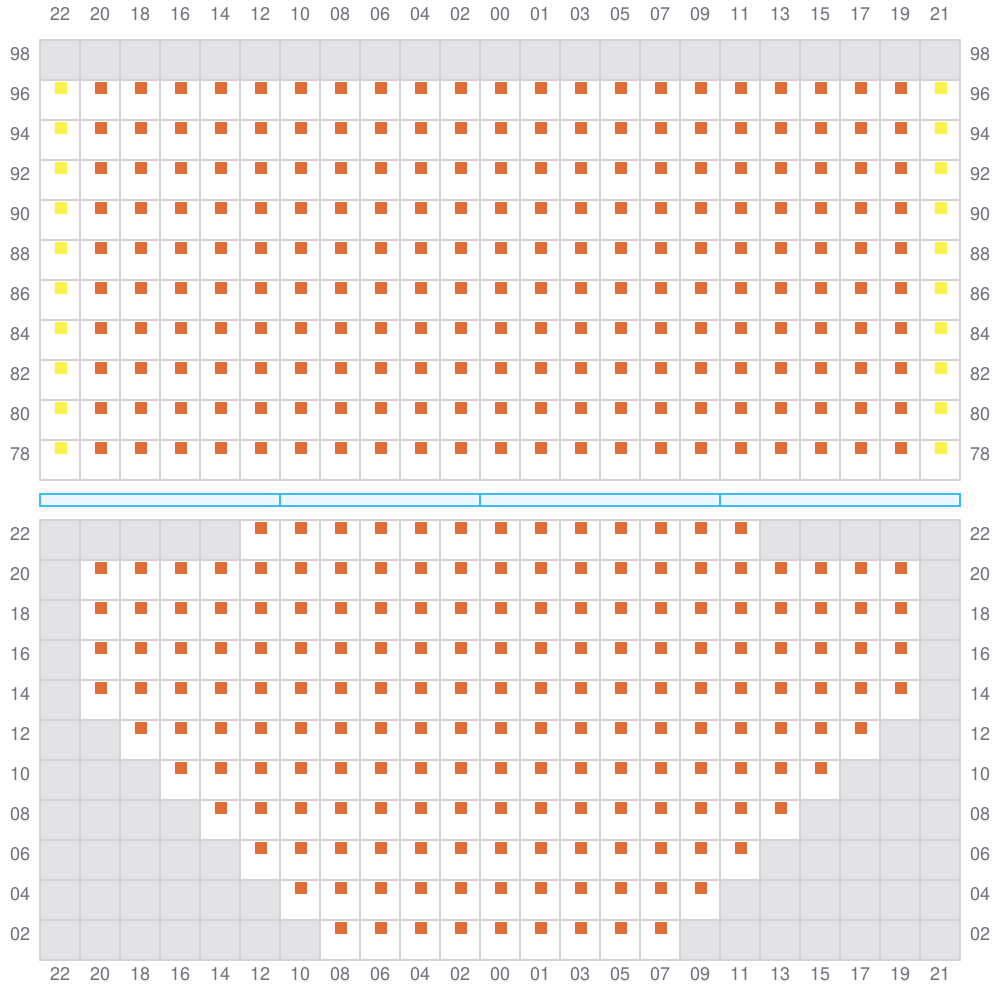

019
- ←
- → / ?
![Bay 019 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b019.png?v=1719852176750)

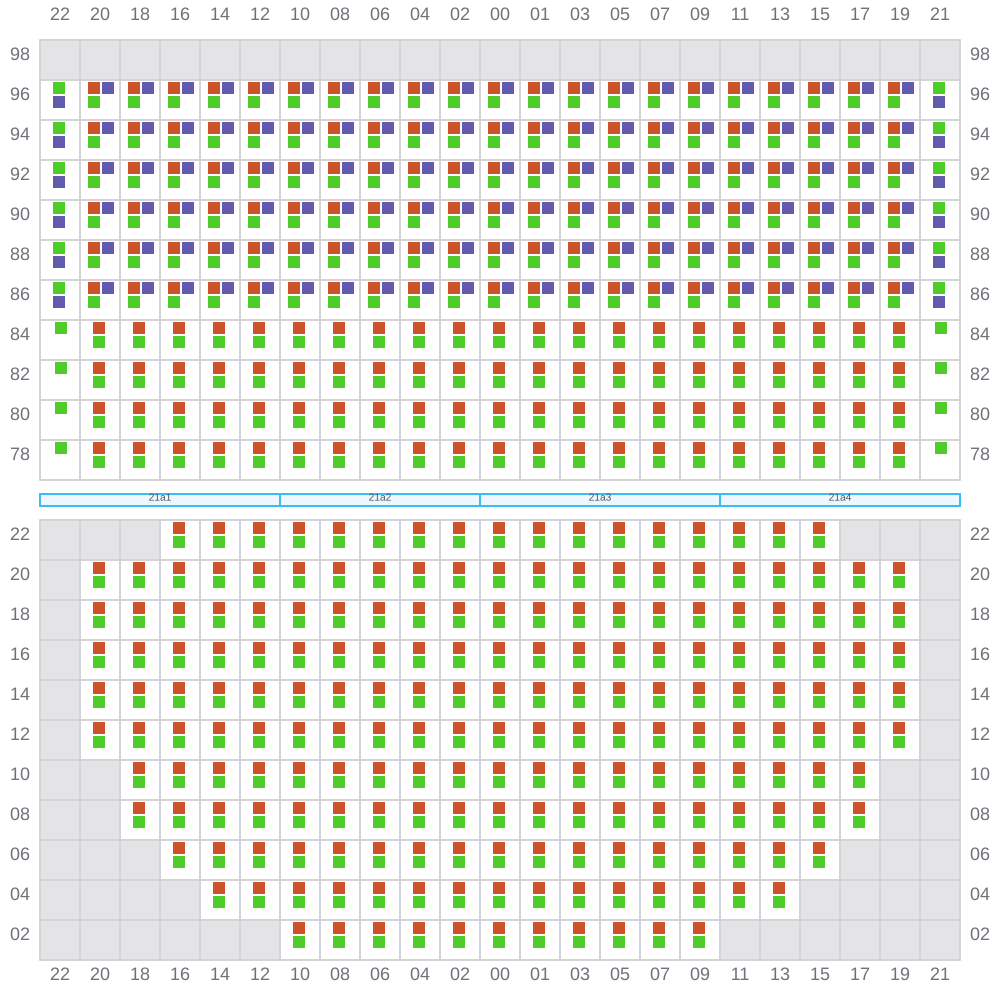

021 (022)
- →
![Bay 021 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b021.png?v=1719852176750)

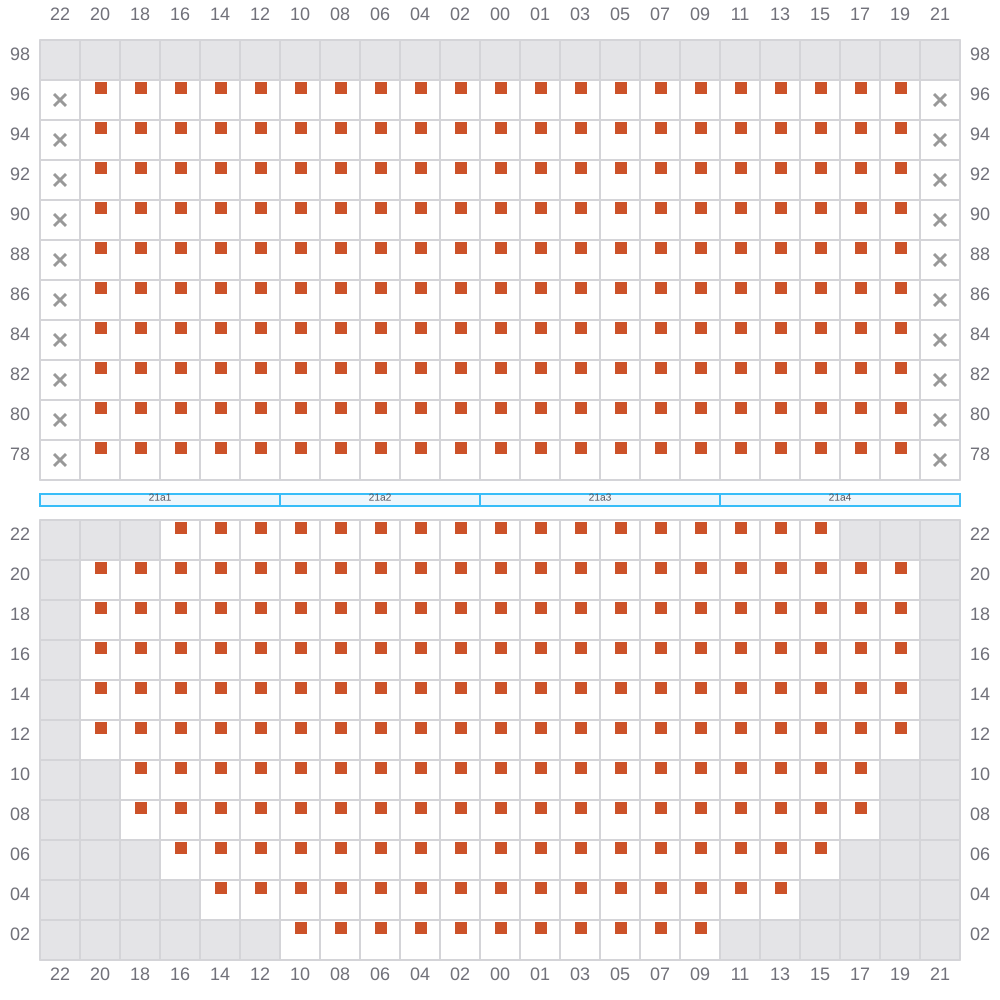

023
- ←
- → / ?
![Bay 023 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b023.png?v=1719852176750)

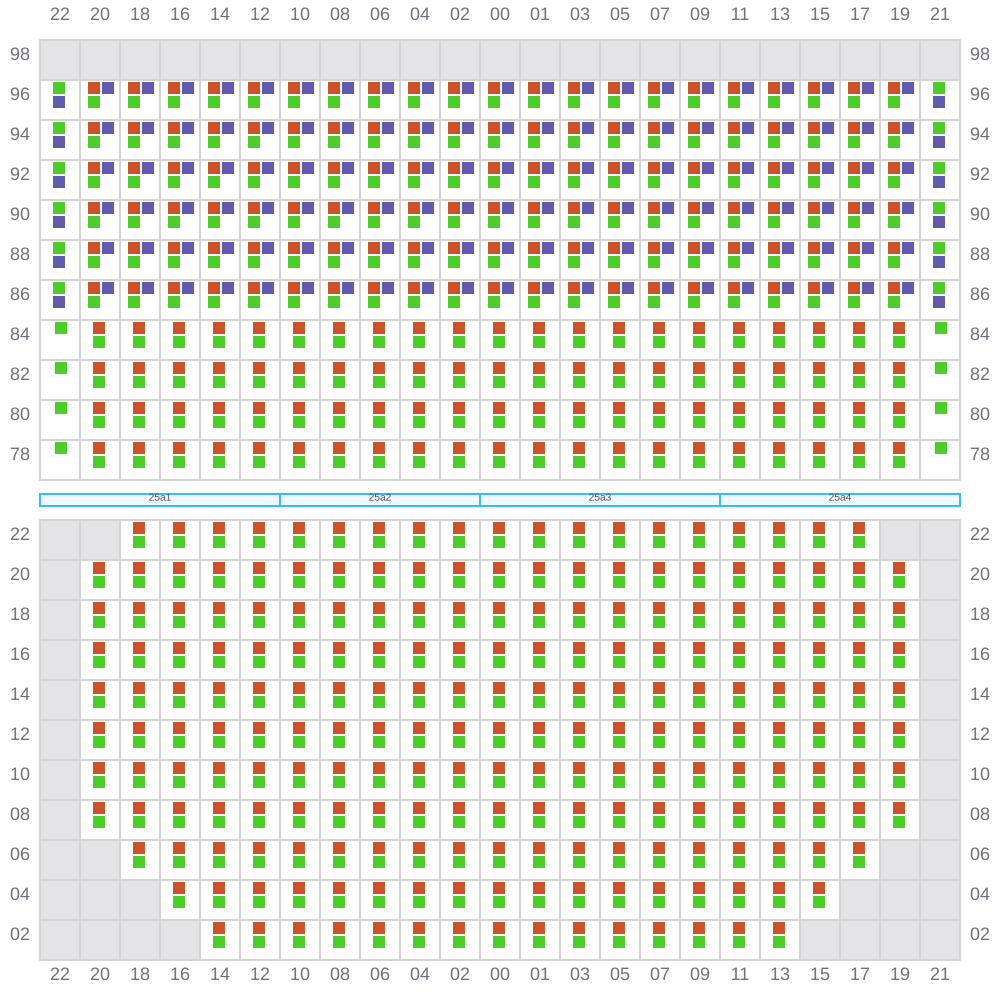

025 (026)
- →
![Bay 025 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b025.png?v=1719852176750)

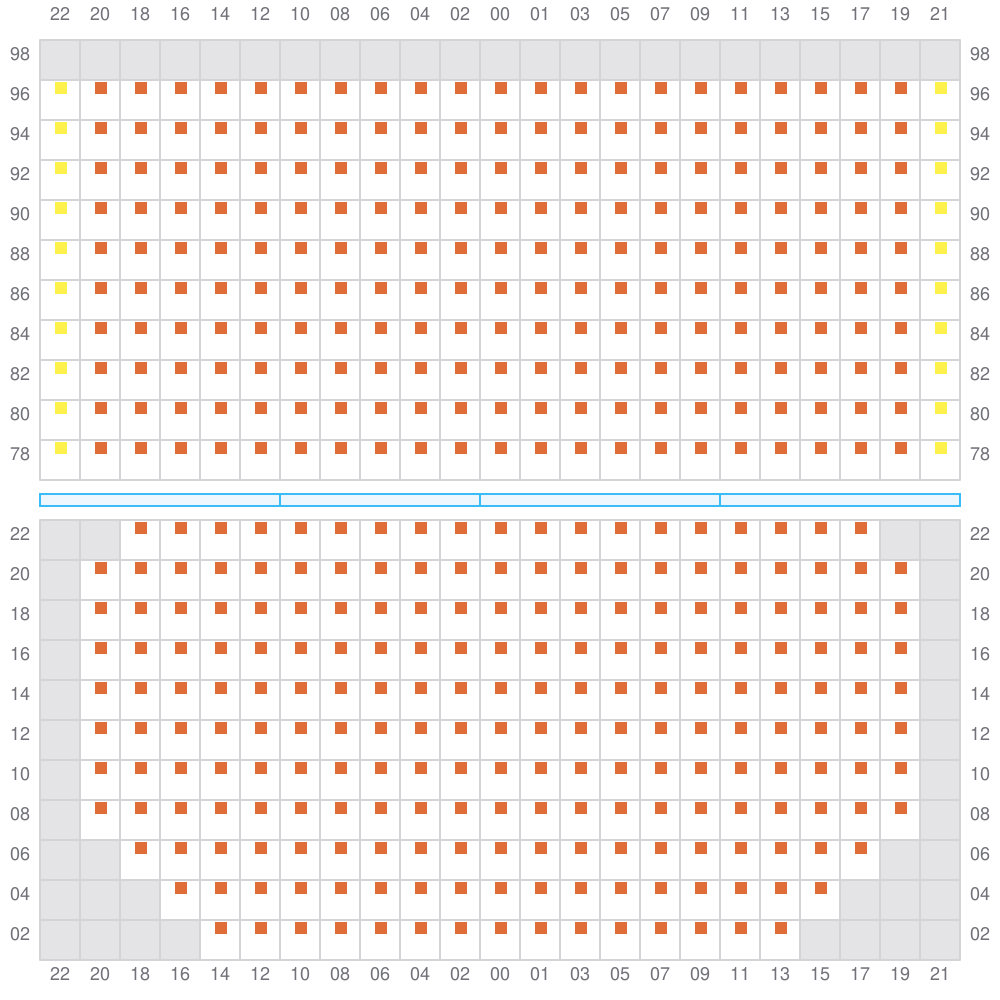

027
- ←
- → / ?
![Bay 027 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b027.png?v=1719852176750)

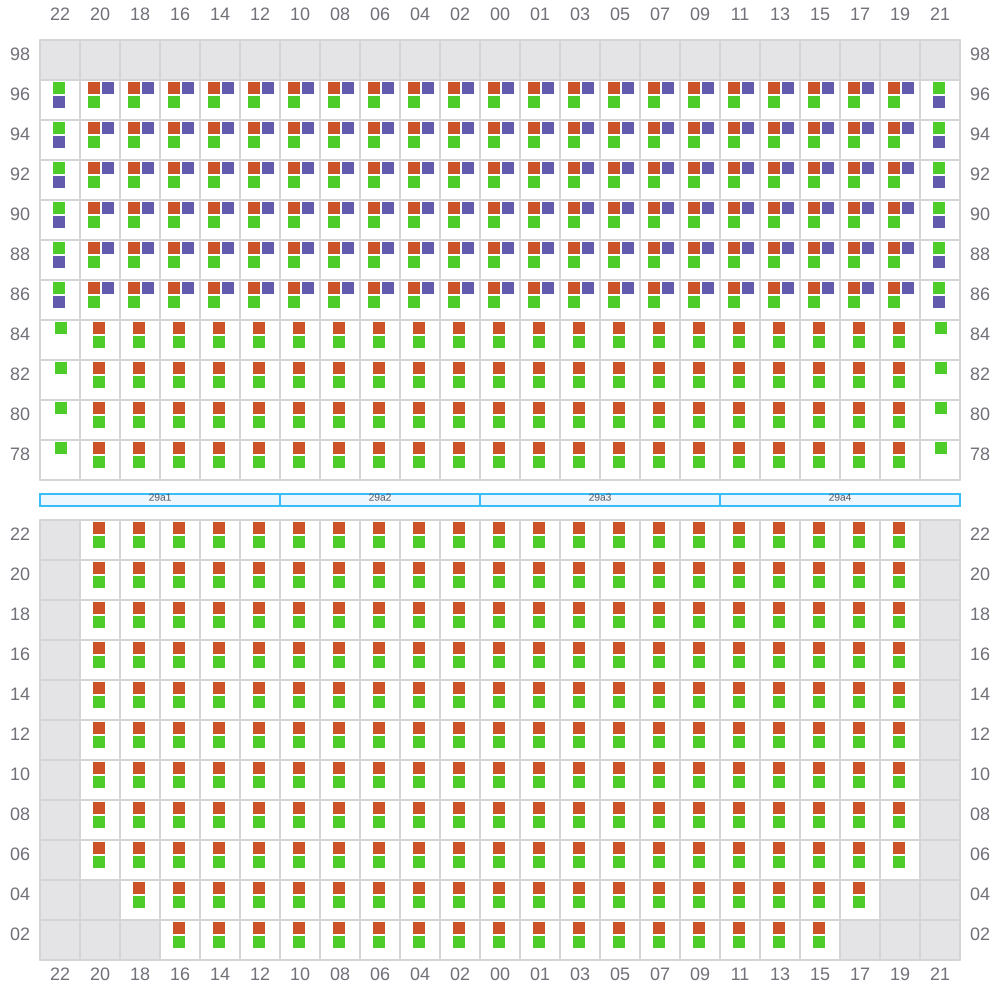

029 (030)
- →
![Bay 029 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b029.png?v=1719852176750)

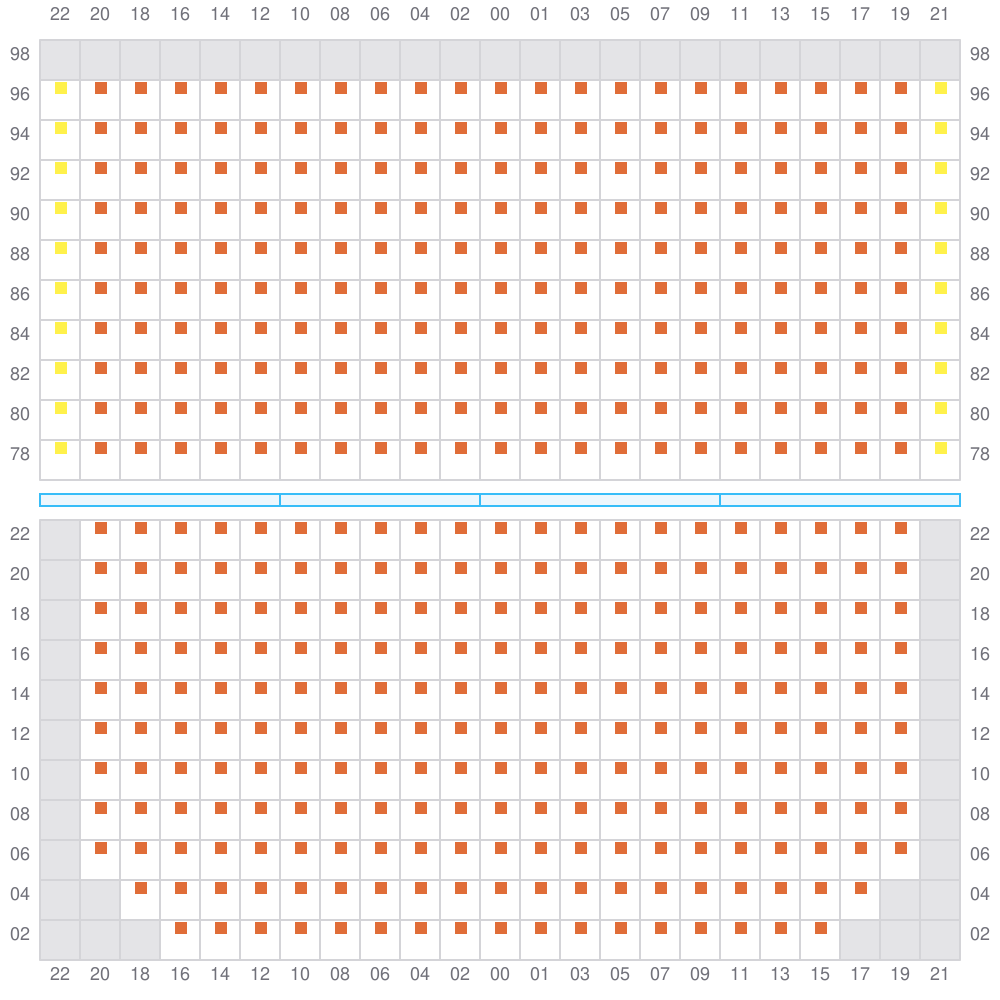

031
- ←
- → / ?
![Bay 031 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b031.png?v=1719852176750)

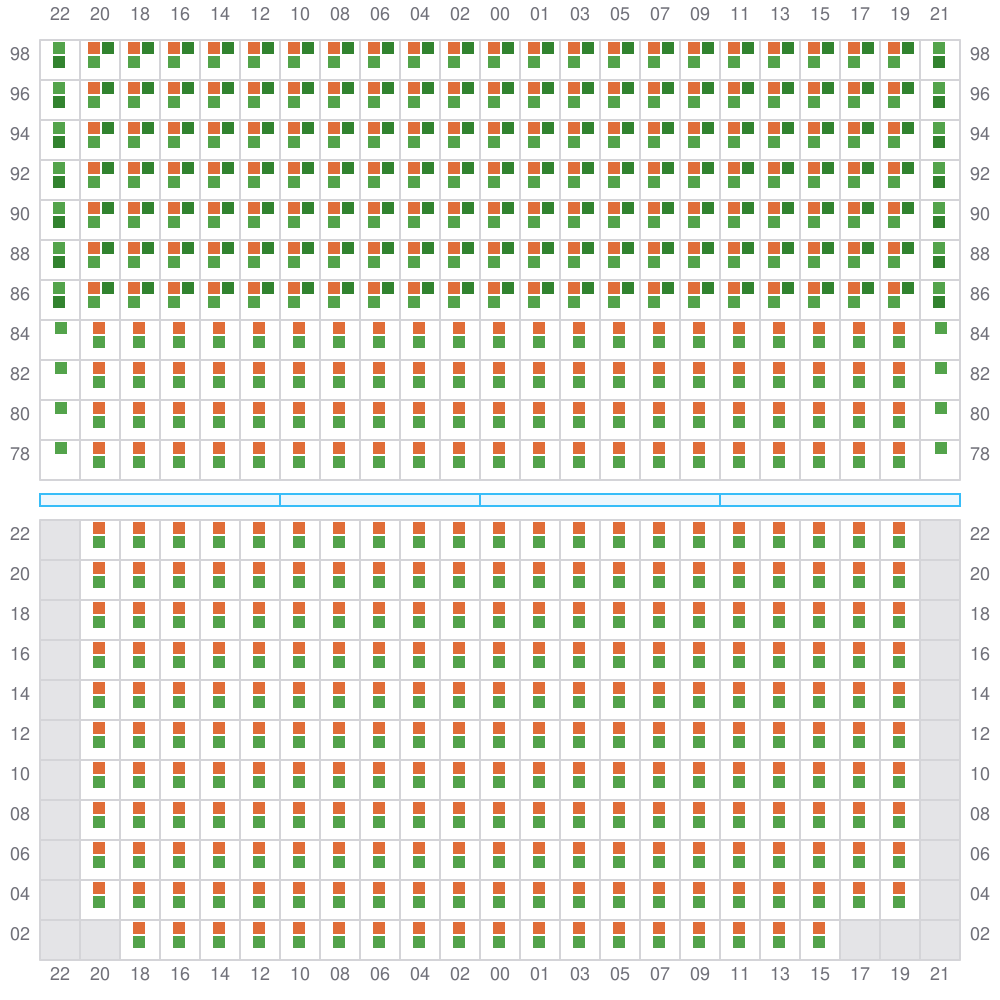

033 (034)
- →
![Bay 033 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b033.png?v=1719852176750)

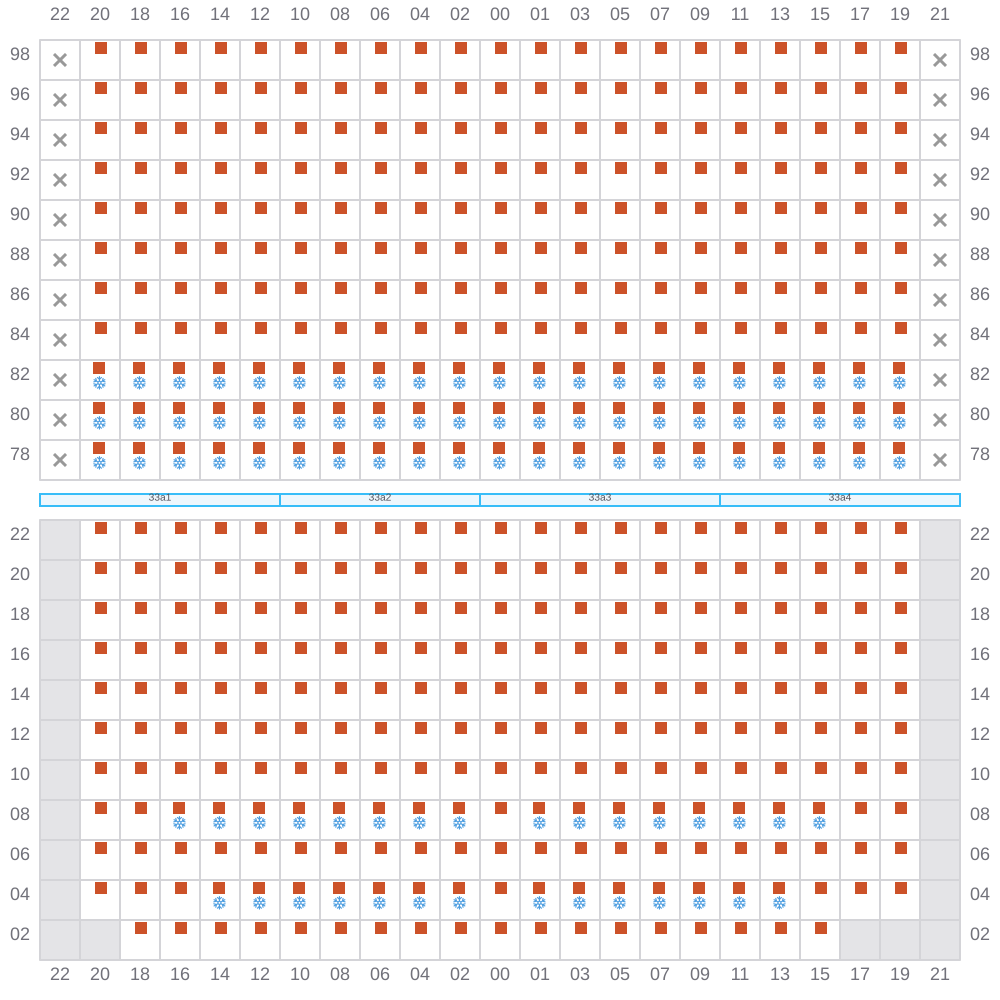

035
- ←
- →
![Bay 035 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b035.png?v=1719852176750)

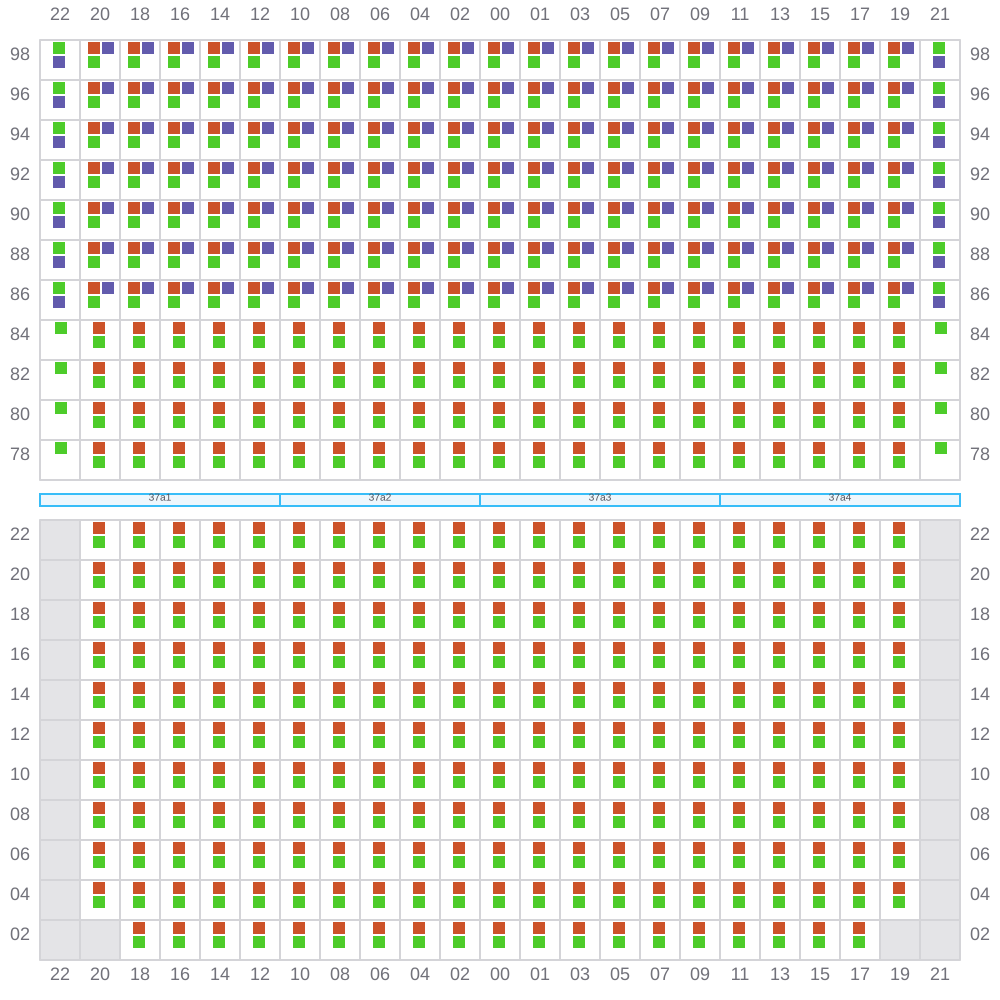

037 (038)
- →
![Bay 037 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b037.png?v=1719852176750)
039
- ←
- → / ?
![Bay 039 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b039.png?v=1719852176750)
041 (042)
- →
![Bay 041 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b041.png?v=1719852176750)
043
- ←
- → / ?
![Bay 043 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b043.png?v=1719852176750)
045 (046)
- →
![Bay 045 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b045.png?v=1719852176750)
047
- ←
- → / ?
![Bay 047 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b047.png?v=1719852176750)

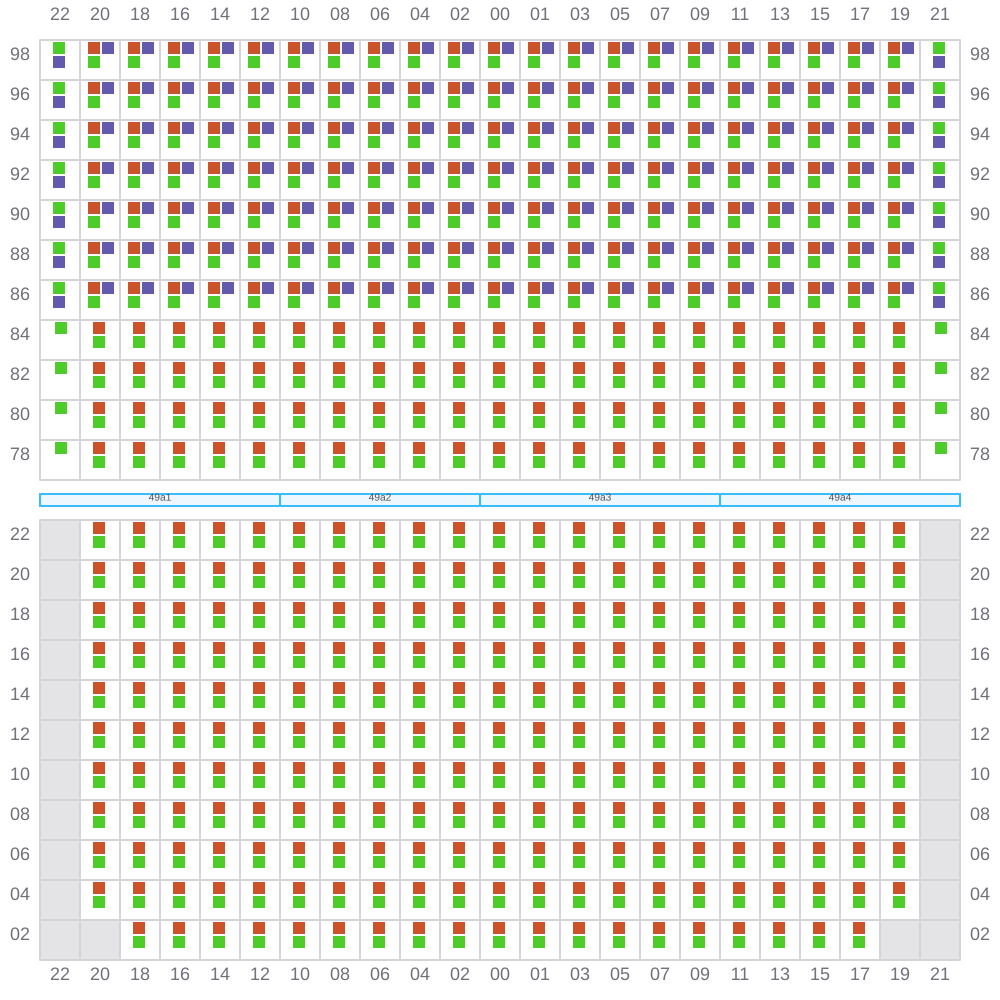

049 (050)
- →
![Bay 049 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b049.png?v=1719852176750)

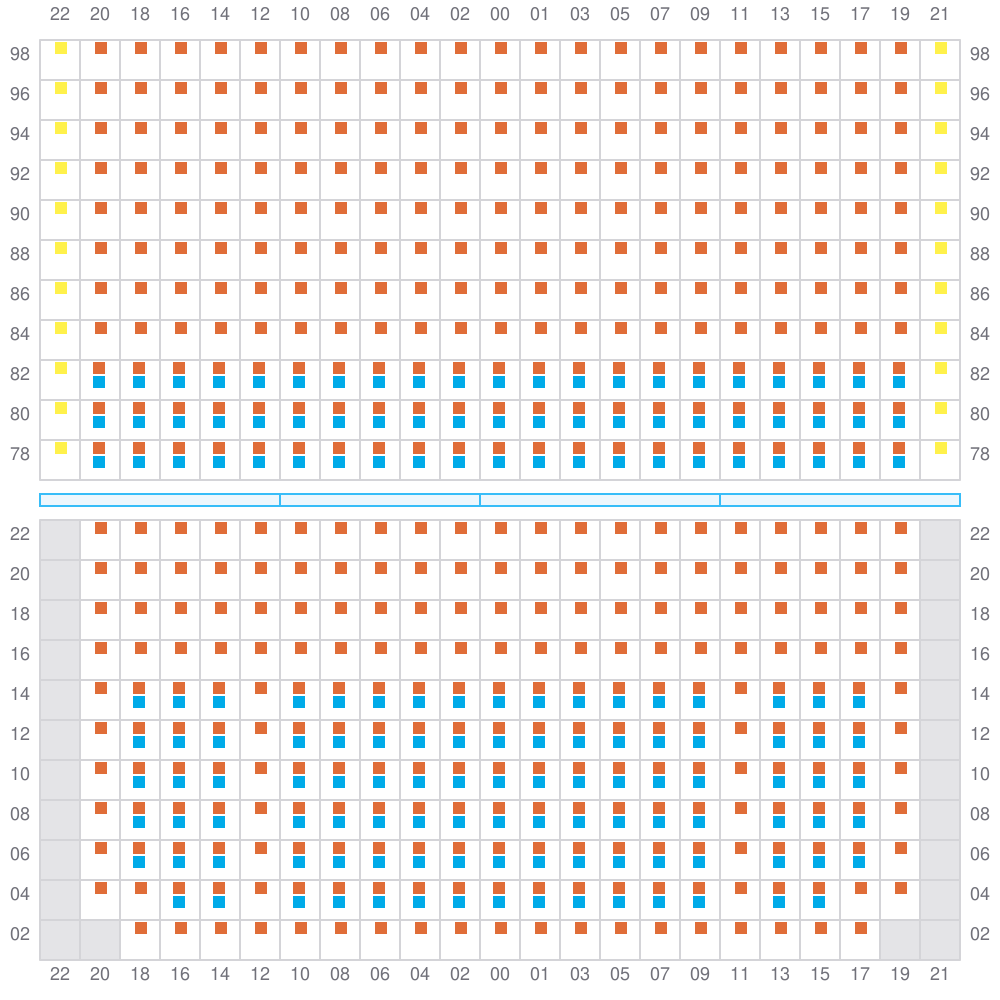

051
- ←
- → / ?
![Bay 051 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b051.png?v=1719852176750)

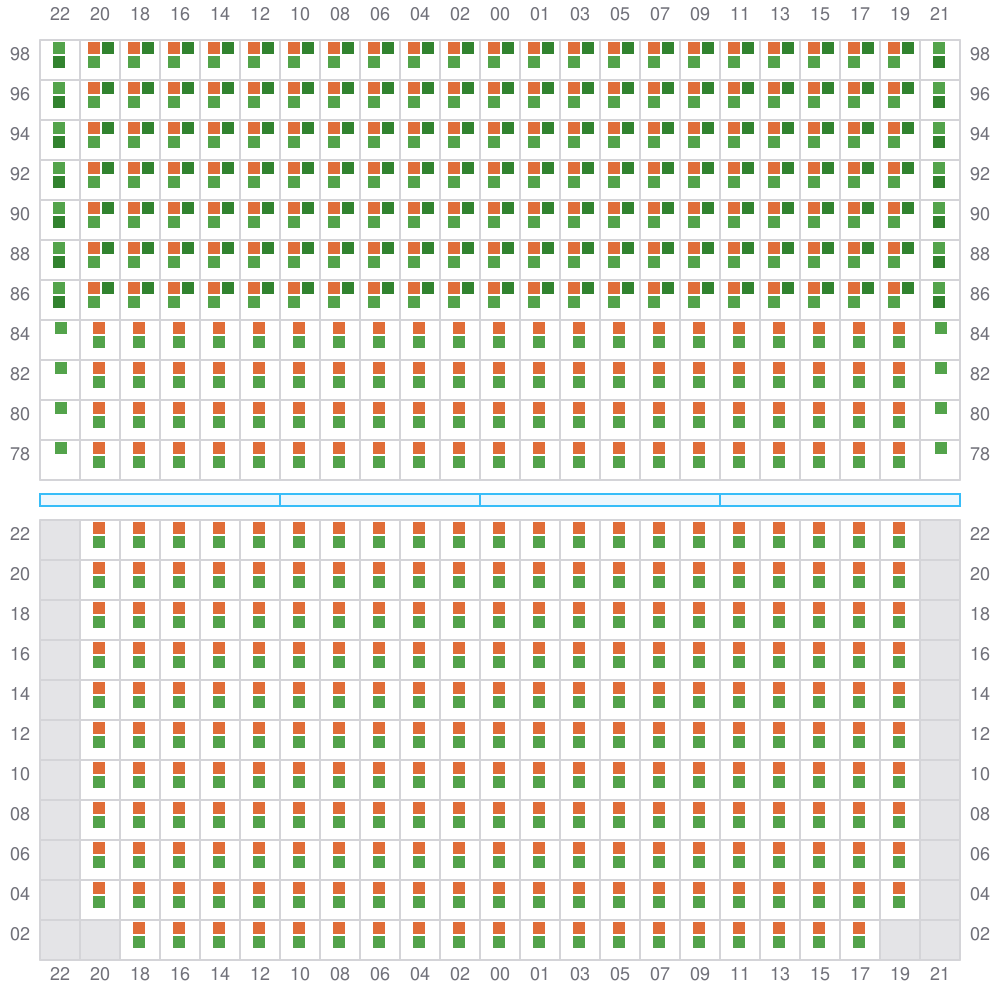

053 (054)
- →
![Bay 053 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b053.png?v=1719852176750)
055
- ←
- → / ?
![Bay 055 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b055.png?v=1719852176750)
057 (058)
- →
![Bay 057 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b057.png?v=1719852176750)
059
- ←
- →
![Bay 059 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b059.png?v=1719852176750)
061 (062)
- →
![Bay 061 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b061.png?v=1719852176750)

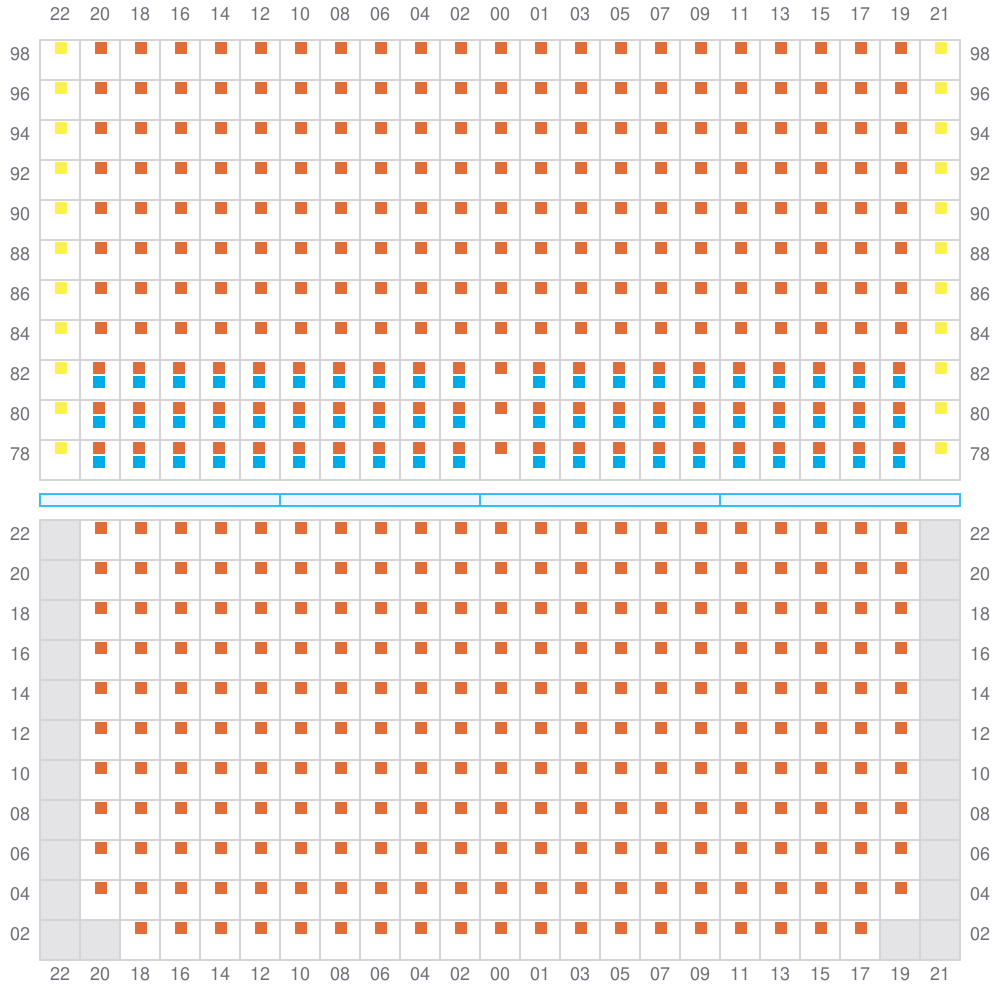

063
- ←
- → / ?
![Bay 063 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b063.png?v=1719852176750)

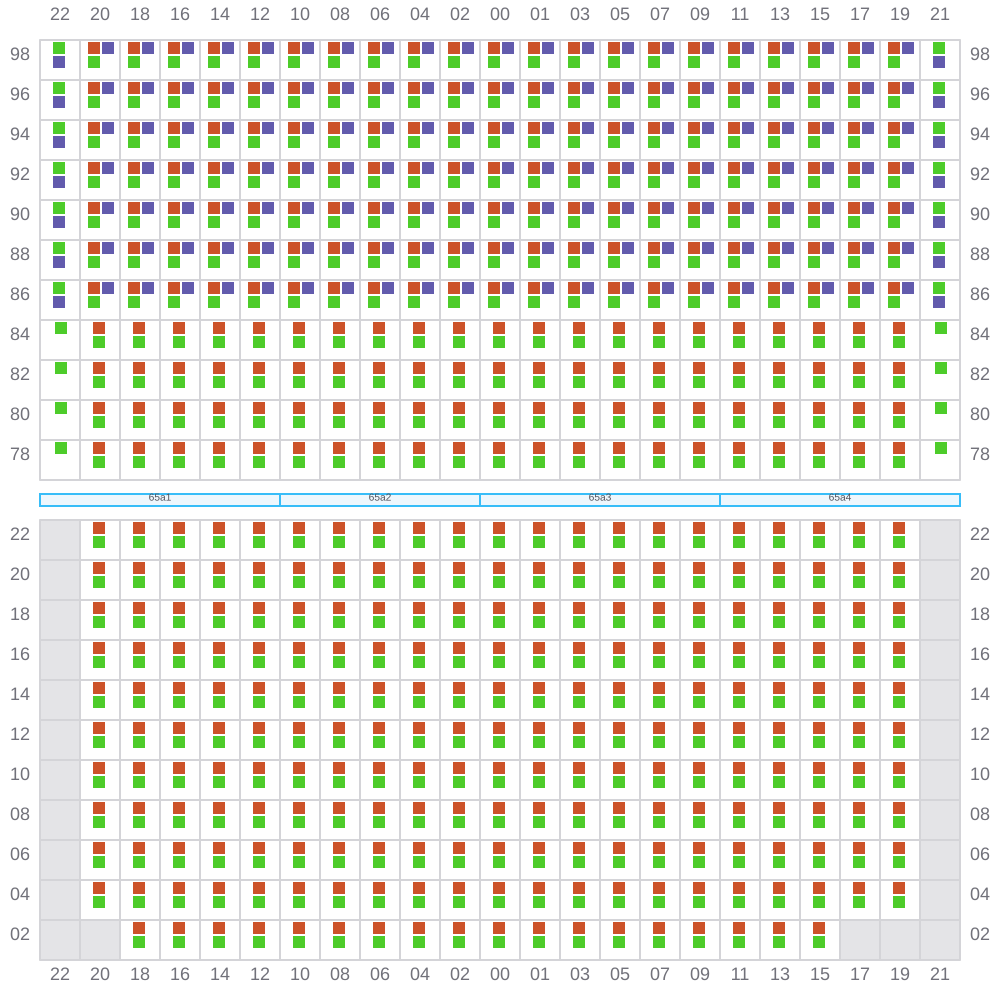

065 (066)
- →
![Bay 065 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b065.png?v=1719852176750)

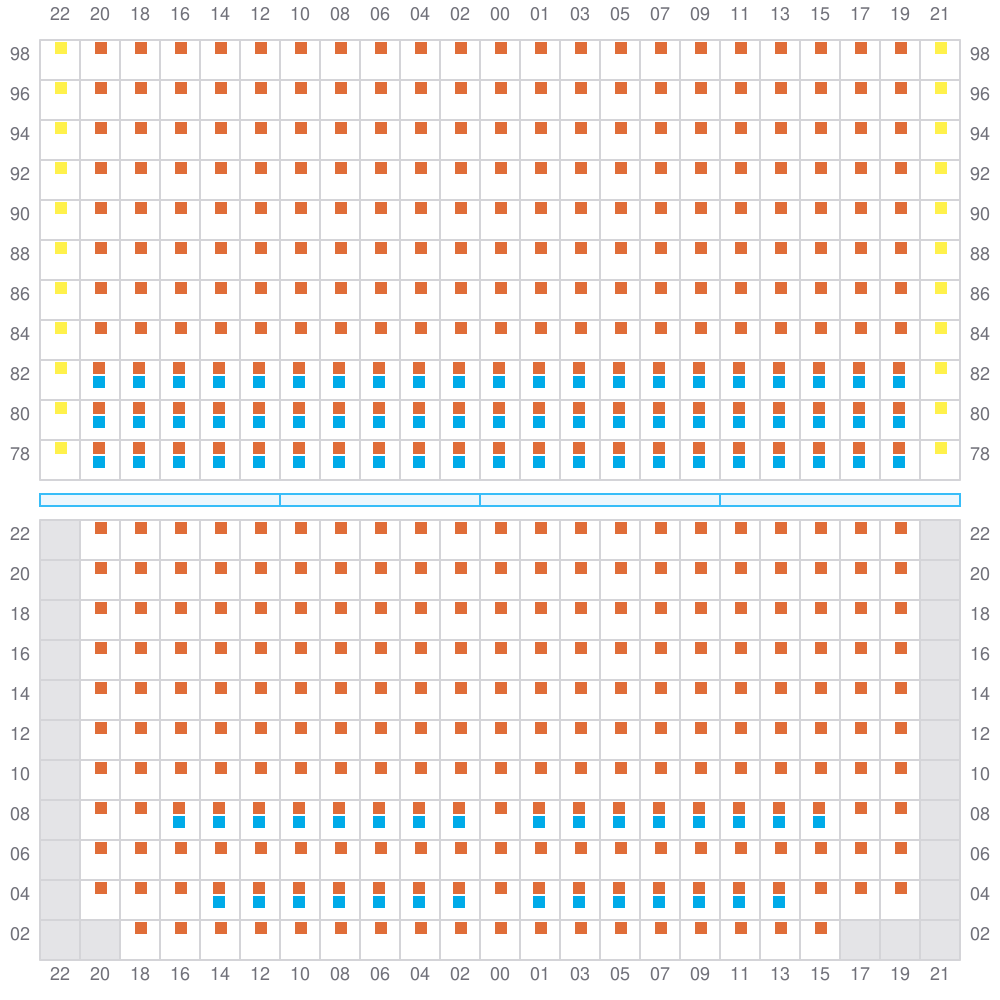

067
- ←
- →
![Bay 067 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b067.png?v=1719852176750)
069 (070)
- →
![Bay 069 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b069.png?v=1719852176750)

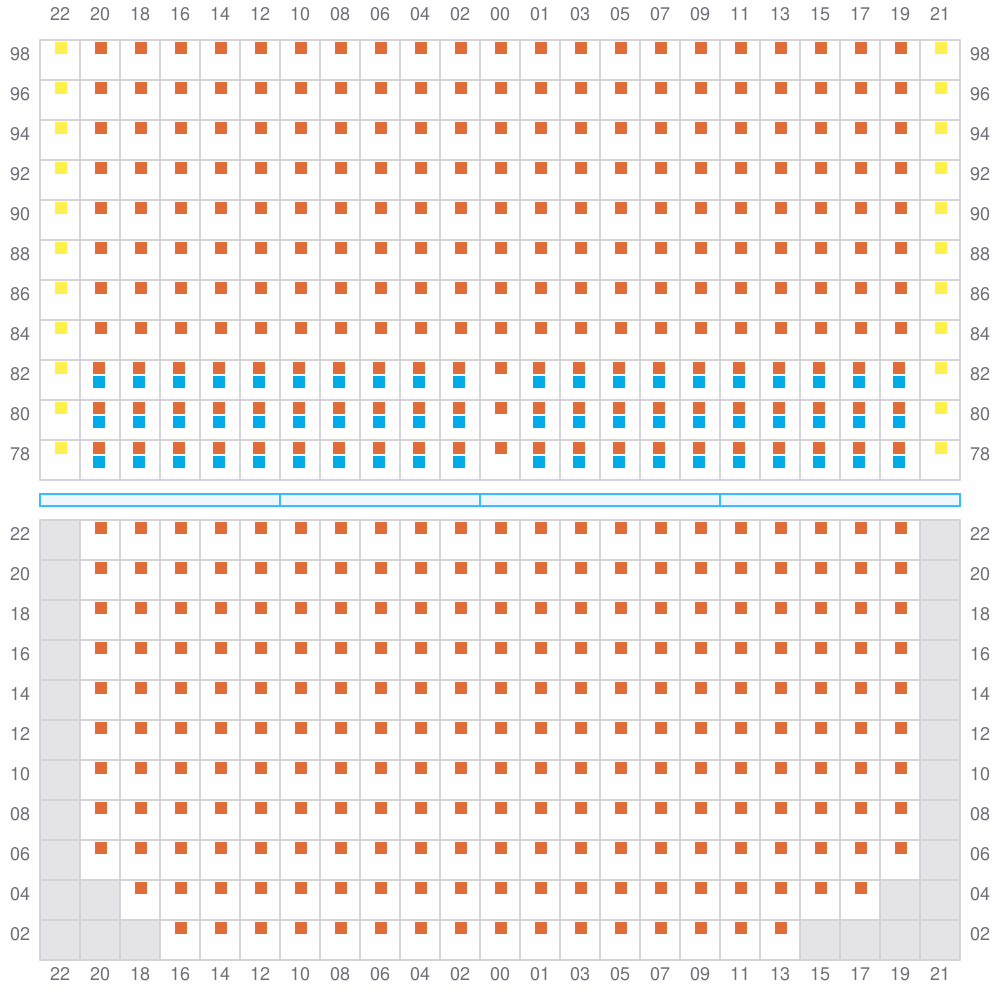

071
- ←
- → / ?
![Bay 071 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b071.png?v=1719852176750)

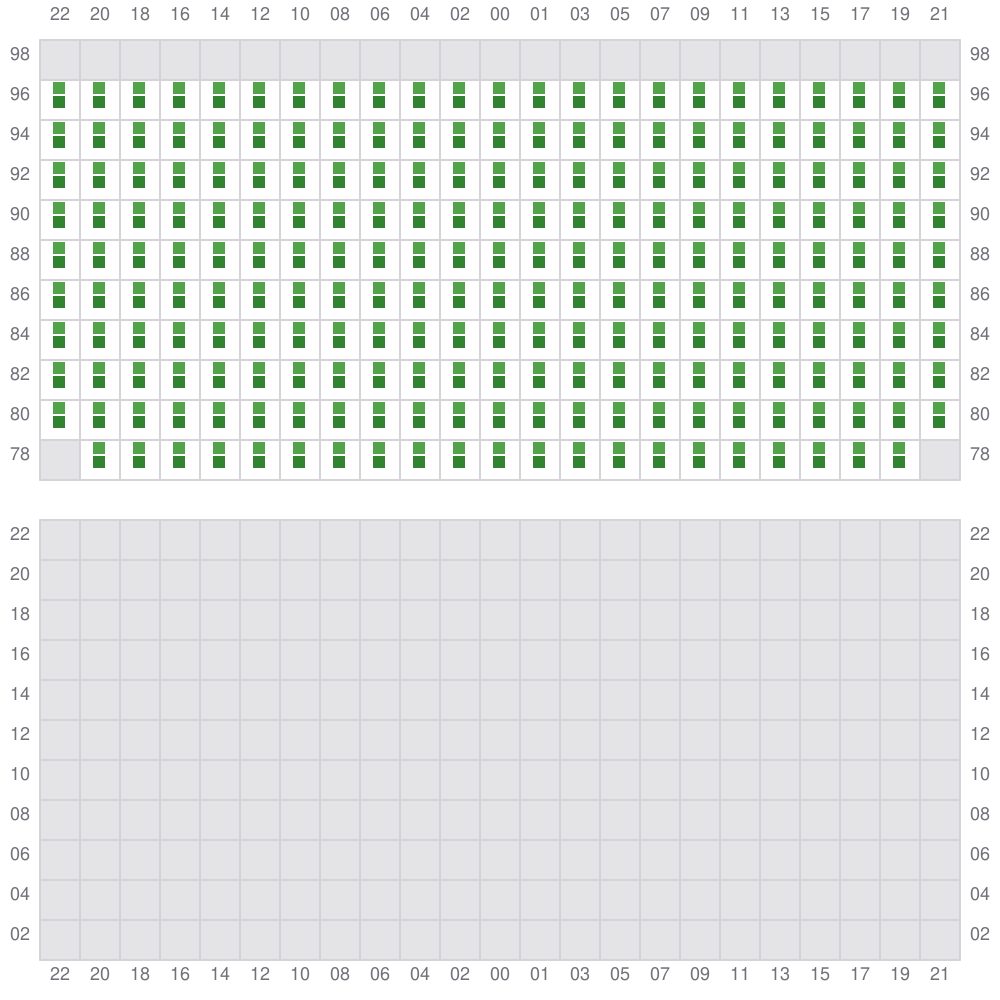

073 (074)
- → / ?
![Bay 073 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b073.png?v=1719852176750)

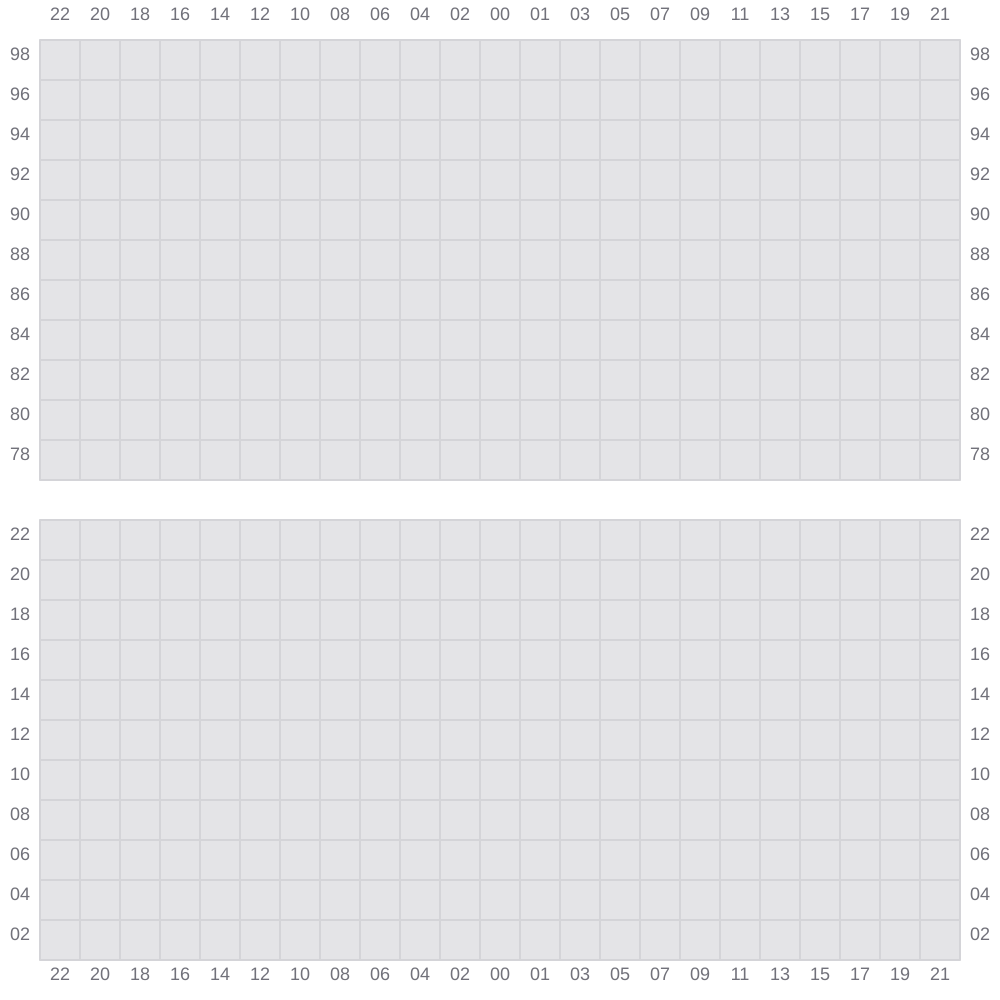

075
![Bay 075 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b075.png?v=1719852176750)

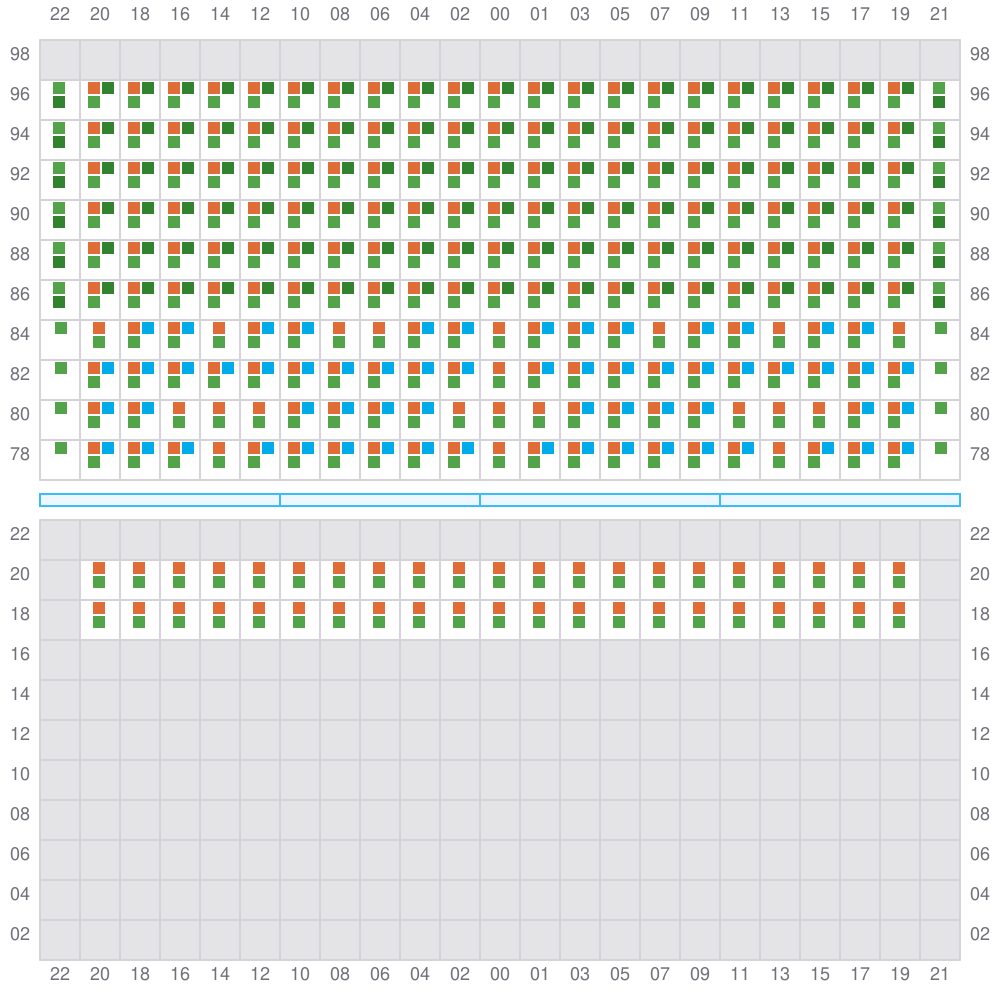

077 (078)
- →
- ← / ?
![Bay 077 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b077.png?v=1719852176750)

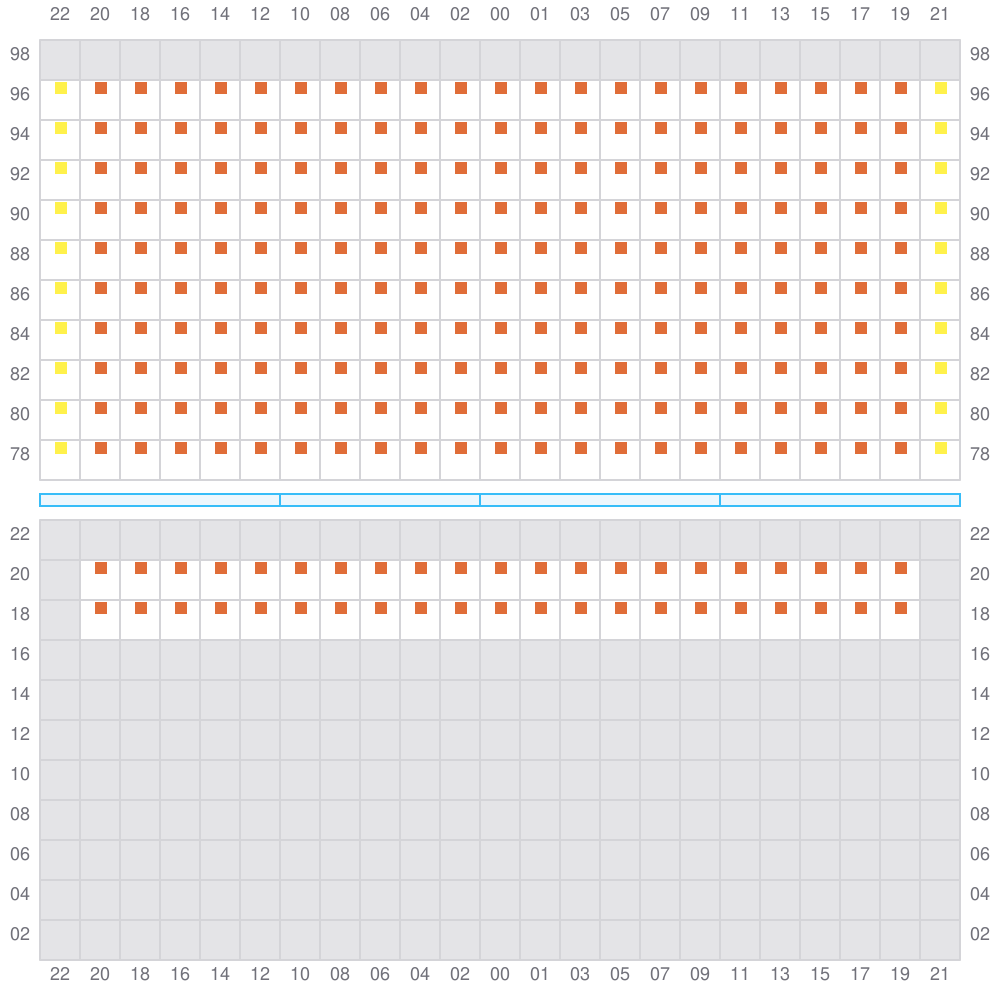

079
- ←
![Bay 079 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b079.png?v=1719852176750)

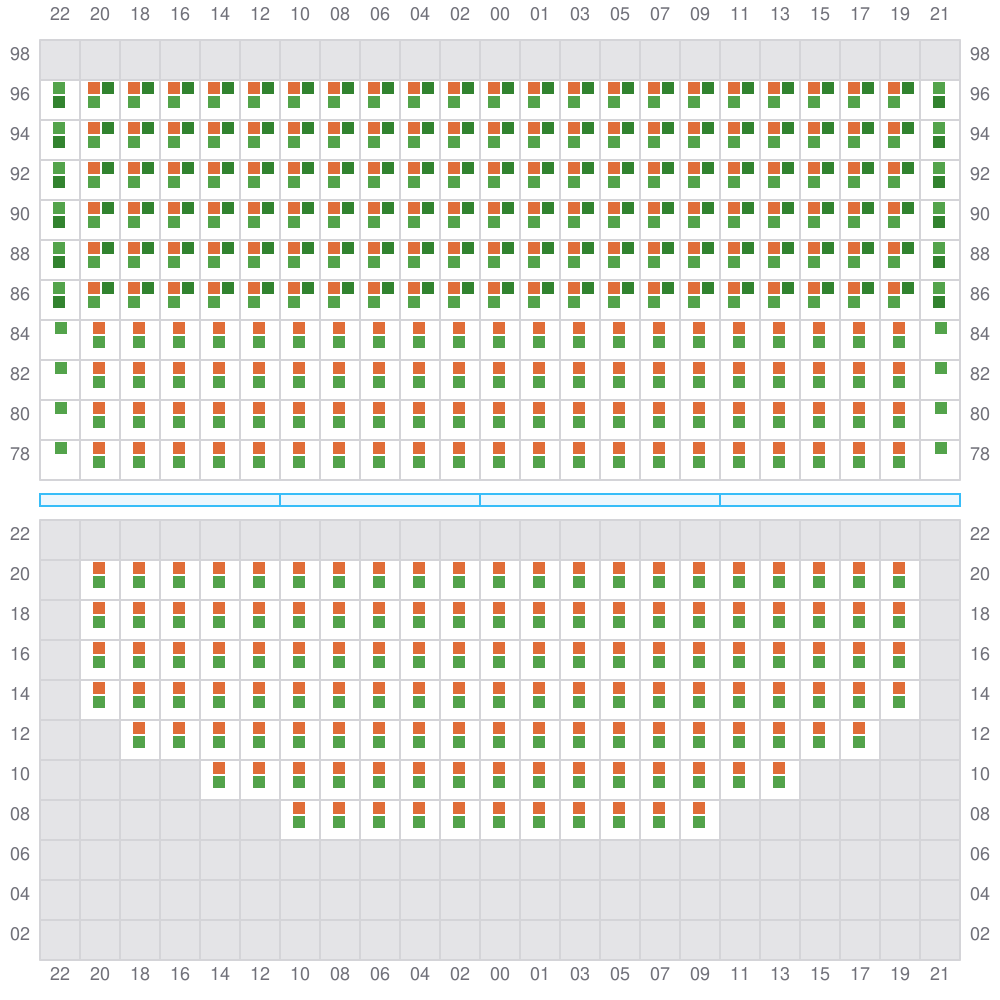

081 (082)
- →
![Bay 081 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b081.png?v=1719852176750)

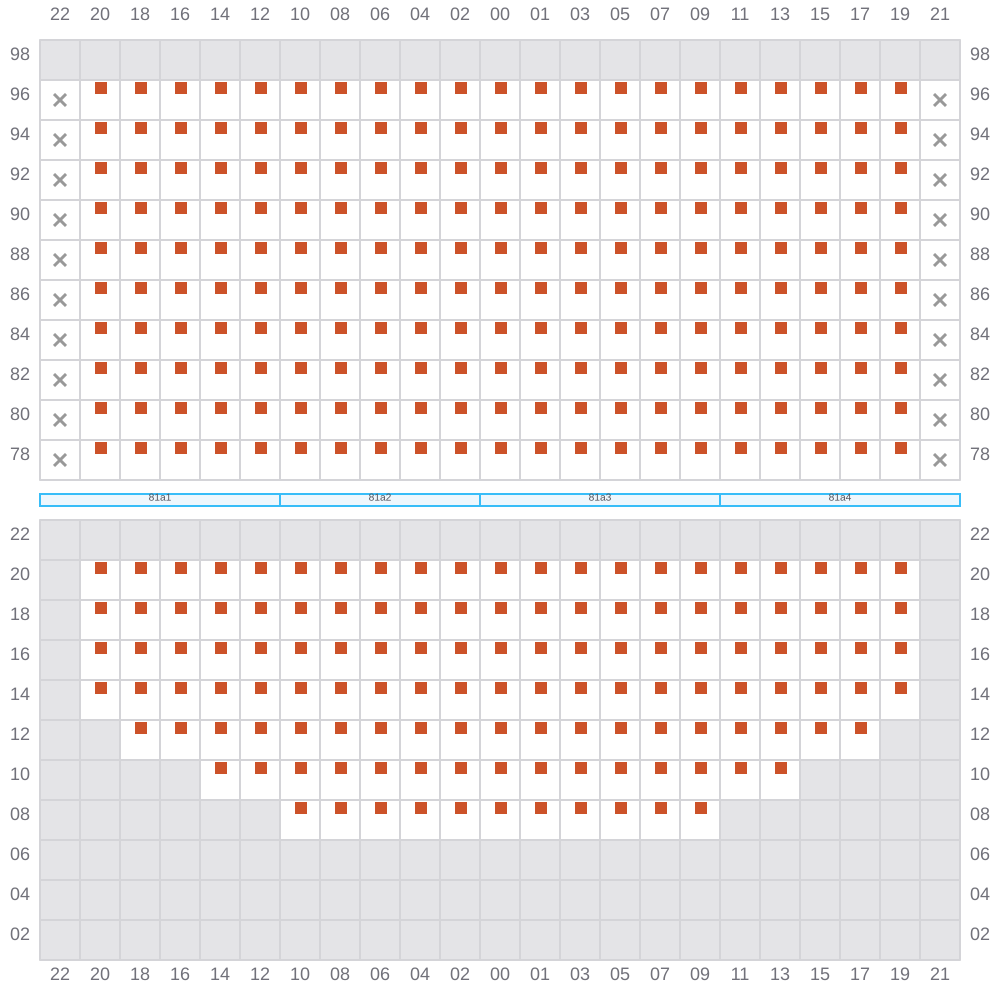

083
- ←
![Bay 083 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b083.png?v=1719852176750)

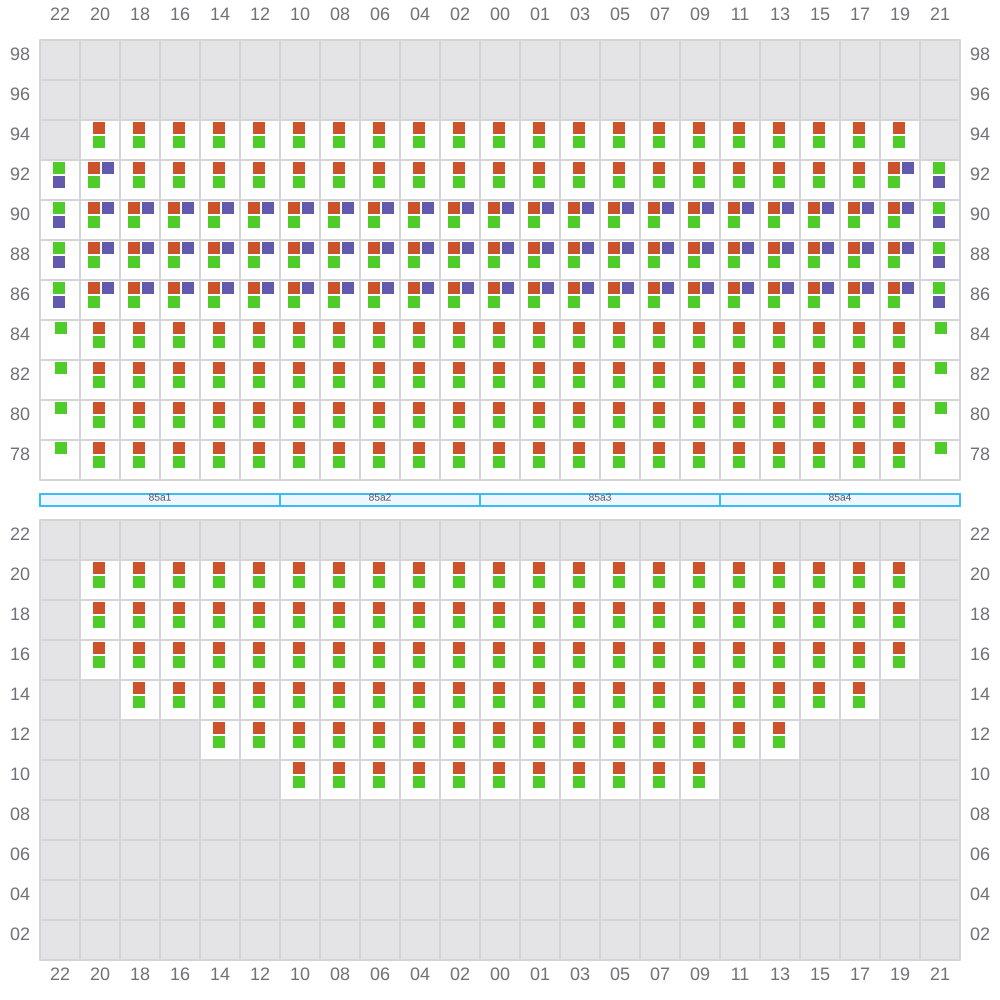

085 (086)
- →
![Bay 085 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b085.png?v=1719852176750)

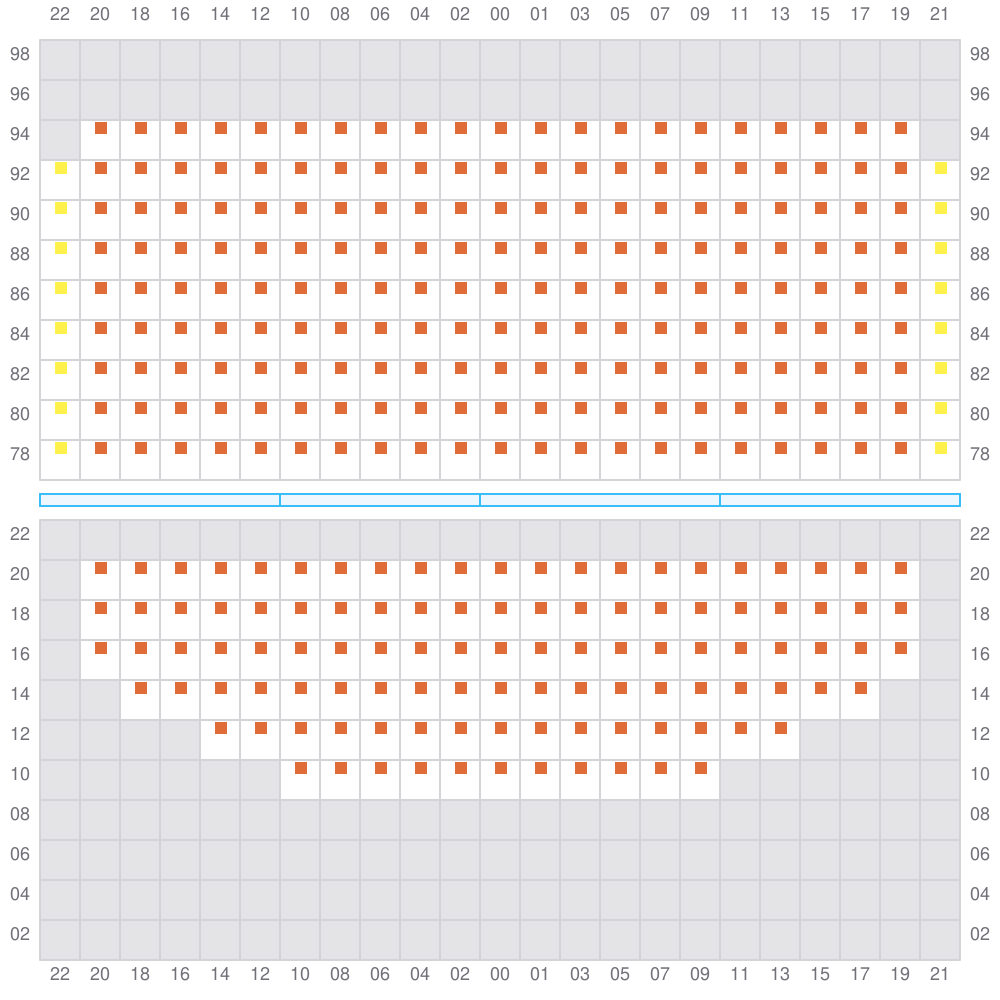

087
- ←
![Bay 087 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b087.png?v=1719852176750)

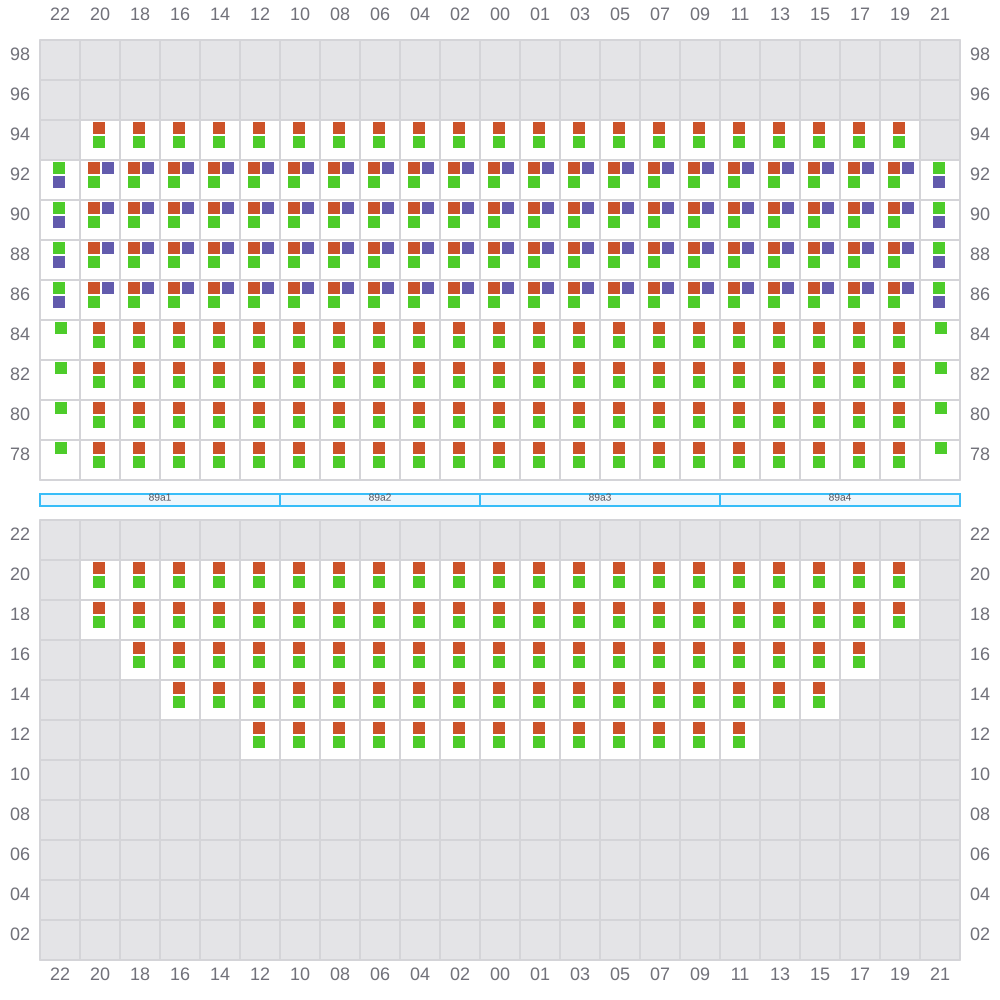

089 (090)
- →
![Bay 089 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b089.png?v=1719852176750)

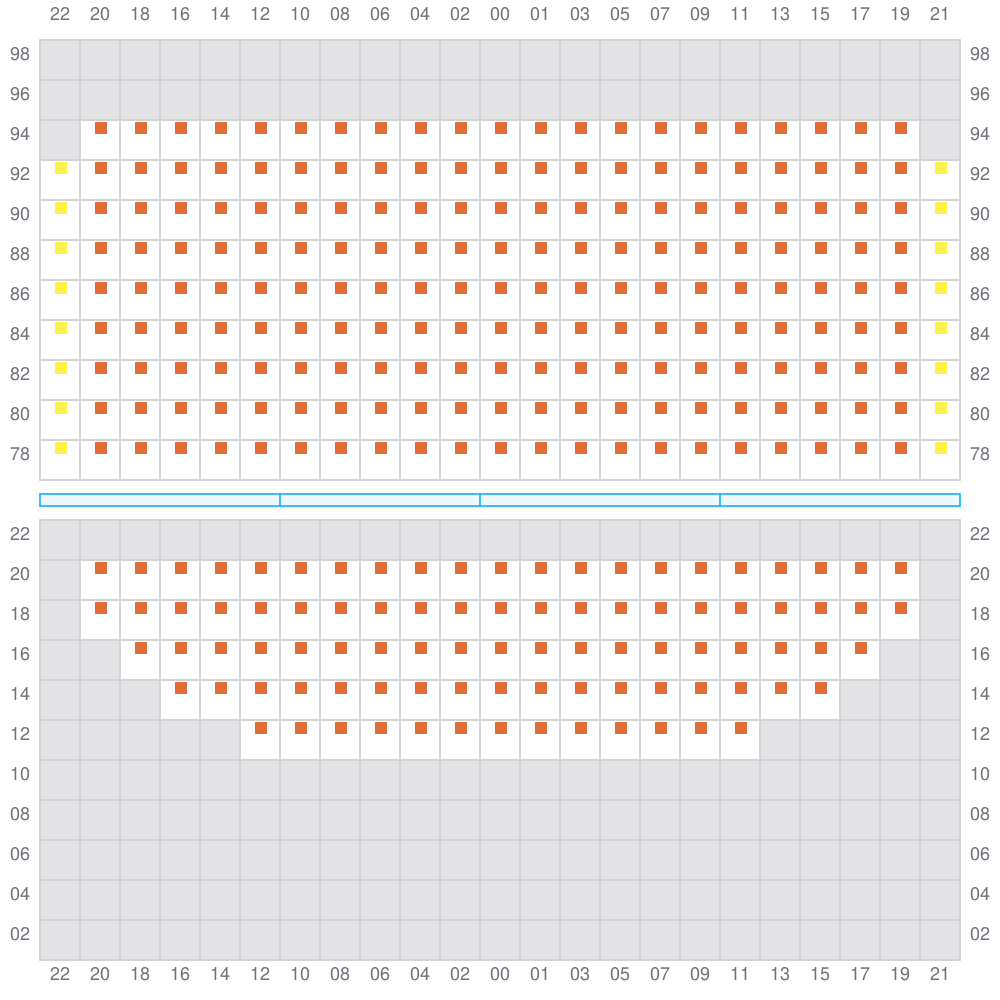

091
- ←
![Bay 091 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b091.png?v=1719852176750)

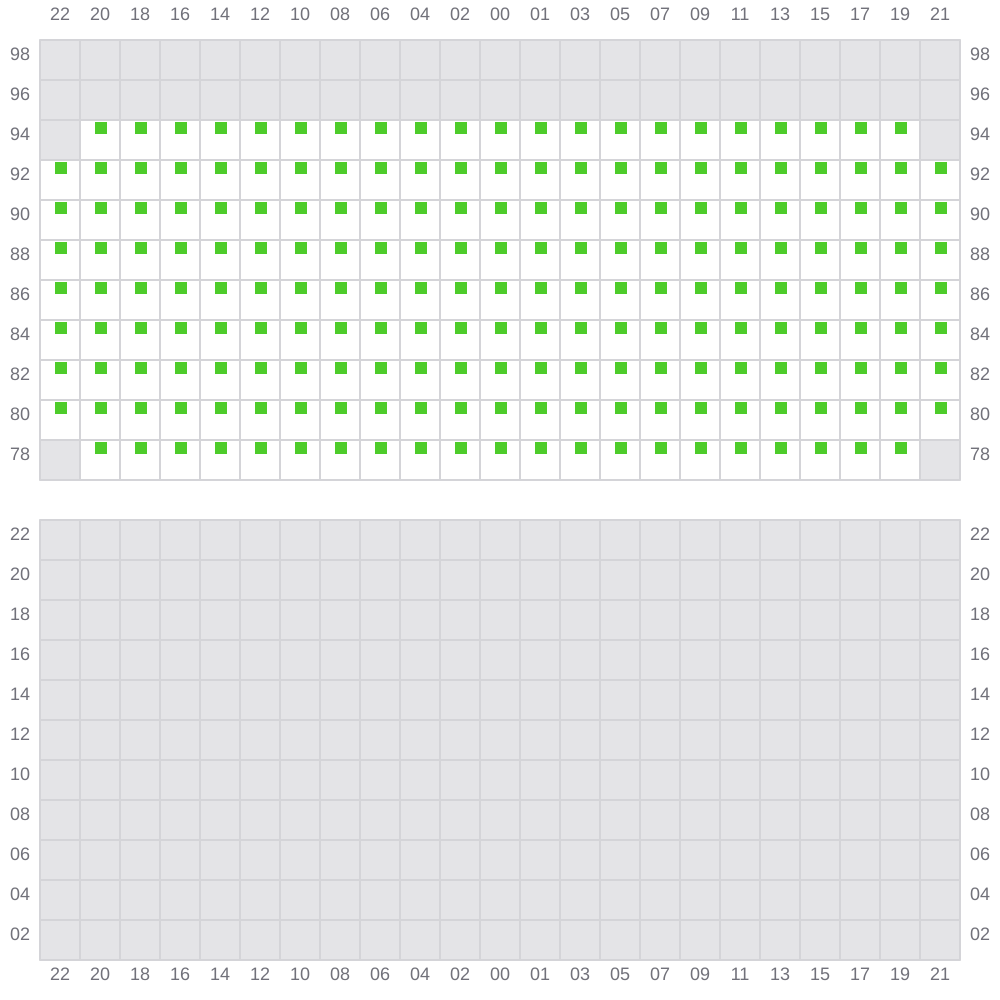

093 (094)
- → / ?
![Bay 093 view and slots of MATZ MAERSK](/vessel-images/d0acf163-a349-4166-8a83-4b41e35da415-b093.png?v=1719852176750)
