MAYFIELD
9216353 | V7CW5 | 9216353 by ********* Last update: Tue Jul 09 2024
General Info
Ship Name:MAYFIELD
IMO Code:9216353
Call Sign:V7CW5
Line Operator:9216353
Class Name for Sister Ships:MTM
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,216
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

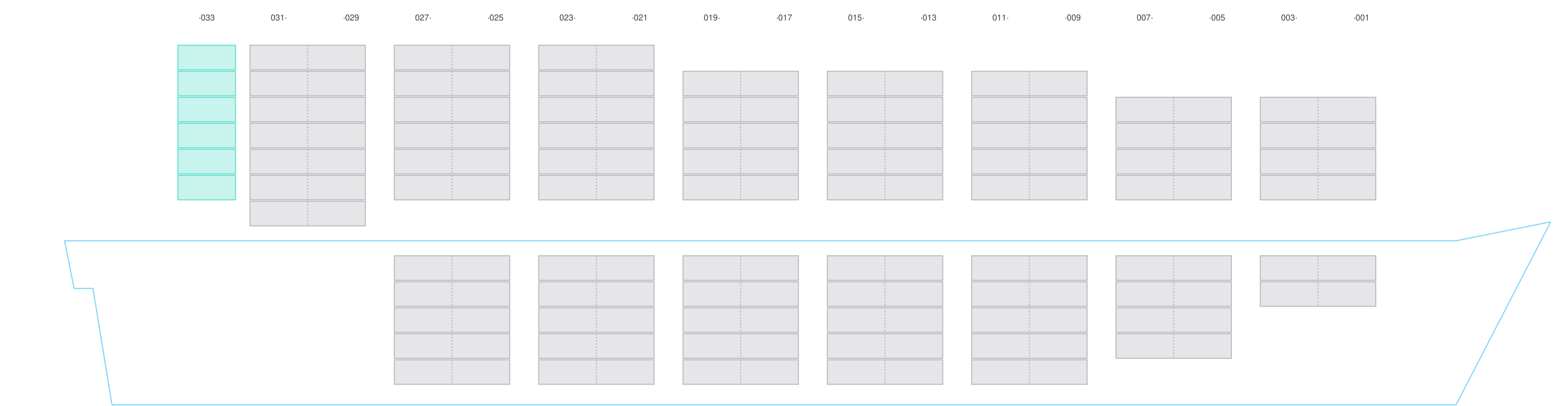

Side View

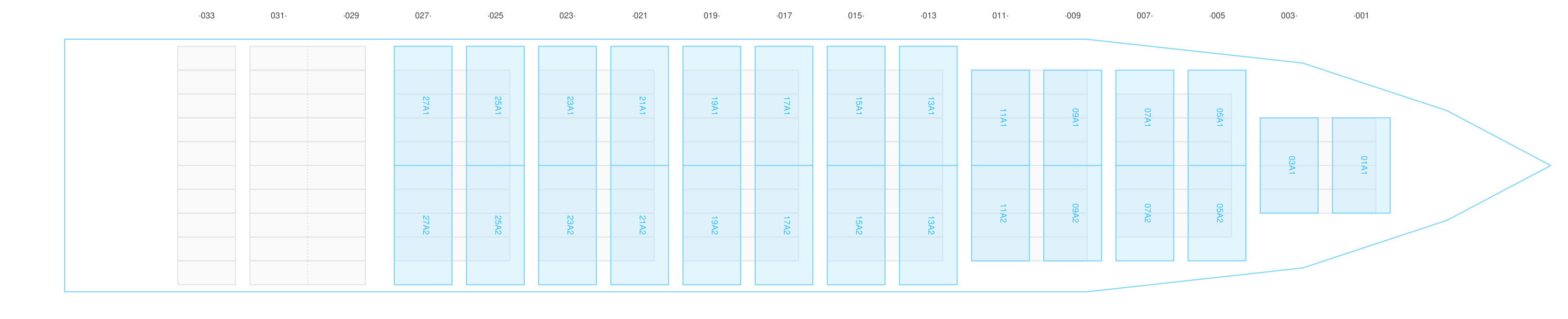

Hatch-Covers View

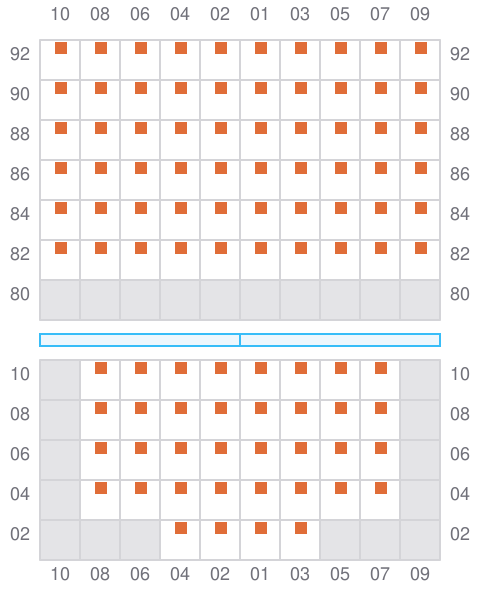

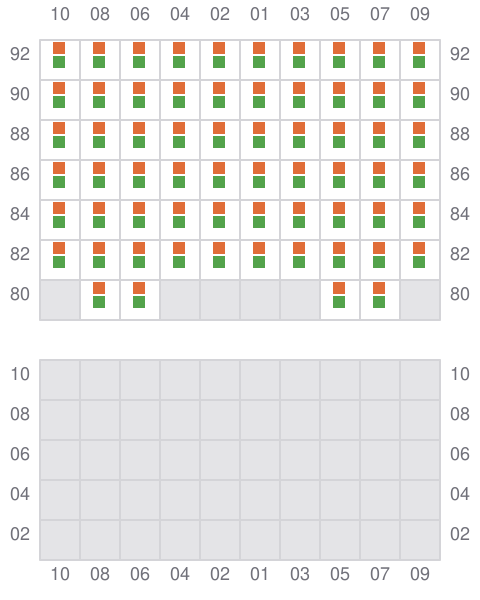

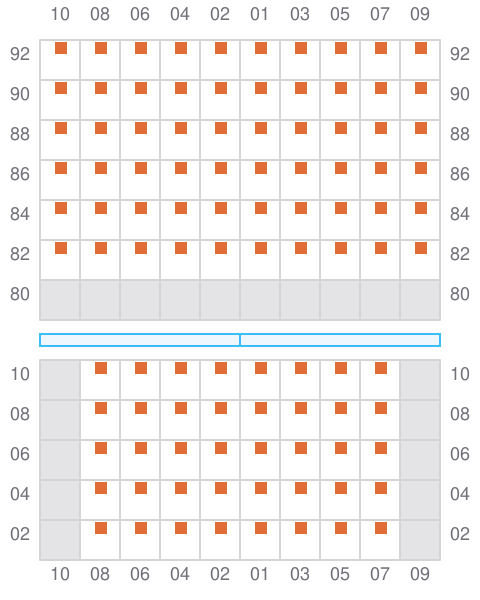

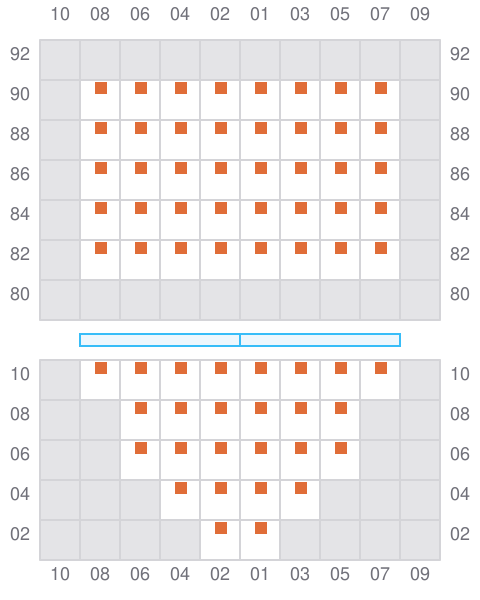

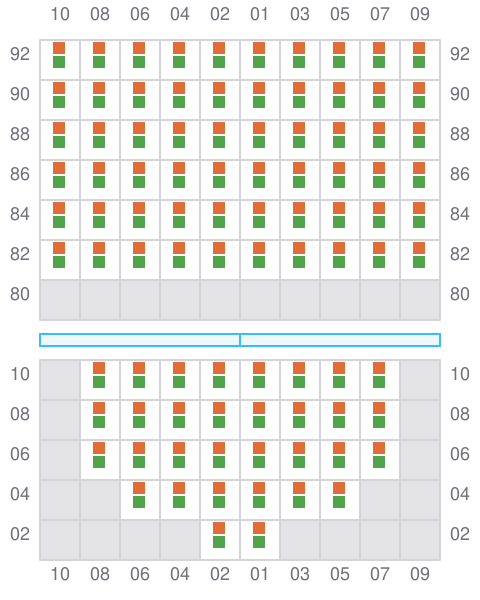

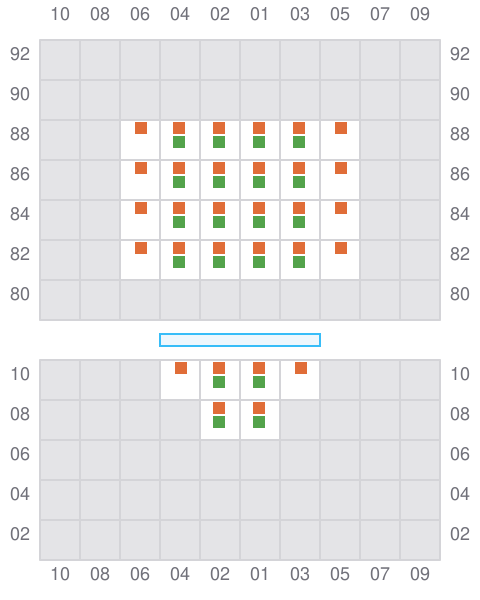

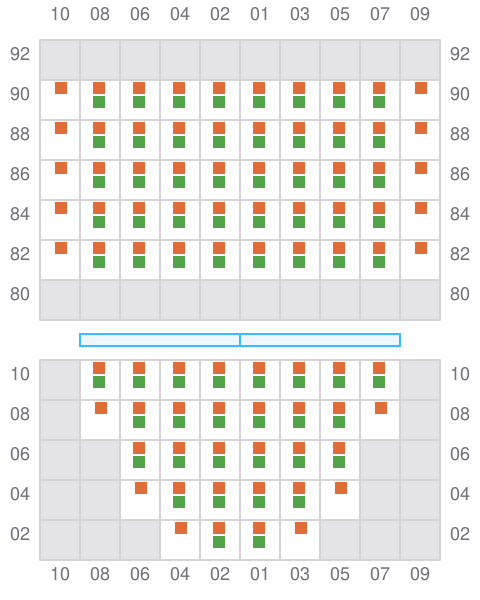

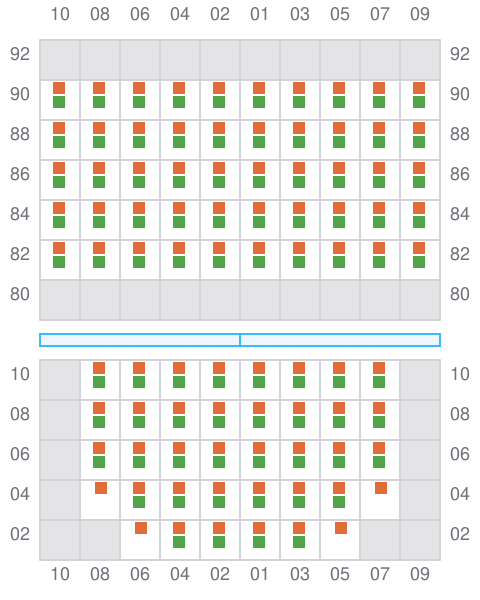

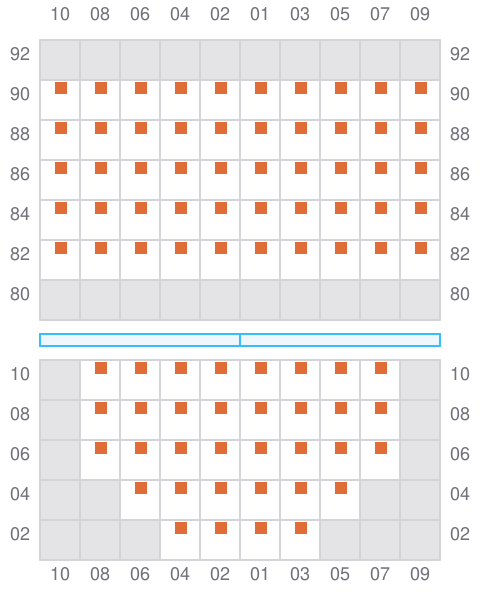

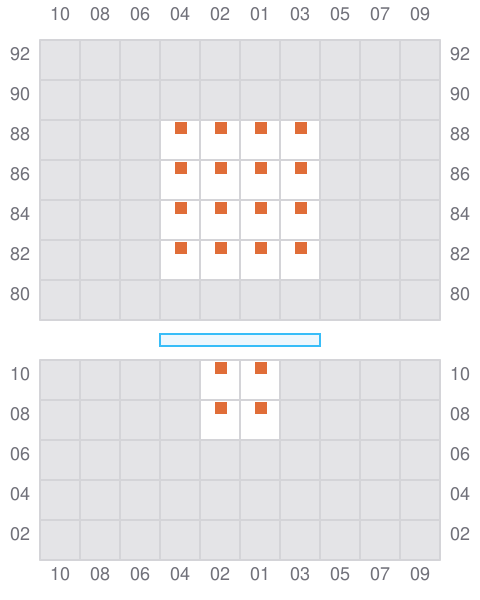

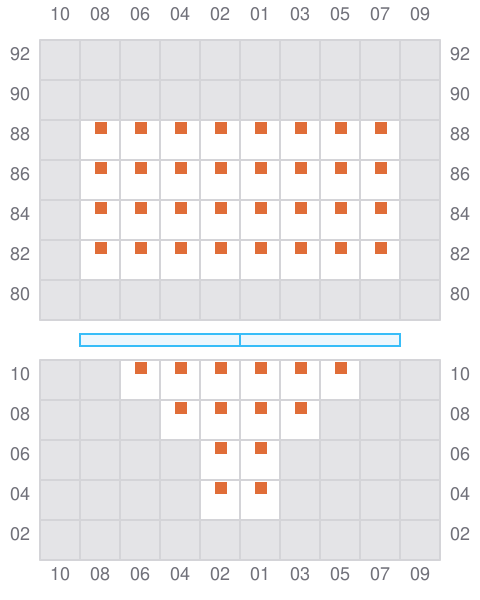

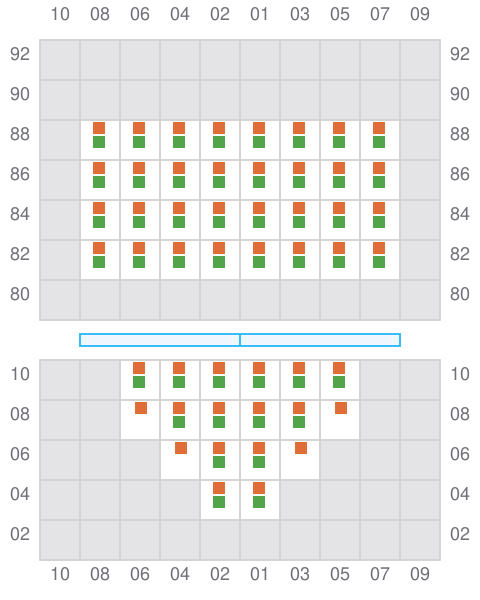

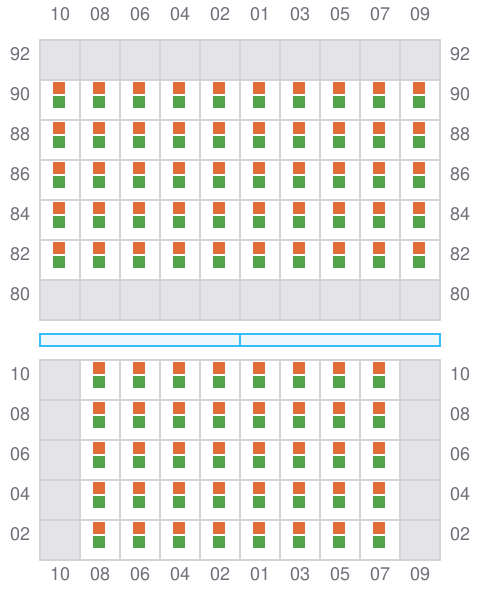

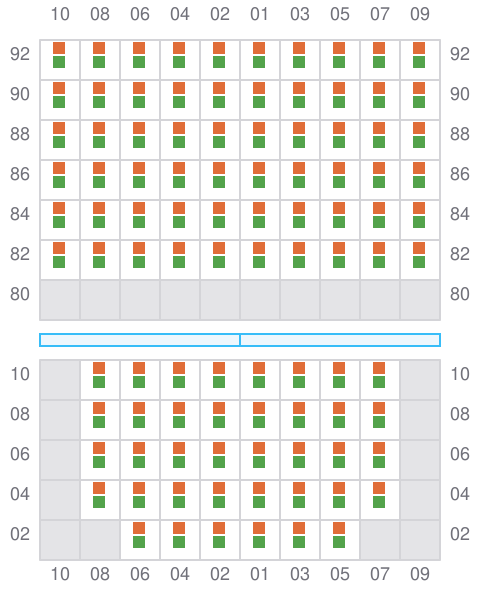

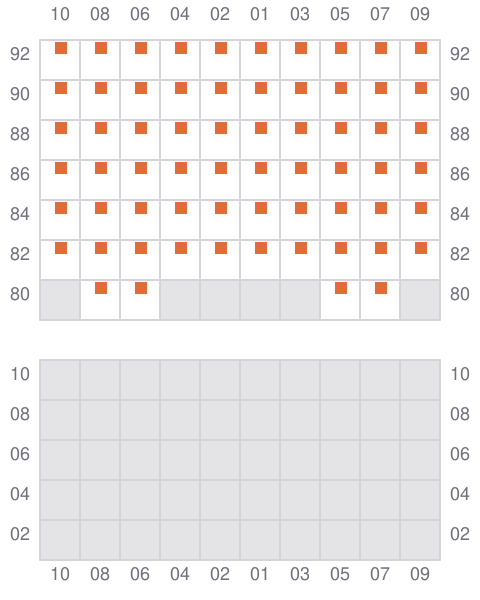

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
003 (002)
- ←
005
- →
007 (006)
- ←
009
- →
011 (010)
- ←
013
- →
015 (014)
- ←
017
- →
019 (018)
- ←
021
- →
023 (022)
- ←
025
- →
027 (026)
- ←
029
- → / ?
031 (030)
- ← / ?
033
- → / ?
