MC ACHIEVER
9114268 | DUH3875 | 9114268 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:MC ACHIEVER
IMO Code:9114268
Call Sign:DUH3875
Line Operator:9114268
Class Name for Sister Ships:64M
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:025
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:616
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

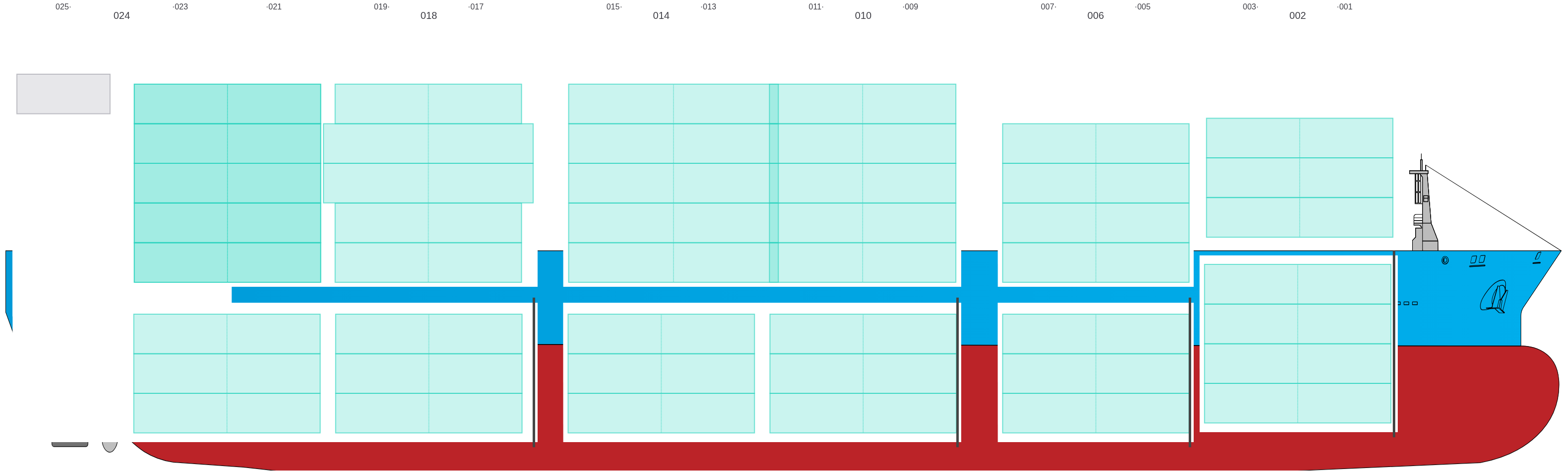

Side View
![Side view of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-sideView.png?v=1709836896541)

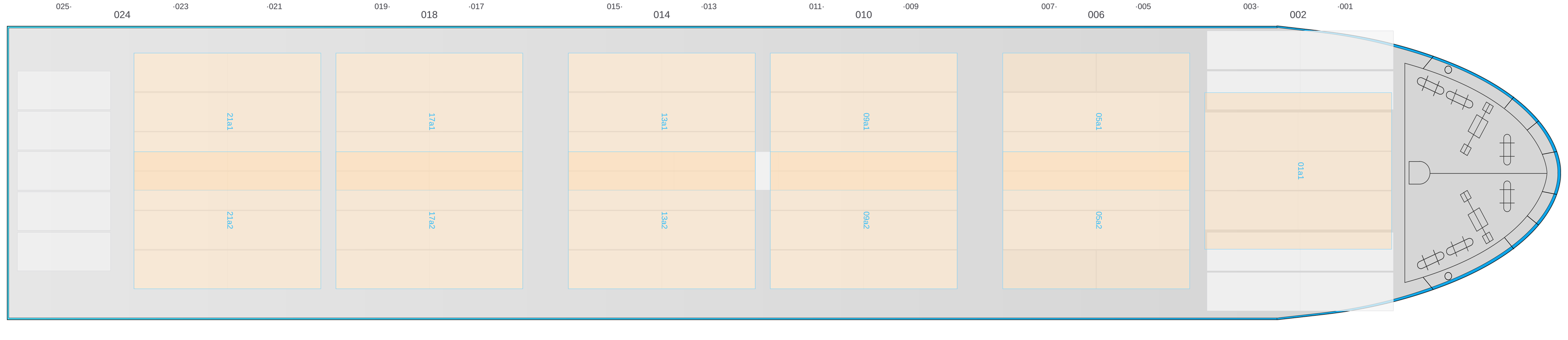

Hatch-Covers View
![Deck view of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-deckView.png?v=1709836896541)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

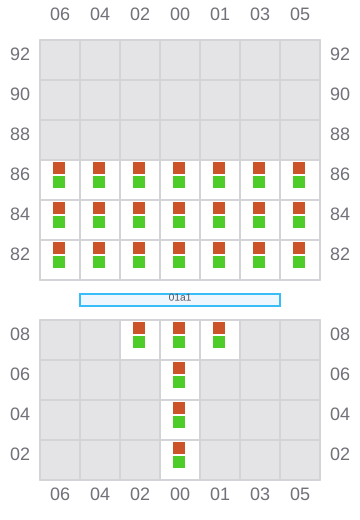

001 (002)
- →
![Bay 001 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b001.png?v=1709836896541)

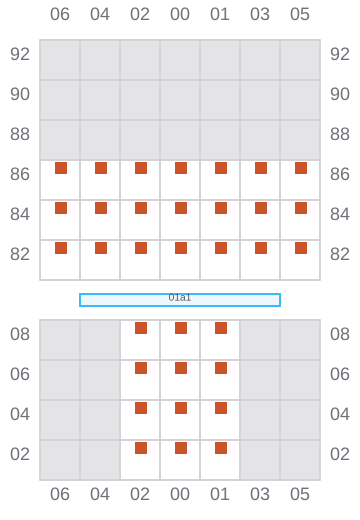

003
- ←
![Bay 003 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b003.png?v=1709836896541)
005 (006)
- →
![Bay 005 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b005.png?v=1709836896541)

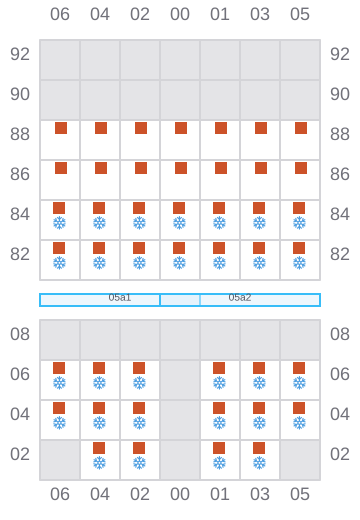

007
- ←
- →
![Bay 007 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b007.png?v=1709836896541)

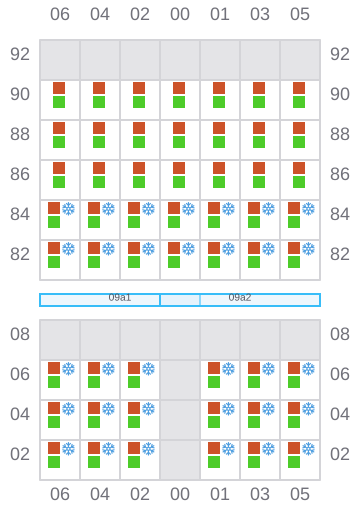

009 (010)
- →
- ←
![Bay 009 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b009.png?v=1709836896541)

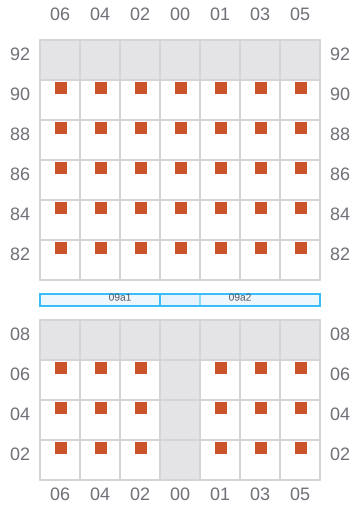

011
- ←
![Bay 011 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b011.png?v=1709836896541)

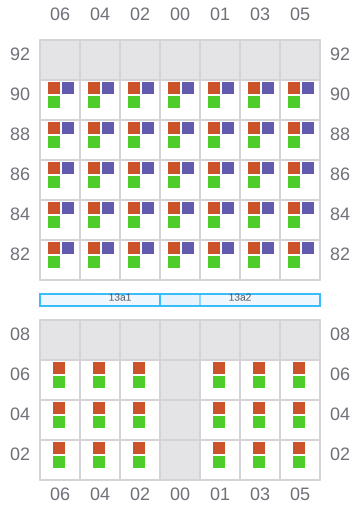

013 (014)
- →
![Bay 013 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b013.png?v=1709836896541)

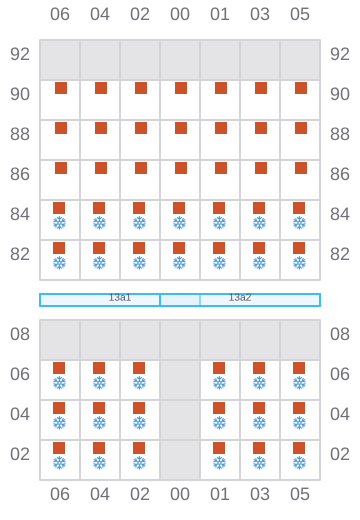

015
- ←
- →
![Bay 015 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b015.png?v=1709836896541)

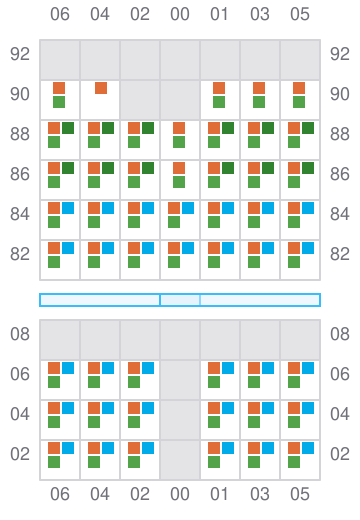

017 (018)
- →
- ←
![Bay 017 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b017.png?v=1709836896541)

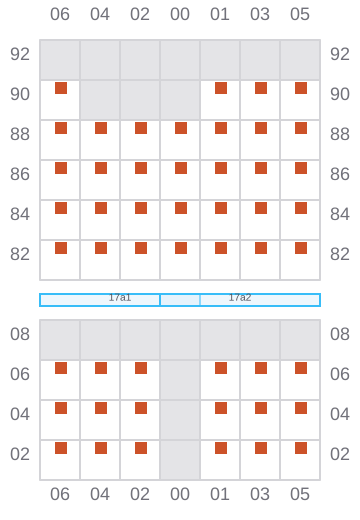

019
- ←
![Bay 019 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b019.png?v=1709836896541)

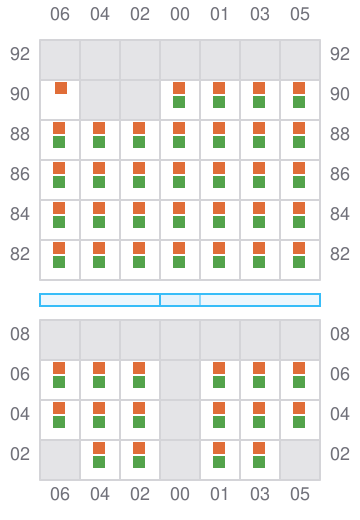

021 (022)
- →
![Bay 021 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b021.png?v=1709836896541)

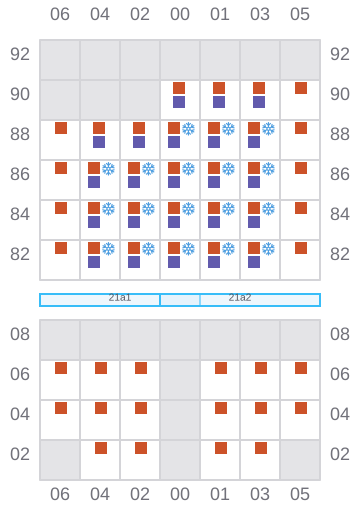

023 (024)
- → / ←
- → / ?
![Bay 023 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b023.png?v=1709836896541)

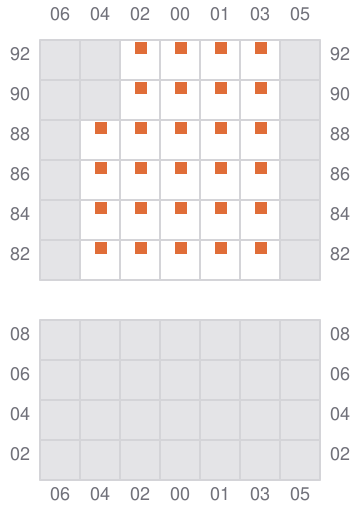

025
- ← / ?
![Bay 025 view and slots of MC ACHIEVER](/vessel-images/0018e6f2-8b66-4f4c-a34f-18d3ab8ea4cf-b025.png?v=1709836896541)
