MC ENDEAVOR
9114921 | DUH3528 | 9114921 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:MC ENDEAVOR
IMO Code:9114921
Call Sign:DUH3528
Line Operator:9114921
Class Name for Sister Ships:10K
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:021
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:354
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

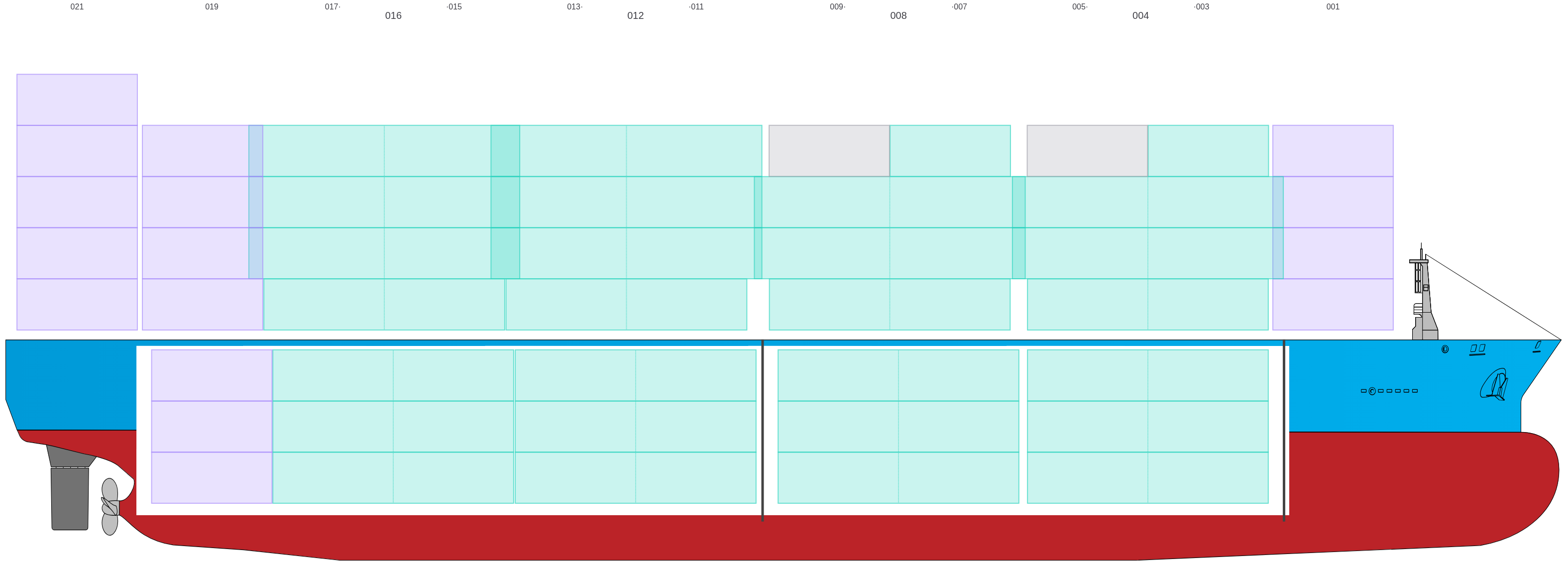

Side View
![Side view of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-sideView.png?v=1709837090472)

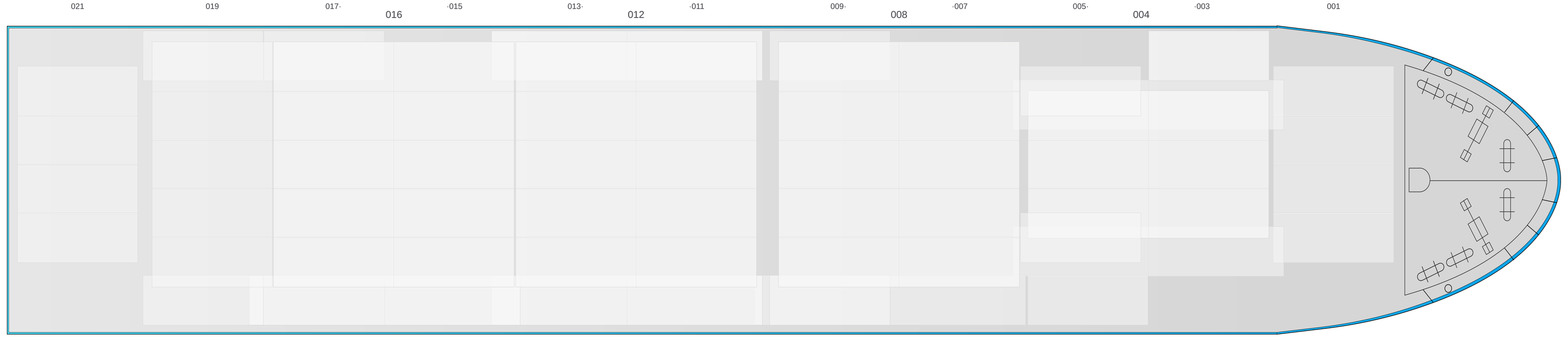

Hatch-Covers View
![Deck view of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-deckView.png?v=1709837090472)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

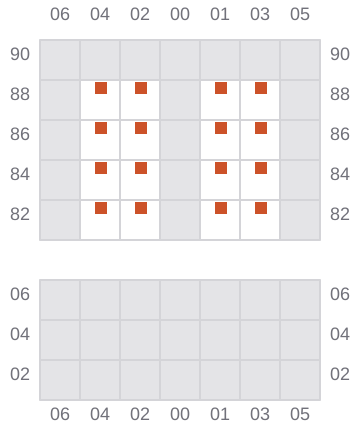

001
![Bay 001 view and slots of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-b001.png?v=1709837090472)

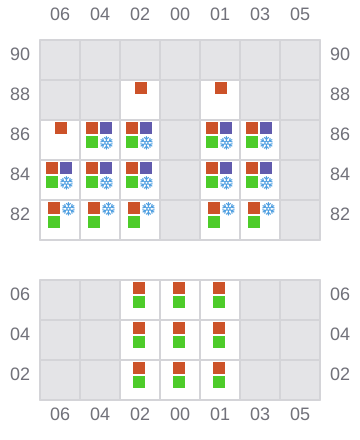

003 (004)
- →
![Bay 003 view and slots of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-b003.png?v=1709837090472)

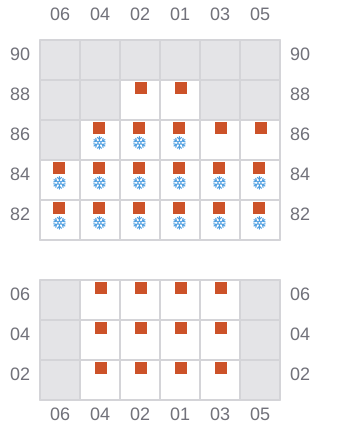

005
- ←
![Bay 005 view and slots of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-b005.png?v=1709837090472)

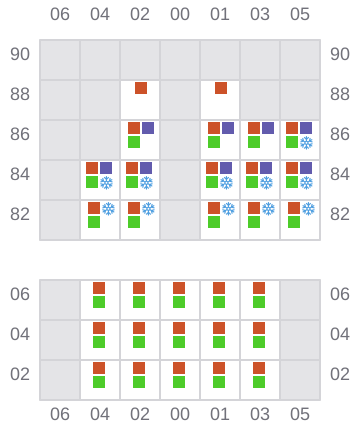

007 (008)
- →
![Bay 007 view and slots of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-b007.png?v=1709837090472)

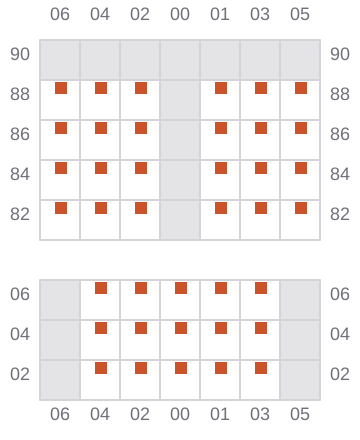

009
- ←
![Bay 009 view and slots of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-b009.png?v=1709837090472)

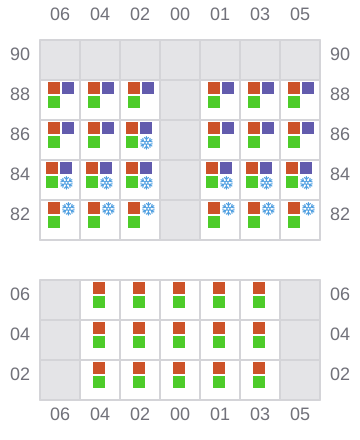

011 (012)
- →
![Bay 011 view and slots of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-b011.png?v=1709837090472)

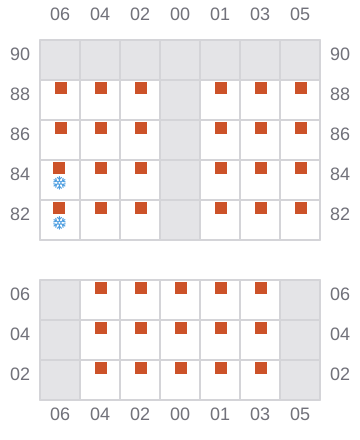

013
- ←
![Bay 013 view and slots of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-b013.png?v=1709837090472)

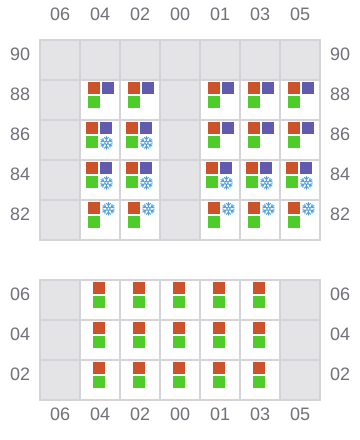

015 (016)
- →
![Bay 015 view and slots of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-b015.png?v=1709837090472)

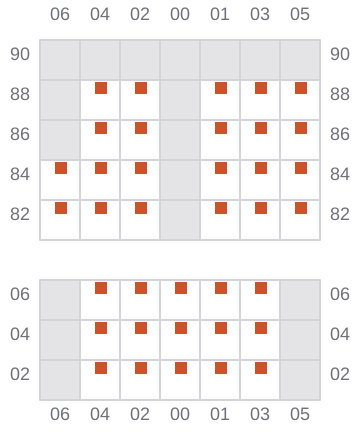

017
- ←
![Bay 017 view and slots of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-b017.png?v=1709837090472)

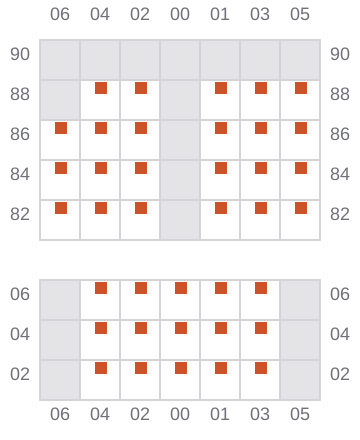

019
![Bay 019 view and slots of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-b019.png?v=1709837090472)

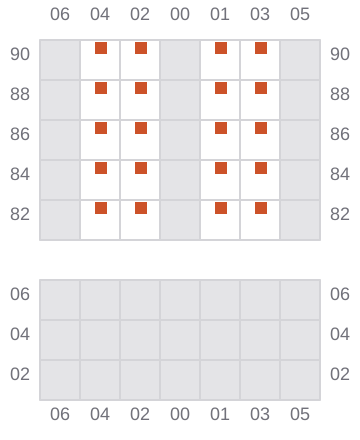

021
![Bay 021 view and slots of MC ENDEAVOR](/vessel-images/56e6f340-df79-4965-880f-27bcc8127515-b021.png?v=1709837090472)
