MC TRADER
9178111 | DUH3967 | 9178111 by ********* Last update: Sat Mar 09 2024
General Info
Ship Name:MC TRADER
IMO Code:9178111
Call Sign:DUH3967
Line Operator:9178111
Class Name for Sister Ships:71M
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:647
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

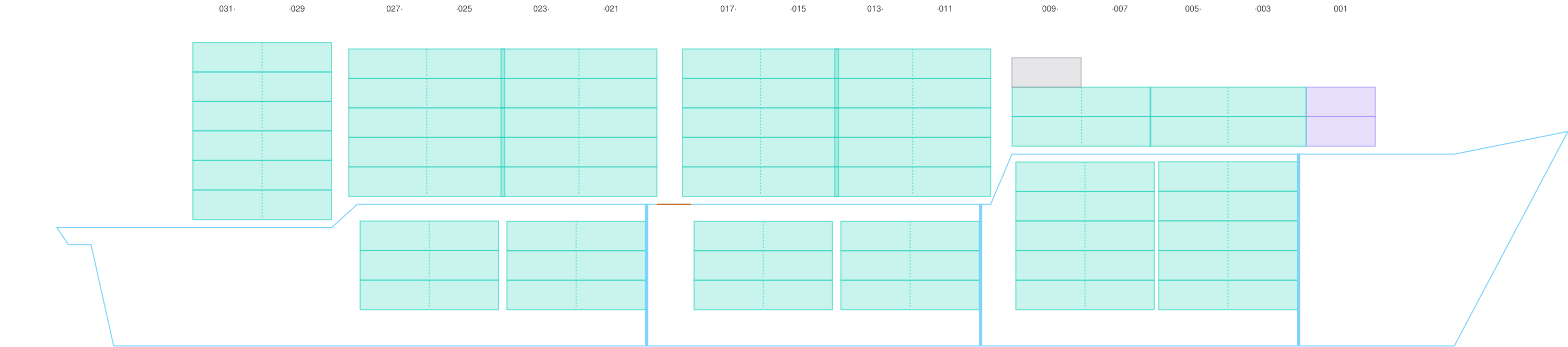

Side View

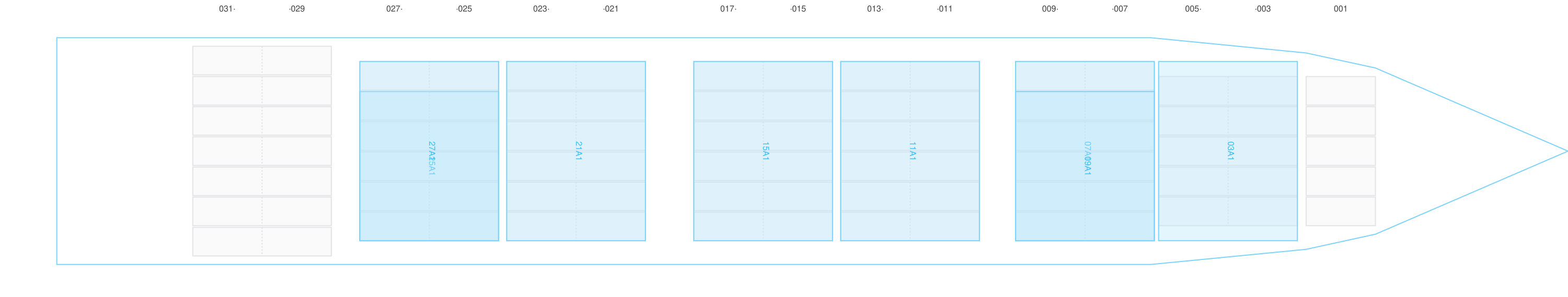

Hatch-Covers View

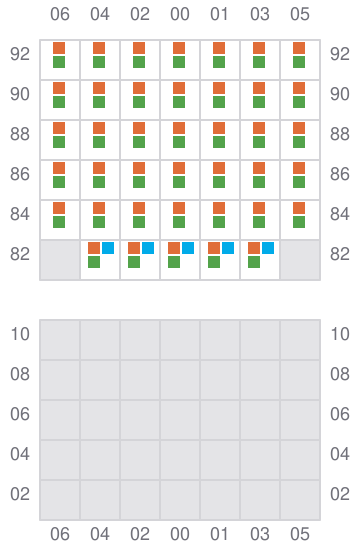

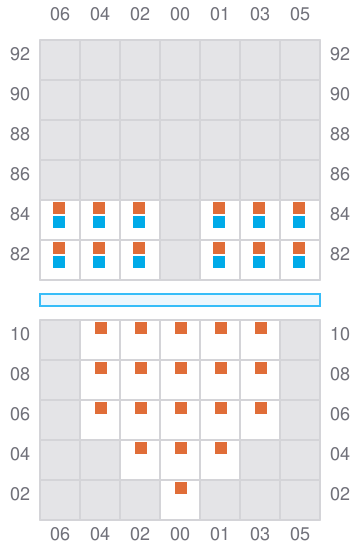

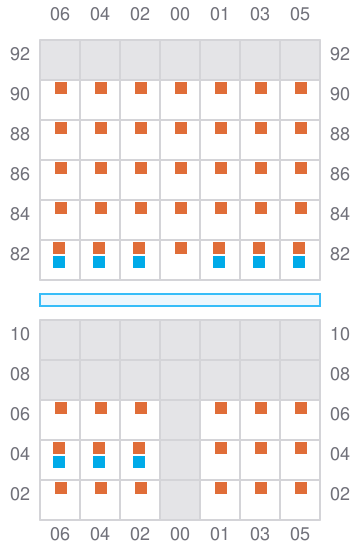

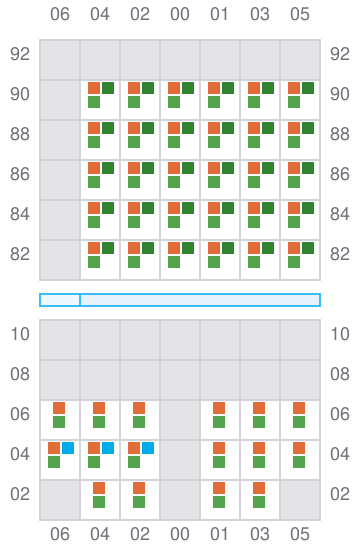

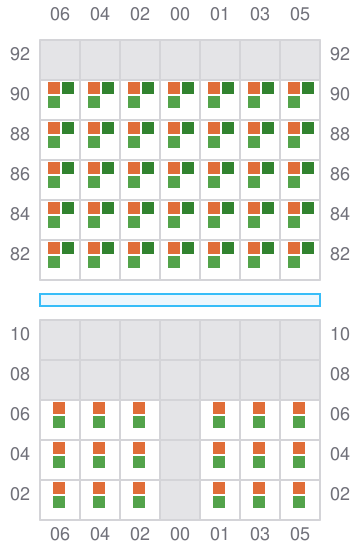

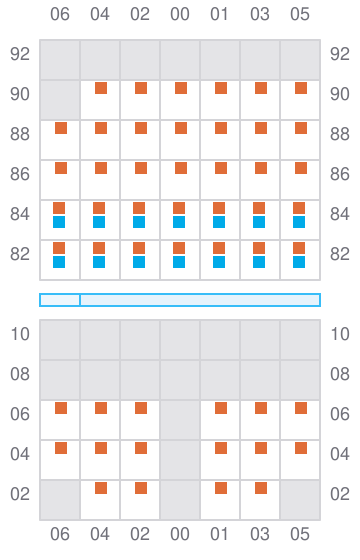

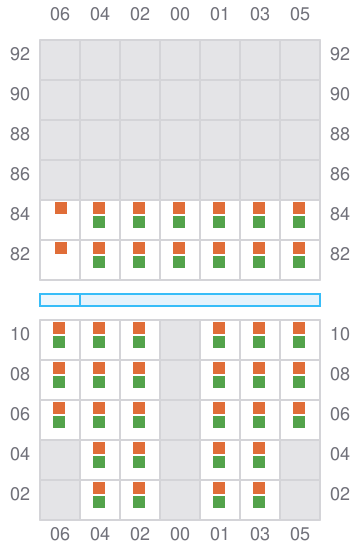

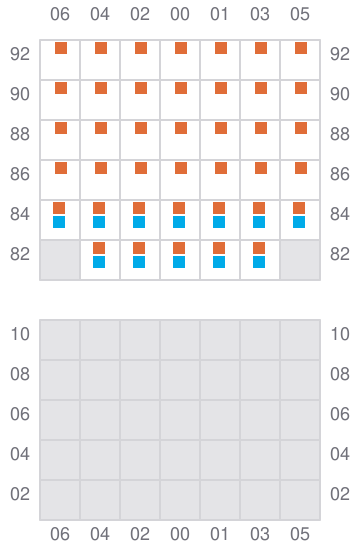

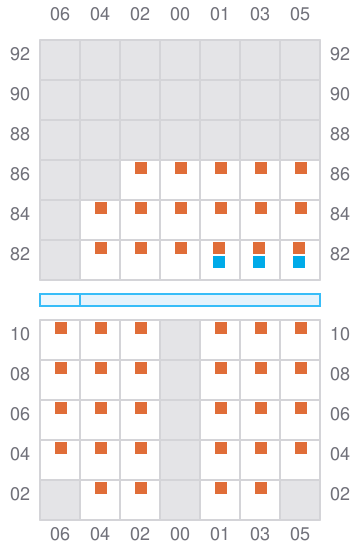

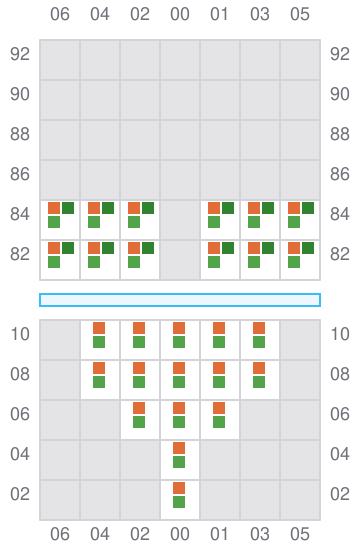

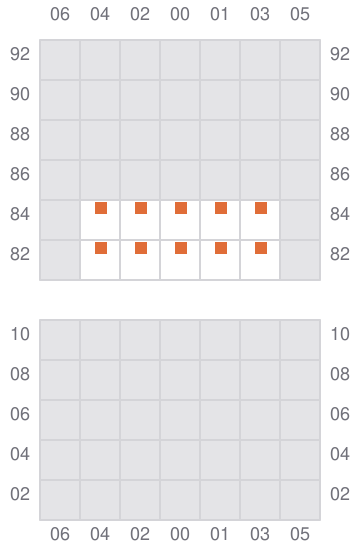

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001
003 (004)
- →
005
- ←
- → / ?
007 (008)
- →
009
- ←
- → / ?
011 (012)
- →
013
- ←
- →
015 (016)
- →
- ? / ←
017
- ←
- → / ?
019
021 (022)
- →
023
- ←
- →
025 (026)
- →
- ? / ←
027
- ←
- → / ?
029 (030)
- → / ?
- ← / ?
031
- ← / ?
- → / ?
