MCC PALAWAN
9332705 | DUA3280 | 9332705 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:MCC PALAWAN
IMO Code:9332705
Call Sign:DUA3280
Line Operator:9332705
Class Name for Sister Ships:3JW
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,118
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

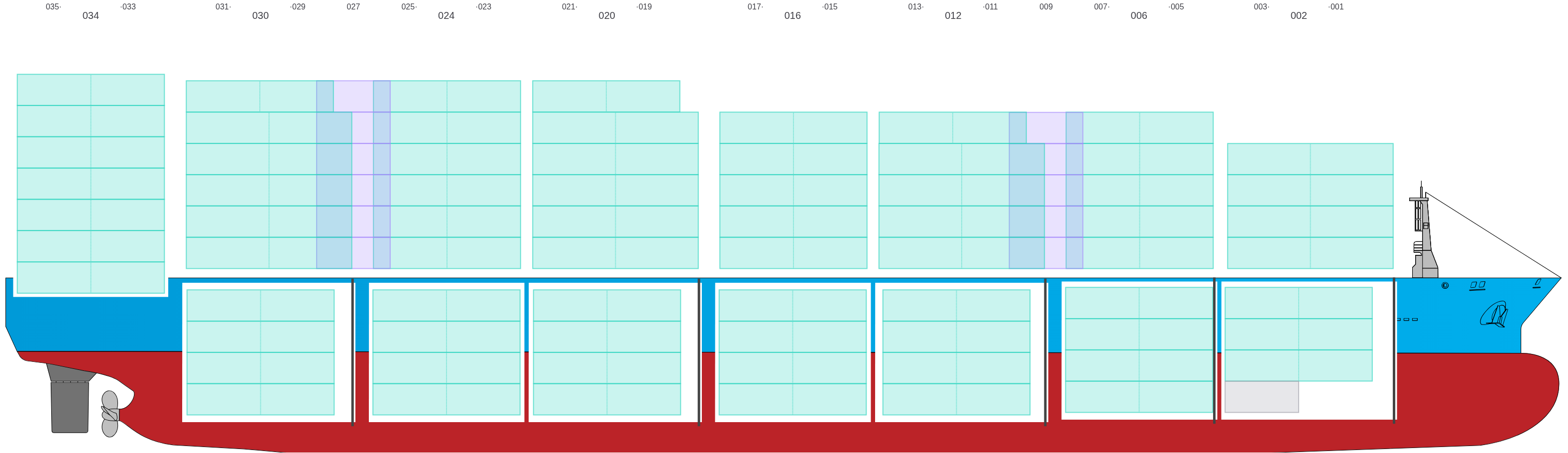

Side View
![Side view of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-sideView.png?v=1711129720327)

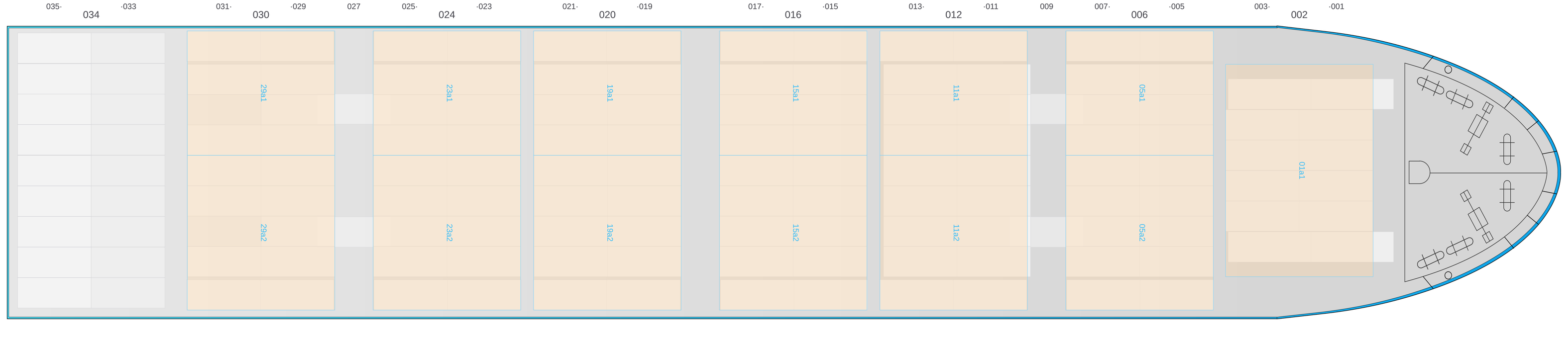

Hatch-Covers View
![Deck view of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-deckView.png?v=1711129720327)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- ← / ?
![Bay 001 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b001.png?v=1711129720327)

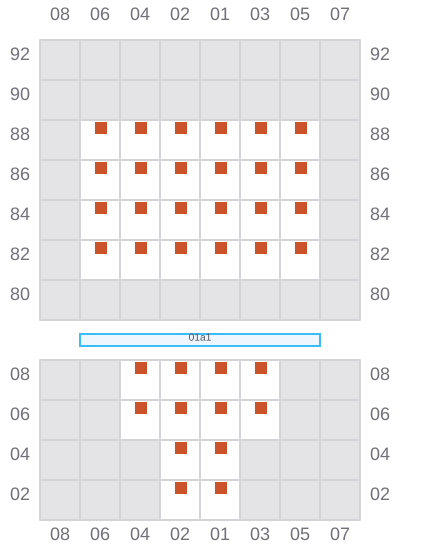

003
- ←
![Bay 003 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b003.png?v=1711129720327)
005 (006)
- →
![Bay 005 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b005.png?v=1711129720327)

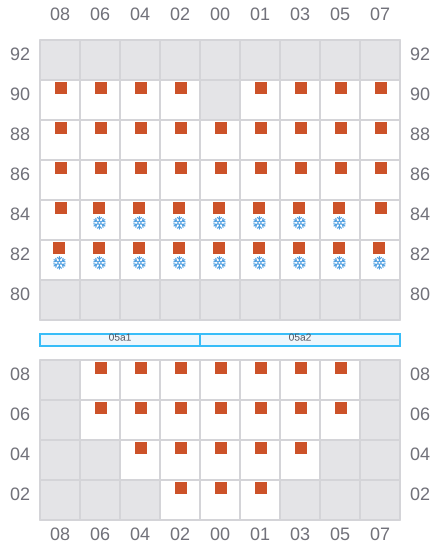

007
- ←
- → / ?
![Bay 007 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b007.png?v=1711129720327)

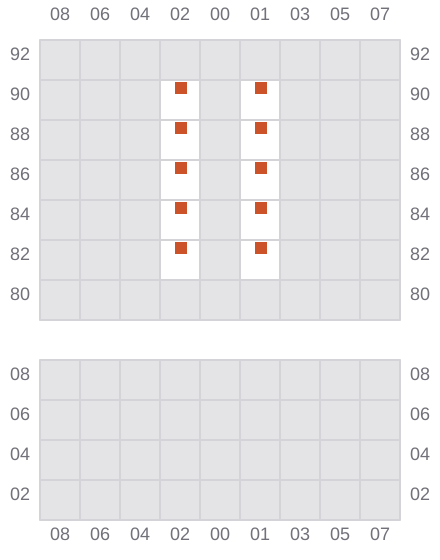

009
![Bay 009 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b009.png?v=1711129720327)

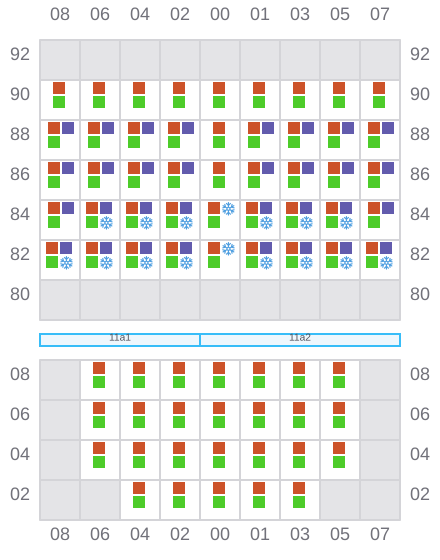

011 (012)
- →
- ← / ?
![Bay 011 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b011.png?v=1711129720327)
013
- ←
![Bay 013 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b013.png?v=1711129720327)

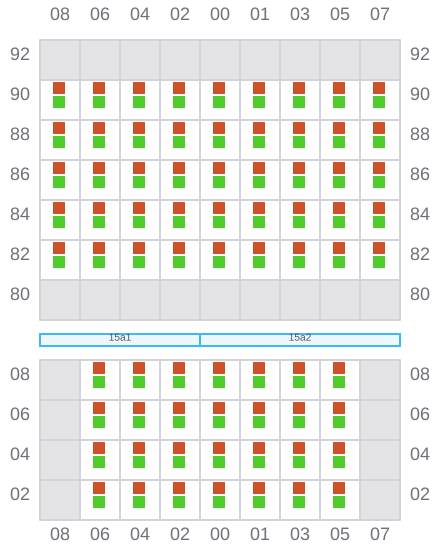

015 (016)
- →
![Bay 015 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b015.png?v=1711129720327)

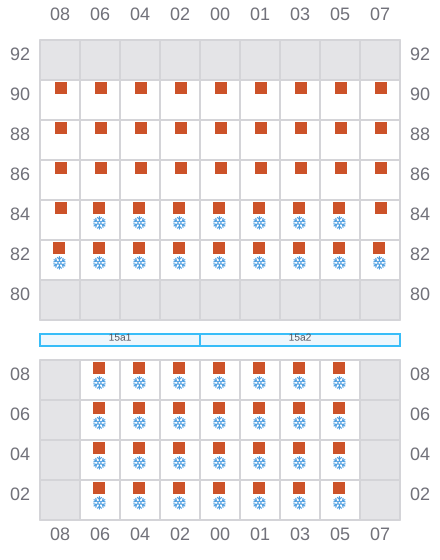

017
- ←
- →
![Bay 017 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b017.png?v=1711129720327)

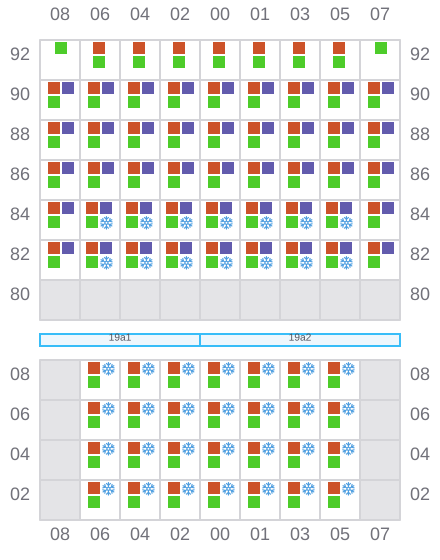

019 (020)
- →
- ←
![Bay 019 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b019.png?v=1711129720327)

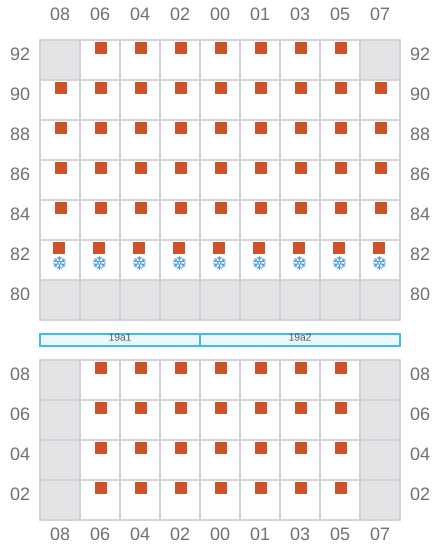

021
- ←
- → / ?
![Bay 021 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b021.png?v=1711129720327)

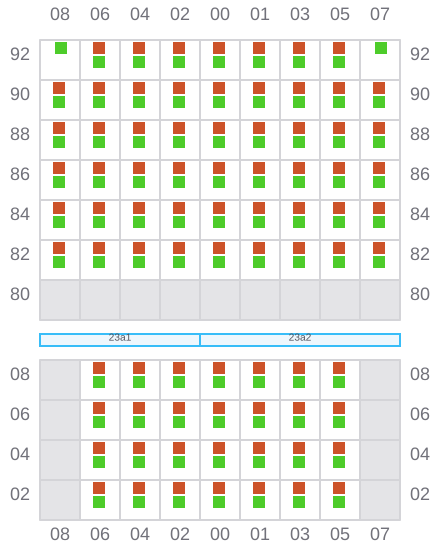

023 (024)
- →
![Bay 023 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b023.png?v=1711129720327)

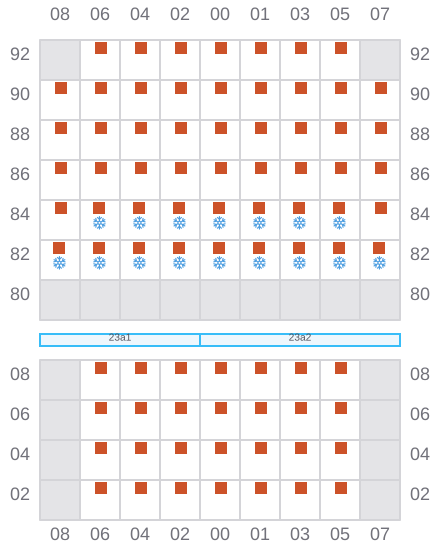

025
- ←
- → / ?
![Bay 025 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b025.png?v=1711129720327)

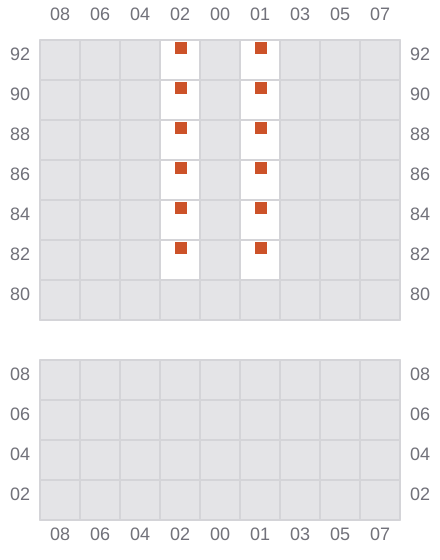

027
![Bay 027 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b027.png?v=1711129720327)

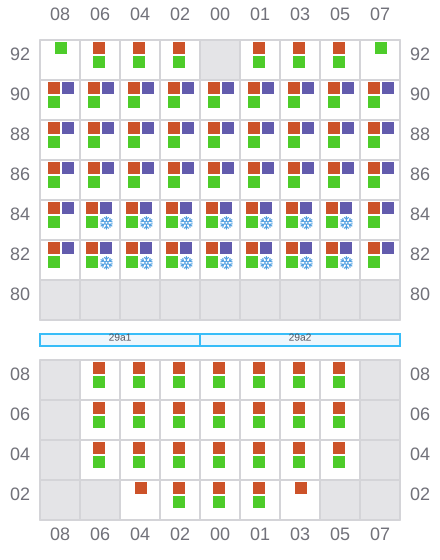

029 (030)
- →
- ← / ?
![Bay 029 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b029.png?v=1711129720327)

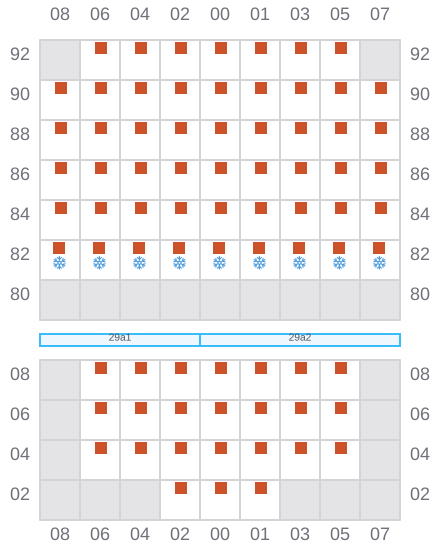

031
- ←
- → / ?
![Bay 031 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b031.png?v=1711129720327)

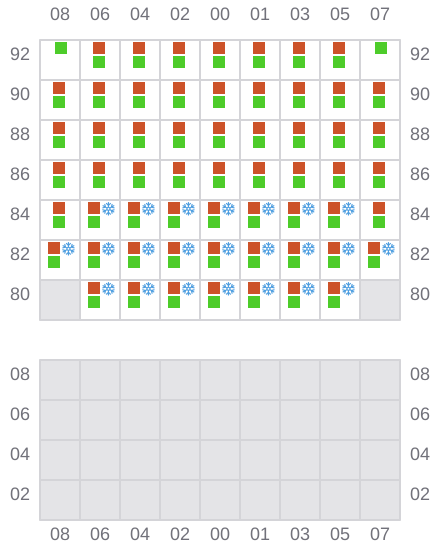

033 (034)
- → / ?
- ← / ?
![Bay 033 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b033.png?v=1711129720327)
035
- ← / ?
![Bay 035 view and slots of MCC PALAWAN](/vessel-images/b75dfa01-881c-4437-8b5b-7f06e650ed1b-b035.png?v=1711129720327)
