MEANDI
9328039 | CQBM | 9328039 by ********* Last update: Thu Mar 21 2024
General Info
Ship Name:MEANDI
IMO Code:9328039
Call Sign:CQBM
Line Operator:9328039
Class Name for Sister Ships:03B
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:772
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

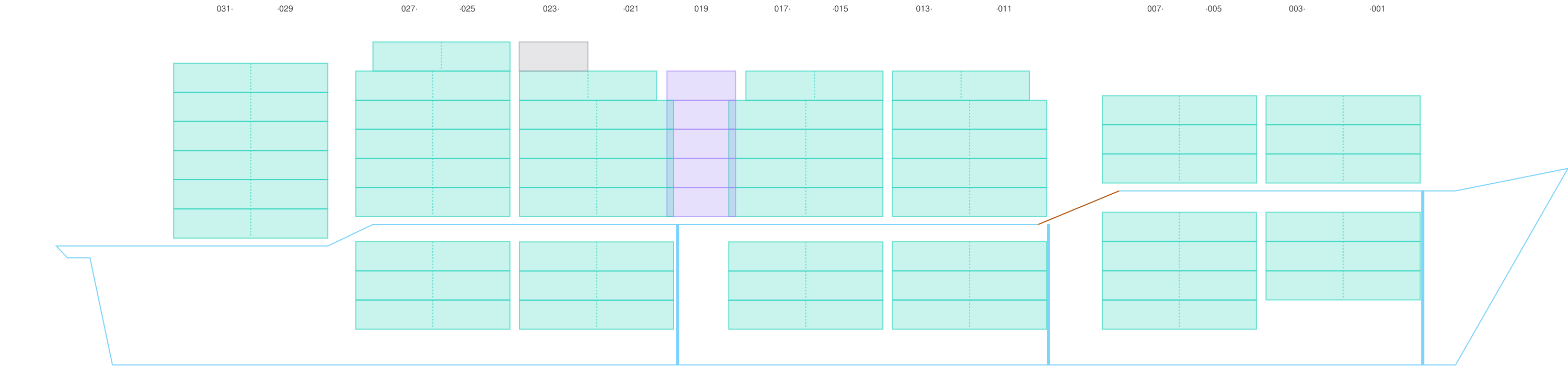

Side View

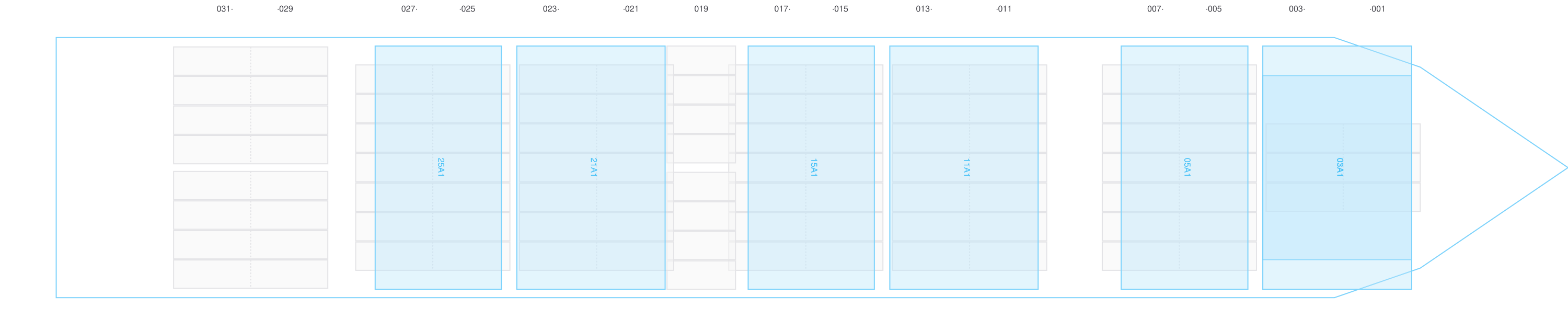

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

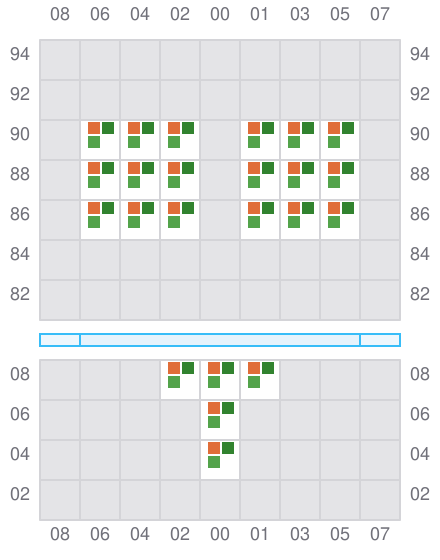

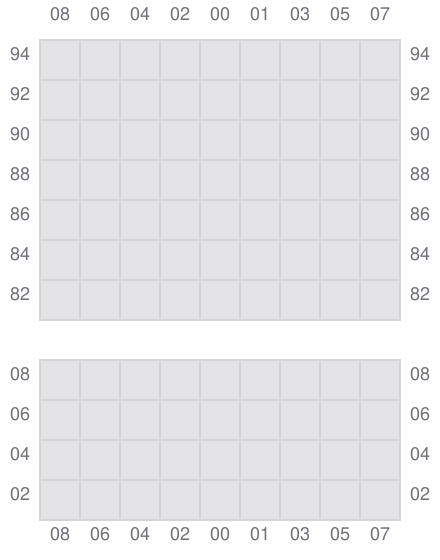

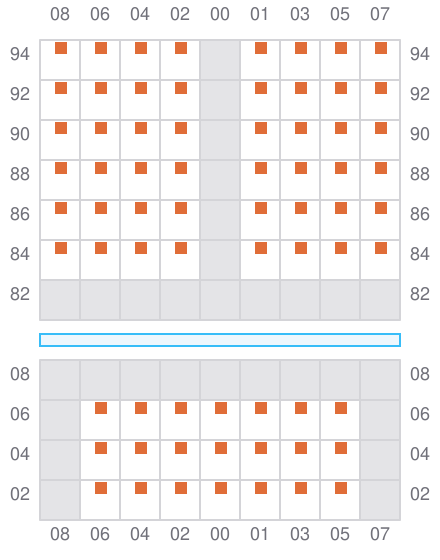

001 (002)
- →

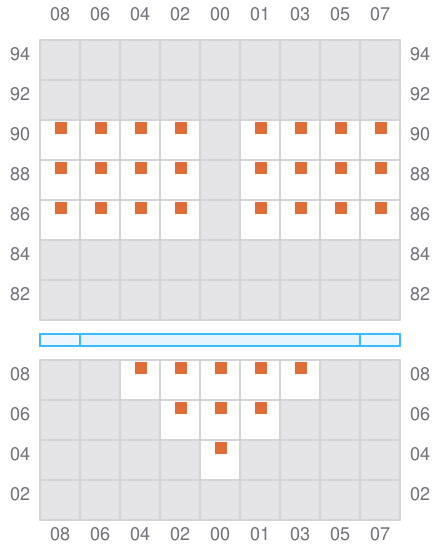

003
- ←

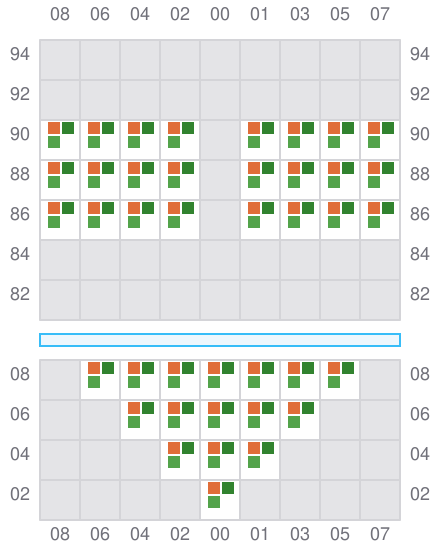

005 (006)
- →

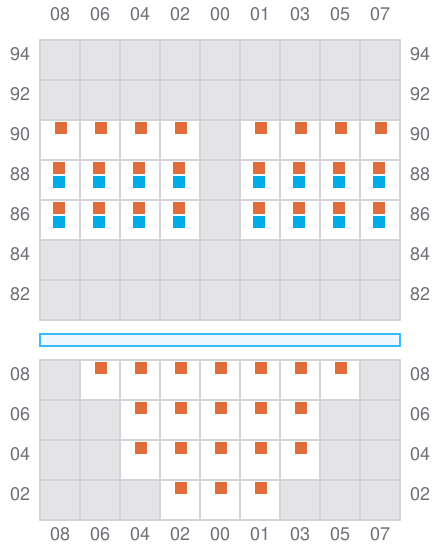

007
- ←
- → / ?
009

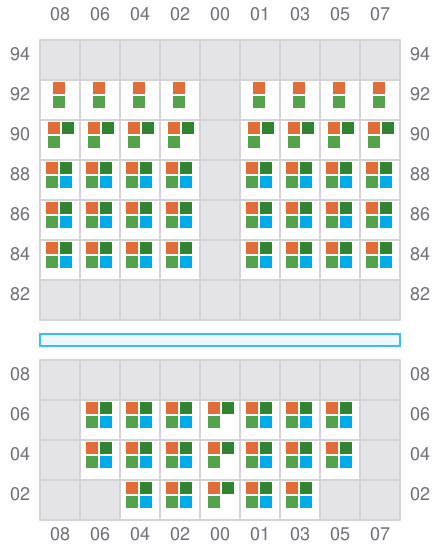

011 (012)
- →
- ←

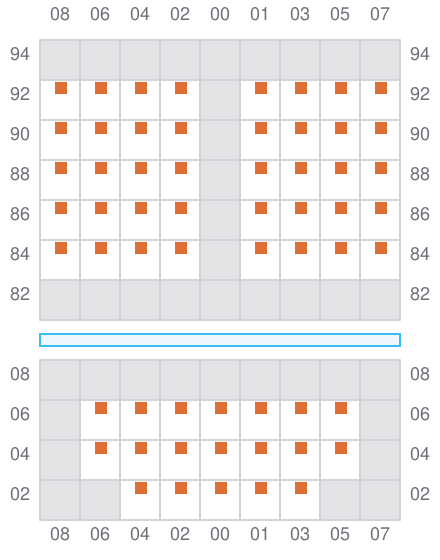

013
- ←
- → / ?

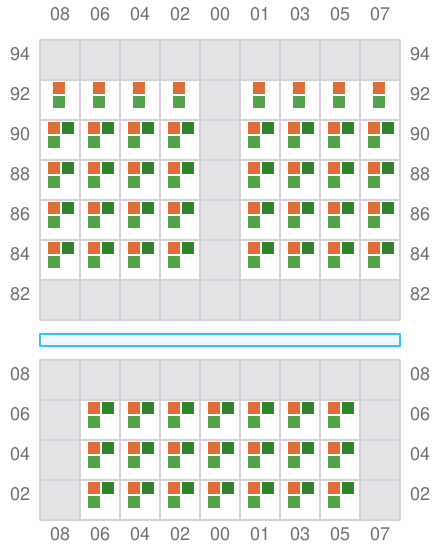

015 (016)
- →
- ← / ?

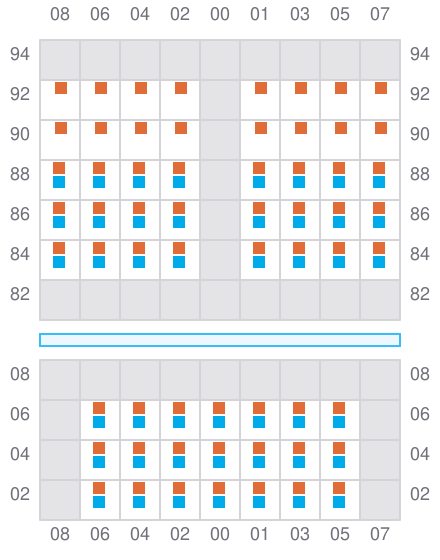

017
- ←
- →

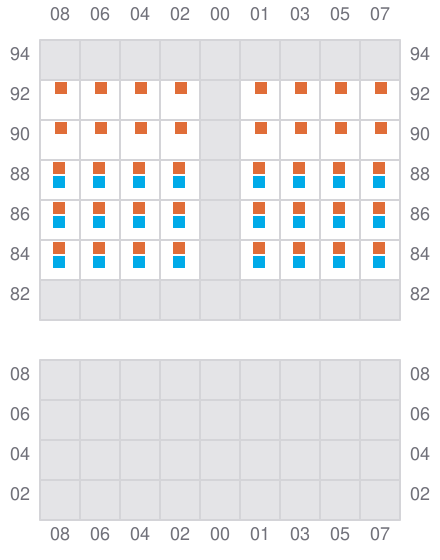

019

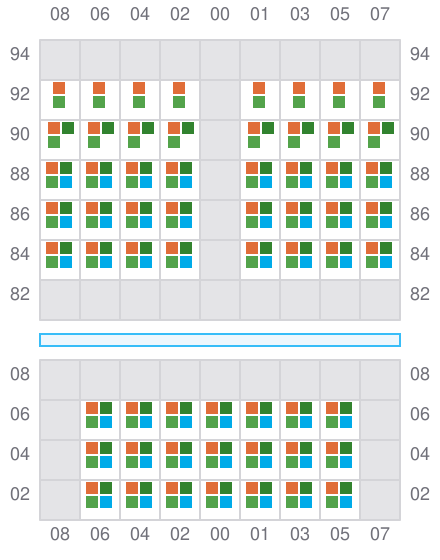

021 (022)
- →
- ←
023
- ←
- → / ?

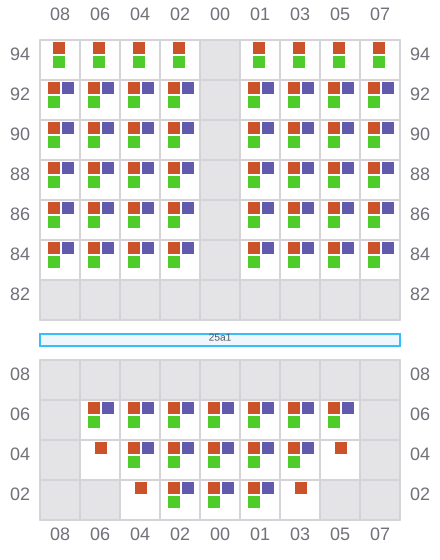

025 (026)
- →
- ← / ?

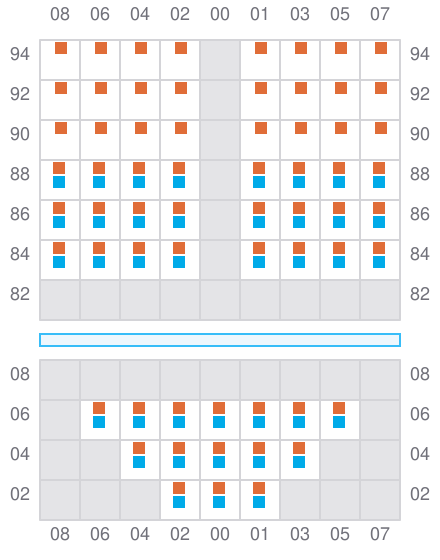

027
- ←
- →
029 (030)
- → / ?
- ← / ?

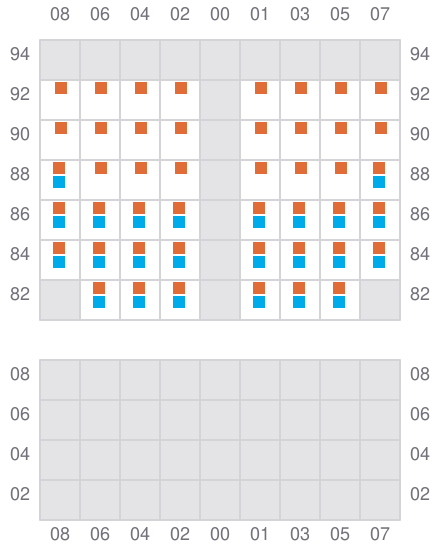

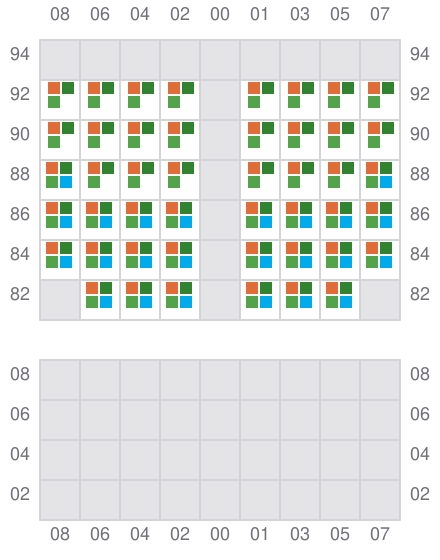

031
- ← / ?
- → / ?
