MED IZMIR
9143879 | TCA7405 | 9143879 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:MED IZMIR
IMO Code:9143879
Call Sign:TCA7405
Line Operator:9143879
Class Name for Sister Ships:09L
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:951
Centers of Gravity
LCG Values:Known
LCG Data:0%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

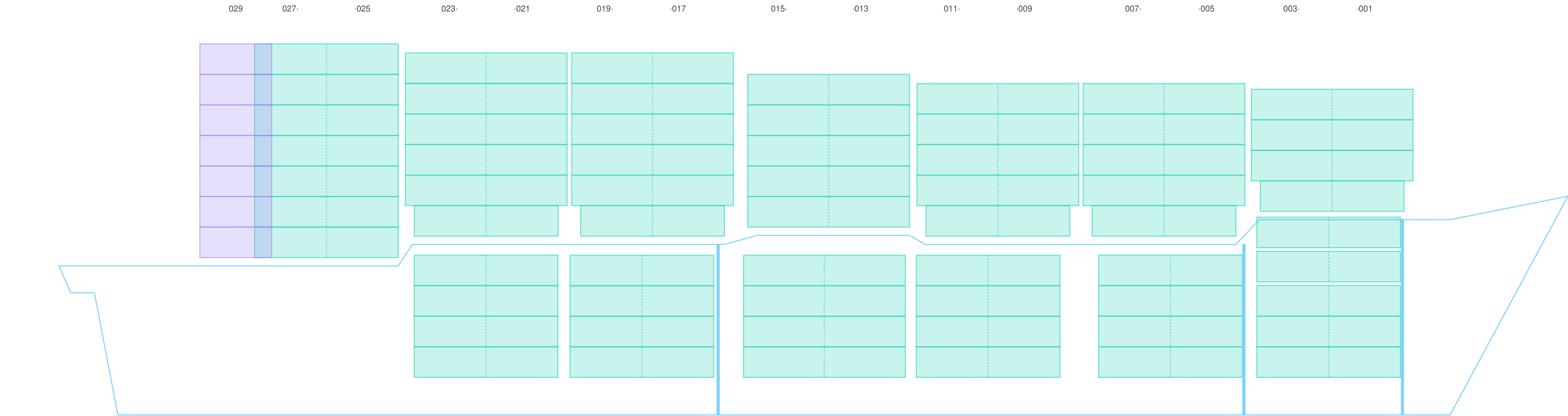

Side View

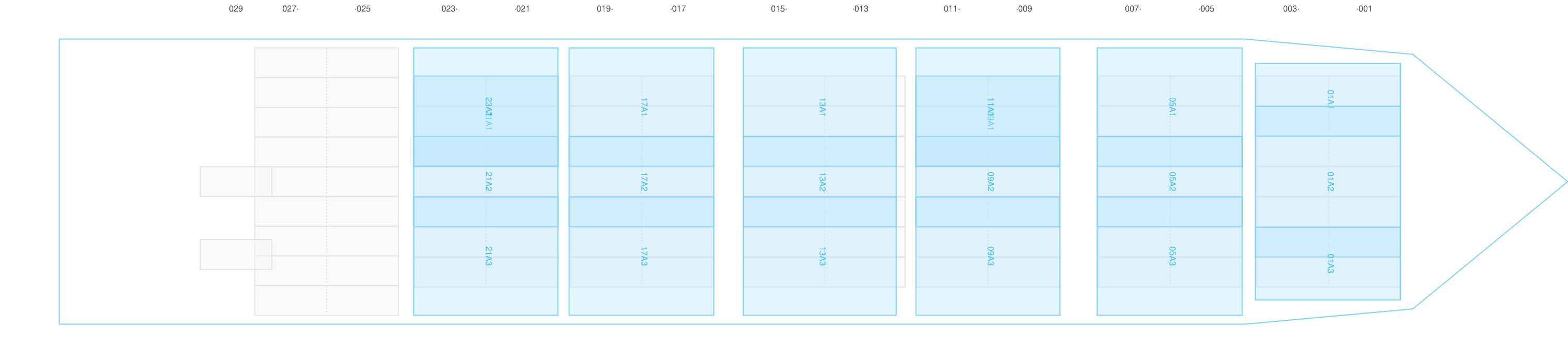

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

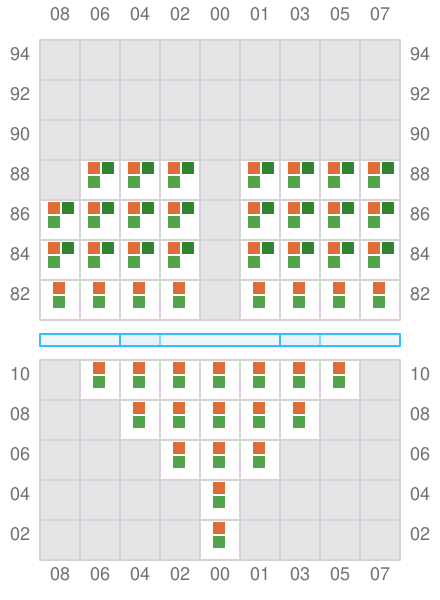

001 (002)
- →

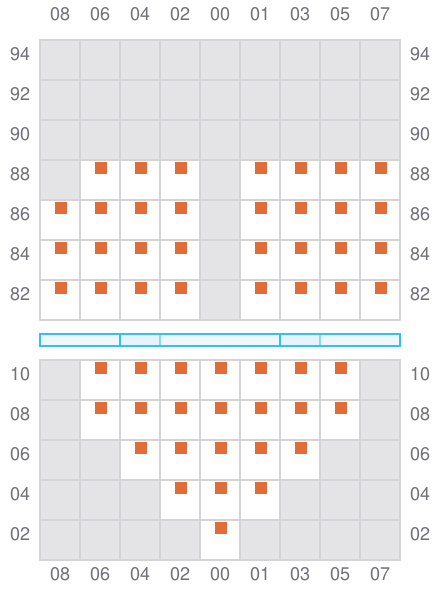

003
- ←

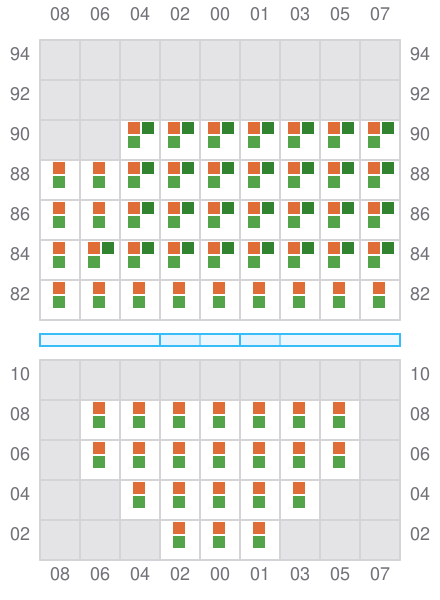

005 (006)
- →

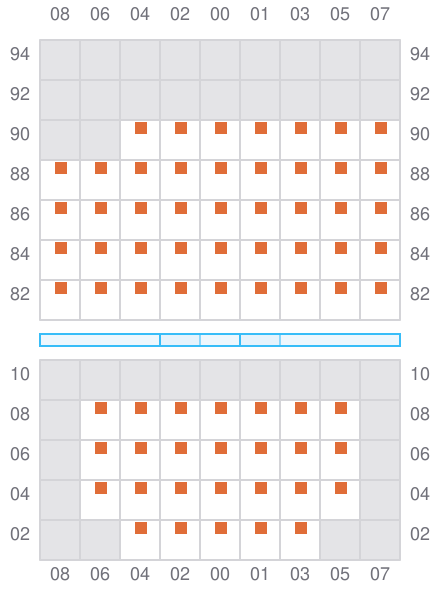

007
- ←
009 (010)
- →
011
- ←
- → / ?

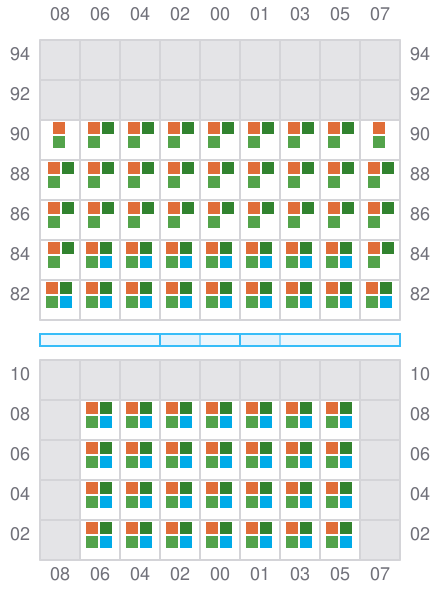

013 (014)
- →
- ←

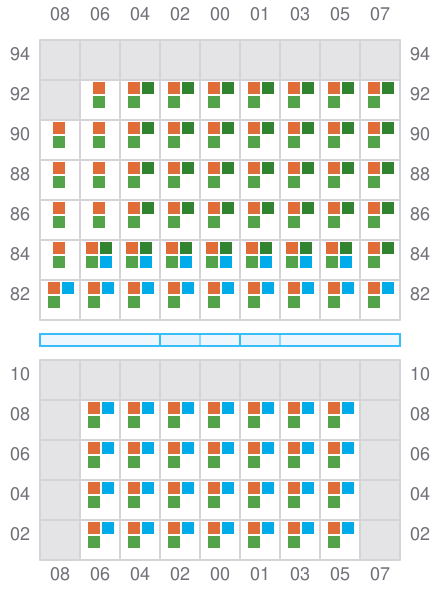

015
- ←
- →
017 (018)
- →
- ←

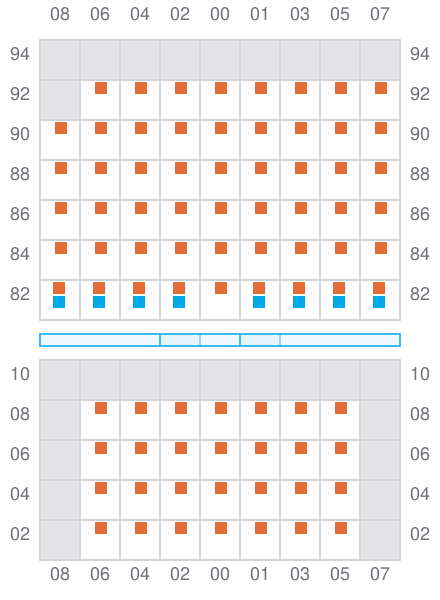

019
- ←
- → / ?
021 (022)
- →
- ← / ?

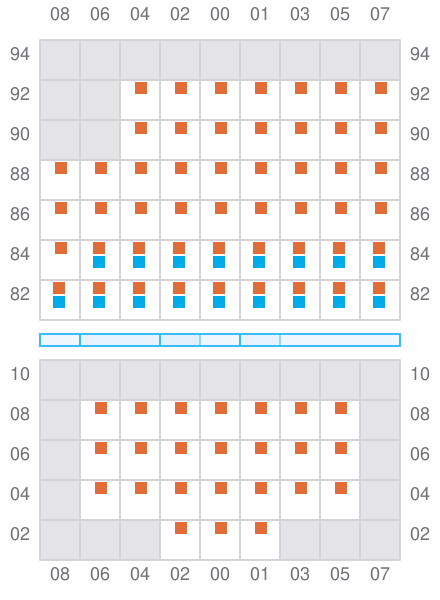

023
- ←
- → / ?

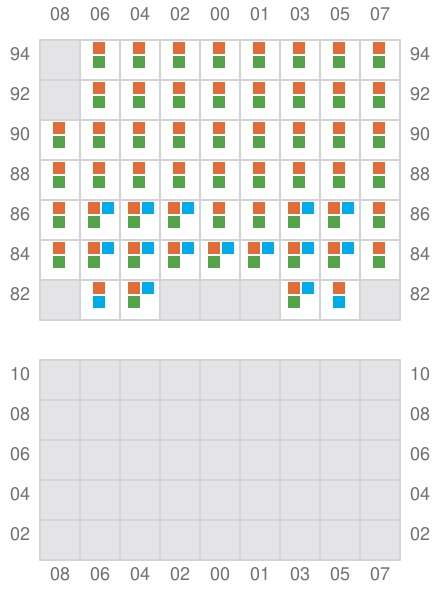

025 (026)
- → / ?
- ← / ?

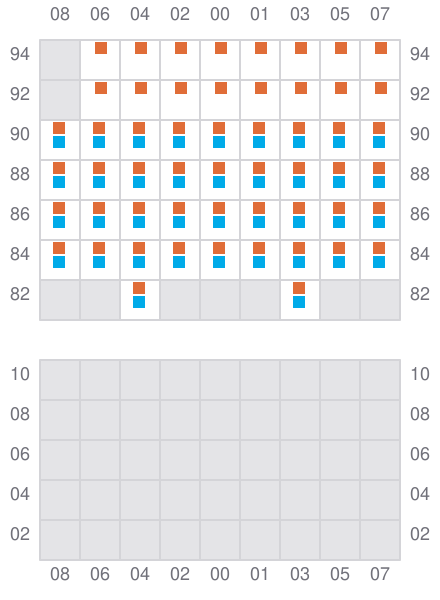

027
- ← / ?
- → / ?

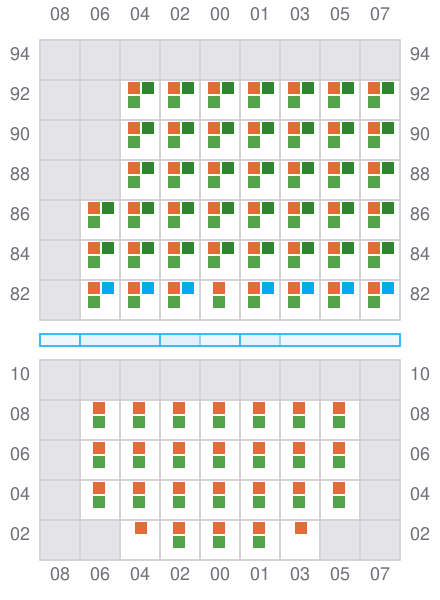

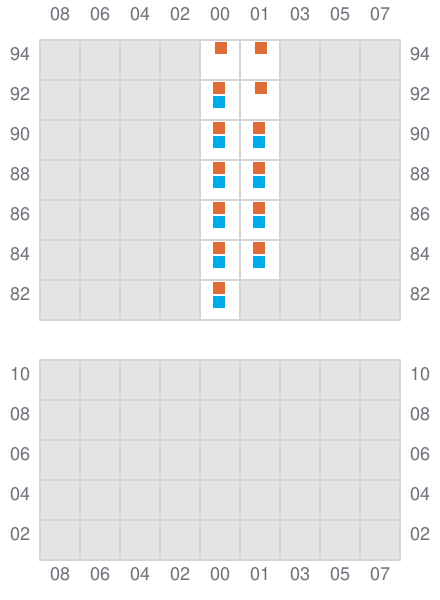

029
- ← / ?
