MED SAMSUN
9225794 | TCA4735 | 9225794 by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:MED SAMSUN
IMO Code:9225794
Call Sign:TCA4735
Line Operator:9225794
Class Name for Sister Ships:7N2
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):187.13
LOA (Length Overall):196.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:041
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,207
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-sideView.png?v=1710524775298)
Hatch-Covers View
![Deck view of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-deckView.png?v=1710524775298)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

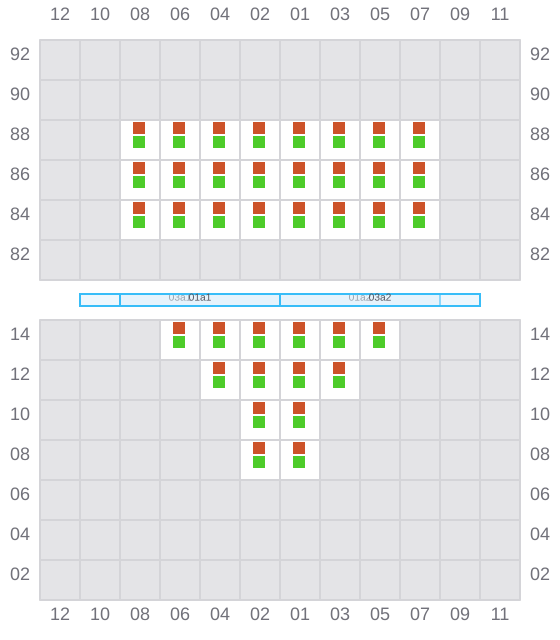

001 (002)
- →
![Bay 001 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b001.png?v=1710524775298)

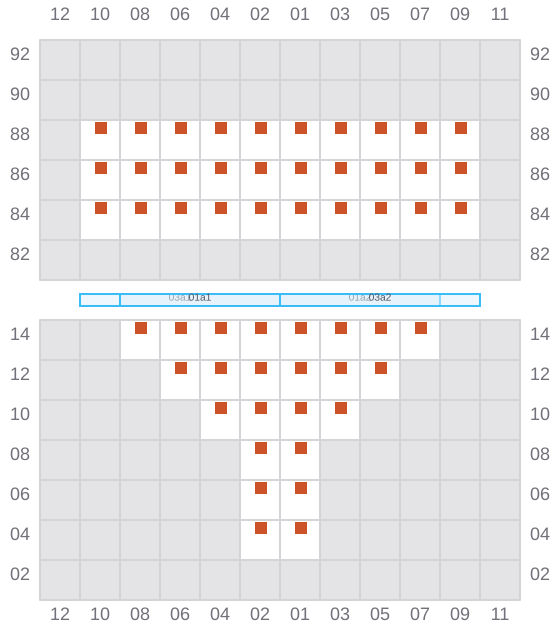

003
- ←
![Bay 003 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b003.png?v=1710524775298)

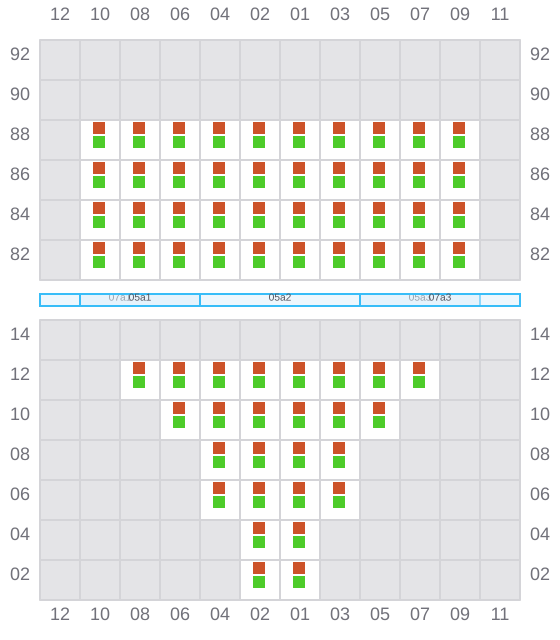

005 (006)
- →
![Bay 005 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b005.png?v=1710524775298)

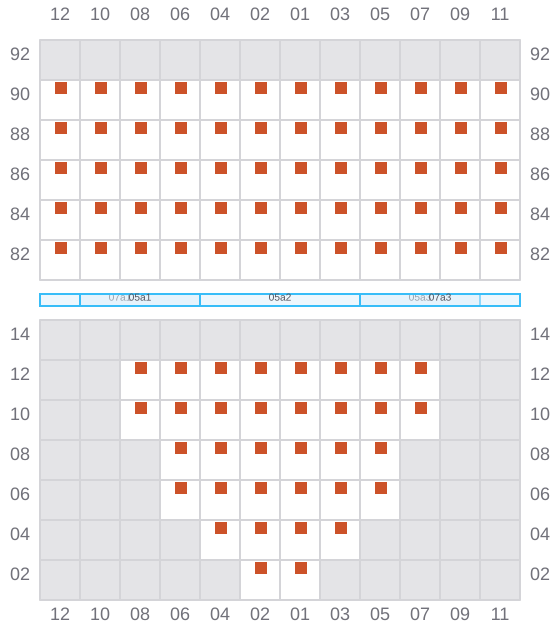

007
- ←
![Bay 007 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b007.png?v=1710524775298)

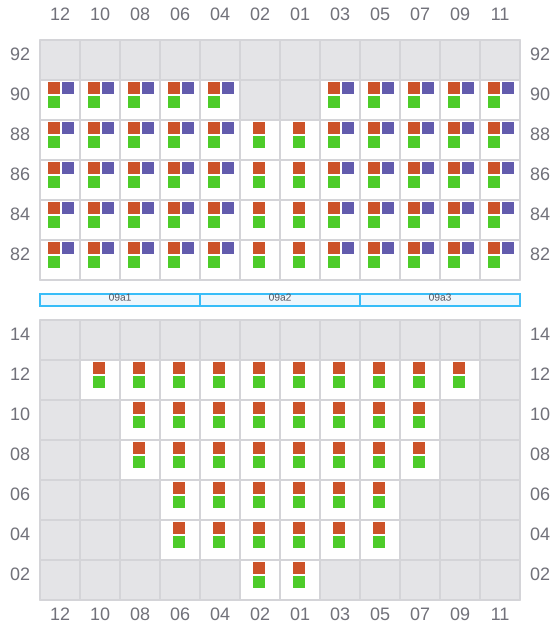

009 (010)
- →
![Bay 009 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b009.png?v=1710524775298)

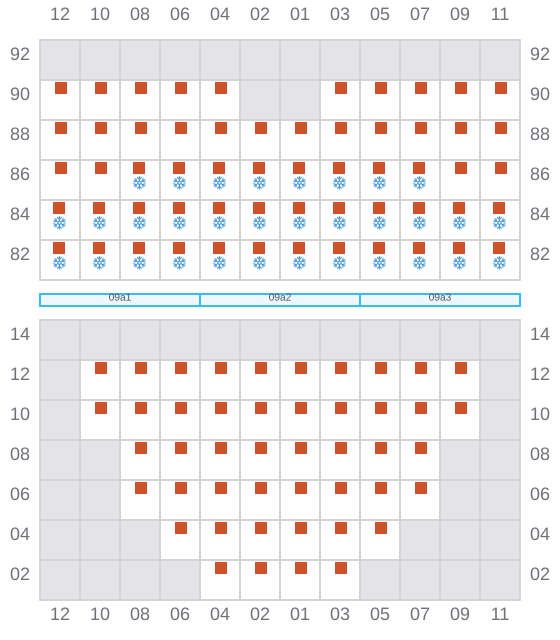

011
- ←
- → / ?
![Bay 011 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b011.png?v=1710524775298)

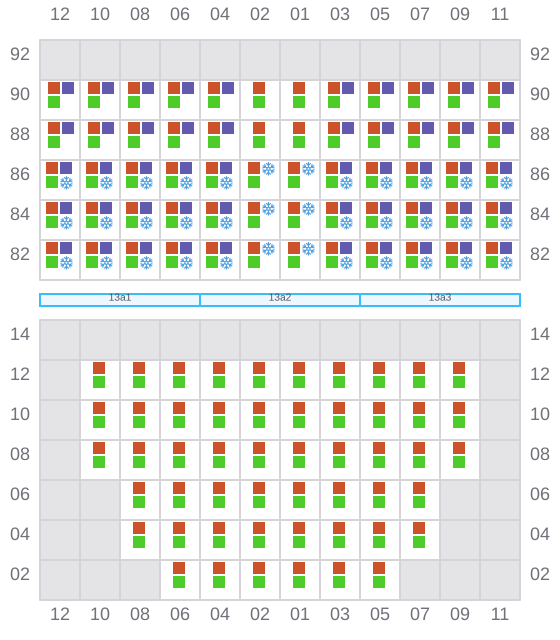

013 (014)
- →
- ← / ?
![Bay 013 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b013.png?v=1710524775298)

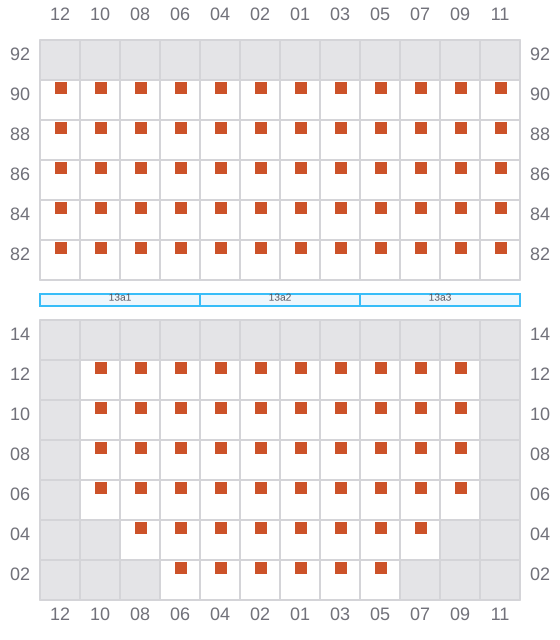

015
- ←
![Bay 015 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b015.png?v=1710524775298)

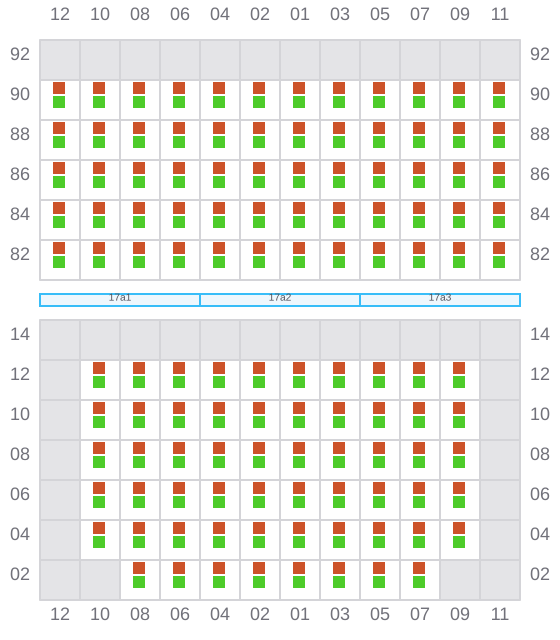

017 (018)
- →
![Bay 017 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b017.png?v=1710524775298)

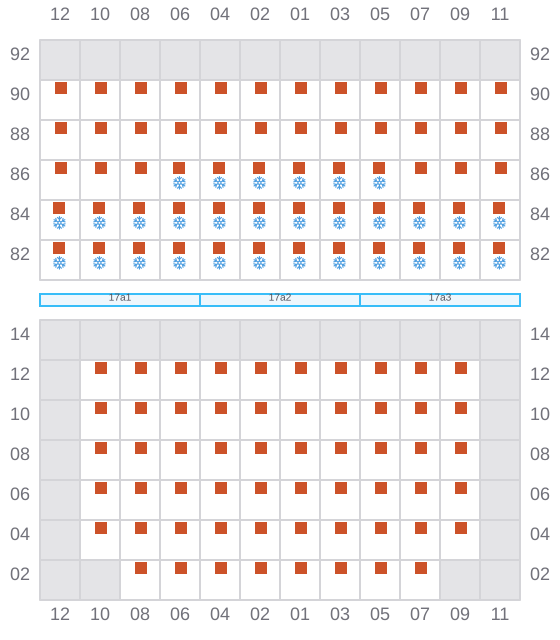

019
- ←
- → / ?
![Bay 019 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b019.png?v=1710524775298)

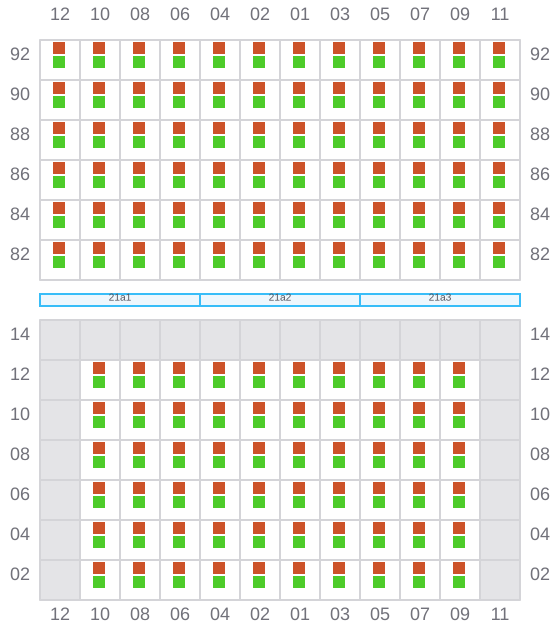

021 (022)
- →
![Bay 021 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b021.png?v=1710524775298)

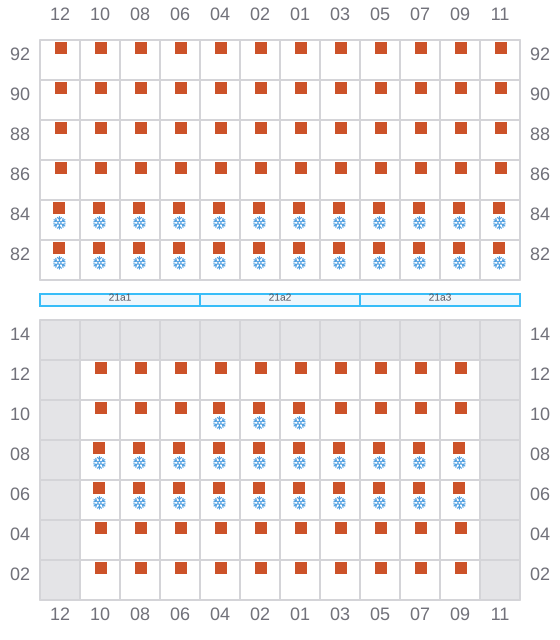

023
- ←
- →
![Bay 023 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b023.png?v=1710524775298)

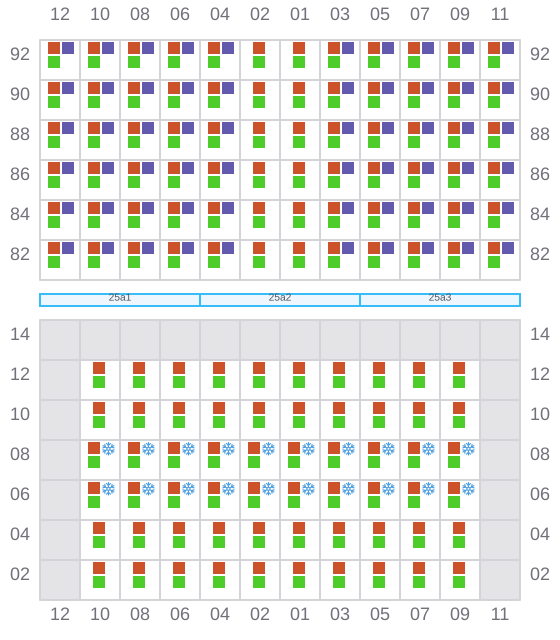

025 (026)
- →
- ? / ←
![Bay 025 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b025.png?v=1710524775298)

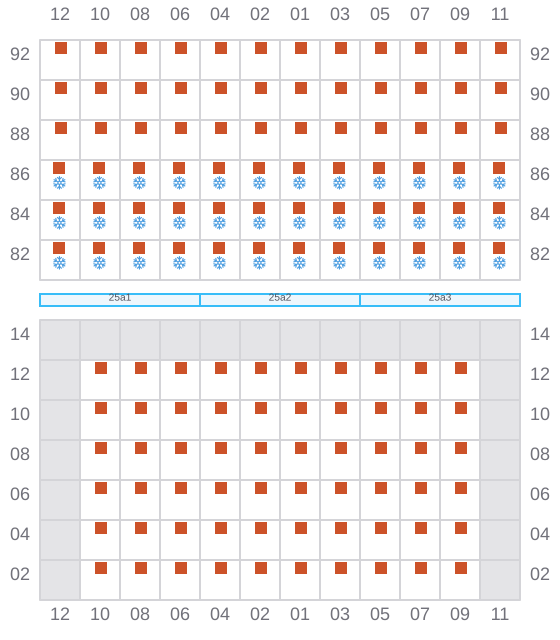

027
- ←
- → / ?
![Bay 027 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b027.png?v=1710524775298)

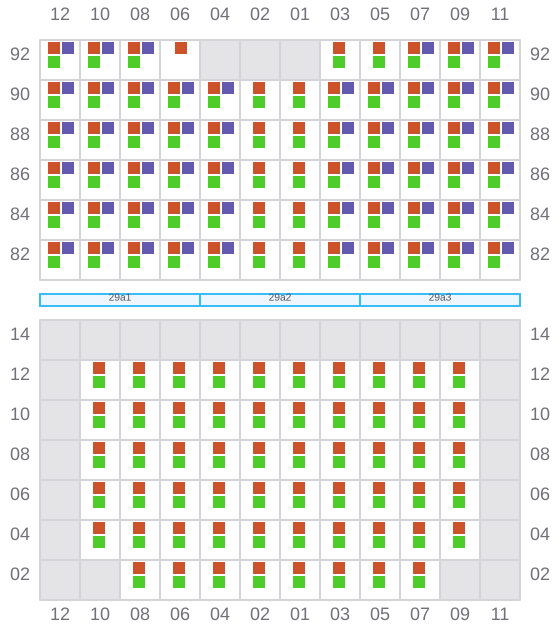

029 (030)
- →
![Bay 029 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b029.png?v=1710524775298)

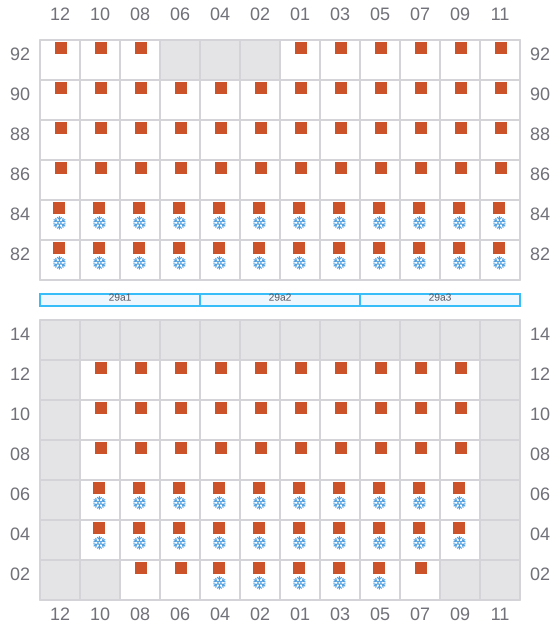

031
- ←
- →
![Bay 031 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b031.png?v=1710524775298)

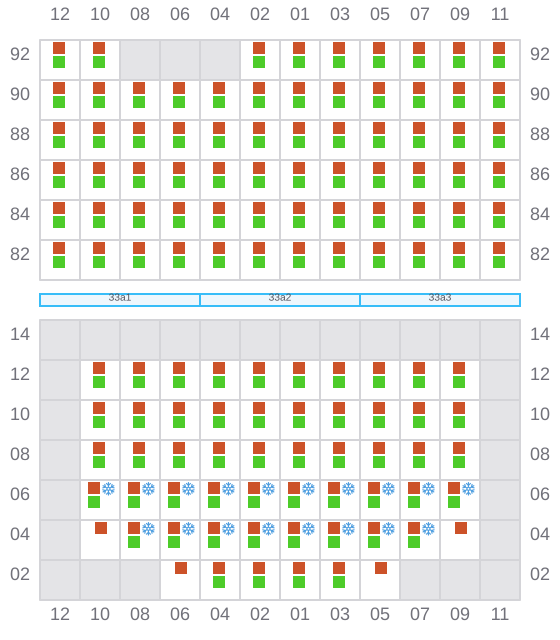

033 (034)
- →
- ? / ←
![Bay 033 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b033.png?v=1710524775298)

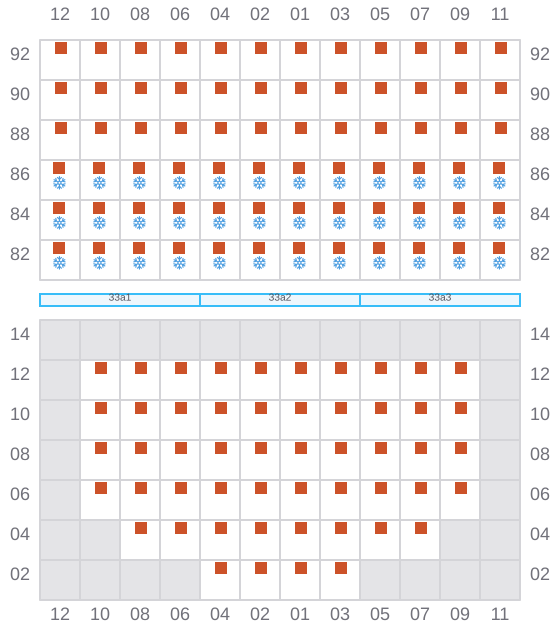

035
- ←
- → / ?
![Bay 035 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b035.png?v=1710524775298)

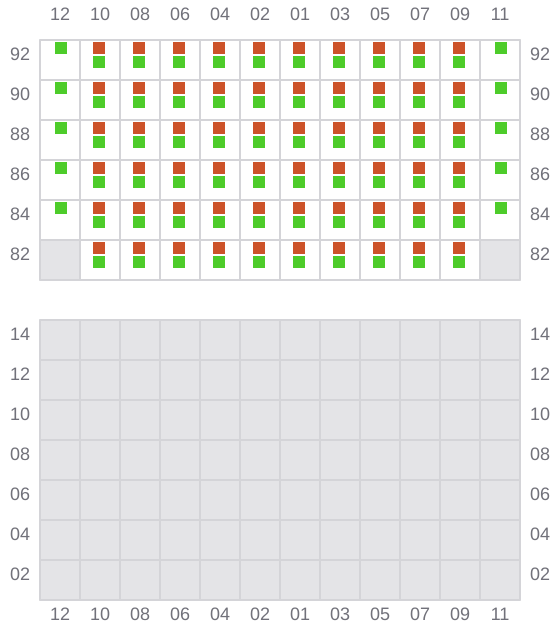

037 (038)
- → / ?
![Bay 037 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b037.png?v=1710524775298)

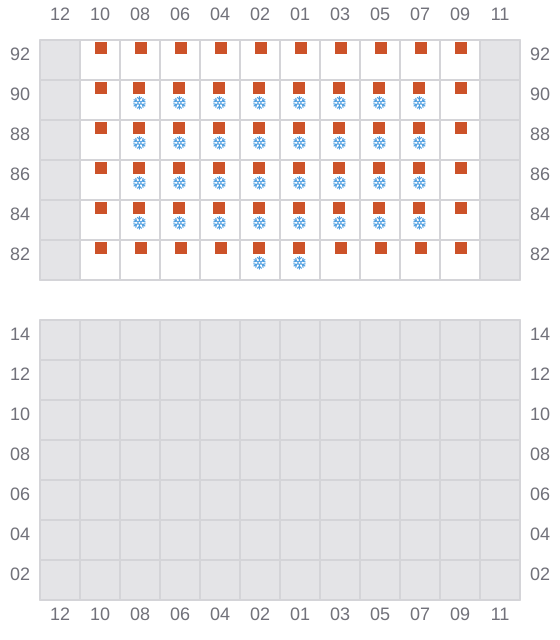

039
- ← / ?
- → / ?
![Bay 039 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b039.png?v=1710524775298)

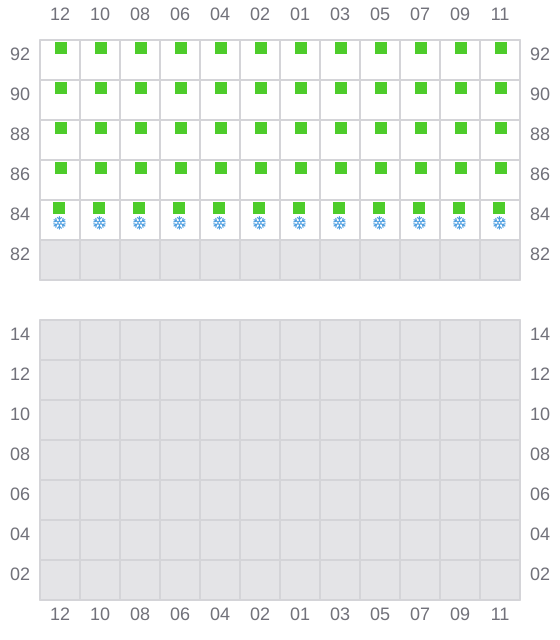

041 (042)
- → / ?
- → / ?
![Bay 041 view and slots of MED SAMSUN](/vessel-images/010b8c4d-5038-49bb-8c40-de73cc373ab4-b041.png?v=1710524775298)
