MED TRABZON
9141780 | TCA6908 | 9141780 by ********* Last update: Thu Jun 27 2024

General Info

Ship Name:MED TRABZON
IMO Code:9141780
Call Sign:TCA6908
Line Operator:9141780
Class Name for Sister Ships:CMA
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:039
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,133

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

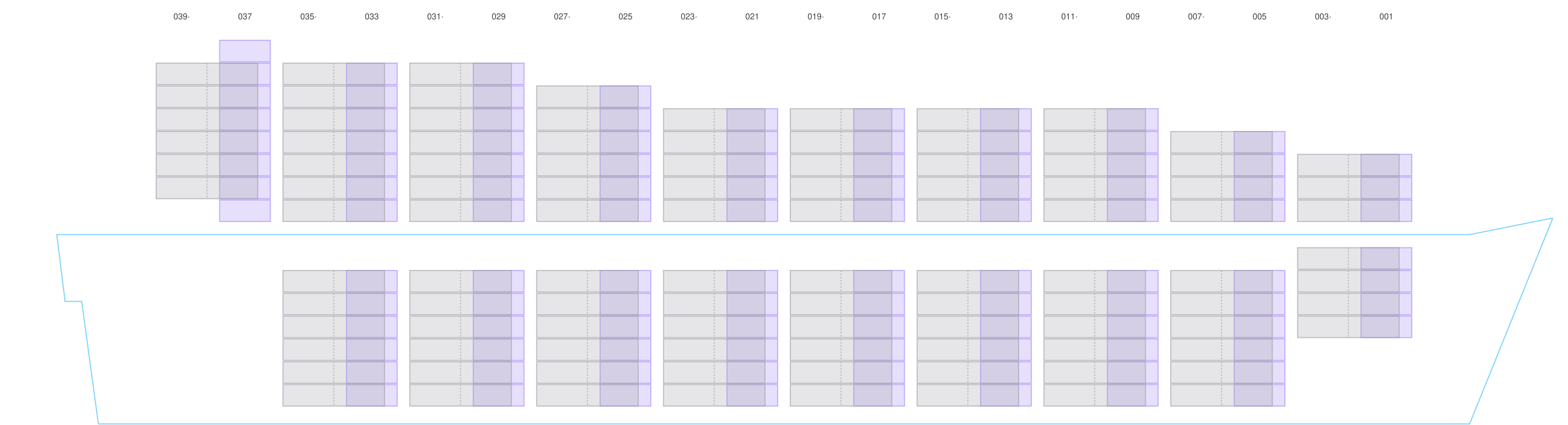

Side view of MED TRABZON

Hatch-Covers View

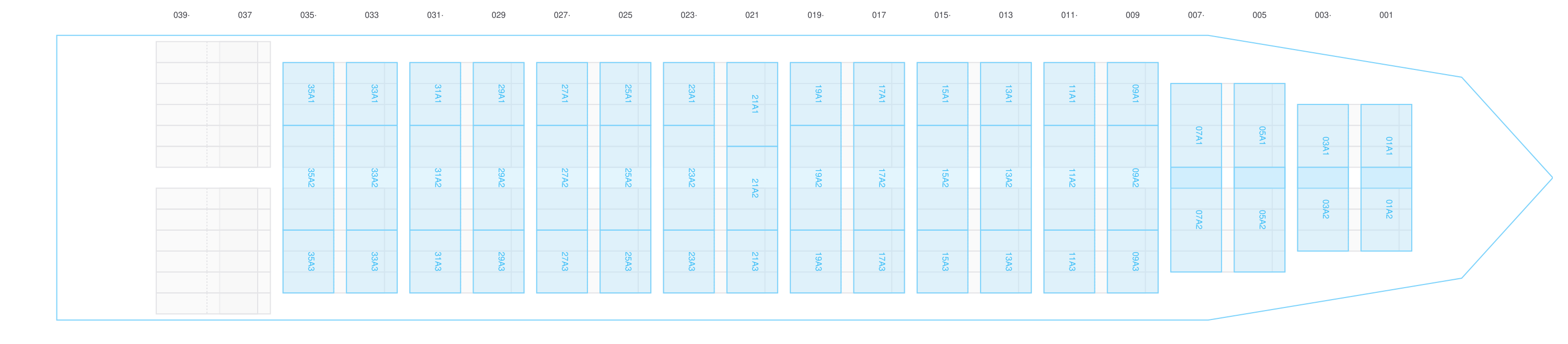

Deck view of MED TRABZON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

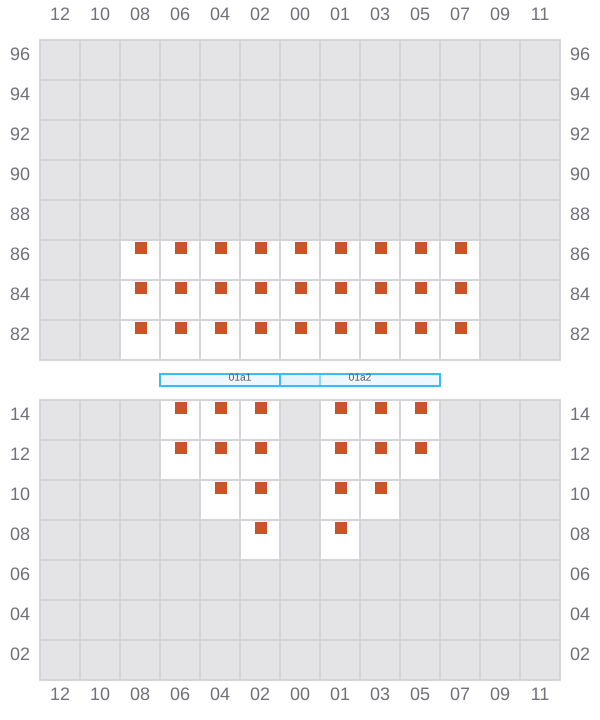

001

Bay 001 view and slots of MED TRABZON

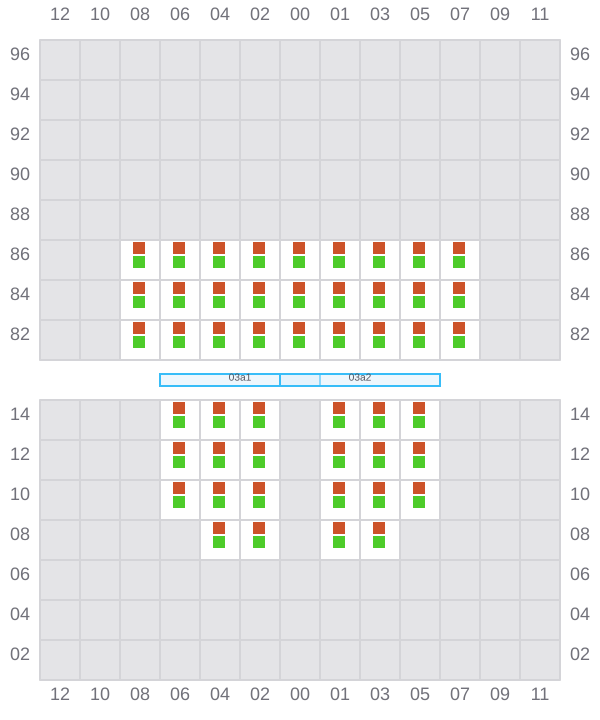

003 (002)

  • ←
Bay 003 view and slots of MED TRABZON

005

Bay 005 view and slots of MED TRABZON

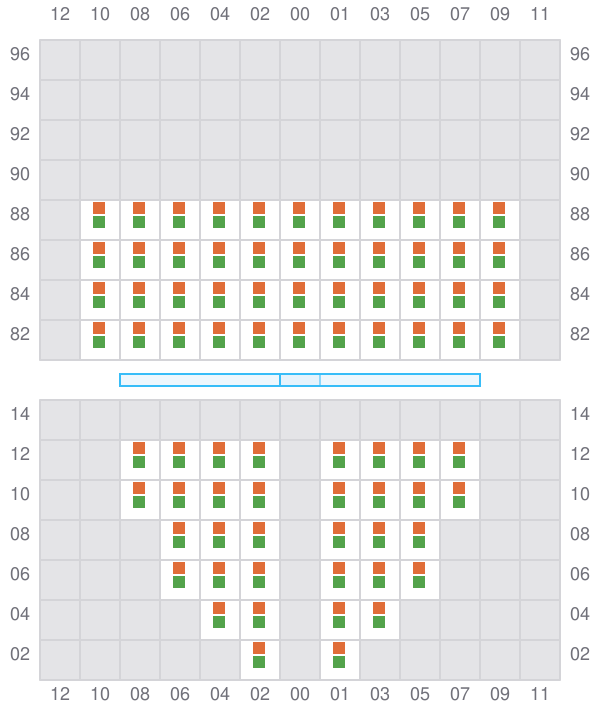

007 (006)

  • ←
Bay 007 view and slots of MED TRABZON

009

Bay 009 view and slots of MED TRABZON

011 (010)

  • ←

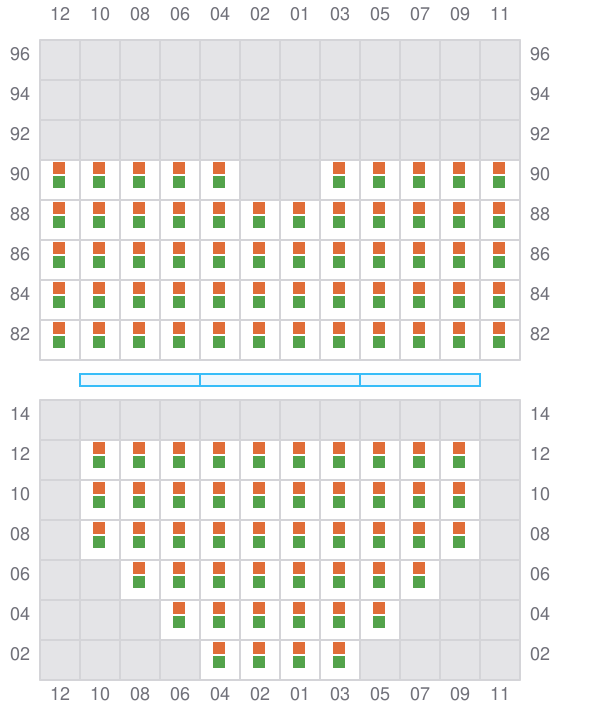

Bay 011 view and slots of MED TRABZON

013

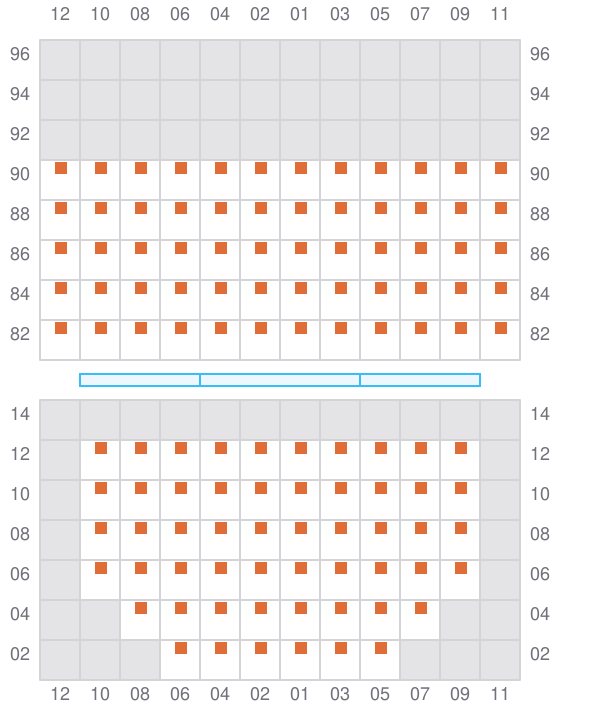

Bay 013 view and slots of MED TRABZON

015 (014)

  • ←
Bay 015 view and slots of MED TRABZON

017

Bay 017 view and slots of MED TRABZON

019 (018)

  • ←
Bay 019 view and slots of MED TRABZON

021

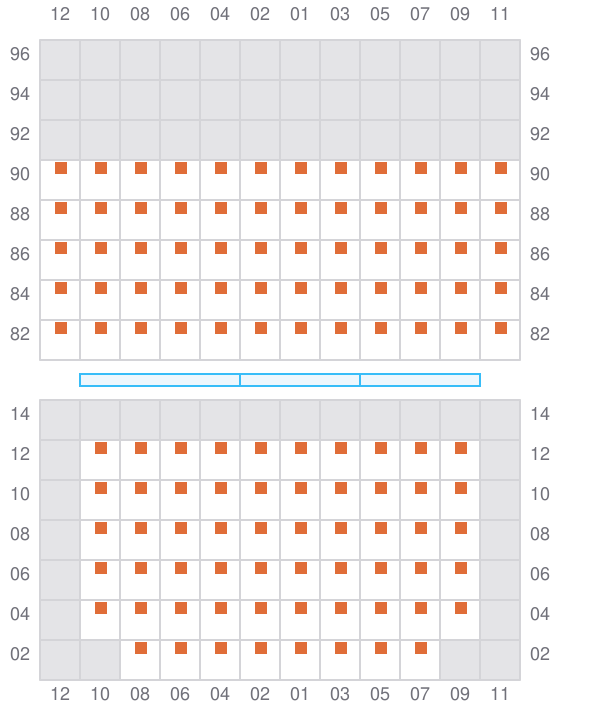

Bay 021 view and slots of MED TRABZON

023 (022)

  • ←

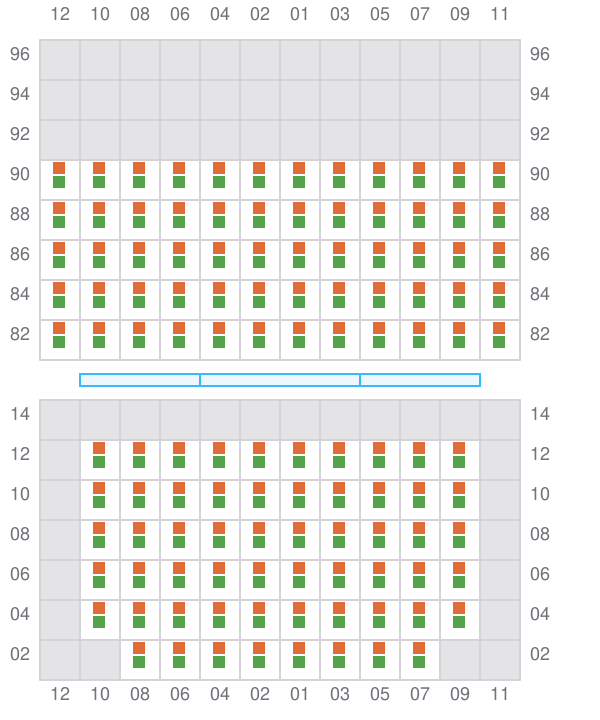

Bay 023 view and slots of MED TRABZON

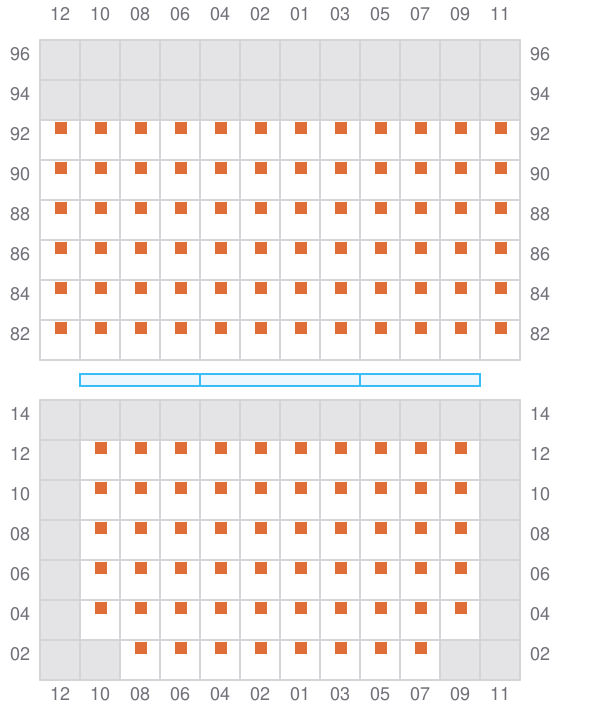

025

Bay 025 view and slots of MED TRABZON

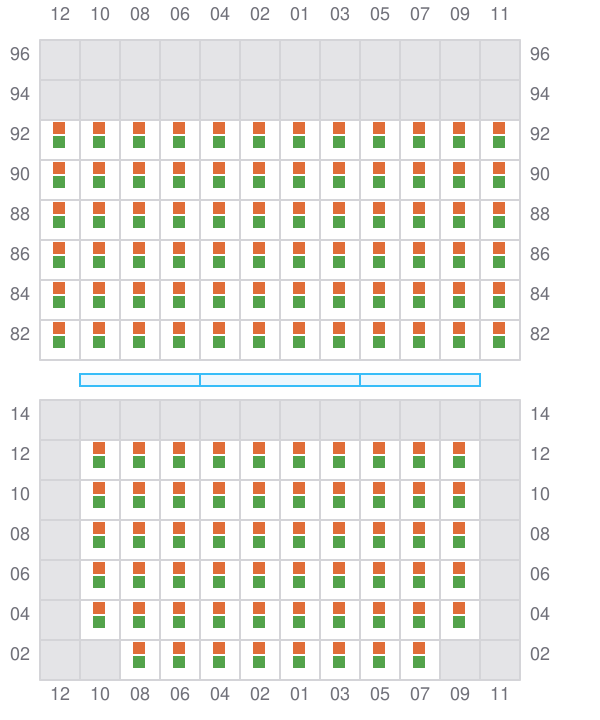

027 (026)

  • ←
Bay 027 view and slots of MED TRABZON

029

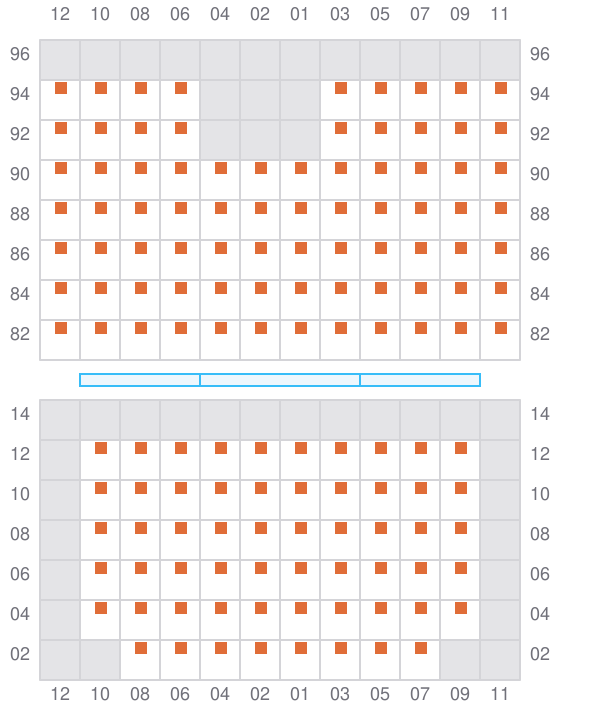

Bay 029 view and slots of MED TRABZON

031 (030)

  • ←
Bay 031 view and slots of MED TRABZON

033

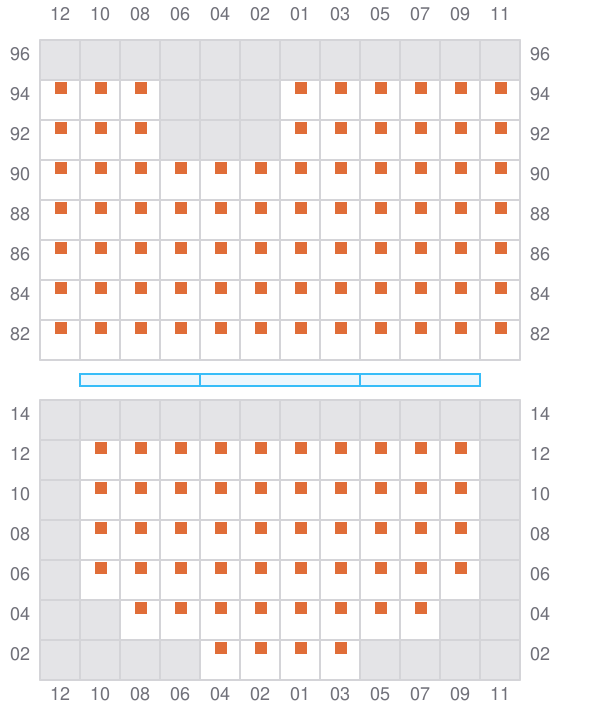

Bay 033 view and slots of MED TRABZON

035 (034)

  • ←
Bay 035 view and slots of MED TRABZON

037

Bay 037 view and slots of MED TRABZON

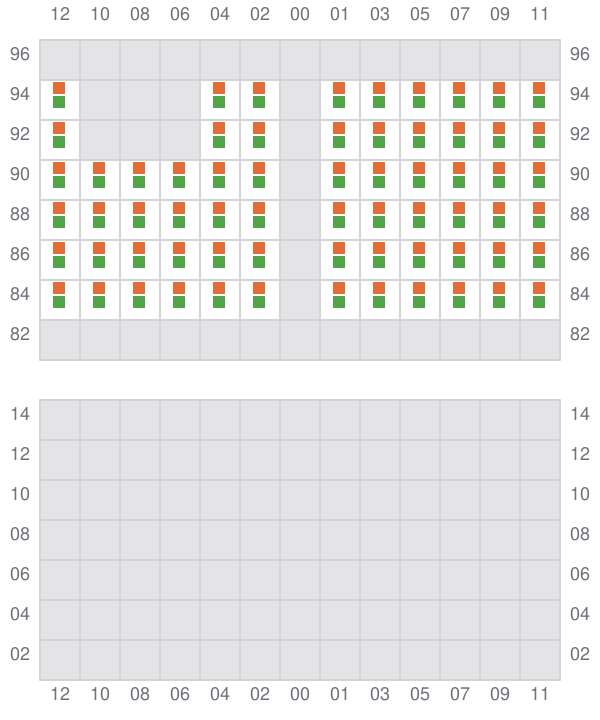

039 (038)

  • ← / ?
Bay 039 view and slots of MED TRABZON
