MEDKON CANAKKALE
9341964 | 3E2292 | 9341964 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MEDKON CANAKKALE
IMO Code:9341964
Call Sign:3E2292
Line Operator:9341964
Class Name for Sister Ships:79B
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:029
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:686

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MEDKON CANAKKALE

Hatch-Covers View

Deck view of MEDKON CANAKKALE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • → / ?
Bay 001 view and slots of MEDKON CANAKKALE

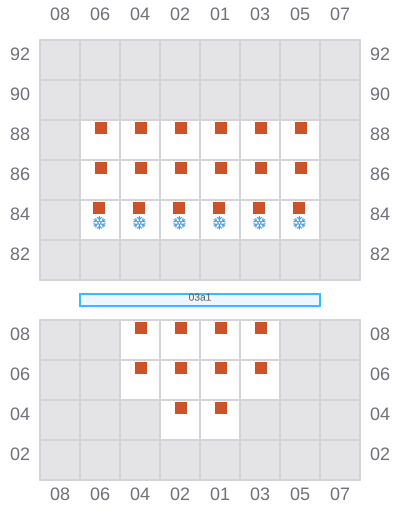

003

  • ←
  • → / ?
Bay 003 view and slots of MEDKON CANAKKALE

005 (006)

  • →
Bay 005 view and slots of MEDKON CANAKKALE

007

  • ←
  • → / ?
Bay 007 view and slots of MEDKON CANAKKALE

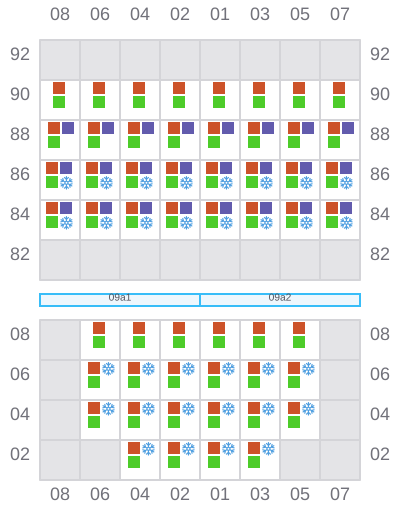

009 (010)

  • →
  • ←
Bay 009 view and slots of MEDKON CANAKKALE

011

  • ←
Bay 011 view and slots of MEDKON CANAKKALE

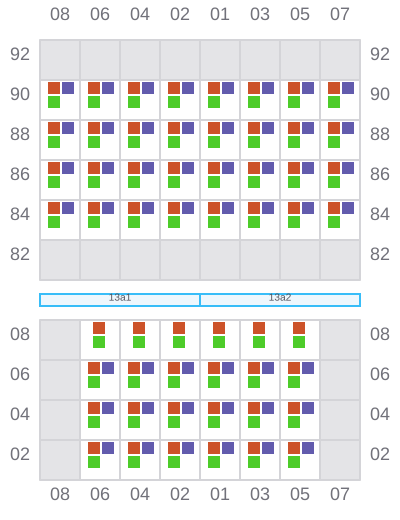

013 (014)

  • →
Bay 013 view and slots of MEDKON CANAKKALE

015

  • ←
  • → / ?
Bay 015 view and slots of MEDKON CANAKKALE

017

Bay 017 view and slots of MEDKON CANAKKALE

019 (020)

  • →
  • ←
Bay 019 view and slots of MEDKON CANAKKALE

021

  • ←
Bay 021 view and slots of MEDKON CANAKKALE

023 (024)

  • →
Bay 023 view and slots of MEDKON CANAKKALE

025

  • ←
  • → / ?
Bay 025 view and slots of MEDKON CANAKKALE

027 (028)

  • → / ?
Bay 027 view and slots of MEDKON CANAKKALE

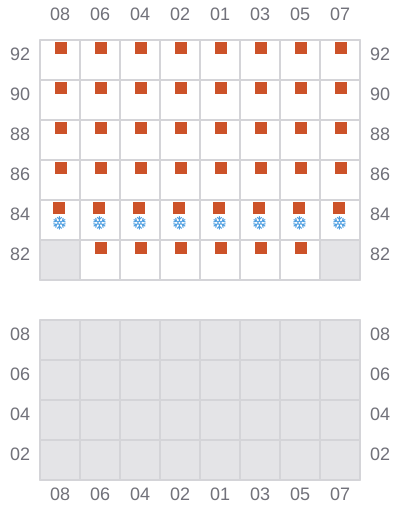

029

  • ← / ?
  • → / ?
Bay 029 view and slots of MEDKON CANAKKALE
