MEDKON GEMLIK
9103350 | 3EED3 | 9103350 by *********** Last update: Mon Mar 04 2024
General Info
Ship Name:MEDKON GEMLIK
IMO Code:9103350
Call Sign:3EED3
Line Operator:9103350
Class Name for Sister Ships:16D
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:023
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:652
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Estimated
TCG Data:0%

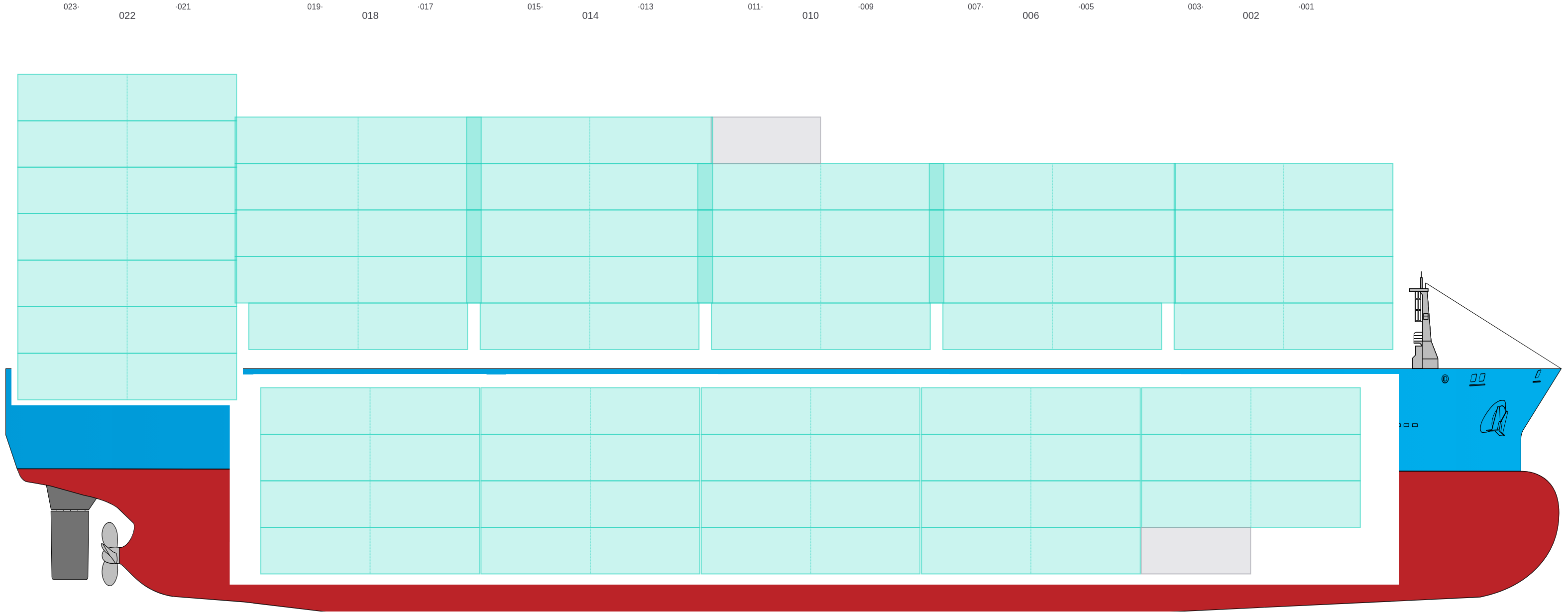

Side View
![Side view of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-sideView.png?v=1709581411327)

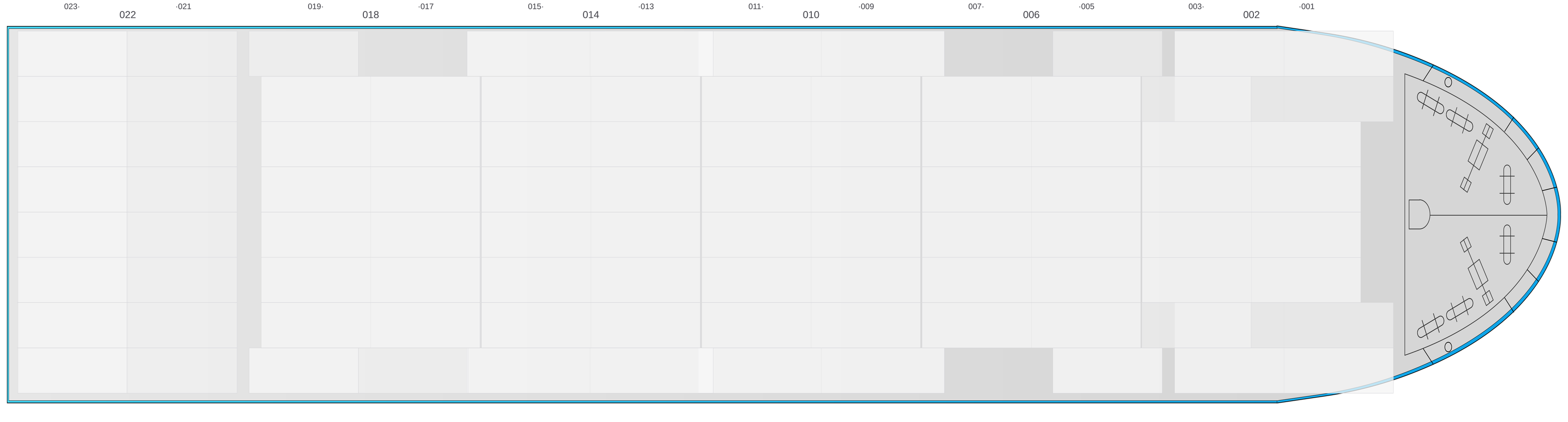

Hatch-Covers View
![Deck view of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-deckView.png?v=1709581411327)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

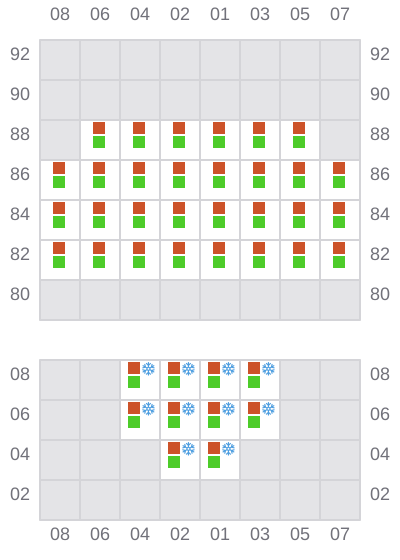

001 (002)
- →
- ? / ←
![Bay 001 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b001.png?v=1709581411327)

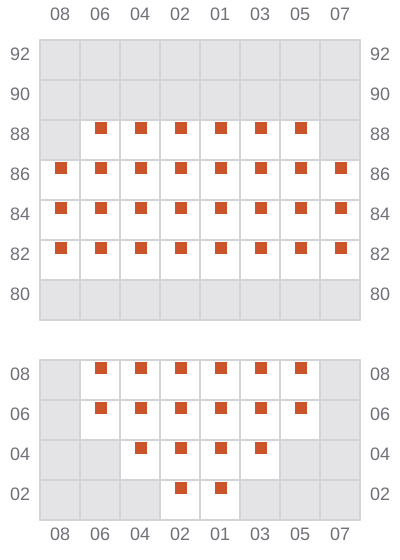

003
- ←
![Bay 003 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b003.png?v=1709581411327)

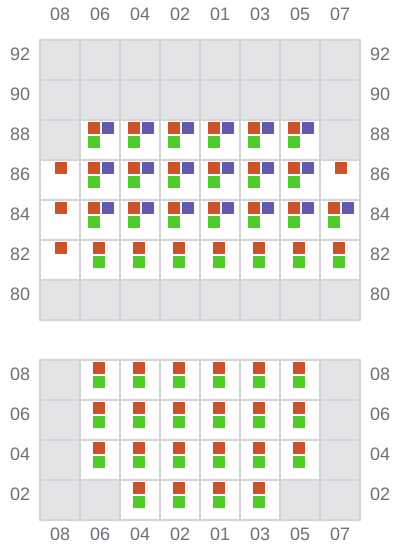

005 (006)
- →
![Bay 005 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b005.png?v=1709581411327)

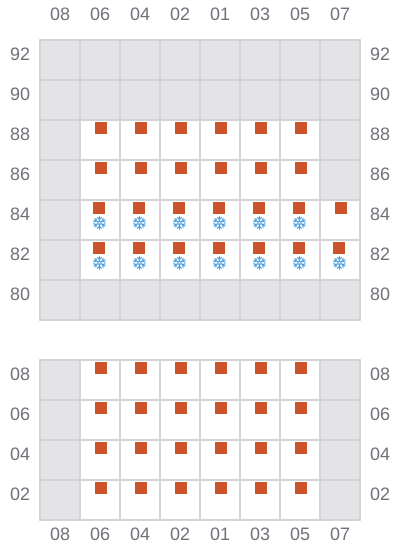

007
- ←
- → / ?
![Bay 007 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b007.png?v=1709581411327)

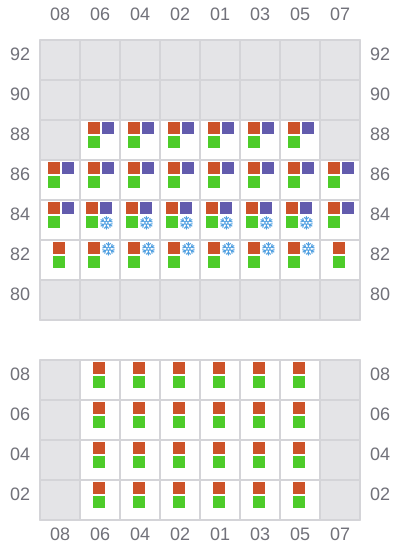

009 (010)
- →
- ← / ?
![Bay 009 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b009.png?v=1709581411327)

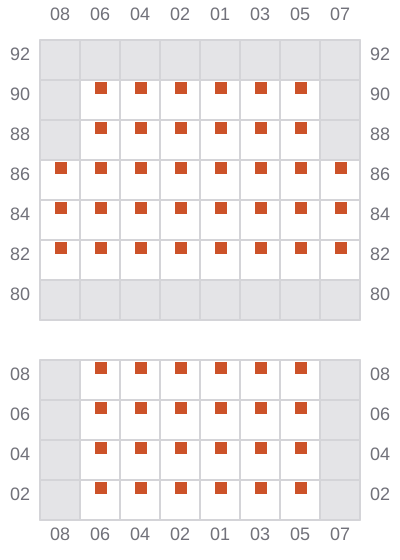

011
- ←
![Bay 011 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b011.png?v=1709581411327)

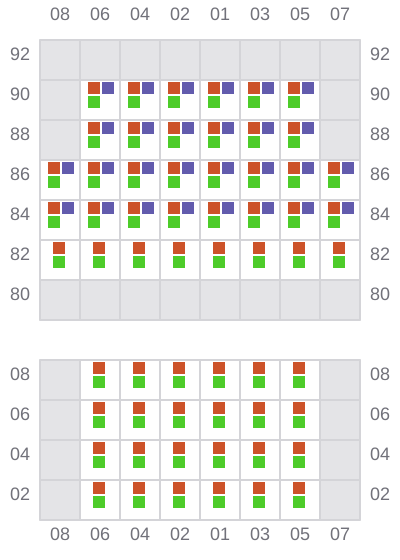

013 (014)
- →
![Bay 013 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b013.png?v=1709581411327)

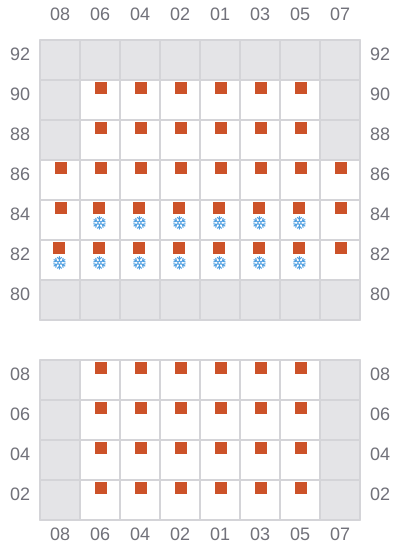

015
- ←
![Bay 015 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b015.png?v=1709581411327)
017 (018)
- →
- ← / ?
![Bay 017 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b017.png?v=1709581411327)

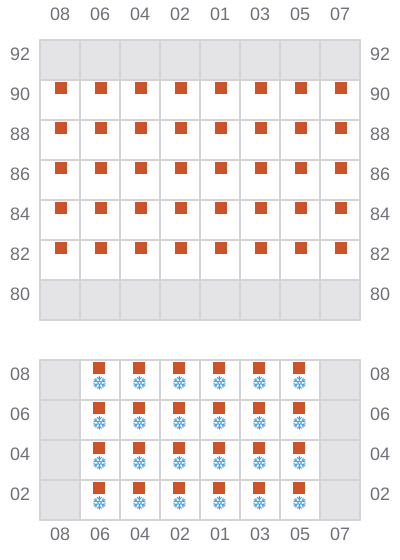

019
- ←
- ? / →
![Bay 019 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b019.png?v=1709581411327)

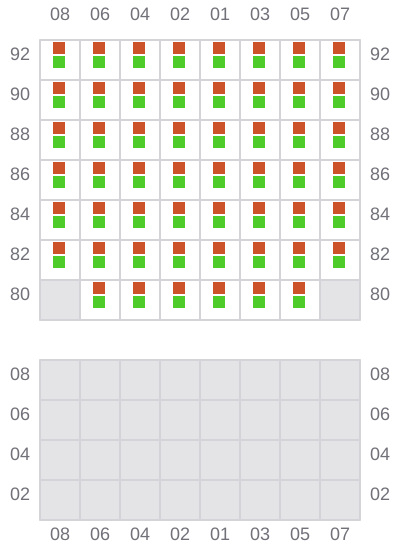

021 (022)
- → / ?
![Bay 021 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b021.png?v=1709581411327)

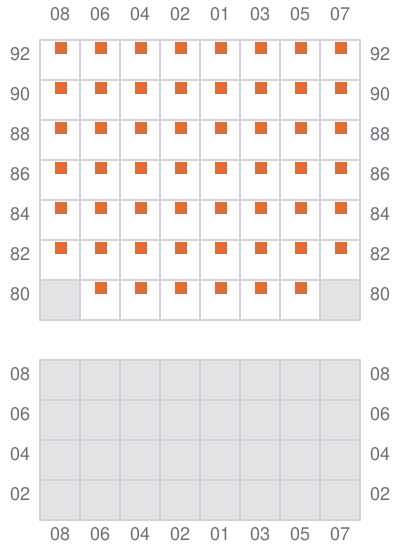

023
- ← / ?
![Bay 023 view and slots of MEDKON GEMLIK](/vessel-images/ee0152b0-4730-472c-96a6-26e27ce2ed74-b023.png?v=1709581411327)
