MEHMET KAHVECI A
9248916 | TCA3738 | 9248916 by ********* Last update: Sat Mar 16 2024

General Info

Ship Name:MEHMET KAHVECI A
IMO Code:9248916
Call Sign:TCA3738
Line Operator:9248916
Class Name for Sister Ships:93W
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,198

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MEHMET KAHVECI A

Hatch-Covers View

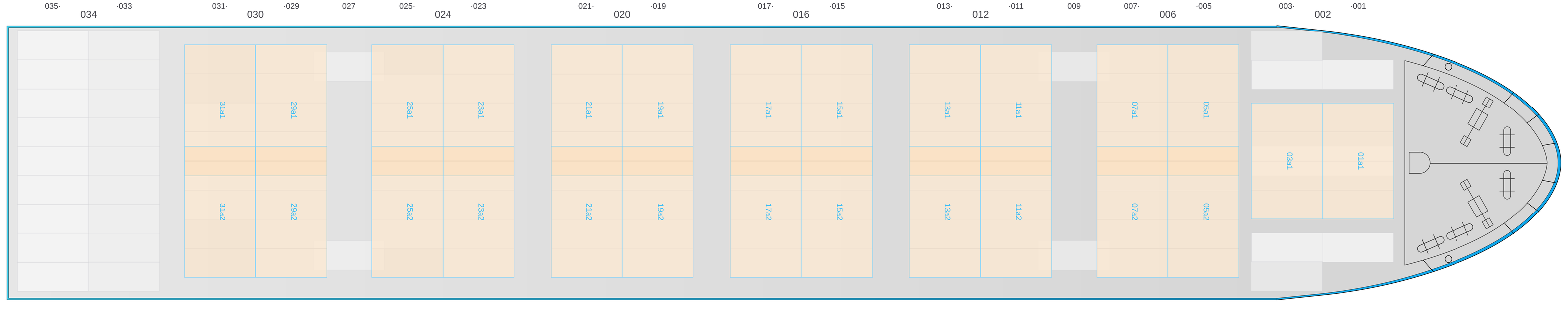

Deck view of MEHMET KAHVECI A

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

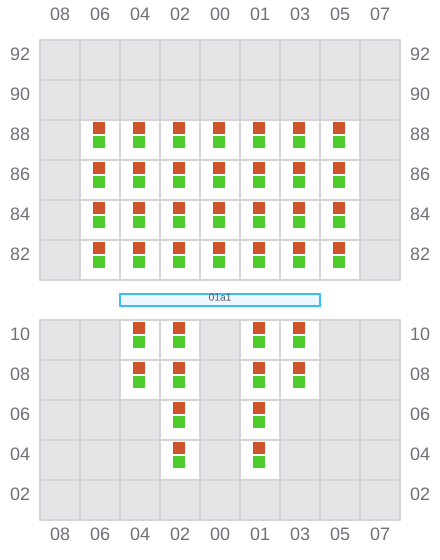

001 (002)

  • →
Bay 001 view and slots of MEHMET KAHVECI A

003

  • ←

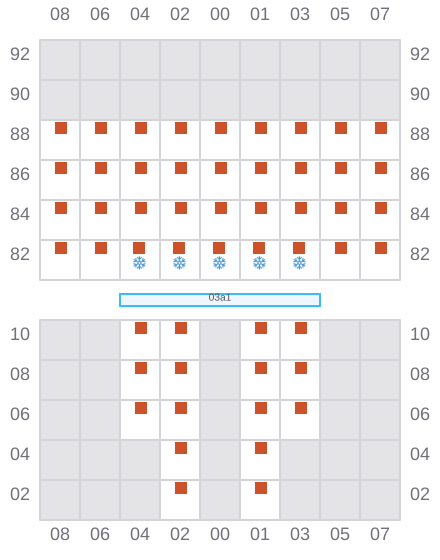

Bay 003 view and slots of MEHMET KAHVECI A

005 (006)

  • →

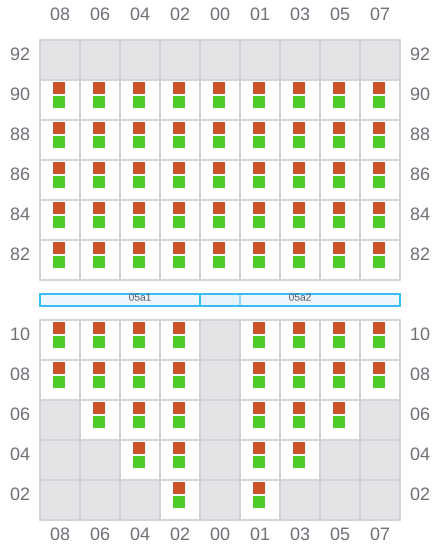

Bay 005 view and slots of MEHMET KAHVECI A

007

  • ←
  • → / ?

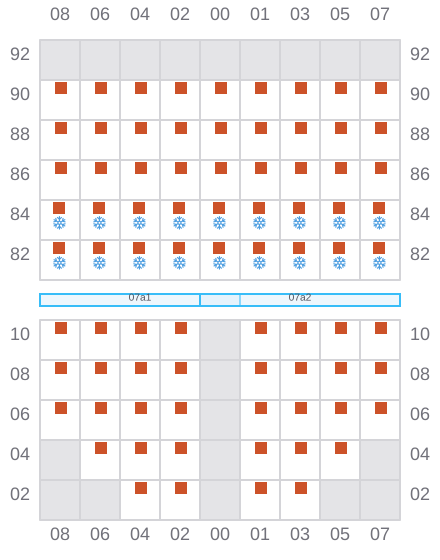

Bay 007 view and slots of MEHMET KAHVECI A

009

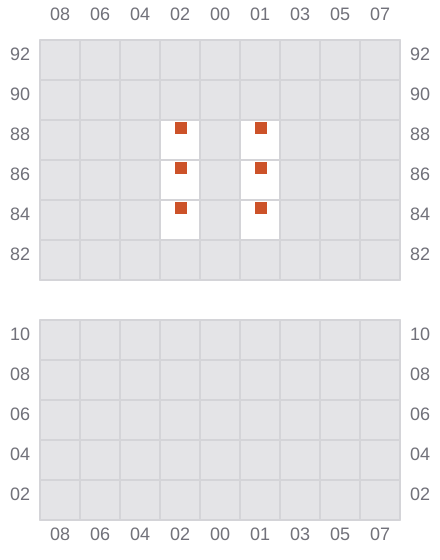

Bay 009 view and slots of MEHMET KAHVECI A

011 (012)

  • →
Bay 011 view and slots of MEHMET KAHVECI A

013

  • ←
  • →

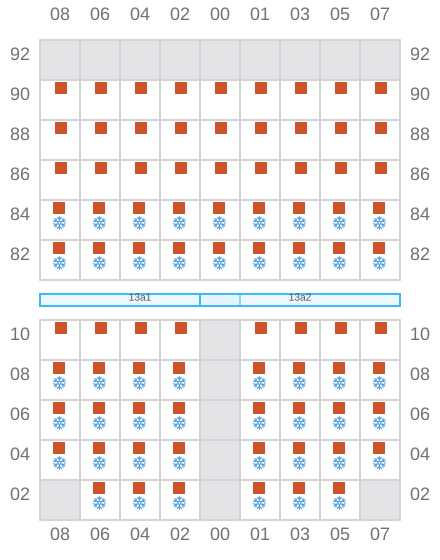

Bay 013 view and slots of MEHMET KAHVECI A

015 (016)

  • →
  • ←

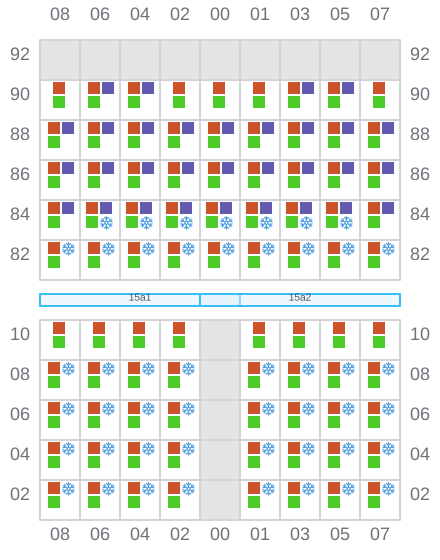

Bay 015 view and slots of MEHMET KAHVECI A

017

  • ←

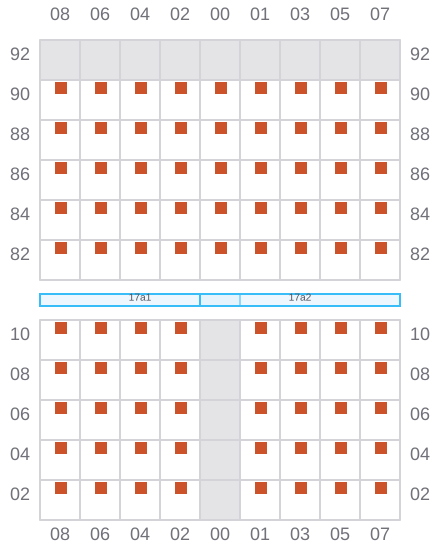

Bay 017 view and slots of MEHMET KAHVECI A

019 (020)

  • →

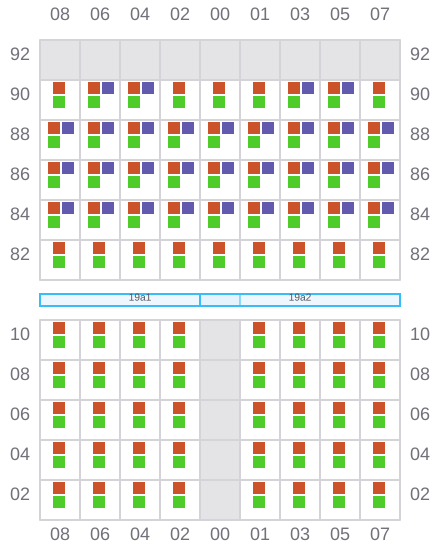

Bay 019 view and slots of MEHMET KAHVECI A

021

  • ←
  • →

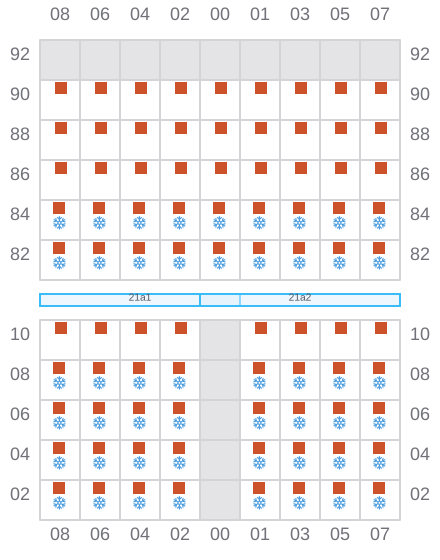

Bay 021 view and slots of MEHMET KAHVECI A

023 (024)

  • →
  • ←

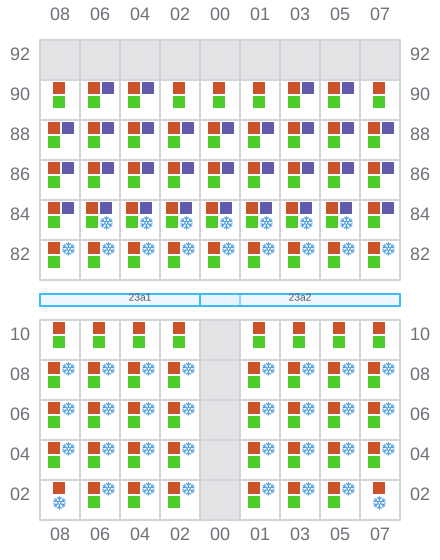

Bay 023 view and slots of MEHMET KAHVECI A

025

  • ←

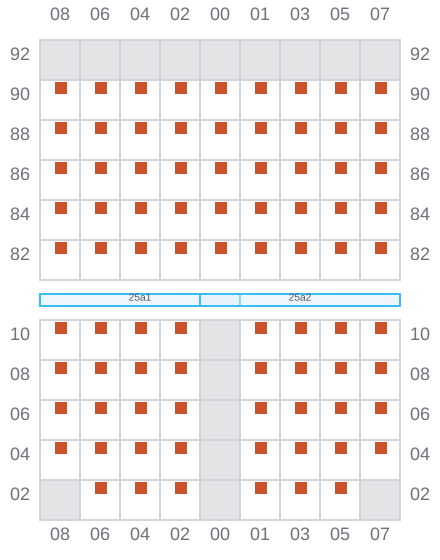

Bay 025 view and slots of MEHMET KAHVECI A

027

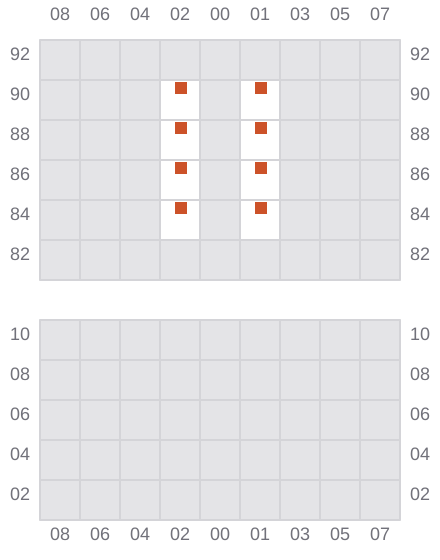

Bay 027 view and slots of MEHMET KAHVECI A

029 (030)

  • →

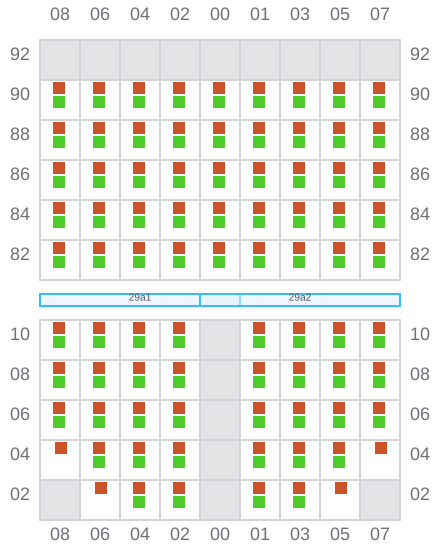

Bay 029 view and slots of MEHMET KAHVECI A

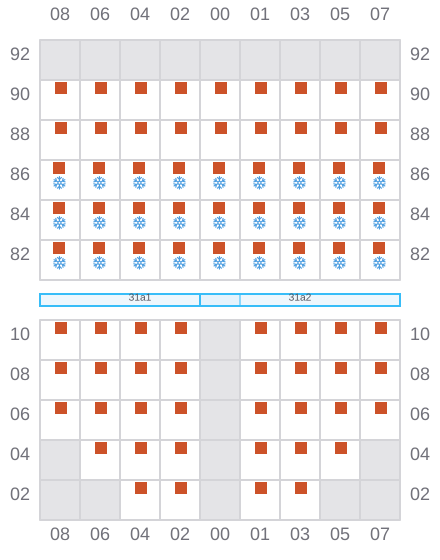

031

  • ←
  • → / ?
Bay 031 view and slots of MEHMET KAHVECI A

033 (034)

  • → / ?

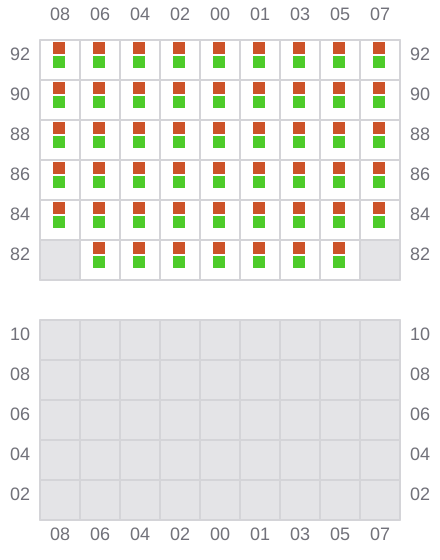

Bay 033 view and slots of MEHMET KAHVECI A

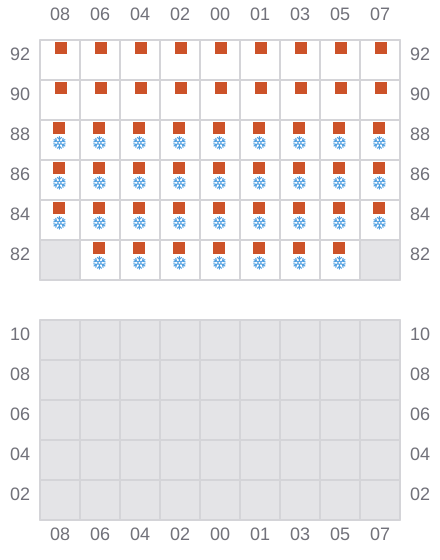

035

  • ← / ?
  • → / ?
Bay 035 view and slots of MEHMET KAHVECI A
