MELINA
9401075 | V7DE9 | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:MELINA
IMO Code:9401075
Call Sign:V7DE9
Line Operator:MSC
Class Name for Sister Ships:MEA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,374
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

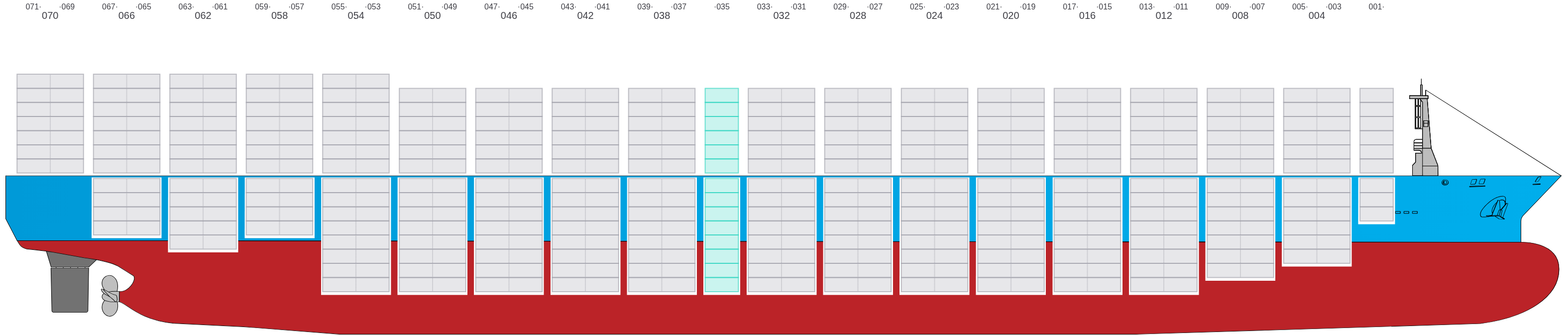

Side View
![Side view of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-sideView.png?v=1687113614537)
Hatch-Covers View
![Deck view of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-deckView.png?v=1687113614537)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

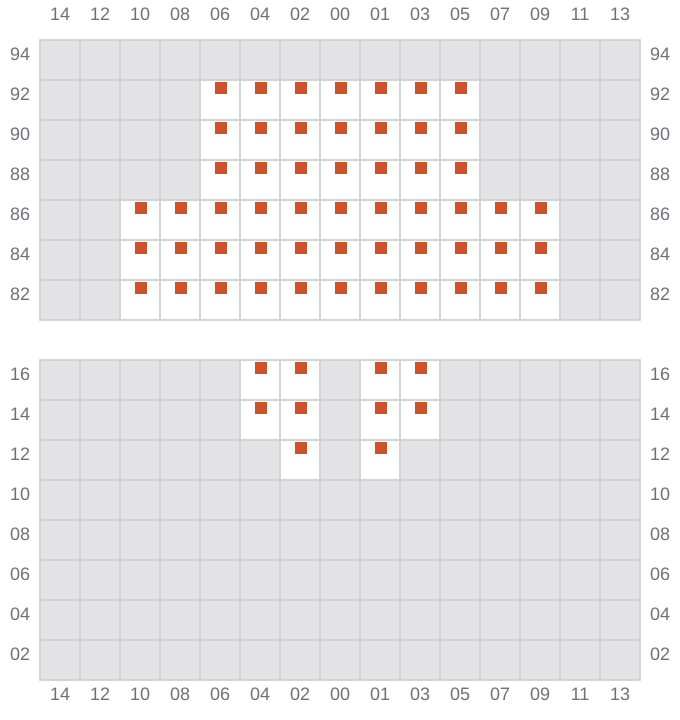

001
- ←
![Bay 001 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b001.png?v=1687113614537)

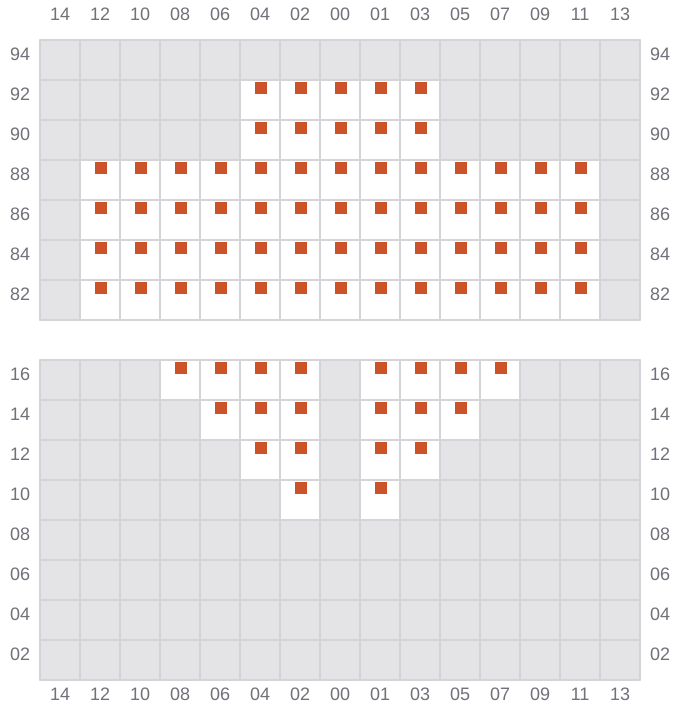

003
- →
![Bay 003 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b003.png?v=1687113614537)

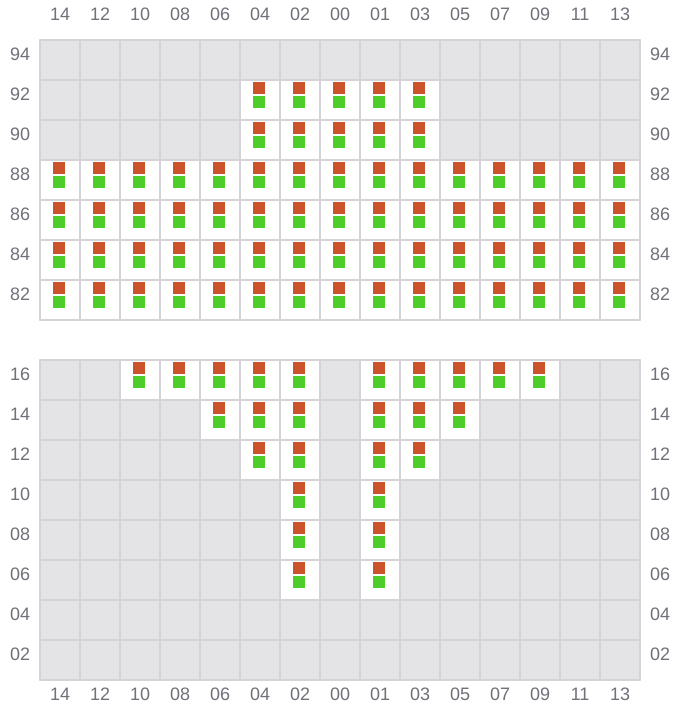

005 (004)
- ←
![Bay 005 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b005.png?v=1687113614537)

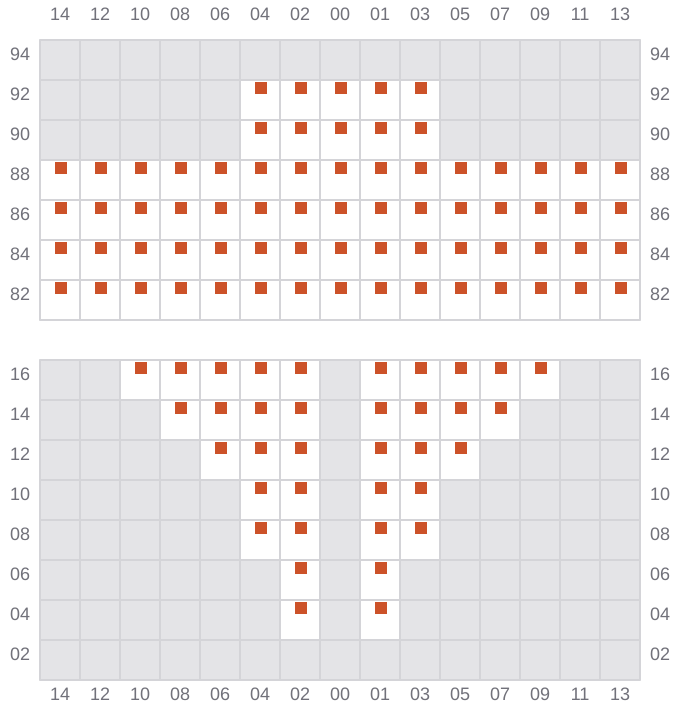

007
- →
![Bay 007 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b007.png?v=1687113614537)

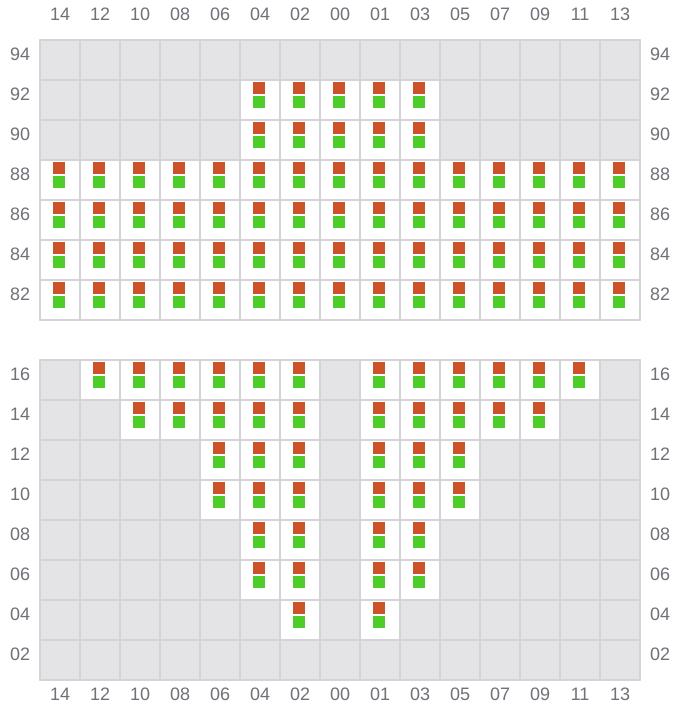

009 (008)
- ←
![Bay 009 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b009.png?v=1687113614537)

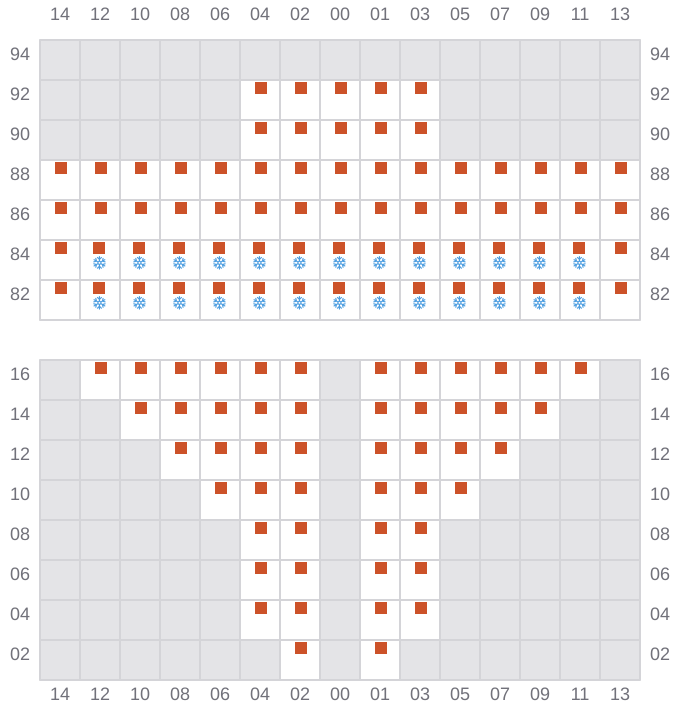

011
- →
![Bay 011 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b011.png?v=1687113614537)

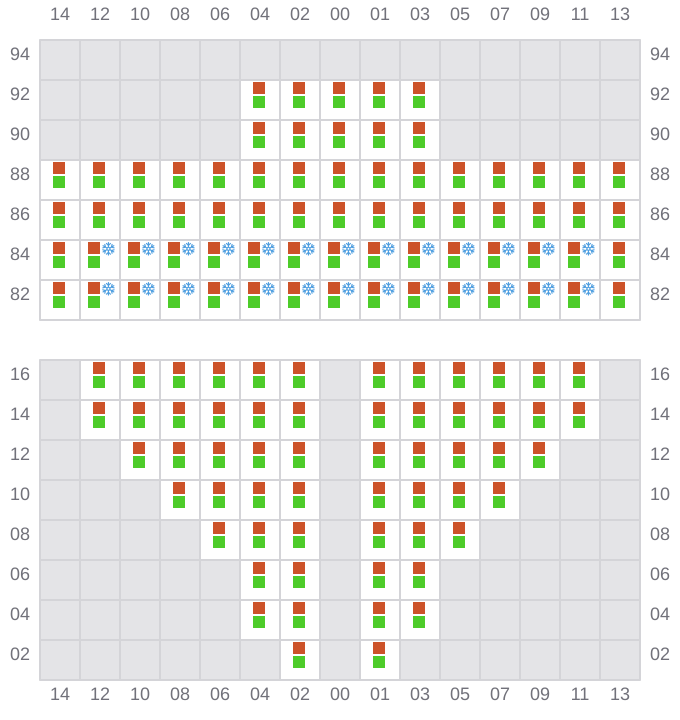

013 (012)
- ←
![Bay 013 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b013.png?v=1687113614537)

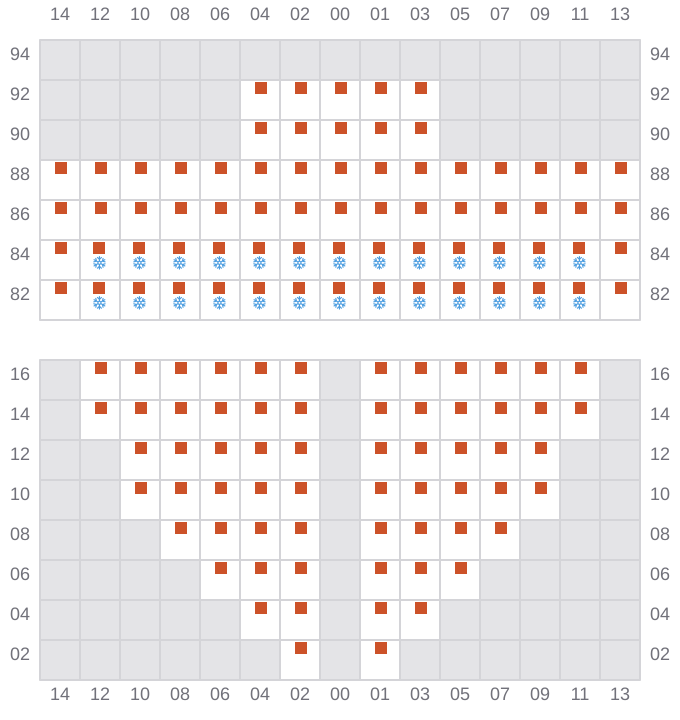

015
- →
![Bay 015 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b015.png?v=1687113614537)

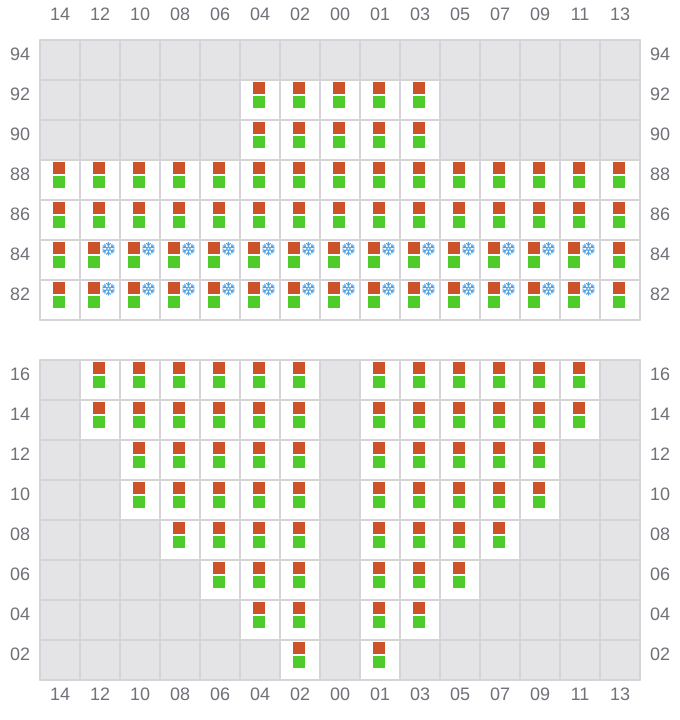

017 (016)
- ←
![Bay 017 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b017.png?v=1687113614537)

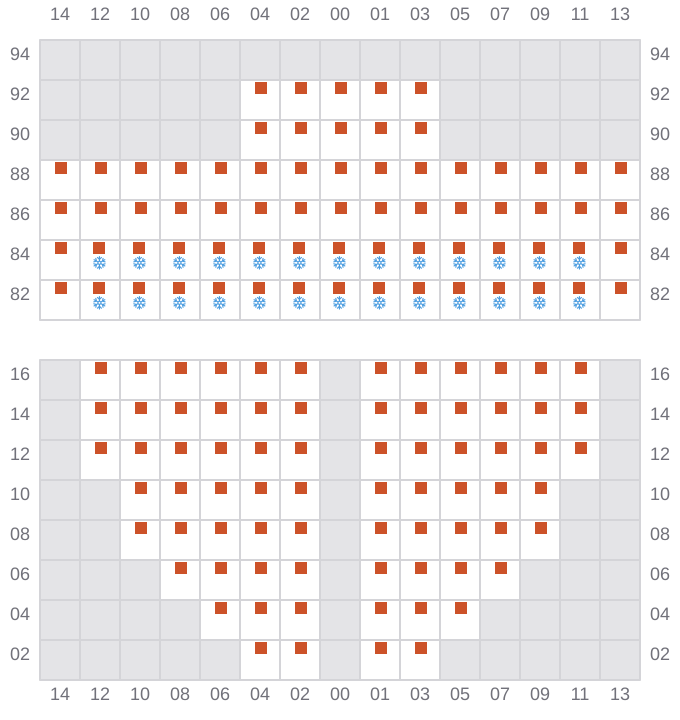

019
- →
![Bay 019 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b019.png?v=1687113614537)

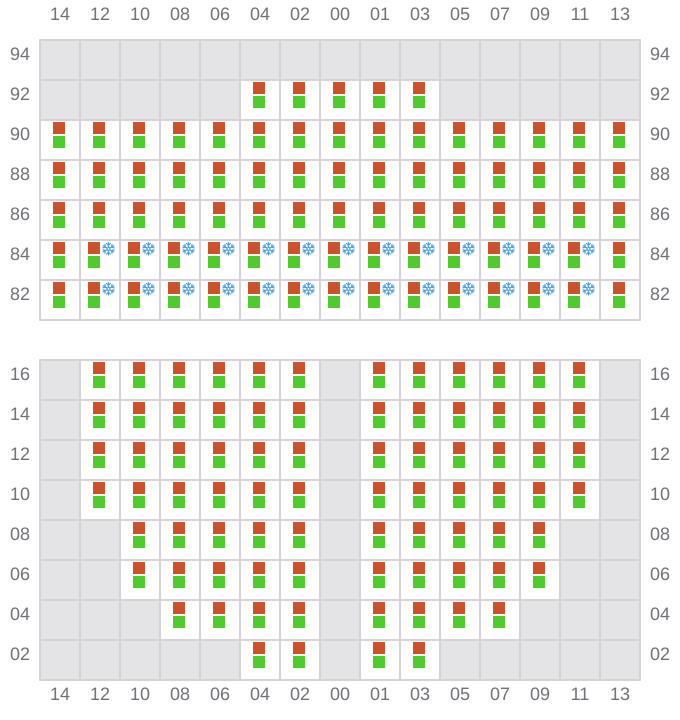

021 (020)
- ←
![Bay 021 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b021.png?v=1687113614537)

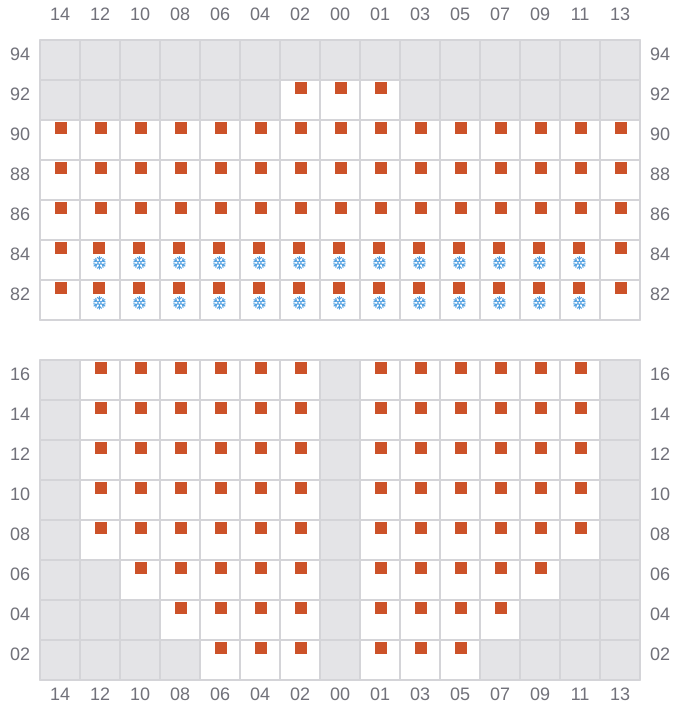

023
- →
![Bay 023 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b023.png?v=1687113614537)

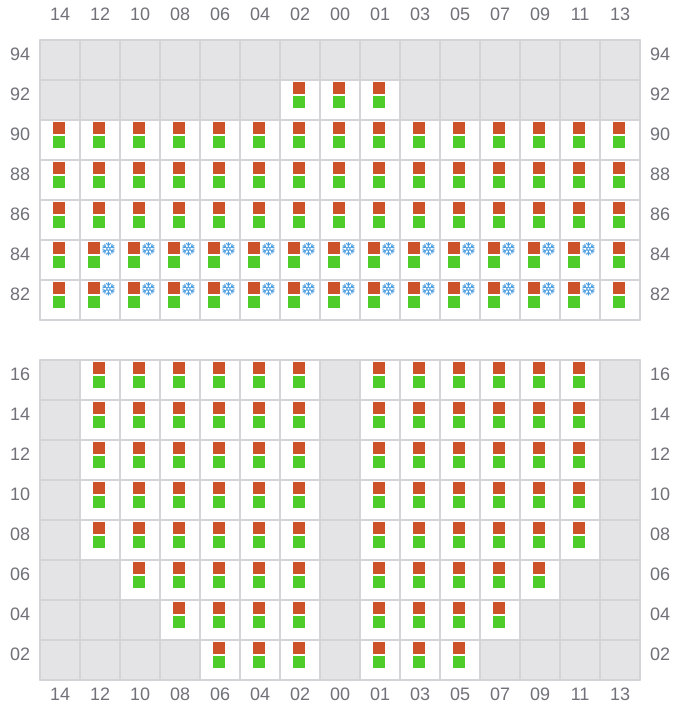

025 (024)
- ←
![Bay 025 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b025.png?v=1687113614537)

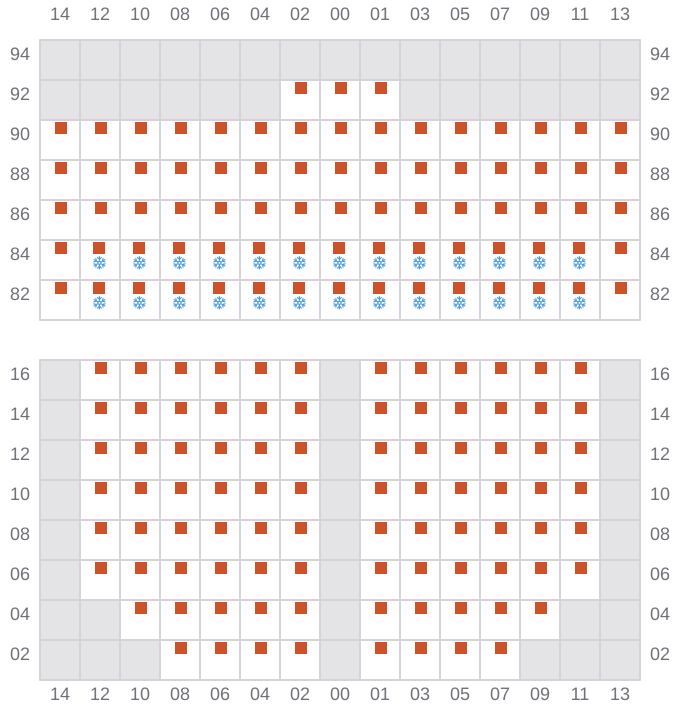

027
- →
![Bay 027 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b027.png?v=1687113614537)

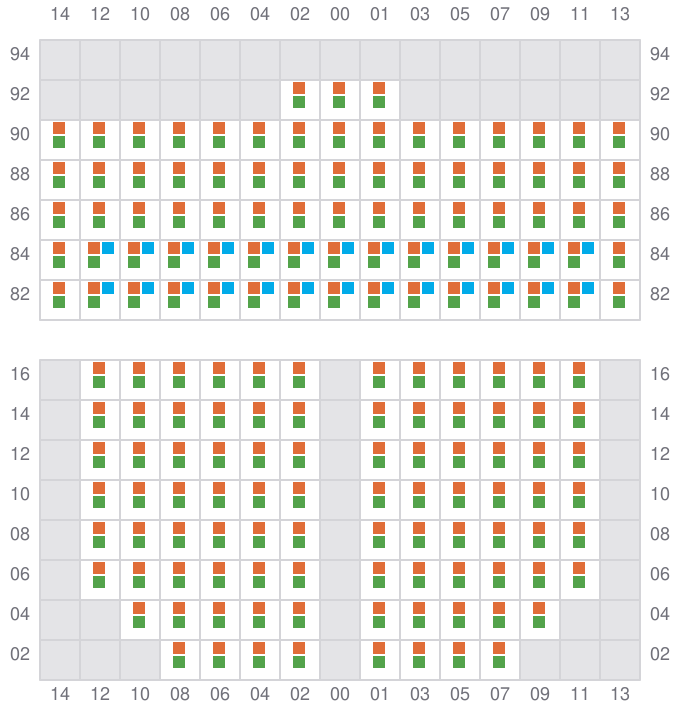

029 (028)
- ←
![Bay 029 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b029.png?v=1687113614537)

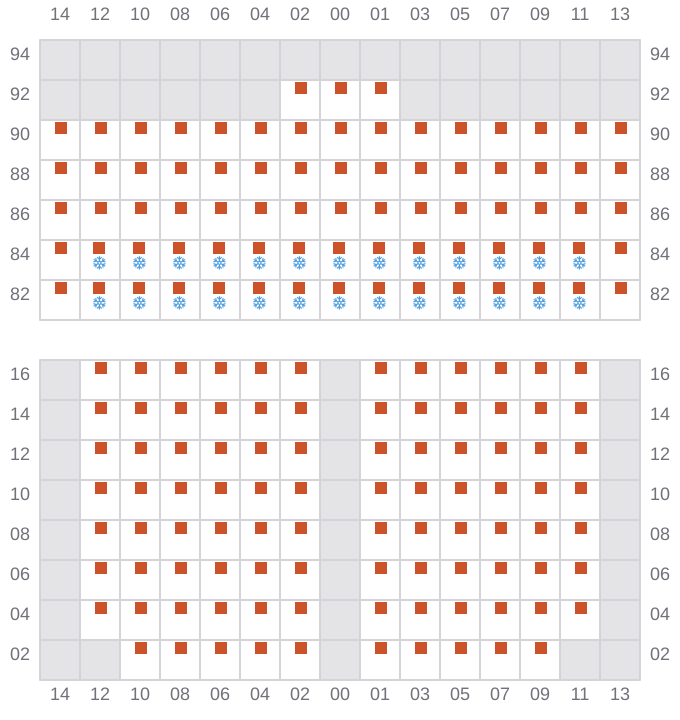

031
- →
![Bay 031 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b031.png?v=1687113614537)
033 (032)
- ←
![Bay 033 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b033.png?v=1687113614537)

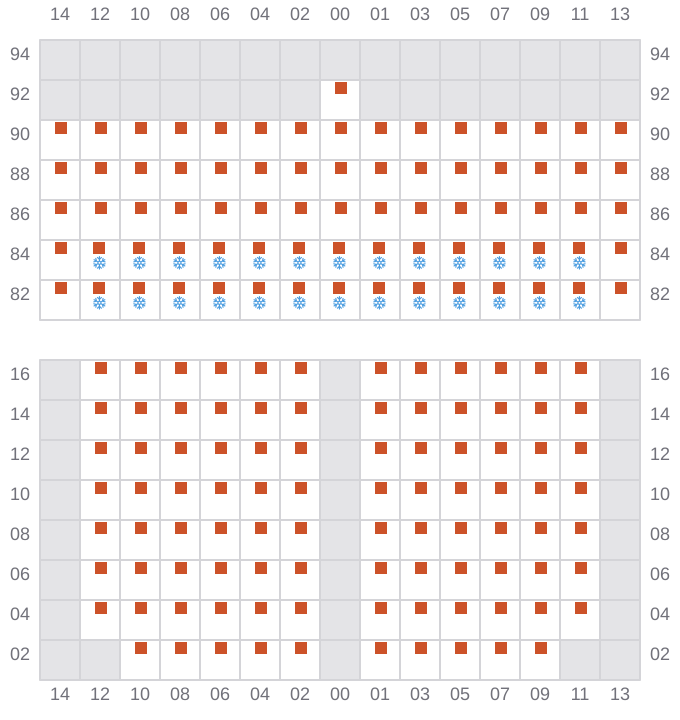

035
- →
![Bay 035 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b035.png?v=1687113614537)

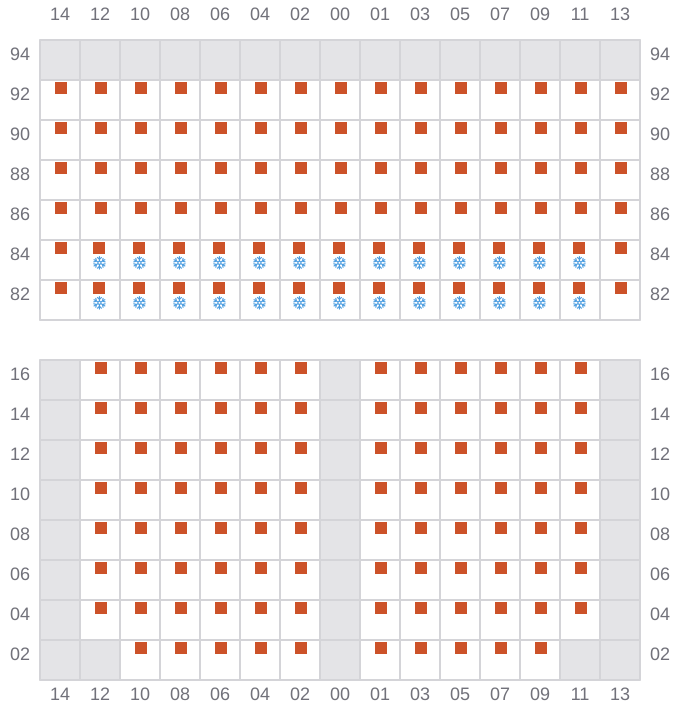

037
- →
![Bay 037 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b037.png?v=1687113614537)

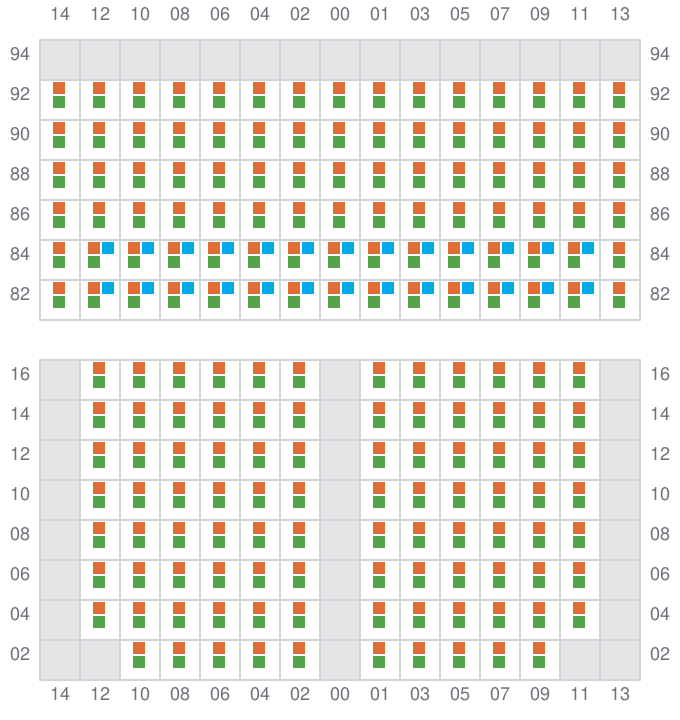

039 (038)
- ←
![Bay 039 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b039.png?v=1687113614537)
041
- →
![Bay 041 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b041.png?v=1687113614537)

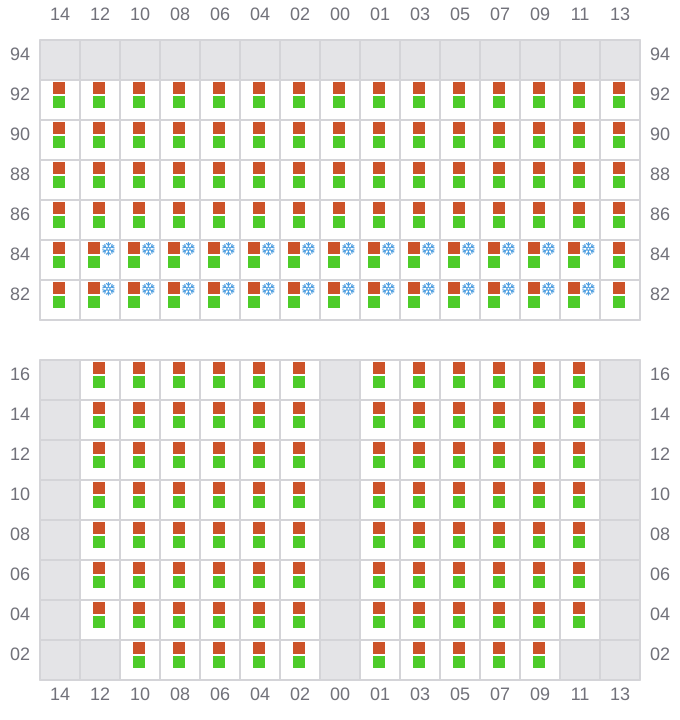

043 (042)
- ←
![Bay 043 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b043.png?v=1687113614537)
045
- →
![Bay 045 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b045.png?v=1687113614537)
047 (046)
- ←
![Bay 047 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b047.png?v=1687113614537)

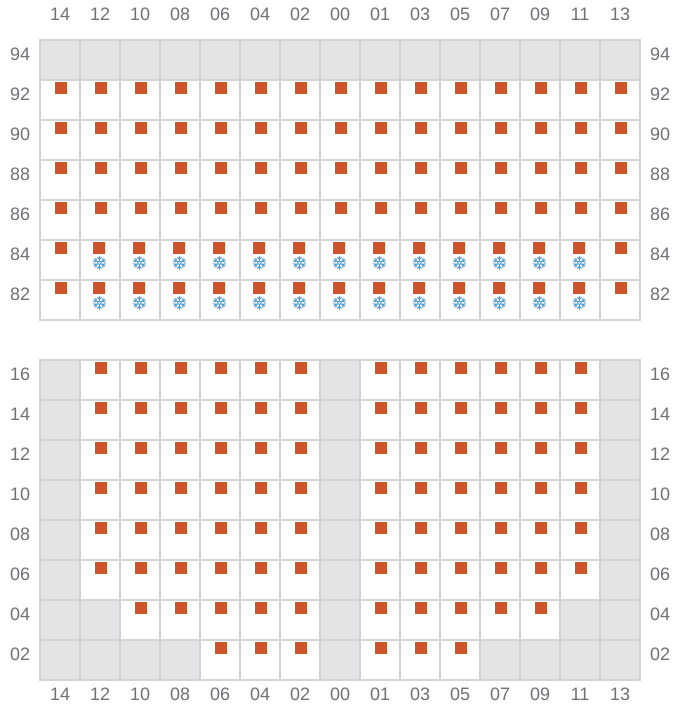

049
- →
![Bay 049 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b049.png?v=1687113614537)

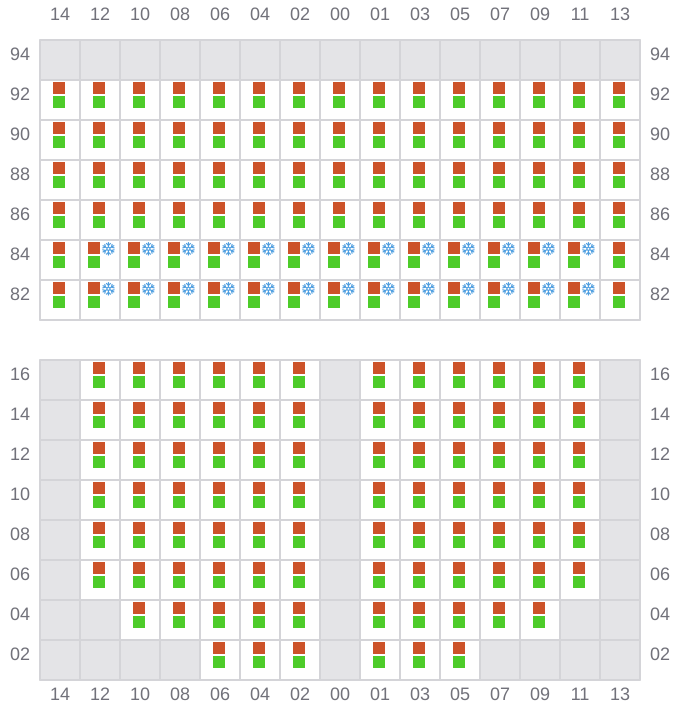

051 (050)
- ←
![Bay 051 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b051.png?v=1687113614537)

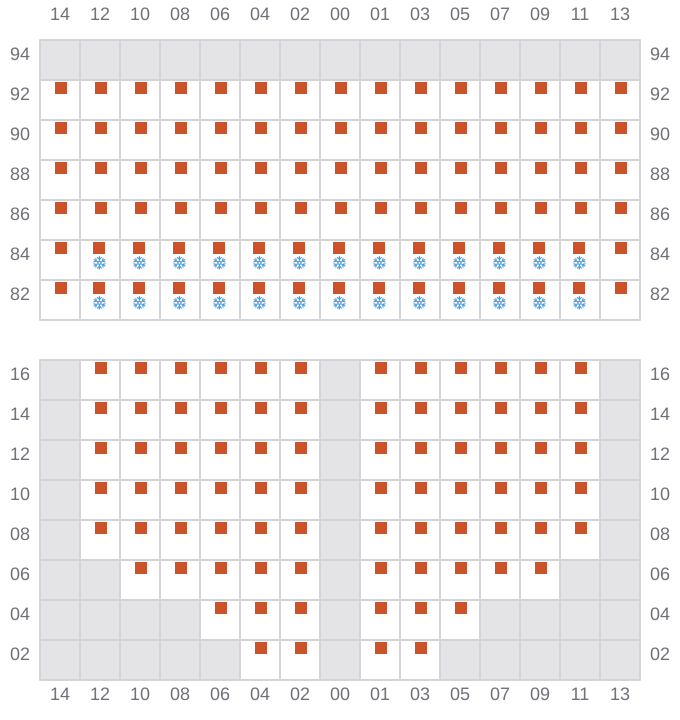

053
- →
![Bay 053 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b053.png?v=1687113614537)
055 (054)
- ←
![Bay 055 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b055.png?v=1687113614537)

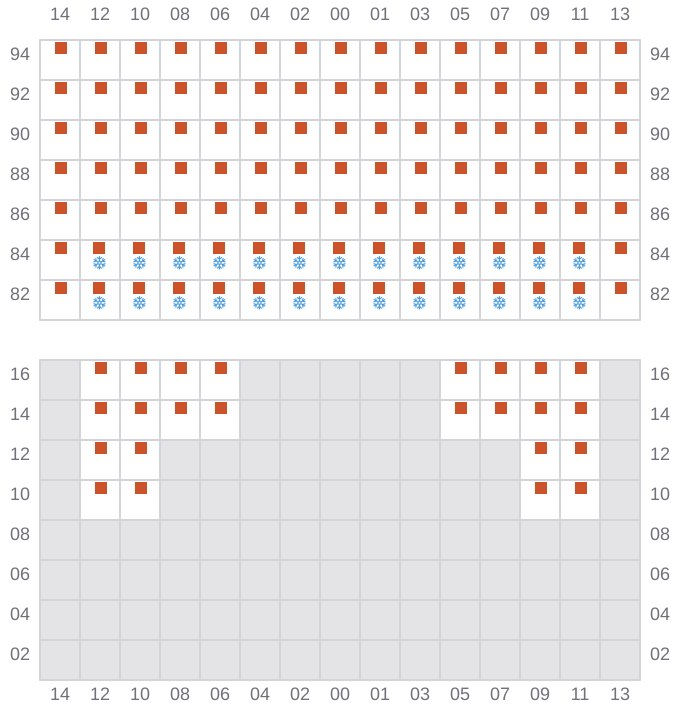

057
- →
![Bay 057 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b057.png?v=1687113614537)
059 (058)
- ←
![Bay 059 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b059.png?v=1687113614537)

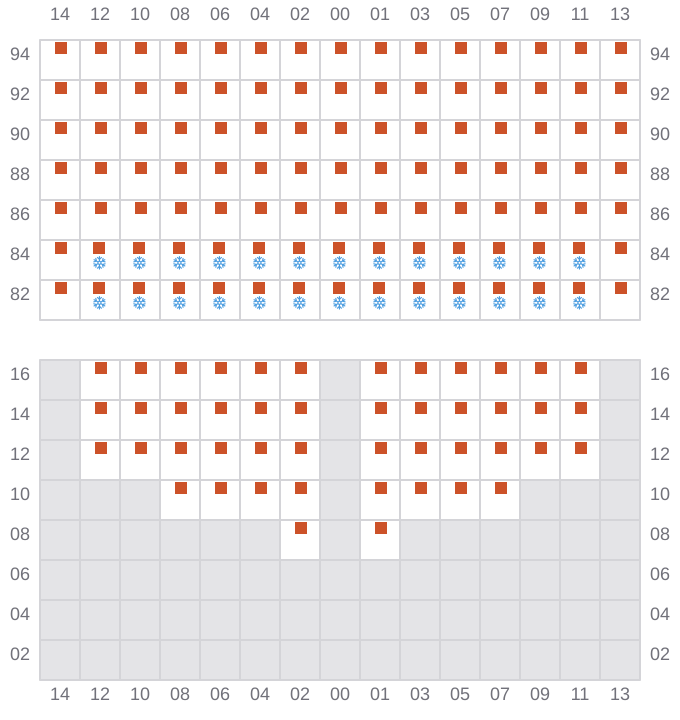

061
- →
![Bay 061 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b061.png?v=1687113614537)

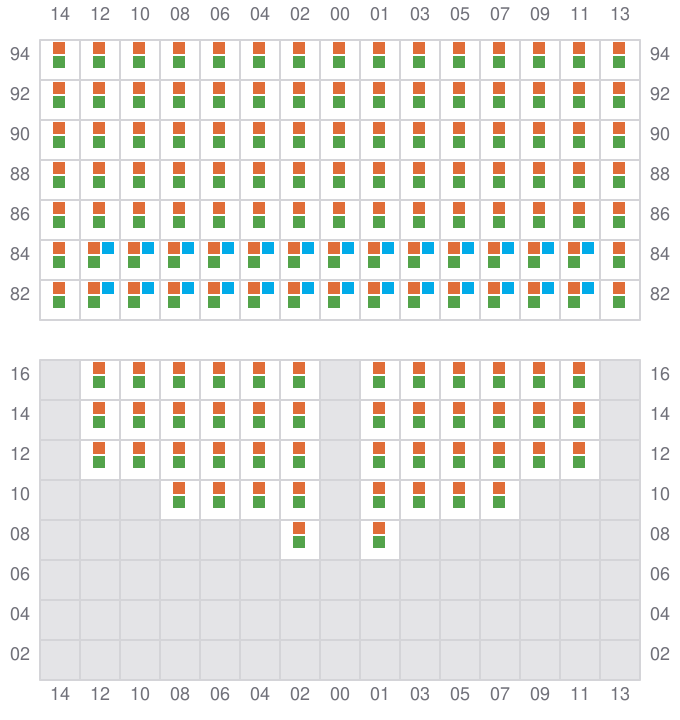

063 (062)
- ←
![Bay 063 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b063.png?v=1687113614537)

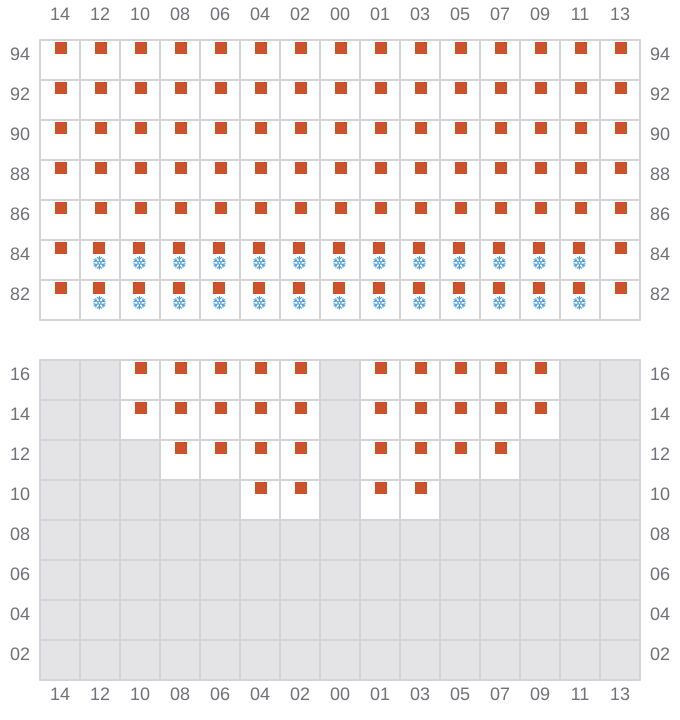

065
- →
![Bay 065 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b065.png?v=1687113614537)

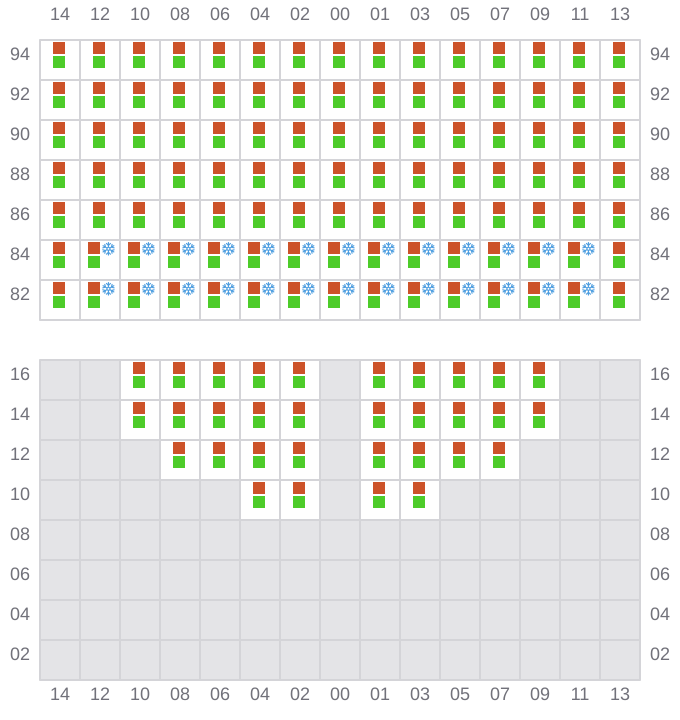

067 (066)
- ←
![Bay 067 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b067.png?v=1687113614537)

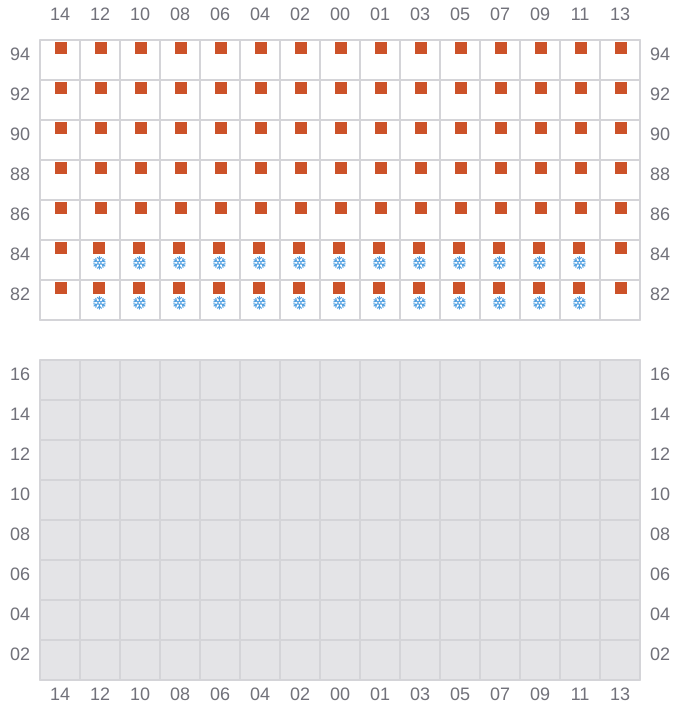

069
- → / ?
![Bay 069 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b069.png?v=1687113614537)

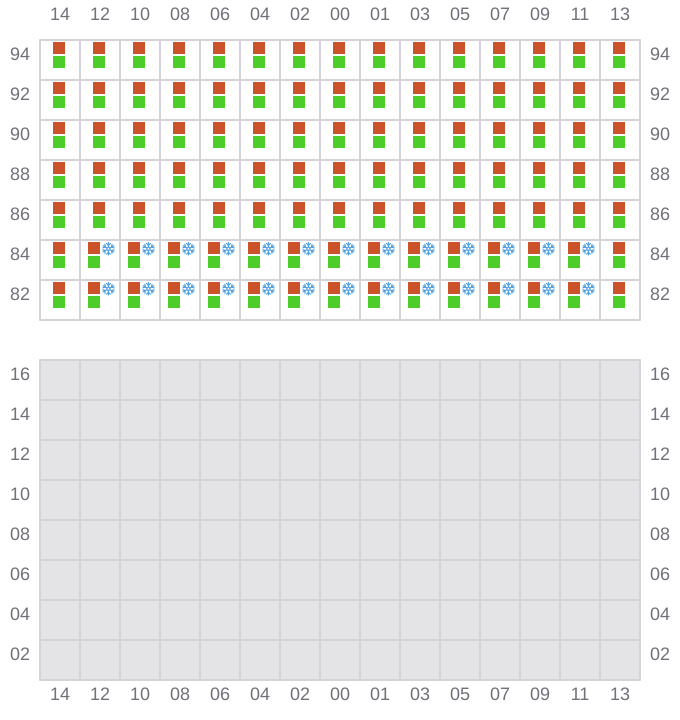

071 (070)
- ← / ?
![Bay 071 view and slots of MELINA](/vessel-images/bdc43332-c532-44df-99c8-9c16508276cf-b071.png?v=1687113614537)
